RAB R34X-4 4 in Round Smooth Retrofit LED Downlight — 7/6/5W / Selectable CCT & Lumen / 120V / White

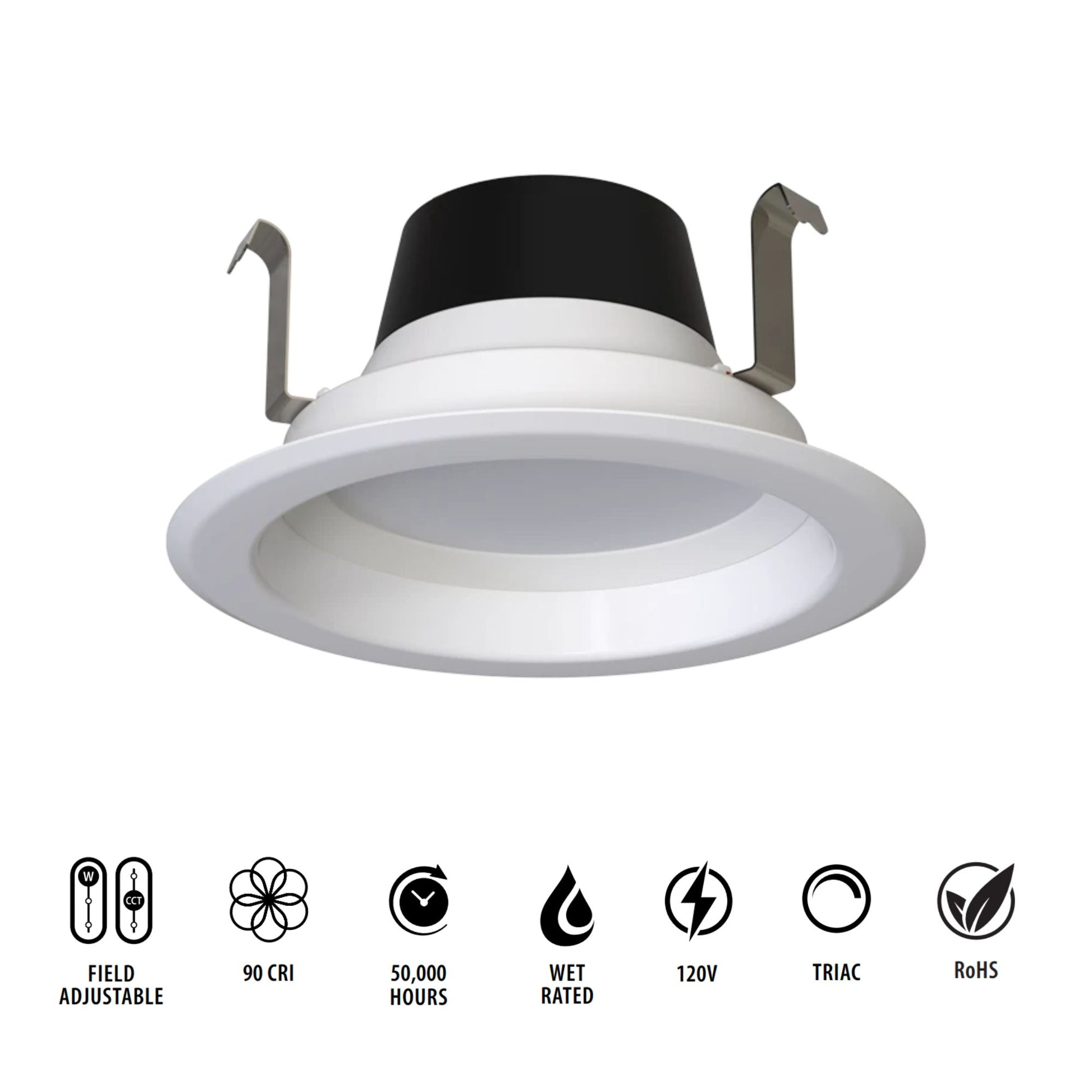

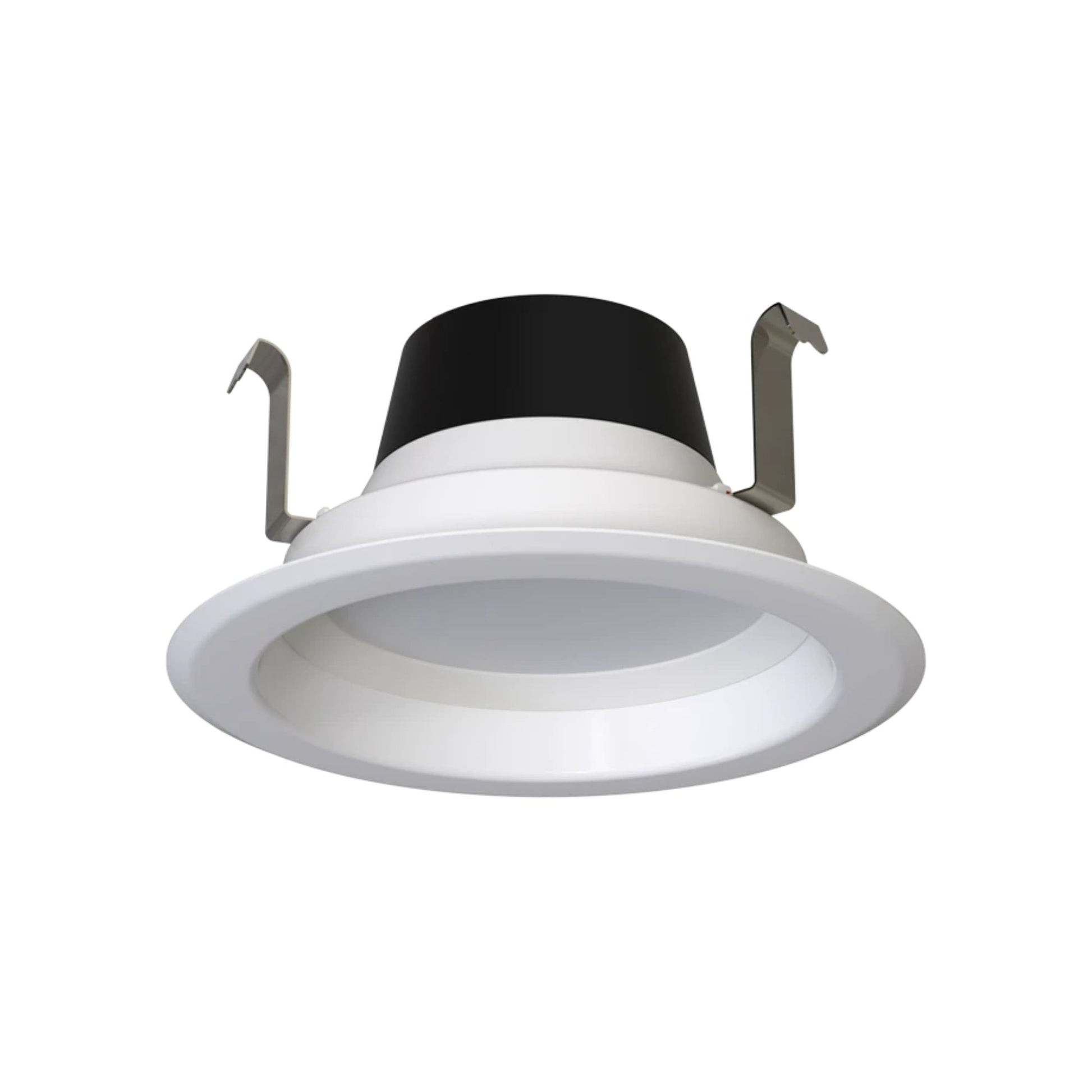

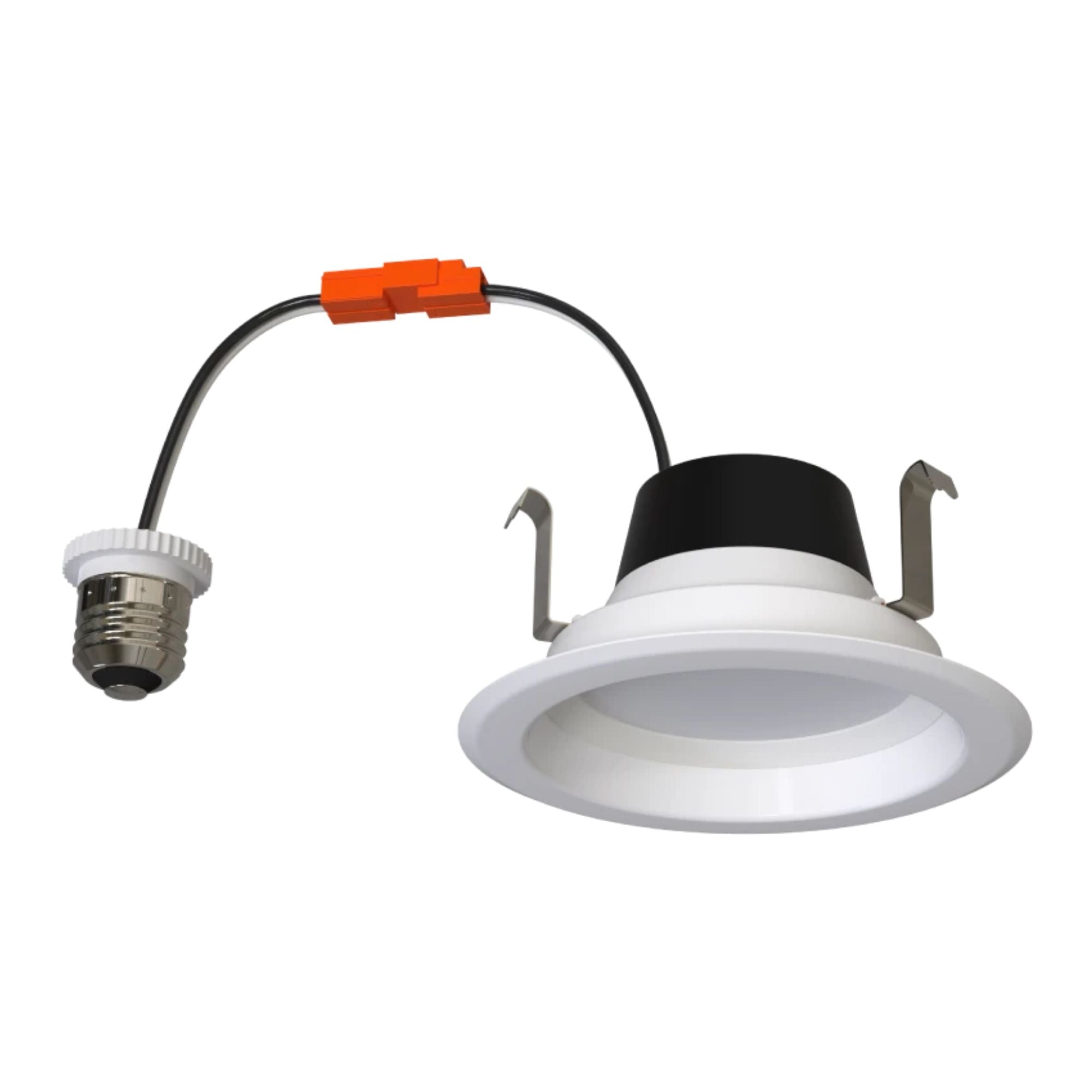

The RAB R34X-4 is a 4 in round smooth retrofit LED downlight in white with a clear lens, delivering 700/600/500 lumens at 7/6/5W and 100 lm/W with an 85° wide flood beam angle. Both brightness and CCT are independently field-selectable via integrated dip switches. The smooth trim provides a clean, minimal ceiling appearance compared to the baffle RAB R34X-4B. Requires an existing 4 in recessed housing — E26 base adapter included.

Key Features

• 4 in Round Smooth — White: Metal enclosure; clear lens; single optic full-face lens for precise beam angle control
• Requires Existing 4 in Housing: E26 base adapter included; friction clips & torsion springs; compatible with most standard recessed housings
• 85° Wide Flood Beam Angle (±10°): Smooth, uniform light distribution for general illumination

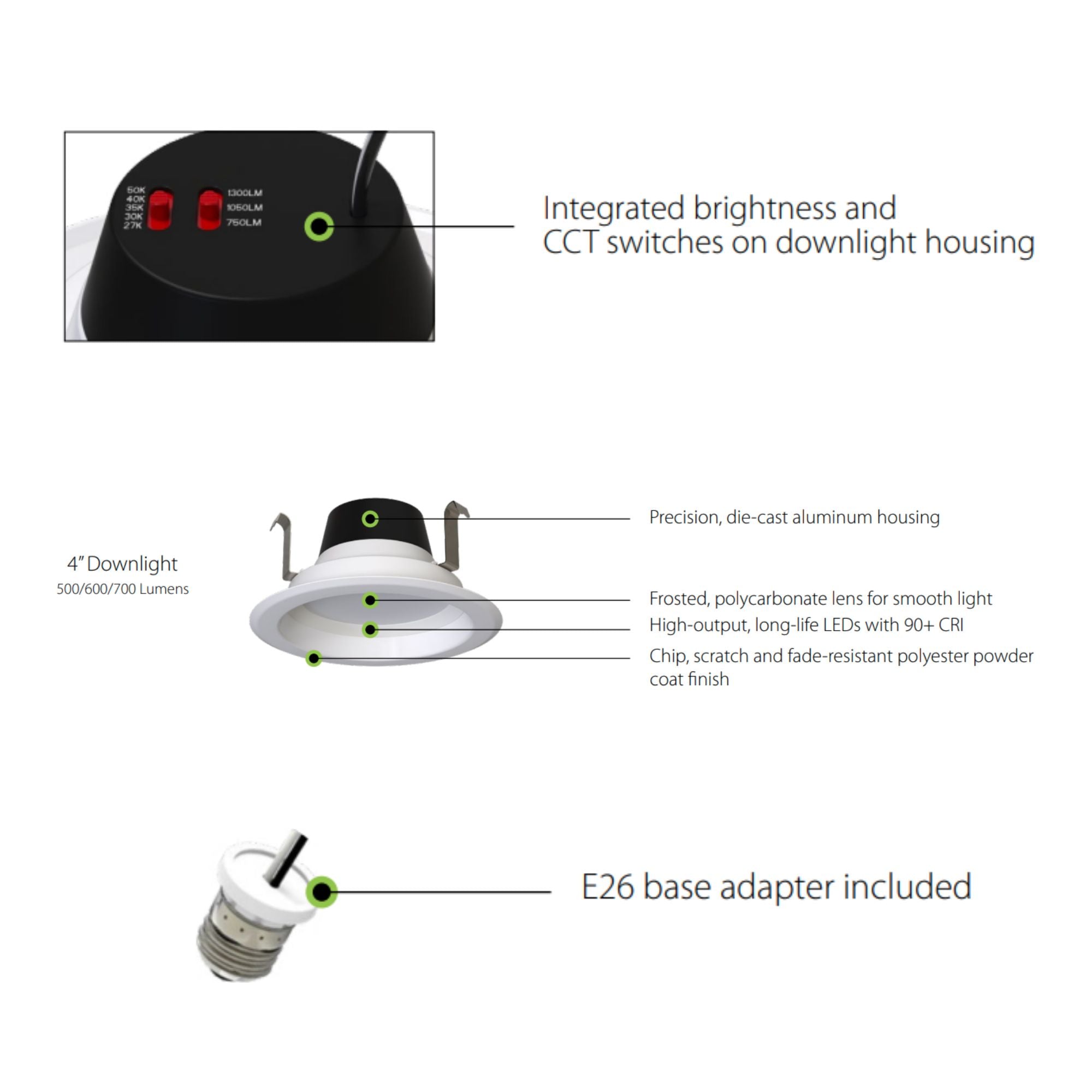

• Dual-Selectable Brightness: 700 lm (7W) | 600 lm (6W) | 500 lm (5W) via integrated dip switch; 60W/50W/40W incandescent equivalent
• Field-Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K via integrated dip switch (default: 3000K)
• Efficacy: 100 lm/W | CRI: 90+, R9 ≥ 50 | 4-step MacAdam Ellipse
• Dimming: TRIAC/ELV dimmable to 0% at 120V
• Voltage: 120V | 70mA (0.07A)
• Wet location rated — suitable for showers and covered outdoor locations
• Note: IC Rated and Air Tight ratings apply to the recessed housing, not the trim. Verify housing IC/AT rating for your installation.
• Certifications: UL Classified | UL Recognized | ENERGY STAR Certified | Title 20 Compliant | Title 24 JA8 | RoHS | FCC Part 15 | NEC closet compliant
• Color Stability: Color temperature warranted to shift no more than 200K over 5 years
• Lifespan: 50,000 hours L70 | Warranty: 5-year no-compromise warranty

Construction & Design

Metal enclosure in white finish. Clear lens — single optic full-face lens for precise beam angle control and smooth, uniform light distribution. Constant Current driver, 120V, 70mA. Operating temp: -4°F to 104°F (-20°C to 40°C). THD ≤20%, PF ≥0.9. Weight: 0.4 lbs.

Compatible Accessories

• RAB Housings: RDCANIC4R (4 in remodeler) | NDCANIC4R (4 in new construction)
• RFLED-GOOF-4R-6R-W — 4 in–6 in goof ring white
• 4 in color trim overlays — available in smooth and baffle styles; brushed nickel, bronze, and black finishes sold separately

What’s Included

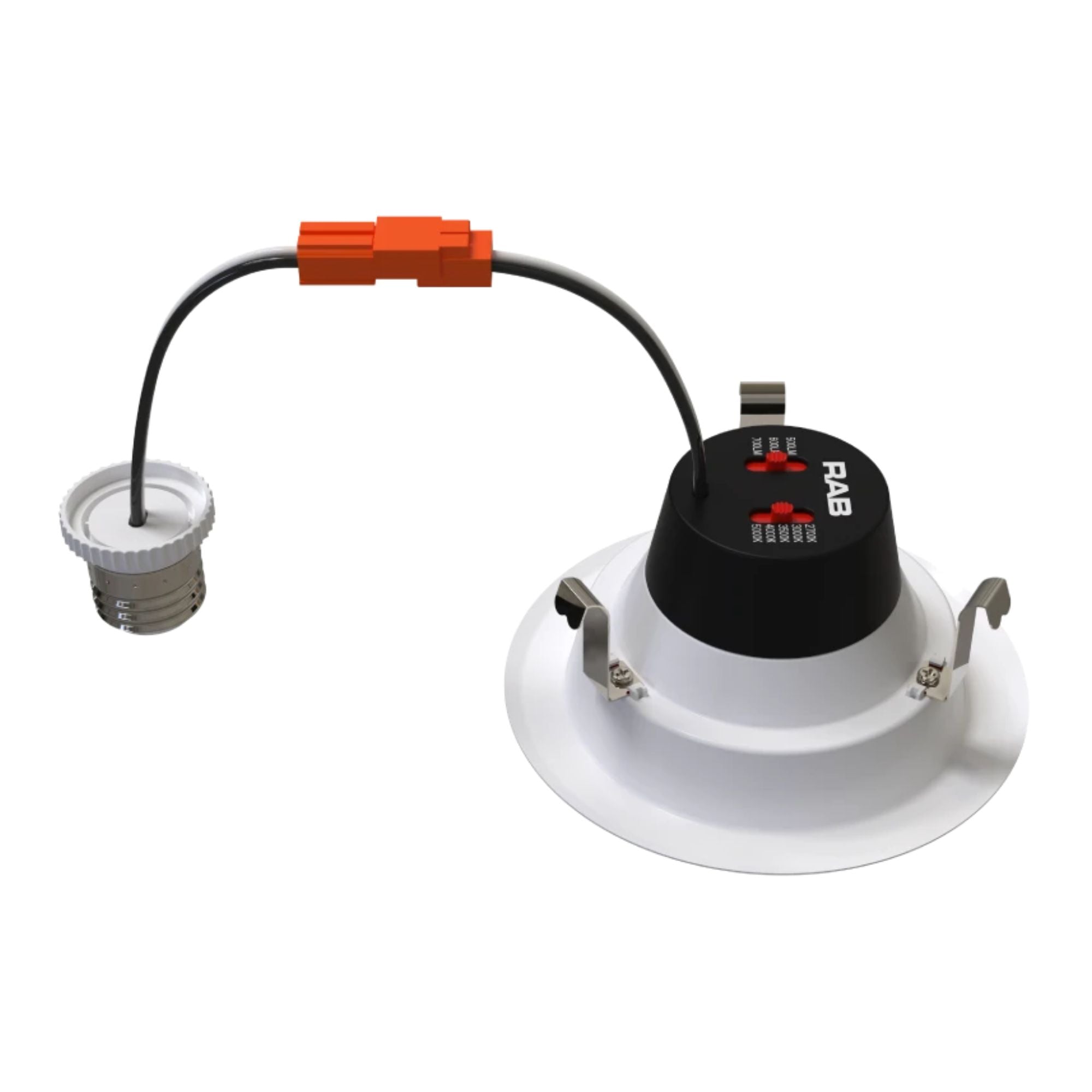

• RAB R34X-4 4 in round smooth retrofit LED downlight (white)
• E26 base adapter

Typical Applications

• Retrofit upgrade of existing 4 in recessed housings

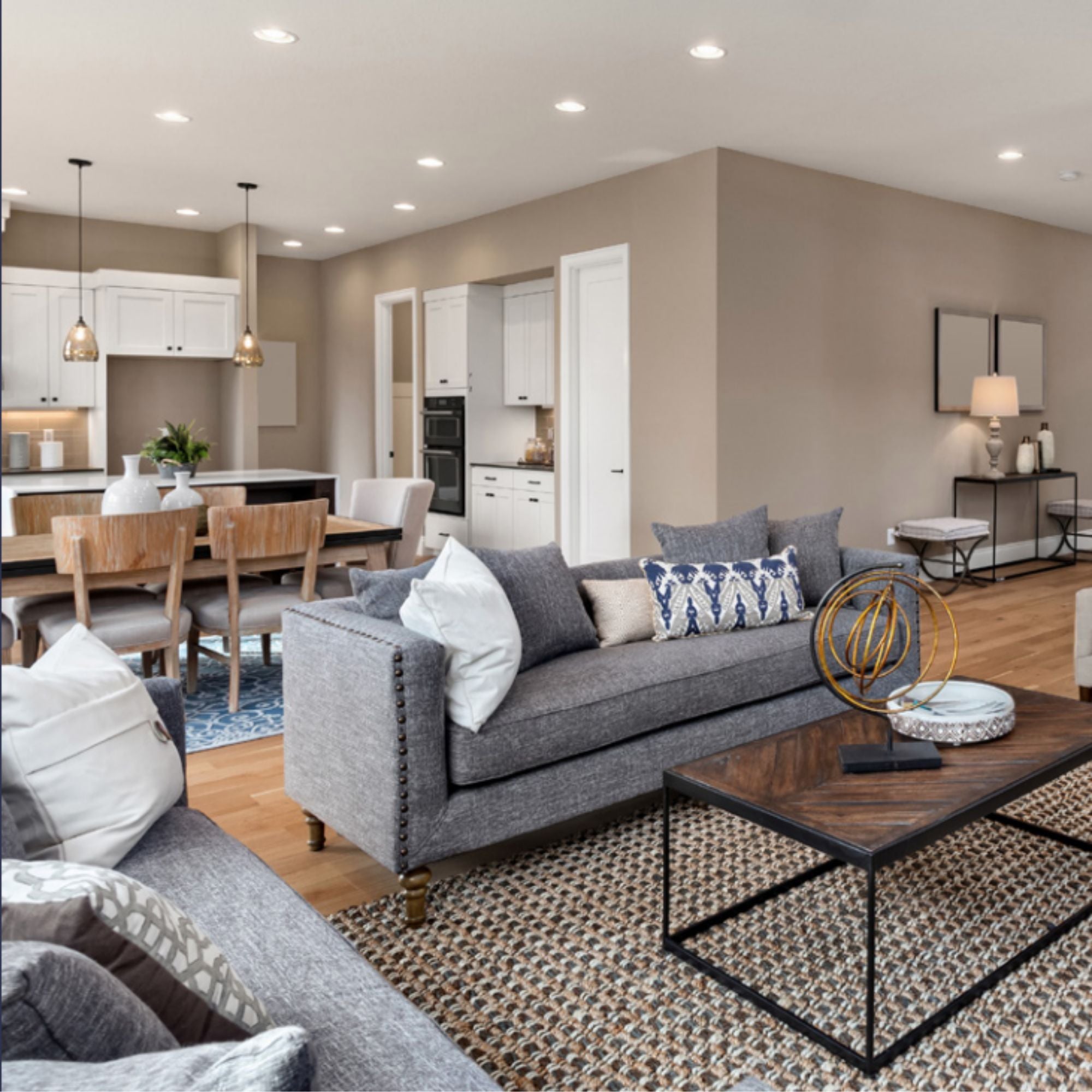

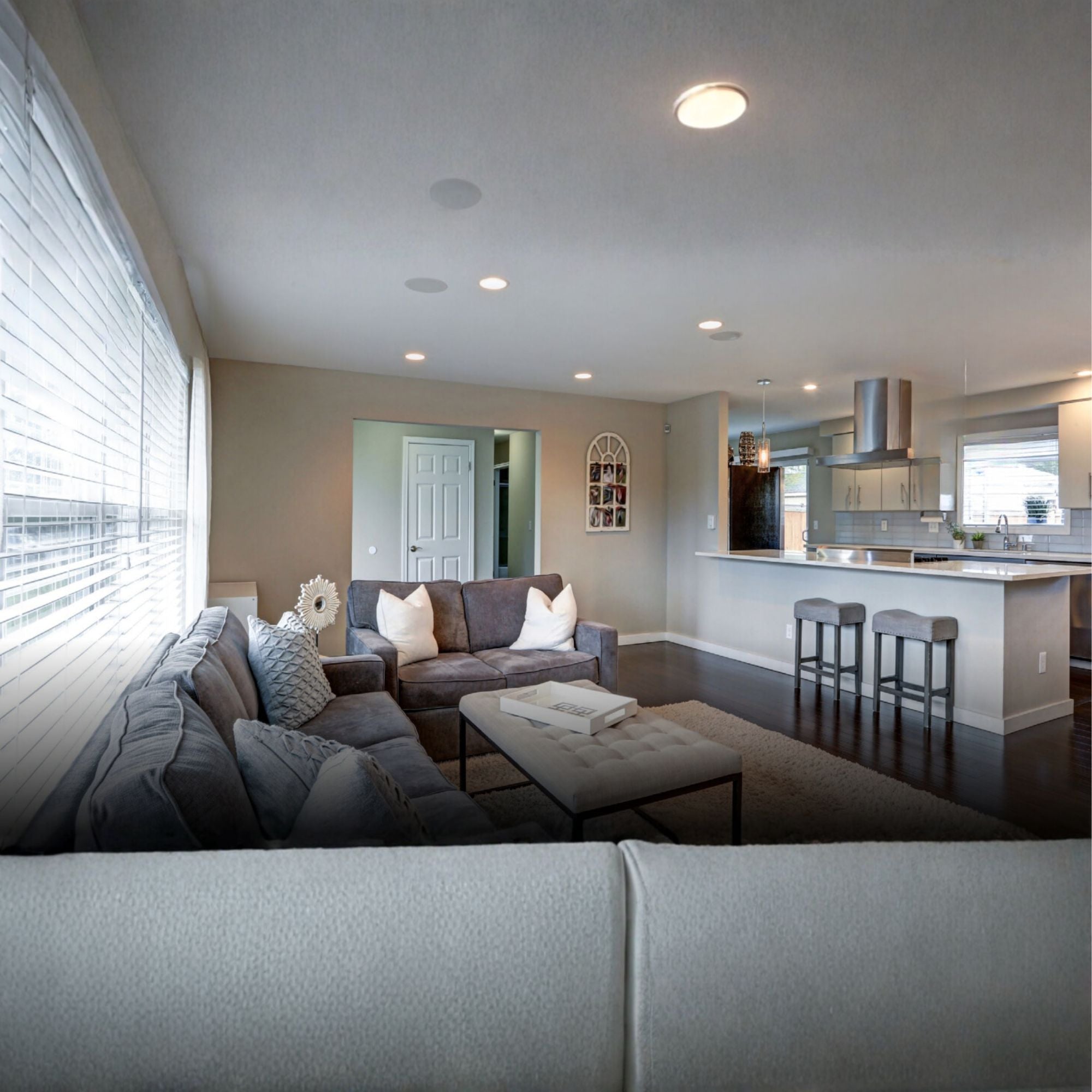

• General and ambient lighting in living rooms, bedrooms, kitchens, and hallways
• Showers, bathrooms, and covered outdoor locations
• Projects requiring Title 20 and Title 24 JA8 compliance
