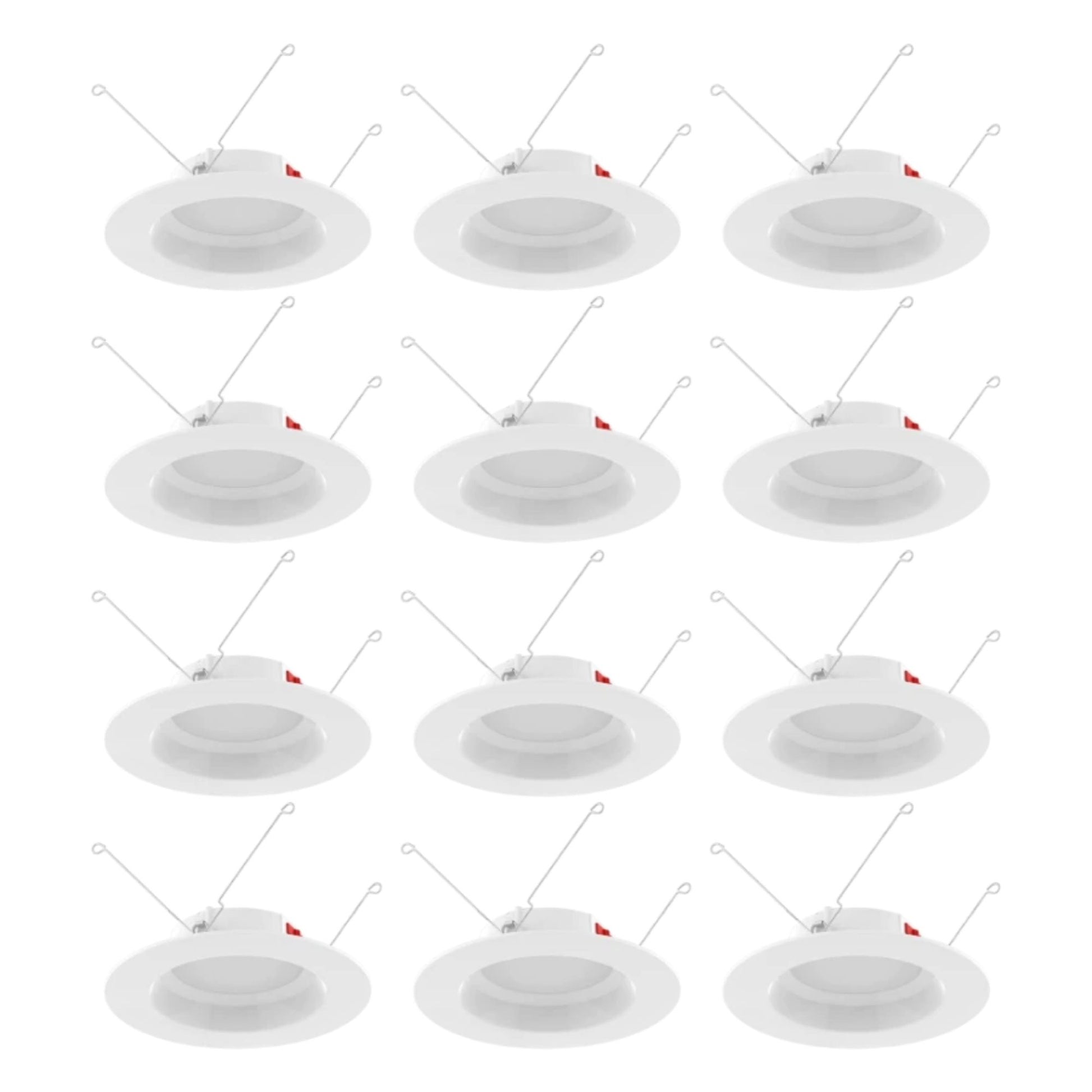

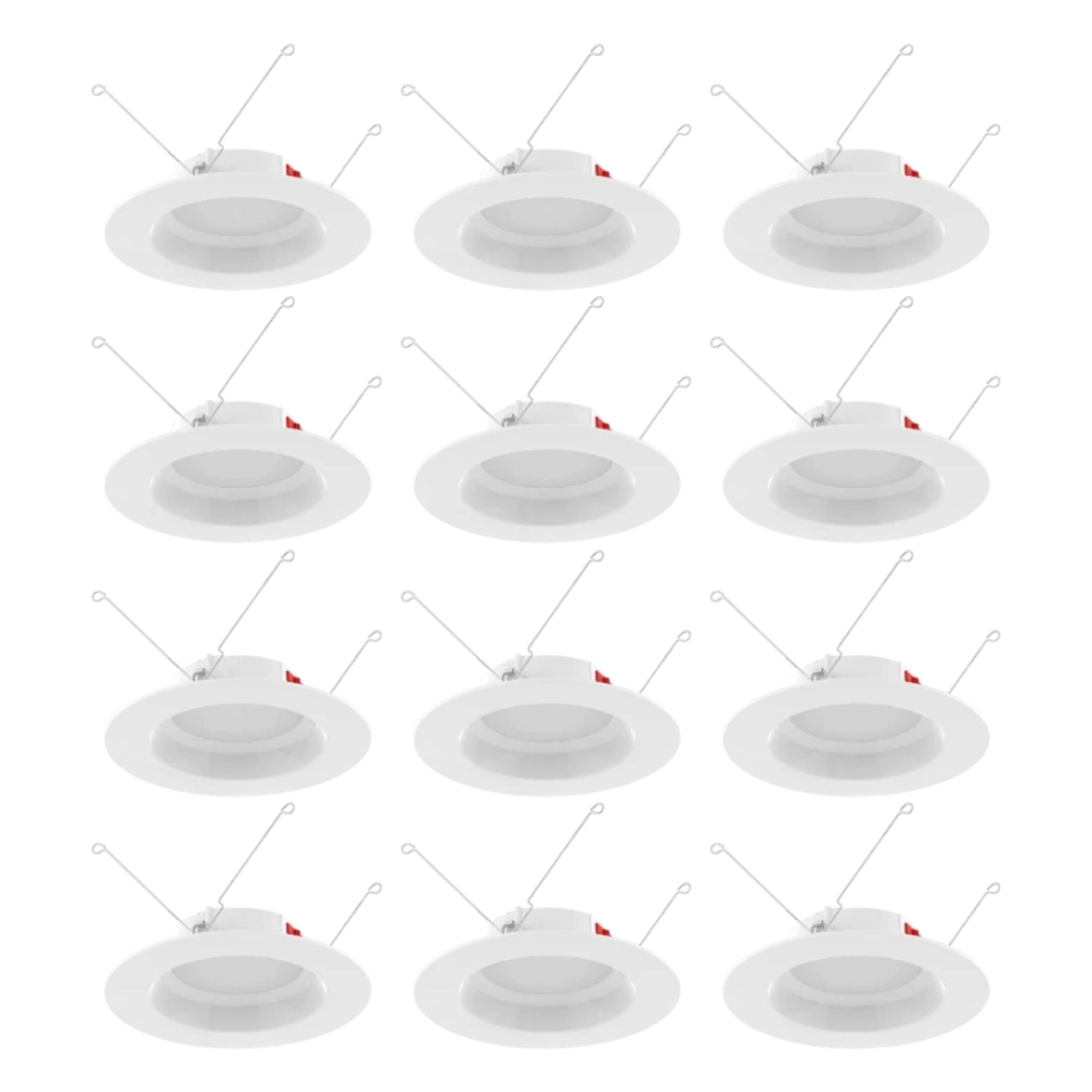

RAB R34-6/BP 6 in Round Smooth Retrofit Downlight — 10W / 900 lm / Selectable CCT / 120V / White / 12-Pack

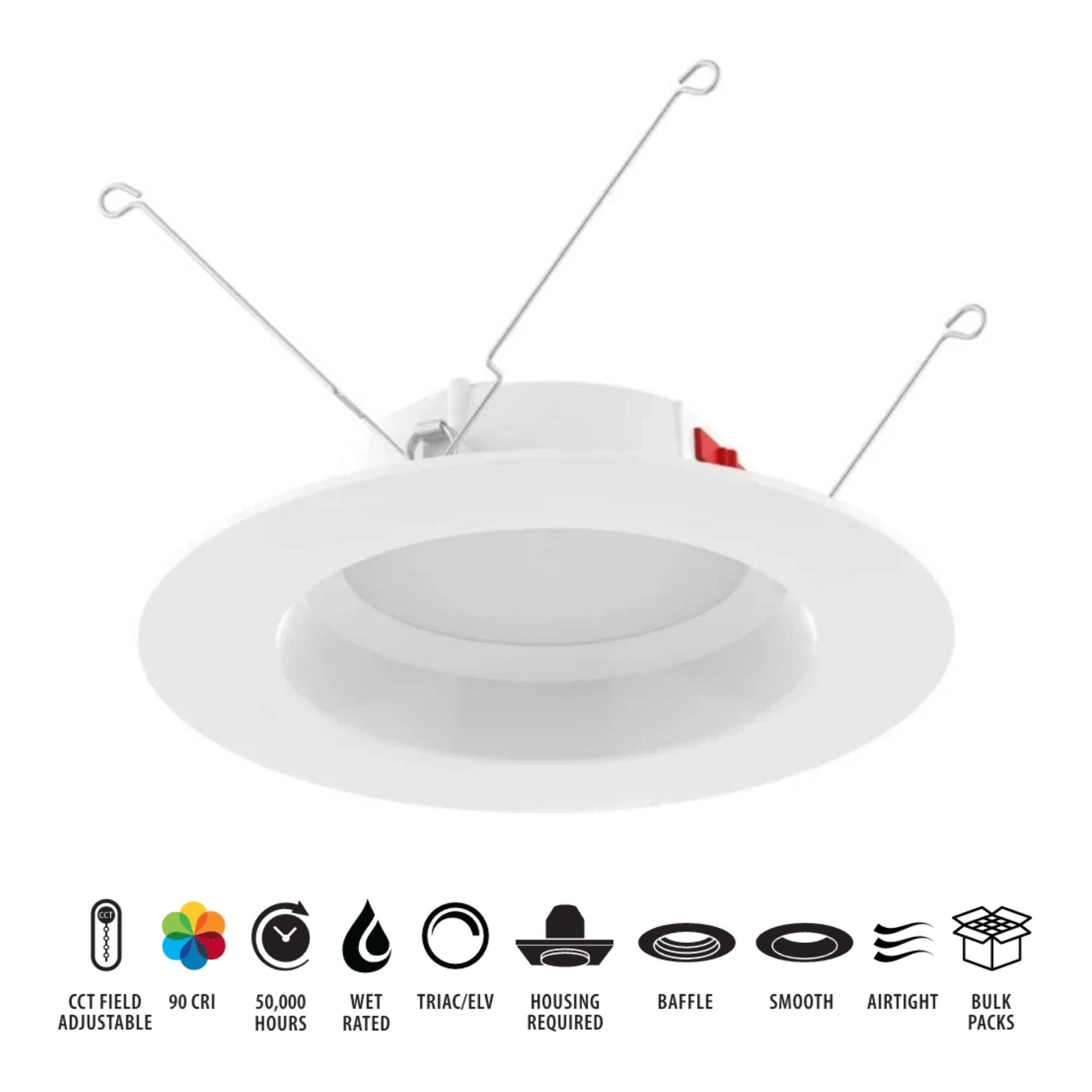

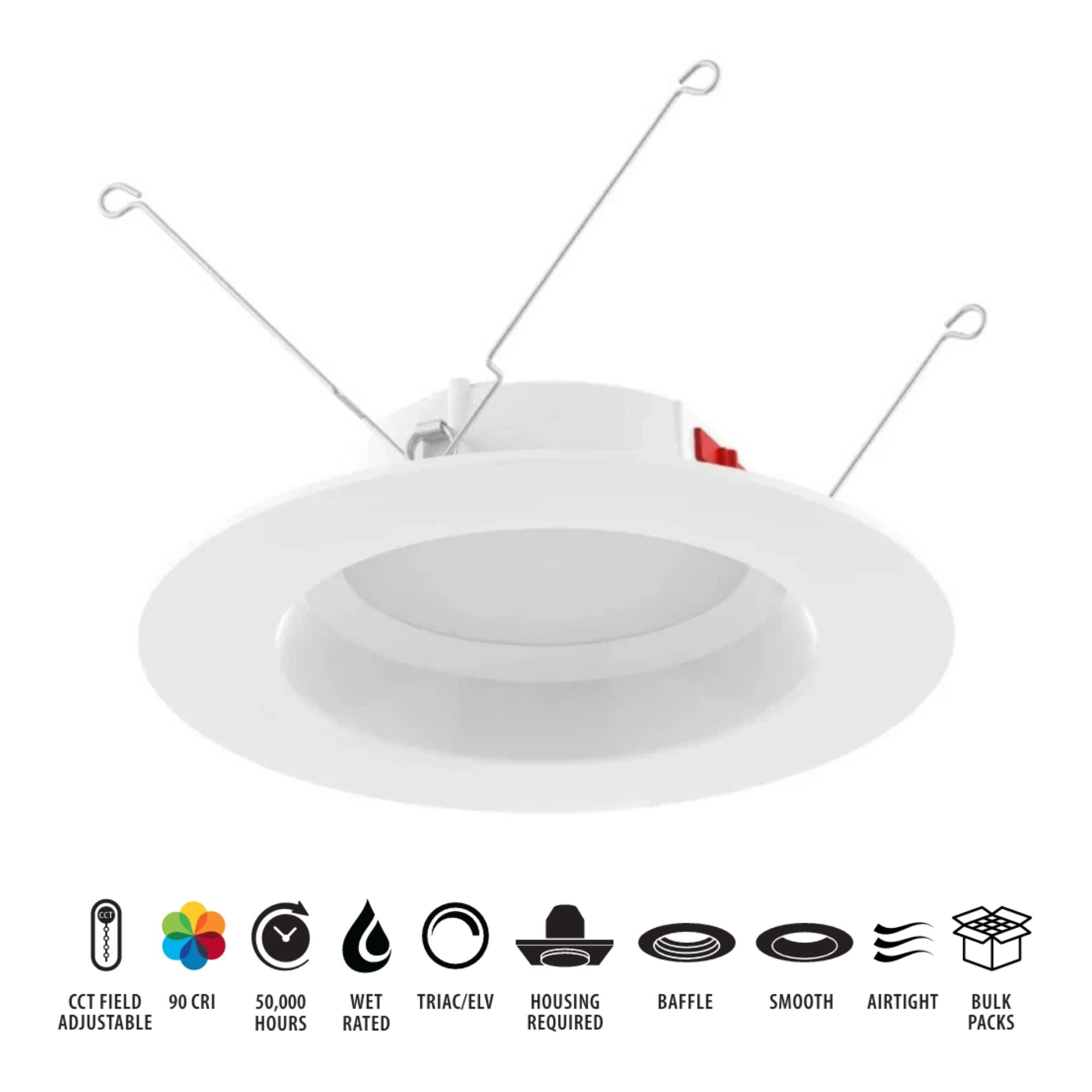

The RAB R34-6/BP is a contractor 12-pack of the R34-6 — a 6 in round smooth retrofit downlight in white finish designed for economical CCT-adjustable replacement of 75W halogen recessed fixtures. Frosted polycarbonate lens diffuser provides smooth, even light distribution. Injection-molded impact-resistant non-conductive plastic construction with E26 Edison base adapter and fully captured V-spring mounting for compatibility with most standard 5 in or 6 in recessed can housings. Field-selectable CCT via dip switch — 5 color temperatures in 1 SKU. 120V input. Wet rated. California Title 20 compliant. TAA compliant.

Key Features

• Pack Quantity: 12 units per pack
• Trim Style: Round smooth | White finish | Frosted polycarbonate lens diffuser
• Construction: Injection-molded impact-resistant non-conductive plastic | E26 Edison base adapter included | Fully captured V-spring mounting | Compatible with most standard 5 in or 6 in recessed can housings
• Wattage: 10W input (replaces 75W halogen)
• Light Output: 900 lm
• Efficacy: 90 lm/W
• Beam Angle: 90°
• Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K via dip switch
• CRI: 90 | R9 >50 | <4-step MacAdam Ellipse | Color stability ≤200K over 5 years
• Input Voltage: 120V | 60 Hz | Input Current: 100mA
• Driver: Constant Current | THD: <100% | Flicker: <30%
• Dimming: TRIAC/ELV dimmable to 10% (120V) — see RAB Dimmer Compatibility List | Not for emergency applications
• Environment: Dry, damp, and wet rated | IC rating depends on housing used | Not Air Tight | Op temp: -4°F to 104°F | Weight: 0.4 lbs each
• Certifications: UL Classified | ENERGY STAR Certified (v2.2) | California Title 20 Compliant (DLR0143(R34-6)) | CEC: Lawful for CA | TAA Compliant | NEC Sec. 410.16 (A)(1) & (C3) | IESNA LM-79 & LM-80 | RoHS | FCC Part 15
• Note: Not Title 24 JA8 compliant. Not DLC listed. 120V only.
• Lifespan: 50,000 hours L70 | Warranty: 5-year no-compromise warranty

Light Output & Performance

Each R34-6/BP unit delivers 900 lm at 10W (90 lm/W), replacing a 75W halogen at a fraction of the energy cost. The 90° beam angle and frosted polycarbonate diffuser provide even, smooth illumination suited to general lighting applications. With a CRI of 90 and R9 >50, colors render accurately across all five CCT settings. The <4-step MacAdam Ellipse binning ensures consistent fixture-to-fixture color uniformity. Color temperature is warranted to shift no more than 200K over 5 years.

Electrical & Installation

Each unit operates on 120V input at 100mA with a constant current driver. TRIAC/ELV dimmable to 10% — see the RAB Dimmer Compatibility List for compatible dimmers. THD <100%, flicker <30%. Wet rated for dry, damp, and wet environments. IC rating depends on the recessed housing used. Not air tight. Not for emergency applications. Rated for operation from -4°F to 104°F. Installs via E26 Edison base with fully captured V-springs into most standard 5 in or 6 in recessed can housings.

Compatible Accessories

• New Construction Housings: NDCANIC6R/E26 (standard w/E26 socket) | SNDCANIC6R (shallow) | FRCANIC6R/E26 (fire-rated)
• Color Trims — Smooth: DLTRIM/R34-6-B (black) | DLTRIM/R34-6-BN (brushed nickel) | DLTRIM/R34-6-BRZ (bronze)
• Color Trims — Smooth (RS): DLTRIM/R6RS-BN (brushed nickel) | DLTRIM/R6RS-BRZ (bronze) | DLTRIM/R6RS-B (black)
• Color Trims — Baffle: DLTRIM/R6RB-BN (brushed nickel) | DLTRIM/R6RB-BRZ (bronze) | DLTRIM/R6RB-B (black)

Typical Applications

• Contractor and multi-fixture retrofit projects replacing 75W halogen recessed fixtures
• Residential and light commercial general lighting
• Budget-conscious projects requiring CCT flexibility across 2700K–5000K
• Wet-rated applications: bathrooms, covered outdoor areas
• California Title 20 and TAA compliant installations

What’s Included

• 12 × RAB R34-6 6 in round smooth retrofit downlight (white)
• 12 × E26 Edison base adapter
