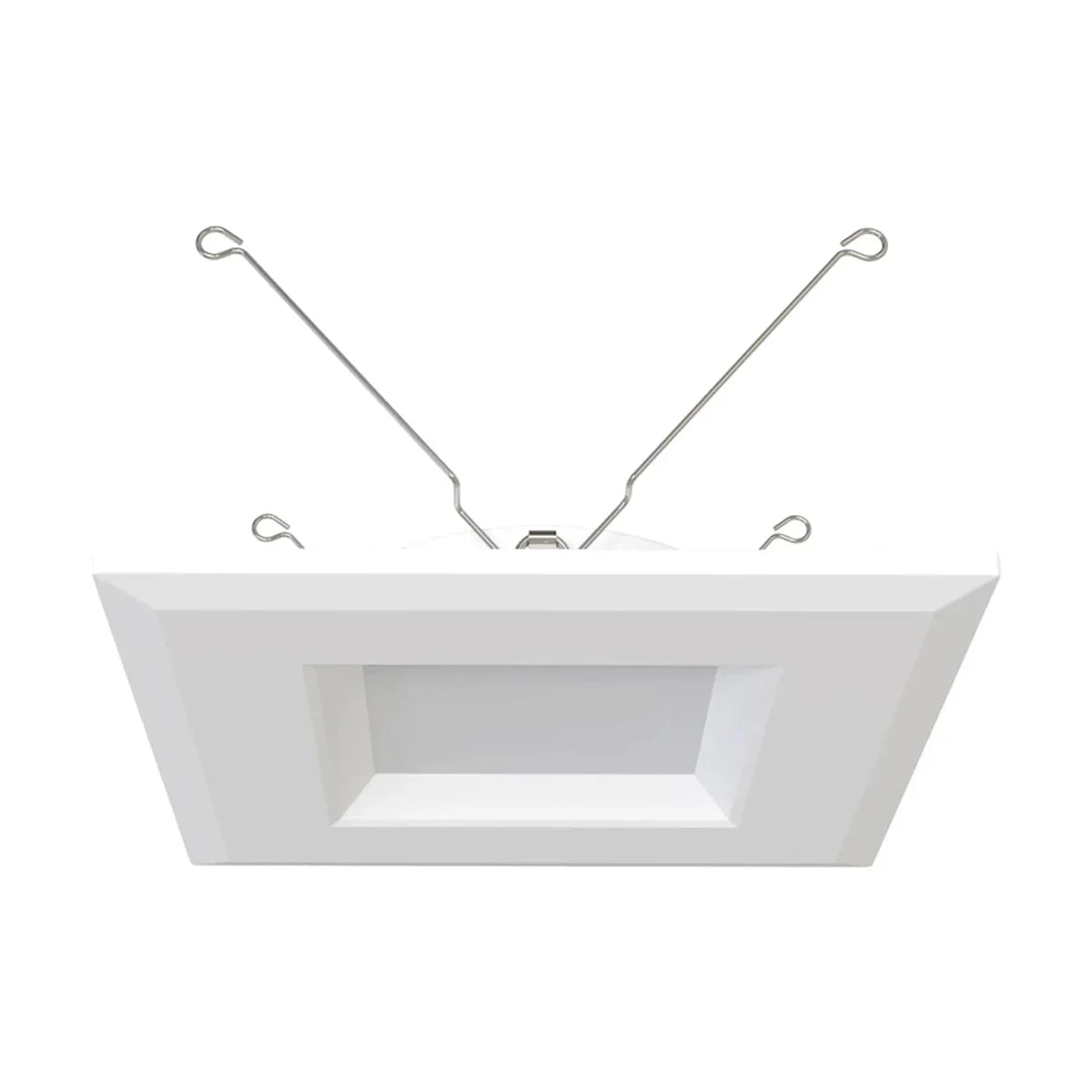

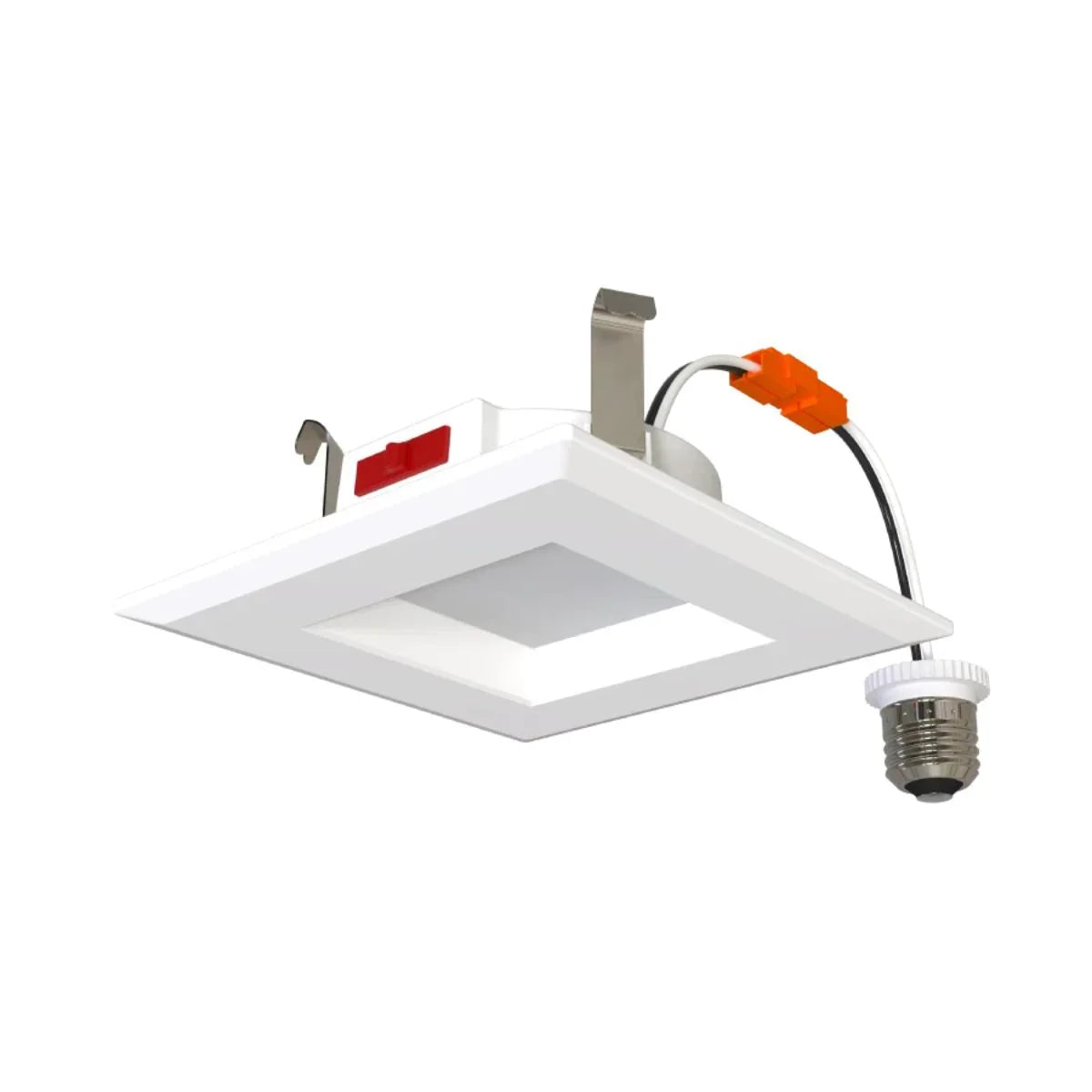

RAB R34S Square Retrofit Downlight — Selectable CCT / 4 in & 6 in / Smooth & Baffle / White & Black / 120V
The RAB R34S series is an economical CCT-adjustable square retrofit downlight family, available in 4 in and 6 in sizes with smooth or baffle trim in white or black finish. Polycarbonate construction with E26 Edison base adapter for compatibility with most standard recessed can housings. Field-selectable CCT via dip switch — 5 color temperatures in 1 SKU. 120V input. Wet rated. California Title 20 compliant across all configurations.
Series Overview
- R34S-4 — 4 in / Smooth / White: 7W | 600 lm | 86 lm/W | Not IC rated | Title 20: DLR0157(R34S-4)
- R34S-4-B — 4 in / Smooth / Black: 6W | 600 lm | 100 lm/W | IC depends on housing | Title 20: DLR0165(R34S-4-B)
- R34S-4B — 4 in / Baffle / White: 7W | 600 lm | 86 lm/W | Not IC rated | Title 20: DLR0158(R34S-4B)
- R34S-4B-B — 4 in / Baffle / Black: 6W | 600 lm | 100 lm/W | IC depends on housing | Title 20: DLR0166(R34S-4B-B)
- R34S-6 — 6 in / Smooth / White: 10W | 900 lm | 90 lm/W | Not IC rated | Title 20: DLR0159(R34S-6)
- R34S-6-B — 6 in / Smooth / Black: 9W | 900 lm | 100 lm/W | IC depends on housing | Title 20: DLR0167(R34S-6-B)
- R34S-6B — 6 in / Baffle / White: 10W | 900 lm | 90 lm/W | Not IC rated | Title 20: DLR0160(R34S-6B)
- R34S-6B-B — 6 in / Baffle / Black: 9W | 900 lm | 100 lm/W | IC depends on housing | Title 20: DLR0168(R34S-6B-B)
Key Features
- Trim Styles: Square smooth or square baffle | White or black finish | Polycarbonate construction with frosted diffuser lens
- Construction: Plastic enclosure (white SKUs) | UV-resistant polycarbonate (black SKUs) | E26 Edison base adapter included | Fits standard recessed can housings
- Wattage — 4 in: 7W (white) / 6W (black) — replaces 60W incandescent
- Wattage — 6 in: 10W (white) / 9W (black) — replaces 75W incandescent
- Light Output: 600 lm (4 in) | 900 lm (6 in)
- Efficacy: 86–90 lm/W (white SKUs) | 100 lm/W (black SKUs)
- Beam Angle: 90°
- Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K via dip switch
- CRI: 90 | R9 >50 | <4-step MacAdam Ellipse | Color stability ≤200K over 5 years
- Input Voltage: 120V | 60 Hz
- Driver: Constant Current | PF: ≥0.7 | Flicker: ≤30%
- Dimming: TRIAC/ELV dimmable to 10% (120V) — see RAB Dimmer Compatibility List
- Environment: Dry, damp, and wet rated | Not Air Tight | Op temp: -4°F to 104°F
- Certifications: UL Classified | UL Recognized | ENERGY STAR Certified | California Title 20 Compliant (see per-SKU cert numbers above) | CEC: Lawful for CA | IESNA LM-79 & LM-80 | RoHS | FCC Part 15
- Note: Not Title 24 JA8 compliant. Not DLC listed. 120V only — not 277V compatible.
- Lifespan: 50,000 hours L70 | Warranty: 5-year no-compromise warranty
Light Output & Performance
The R34S series scales from 600 lm (4 in) to 900 lm (6 in) across all trim and finish configurations. Black finish SKUs deliver 100 lm/W efficacy at slightly lower wattage (6W / 9W), while white finish SKUs run at 7W / 10W with 86–90 lm/W. The 90° beam angle and frosted polycarbonate diffuser provide broad, even illumination ideal for general lighting. With a CRI of 90 and R9 >50, colors render accurately across all five CCT settings. The <4-step MacAdam Ellipse binning ensures consistent fixture-to-fixture color uniformity. Color temperature is warranted to shift no more than 200K over 5 years.
Electrical & Installation
All R34S SKUs operate on 120V input with a constant current driver. TRIAC/ELV dimmable to 10% — see the RAB Dimmer Compatibility List for compatible dimmers. PF ≥0.7, flicker ≤30%. Wet rated for dry, damp, and wet environments. Not air tight. Rated for operation from -4°F to 104°F. All SKUs install via E26 Edison base into most standard recessed can housings — no special housing required. IC rating varies by SKU: white finish SKUs are not IC rated; black finish SKUs depend on the recessed housing used.
Compatible Accessories
- 4 in New Construction Housing: NDCANIC4R
- 4 in Retrofit Housing: RDCANIC4R
- 6 in New Construction Housing: NDCANIC6R
- 6 in Retrofit Housing: RDCANIC6R
- Emergency Backup Driver — 21W 0–10V: DRI-21-EMGR-DC-D10 (4 in smooth white only)
- Emergency Backup Driver — 25W: DRI-25-EMGR-DC (4 in smooth white only)
Typical Applications
- Retrofit replacement for 60W (4 in) or 75W (6 in) incandescent recessed fixtures
- Residential and light commercial general lighting
- Budget-conscious projects requiring CCT flexibility across 2700K–5000K
- Wet-rated applications: bathrooms, covered outdoor areas
- California Title 20 compliant installations
What’s Included
- RAB R34S retrofit downlight (configuration per selected options)
- E26 Edison base adapter
