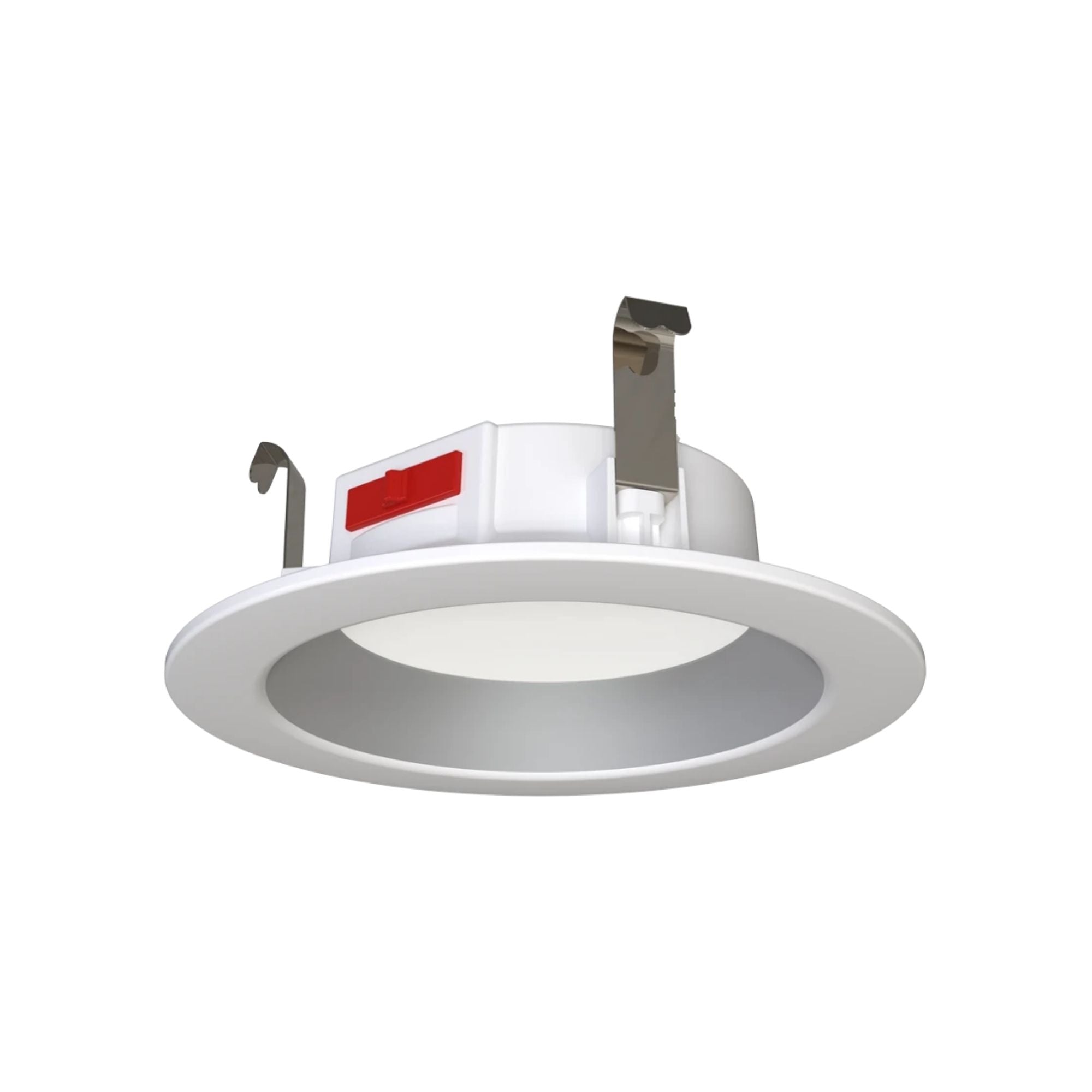

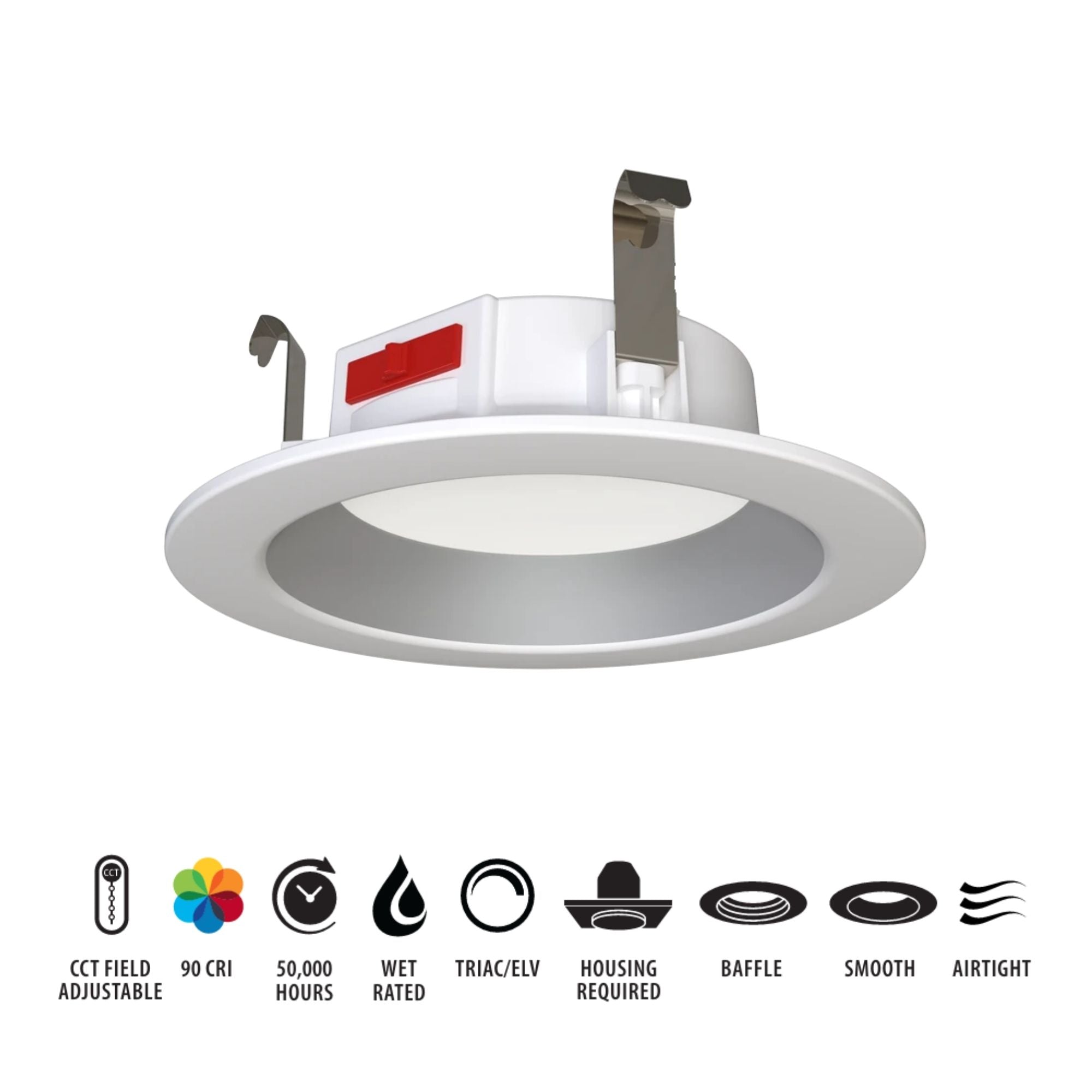

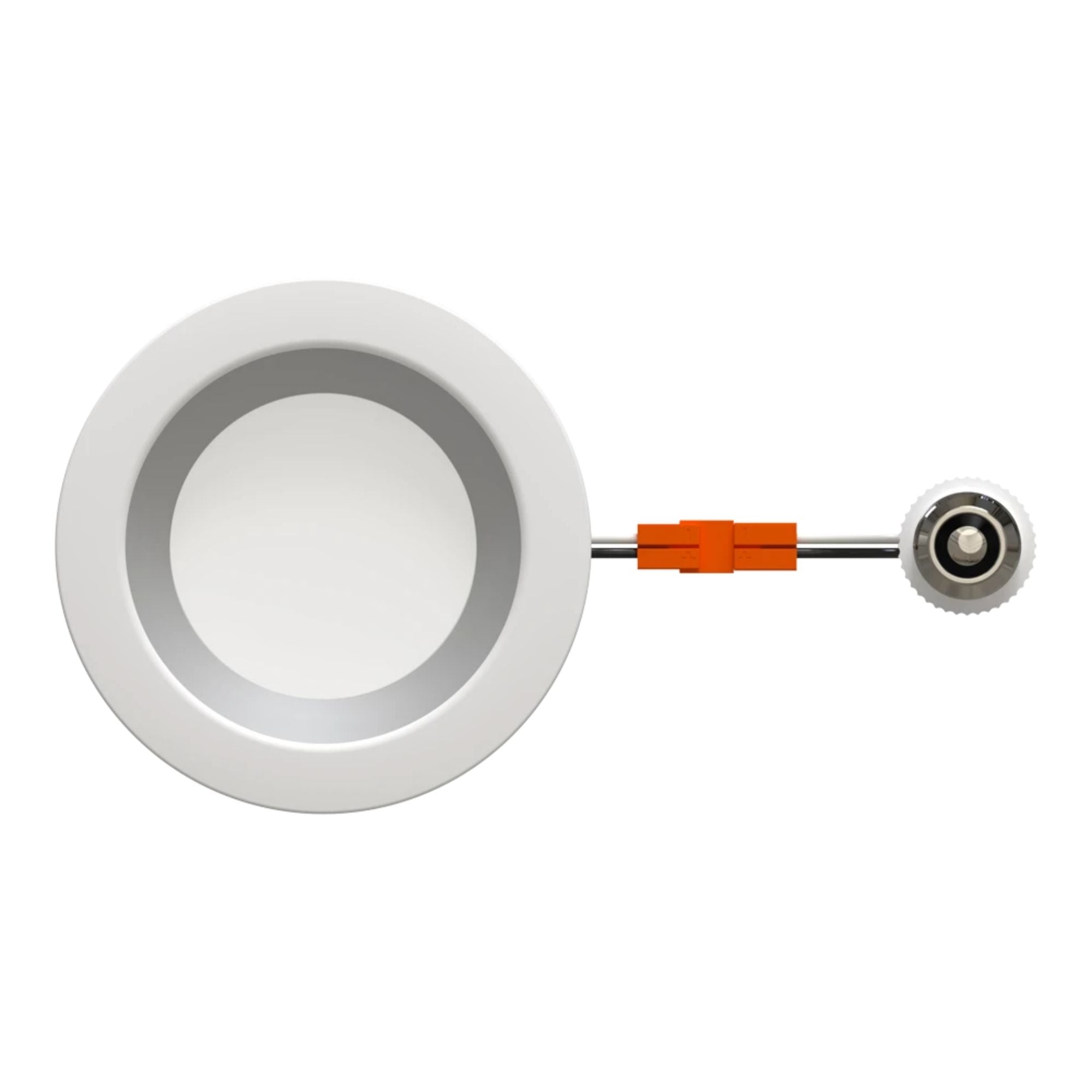

RAB R34-4-HW 4 in Round Smooth Retrofit Downlight — 7W / 700 lm / Selectable CCT / 120V / Haze Cone + White Flange

The RAB R34-4-HW is a 4 in round smooth retrofit downlight with a distinctive haze cone and white flange finish, designed as an economical CCT-adjustable replacement for traditional 60W incandescent recessed fixtures. Frosted polycarbonate light diffuser distributes light evenly for general lighting applications. Injection-molded impact-resistant non-conductive plastic construction with E26 Edison base adapter and friction clip mounting for compatibility with most standard 4 in recessed can housings. Field-selectable CCT via dip switch — 5 color temperatures in 1 SKU. 120V input. Wet rated. California Title 20 compliant.

Key Features

• Trim Style: Round smooth | Haze cone + white flange finish | Frosted polycarbonate light diffuser for even, smooth light distribution

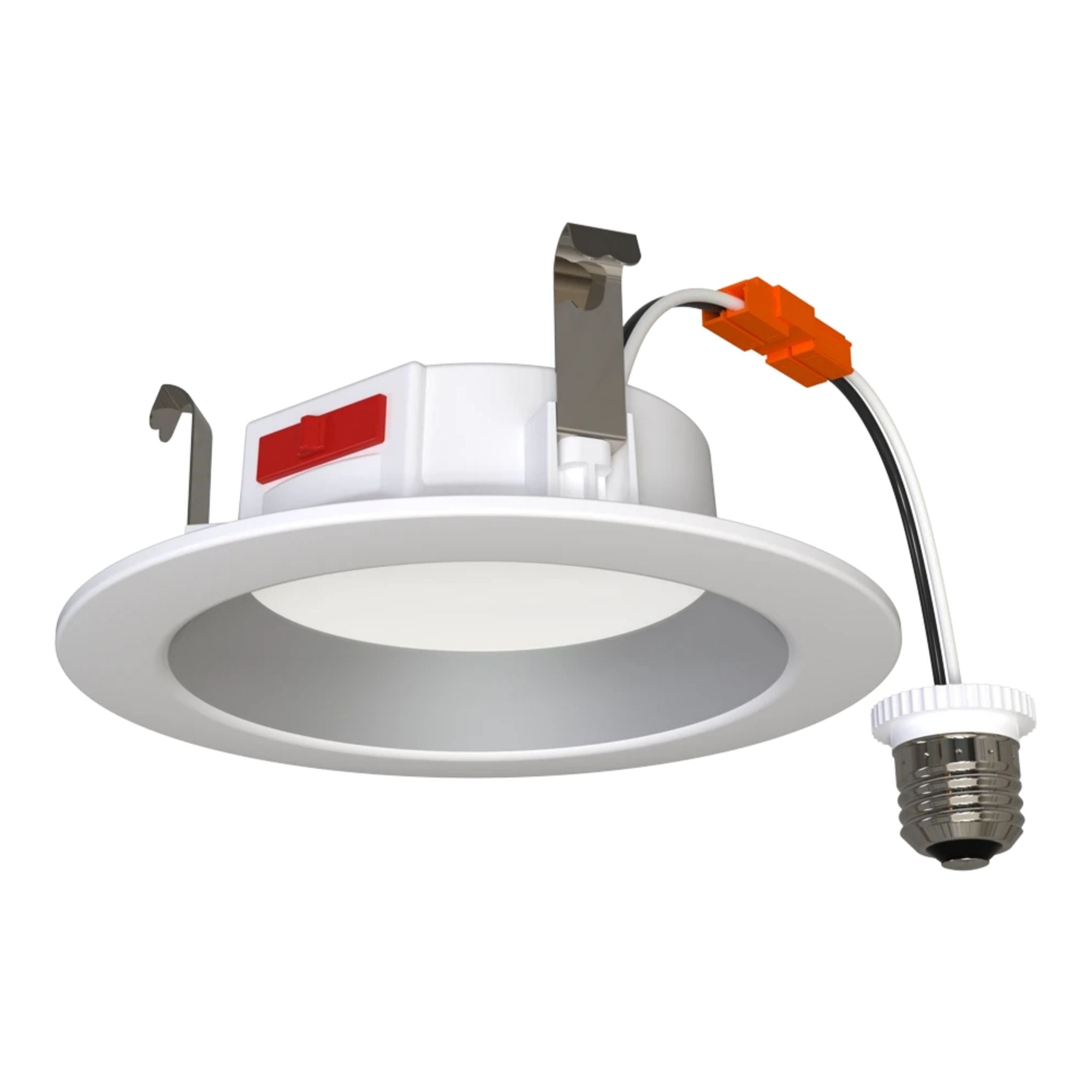

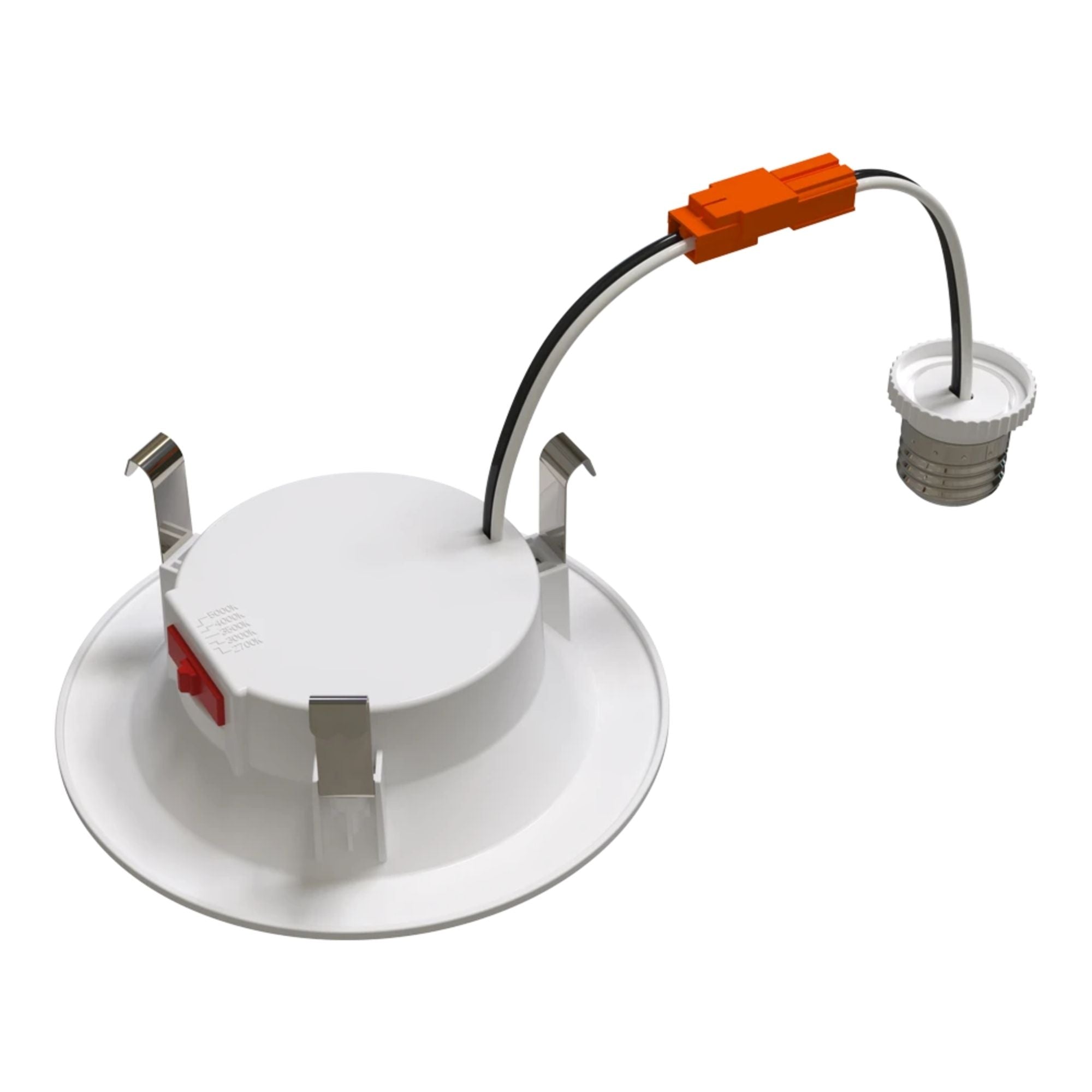

• Construction: Injection-molded impact-resistant non-conductive plastic | E26 Edison base adapter included | Friction clip mounting | Fits most standard 4 in recessed can housings
• Wattage: 7W input (replaces 60W incandescent)
• Light Output: 700 lm
• Efficacy: 93 lm/W
• Beam Angle: 90°
• Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K via dip switch
• CRI: 90 | R9 >50 | <4-step MacAdam Ellipse | Color stability ≤200K over 5 years
• Input Voltage: 120V | 60 Hz | Input Current: 80mA
• Driver: Constant Current | PF: ≥0.9 | THD: ≤100% | Flicker: ≤30%
• Dimming: TRIAC/ELV dimmable to 10% (120V) — see RAB Dimmer Compatibility List | Not for emergency applications
• Environment: Dry, damp, and wet rated | IC rating depends on housing used | Not Air Tight | Op temp: -4°F to 104°F | Weight: 0.2 lbs
• Certifications: UL Classified | ENERGY STAR Certified (v2.2) | California Title 20 Compliant (DLR0179(R34-4-HW)) | CEC: Lawful for CA | NEC Sec. 410.16 (A)(1) & (C3) | IESNA LM-79 & LM-80 | RoHS | FCC Part 15
• Note: Not Title 24 JA8 compliant. Not DLC listed. 120V only.
• Lifespan: 50,000 hours L70 | Warranty: 5-year no-compromise warranty

Light Output & Performance

The R34-4-HW delivers 700 lm at 7W (93 lm/W), replacing a 60W incandescent at a fraction of the energy cost. The 90° beam angle and frosted polycarbonate diffuser provide even, smooth illumination suited to general lighting applications. With a CRI of 90 and R9 >50, colors render accurately across all five CCT settings. The <4-step MacAdam Ellipse binning ensures consistent fixture-to-fixture color uniformity. Color temperature is warranted to shift no more than 200K over 5 years.

Electrical & Installation

The R34-4-HW operates on 120V input at 80mA with a constant current driver. TRIAC/ELV dimmable to 10% — see the RAB Dimmer Compatibility List for compatible dimmers. PF ≥0.9, flicker ≤30%. Wet rated for dry, damp, and wet environments. IC rating depends on the recessed housing used. Not air tight. Not for emergency applications. Rated for operation from -4°F to 104°F. Installs via E26 Edison base with friction clips into most standard 4 in recessed can housings.

Compatible Accessories

• New Construction Housings: NDCANIC4R/E26 (standard w/E26 socket) | SNDCANIC4R (shallow) | FRCANIC4R/E26 (fire-rated)
• Color Trims — Smooth: DLTRIM/R34-4-B (black) | DLTRIM/R34-4-BN (brushed nickel) | DLTRIM/R34-4-BRZ (bronze)
• Color Trims — Baffle: DLTRIM/R4B-B-L (black) | DLTRIM/R4B-BN-L (brushed nickel) | DLTRIM/R4B-BRZ-L (bronze)
• Color Trims — Smooth (RS): DLTRIM/R4RS-B-L (black) | DLTRIM/R4RS-BN-L (brushed nickel) | DLTRIM/R4RS-BRZ-L (bronze)
• Retrofit Band: RFLED-RETROBAND

Typical Applications

• Retrofit replacement for 60W incandescent recessed fixtures
• Residential and light commercial general lighting
• Budget-conscious projects requiring CCT flexibility across 2700K–5000K
• Wet-rated applications: bathrooms, covered outdoor areas
• California Title 20 compliant installations

What’s Included

• RAB R34-4-HW 4 in round smooth retrofit downlight
• E26 Edison base adapter
