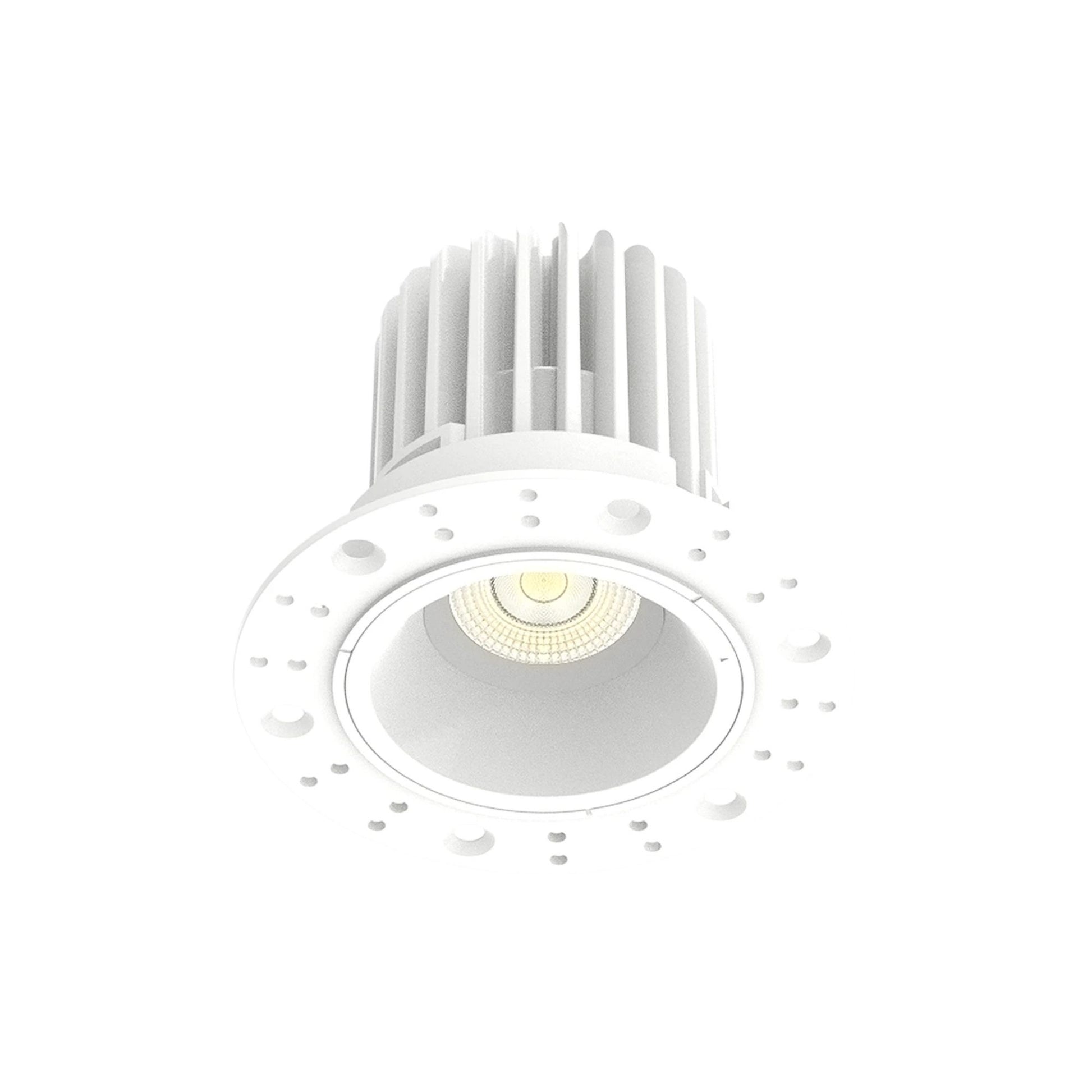

RAB R2TL 2 in Round Trimless Recessed Downlight — 9W / Selectable CCT

The RAB R2TL is a 2 in round trimless canless recessed downlight delivering up to 679 lumens at 9W with a 38° beam angle and 90 CRI. Field-selectable from 2700K to 5000K, the flangeless trimless design sits flush with the ceiling — no trim ring, no housing, no compromise on aesthetics. The smallest aperture in the RAB Trimless family, ideal for accent lighting and architectural detail work in tight ceiling layouts.

Key Features

• Trimless Design: Flangeless round aperture with no visible trim ring — fixture sits flush with the ceiling for a clean, architectural finish
• Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K from a single fixture
• Lumen Output: Up to 679 lm (4000K) at 9W
• Wattage: 9W (equivalent to 60W incandescent)
• CRI: 90 with R9 > 50 for high color accuracy
• Beam Angle: 38° for focused, directional illumination
• Dimming: TRIAC/ELV dimmable down to 10%
• Voltage: 120V
• No Housing Required: Canless design with remote driver/junction box — installs directly into ceiling
• Certifications: Title 24 JA8, ETL listed, RoHS compliant, NEC compliant (Sec. 410.16)
• Warranty: 5-year no-compromise warranty

Smart & Control Features

The R2TL dims down to 10% on compatible TRIAC and ELV dimming systems. CCT is field-adjustable via an integrated dip switch — select from 2700K, 3000K, 3500K, 4000K, or 5000K at installation without changing the SKU. Compatible emergency driver: DRI-21-EMGR-DC-D10; emergency driver T20.

Construction & Design

The R2TL features a metal enclosure with a smooth white finish and a clear polycarbonate lens for even, uniform light distribution. The trimless mud-in profile eliminates the traditional flange, integrating seamlessly into drywall for a high-end designer aesthetic. Weight: 0.8 lbs.

Light Output & Performance

With efficacy up to 79 lm/W, a 90 CRI, R9 > 50, and a focused 38° beam angle, the R2TL delivers precise, high-quality accent illumination. Color temperature is warranted to shift no more than 200K over five years. Rated lifespan: 50,000 hours L70 per IES LM-70.

Electrical & Installation

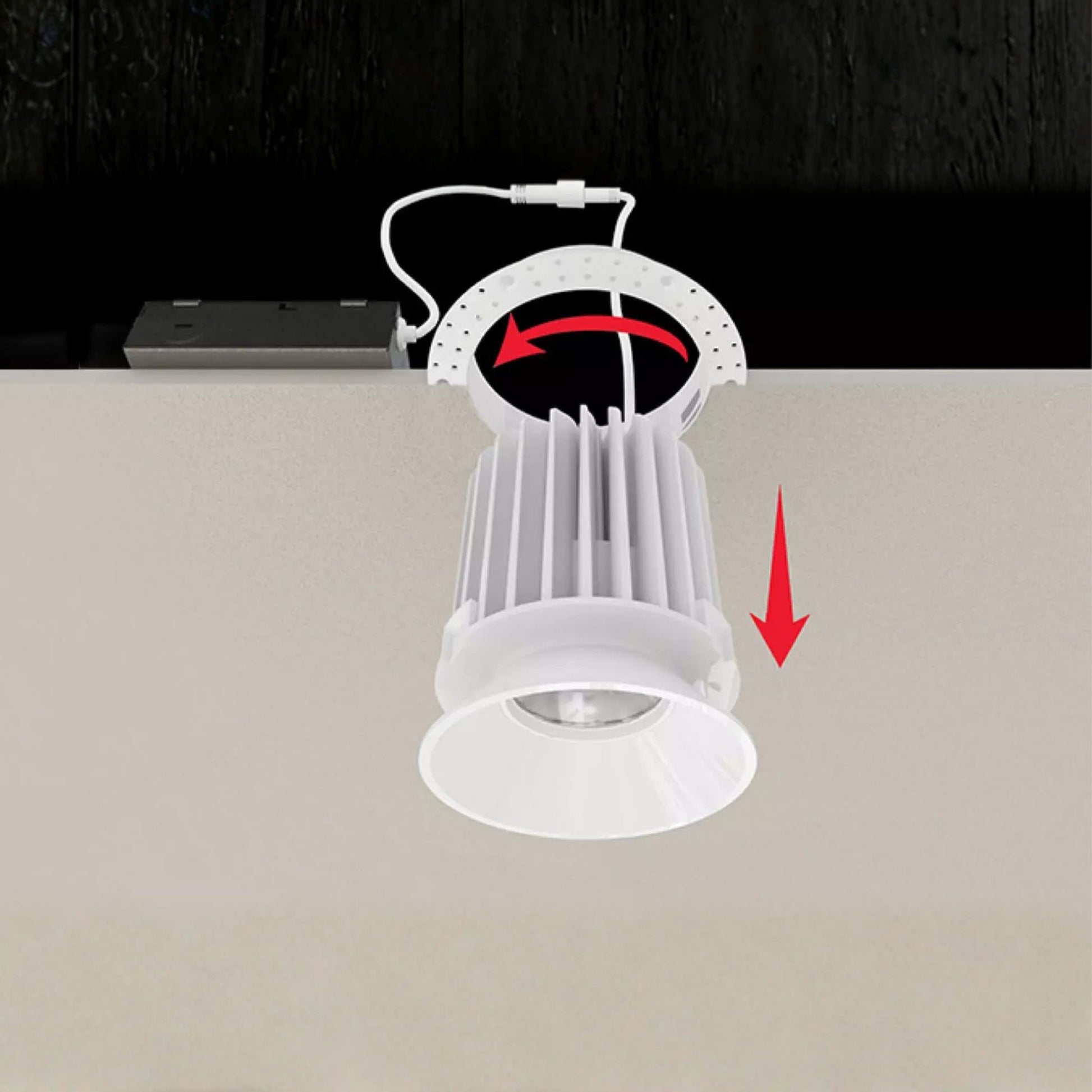

Operates on 120V with a Constant Current, Class 2 driver. Dimmable to 10% via TRIAC/ELV systems. The remote driver/junction box installs easily with quick snap-in connectors — no recessed housing needed. Suitable for new construction and retrofit. IC rated and airtight certified (ASTM E283). Operating temperature: -13°F to 104°F.

What’s Included

• RAB R2TL 2 in round trimless recessed downlight (white)
• Remote driver/junction box
• Quick snap-in connectors
• Mounting hardware
• Compatible accessory: DRI-21-EMGR-DC-D10 emergency driver (sold separately)
