RAB Lighting Pivot PIVOTS24D Small LED Track Head

The RAB Lighting Pivot PIVOTS24D combines a small white aluminum housing with an integrated 8W COB LED for single-circuit H-Type track. Choose 3000K, 4000K or 5000K; the factory-default 4000K setting delivers 812 lumens with 94 CRI. Fixed 24° optics, 315° horizontal rotation and a head that pivots up to 90° vertically let you aim a narrow spot at artwork, merchandise and interior accents without repositioning the track head.

Key Features

• Size & Finish: Small Pivot housing in white aluminum.
• Track Compatibility: Single-circuit H-Type track mounting.
• LED Power: Fixed 8W rating, with measured input power of 8.3W at all three CCT settings.
• Selectable CCT: 3000K, 4000K and 5000K; factory default is 4000K.
• Light Output: 764 lumens at 3000K, 812 lumens at 4000K and 810 lumens at 5000K.
• Color Rendering: 93 CRI at 3000K, 94 CRI at 4000K and 5000K.
• Optics: Fixed 24° beam with polycarbonate optics.
• Two-Axis Aiming: 315° horizontal rotation and up to 90° vertical pivot.
• Dimming: Down to 10% on compatible 120V TRIAC systems.
• Driver: Constant-current Class 2 driver, 120V, 60Hz.
• LED Life: 100,000-hour LED lifespan based on LM-80 results and TM-21 calculations.
• Listing & Warranty: UL Listed for dry locations, IP20, RAB 5-year limited warranty subject to warranty terms.

Construction & Design

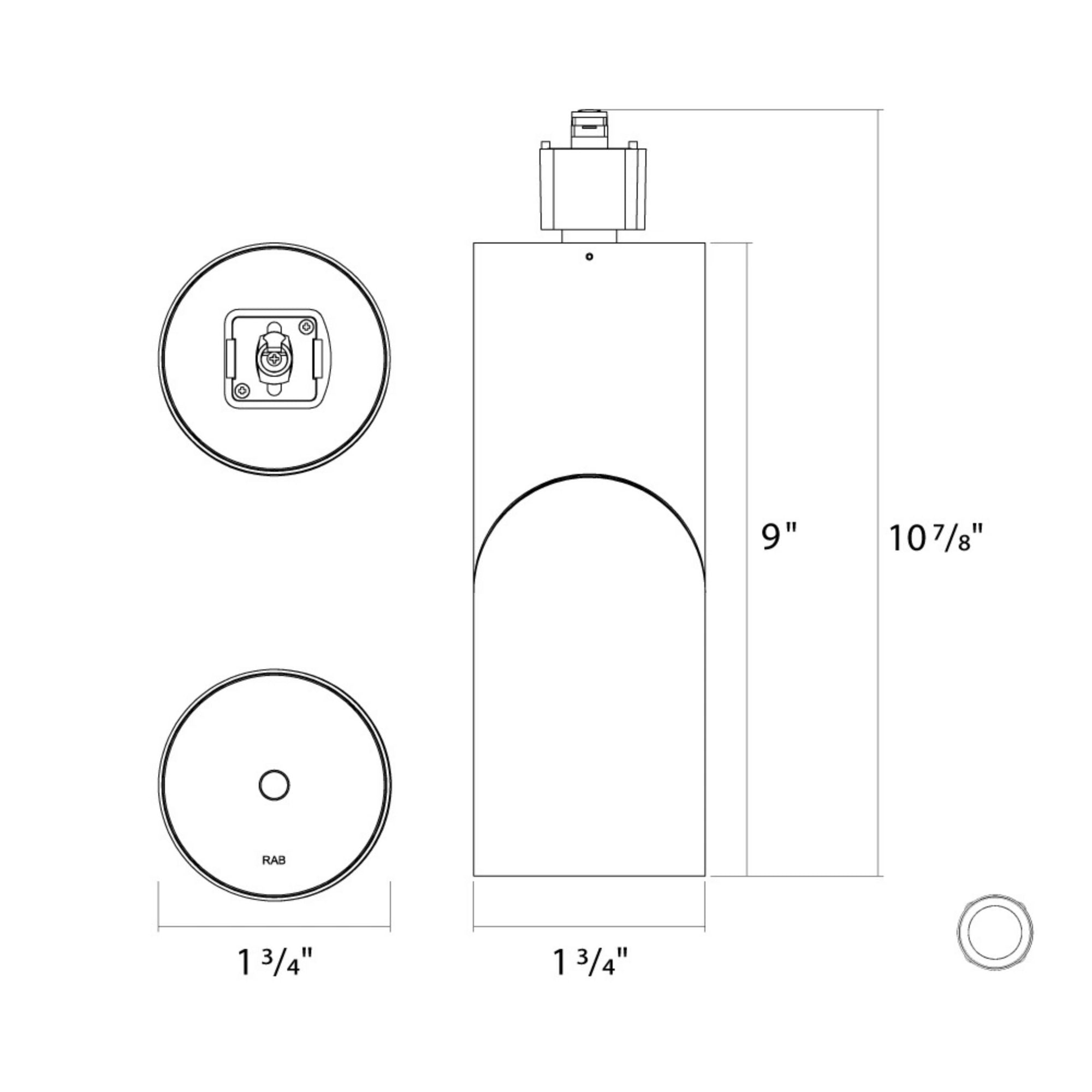

The small cylindrical aluminum housing has a durable white finish and polycarbonate optics. Overall height is 10 7/8 in, with a 9 in body height and 1 3/4 in width. The lower half of the fixture pivots up to 90° vertically, while 315° horizontal rotation provides a second aiming axis.

Light Output & Performance

With its fixed 24° optics, PIVOTS24D delivers 764 lumens at 3000K, 812 lumens at 4000K and 810 lumens at 5000K. CRI is 93 at 3000K and 94 at 4000K and 5000K. Measured input power is 8.3W at every setting, with efficacy of 92, 97.9 and 97.6 lm/W respectively. The small model retains a fixed 8W LED rating while allowing CCT selection. Its integrated COB LED has a 100,000-hour rated lifespan.

Electrical & Installation

RAB Lighting PIVOTS24D ships ready for single-circuit H-Type track and operates at 120V, 60Hz with a constant-current Class 2 driver. It supports dimming down to 10% on compatible TRIAC systems. A separate lamp is not required. Select 3000K, 4000K or 5000K; the factory default is 4000K. Install in dry locations, with a minimum starting temperature of -4°F (-20°C) and maximum ambient temperature of 104°F (40°C). Matching separately sold kits convert the small head to surface or pendant mounting; the pendant kit supports sloped-ceiling applications.

Compatible Accessories

Matching white RAB track components and small-size mounting kits, sold separately.

• Track Rails: TK2 (2 ft), TK4 (4 ft), TK6 (6 ft) and TK8 (8 ft).
• Power Feeds: TK-EF top-access end feed, TK-JB junction-box end feed with cover and TK-FC floating canopy feed.
• Joiners: TK-I linear, TK-L L-shaped, TK-T T-shaped and TK-X X-shaped.
• End Cap: TK-EC finishes exposed track ends.
• Mounting Kits: PIVOTS-SM-KIT white small surface-mount kit and PIVOTS-PM-KIT white small pendant-mount kit.

Typical Applications

• Focused artwork and gallery accents.
• Retail merchandise spot lighting.
• Residential interior accents.
• Hospitality display lighting.

What's Included

• RAB Lighting PIVOTS24D small white track head with integrated COB LED, constant-current Class 2 driver and 24° optics.
