RAB Lighting Pivot Medium Surface Mount Kit Black
Available in stock (18)
About this item
About this item
- Surface-Mount Conversion: Mounts a compatible Medium Pivot head directly at a junction box.
- Medium Pivot Fit: 2 7/16 in fixture interface sized for the Medium model.
- Black Finish: Coordinates with Black RAB Lighting Pivot fixtures.
- Clean Ceiling Detail: 4 1/2 in canopy with magnetically held decorative cover plate.
- Separate Mounting Accessory: Includes the mounting assembly and cover plate, Pivot light head sold separately.
Description
Description
RAB Lighting Pivot Medium Surface Mount Kit Black
The RAB Lighting PIVOTMB-SM-KIT converts a compatible Medium Pivot track head to junction-box surface mounting. Its Black finish coordinates with Black Pivot fixtures, while a magnetically held decorative cover plate conceals the mounting plate for a clean ceiling detail. This is a mounting accessory; the Pivot light head is sold separately.
Key Features
- Compatibility: Sized for RAB Lighting Medium Pivot fixtures.
- Mounting function: Converts a compatible head to direct junction-box surface mounting.
- Finish: Black.
- Mounting dimensions: 4 1/2 in canopy diameter, 2 7/16 in fixture interface diameter, 1/2 in connection detail.
- Fixture connection: Male/female connectors with a rotating fixture-top attachment secured by a set screw.
- Ceiling cover: Decorative cover plate held in place by magnets.
Compatibility & Function
The PIVOTMB-SM-KIT provides a surface-mount conversion for a Medium Pivot light head, replacing the track-mount arrangement with a connection at the junction box. The mounting plate connects to the cylinder through male/female connectors; the fixture top rotates into the Pivot cylinder body and is secured with its set screw. The light head remains a separate purchase.
Dimensions & Mounting

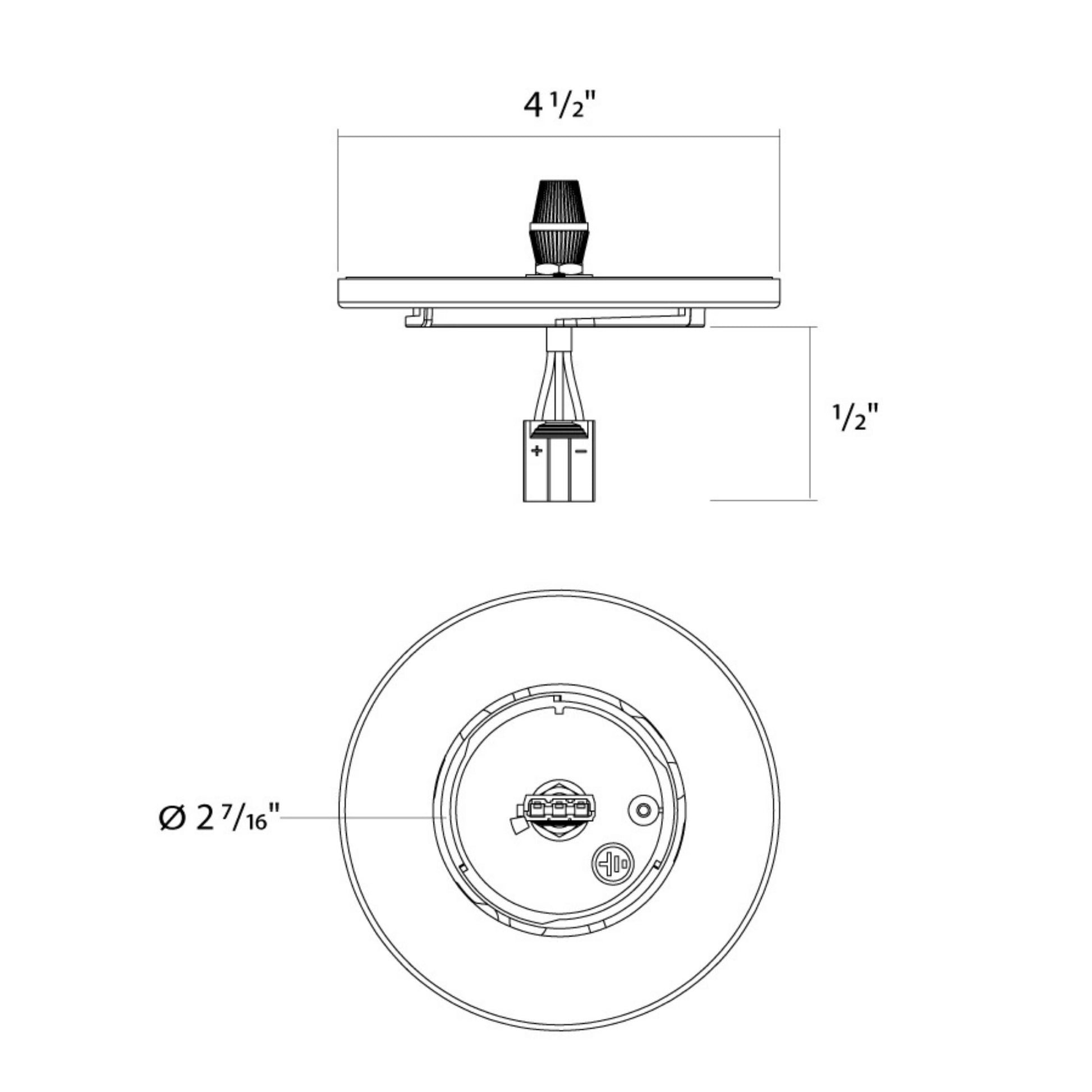

The canopy measures 4 1/2 in across, with a 2 7/16 in diameter fixture interface. The connection detail measures 1/2 in; this is not the overall height of the complete mounted light. Allow for the separate Medium Pivot head when planning installed dimensions and aiming clearance.
Electrical & Installation
Disconnect power before installation. Loosen the set screw, rotate and separate the fixture top, then disconnect the male/female terminals. Select the fixture's available CCT and/or wattage settings as desired before reassembly. Connect the junction-box mounting plate to the cylinder using the male/female connectors, rotate the fixture top into the cylinder body and secure the set screw. Connect the fixture power leads, Black to line, White to common and Green to ground, then mount the surface mounting plate to the junction box. Fit the decorative cover plate, which is held in place by magnets.
What's Included
- RAB Lighting PIVOTMB-SM-KIT Black Medium Pivot surface-mount assembly with junction-box mounting plate and fixture connection.
- Magnetically held decorative cover plate.
Specifications
Specifications
Dimensions
Style & Materials
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Which fixtures does the RAB Lighting PIVOTMB-SM-KIT fit?
Which fixtures does the RAB Lighting PIVOTMB-SM-KIT fit?
Does the RAB Lighting PIVOTMB-SM-KIT require a track rail?
Does the RAB Lighting PIVOTMB-SM-KIT require a track rail?
What are the dimensions of the RAB Lighting PIVOTMB-SM-KIT?
What are the dimensions of the RAB Lighting PIVOTMB-SM-KIT?
How does the RAB Lighting PIVOTMB-SM-KIT attach to the fixture?
How does the RAB Lighting PIVOTMB-SM-KIT attach to the fixture?
What is included with the RAB Lighting PIVOTMB-SM-KIT?
What is included with the RAB Lighting PIVOTMB-SM-KIT?
