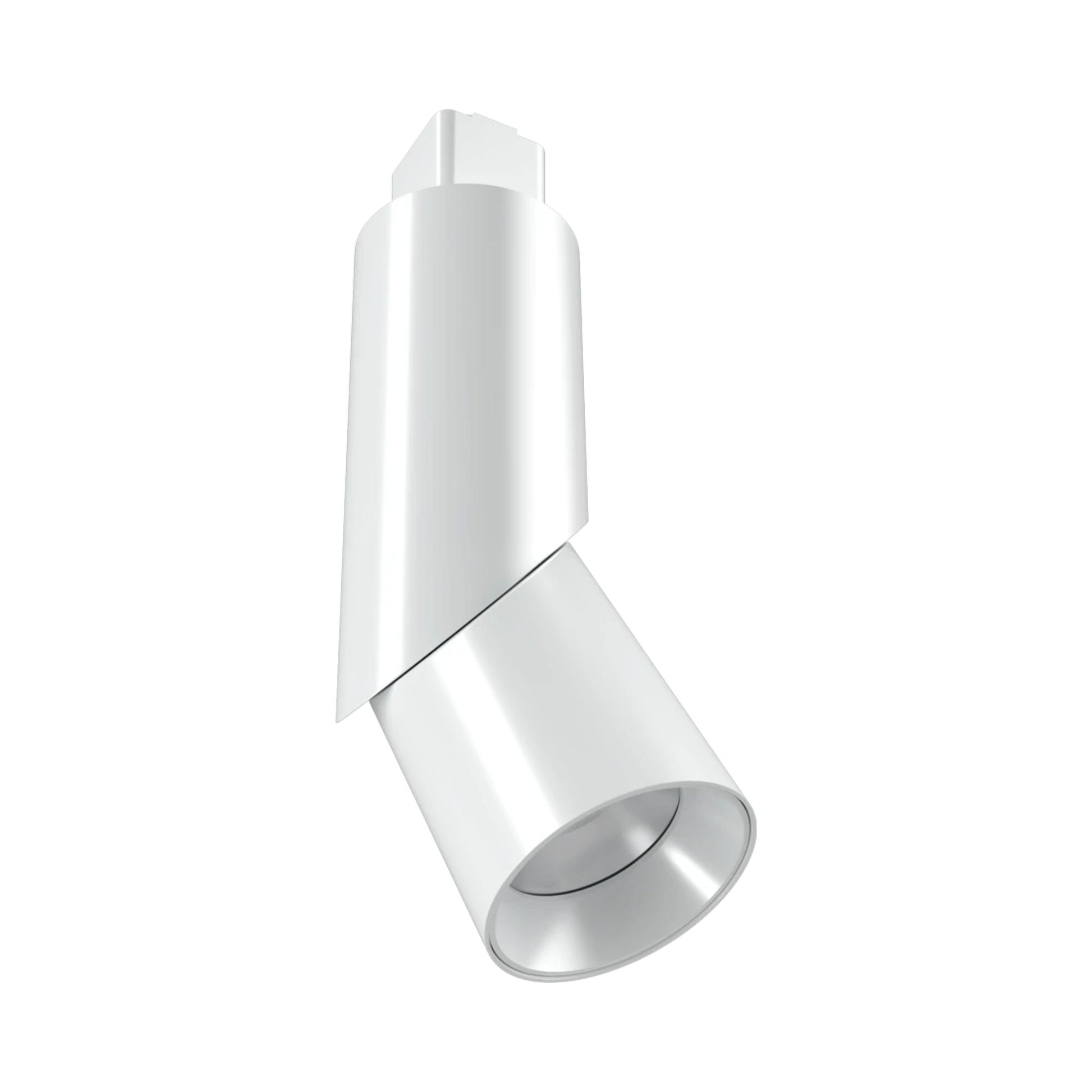

RAB Lighting Pivot PIVOTM Medium LED Track Head

The RAB Lighting Pivot PIVOTM combines a medium white aluminum housing with an integrated COB LED for single-circuit H-Type track. Select 10W, 8W or 6W and 2700K, 3000K, 3500K, 4000K or 5000K to match your application. The factory-default 10W and 4000K configuration delivers 878 lumens with 95 CRI. Fixed 36° optics, 315° horizontal rotation and up to 90° vertical pivot let you direct light onto artwork, merchandise and interior accents.

Key Features

• Size & Finish: Medium Pivot housing in white aluminum.
• Track Compatibility: Single-circuit H-Type track mounting.

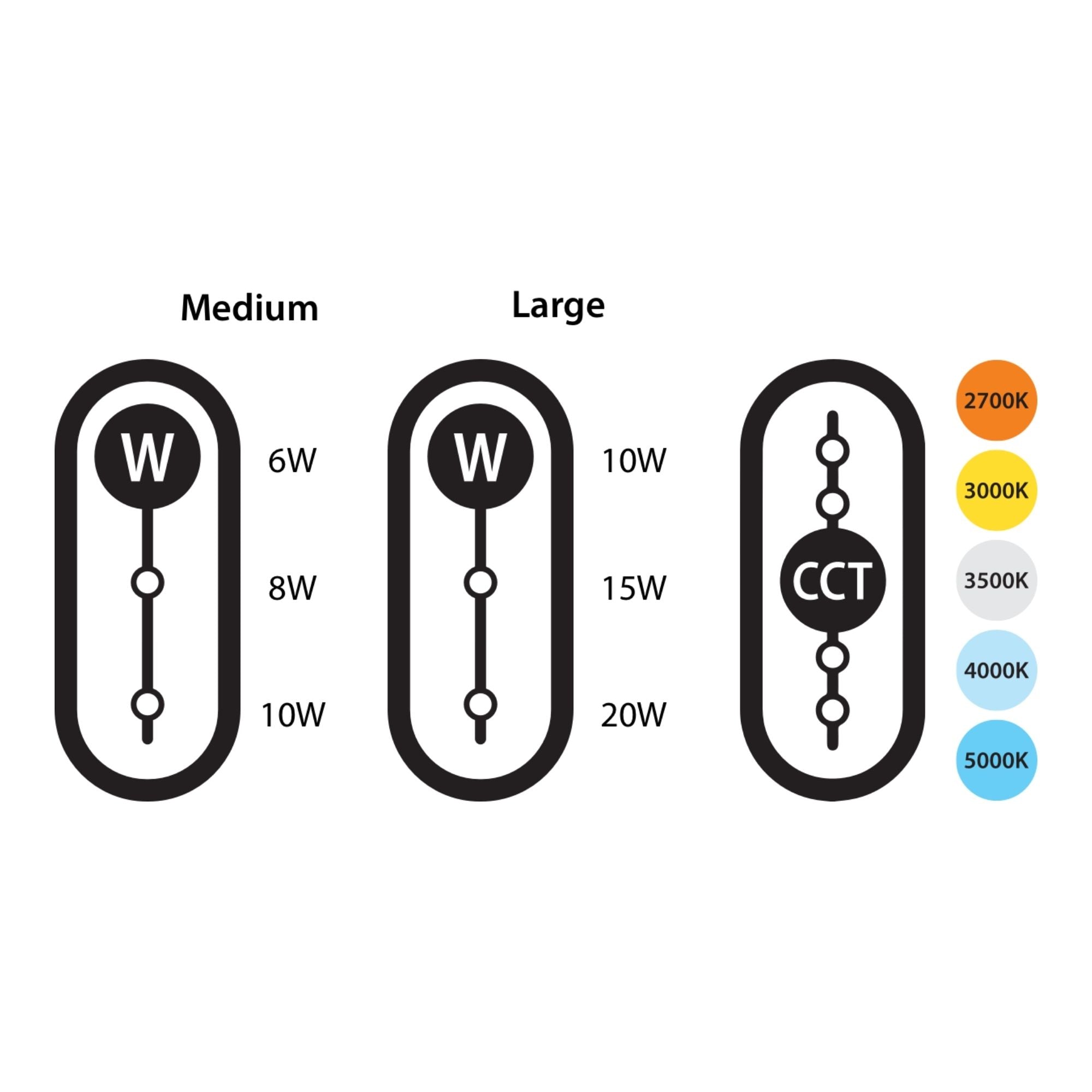

• Selectable Wattage: 10W, 8W and 6W; factory default is 10W.
• Five CCT Settings: 2700K, 3000K, 3500K, 4000K and 5000K; factory default is 4000K.
• Default Output: 878 lumens at 10W and 4000K, 95 CRI.
• Output Range: 493 to 890 lumens across wattage and CCT settings.
• Color Rendering: 95 CRI at 2700K, 3000K and 4000K, 96 CRI at 3500K and 93 CRI at 5000K.
• Optics: Fixed 36° beam with polycarbonate optics.

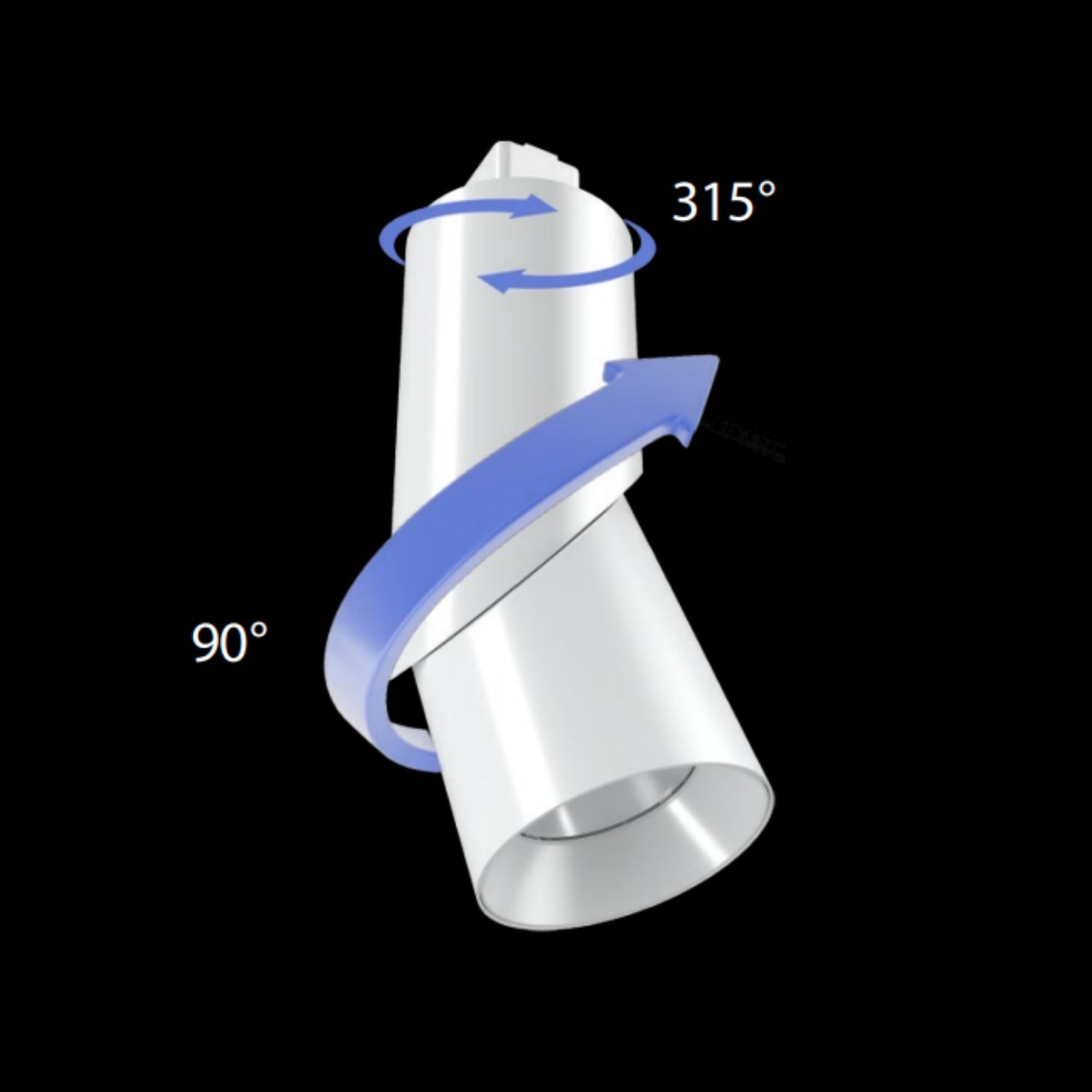

• Two-Axis Aiming: 315° horizontal rotation and up to 90° vertical pivot.
• Dimming & Driver: TRIAC dimming down to 10% on compatible systems, constant-current Class 2 driver, 120V, 60Hz.
• LED Life: 100,000-hour LED lifespan based on LM-80 results and TM-21 calculations.
• Listing & Warranty: UL Listed for dry locations, IP20, RAB 5-year limited warranty subject to warranty terms.

Construction & Design

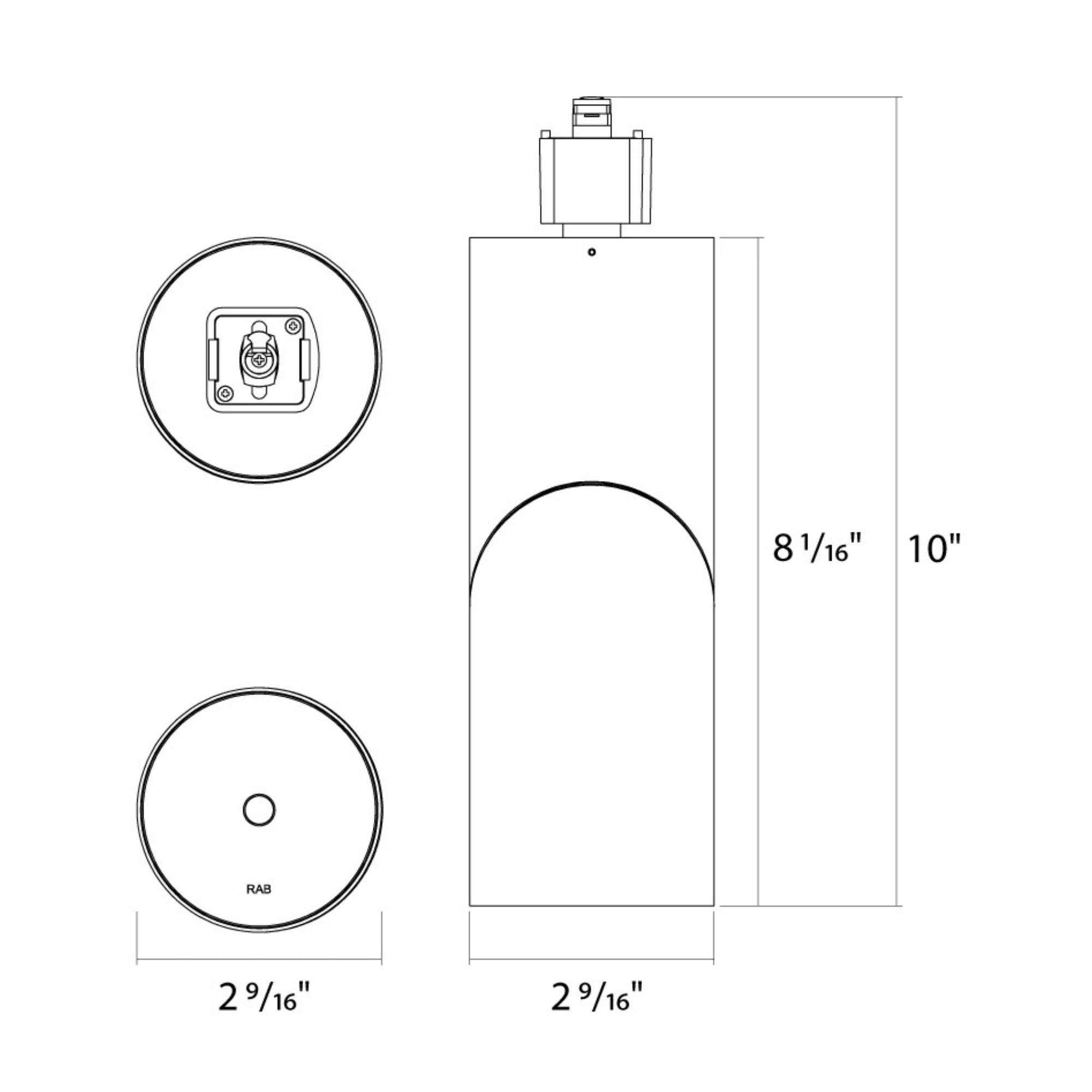

The medium cylindrical aluminum housing has a durable white finish and polycarbonate optics. Overall height is 10 in, with an 8 1/16 in body height and 2 9/16 in width. Fixture weight is 1.6 lb. The lower half pivots up to 90° vertically, while 315° horizontal rotation provides a second aiming axis.

Light Output & Performance

At 4000K, the 36° model delivers 878 lumens at 10W, 734 lumens at 8W and 544 lumens at 6W, all with 95 CRI. Measured input power at these settings is 9.6W, 7.9W and 5.8W respectively, with efficacy of 91.5, 92.9 and 93.8 lm/W. Across all settings, output ranges from 493 lumens at 6W and 2700K to 890 lumens at 10W and 5000K. Measured input power ranges from 5.7W to 9.9W, and efficacy from 81.8 to 94.4 lm/W. CRI varies by CCT from 93 to 96. The integrated COB LED has a 100,000-hour rated lifespan.

Electrical & Installation

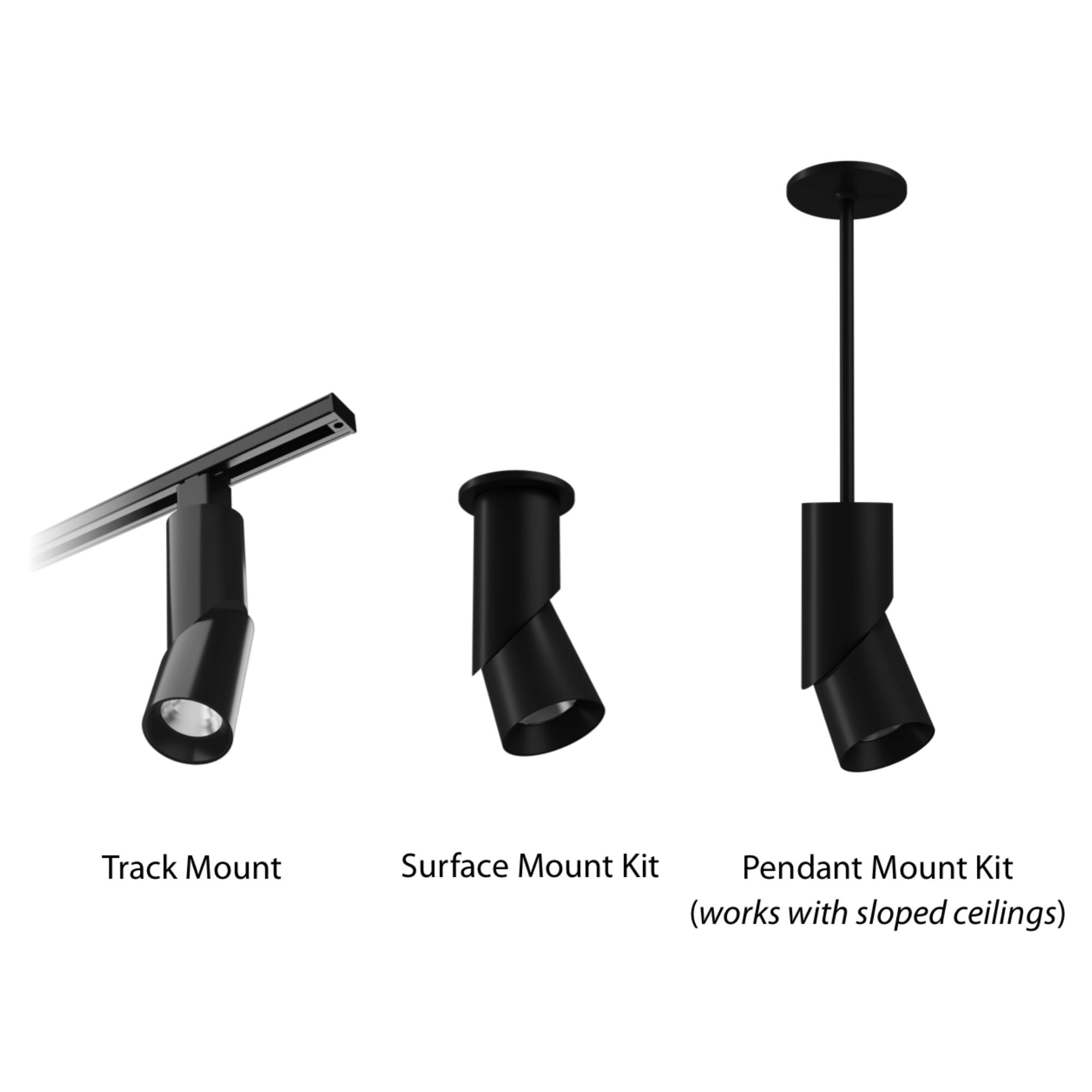

RAB Lighting PIVOTM ships ready for single-circuit H-Type track and operates at 120V, 60Hz with a constant-current Class 2 driver. Compatible TRIAC systems support dimming down to 10%. A separate lamp is not required. Select 10W, 8W or 6W and one of five CCT settings; the factory default is 10W and 4000K. Install in dry locations, with a minimum starting temperature of -4°F (-20°C) and maximum ambient temperature of 104°F (40°C). Matching separately sold medium-size kits convert the head to surface or pendant mounting; the pendant kit supports sloped-ceiling applications.

Compatible Accessories

Matching white RAB track components and medium-size mounting kits, sold separately.

• Track Rails: TK2 (2 ft), TK4 (4 ft), TK6 (6 ft) and TK8 (8 ft).
• Power Feeds: TK-EF top-access end feed, TK-JB junction-box end feed with cover and TK-FC floating canopy feed.
• Joiners: TK-I linear, TK-L L-shaped, TK-T T-shaped and TK-X X-shaped.
• End Cap: TK-EC finishes exposed track ends.
• Mounting Kits: PIVOTM-SM-KIT white medium surface-mount kit and PIVOTM-PM-KIT white medium pendant-mount kit.

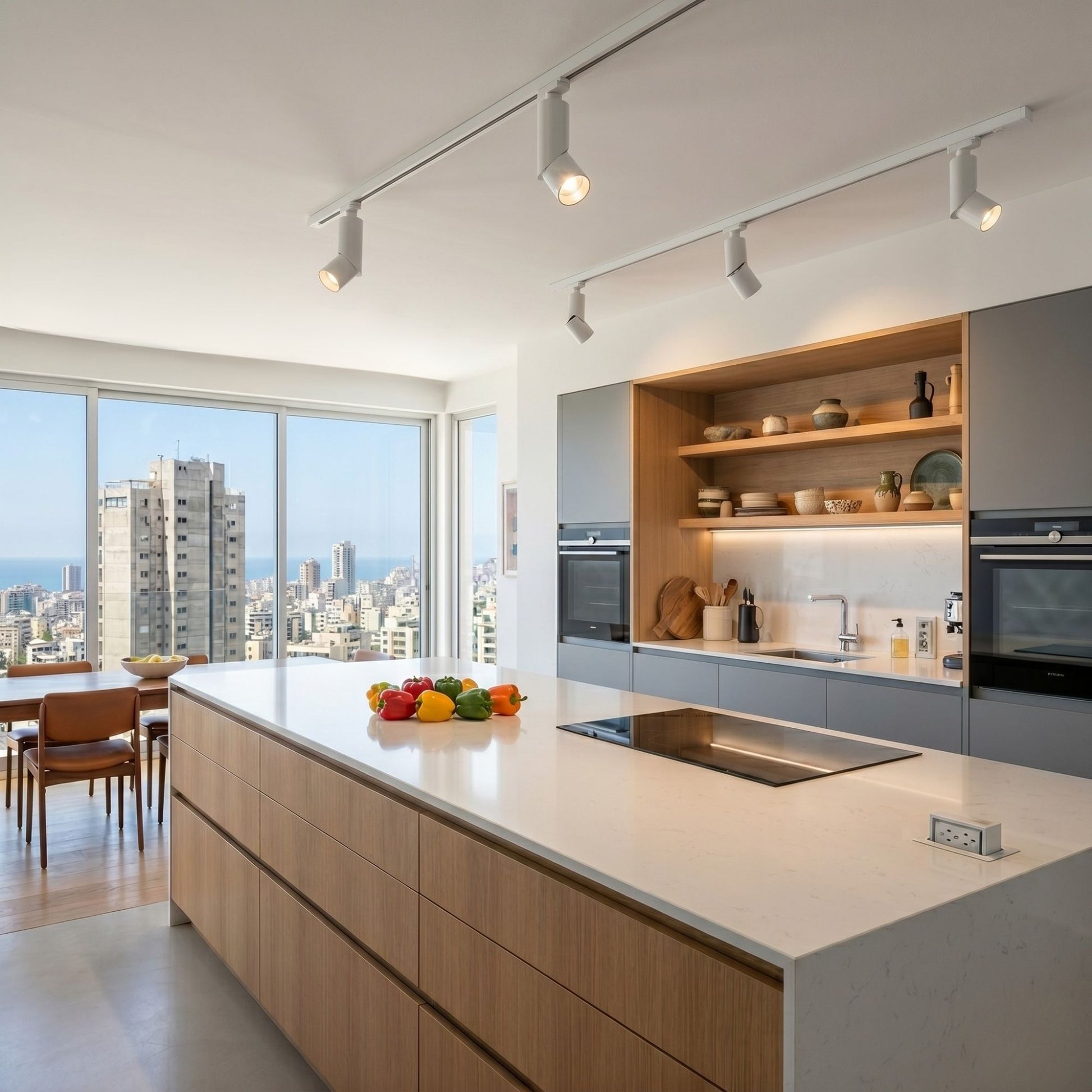

Typical Applications

• Artwork and gallery accents.
• Retail merchandise displays.
• Residential interior accents.
• Hospitality display lighting.

What's Included

• RAB Lighting PIVOTM medium white track head with integrated COB LED, constant-current Class 2 driver and 36° optics.
