RAB Lighting Pivot PIVOTL Large LED Track Head

The RAB Lighting Pivot PIVOTL combines a large white aluminum housing with an integrated COB LED for single-circuit H-Type track. Select 20W, 15W or 10W and 2700K, 3000K, 3500K, 4000K or 5000K to match your application. The factory-default 20W and 4000K configuration delivers 1685 lumens with 96 CRI. Fixed 36° optics, 315° horizontal rotation and up to 90° vertical pivot let you direct light onto artwork, merchandise and interior accents.

Key Features

• Size & Finish: Large Pivot housing in white aluminum.
• Track Compatibility: Single-circuit H-Type track mounting.

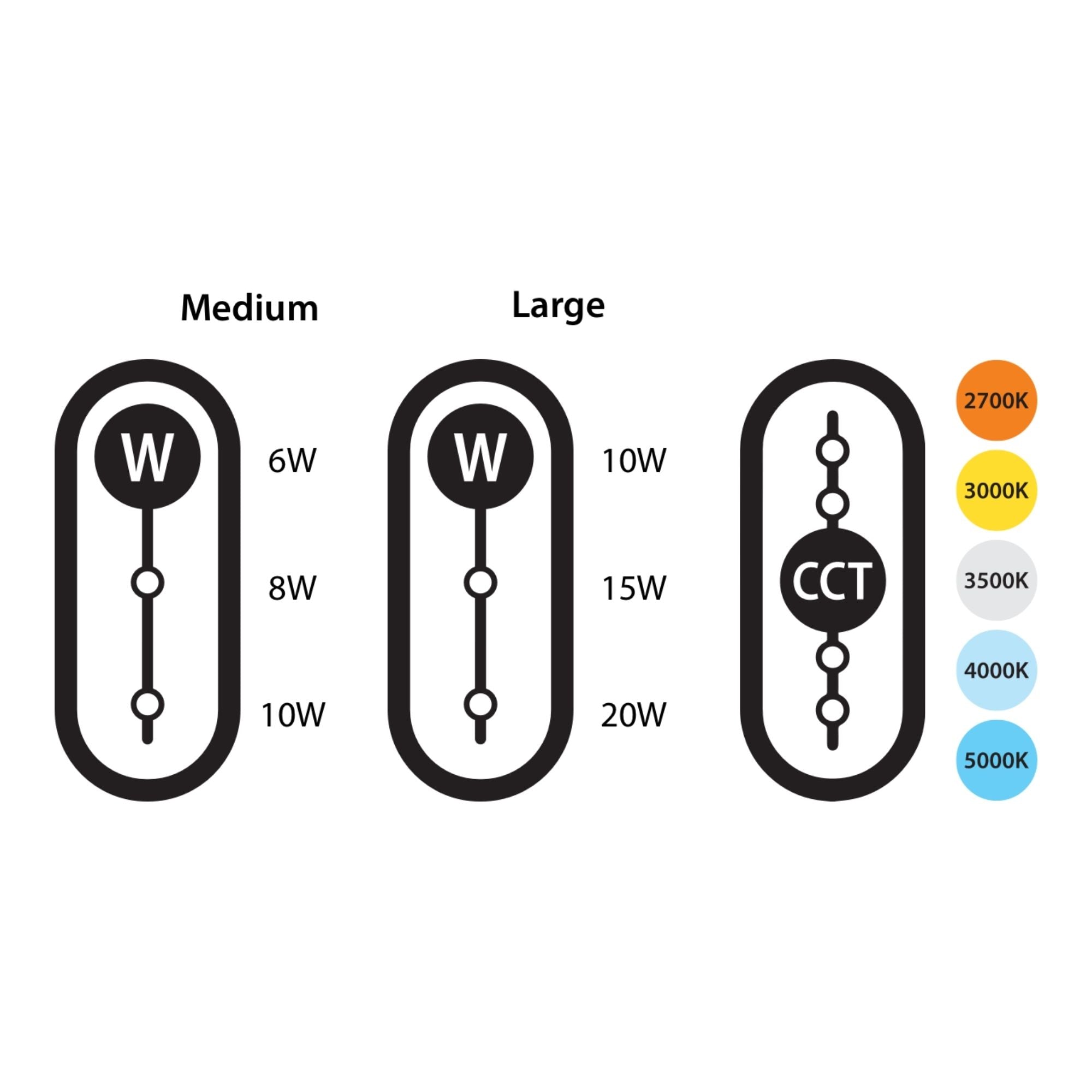

• Selectable Wattage: 20W, 15W and 10W; factory default is 20W.
• Five CCT Settings: 2700K, 3000K, 3500K, 4000K and 5000K; factory default is 4000K.
• Default Output: 1685 lumens at 20W and 4000K, 96 CRI.
• Output Range: 872 to 1765 lumens across wattage and CCT settings.
• Color Rendering: 96 CRI at 2700K, 3000K, 3500K and 4000K, 94 CRI at 5000K.
• Optics: Fixed 36° beam with polycarbonate optics.

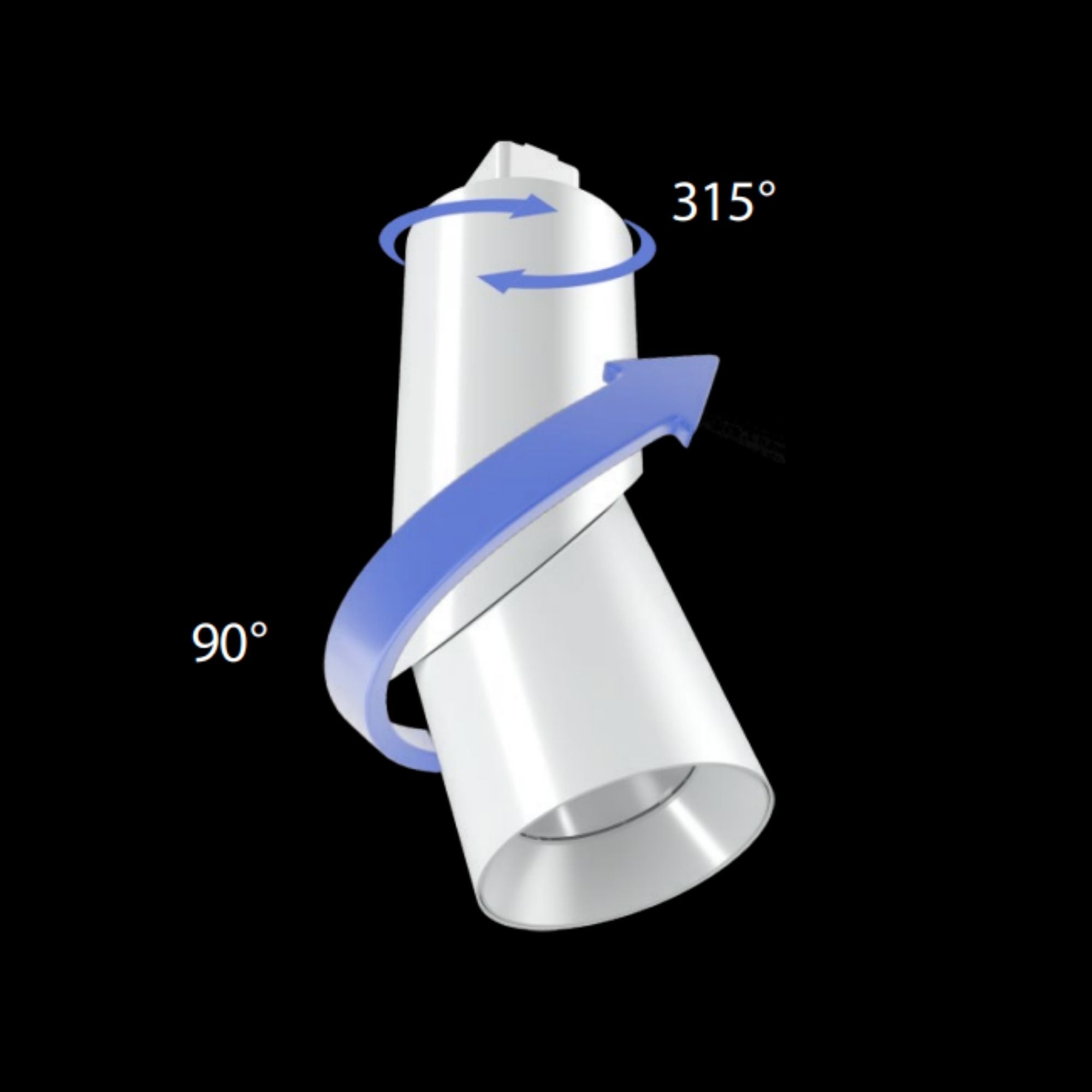

• Two-Axis Aiming: 315° horizontal rotation and up to 90° vertical pivot.
• Dimming & Driver: TRIAC dimming down to 10% on compatible systems, constant-current Class 2 driver, 120V, 60Hz.
• LED Life: 100,000-hour LED lifespan based on LM-80 results and TM-21 calculations.
• Listing & Warranty: UL Listed for dry locations, IP20, RAB 5-year limited warranty subject to warranty terms.

Construction & Design

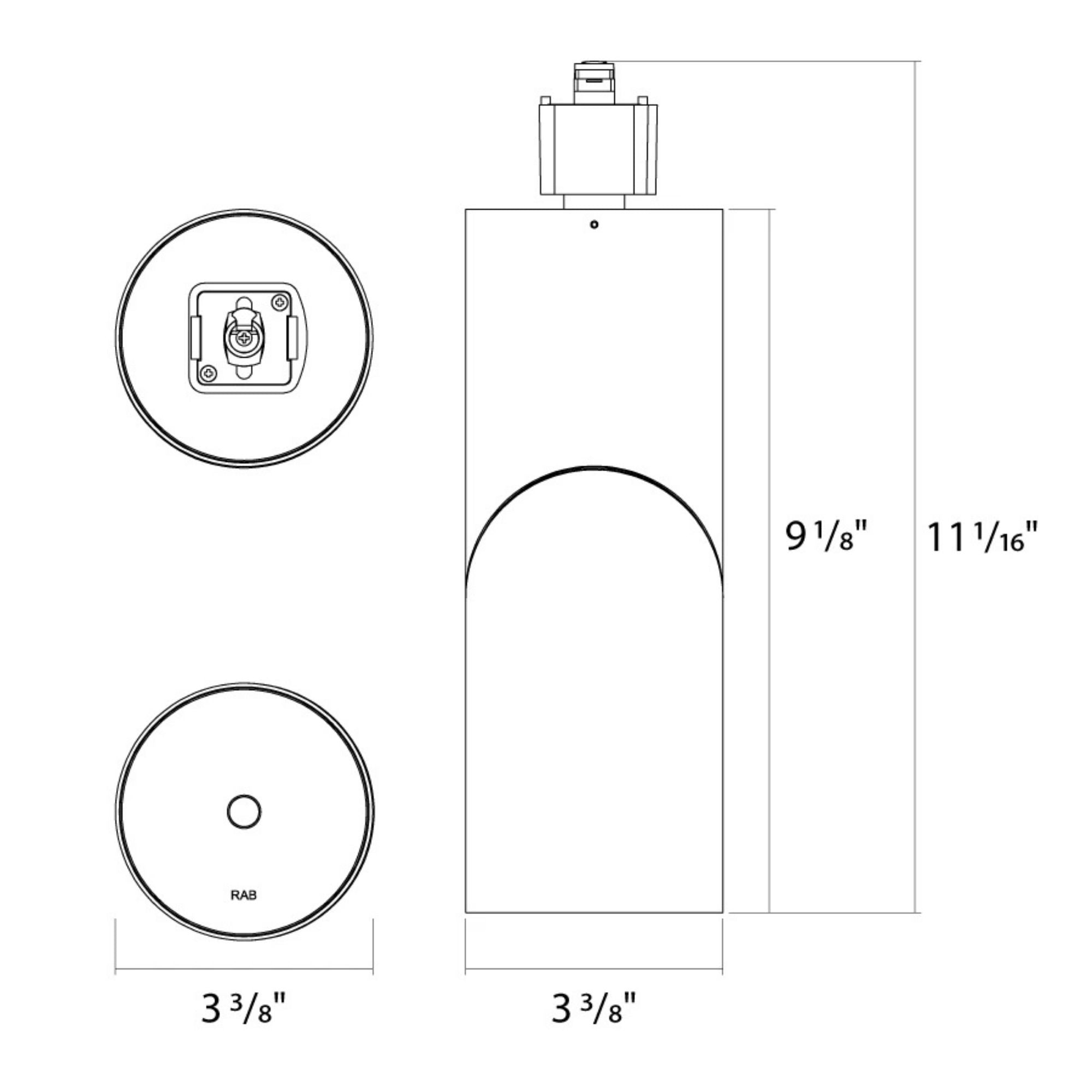

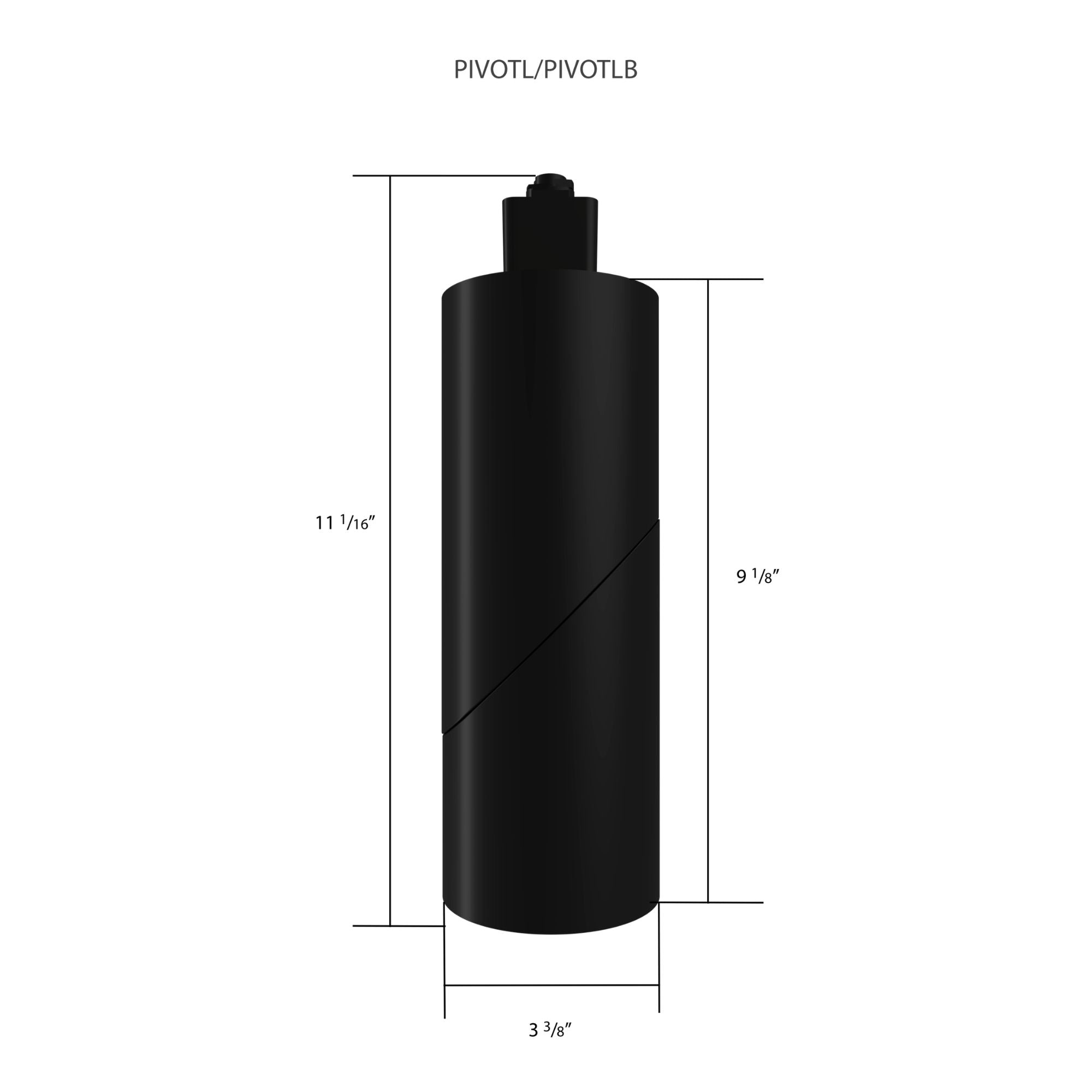

The large cylindrical aluminum housing has a durable white finish and polycarbonate optics. Overall height is 11 1/16 in, with a 9 1/8 in body height and 3 3/8 in width. Fixture weight is 2.4 lb. The lower half pivots up to 90° vertically, while 315° horizontal rotation provides a second aiming axis.

Light Output & Performance

At 4000K, the 36° model delivers 1685 lumens at 20W, 1354 lumens at 15W and 947 lumens at 10W, all with 96 CRI. Measured input power at these settings is 19.7W, 15W and 10W respectively, with efficacy of 85.5, 90.3 and 94.7 lm/W. Across all settings, output ranges from 872 lumens at 10W and 2700K to 1765 lumens at 20W and 5000K. Measured input power ranges from 9.9W to 19.8W, and efficacy from 80 to 99.6 lm/W. CRI is 96 at 2700K, 3000K, 3500K and 4000K, and 94 at 5000K. The integrated COB LED has a 100,000-hour rated lifespan.

Electrical & Installation

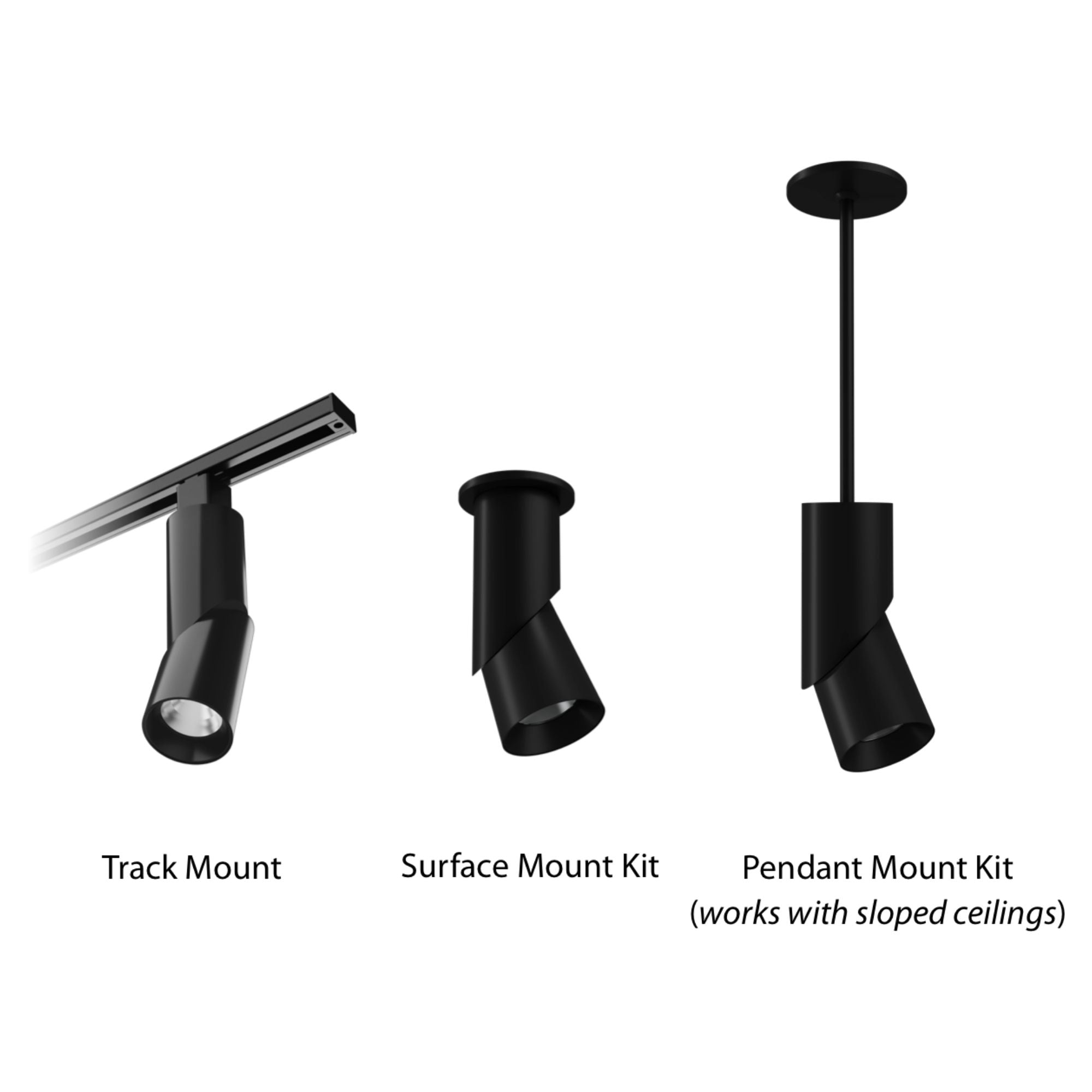

RAB Lighting PIVOTL ships ready for single-circuit H-Type track and operates at 120V, 60Hz with a constant-current Class 2 driver. Compatible TRIAC systems support dimming down to 10%. A separate lamp is not required. Select 20W, 15W or 10W and one of five CCT settings; the factory default is 20W and 4000K. Install in dry locations, with a minimum starting temperature of -4°F (-20°C) and maximum ambient temperature of 104°F (40°C). Matching separately sold large-size kits convert the head to surface or pendant mounting; the pendant kit supports sloped-ceiling applications.

Compatible Accessories

Matching white RAB track components and large-size mounting kits, sold separately.

• Track Rails: TK2 (2 ft), TK4 (4 ft), TK6 (6 ft) and TK8 (8 ft).
• Power Feeds: TK-EF top-access end feed, TK-JB junction-box end feed with cover and TK-FC floating canopy feed.
• Joiners: TK-I linear, TK-L L-shaped, TK-T T-shaped and TK-X X-shaped.
• End Cap: TK-EC finishes exposed track ends.
• Mounting Kits: PIVOTL-SM-KIT white large surface-mount kit and PIVOTL-PM-KIT white large pendant-mount kit.

Typical Applications

• Artwork and gallery accents.
• Retail merchandise displays.
• Residential interior accents.
• Hospitality display lighting.

What's Included

• RAB Lighting PIVOTL large white track head with integrated COB LED, constant-current Class 2 driver and 36° optics.
