RAB PARK34 Field Adjustable Garage Light Canopy 9000 Lumens 70W Selectable CCT 120-277V Bronze
Available in stock (200)
About this item
About this item
- Lumens: Provides up to 9,088 lumens for bright illumination in garage settings.
- Wattage: Field adjustable wattage options of 70W, 60W, and 50W for flexible energy use.
- Voltage: Operates on a wide voltage range of 120-277V for versatile installation.
- Ingress Protection: IP65 rated for protection against dust and water, suitable for wet locations.
- Dimming: Equipped with 0-10V dimming capability for customizable light levels.
We process payments securely and do not store credit card information.
Description
Description

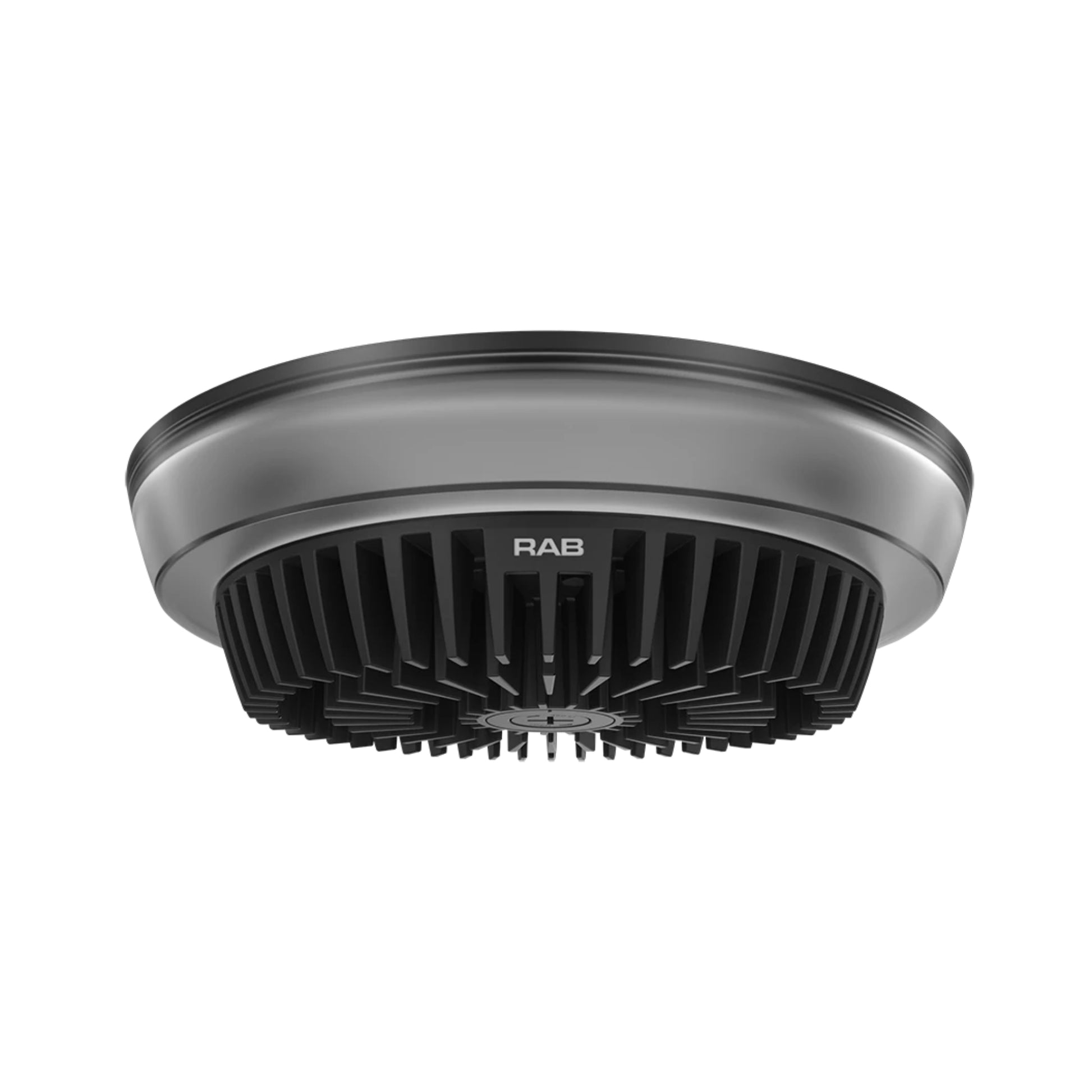

RAB Lighting PARK34 Field Adjustable Garage Light - 70W Configuration
The RAB Lighting PARK34-70 is a versatile canopy light designed for garage applications, delivering up to 9,088 lumens with a selectable wattage of 70W, 60W, or 50W. It operates on 120-277V and features selectable CCT options of 3000K, 4000K, and 5000K. This fixture is DLC Premium listed, ensuring high efficiency and rebate eligibility.
Key Features
- Selectable CCT: Offers color temperature options of 3000K, 4000K, and 5000K for tailored lighting environments.
- Durable Construction: Die-cast aluminum housing with a polycarbonate lens ensures longevity and resistance to environmental factors.
- High Efficacy: Achieves an efficacy range of 121-151.1 lm/W for energy-efficient performance.
- Long Lifespan: Rated for 100,000 hours of operation based on IES LM-80 and TM-21 standards.
- Surge Protection: Includes 4kV surge protection to safeguard against voltage spikes.
- UL Listed: Suitable for wet locations, enhancing its versatility in various settings.
- Trade Agreements Act Compliant: Manufactured in compliance with the Trade Agreements Act.
- Color Consistency: Maintains color uniformity within a 7-step MacAdam Ellipse.
- Green Technology: Mercury and UV free, with RoHS-compliant components.
- Warranty: Backed by a 5-year limited warranty covering light output, driver performance, and paint finish.
Typical Applications
- Parking Garages
- Canopies
- Loading Docks
- Service Stations
- Industrial Facilities
Performance & Light Output
The PARK34-70 delivers a maximum of 9,088 lumens with an efficacy of up to 151.1 lm/W. It features long-life, high-efficacy surface-mount LEDs with a color stability warranty of no more than 200K shift over five years.
Electrical & Controls
This fixture supports 120-277V input with a constant current driver and 0-10V dimming down to 10%. It includes a dim-to-off feature and auxiliary power supply, with a power factor of 99.5% at 120V.
Construction & Durability
Constructed with a die-cast aluminum housing and polycarbonate lens, the PARK34-70 is IP65 rated for dust and water protection. It operates in temperatures from -40°C to 40°C.
Installation & Mounting

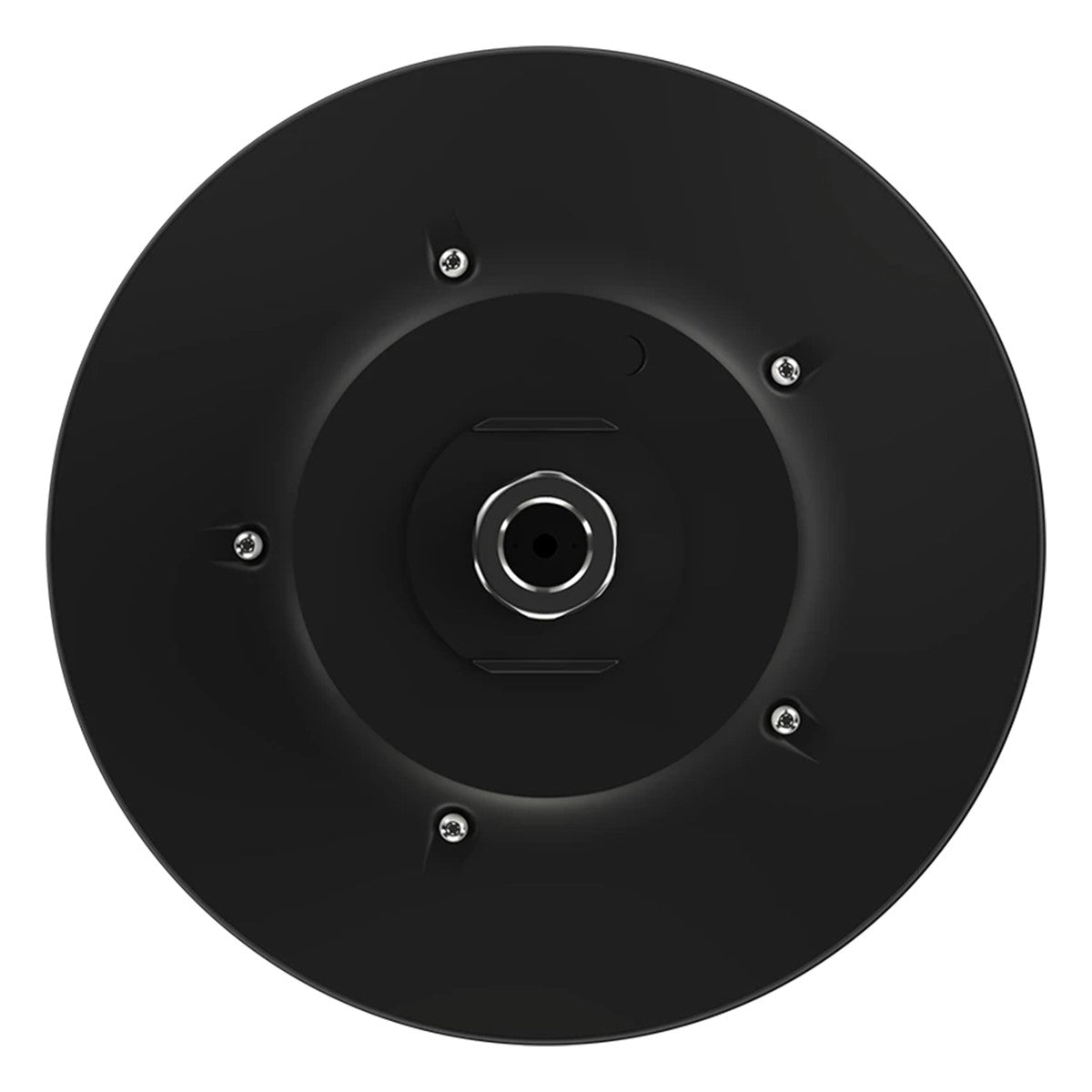

The fixture supports surface mounting and includes a removable adapter for 1/2' and 3/4' NPT pendant mounting. It is designed for easy installation in various settings.
What's Included
- RAB Lighting PARK34-70 Canopy Light
Specifications
Specifications

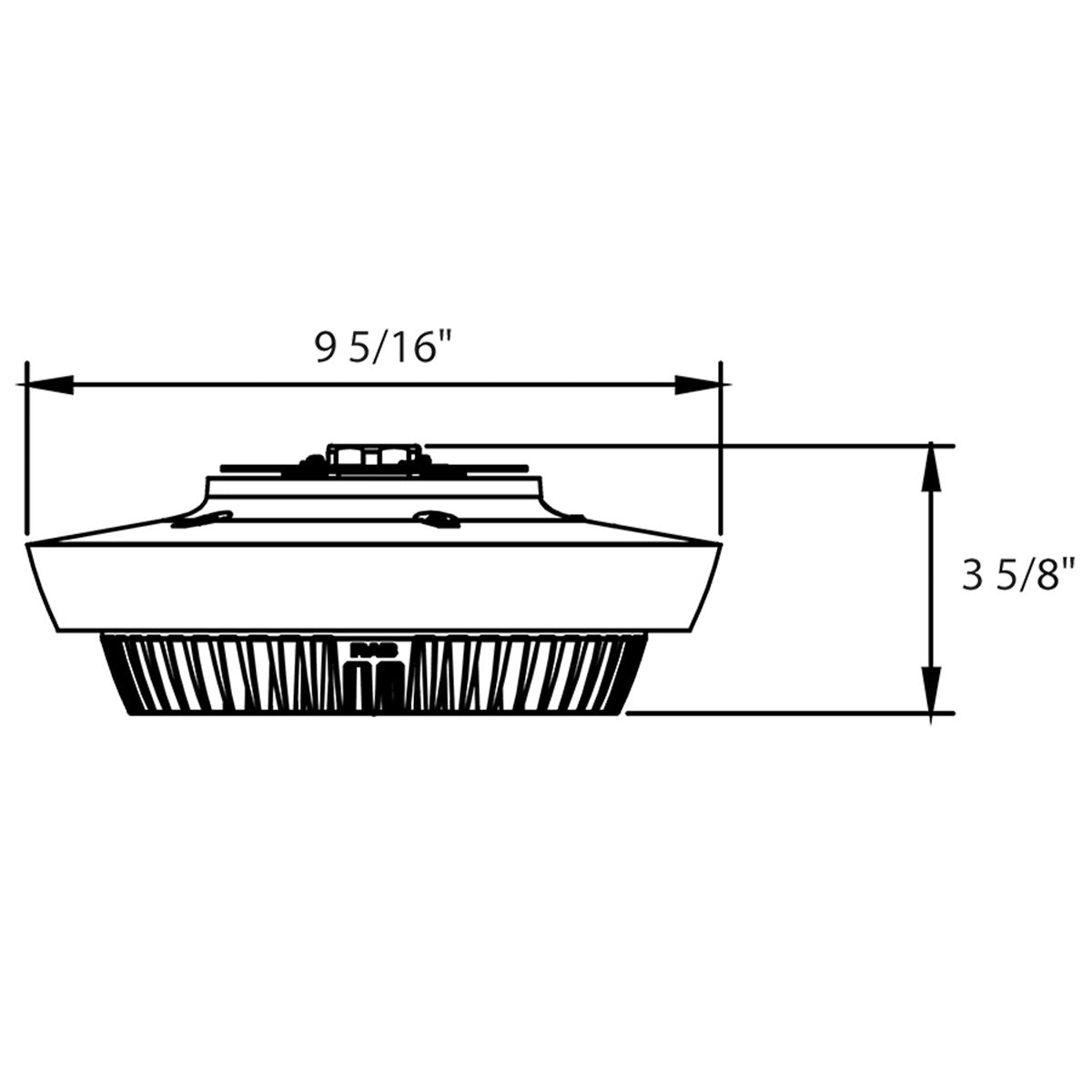

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage of the RAB PARK34-70?
What is the wattage of the RAB PARK34-70?
Is the RAB PARK34-70 suitable for wet locations?
Is the RAB PARK34-70 suitable for wet locations?
Does the RAB PARK34-70 support dimming?
Does the RAB PARK34-70 support dimming?
What is the lumen output of the RAB PARK34-70?
What is the lumen output of the RAB PARK34-70?
What mounting options are available for the RAB PARK34-70?
What mounting options are available for the RAB PARK34-70?
