RAB PARK34 Field Adjustable Garage Light Canopy 6000 Lumens 40W Selectable CCT 120-277V Bronze
Available in stock (200)
About this item
About this item
- Wattage: The PARK34-40 offers selectable wattage options of 40W, 30W, and 20W for versatile applications.
- Lumens: Delivers between 3,160 and 5,899 lumens, ensuring bright and efficient lighting.
- Voltage: Compatible with 120-277V, accommodating various electrical systems.
- Ingress Protection: IP65 rating provides robust protection against dust and water ingress.
- Dimming Capability: Features 0-10V dimming, allowing for adjustable light levels down to 10%.
We process payments securely and do not store credit card information.
Description
Description

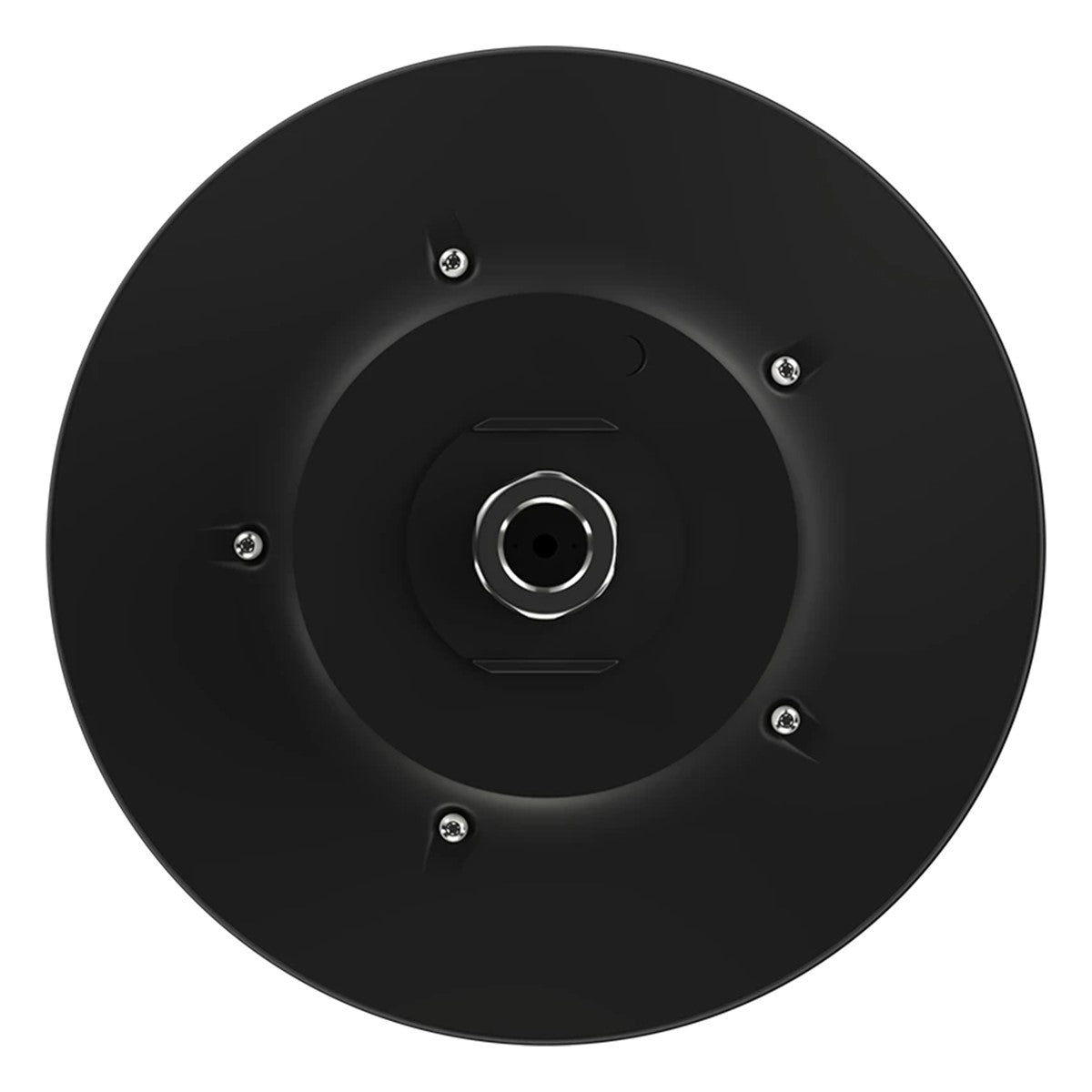

RAB Lighting PARK34 Field Adjustable Garage Light - 40W Selectable Configuration
The RAB Lighting PARK34-40 is a versatile canopy light offering selectable wattage options of 40W, 30W, and 20W. It delivers up to 6000 lumens and operates on 120-277V. This fixture is IP65 rated, making it suitable for wet locations and ensuring durability in challenging environments.
Key Features
- Selectable Wattage: Choose between 40W, 30W, and 20W to suit specific lighting needs.
- High Efficacy: Achieves an efficacy range of 130.9-156.1 lm/W for energy-efficient performance.
- Durable Construction: Features a die-cast aluminum housing and polycarbonate lens for longevity.
- Wide Voltage Range: Operates on 120-277V, accommodating diverse electrical setups.
- Advanced Dimming: Supports 0-10V dimming for customizable light output.
- Long Lifespan: Designed for a 100,000-hour LED lifespan, reducing maintenance needs.
- Color Stability: Maintains color temperature within 200K over five years.
- Trade Compliance: Complies with the Trade Agreements Act and DLC 5.1 standards.
- Surge Protection: Equipped with 4kV surge protection for enhanced reliability.
- Environmentally Friendly: Mercury and UV-free, with RoHS-compliant components.
Typical Applications
- Parking Garages
- Canopies
- Warehouses
- Industrial Facilities
- Outdoor Walkways
Performance & Light Output
The PARK34-40 provides a lumen output range of 3,160 to 5,899 lumens with an efficacy of 130.9-156.1 lm/W. It ensures consistent color with a 7-step MacAdam Ellipse binning and follows ANSI C78.377-2017 standards.
Electrical & Controls
This fixture supports 120-277V input with a constant current driver. It includes 0-10V dimming capabilities and features a power factor of 99.3% at 120V and 97.5% at 277V. Surge protection is rated at 4kV.
Construction & Durability
Constructed with a die-cast aluminum housing and polycarbonate lens, the PARK34-40 is IP65 rated for dust and water protection. It operates in temperatures from -40°C to 40°C.
Installation & Mounting
The fixture supports surface mounting and includes a removable adapter for 1/2' and 3/4' NPT pendant mounting. It is designed for easy installation in various settings.
What's Included
- PARK34-40 Fixture
