RAB ORB4 4 in Round Trimless Canless Downlight — 9W / 745–828 lm / Selectable CCT / 120V / White

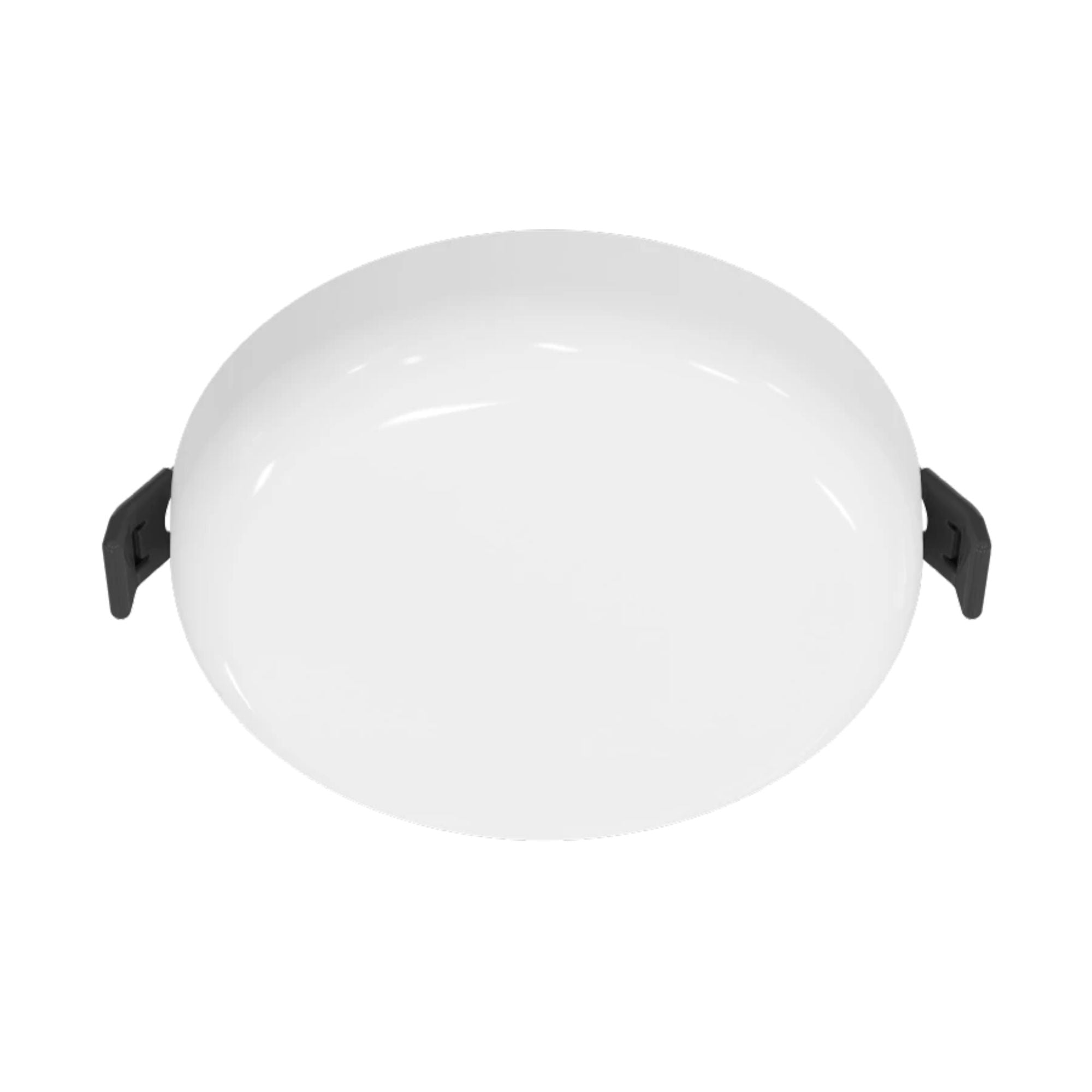

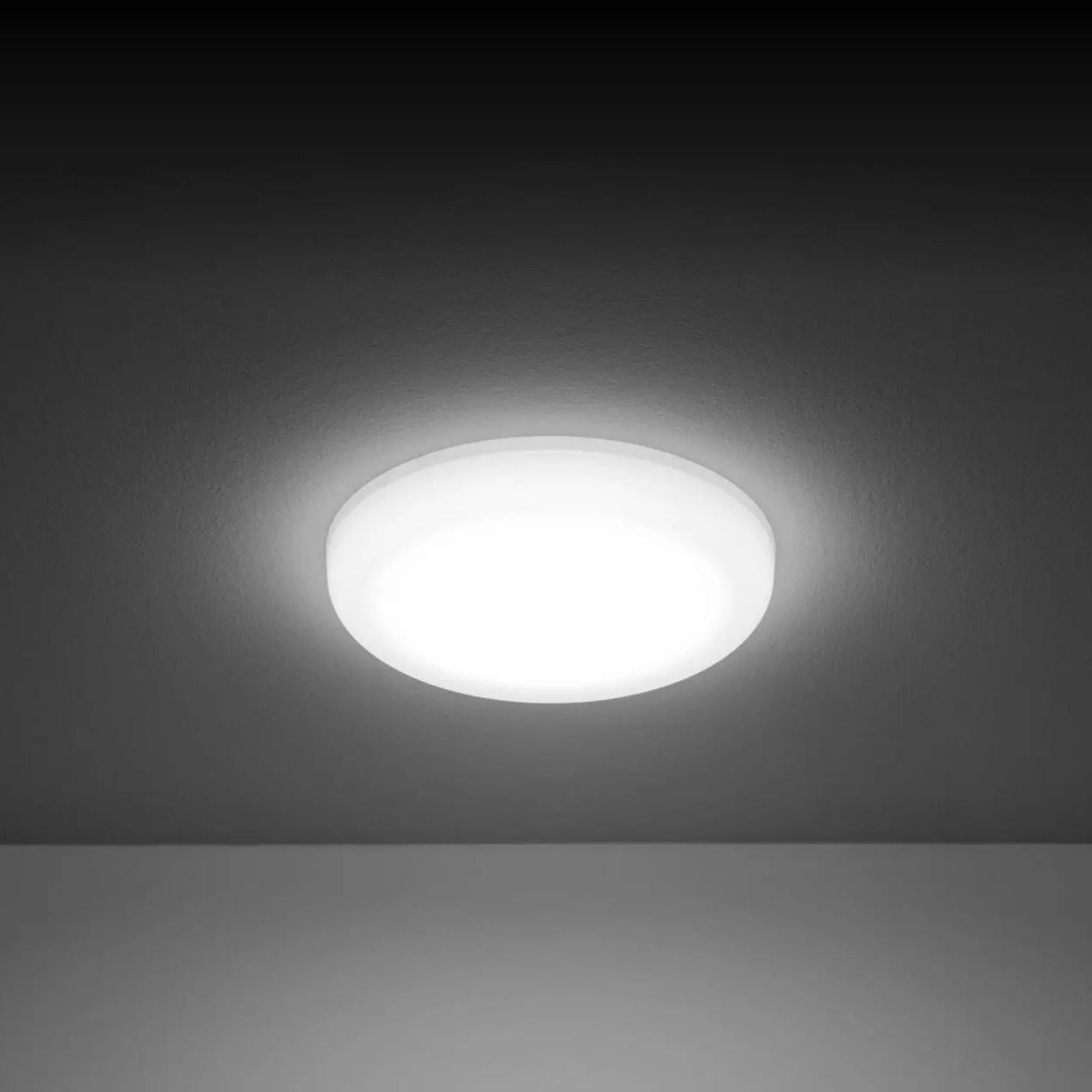

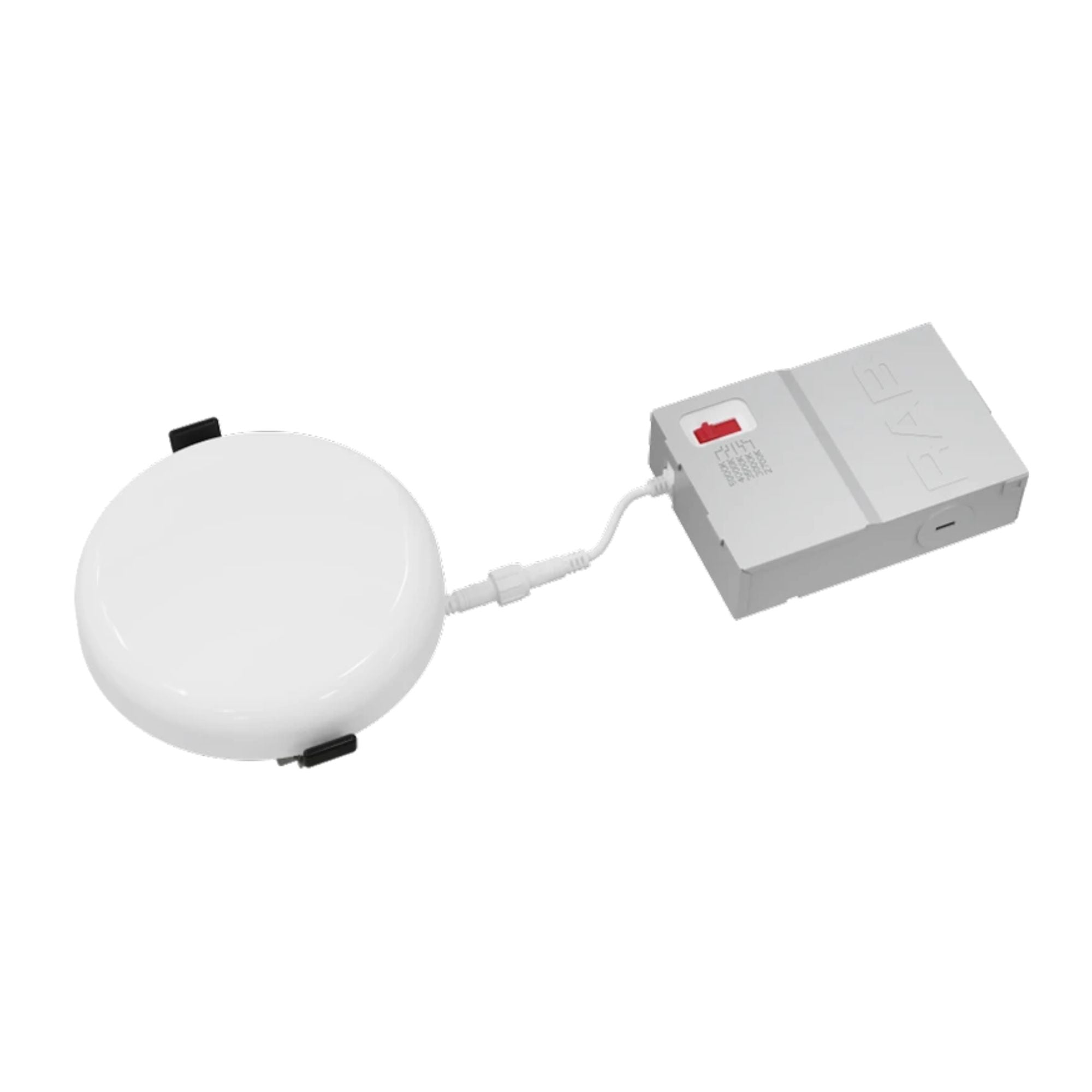

The RAB ORB4 is a 4 in round trimless canless LED downlight delivering a 180° fully luminous surface with smooth, evenly distributed light — no trim ring, no visible edges. At 9W / 745–828 lm (83–94 lm/W), with field-selectable CCT (2700K–5000K), 110° beam angle, Type IC rating, airtight construction, and California Title 24 JA8 compliance. Remote driver/junction box included for flexible, no-housing installation. Wet rated. TAA compliant. 120V only.

Key Features

• Type: 4 in round trimless canless downlight | 180° fully luminous surface | No housing required

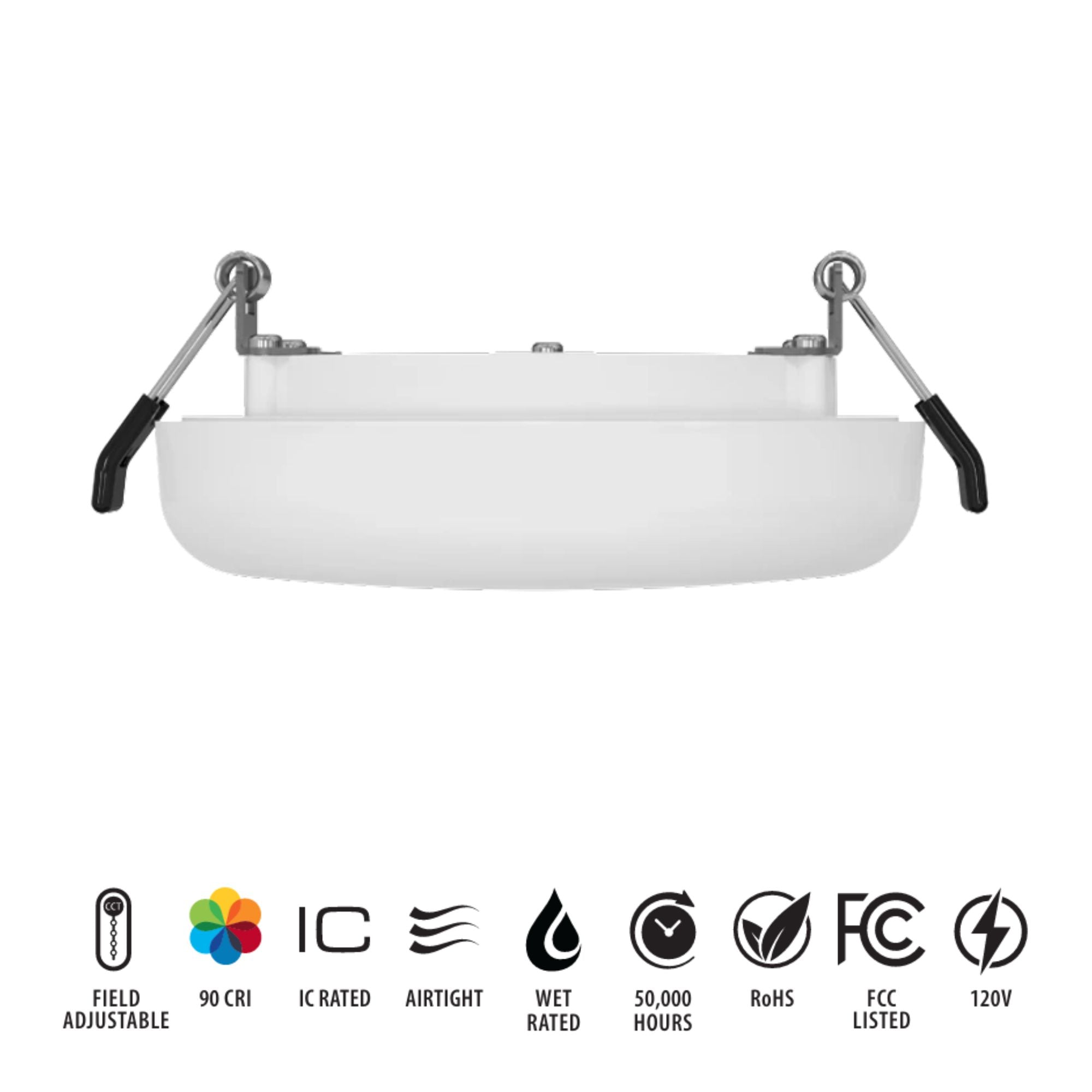

• Construction: Plastic enclosure | White finish | Frosted polycarbonate lens diffuser | Die-cast aluminum back plate for thermal dissipation | Steel spring clips

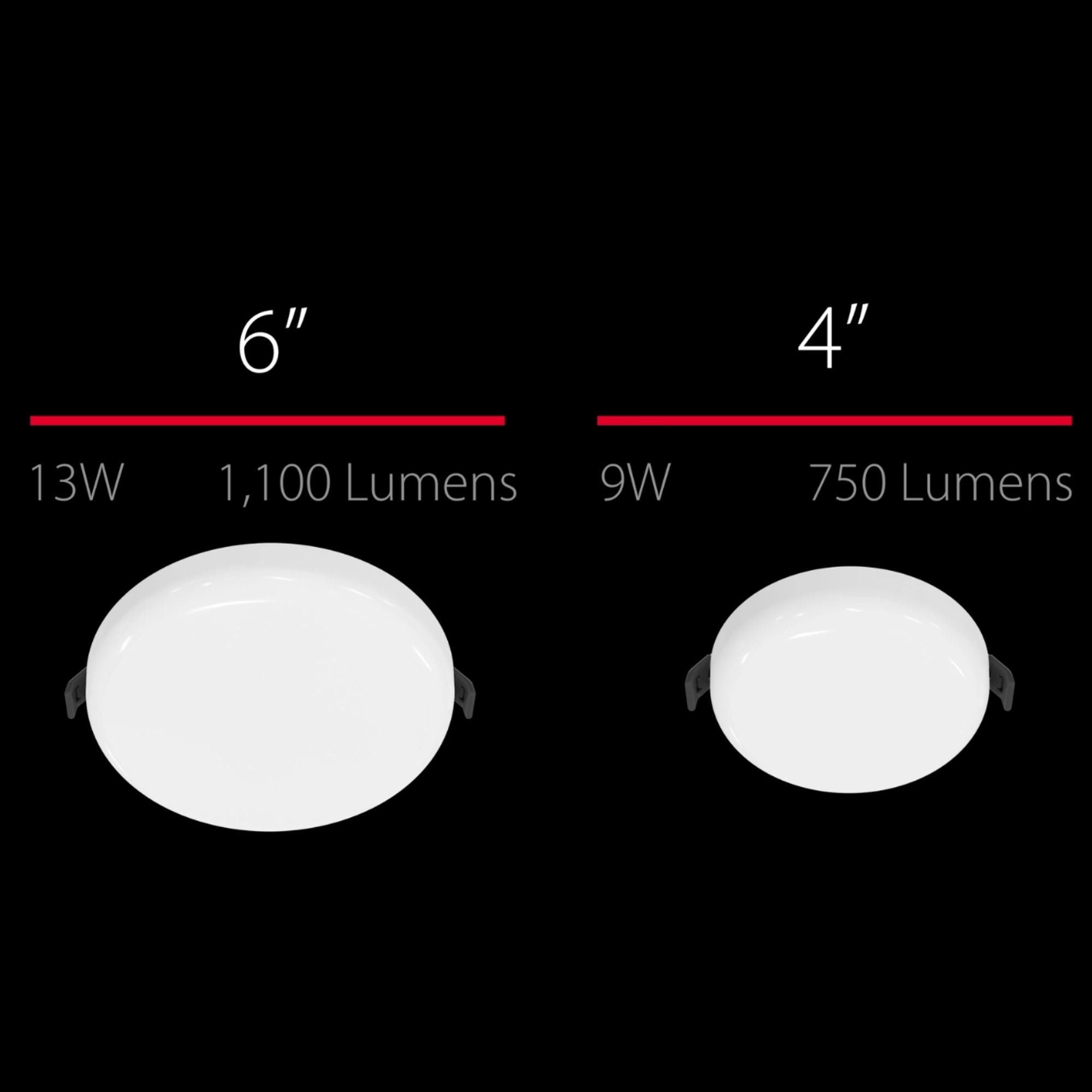

• Wattage: 9W | Replaces 40W incandescent
• Light Output: 745 lm @ 2700K | 780 lm @ 3000K | 817 lm @ 3500K | 828 lm @ 4000K | 817 lm @ 5000K
• Efficacy: 83 lm/W @ 2700K | 88 lm/W @ 3000K | 93 lm/W @ 3500K | 94 lm/W @ 4000K | 91 lm/W @ 5000K
• Beam Angle: 110°
• Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K via dip switch
• CRI: 90 | R9 >50 | <4-step MacAdam Ellipse (2700K/5000K); <7-step (3000K/3500K/4000K) | Color stability ≤200K over 5 years (ANSI C78.377-2017)
• Input Voltage: 120V | 60 Hz | 0.08A | 82mA | 120V only (208/240/277V: N/A)
• Driver: Constant Current | Class 2 | PF: ≥0.9 | THD: ≤20% | Flicker: ≤30%
• Dimming: TRIAC/ELV dimmable to 10% — see RAB Dimmer Compatibility List
• IC Rating: Type IC — inherently protected; suitable for direct contact with air-permeable insulation; cULus listed for damp locations; NOT for spray foam insulation (consult NEMA LSD57-2013)
• Air Tight: Yes — per ASTM-E283
• Environment: Wet rated (UL Listed) | Op temp: -4°F to 104°F (-20°C to 40°C) | Weight: 0.8 lbs

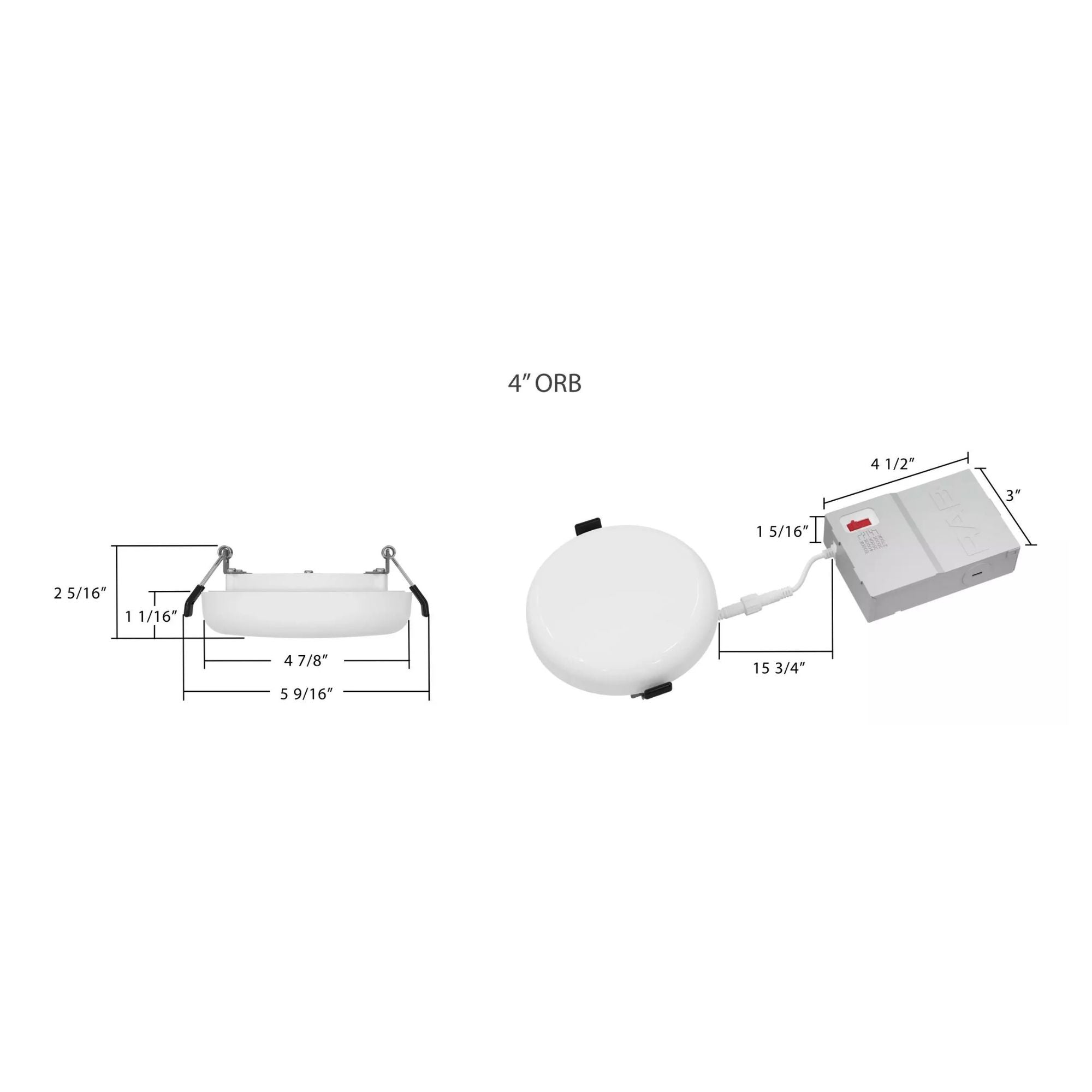

• Mounting: Recessed | Steel spring clips | 4 in cut-out template included | Min 1-1/4 in ceiling thickness | Removable from below | NEC Sec. 410.16 (A)(1) & (C1) — suitable for closets

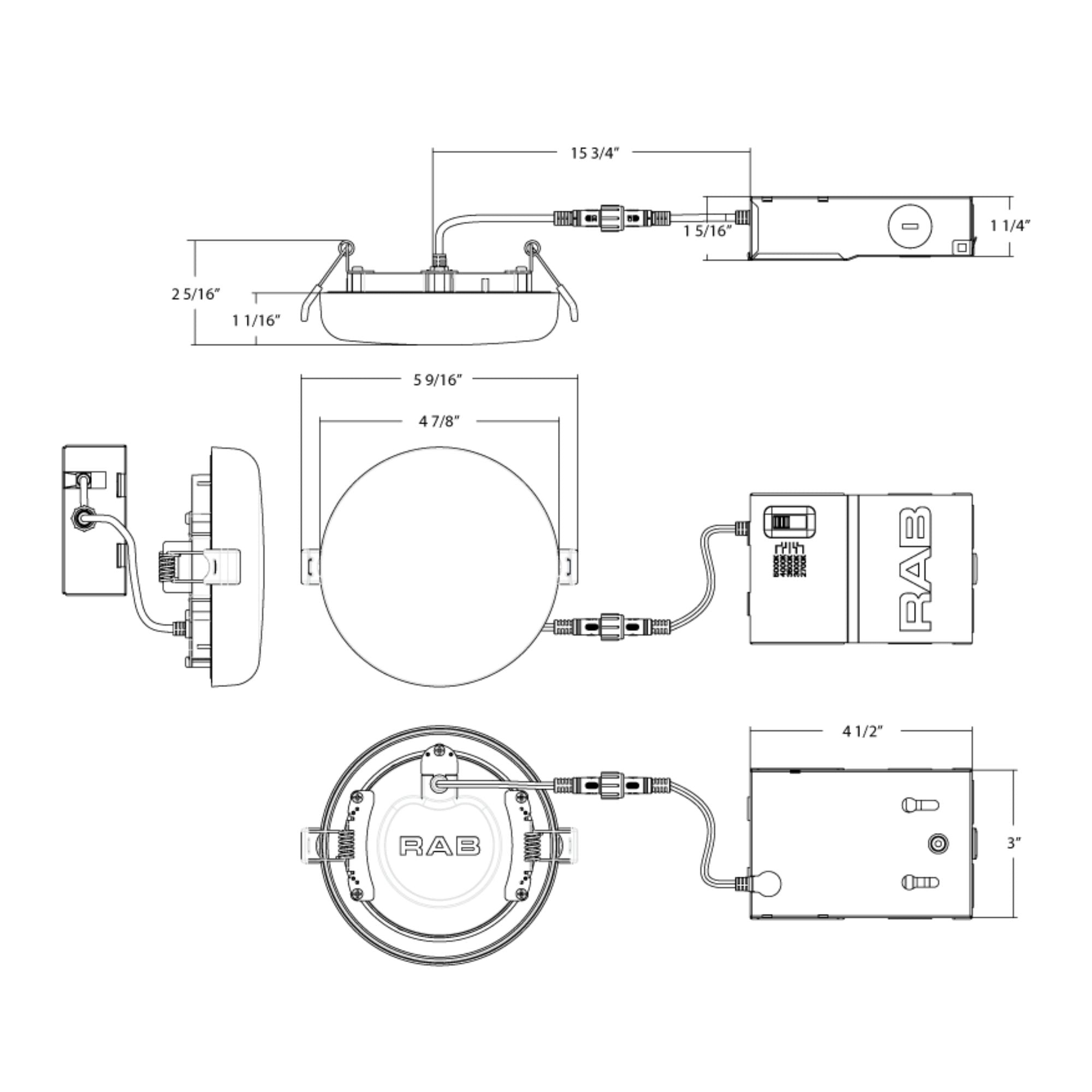

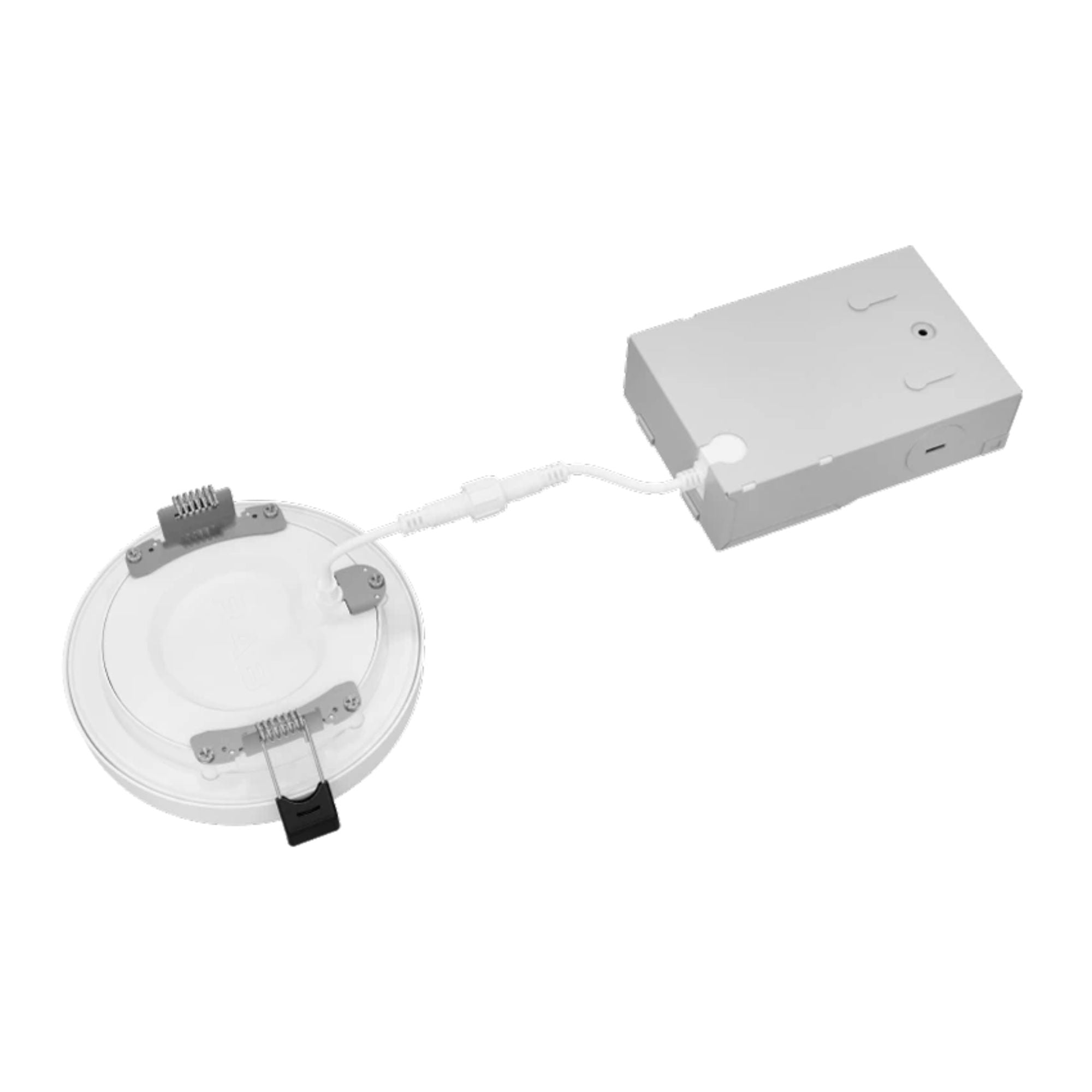

• Remote Driver/Junction Box: Die-formed metal | Captive hinged cover | Max 4× 12AWG | 90°C | 2in/2out + ground | 4 conduit pry-outs | Snap-in connectors | Integral mounting
• Certifications: UL Listed (wet locations) | DLC Listed (DLS0182(ORB4) — verify QPL at designlights.org) | California Title 24 Part 6 / JA8 Compliant | CEC: Lawful for CA | TAA Compliant | NEC Sec. 410.16 (A)(1) & (C1) | IESNA LM-79 & LM-80 | RoHS | FCC Part 15
• Warranty: 5-year no-compromise warranty

Light Output & Performance

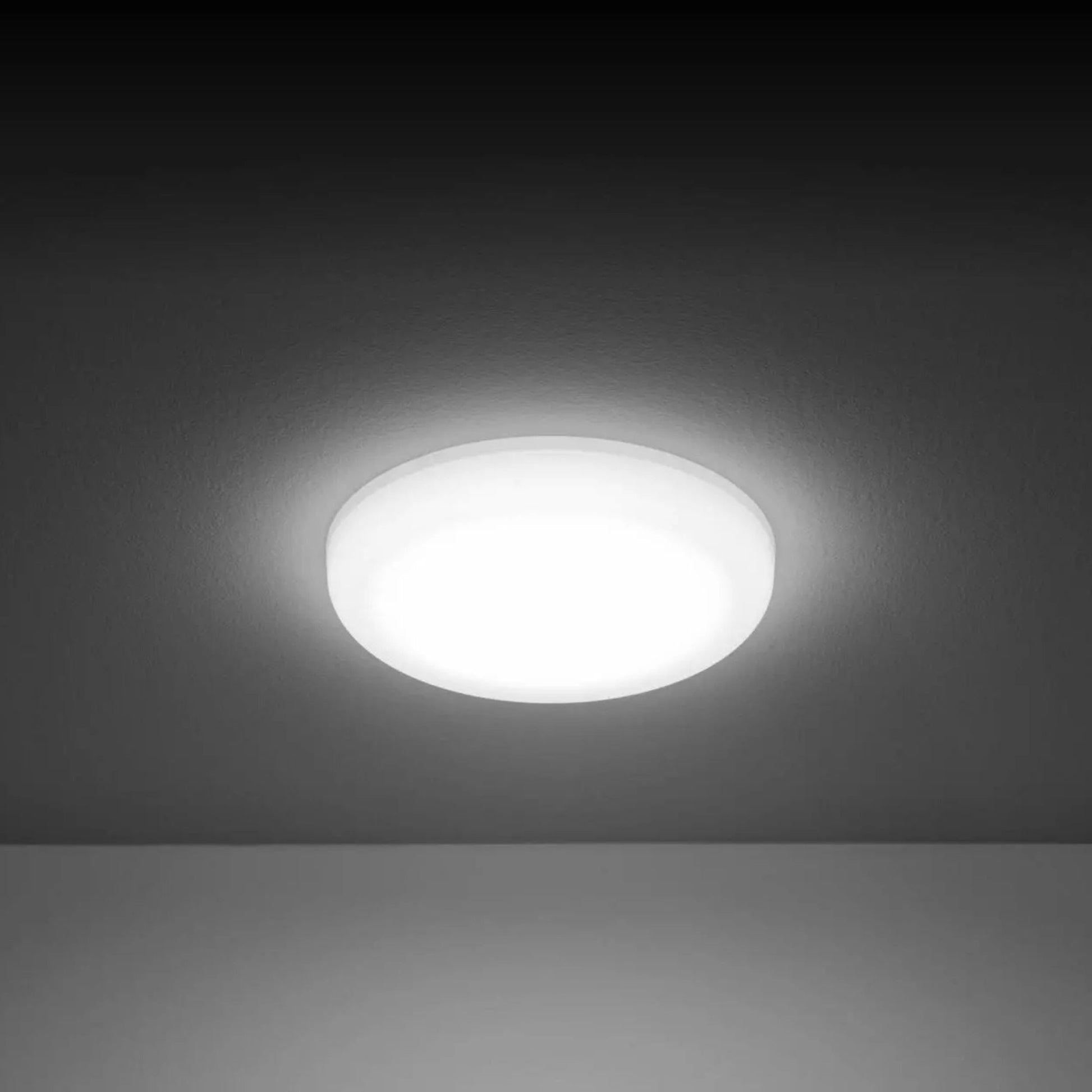

The ORB4 delivers 745–828 lm at 9W, with efficacy ranging from 83–94 lm/W depending on CCT. The 180° fully luminous surface and frosted polycarbonate lens provide smooth, evenly distributed, glare-free illumination with no visible trim ring. With a CRI of 90, R9 >50, and tight MacAdam Ellipse binning, color quality is consistent across all five CCT settings.

Electrical & Installation

The ORB4 operates at 120V / 60 Hz / 0.08A with a constant current Class 2 driver (PF ≥0.9, THD ≤20%, Flicker ≤30%). TRIAC/ELV dimmable to 10% — see RAB Dimmer Compatibility List. 120V only; 208/240/277V not supported. Installs via steel spring clips through a 4 in ceiling cut-out. Minimum ceiling thickness: 1-1/4 in. Removable from below for service. Remote driver/junction box mounts separately for flexible placement. IC rated (air-permeable insulation only; not for spray foam); airtight per ASTM-E283. Suitable for closet installations per NEC Sec. 410.16.

Compatible Accessories (Sold Separately)

• Mounting: DLPLATE/WFR4/NB/CL — 4 in mounting plate with nailer bar and drywall collar
• Extension Cables: EXTCBL-FA-6 (6 ft) | EXTCBL-FA-12 (12 ft) | EXTCBL-FA-20 (20 ft)
• Emergency Drivers: DRI-21-EMGR-DC-DC10 (emergency backup driver T120) | DRI-EMB-15S-LV (2-in-1 driver + battery backup)

Typical Applications

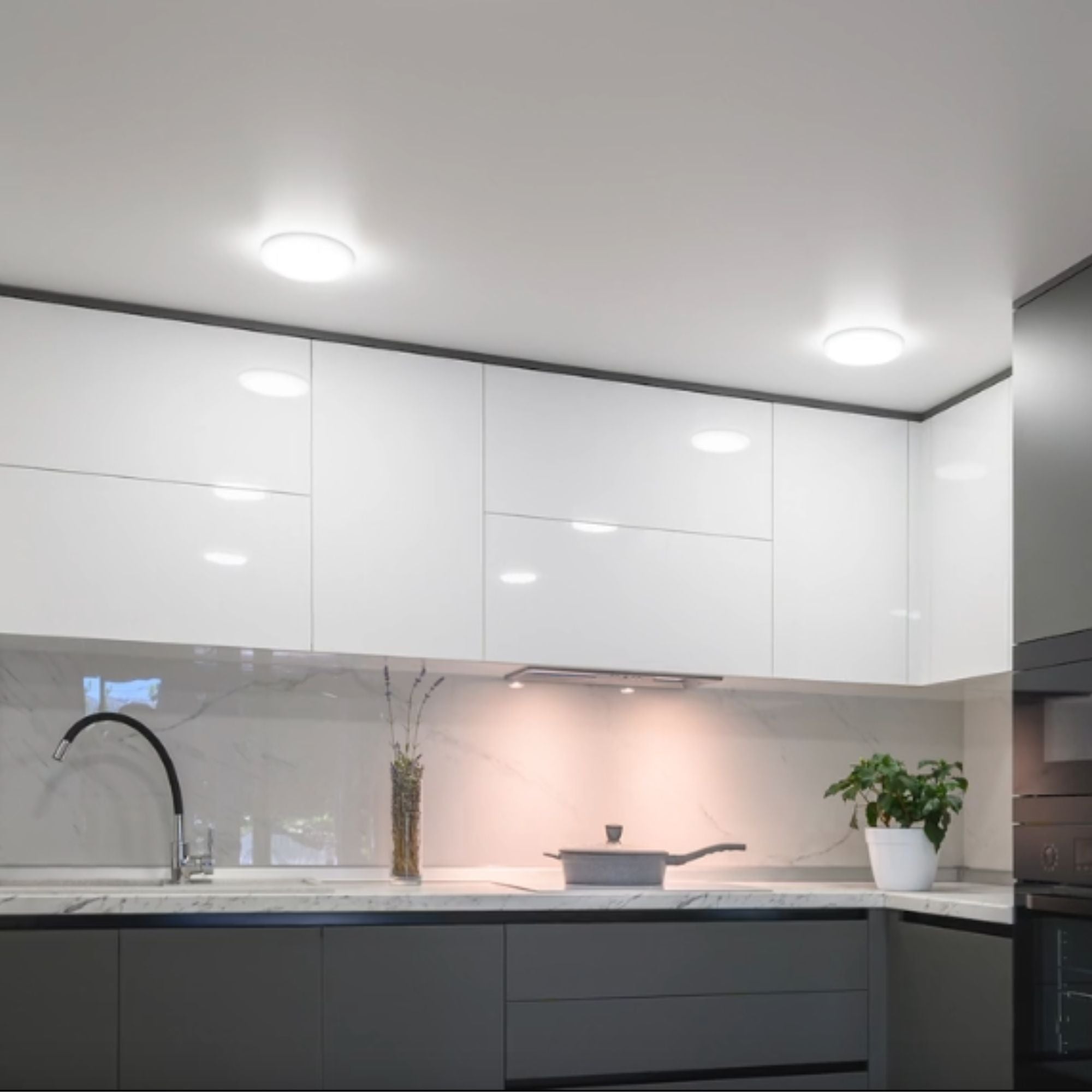

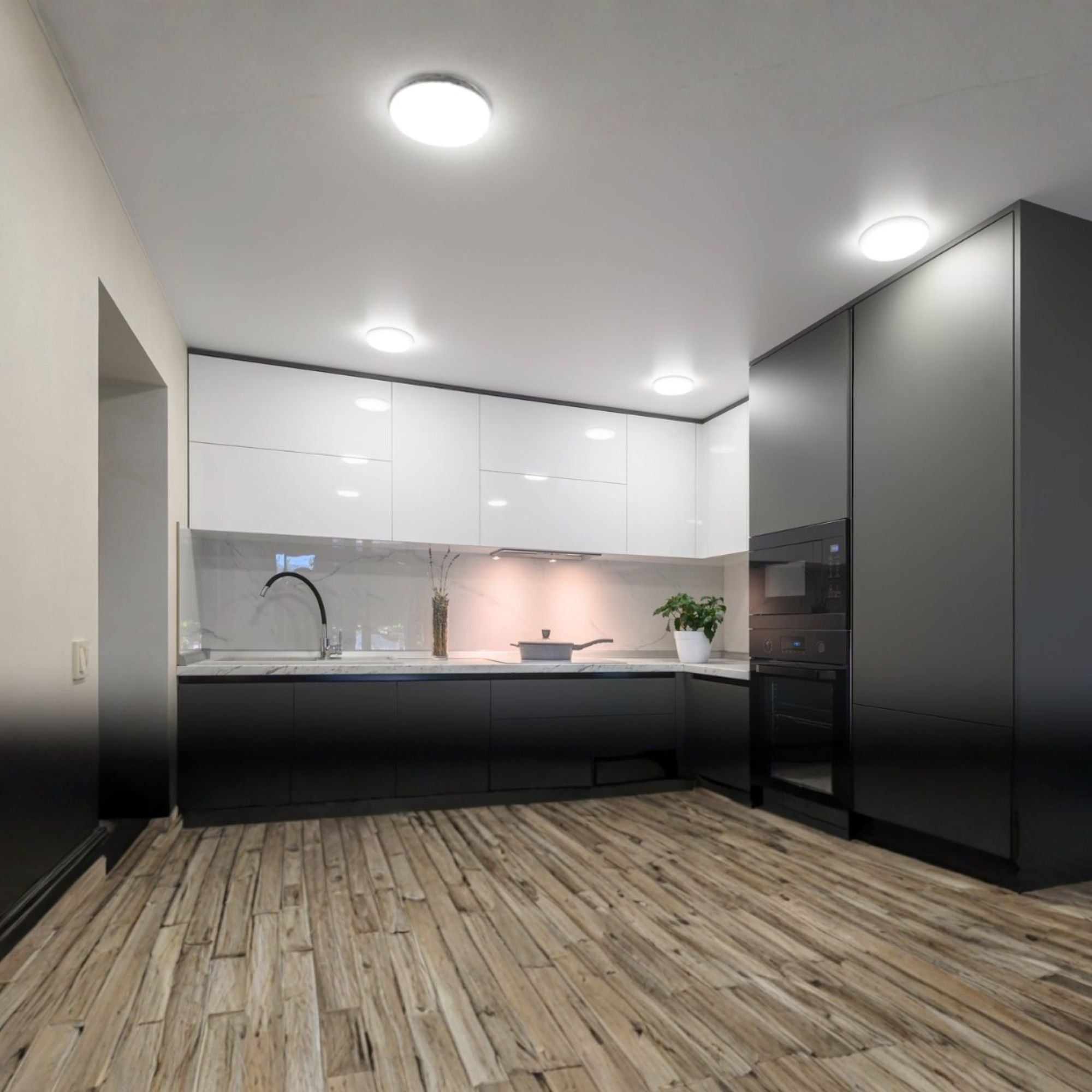

• Residential kitchens, bathrooms, living areas, and closets
• Commercial offices, retail spaces, and hospitality environments
• Wet and damp locations including bathrooms and covered outdoor areas
• California Title 24 JA8 and DLC compliant installations
• IC-rated and airtight applications with air-permeable insulation
• Trimless/borderless aesthetic applications

What’s Included

• RAB ORB4 4 in round trimless canless downlight (white)
• Remote driver/junction box
• 4 in cut-out template
