Overview

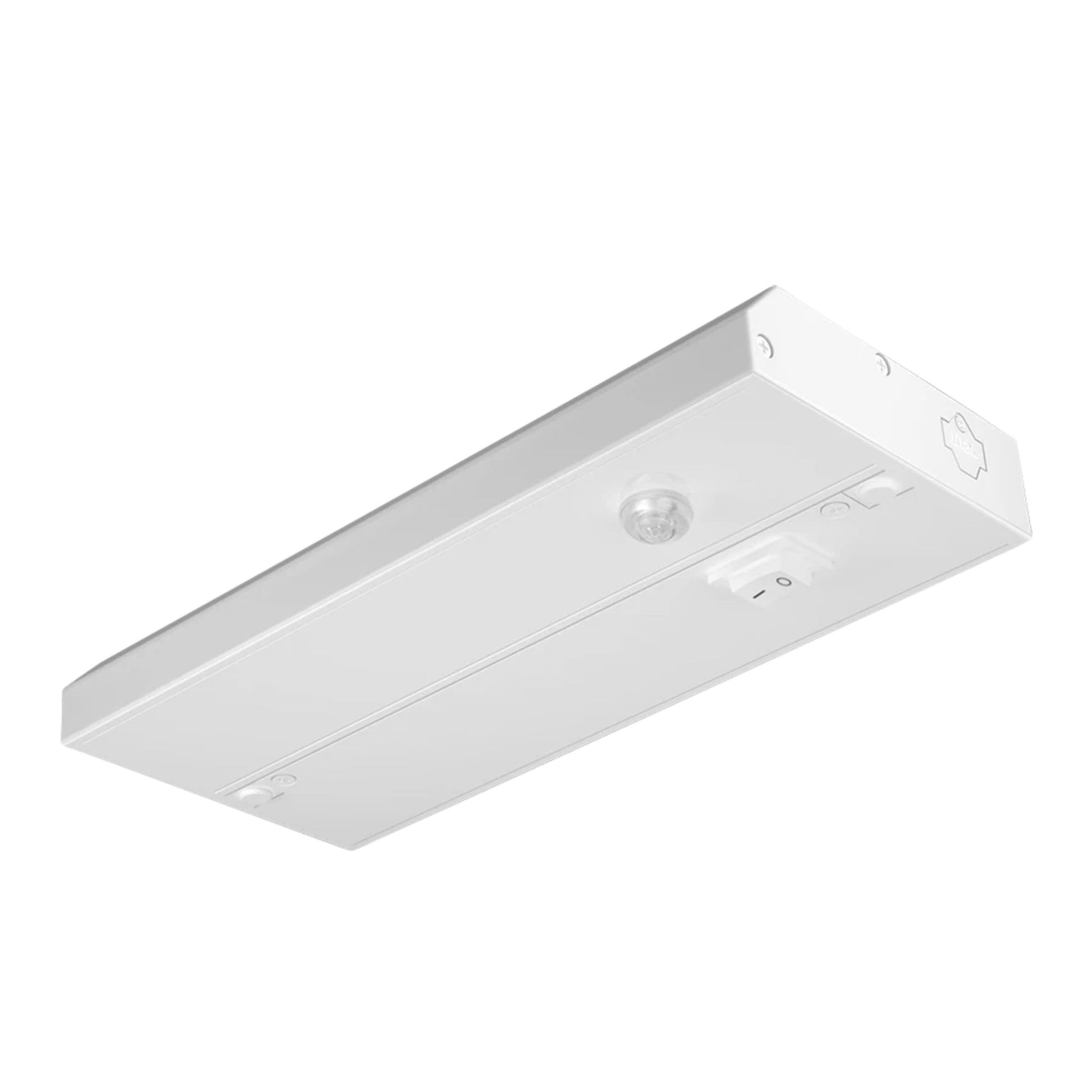

The Rab Lighting OCSKNOOKFAW occupancy sensor is designed to detect motion and control under cabinet lighting automatically. Using passive infrared (PIR) technology, it operates on 120V and supports adjustable time delays from 30 seconds to 30 minutes. With an operating temperature range of 0°C to 55°C (32°F–131°F) and coverage of 10ft at an 8ft mounting height, this sensor ensures energy efficiency and convenience for kitchens, counters, and shelves.
  • Voltage: 120V input, 50/60Hz operational frequency
  • PIR Motion Detection: Automatically senses occupancy

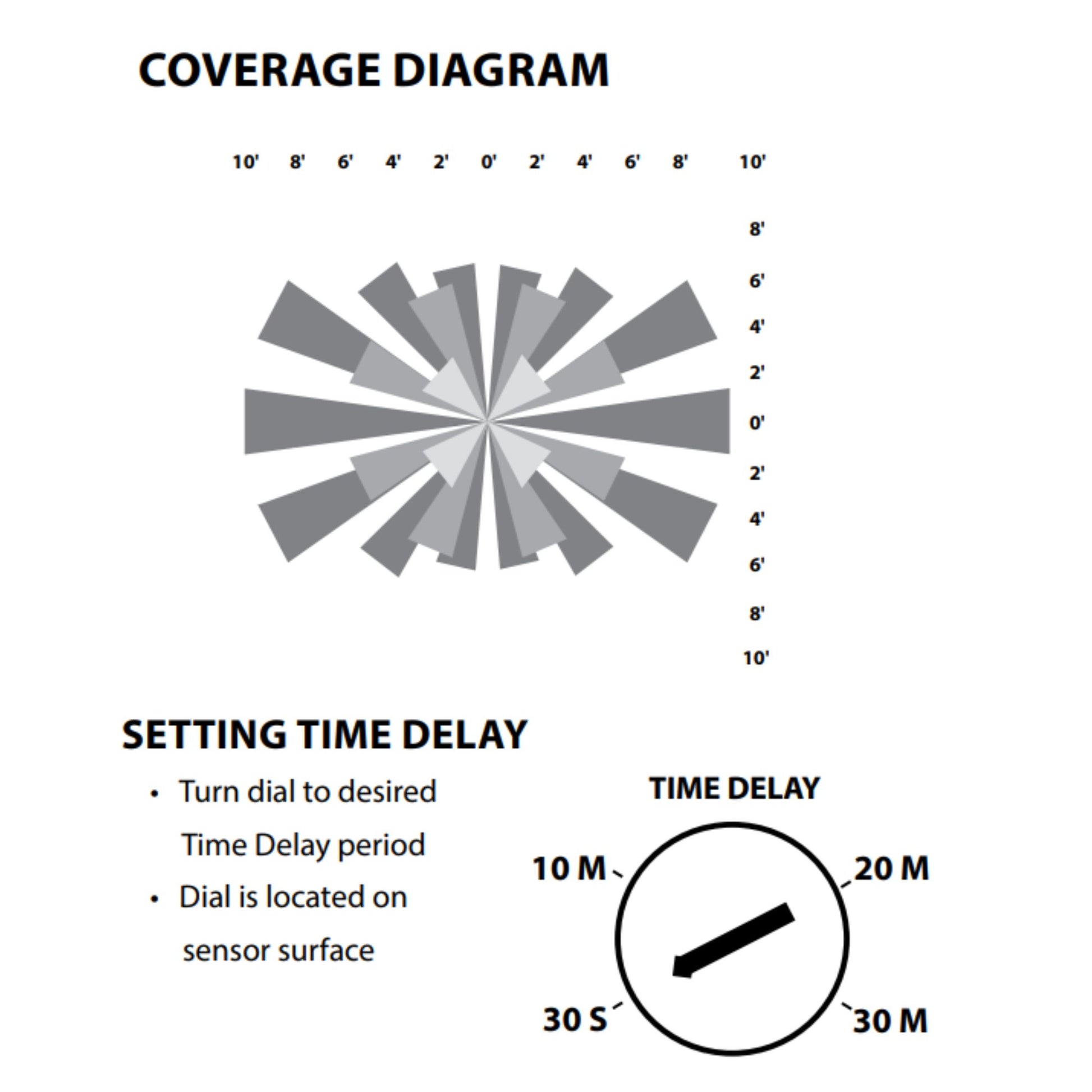

  • Adjustable Time Delay: 30s, 10min, 20min, 30min
  • Mounting Sensitivity: Optimal at 6ft, reduced at 8ft
  • Coverage Diameter: 10ft at 8ft mounting height

Technical Resources

Specifications

Finish:
White
Size:
8.0'' L X 3.625'' W X 1.0'' H
