RAB ND22-50-8RW 8 in Round Open Modular Commercial Downlight — 50/40/30W / 30°–50° Adjustable Beam / 120–277V / White

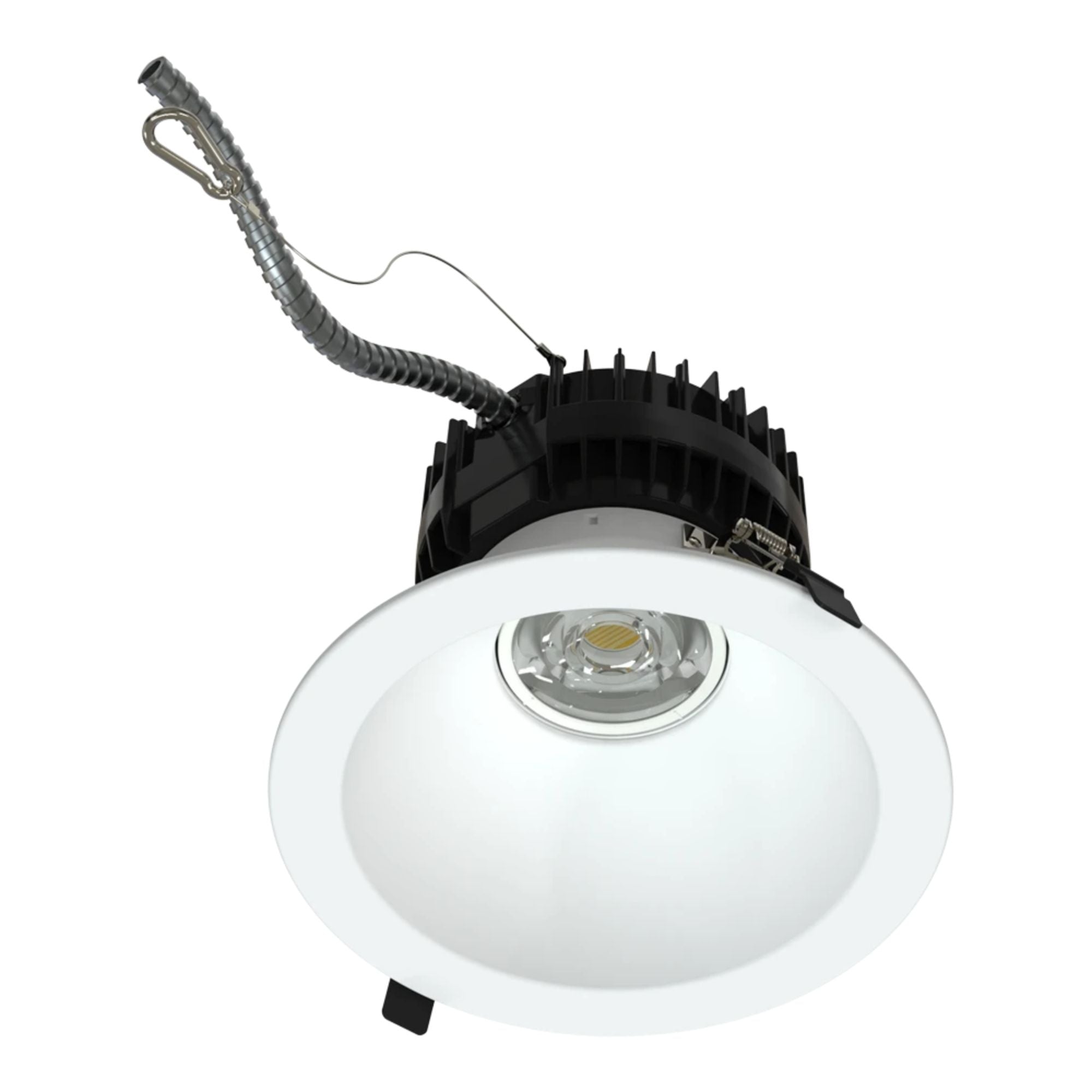

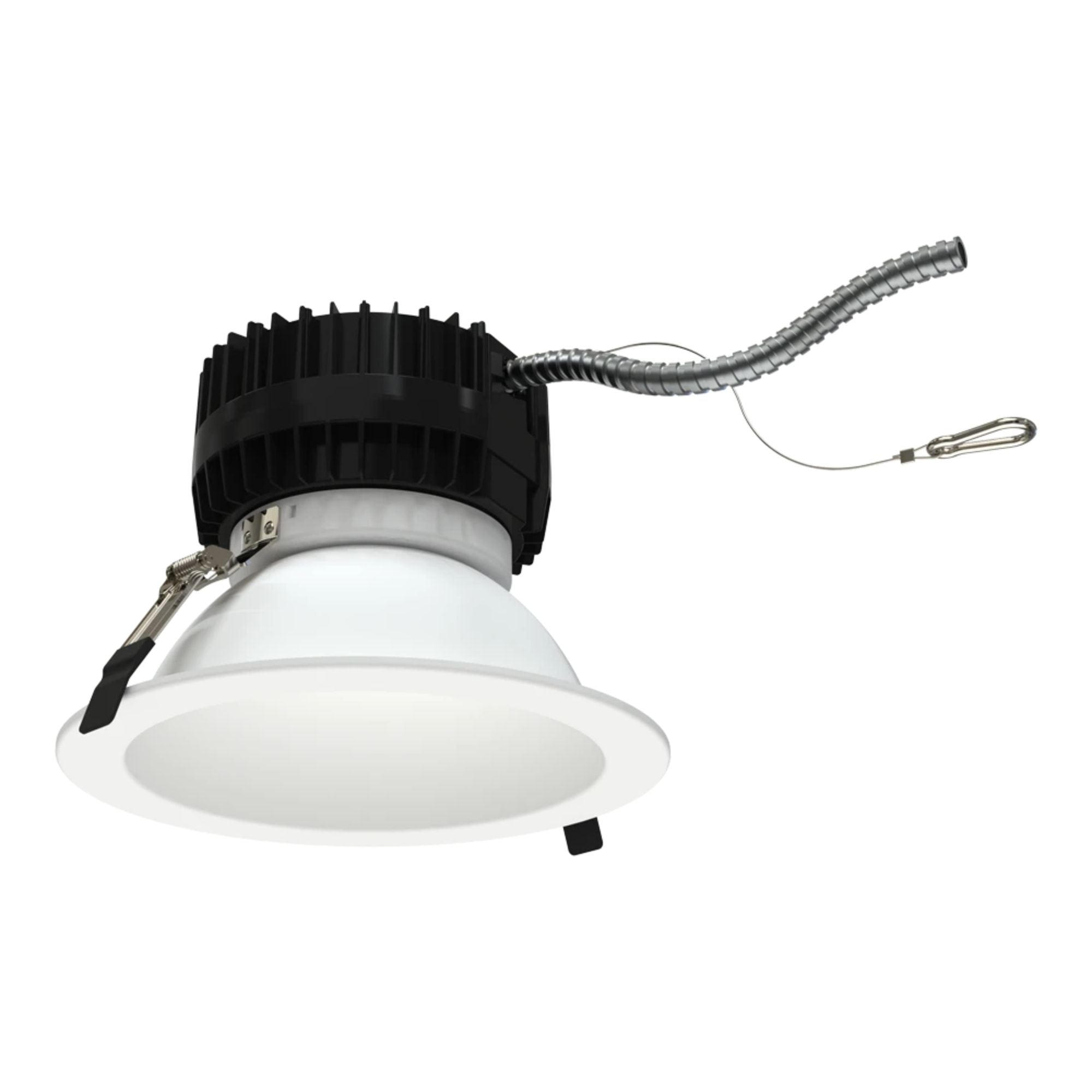

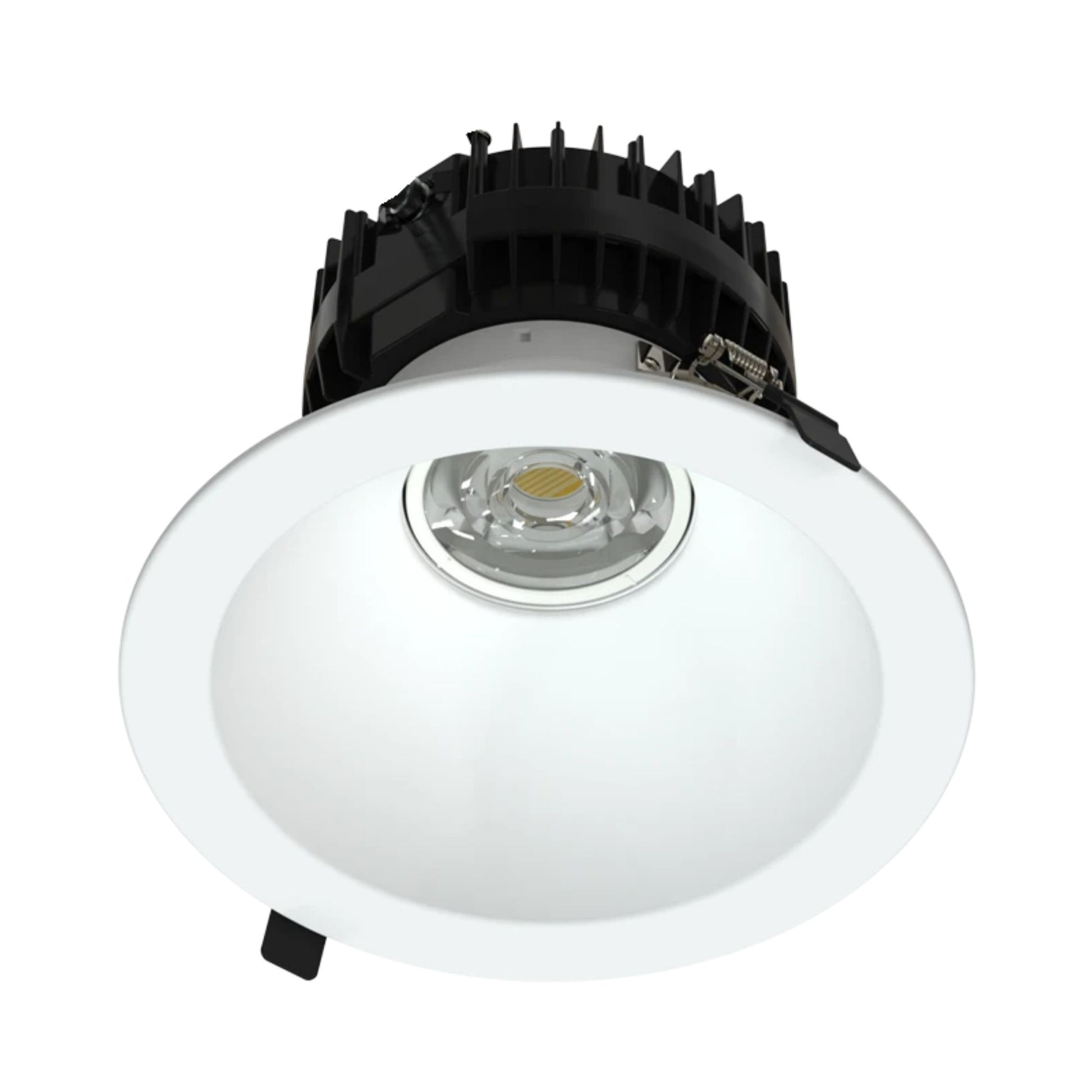

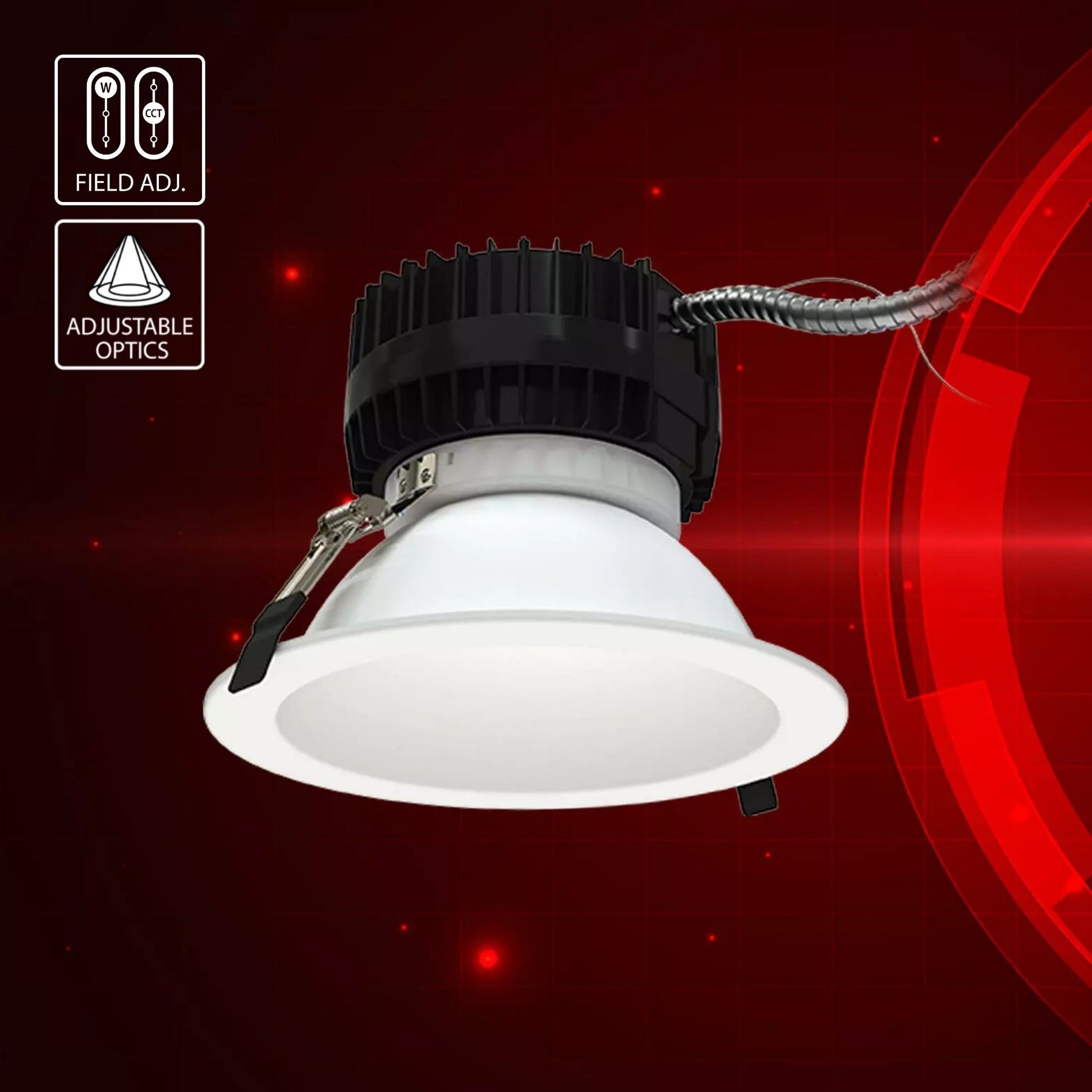

The RAB ND22-50-8RW is a high-output modular commercial downlight combining the ND22-50 light engine with the ND22T-8RW 8 in round open trim (white flange, white reflector). Delivers 4,500/3,800/2,900 lm at 50/40/30W with a field-adjustable beam from 30° to 50° via rotating lens assembly — optimized for wide-area commercial illumination in large spaces. CCT and wattage are field-selectable via dip switch. Universal 120–277V input. Suitable for retrofit, remodel, and new construction — accommodates up to 2 in ceiling thickness.

Key Features

• 8 in Round Open Trim — White: Anodized aluminum reflector with powder coat; white flange and white reflector; curved decorative diffuser lens; 7.5 in cut-out
• Adjustable Beam — 30° to 50°: Rotating lens assembly; field-adjustable after installation; wider range suited for large-area coverage

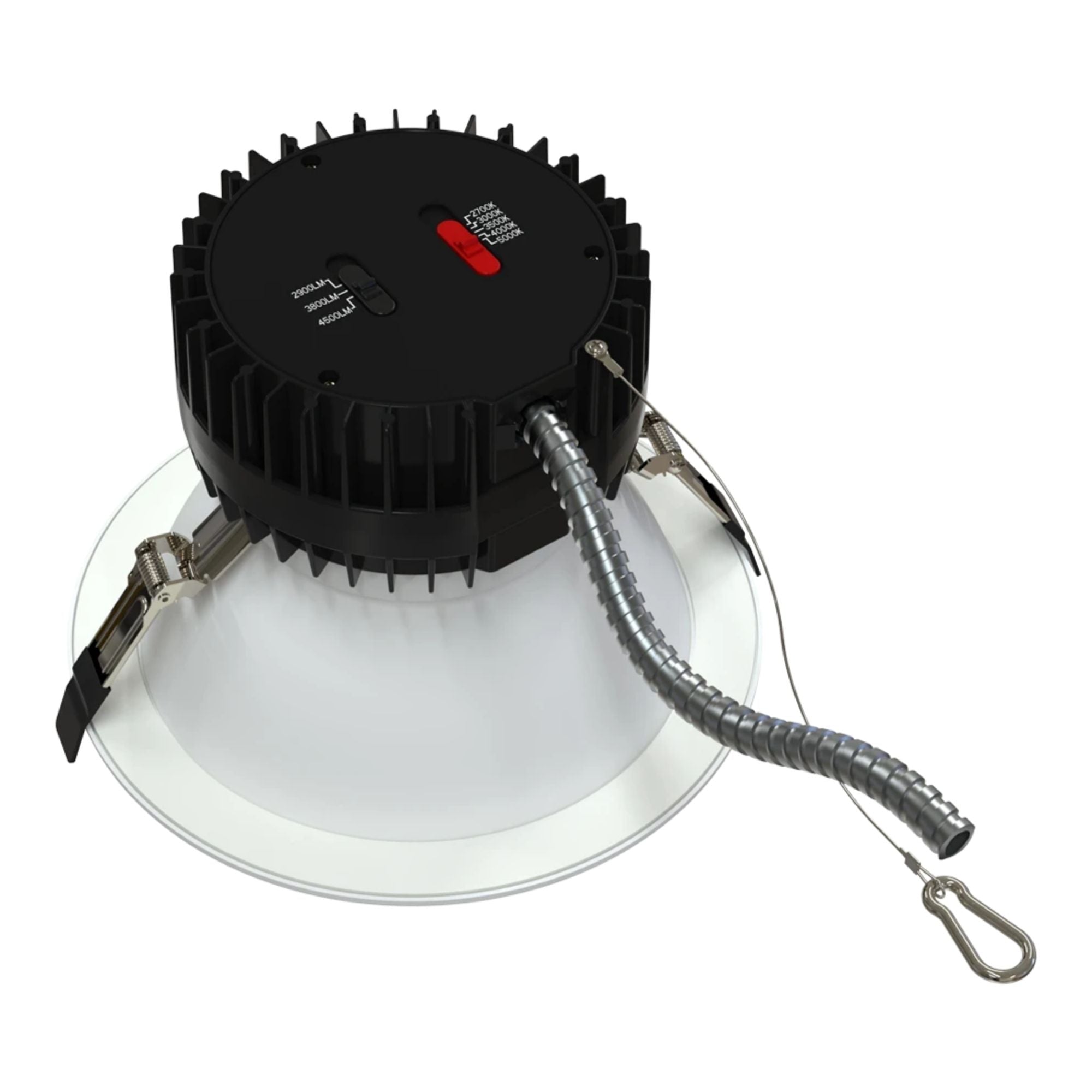

• Field-Selectable Wattage: 50W | 40W | 30W via dip switch
• Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K via dip switch (factory default: 4000K)
• Light Output: 4,500 lm (50W) | 3,800 lm (40W) | 2,900 lm (30W)
• Efficacy: 90 lm/W (50W) | 95 lm/W (40W) | 96.7 lm/W (30W)
• CRI: 92–95 | R9 >50 | <4-step MacAdam Ellipse | Color stability ≤200K over 5 years
• Input Voltage: 120–277V universal | 50/60 Hz
• Input Current: 417mA (120V) | 240mA (208V) | 208mA (240V) | 181mA (277V)
• Driver: Constant Current, Class A | 120V: 0.35A | 277V: 0.17A
• Dimming: TRIAC/ELV dimmable to 10% (120V) | 0–10V dimmable to 10% (120–277V)

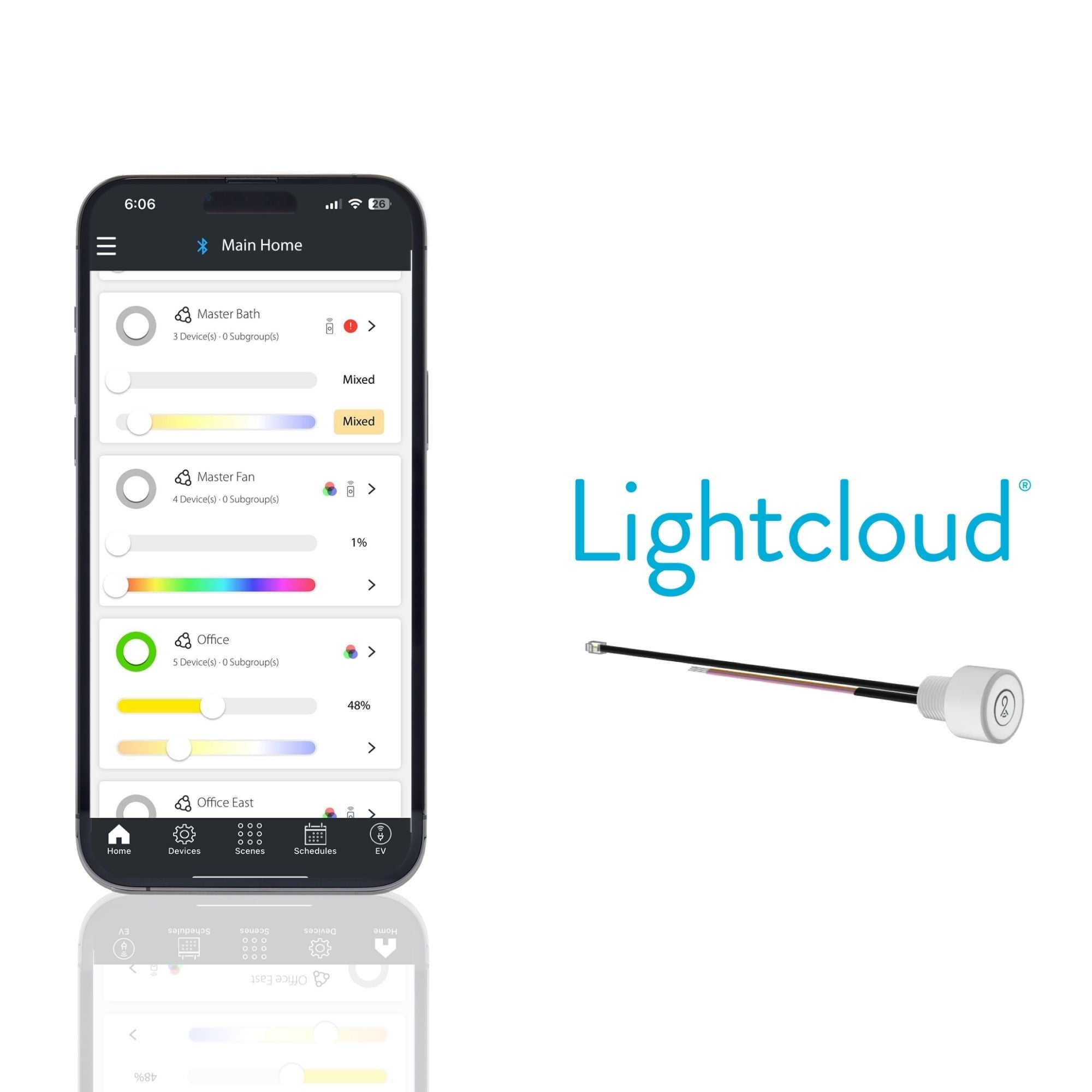

• Controls: 12V Aux for Lightcloud Blue compatibility
• THD: ≤20% | PF: ≥0.9 (120V) / ≥0.7 (277V) | Flicker: ≤30%
• Operating Temp: -4°F to 104°F (-20°C to 40°C)
• Environment: Dry, damp, and wet rated | Air Tight per ASTM-E283 | Not IC rated

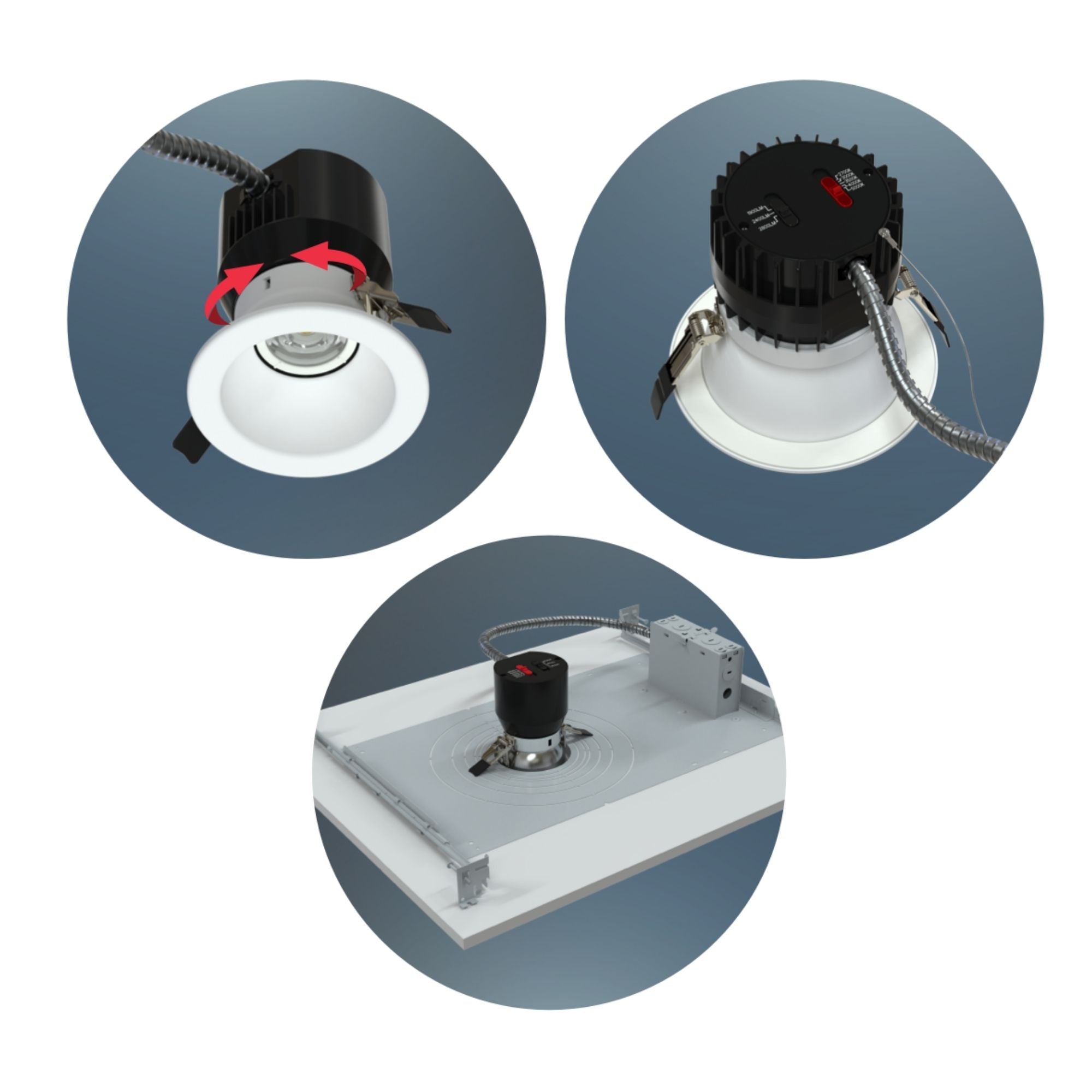

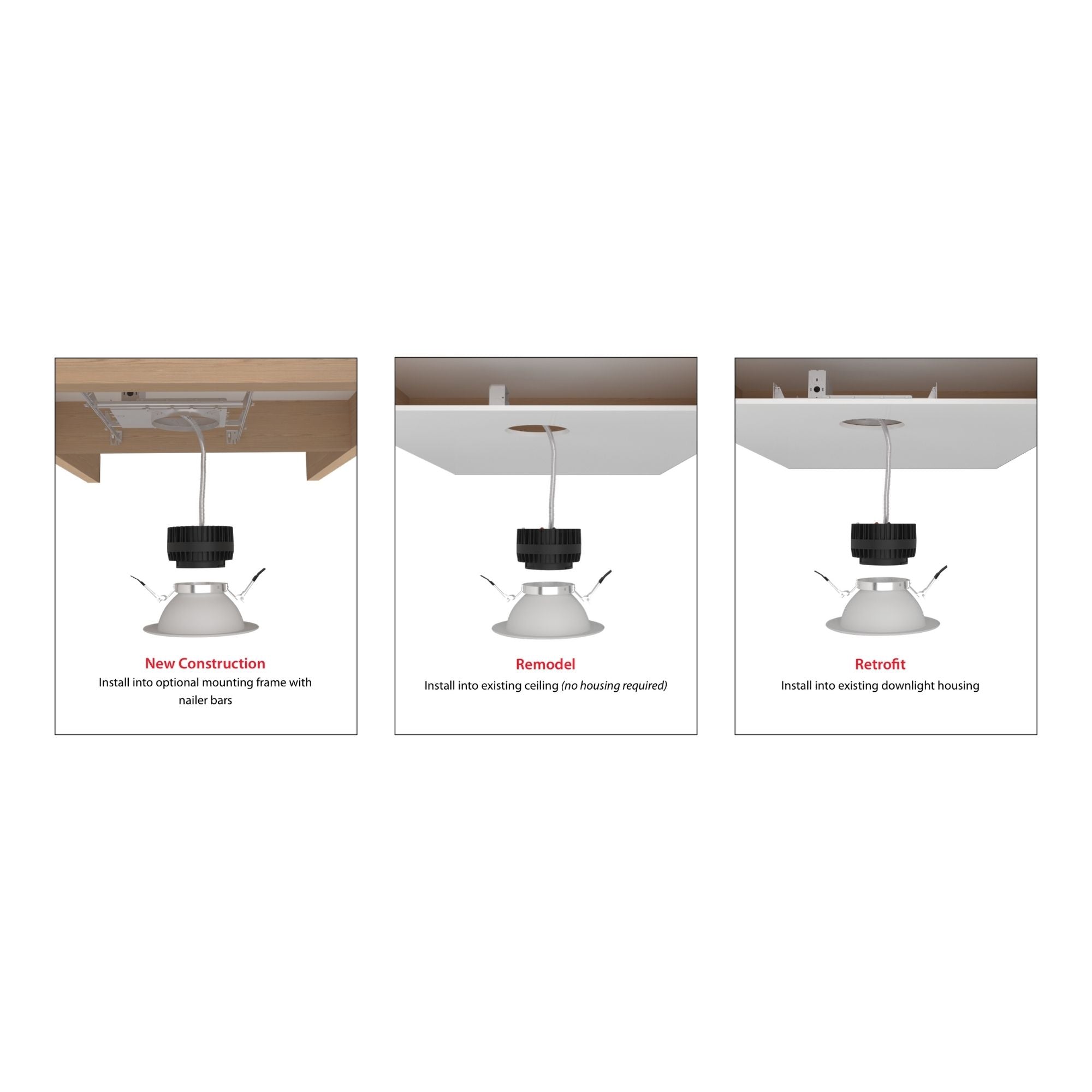

• Mounting: Retrofit, remodel, or new construction; up to 2 in ceiling thickness
• Construction: Trim reflector — anodized aluminum with powder coat; Trim finish — white flange and white reflector; Lens — curved decorative diffuser
• Weight: 4.0 lbs
• Certifications: UL Listed | UL Classified | ENERGY STAR v1.0 (ID: 3554284) | Title 24 JA8 (Part 6) | CEC: Lawful for CA | ANSI C78.377-2017 | IESNA LM-79 & LM-80 | RoHS | FCC Part 15 | Trade Agreements Act Compliant
• Lifespan: 50,000 hours L70 (IESIm-70) | Warranty: 5-year no-compromise warranty

Light Output & Performance

Engineered for high-output commercial spaces, the ND22-50-8RW delivers 4,500 lm at 50W (90 lm/W), 3,800 lm at 40W (95 lm/W), or 2,900 lm at 30W (96.7 lm/W) — selectable in the field to match the exact demands of the space. With a CRI of 92–95 and R9 >50, colors render with exceptional vibrancy and accuracy across all CCT settings. The <4-step MacAdam Ellipse binning ensures consistent fixture-to-fixture color uniformity, while the 30°–50° adjustable beam is optimized for wide-area illumination in lobbies, atriums, and large commercial interiors. Color temperature is warranted to shift no more than 200K over 5 years.

Electrical & Installation

Built for high-demand commercial environments, the ND22-50-8RW operates on universal 120–277V input with a constant current Class A driver running at 417mA (120V) / 240mA (208V) / 208mA (240V) / 181mA (277V). Supports both TRIAC/ELV dimming to 10% at 120V and 0–10V dimming to 10% across 120–277V, making it compatible with virtually any commercial dimming infrastructure. THD ≤20%, PF ≥0.9 at 120V / ≥0.7 at 277V, flicker ≤30%. Air tight certified per ASTM-E283. Not IC rated. Rated for operation from -4°F to 104°F. Installs in retrofit, remodel, or new construction ceilings up to 2 in thick with a 7.5 in cut-out.

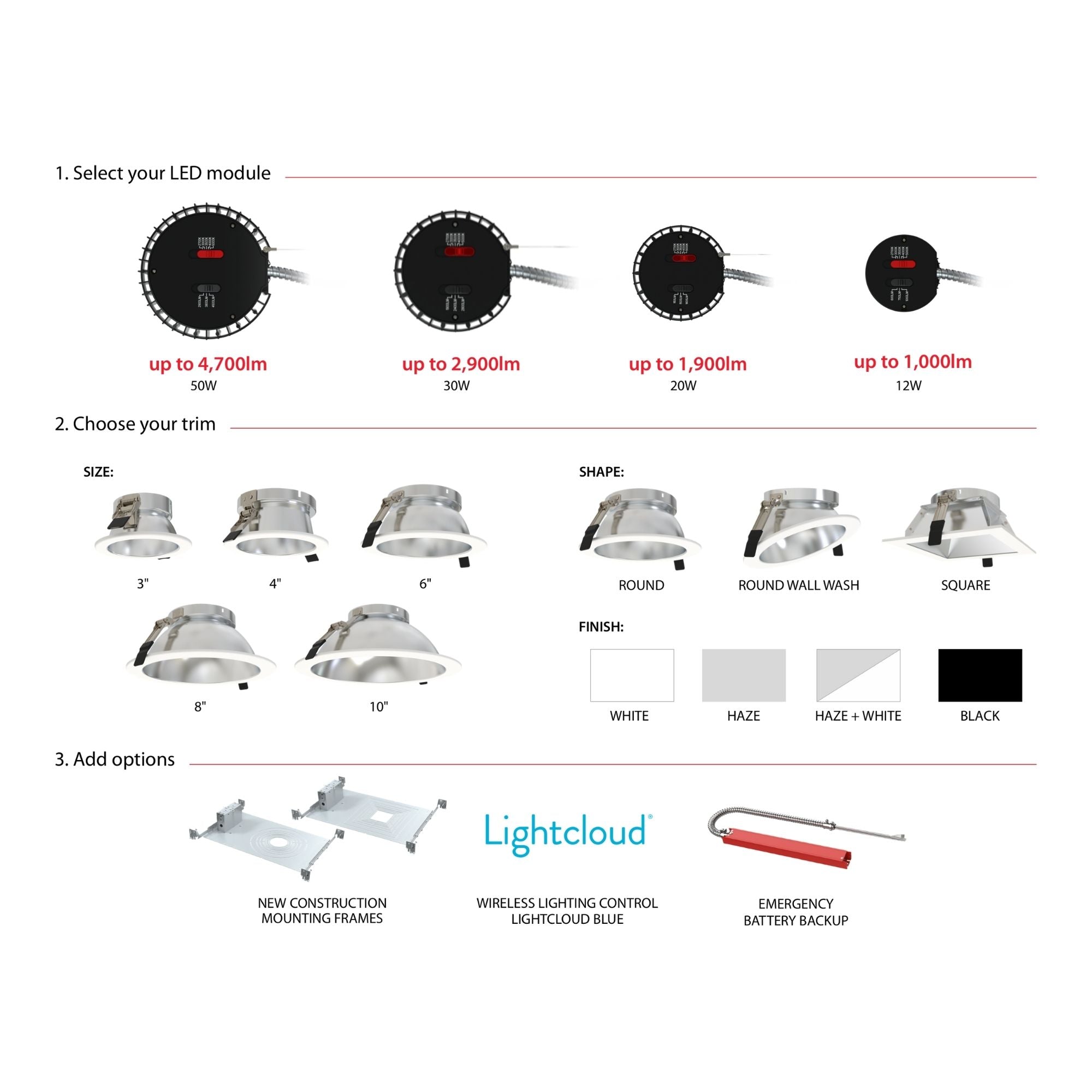

Compatible Accessories

• New Construction Housing — round nailer bar (ND22-RFRAME) | square nailer bar (ND22-SFRAME)
• Emergency Battery Backup — 9W 100–347V 0–10V (EMB-9) | 15W 100–347V 0–10V (EMB-15) | 25W 100–347V 0–10V (EMB-25)
• Compatible Trims — ND22-50 — Round Open: 6 in, 8 in, 10 in | Square Open: 6 in, 8 in | Round Wall Wash: 6 in, 8 in | Finishes: white, haze/white, haze, black

What’s Included

• RAB ND22-50 light engine (50/40/30W, 120–277V)
• RAB ND22T-8RW 8 in round open trim (white flange, white reflector)

Typical Applications

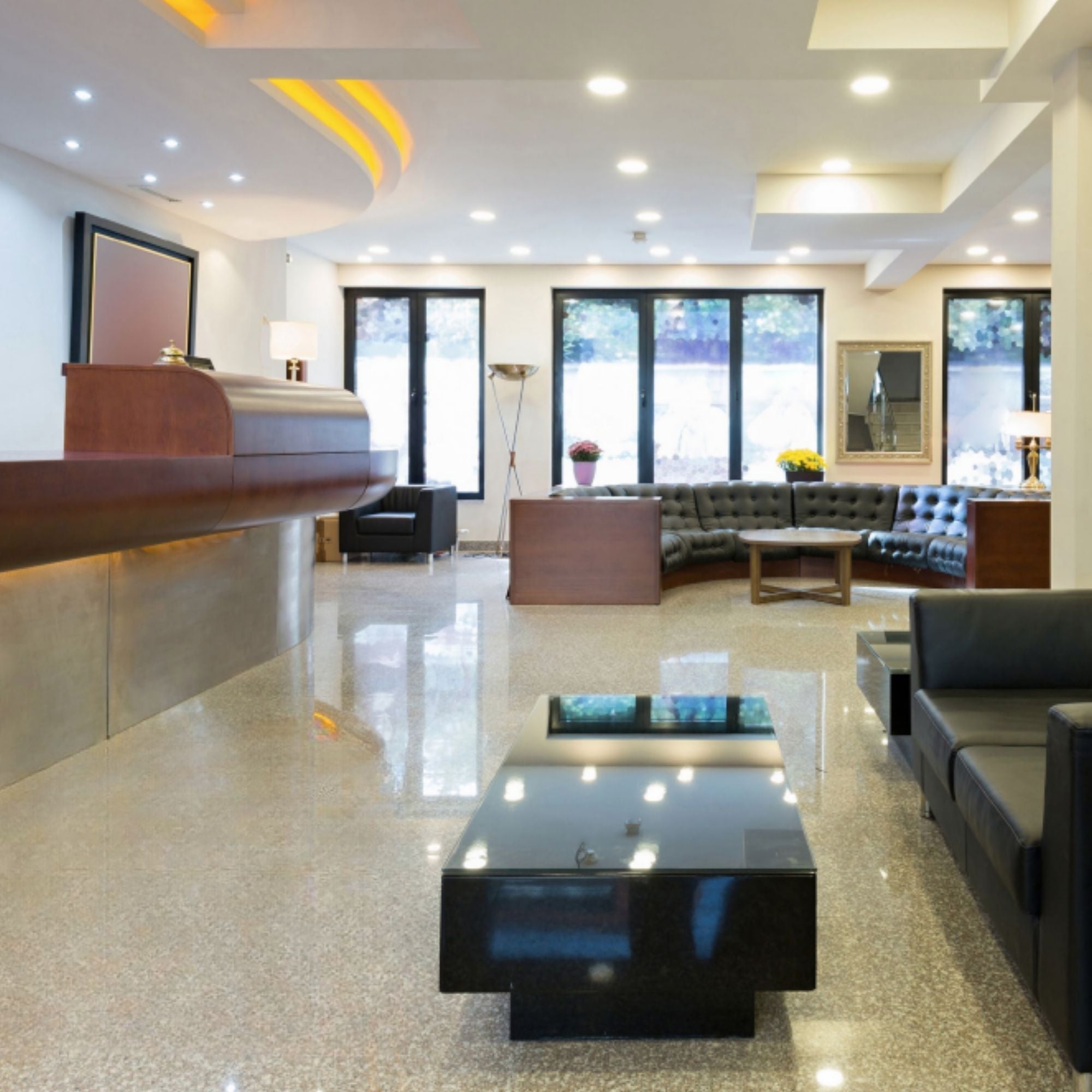

• High-ceiling commercial spaces: lobbies, atriums, conference rooms, retail showrooms
• Wide-area illumination requiring precise beam control (30°–50°)
• Retrofit and remodel of existing 7.5 in cut-out ceilings
• New construction with ND22-RFRAME or ND22-SFRAME housing
• Projects requiring Title 24 JA8 (Part 6) or ENERGY STAR v1.0 compliance
• Emergency egress applications with EMB-9/15/25 battery backup
