ND22 6" LED Commercial Downlight, 30W, 2800 Lm, 5-CCT, 120-277V, White Round Trim
ND22 6" LED Commercial Downlight, 30W, 2800 Lm, 5-CCT, 120-277V, White Round Trim
Available in stock (100)
Highlights
Highlights
- Complete 6" Solution: The ND22-30 engine with pre-installed white round trim provides a complete fixture solution for immediate deployment in high-output applications.
- High-Output Illumination: 2800 lumens at 30W illuminates large commercial and retail spaces effectively, providing superior light levels for demanding environments.

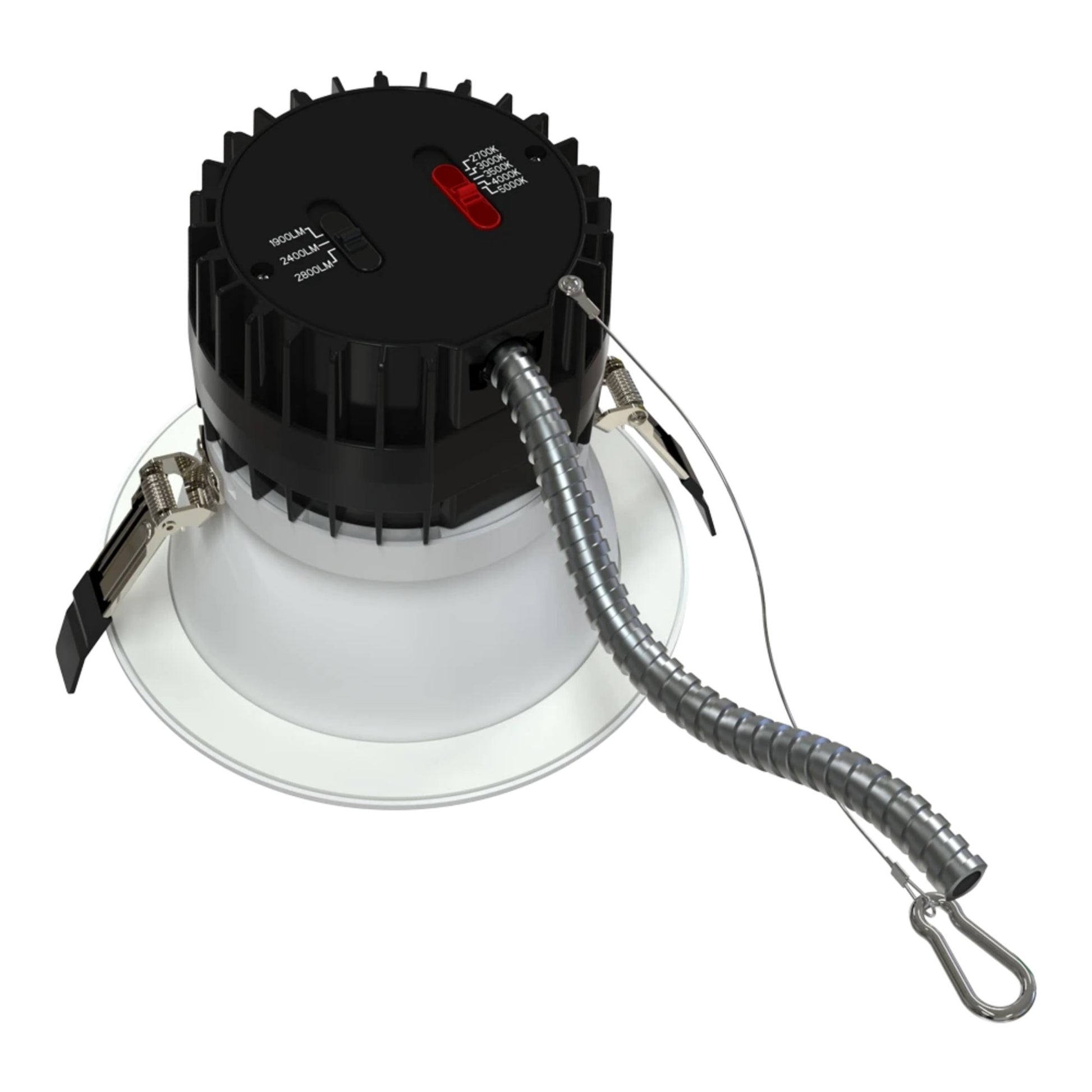

- Five-in-One Flexibility: Five field-selectable color temperatures from 2700K to 5000K and three wattage levels in one fixture eliminate the need for multiple inventory SKUs.

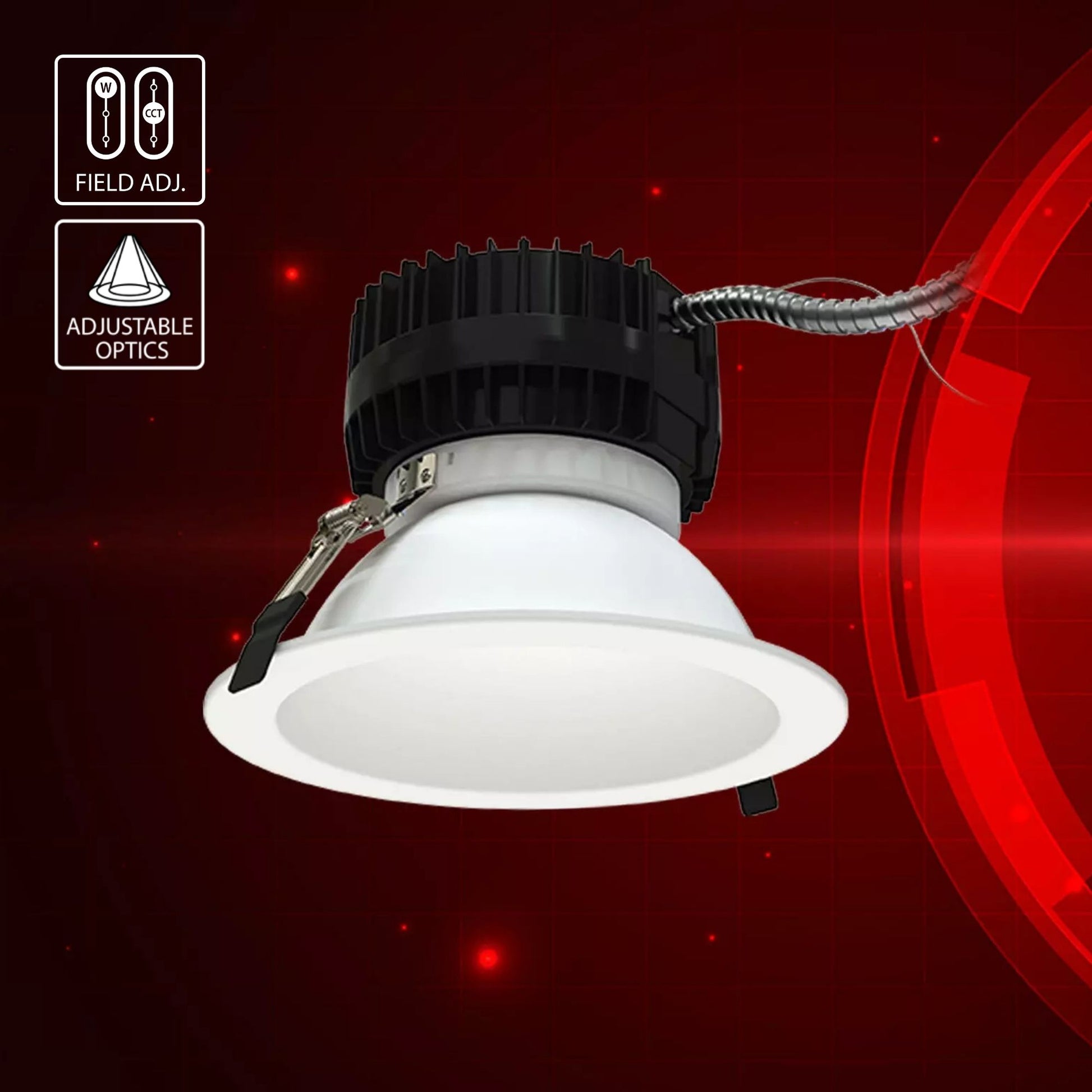

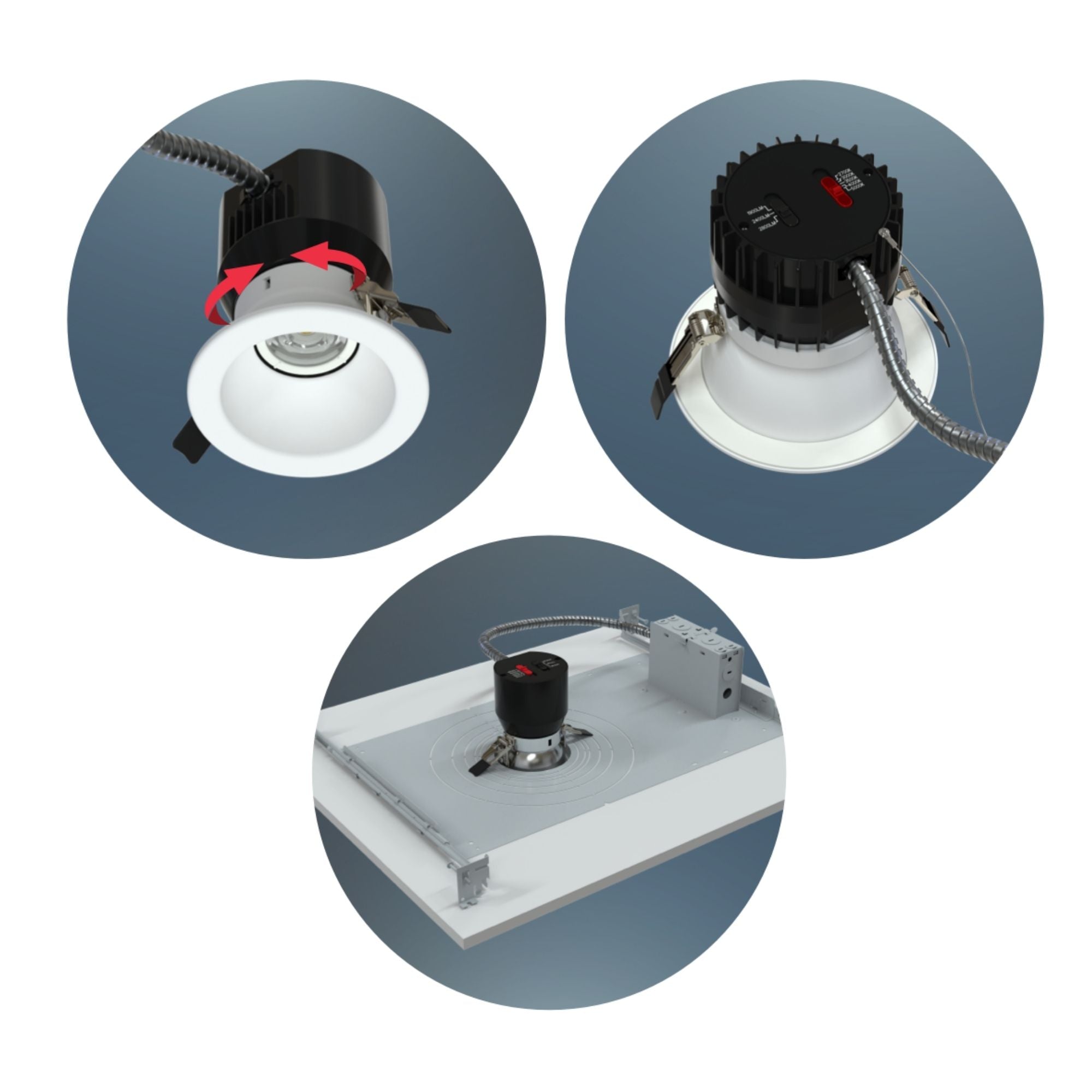

- Adjustable Beam Control: Rotating lens beam adjustment from 25° to 45° with full TRIAC/ELV and 0-10V dimming compatibility provides complete on-site light control.
- Uniform Professional Appearance: White reflector and flange deliver consistent aesthetics across installations while maximizing light output and maintaining modular flexibility.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Overview
Overview

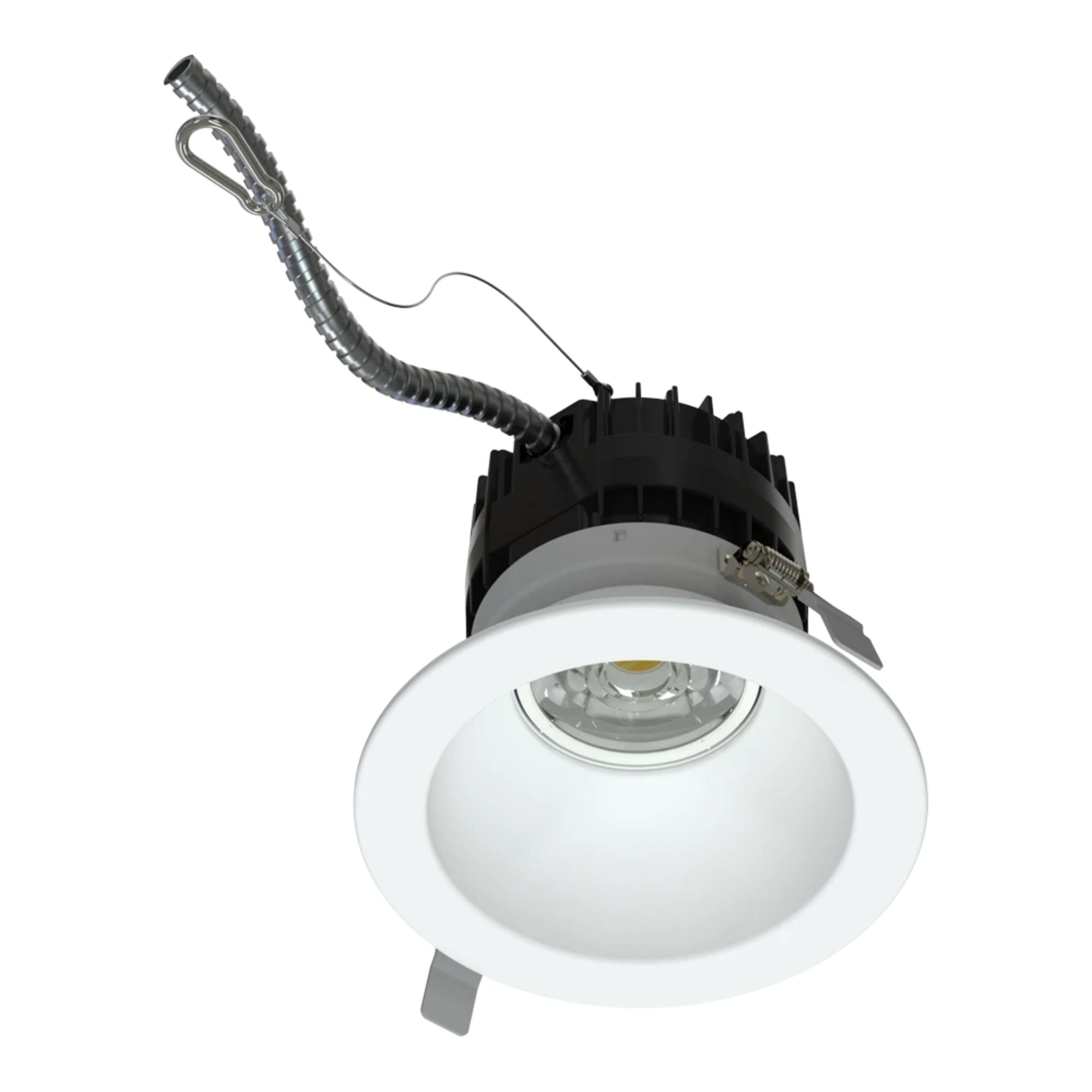

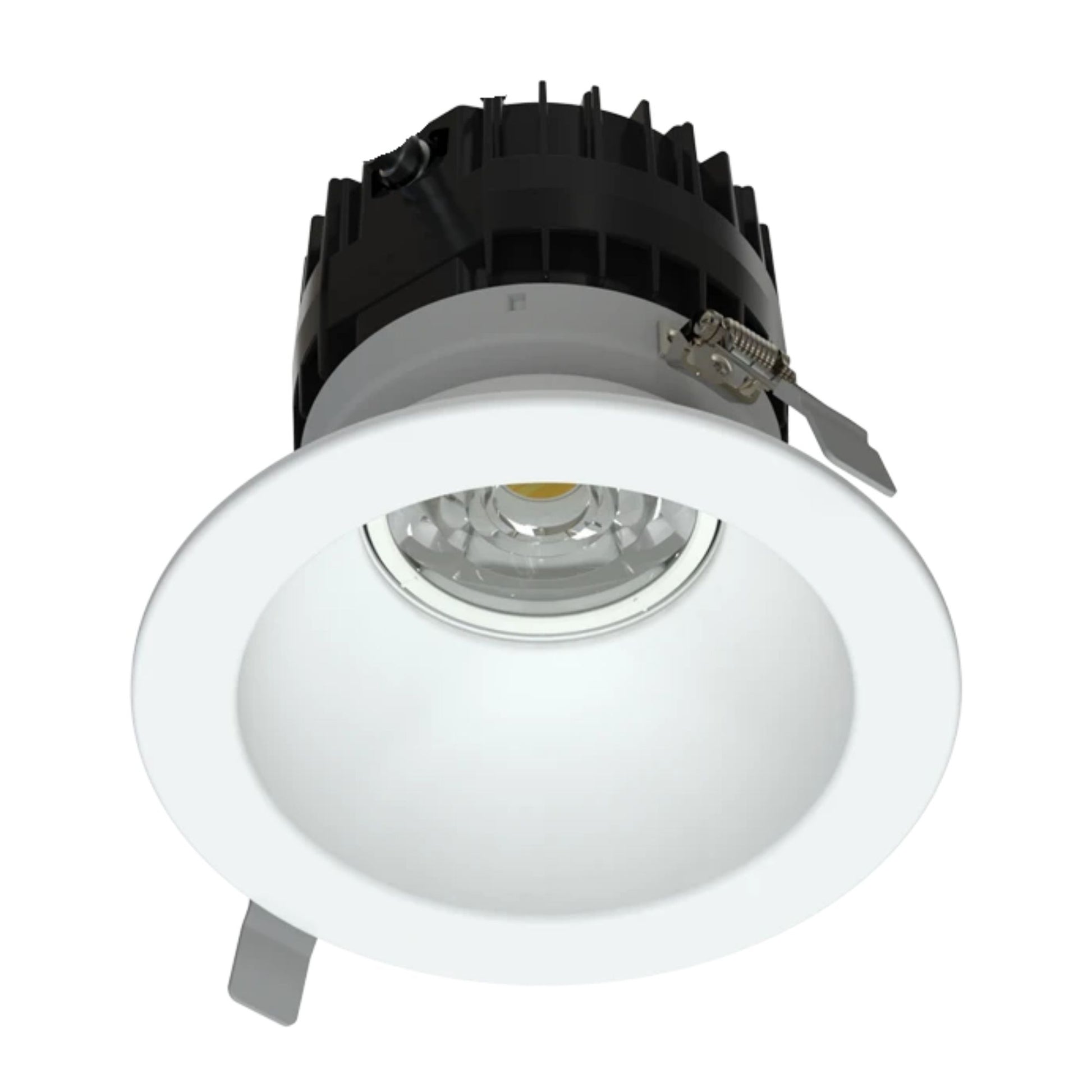

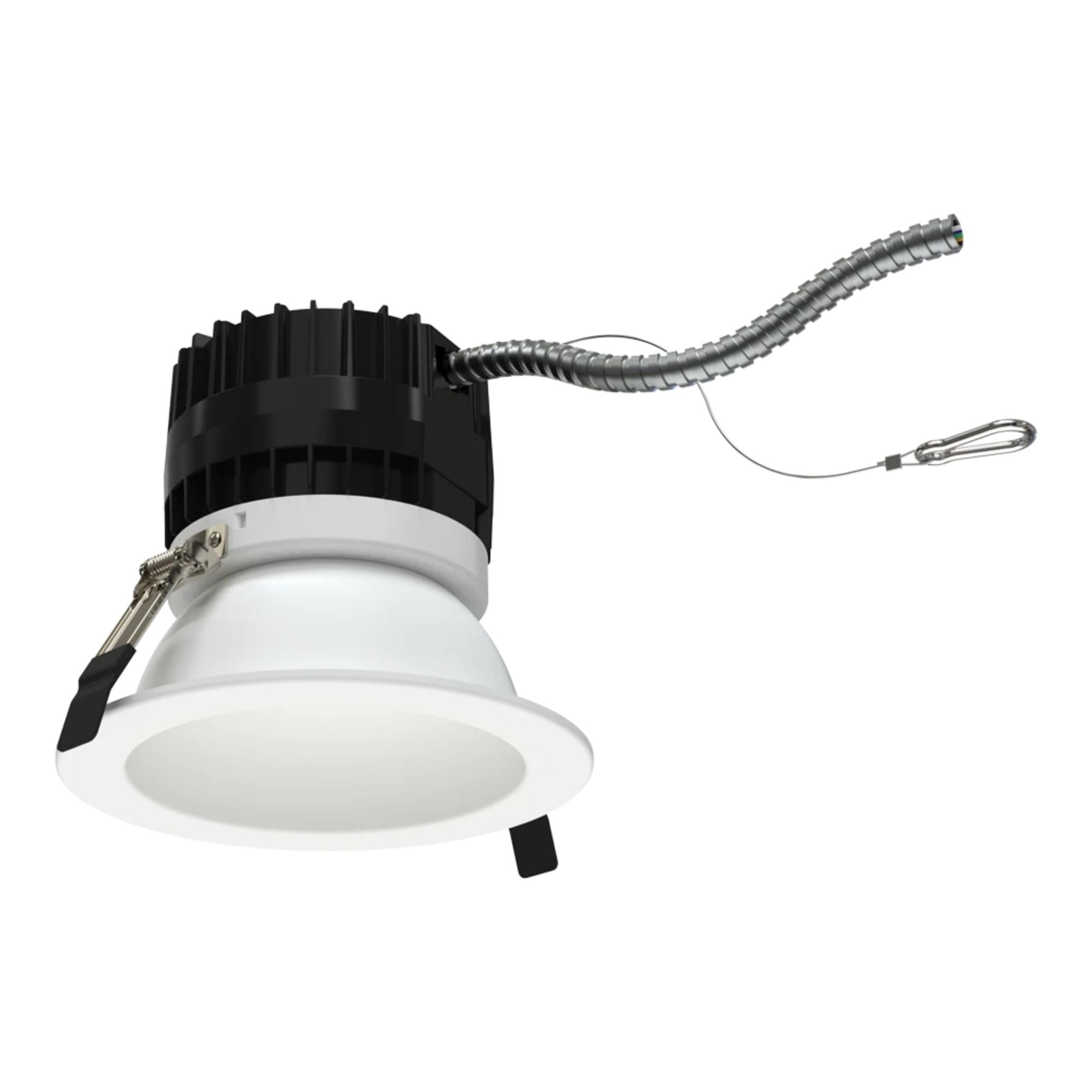

The RAB Lighting ND22-30-6HRW is a complete 6" LED commercial downlight featuring a sleek white round trim. This all-in-one fixture combines the high-performance ND22-30 LED engine with a classic round trim, delivering 2800 lumens of powerful, efficient illumination in a ready-to-install package.
Key Features
- Complete Fixture: Includes ND22-30 LED engine and 6" white round trim for immediate installation
- 5-CCT Selectable: Choose from 2700K, 3000K, 3500K, 4000K, or 5000K color temperatures to match any environment

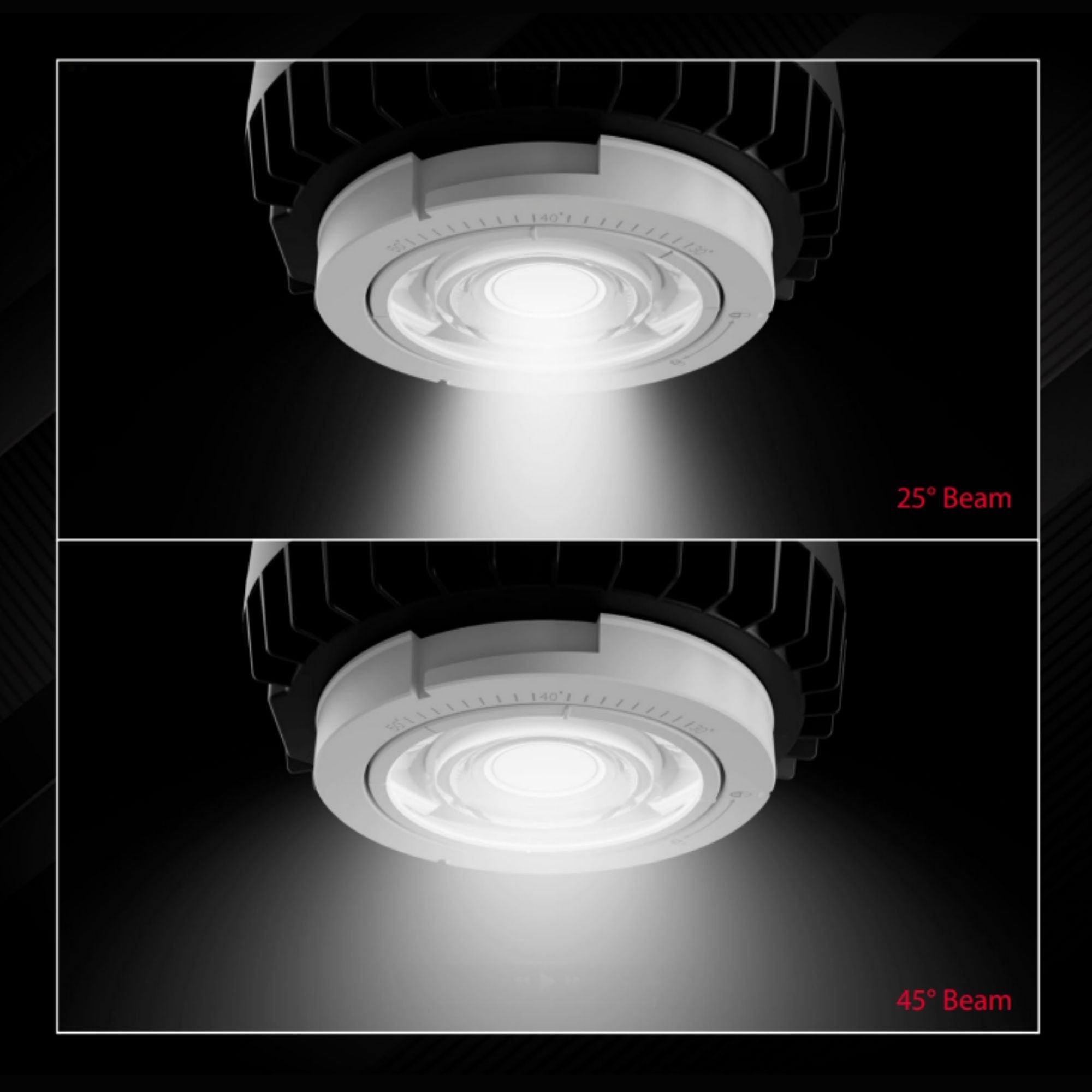

- Adjustable Beam Spread: Field-adjustable from 25° to 45° for precise light control and distribution
- Universal Voltage: 120-277V operation for flexible installation in commercial and residential settings
- Wet-Rated: Suitable for damp and wet locations including bathrooms and covered outdoor areas
- Dimmable: Compatible with 0-10V, TRIAC, and ELV dimmers for full ambiance control
Technical Specifications
- Model: ND22-30-6HRW
- Wattage: 30W
- Lumen Output: 2800 lumens
- Efficacy: 93.3 lumens per watt
- Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K (field selectable)
- Beam Angle: 25° - 45° (adjustable)
- Voltage: 120-277V
- Dimming: 0-10V, TRIAC, ELV compatible
- CRI: >90
- Rated Life: 50,000 hours L70
- Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- Location Rating: Wet

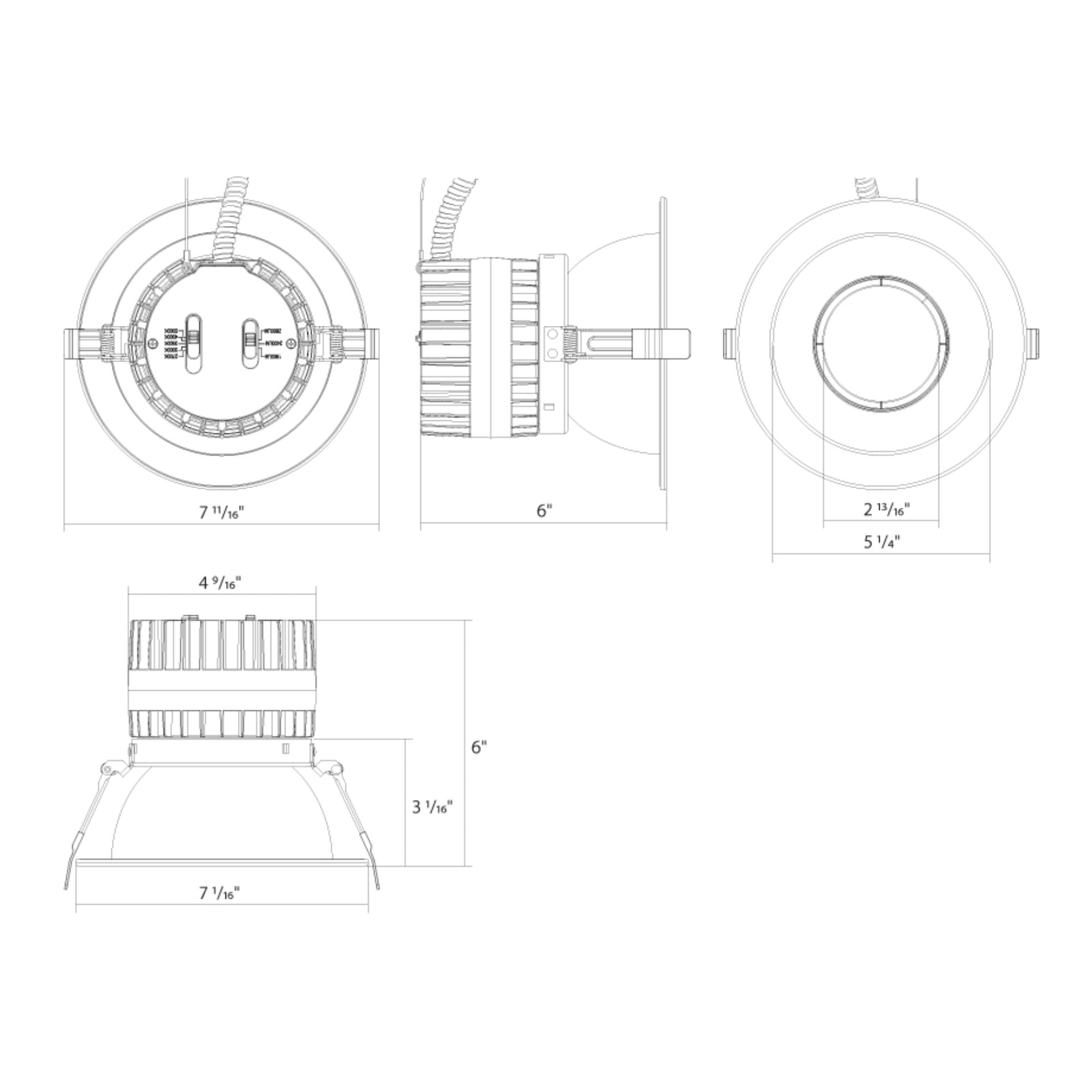

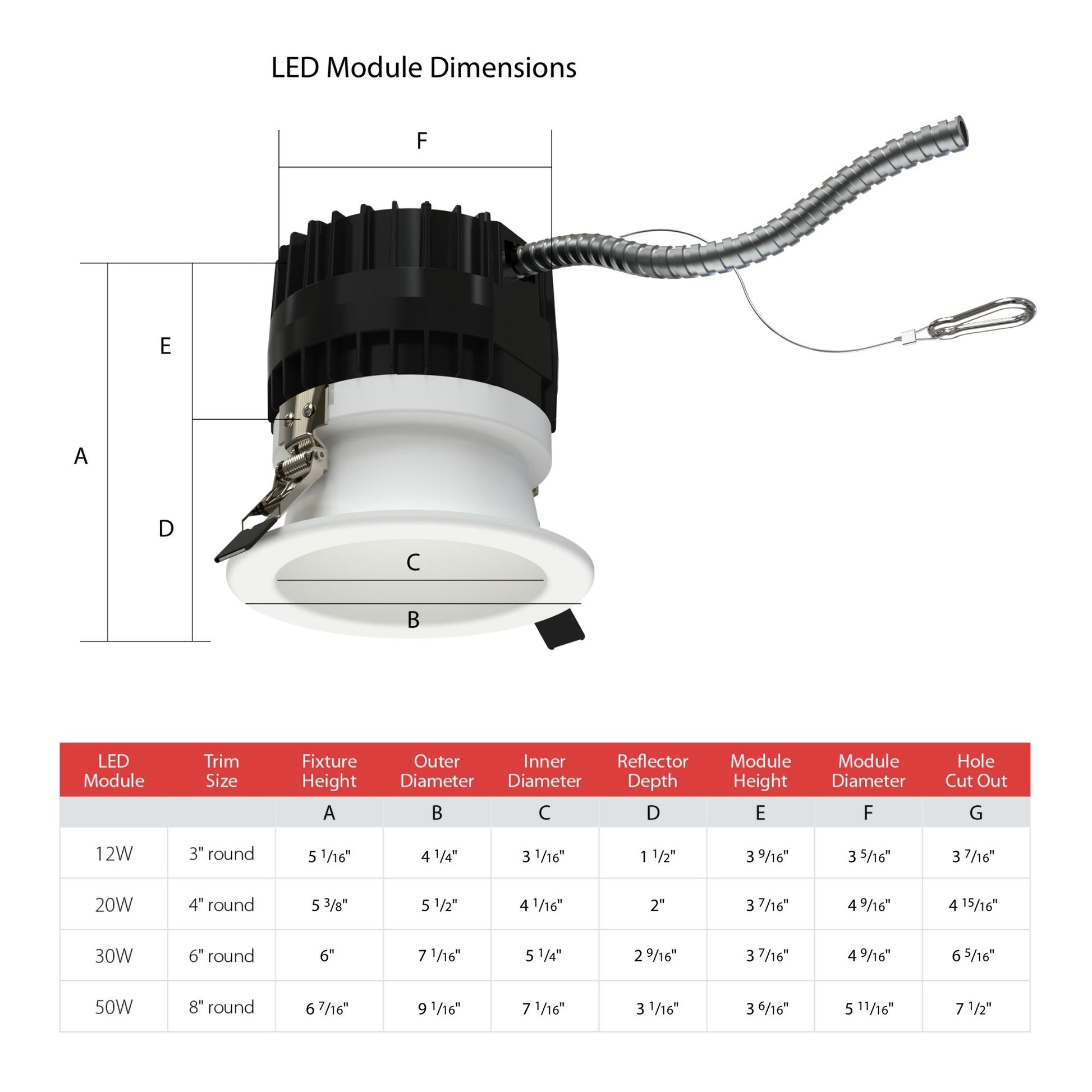

- Aperture Size: 6" round
- Trim Finish: White powder coat
- Weight: 3 lbs
- Certifications: UL/cUL Listed, Energy Star qualified, DLC Premium
Applications

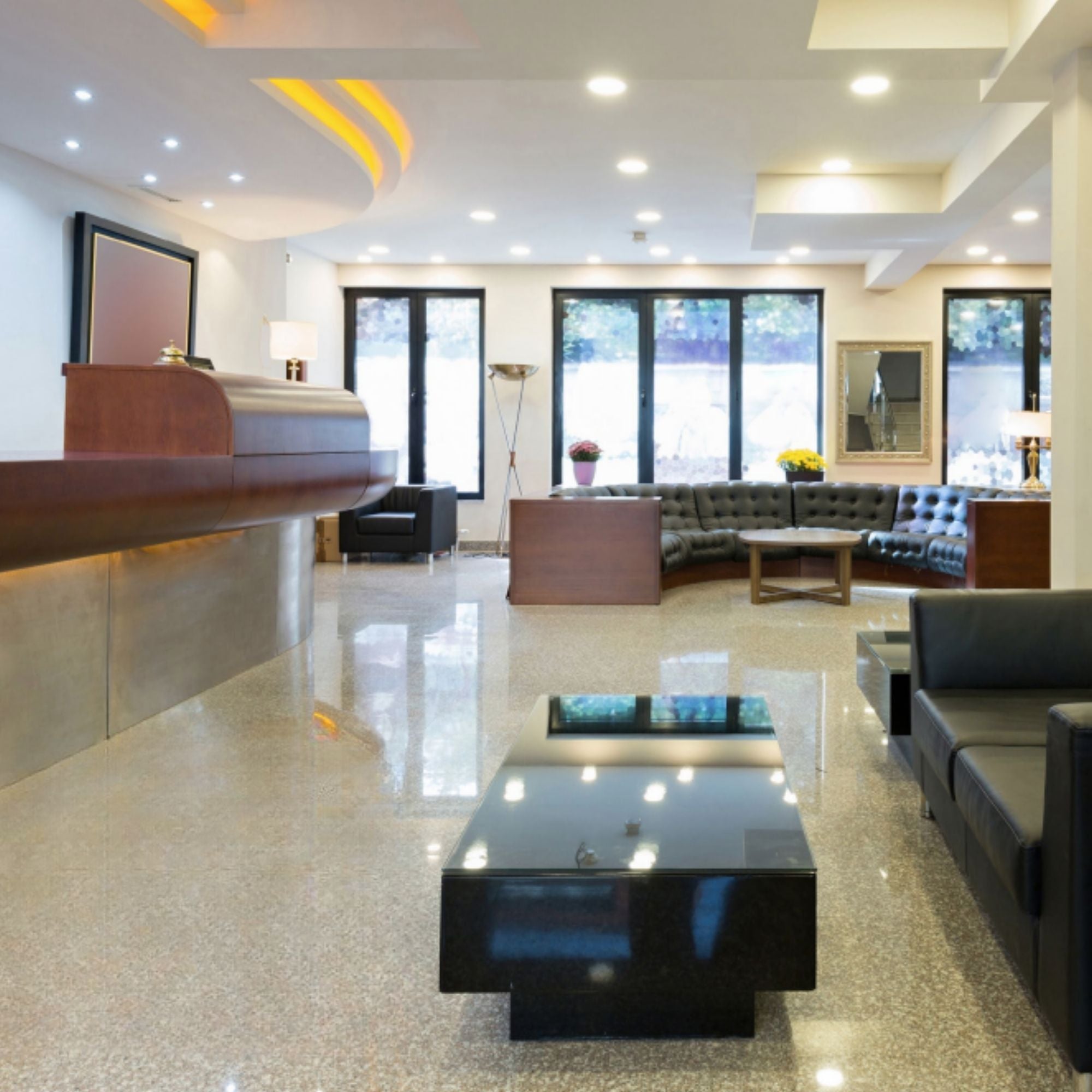

Ideal for retail spaces, offices, hospitality venues, healthcare facilities, restaurants, and high-end residential projects requiring higher light output. The clean white round trim provides a timeless aesthetic that complements any ceiling design while delivering professional-grade performance.
Installation

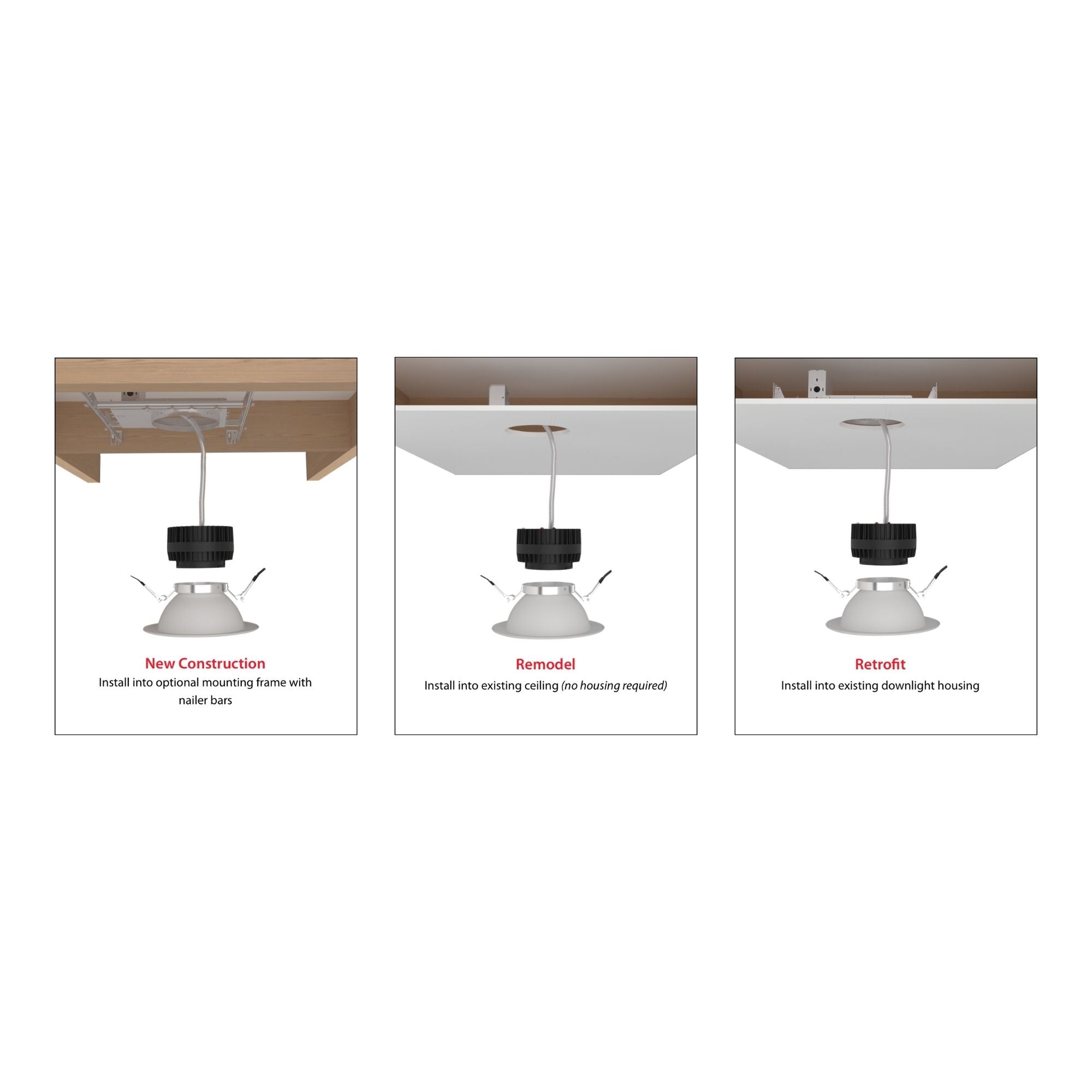

Compatible with standard 6" recessed housings. The modular design allows for easy maintenance and future trim upgrades if desired. All mounting hardware included for quick installation.
Backed by RAB's industry-leading warranty and technical support.
