RAB ND22-20 4 in. LED Modular Commercial Downlight 20W 1909 Lumens Selectable CCT Wet Rated
Available in stock (200)
About this item
About this item
- Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- Wattage Options: 20/16/12W for flexible energy use
- Lumens Output: 1800/1500/1150 lumens
- Dimming Capability: Compatible with TRIAC/ELV and 0-10V systems
- Wet Rated: Suitable for indoor and outdoor use
We process payments securely and do not store credit card information.
Description
Description

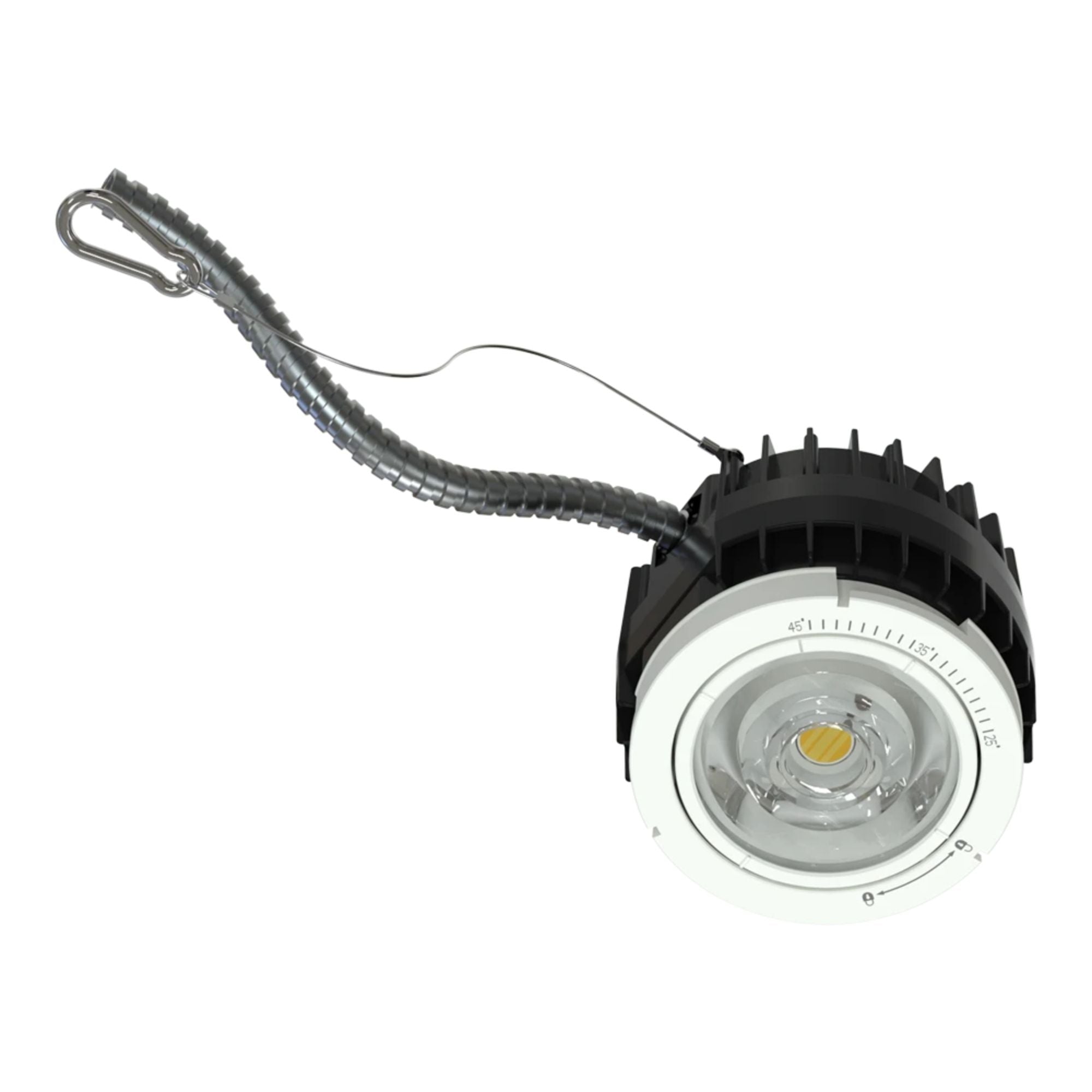

RAB ND22-20 4 in. Downlight — 20W / Selectable CCT
The RAB ND22-20 is a versatile 4-inch downlight offering selectable color temperatures ranging from 2700K to 5000K. Delivering up to 1800 lumens using 20W, this modular commercial downlight is ideal for various lighting applications. Its wet rating ensures suitability for both indoor and outdoor environments.
Key Features

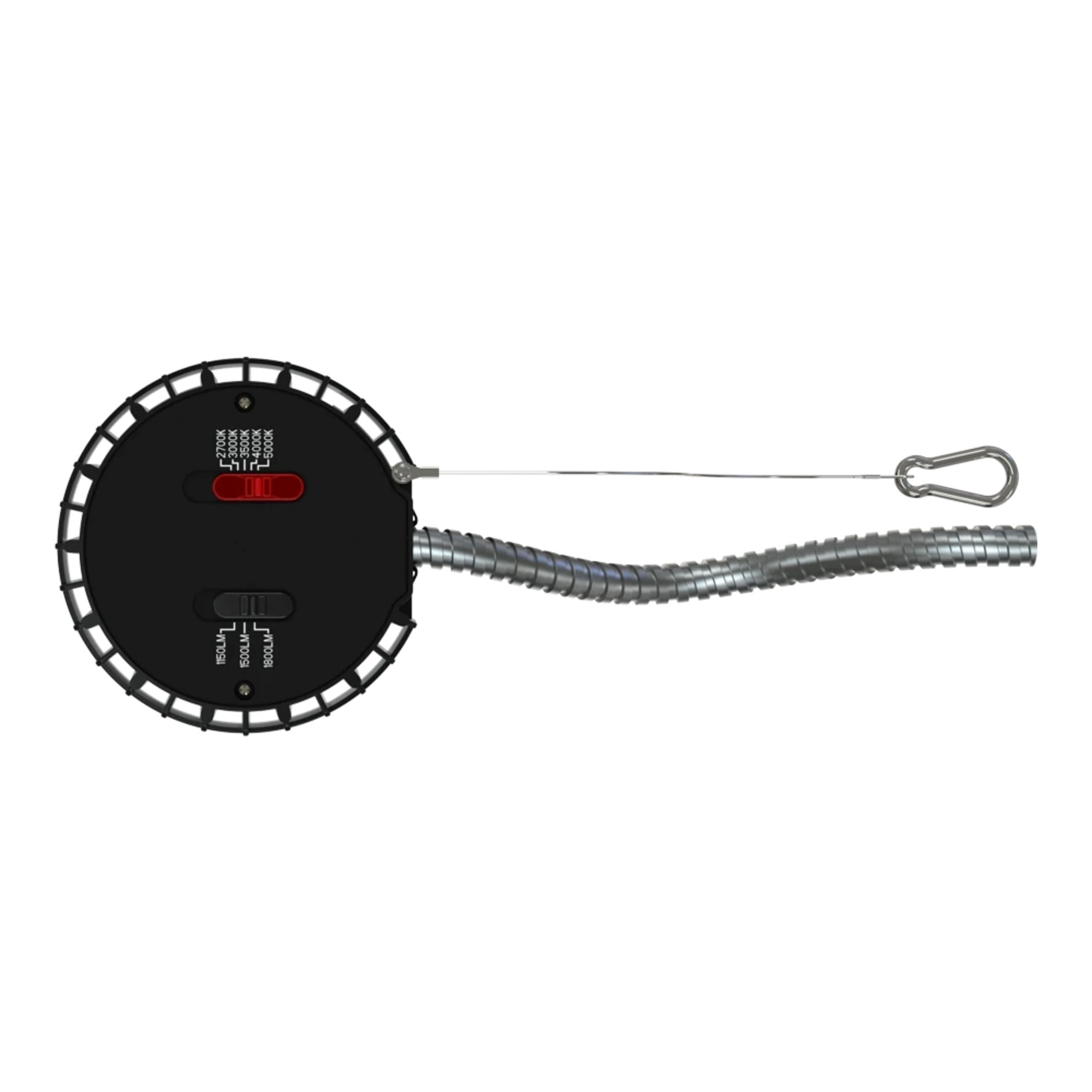

- Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- Wattage Options: 20/16/12W for flexible energy use
- Lumens Output: 1800/1500/1150 lumens
- Dimming Capability: Compatible with TRIAC/ELV and 0-10V systems
- Wet Rated: Suitable for indoor and outdoor use

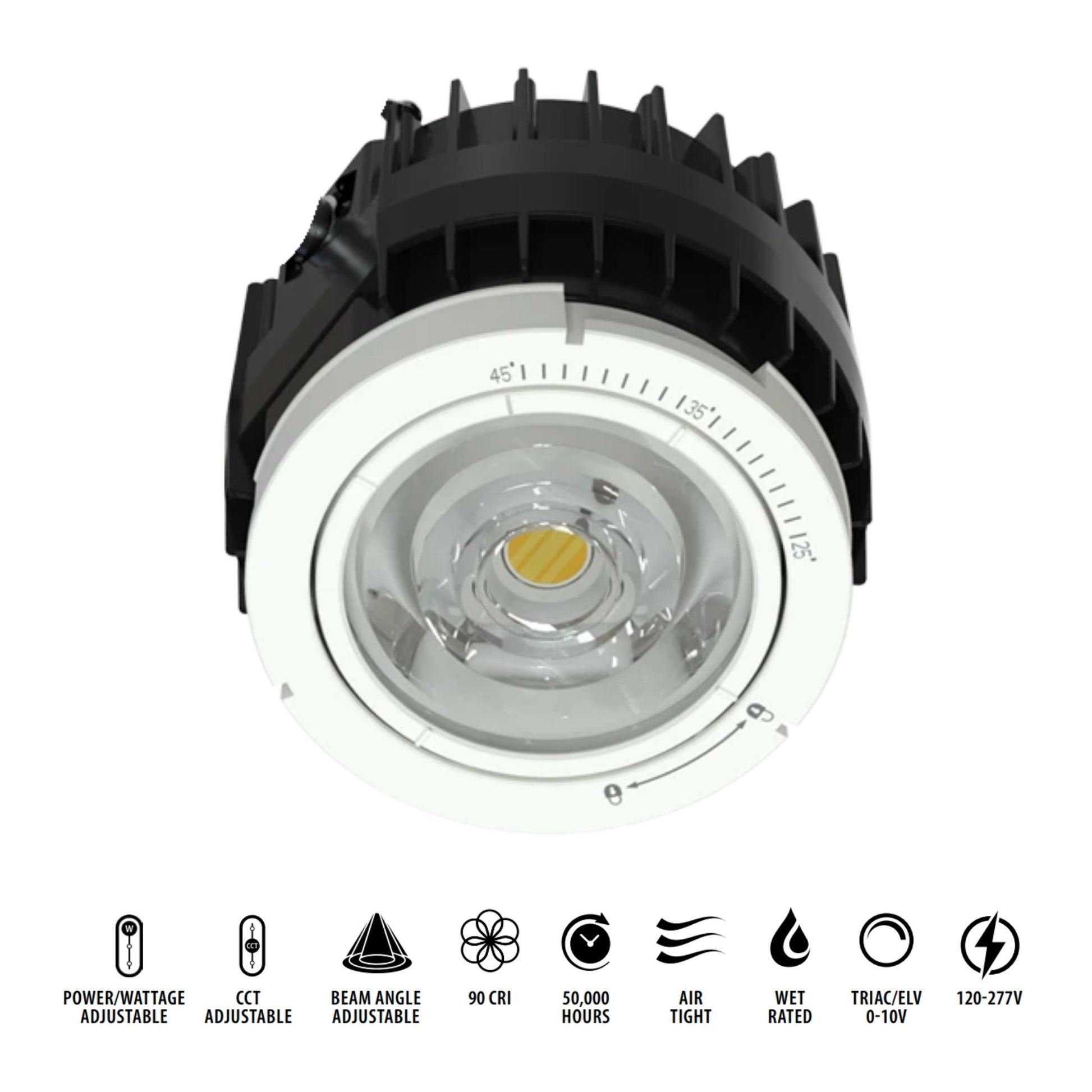

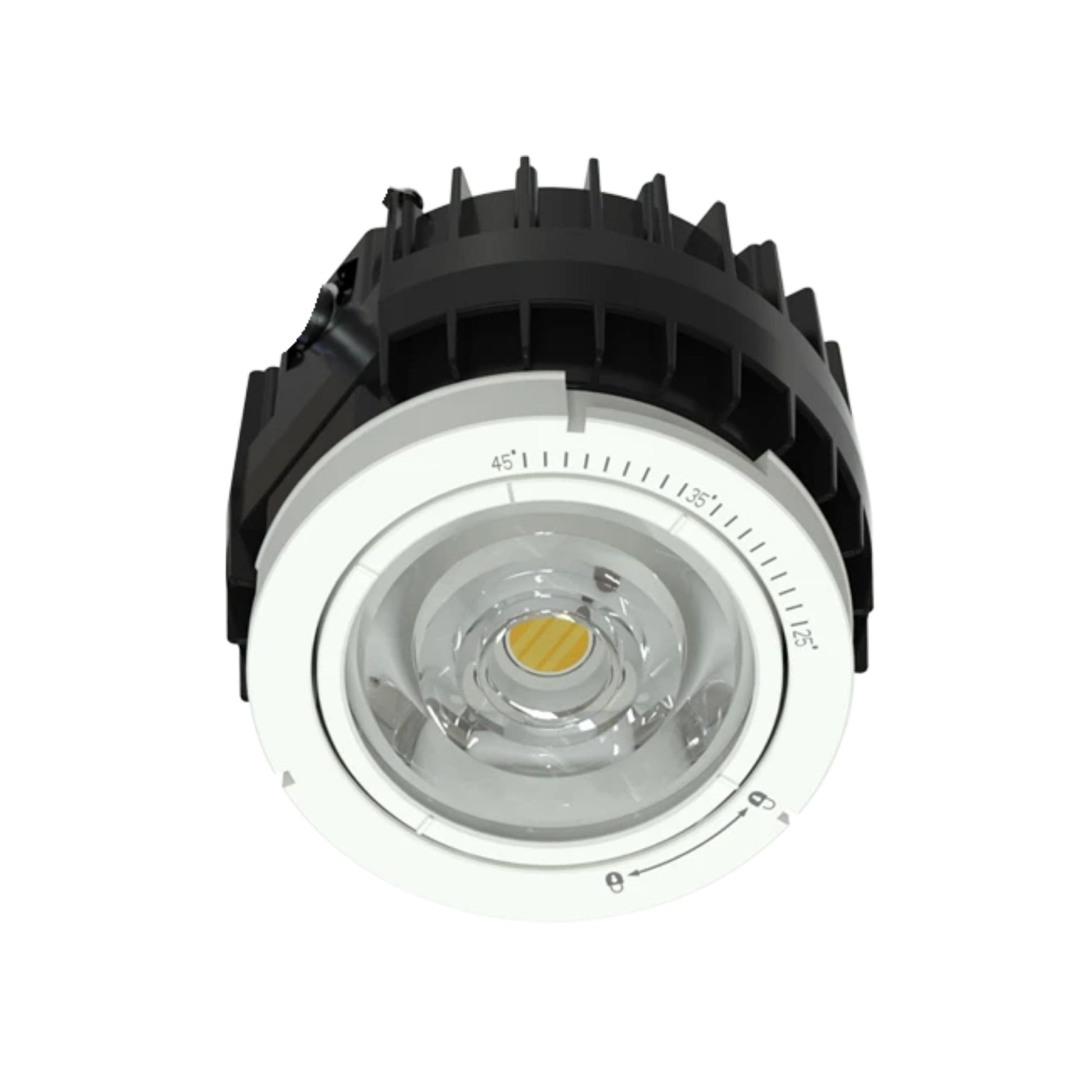

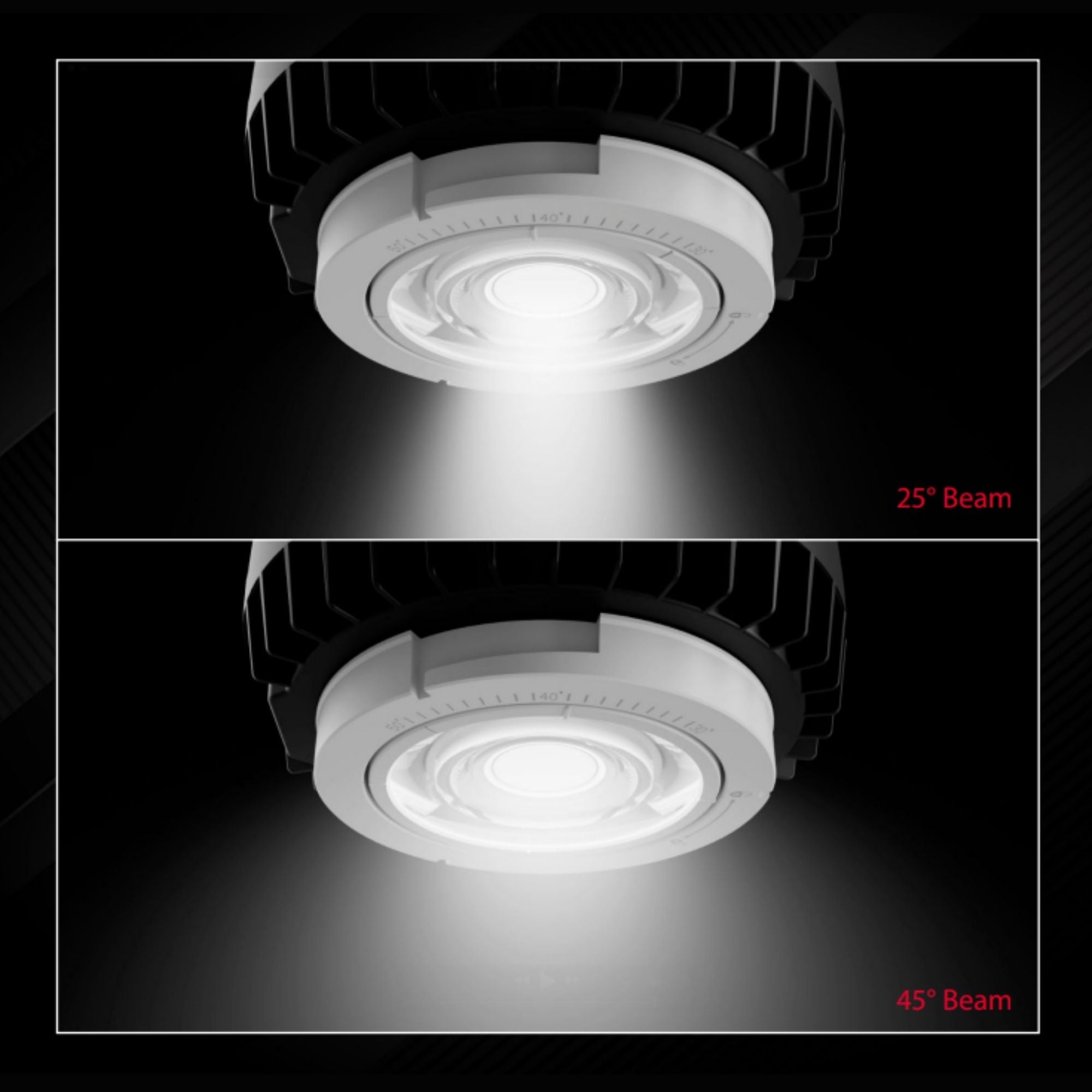

- Beam Angle: Adjustable 25° to 45°
- Energy Star Certified: Meets ENERGY STAR® Version 1.0 standards
- RoHS Compliant: Mercury and UV free
- Title 24 Compliant: Meets California Title 24 Part 6 requirements
- Emergency Backup: Field-installable options available
Construction & Aesthetics

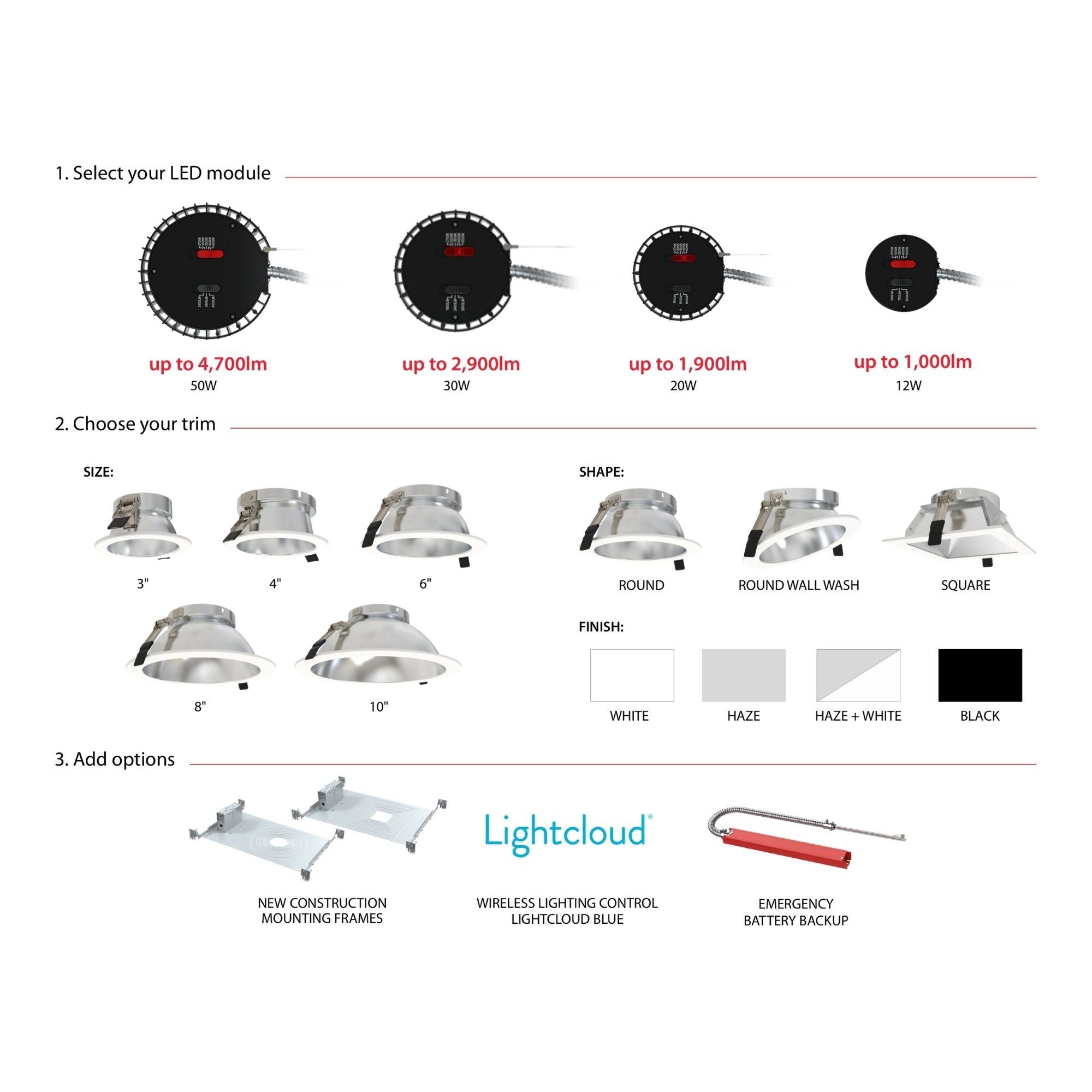

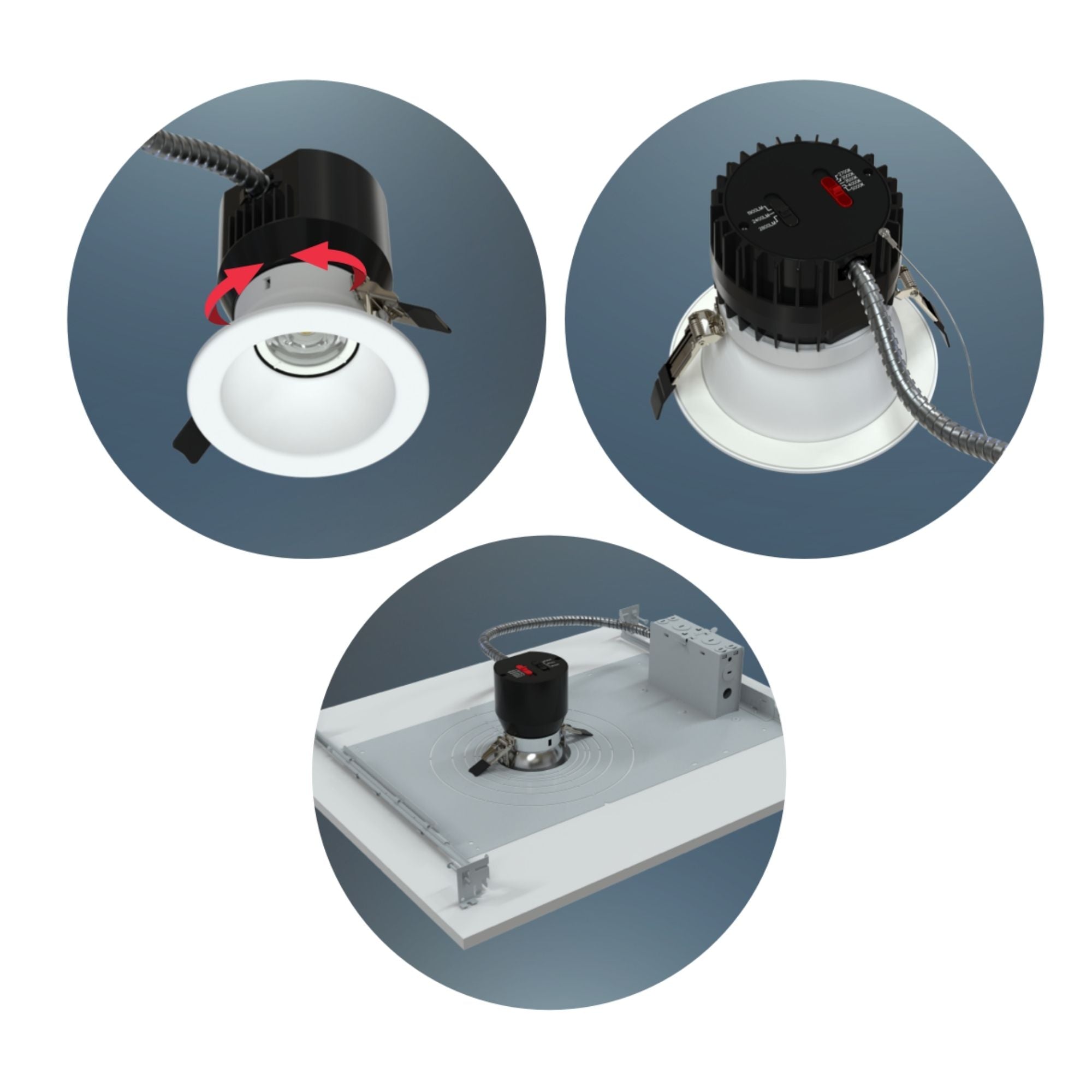

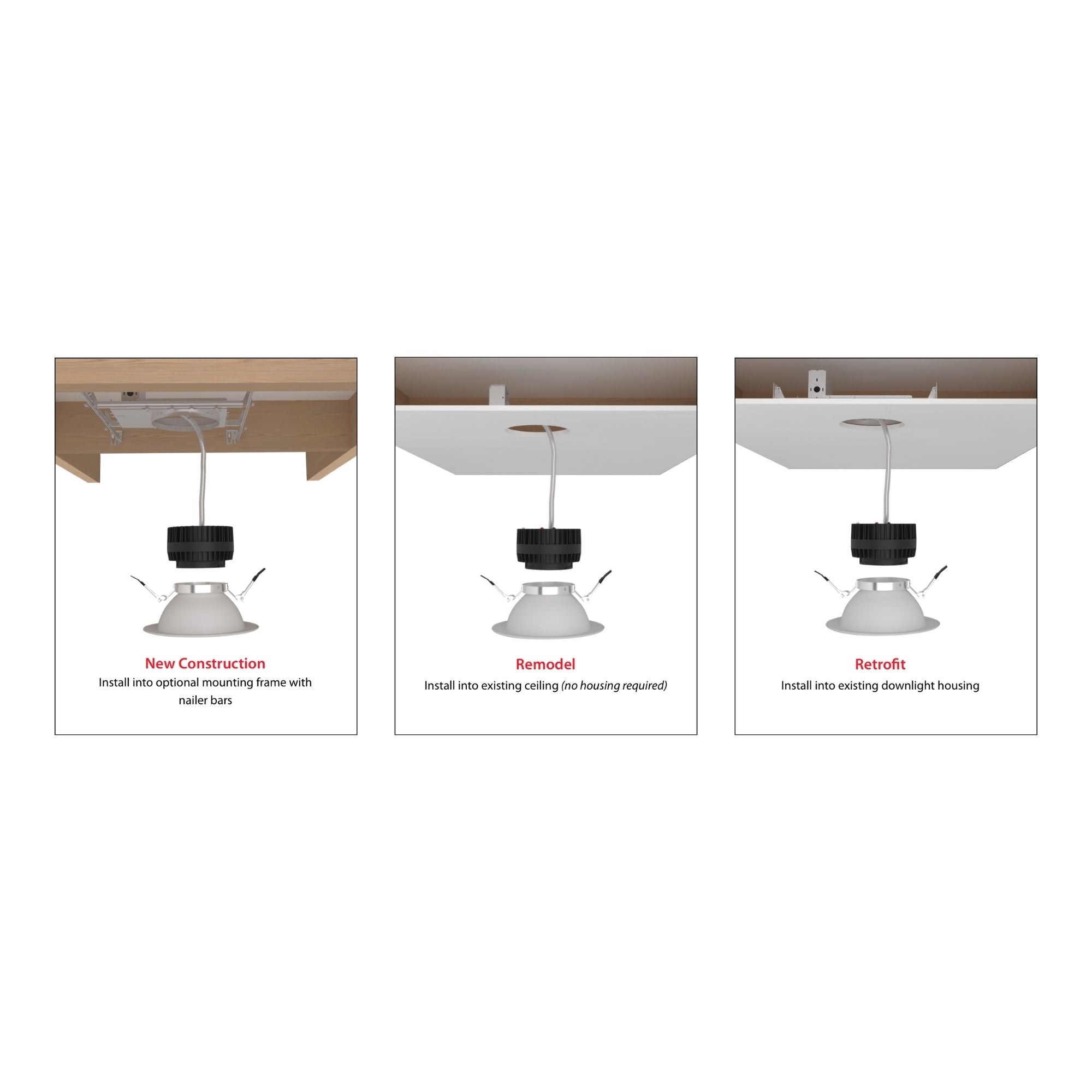

This downlight features a curved decorative diffuser and is designed for modular use with interchangeable trims and accessories. It can be installed in retrofit, remodel, or new construction settings, accommodating up to 2'' ceiling thickness.
Electrical & Installation
Operating on 120-277V with a constant current driver, this fixture supports dimming down to 10% on compatible systems. Optional accessories include emergency backup drivers and Lightcloud Blue controllers.
Light Output & Performance
With a high CRI of 90 and a lifespan of 50,000 hours, this downlight ensures consistent color and performance. The adjustable beam angle enhances lighting flexibility.

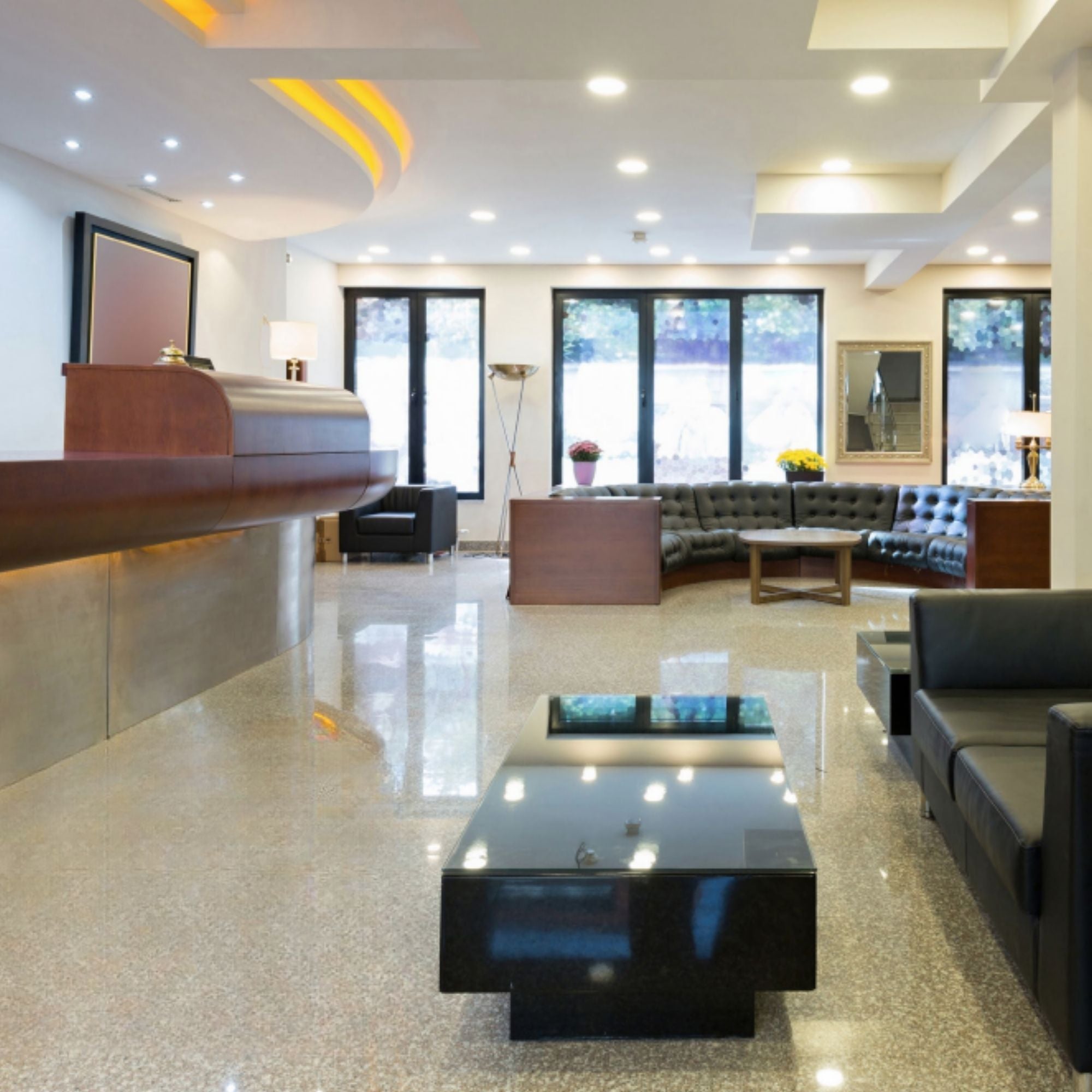

Typical Applications
- Commercial spaces
- Retail environments
- Hospitality settings
- Outdoor canopies
- Residential areas
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can the RAB ND22-20 be used outdoors?
Can the RAB ND22-20 be used outdoors?
What is the beam angle range for the RAB ND22-20?
What is the beam angle range for the RAB ND22-20?
Is the RAB ND22-20 compatible with dimmers?
Is the RAB ND22-20 compatible with dimmers?
What are the selectable color temperatures for the RAB ND22-20?
What are the selectable color temperatures for the RAB ND22-20?
Does the RAB ND22-20 support emergency backup?
Does the RAB ND22-20 support emergency backup?
