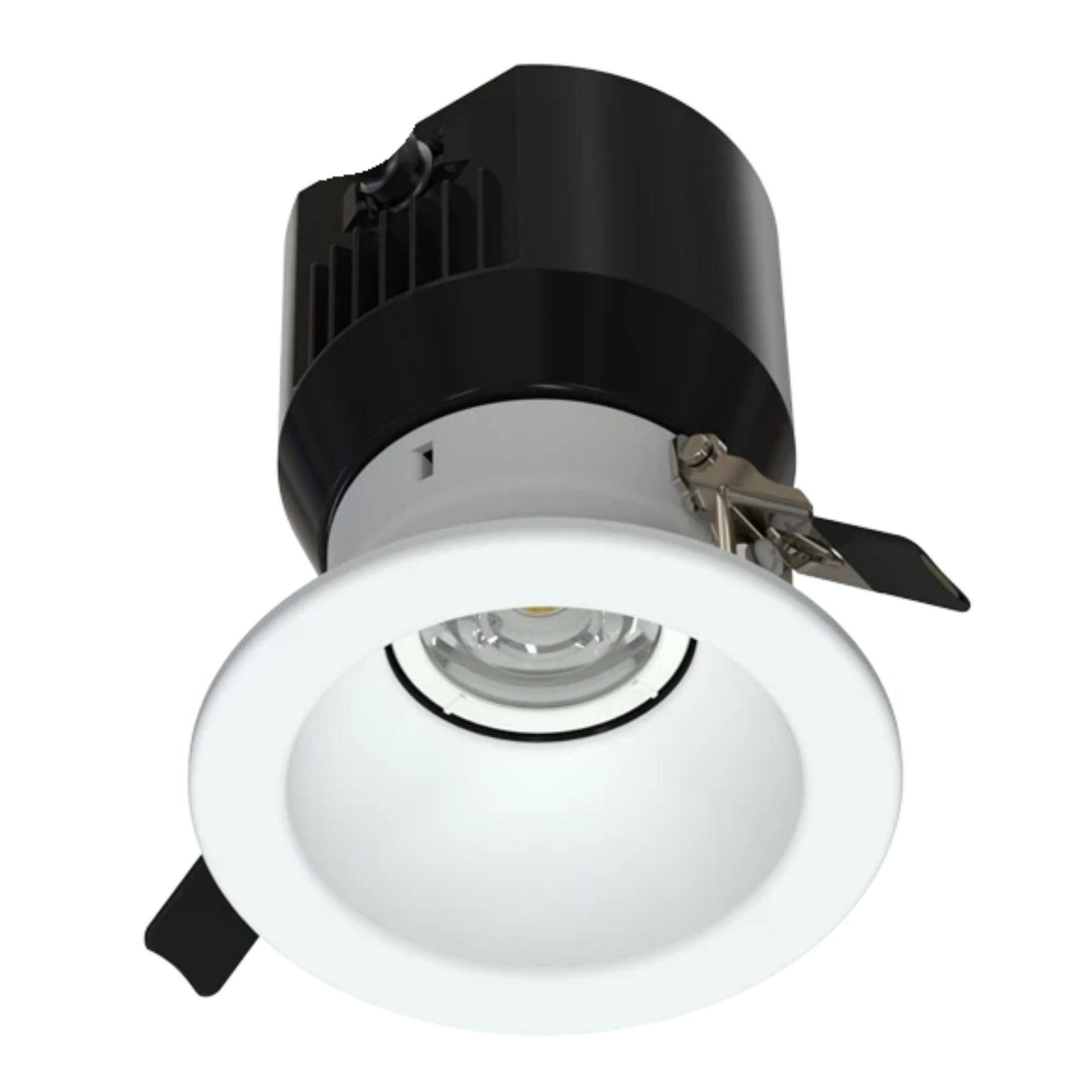

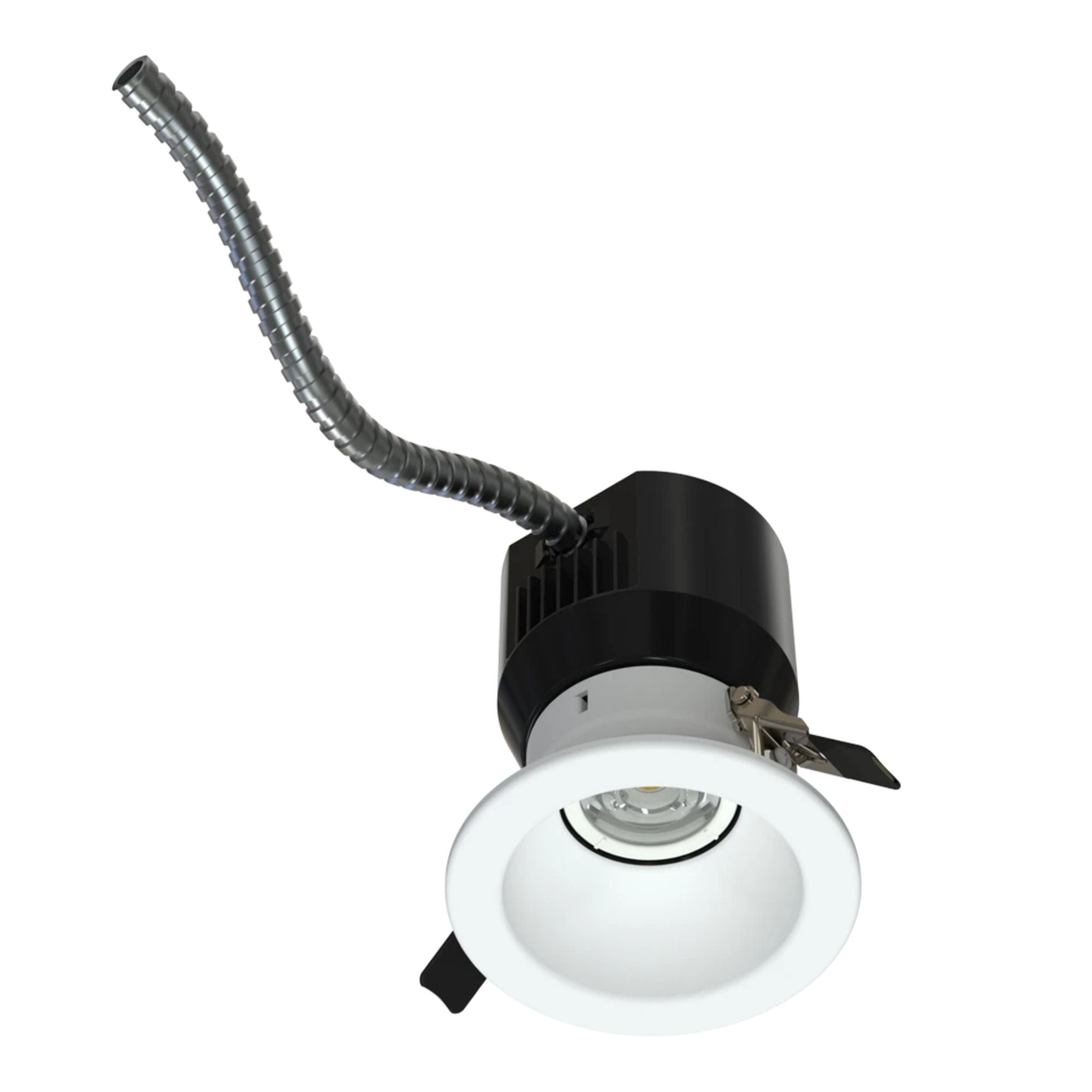

RAB ND22-12-3RW 3 in Round Open Modular Commercial Downlight — 12/9/7W / 25°–45° Adjustable Beam / 120–277V / White

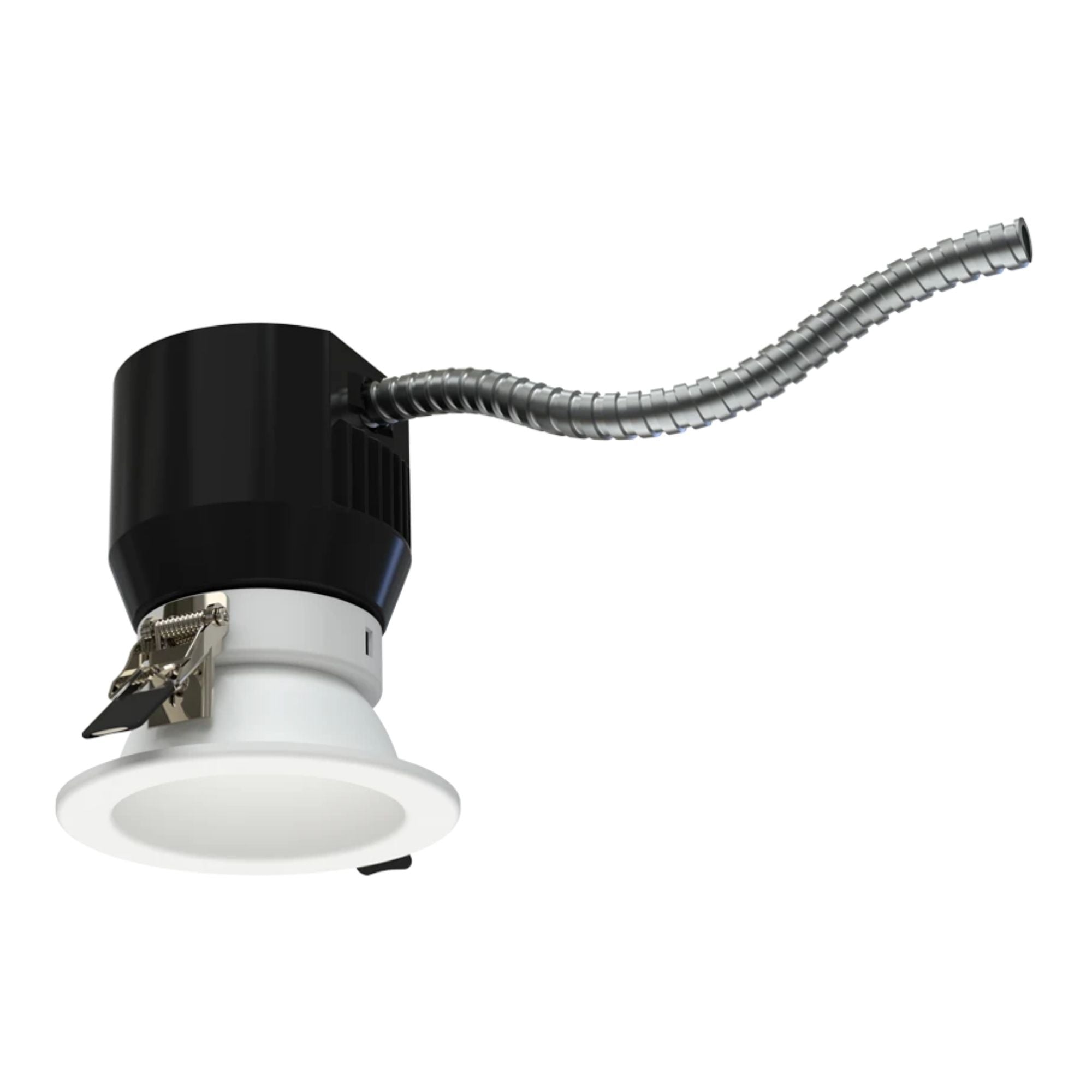

The RAB ND22-12-3RW is a modular commercial downlight combining the ND22-12 light engine with the ND22T-3RW 3 in round open trim (white flange, white reflector). Delivers 1,000/750/600 lm at 12/9/7W with a field-adjustable beam from 25° to 45° via rotating lens assembly. CCT and wattage are field-selectable via dip switch. Universal 120–277V input. Suitable for retrofit, remodel, and new construction — accommodates up to 2 in ceiling thickness.

Key Features

• 3 in Round Open Trim — White: Anodized aluminum reflector with powder coat; white flange and white reflector; curved decorative diffuser lens; 3.5 in cut-out

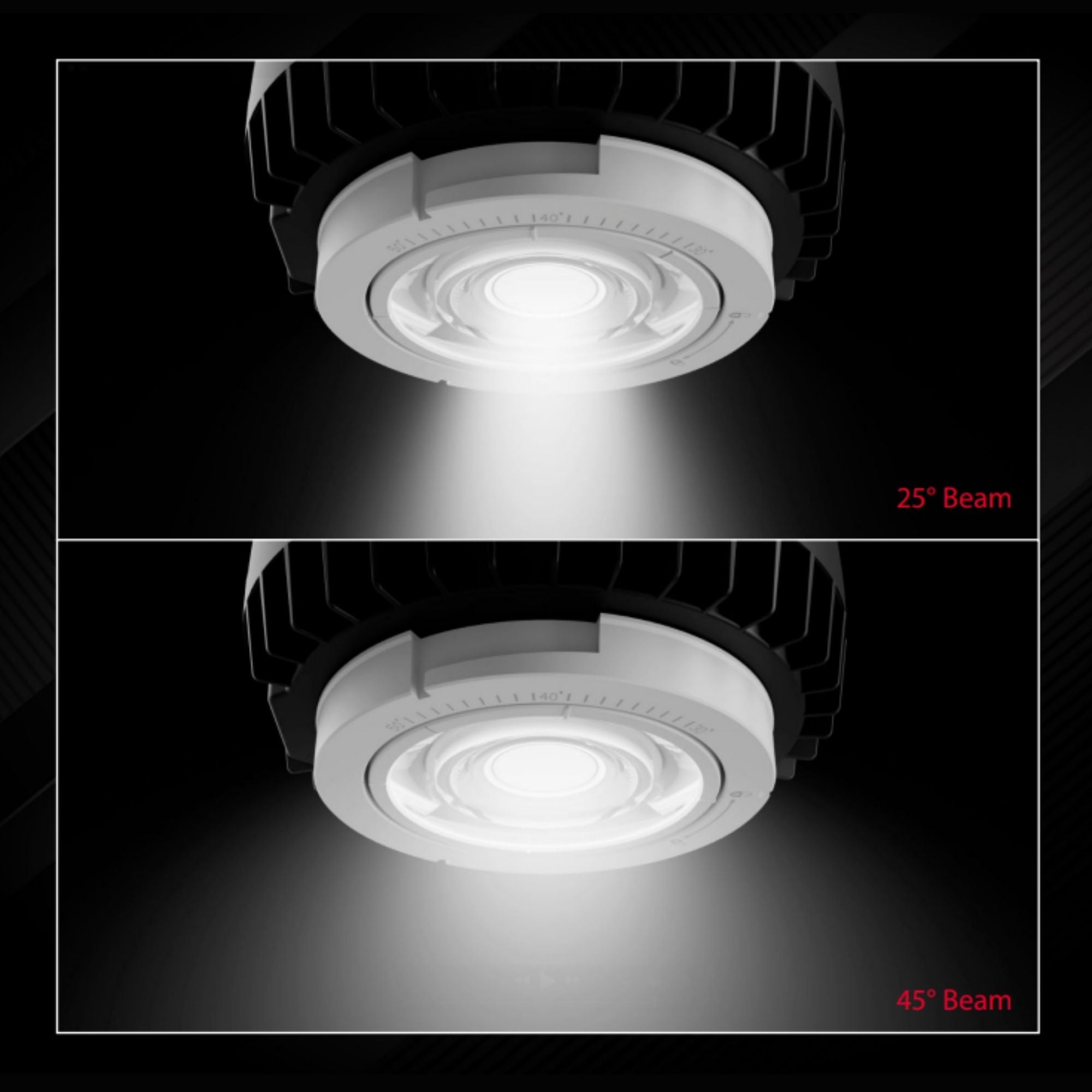

• Adjustable Beam — 25° to 45°: Rotating lens assembly; field-adjustable after installation

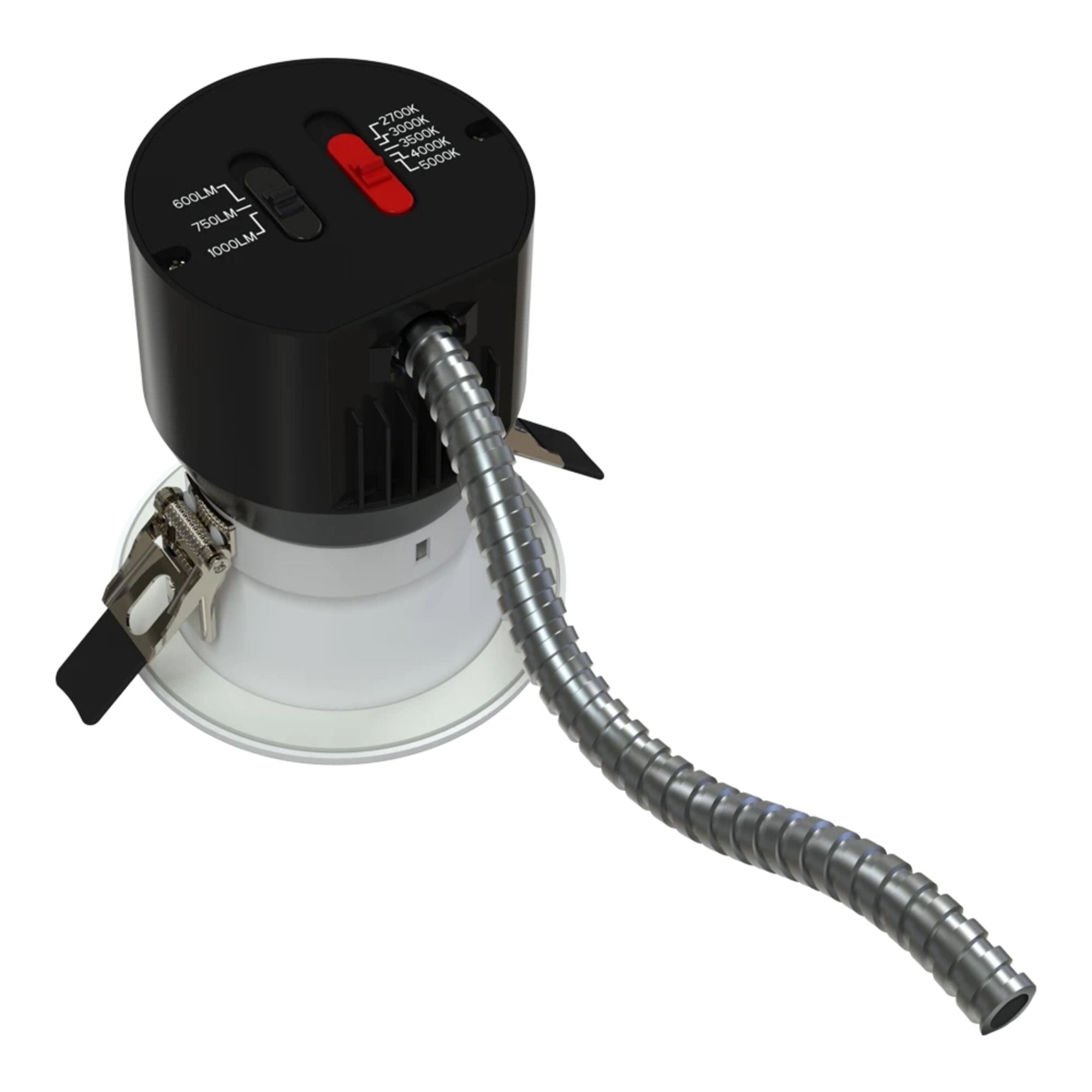

• Field-Selectable Wattage: 12W | 9W | 7W via dip switch
• Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K via dip switch (factory default: 4000K)
• Light Output: 1,000 lm (12W) | 750 lm (9W) | 600 lm (7W)
• Efficacy: 83 lm/W (12W) | 83 lm/W (9W) | 85 lm/W (7W)
• CRI: 93–95 | R9 >50 | <4-step MacAdam Ellipse | Color stability ≤200K over 5 years
• Input Voltage: 120–277V universal | 50/60 Hz
• Input Current: 110mA (120V) | 58mA (208V) | 51mA (240V) | 43mA (277V)
• Driver: Constant Current, Class A | 120V: 0.35A | 277V: 0.17A
• Dimming: TRIAC/ELV dimmable to 10% (120V) | 0–10V dimmable to 10% (120–277V)

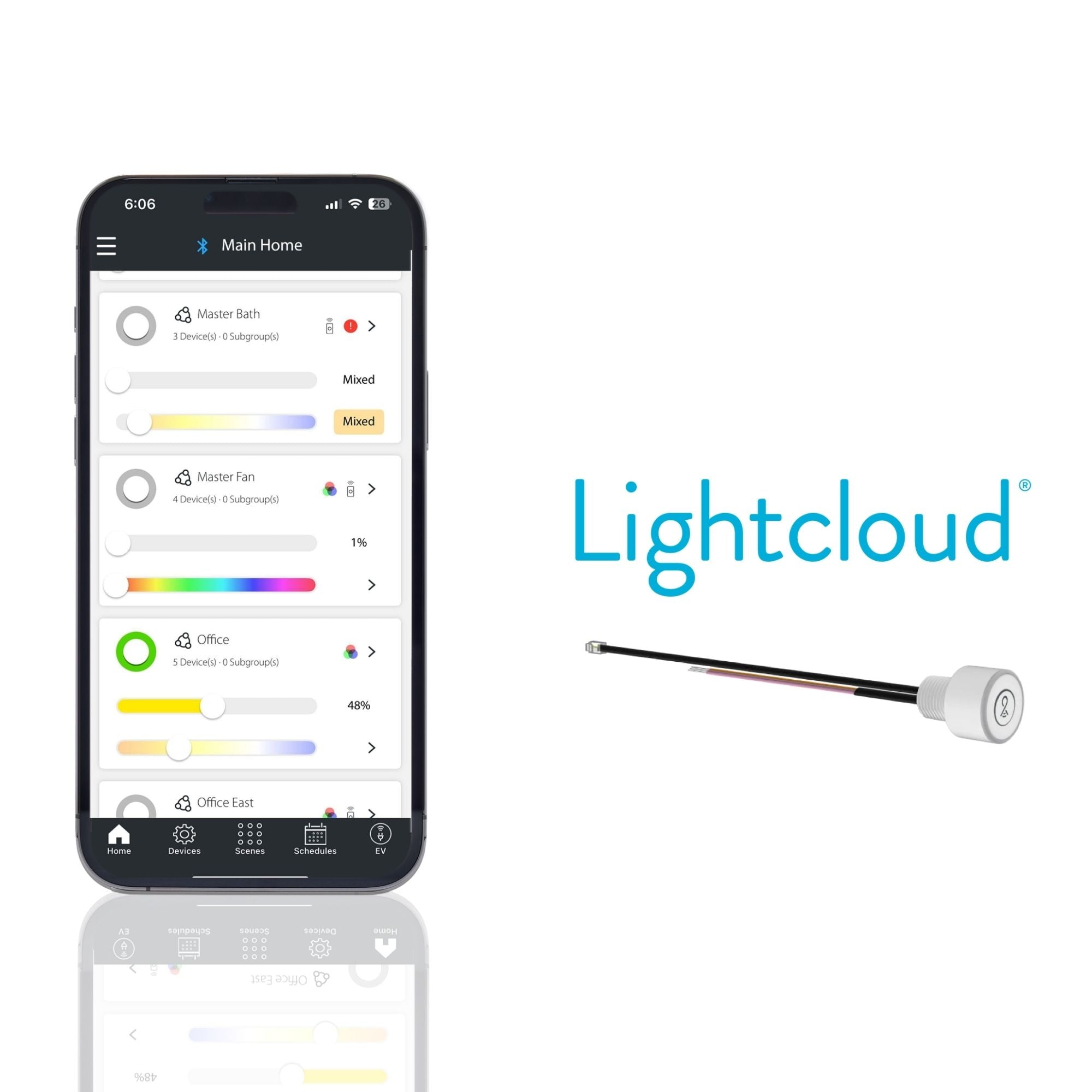

• Controls: 12V Aux for Lightcloud Blue compatibility
• THD: ≤20% | PF: ≥0.9 (120V) / ≥0.7 (277V) | Flicker: ≤30%
• Operating Temp: -4°F to 104°F (-20°C to 40°C)
• Environment: Dry, damp, and wet rated | Air Tight per ASTM-E283 | Not IC rated

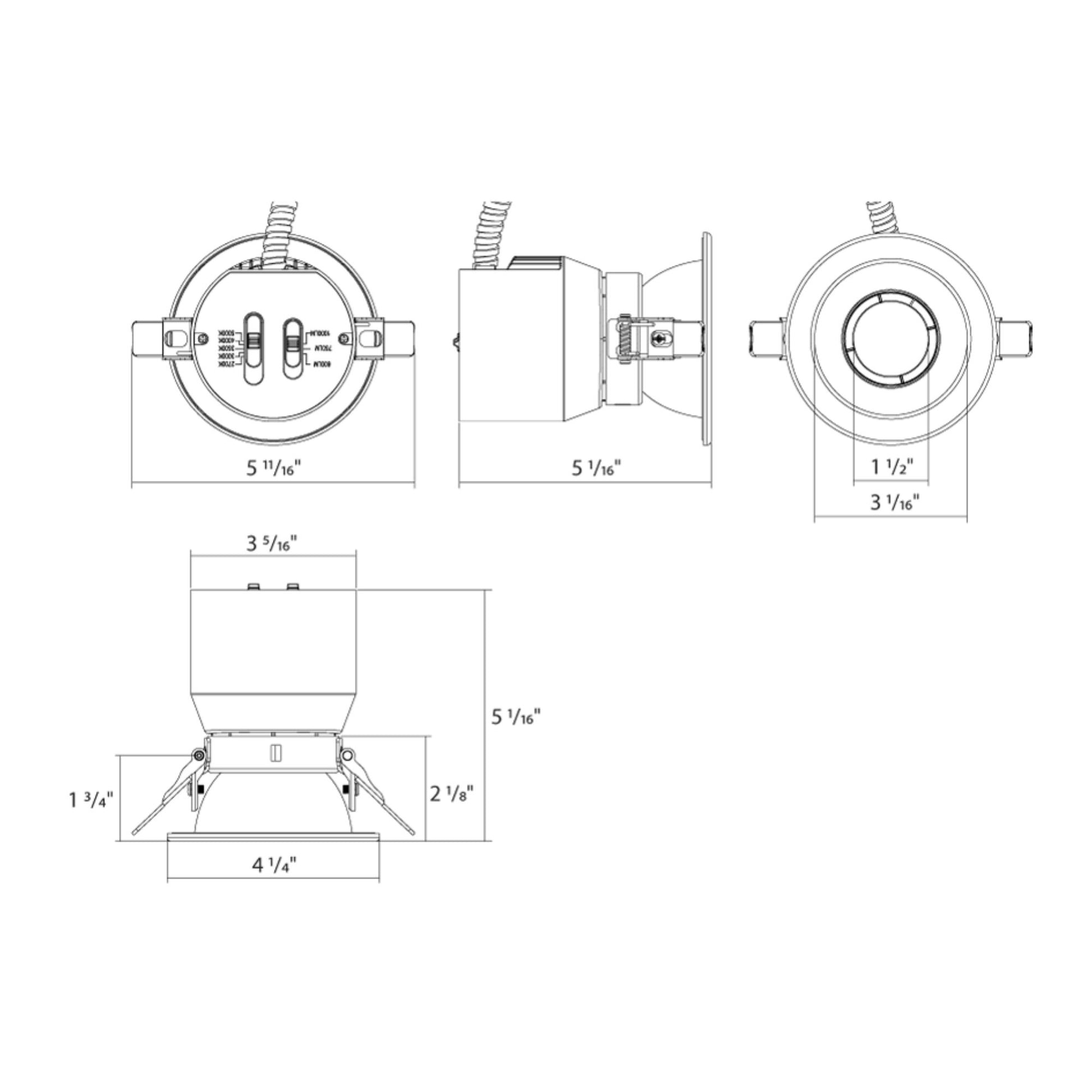

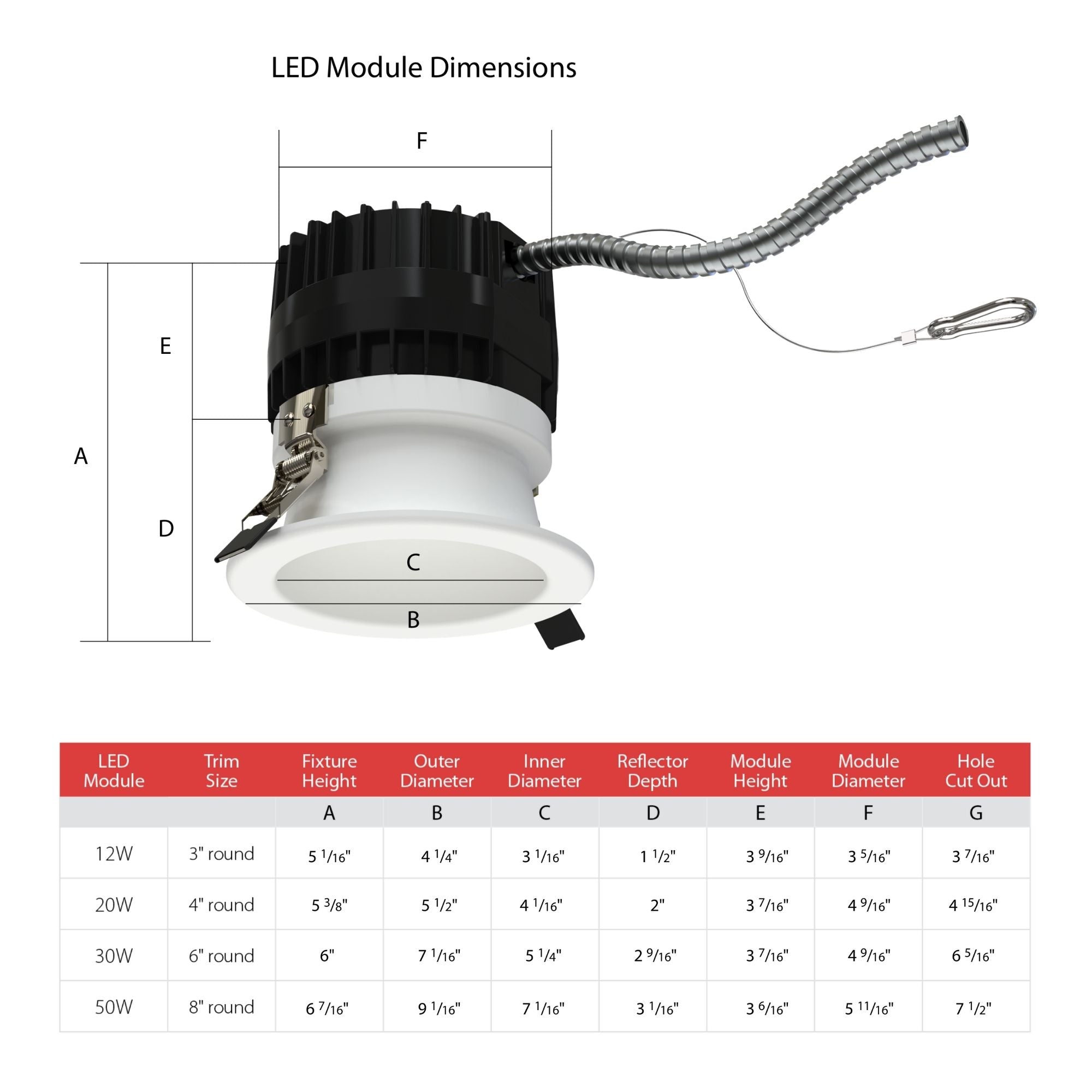

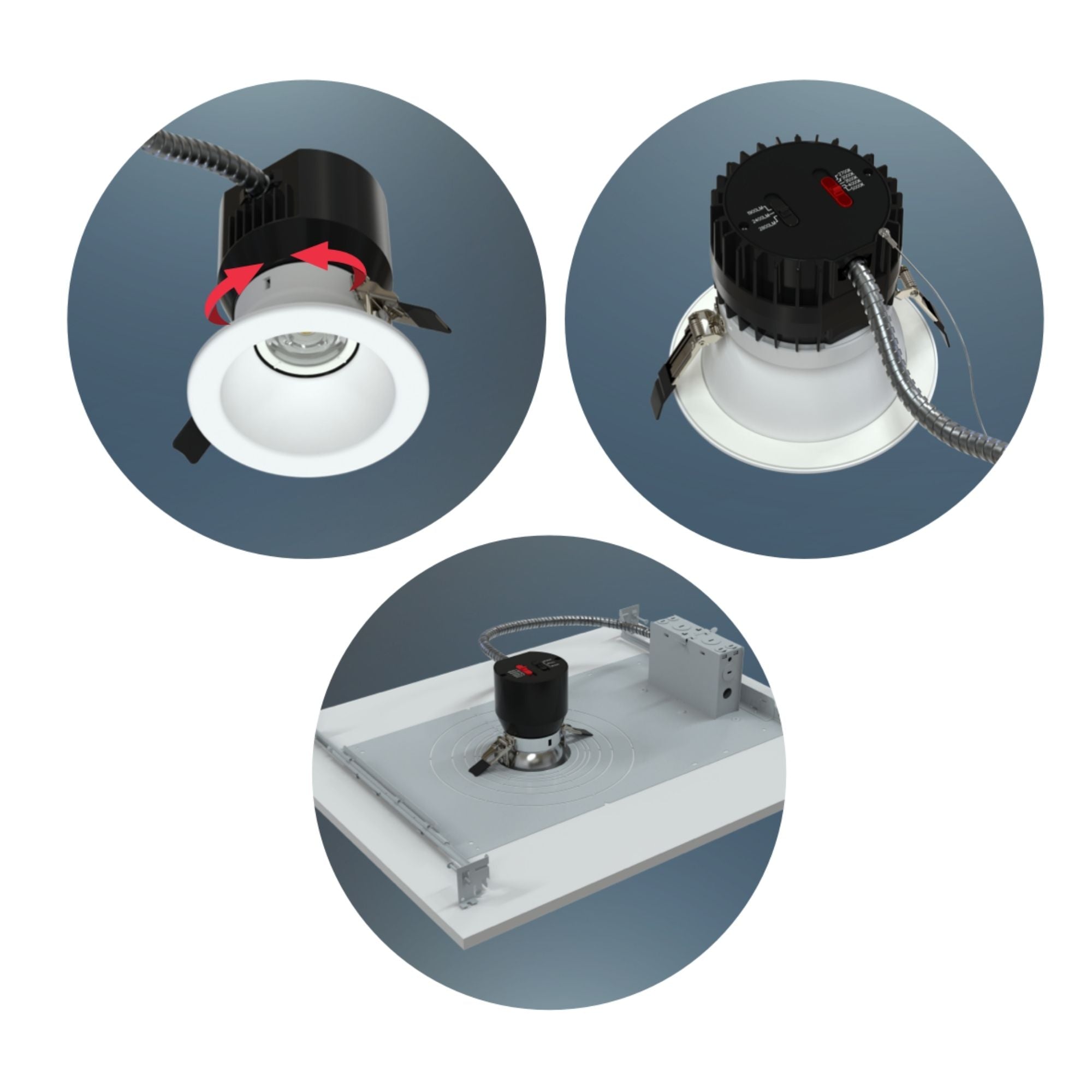

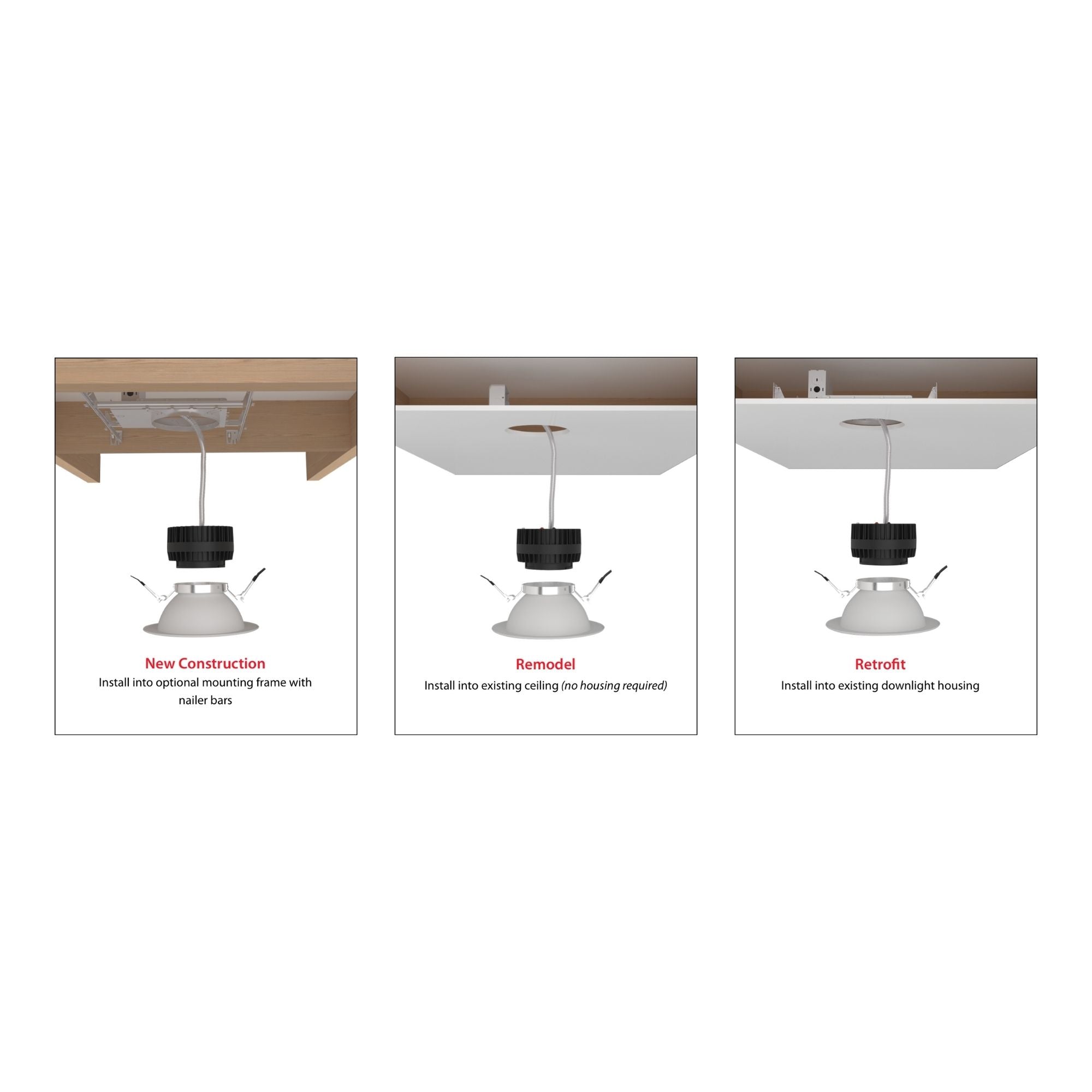

• Mounting: Retrofit, remodel, or new construction; up to 2 in ceiling thickness
• Construction: Trim reflector — anodized aluminum with powder coat; Trim finish — white flange and white reflector; Lens — curved decorative diffuser
• Weight: 1.3 lbs
• Certifications: UL Listed | UL Classified | ENERGY STAR v1.0 (ID: 3554281) | Title 24 JA8 (Part 6) | CEC: Lawful for CA | ANSI C78.377-2017 | IESNA LM-79 & LM-80 | RoHS | FCC Part 15 | Trade Agreements Act Compliant
• Lifespan: 50,000 hours L70 (IESIm-70) | Warranty: 5-year no-compromise warranty

Light Output & Performance

Engineered for commercial precision, the ND22-12-3RW delivers 1,000 lm at 12W (83 lm/W), 750 lm at 9W (83 lm/W), or 600 lm at 7W (85 lm/W) — selectable in the field to match the exact demands of the space. With a CRI of 93–95 and R9 >50, colors render vividly and accurately across all CCT settings. The <4-step MacAdam Ellipse binning ensures consistent fixture-to-fixture color uniformity, while the 25°–45° adjustable beam gives specifiers precise control over light distribution. Color temperature is warranted to shift no more than 200K over 5 years.

Electrical & Installation

Built for commercial flexibility, the ND22-12-3RW operates on universal 120–277V input with a constant current Class A driver running at 110mA (120V) / 58mA (208V) / 51mA (240V) / 43mA (277V). Supports both TRIAC/ELV dimming to 10% at 120V and 0–10V dimming to 10% across 120–277V, making it compatible with virtually any commercial dimming infrastructure. THD ≤20%, PF ≥0.9 at 120V / ≥0.7 at 277V, flicker ≤30%. Air tight certified per ASTM-E283. Not IC rated. Rated for operation from -4°F to 104°F. Installs in retrofit, remodel, or new construction ceilings up to 2 in thick with a 3.5 in cut-out.

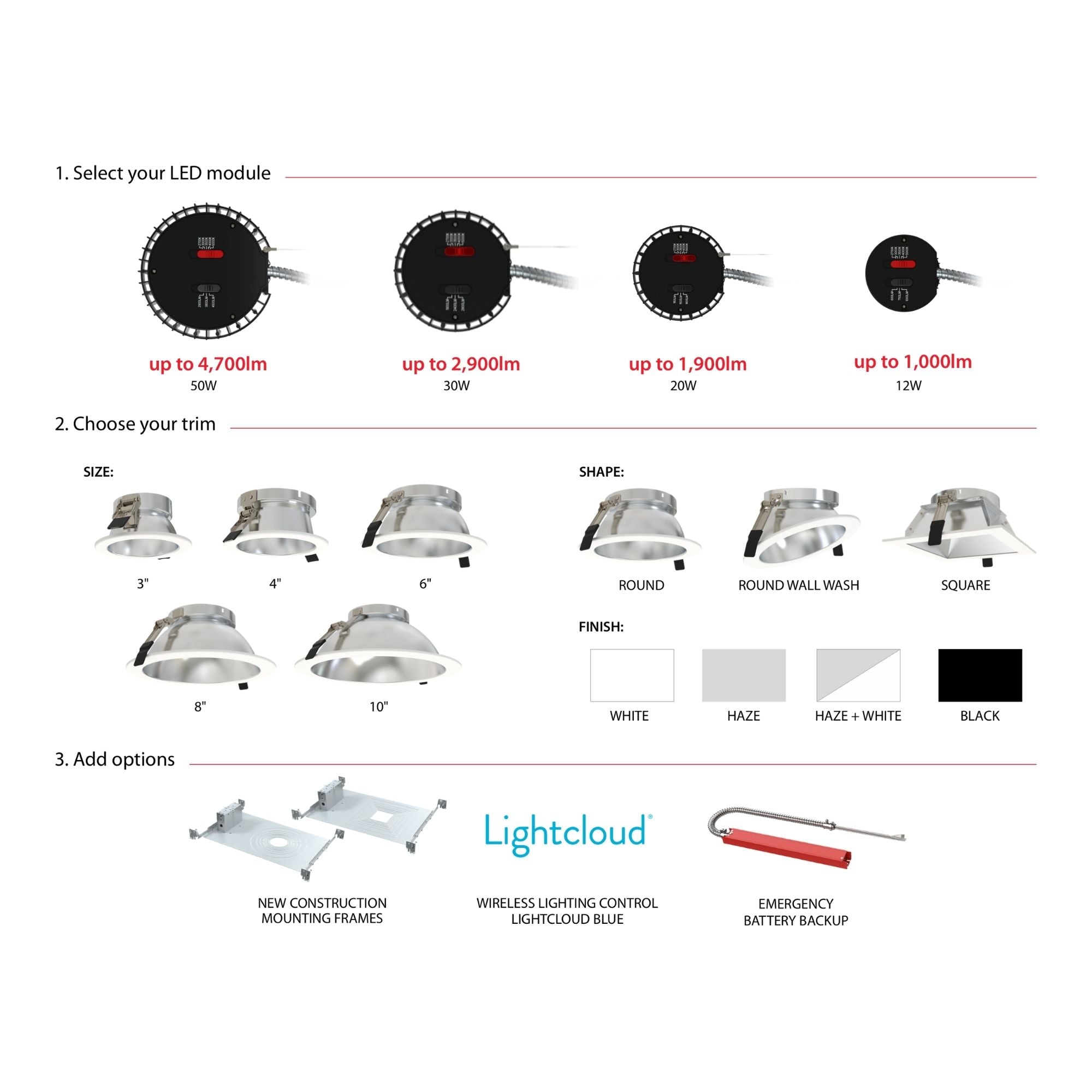

Compatible Accessories

• New Construction Housing — round nailer bar | square nailer bar
• Emergency Battery Backup — 9W 100–347V 0–10V | 15W 100–347V 0–10V | 25W 100–347V 0–10V
• Compatible Trims — ND22-12 — Round Open: 3 in, 4 in, 6 in | Square Open: 3 in, 4 in, 6 in | Round Wall Wash: 3 in, 4 in, 6 in | Finishes: white, haze/white, haze, black

What’s Included

• RAB ND22-12 light engine (12/9/7W, 120–277V)
• RAB ND22T-3RW 3 in round open trim (white flange, white reflector)

Typical Applications

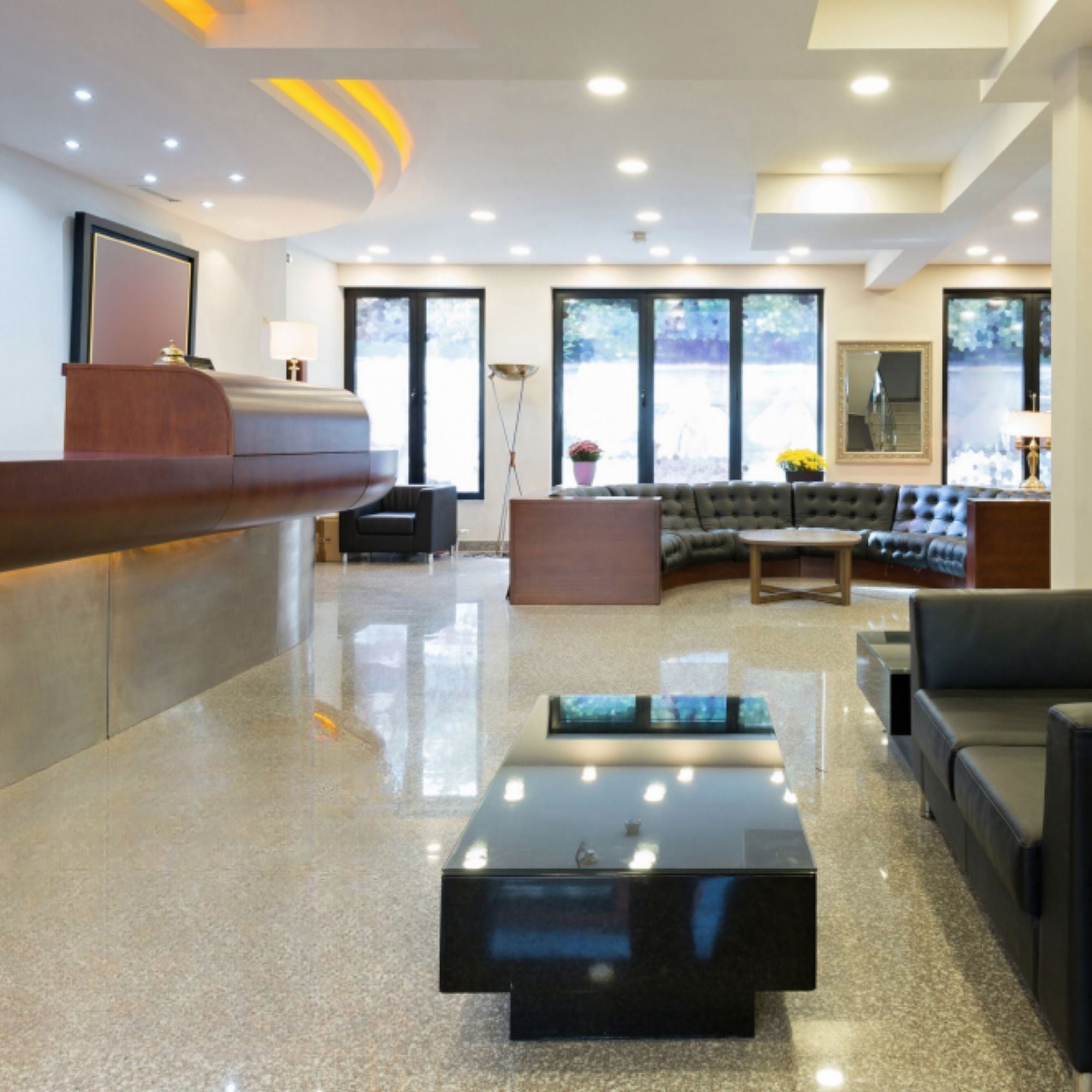

• Commercial offices, retail, hospitality, and healthcare environments
• Accent and task lighting requiring precise beam control (25°–45°)
• Retrofit and remodel of existing 3.5 in cut-out ceilings
• New construction with ND22-RFRAME or ND22-SFRAME housing
• Projects requiring Title 24 JA8 (Part 6) or ENERGY STAR v1.0 compliance
• Emergency egress applications with EMB-9/15/25 battery backup
