Overview

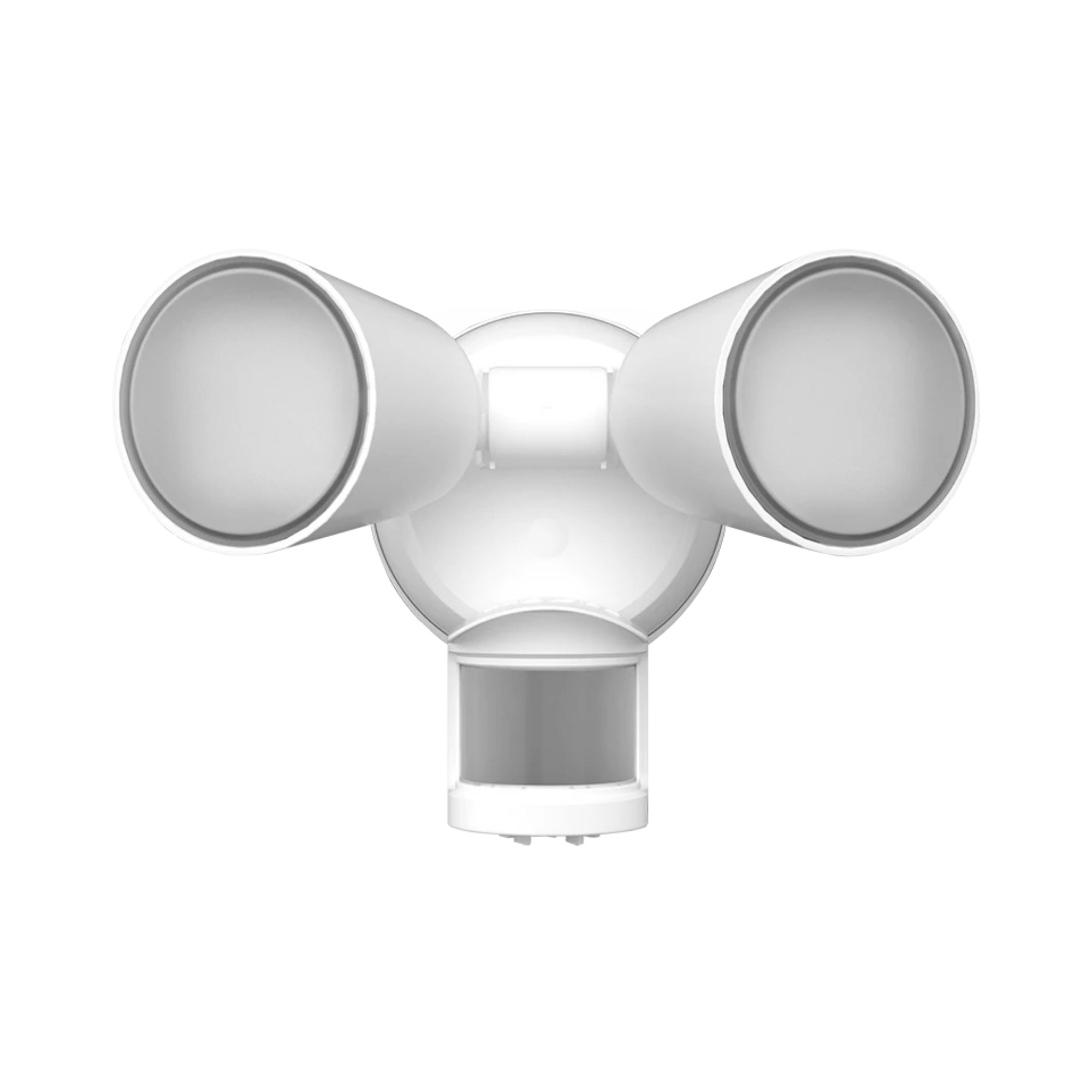

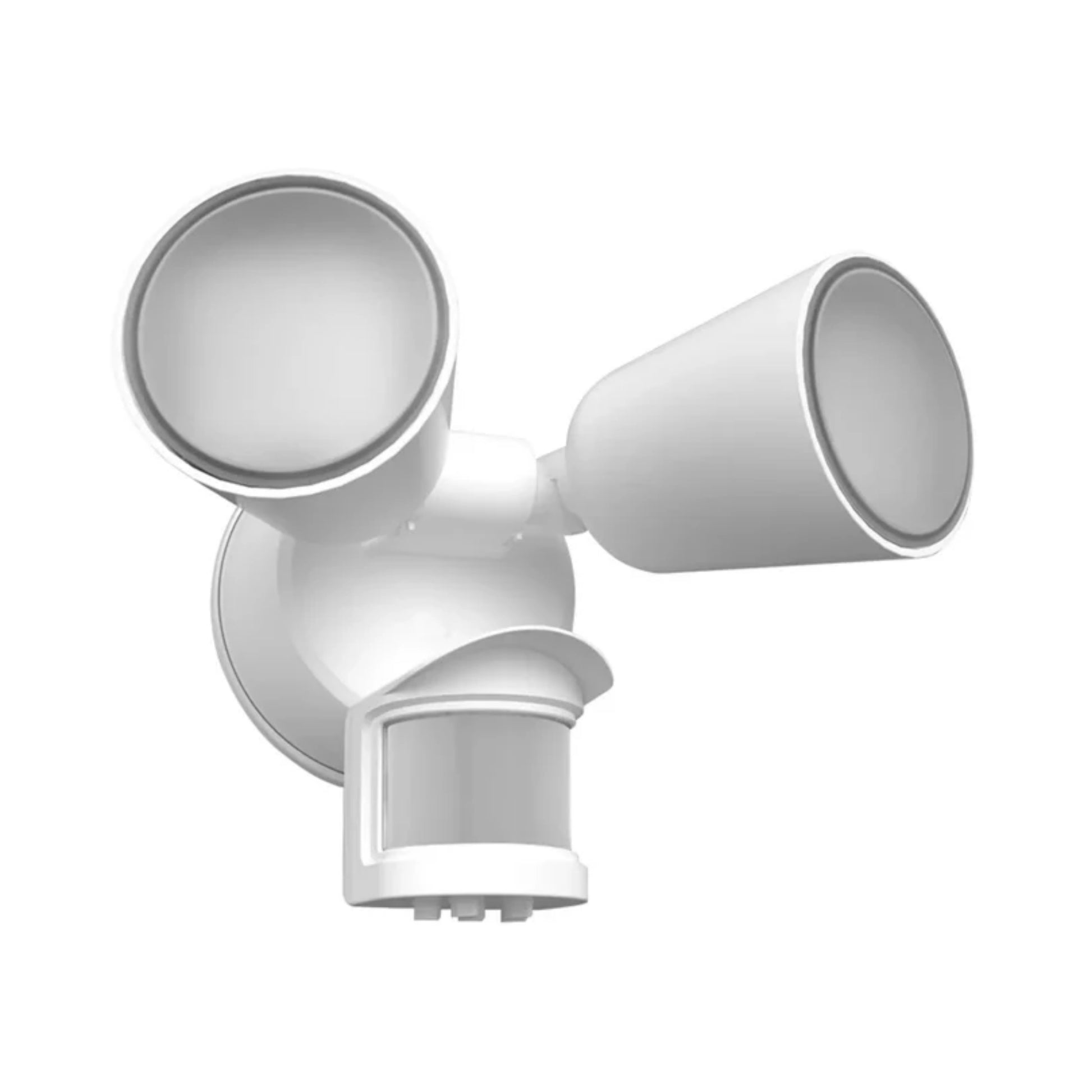

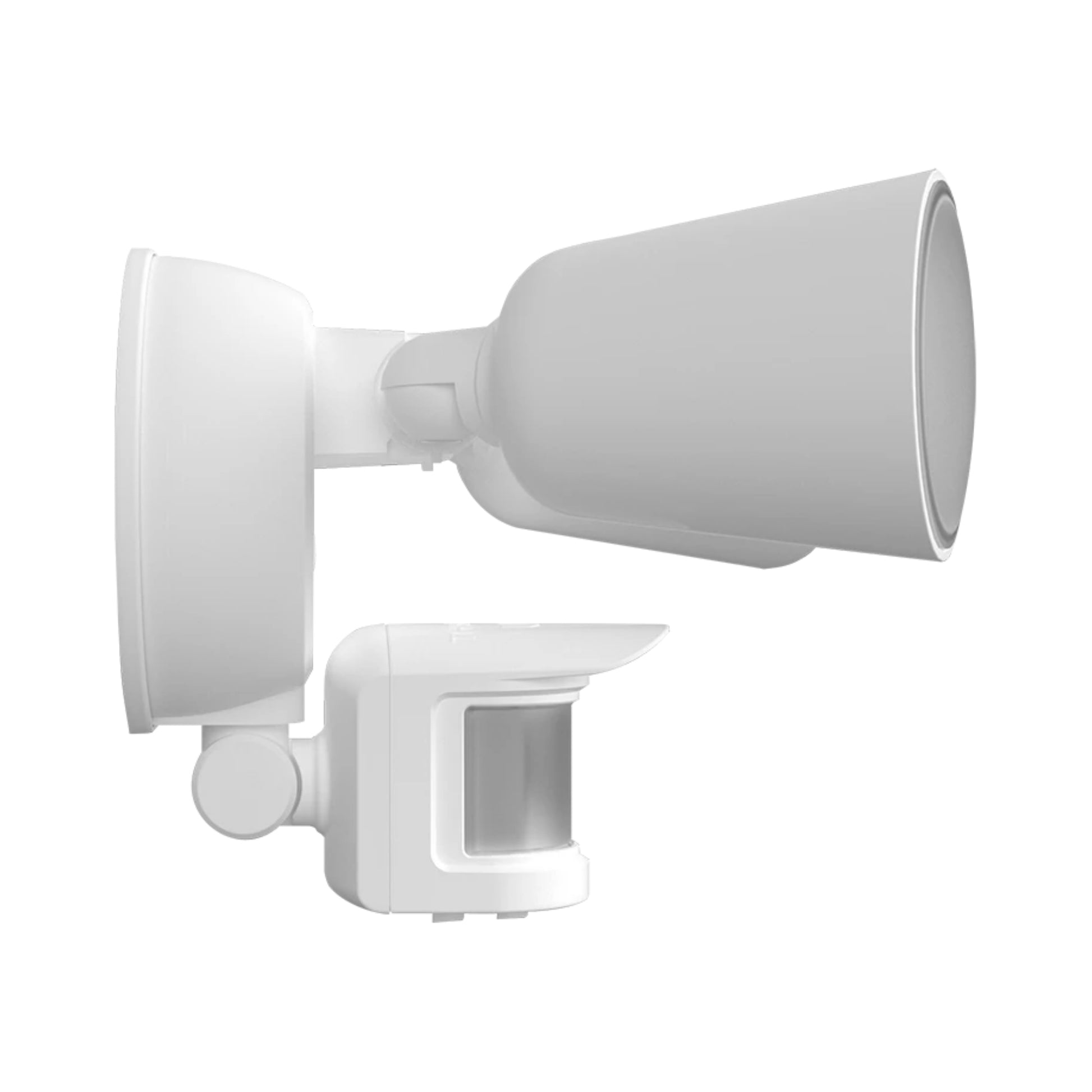

RAB LU160W - Luminator LED Motion Sensor Security Light

Model Number: LU160W (White)

The RAB LU160W Luminator is an advanced white LED motion sensor security light delivering up to 2000 lumens. This fixture features field-adjustable color temperatures (3000K/4000K/5000K) and an integrated photocell for automated dusk-to-dawn operation. While other retailers may have 4-7 day lead times, Bees Lighting offers the RAB LU160W with fast 1-2 day shipping and "Double Up & Save" volume discounts. With a 160-degree detection zone and durable IP65-rated white housing, it provides sleek, reliable security for any modern exterior.

RAB LU160W Key Features

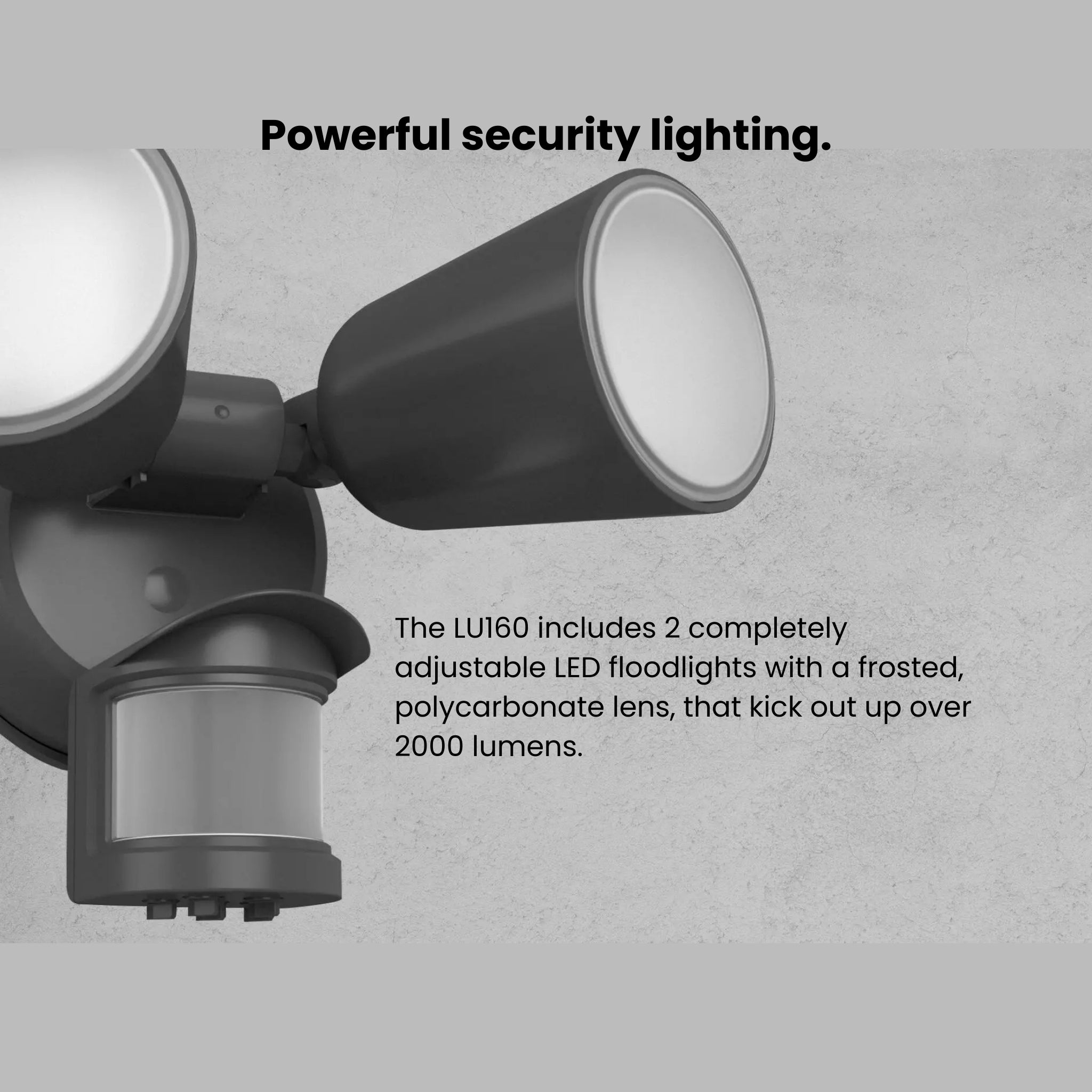

  • High Output: 2000 lumens for comprehensive area coverage
  • Selectable CCT: 3000K/4000K/5000K field-adjustable color temperature
  • Adjustable Brightness: 50%/75%/100% output settings for energy optimization
  • 160° Motion Detection: Wide-angle PIR sensor with adjustable sensitivity
  • Integrated Photocell: Automatic dusk-to-dawn operation
  • Customizable Hold Time: 1, 5, 10, or 20-minute settings

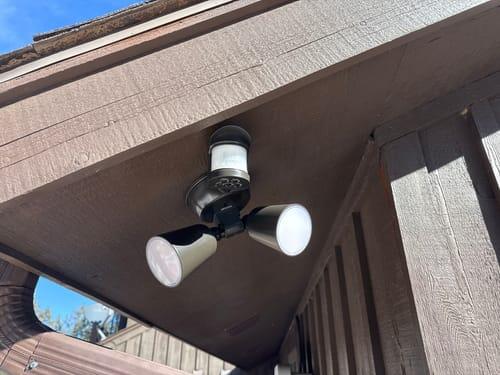

  • Versatile Mounting: Wall or ceiling installation up to 10 feet high
  • Durable Construction: Polycarbonate white housing with frosted lens
  • Energy Efficient: 16W operation with long-life LED technology

RAB LU160W Technical Specifications

  • Lumens: 2000 (at 100% brightness)
  • Wattage: 16W
  • Efficacy: 125 LPW
  • Voltage: 120V
  • Detection Range: Up to 70 feet
  • Detection Angle: 160°
  • Operating Temperature: -40°F to 122°F (-40°C to 50°C)
  • Finish: White polycarbonate
  • Rated Life: 50,000 hours
  • Warranty: 5 years

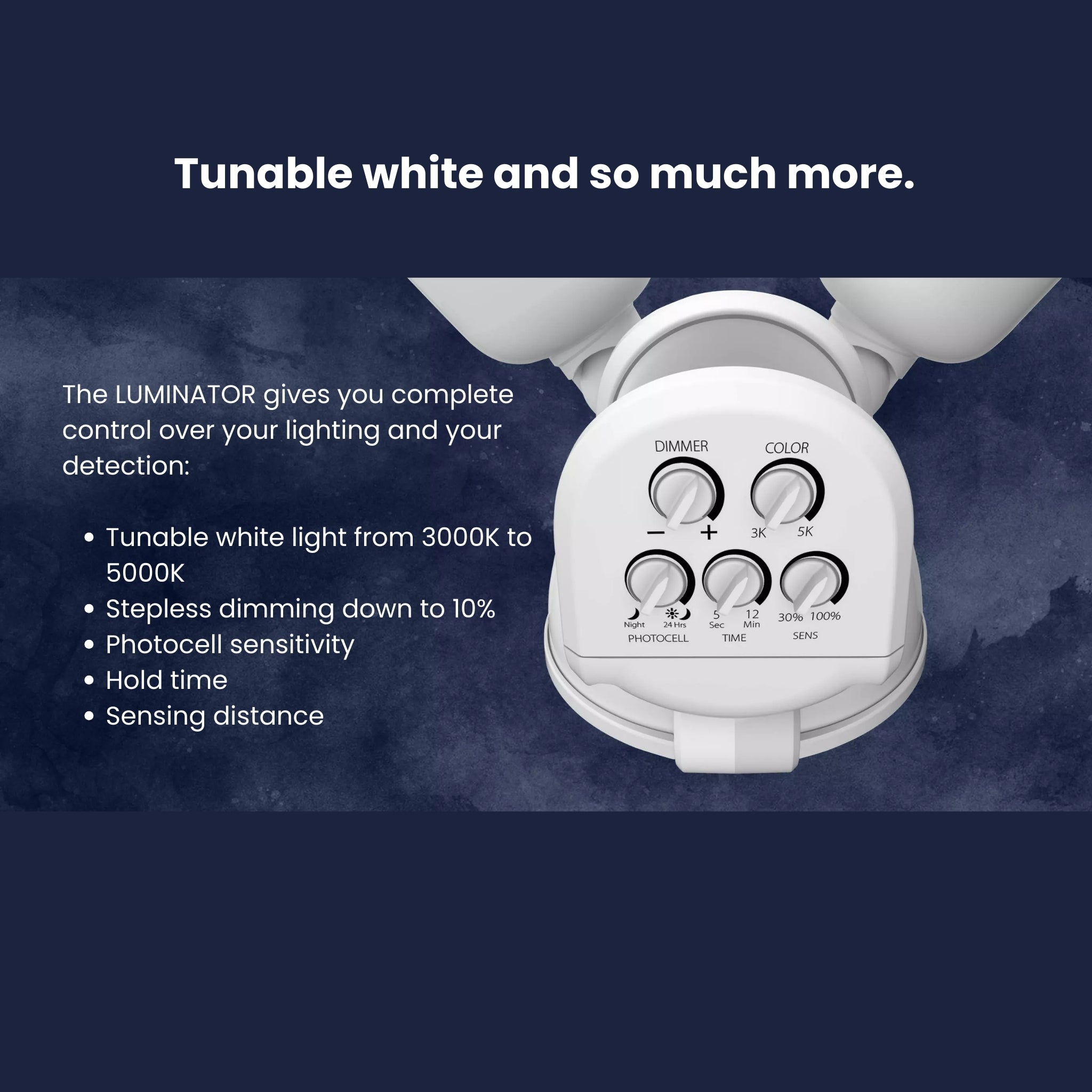

Smart Controls

Fully customizable operation with adjustable sensitivity, hold time, and brightness settings. The integrated photocell ensures lights only activate when needed, while the 160° detection zone provides comprehensive coverage for entryways, driveways, and pathways.

RAB LU160W Applications

Ideal for residential and light commercial security lighting including entryways, garages, driveways, pathways, stairwells, and building perimeters. Perfect for homeowners seeking reliable, energy-efficient outdoor security.

RAB LU160W Certifications

UL Listed, Wet Location Rated, Energy Star Certified

Technical Resources

Specifications

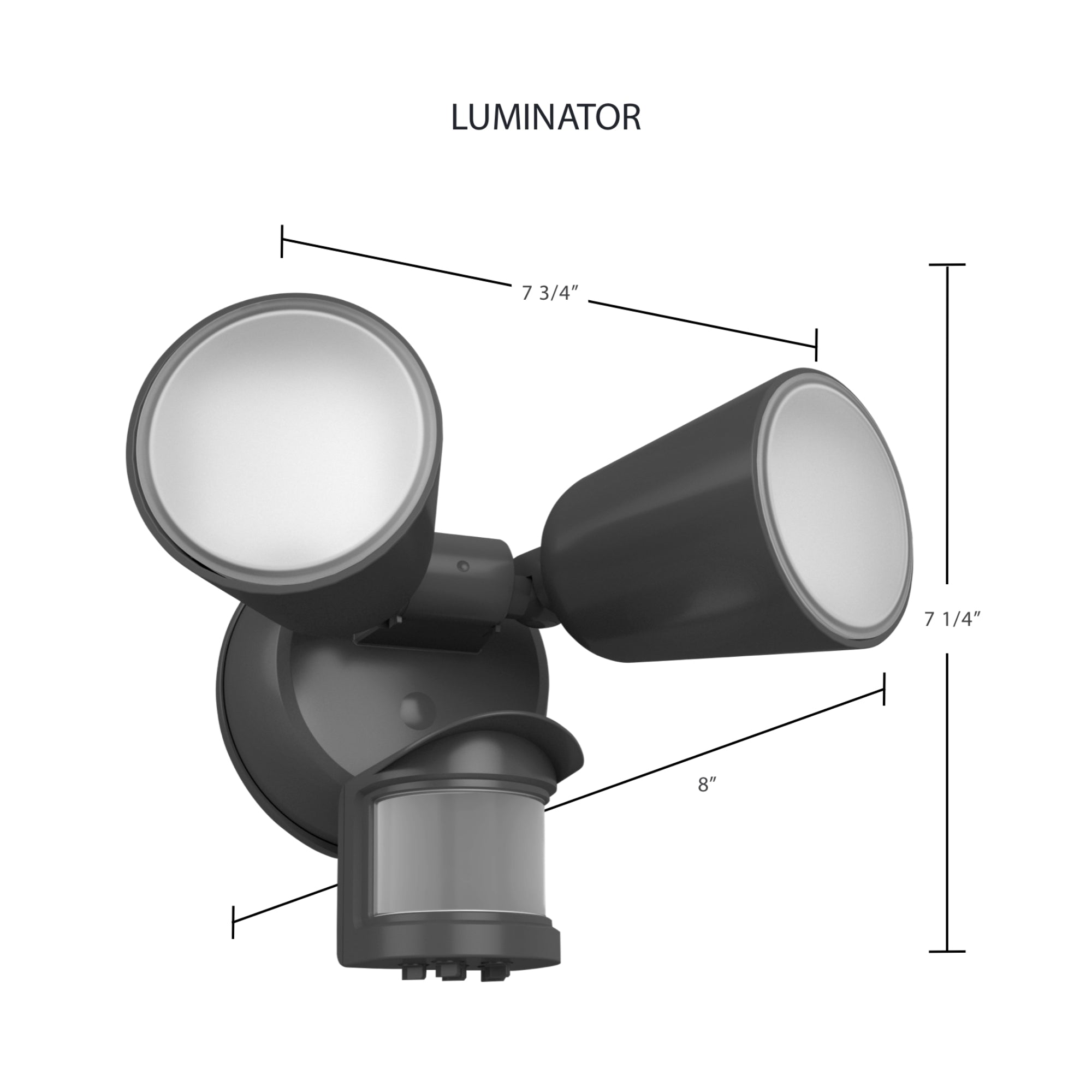

Size:
7.75'' L X 8.0'' W X 7.25'' H
Materials:
Polycarbonate
Total Wattage:
20
Lamp Color:
3000K, 3500K, 4000K, 5000K, Selectable CCT
Color Rendering:
83
Delivered Lumens:
2000
Lamp Life:
100,000 Hours
