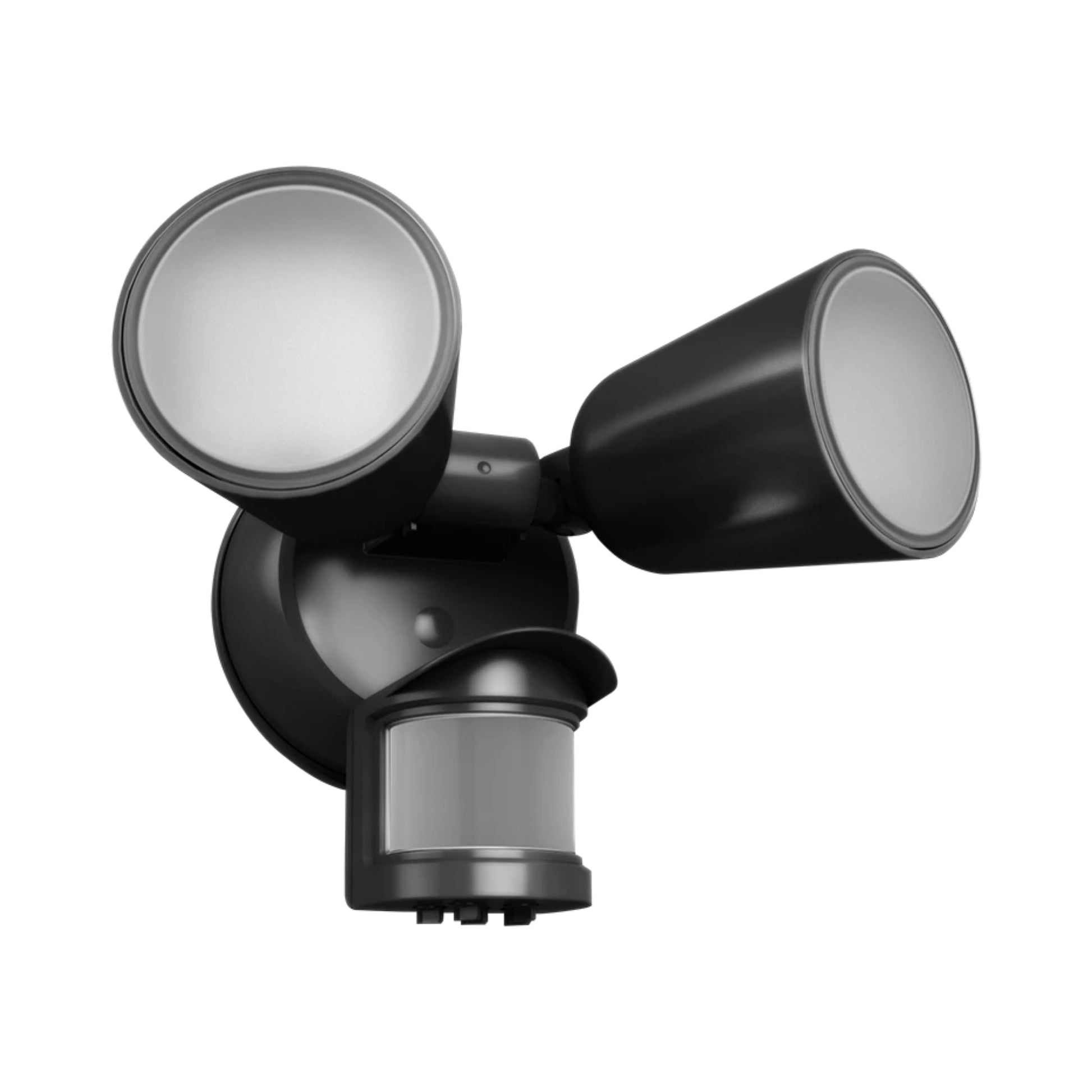

RAB LU160B Luminator LED Security Light w/ PIR Sensor 2,096 Lumens 20W Tunable 30K-50K 120V Black

RAB LU160B Luminator LED Security Light — 20W, Tunable CCT, PIR Sensor, 120V, Black

The RAB LU160B Luminator is a highly versatile and customizable LED security light delivering up to 2,096 lumens. Designed to provide top-tier security lighting, this 20W fixture features a sleek black finish and field-adjustable "tunable white" technology, allowing you to manually adjust the color temperature anywhere from a warm 3000K to a bright 5000K. It comes fully equipped with a built-in Passive Infrared (PIR) motion sensor that boasts a 160° detection angle and a 50-foot maximum radius. Operating on a standard 120V input, the LU160B gives users ultimate control with a 10% to 100% stepless dimmer, adjustable sensor sensitivity, and a customizable photocell that deactivates the lights during daylight hours. Suitable for wet locations and fully TAA compliant, it is the premier choice for residential and commercial exterior security.

Key Features

• Wattage: 20W
• Selectable CCT: Tunable white from 3000K to 5000K
• Delivered Lumens: 2,023 lumens (at 3000K) to 2,096 lumens (at 5000K)
• Efficacy: Up to 108.6 Lumens Per Watt (LPW)
• Voltage: 120V AC @ 60Hz

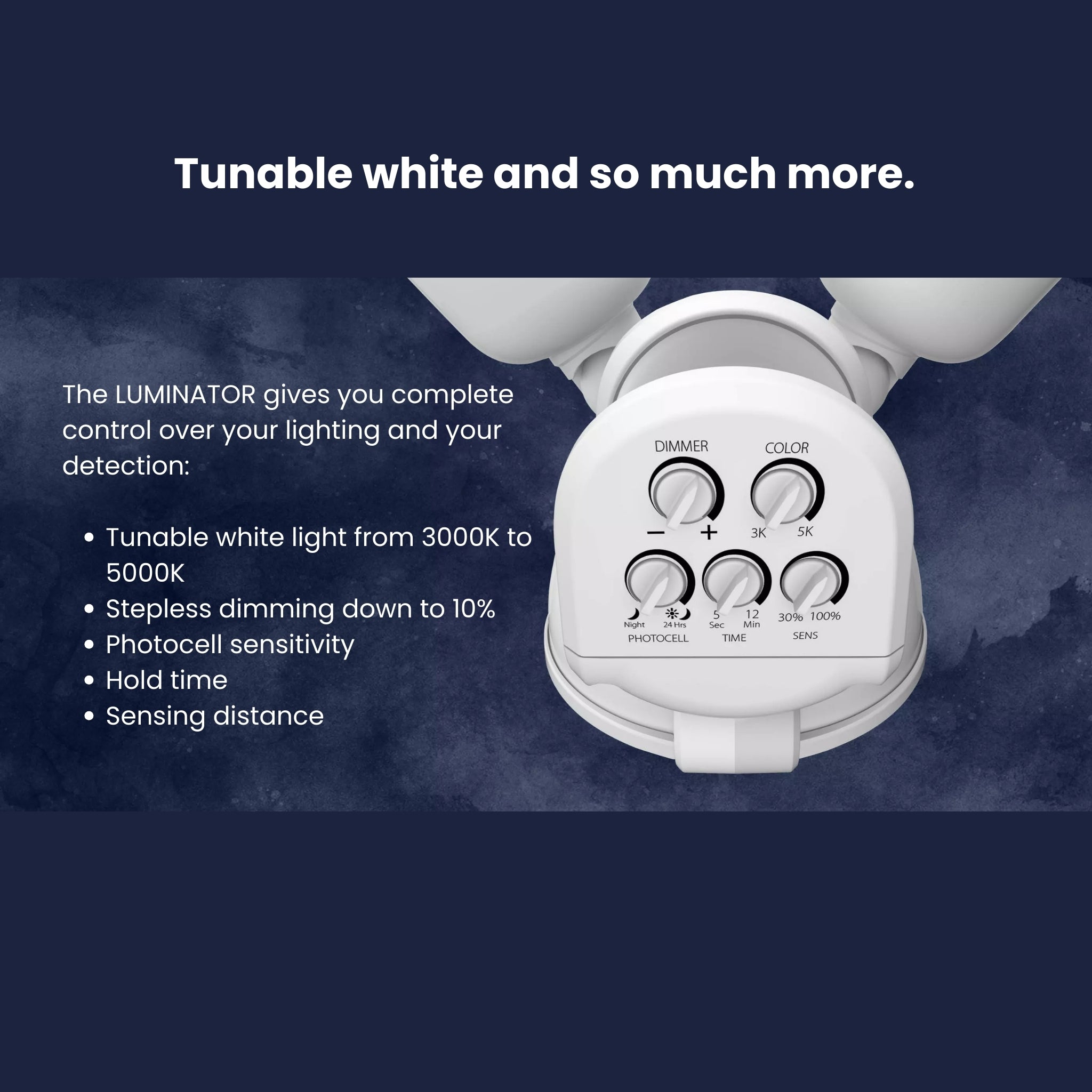

• Dimming: 10% to 100% stepless dimmer

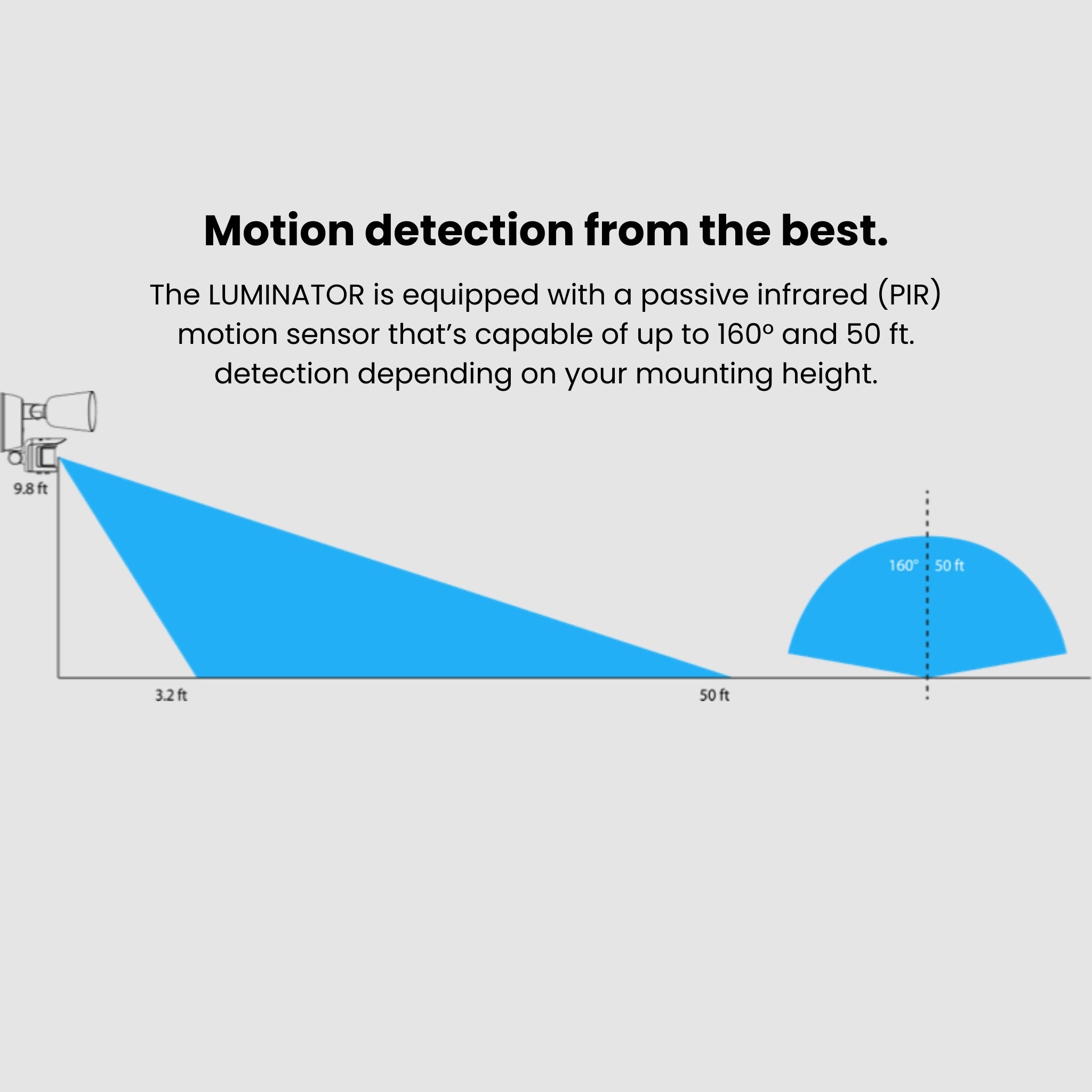

• Sensor: PIR motion sensor with 160° detection angle and 50ft maximum range
• Photocell: Customizable daylight threshold (5-2000 lux)
• Hold Time: Adjustable from 5 seconds to 10 minutes
• CRI: 83
• Compliance & Certifications: UL Listed for wet locations, Trade Agreements Act (TAA) Compliant, DLC Listed (meets DLC 5.1 requirements), and RoHS Compliant

Typical Applications

• Residential driveways and backyards
• Commercial building perimeters and loading docks
• Walkways, entryways, and eaves
• Exterior security lighting

Performance & Light Output

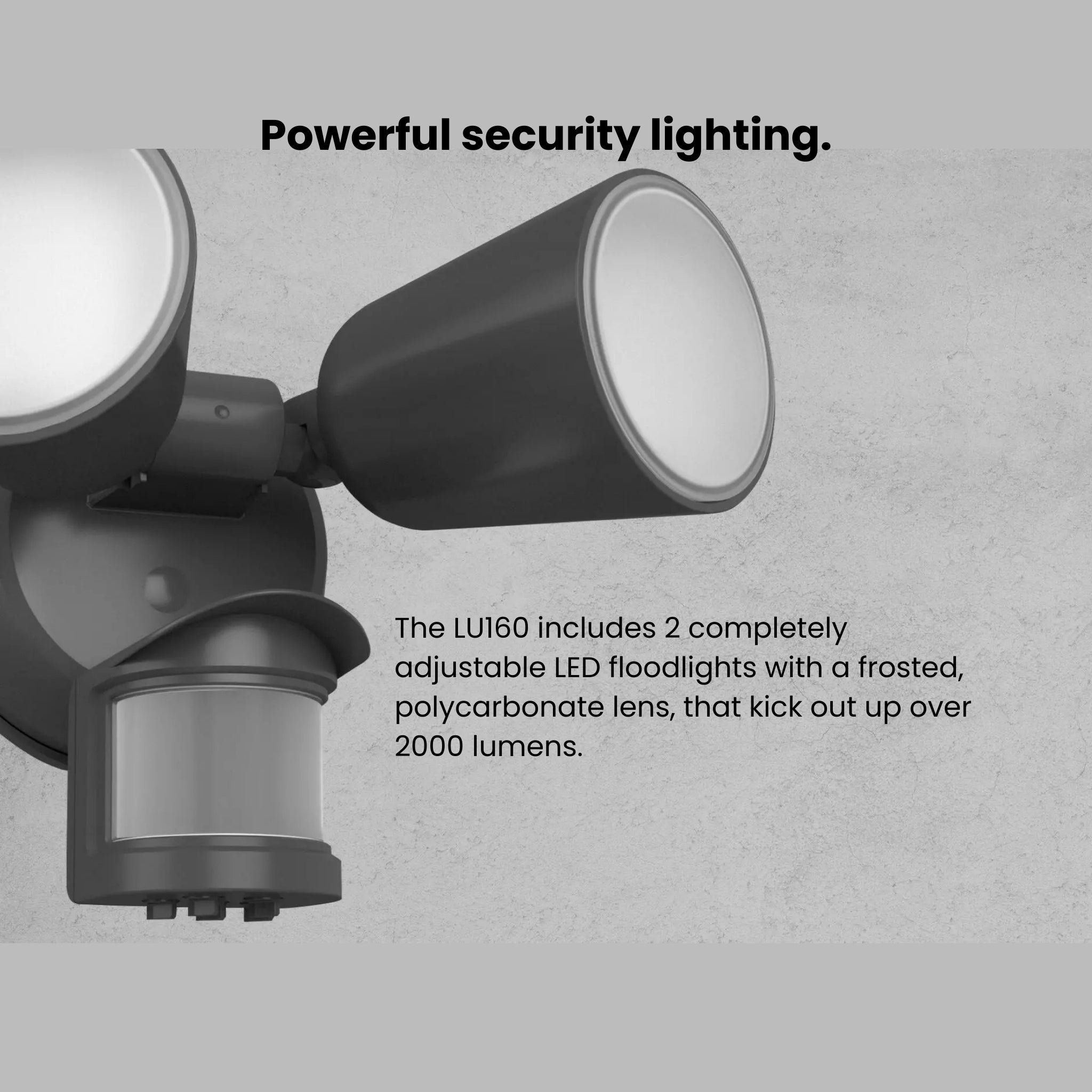

The LU160B Luminator provides bright, welcoming illumination with an output of up to 2,096 lumens. Its tunable white feature allows you to perfectly match the color temperature of your existing exterior lighting. The built-in stepless dimmer also lets you manually dial in the exact lumen output you need, anywhere from 10% to 100% brightness. With an impressive 100,000-hour rated lifespan based on TM-21 calculations, this fixture drastically reduces maintenance cycles.

Electrical & Controls

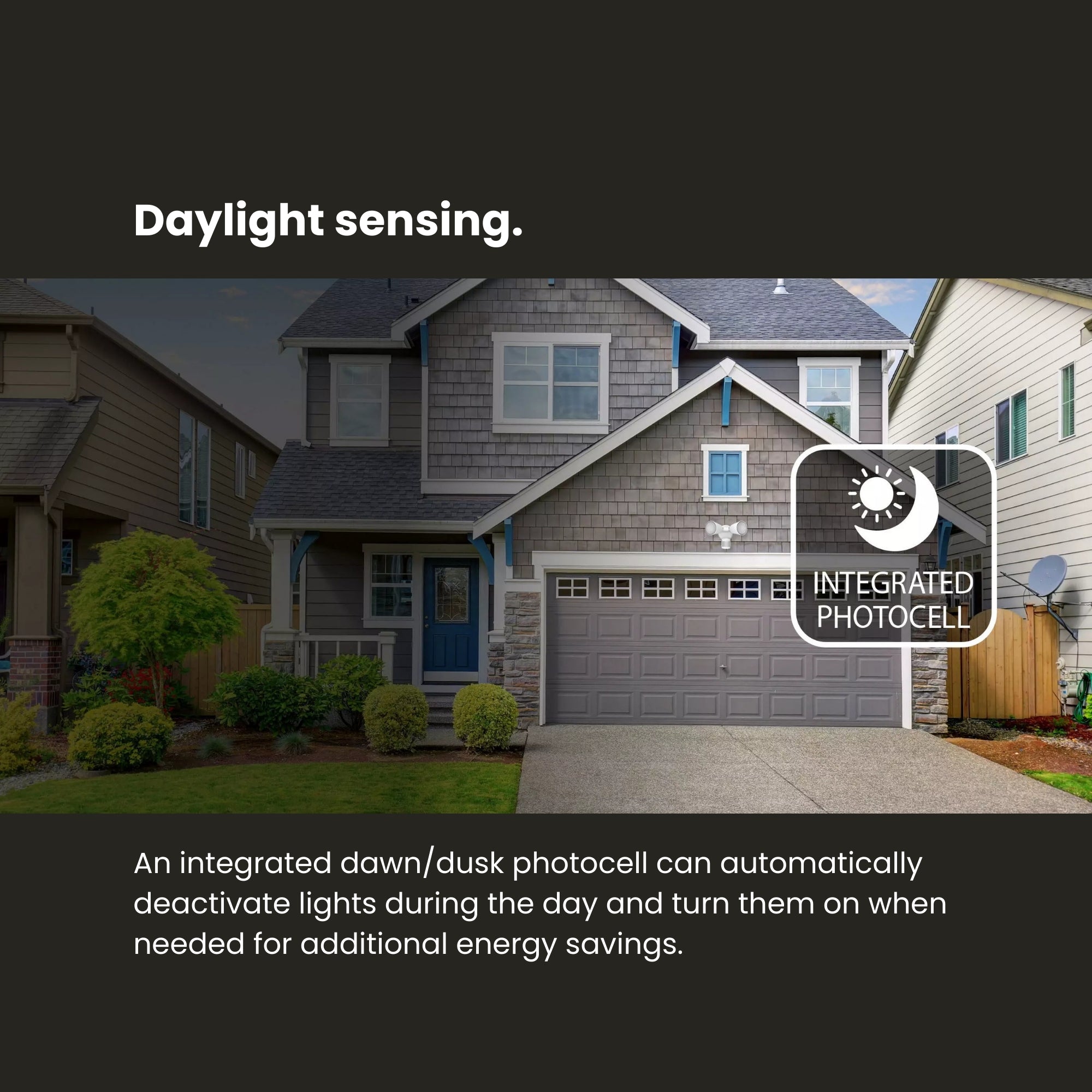

This fixture operates on a 120V AC input and features built-in surge protection of 1kV. It provides maximum energy savings through its fully customizable PIR motion sensor and daylight photocell. The photocell ensures the light remains off during daylight hours, while the motion sensor activates the light only when movement is detected within its 50-foot radius.

Construction & Durability

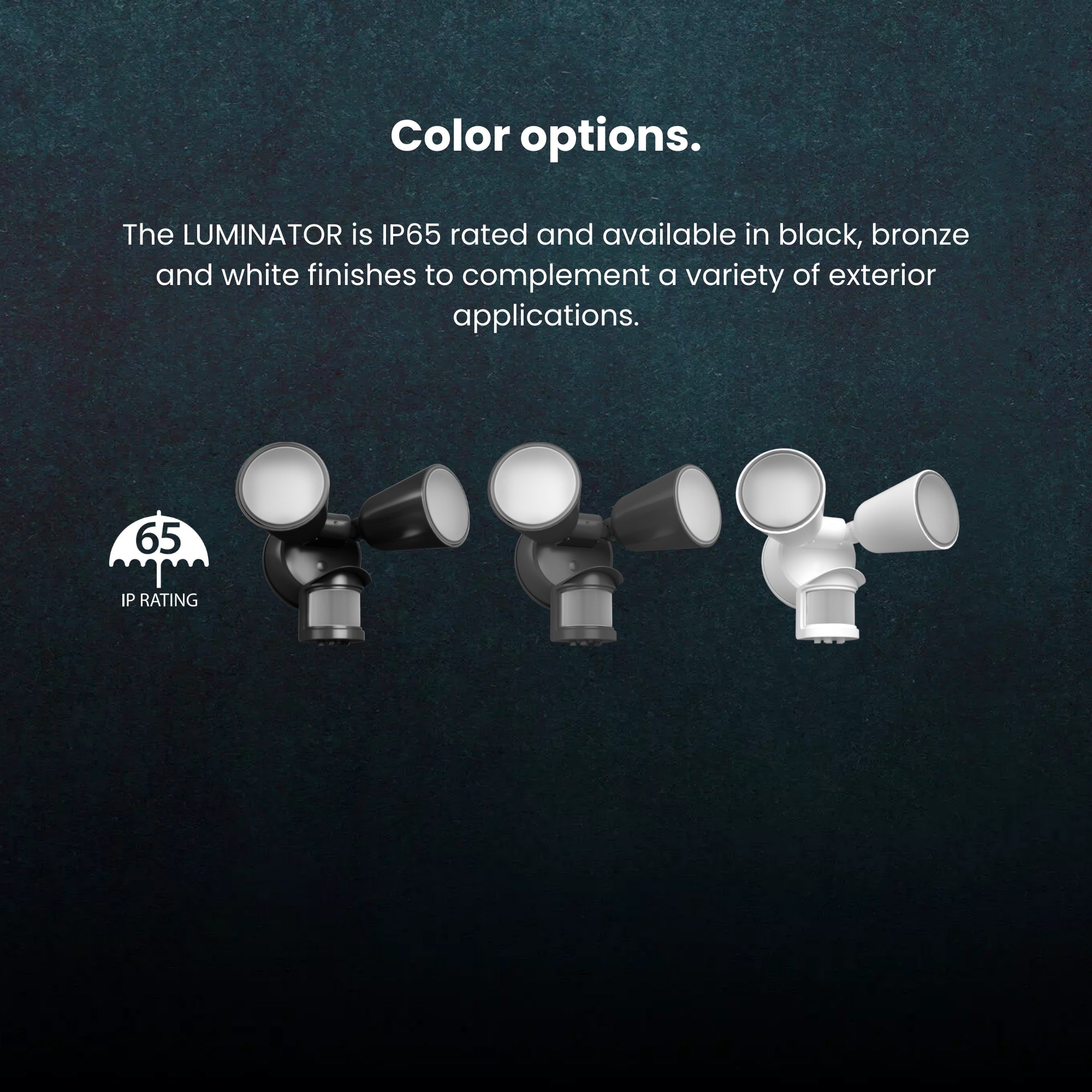

Engineered for outdoor reliability, the fixture features a rugged polycarbonate housing, reflector, and lens finished in black. It is fully IP65 rated and UL listed, protecting it against dust and wet weather in ambient operating temperatures ranging from -4°F to 122°F (-20°C to 50°C).

Installation & Mounting

The LU160B offers highly versatile installation options. It can be easily mounted directly on walls, eaves, or ceilings at a maximum height of 10 feet, making it adaptable to almost any residential or commercial exterior layout.

What's Included

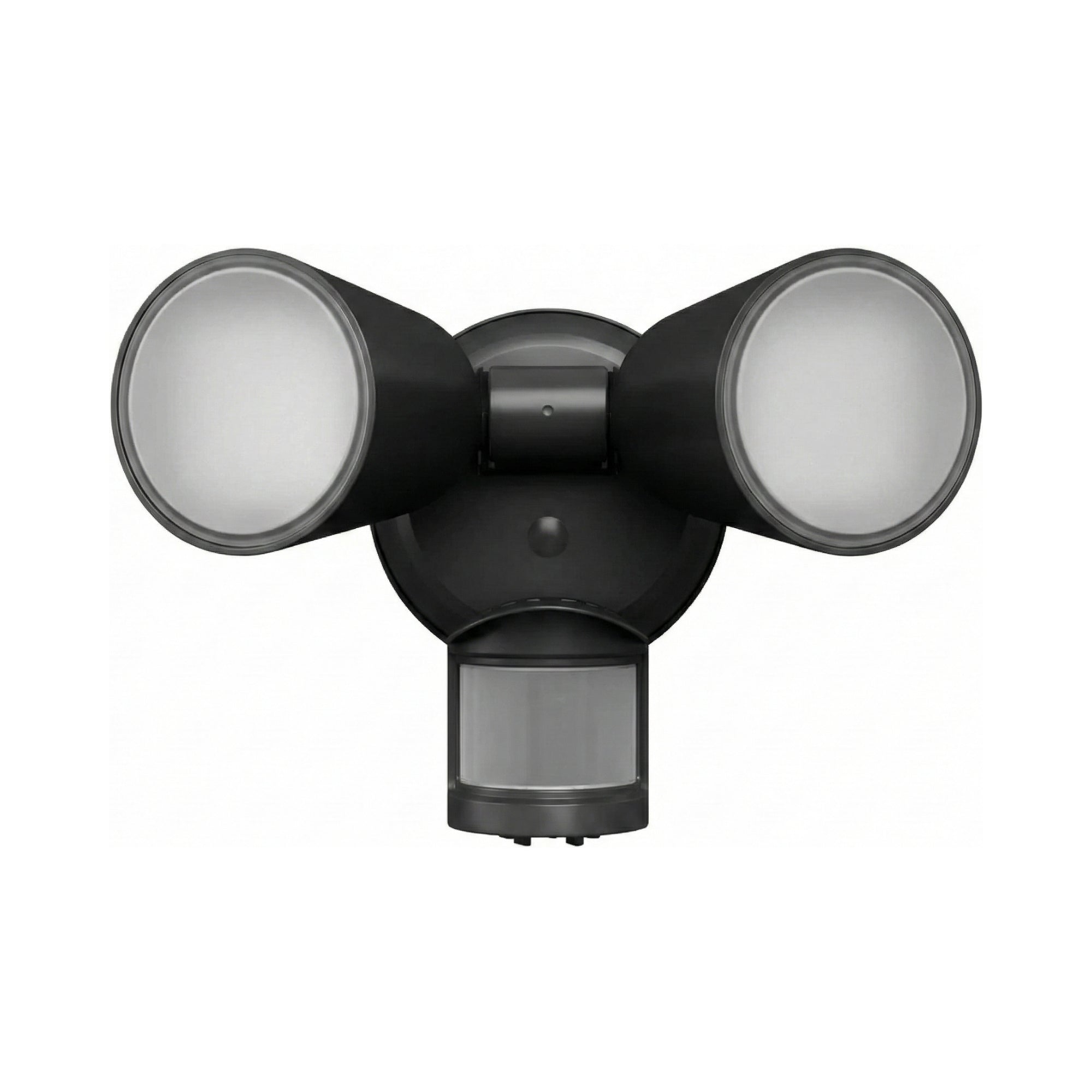

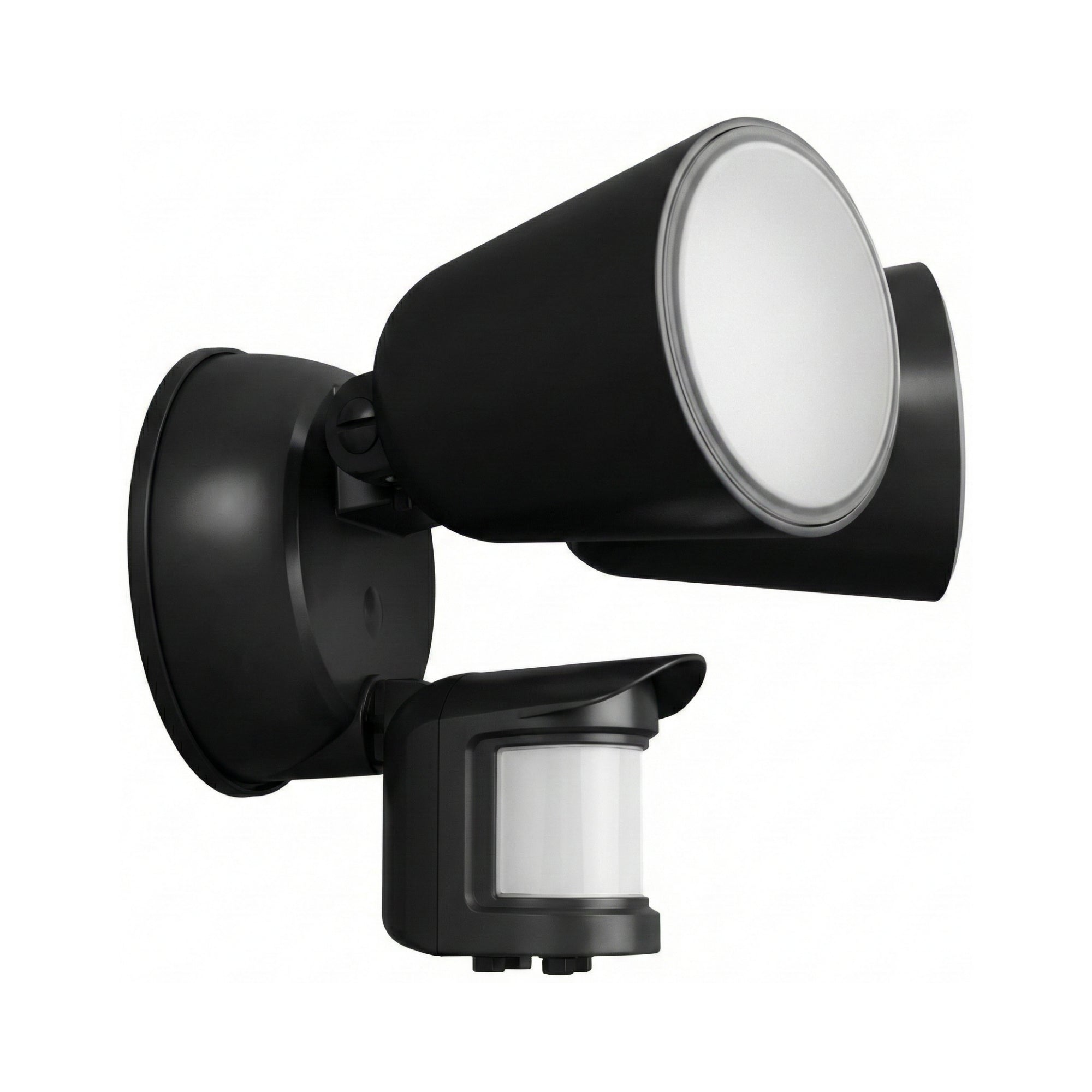

• RAB LU160B Luminator LED Security Light (Black)
• Integrated PIR Motion Sensor & Photocell
