LF17 Field Adjustable Landscape Lighting Flood Light — 16W Configuration

The LF17X2W/SMS flood light provides a versatile lighting solution with 16W power, delivering up to 2230 lumens. It supports 120-277V input and features selectable color temperatures ranging from 2700K to 5000K, making it suitable for various outdoor applications. The fixture is IP65 rated for protection against dust and water, ensuring reliable performance in challenging environments.

Key Features

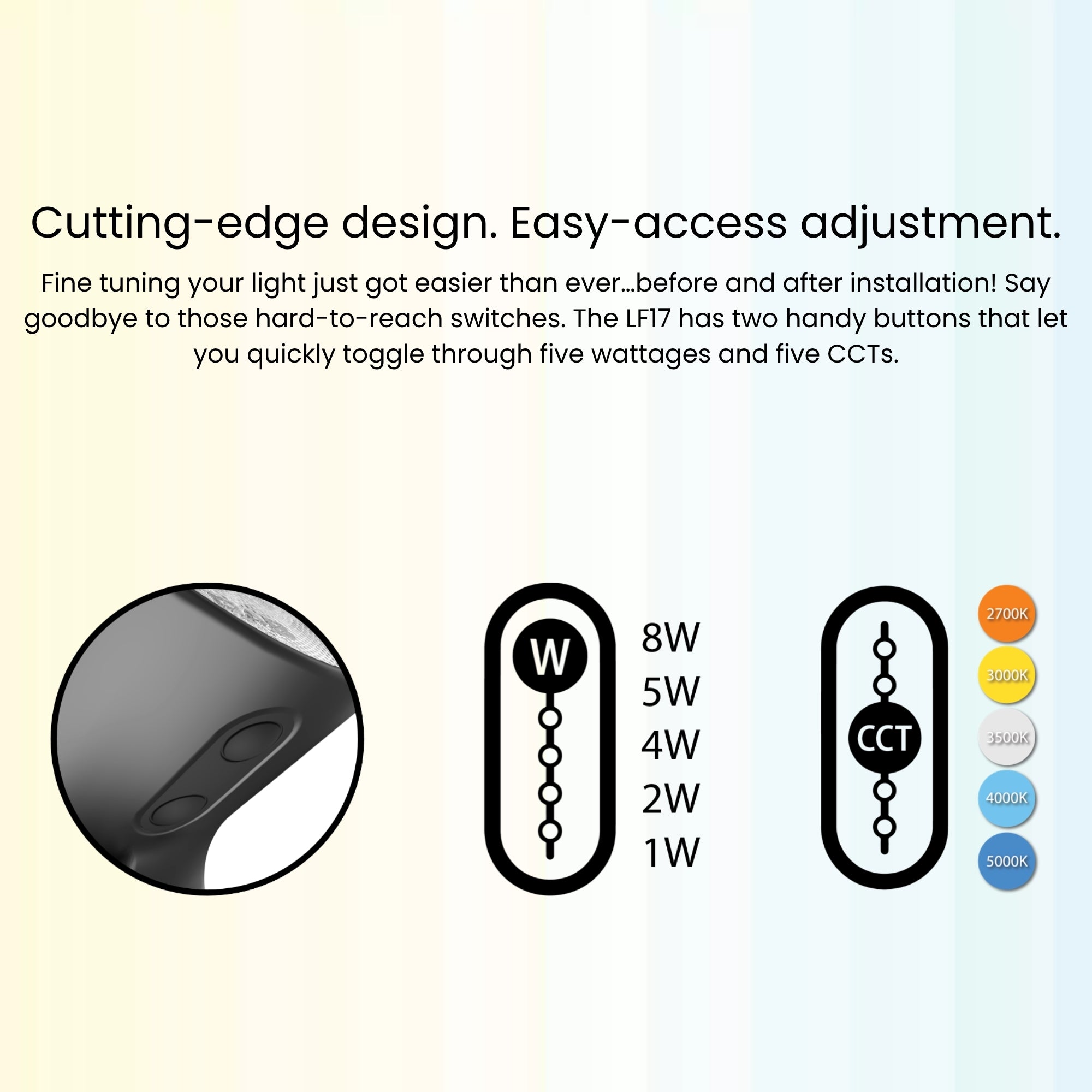

• Field Adjustable Wattage: Offers multiple wattage settings from 3W to 16W for energy efficiency.
• Selectable CCT: Provides color temperature options of 2700K, 3000K, 3500K, 4000K, and 5000K.
• High Efficacy: Achieves an efficacy range of 119.3 to 149.5 lm/W.
• Long Lifespan: Designed for a 50,000-hour LED lifespan based on IES LM-80 results.

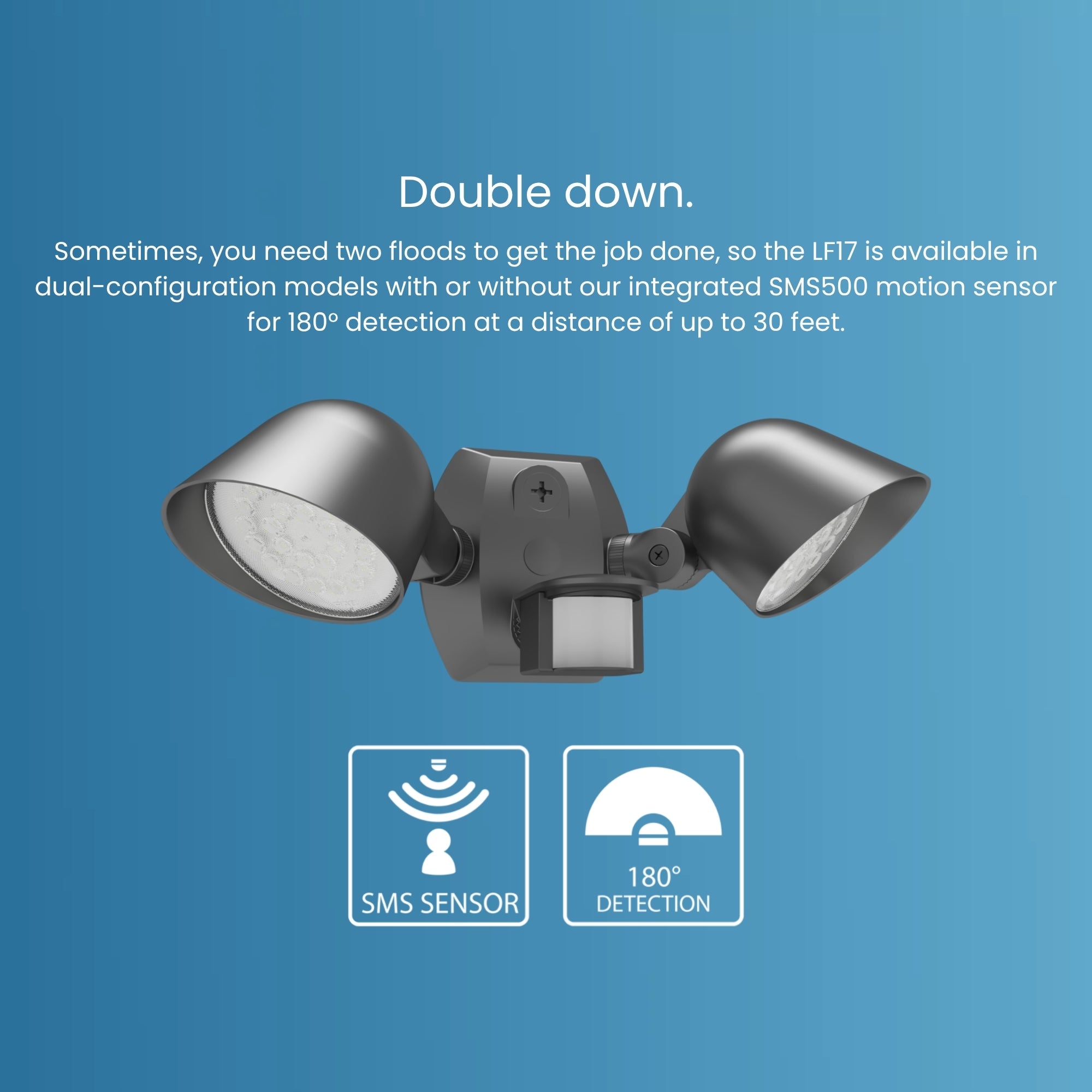

• Motion Sensing: Integrated motion sensor for enhanced security and energy savings.
• Dimming Driver: Includes 0-10V dimming capability for light level adjustments.
• Surge Protection: Equipped with 2.5 kV surge protection for electrical safety.
• Durable Construction: Features a die-cast aluminum housing with a PMMA lens.
• Temperature Range: Operates in temperatures from -40°F to 104°F.
• UL Listed: Suitable for wet locations, ensuring compliance with safety standards.

Typical Applications

• Landscape Lighting
• Building Facades
• Pathway Illumination
• Security Lighting
• Accent Lighting

Performance & Light Output

This flood light delivers up to 2230 lumens with an efficacy range of 119.3 to 149.5 lm/W. It features a CRI of 82-86 and a 50,000-hour lifespan, ensuring consistent and reliable lighting performance.

Electrical & Controls

The fixture operates on 120-277V input with a constant current driver. It supports 0-10V dimming and includes surge protection of 2.5 kV. The power factor is 99.7% at 120V, ensuring efficient energy use.

Construction & Durability

Constructed with a die-cast aluminum housing and a PMMA lens, this flood light is IP65 rated for protection against dust and water. It is suitable for use in temperatures ranging from -40°F to 104°F.

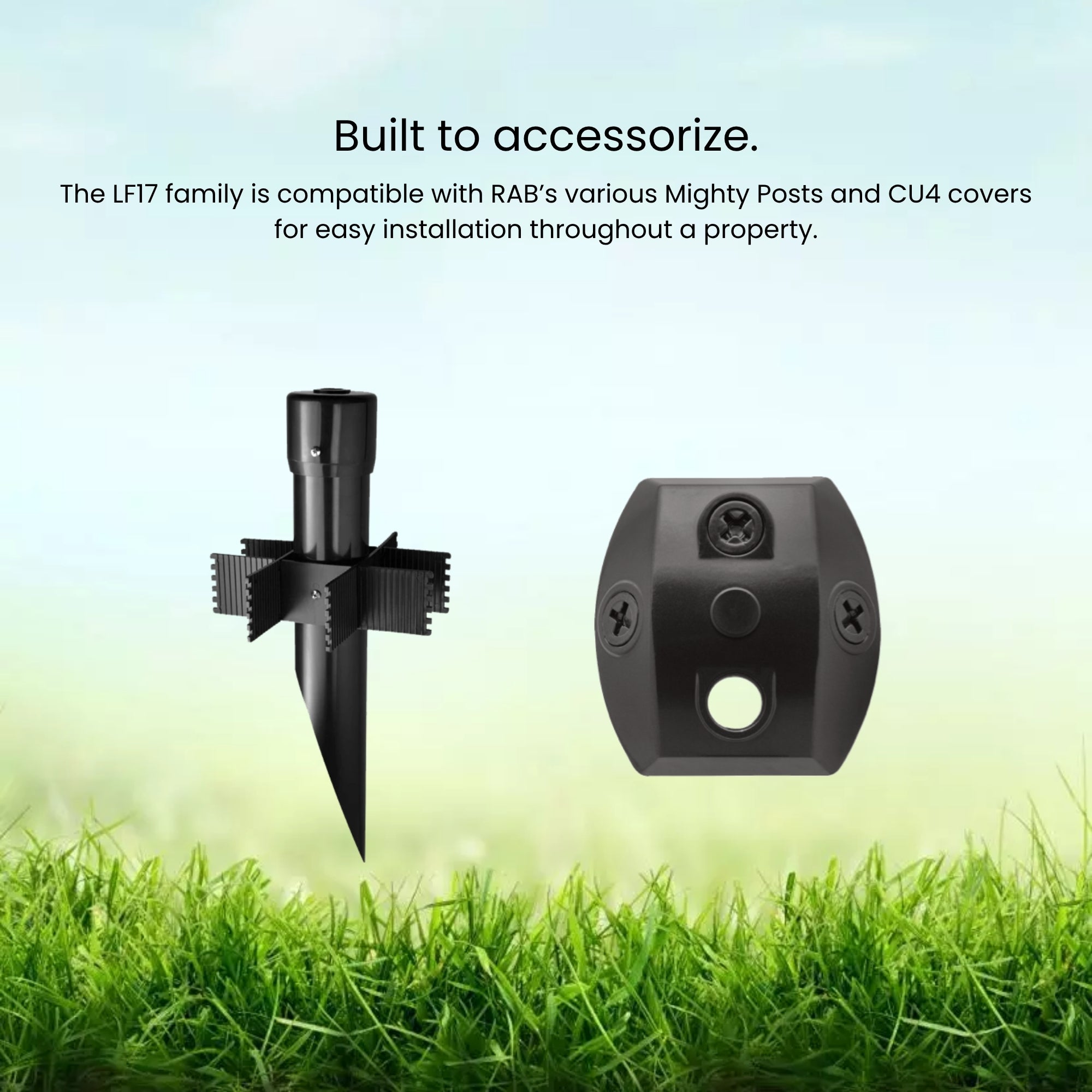

Installation & Mounting

The fixture includes a knuckle arm mount for flexible installation options. It is designed for easy setup and adjustment, with a 180° detection pattern for motion sensing.

What's Included

• LF17 Field Adjustable Flood Light
• Integrated Motion Sensor
