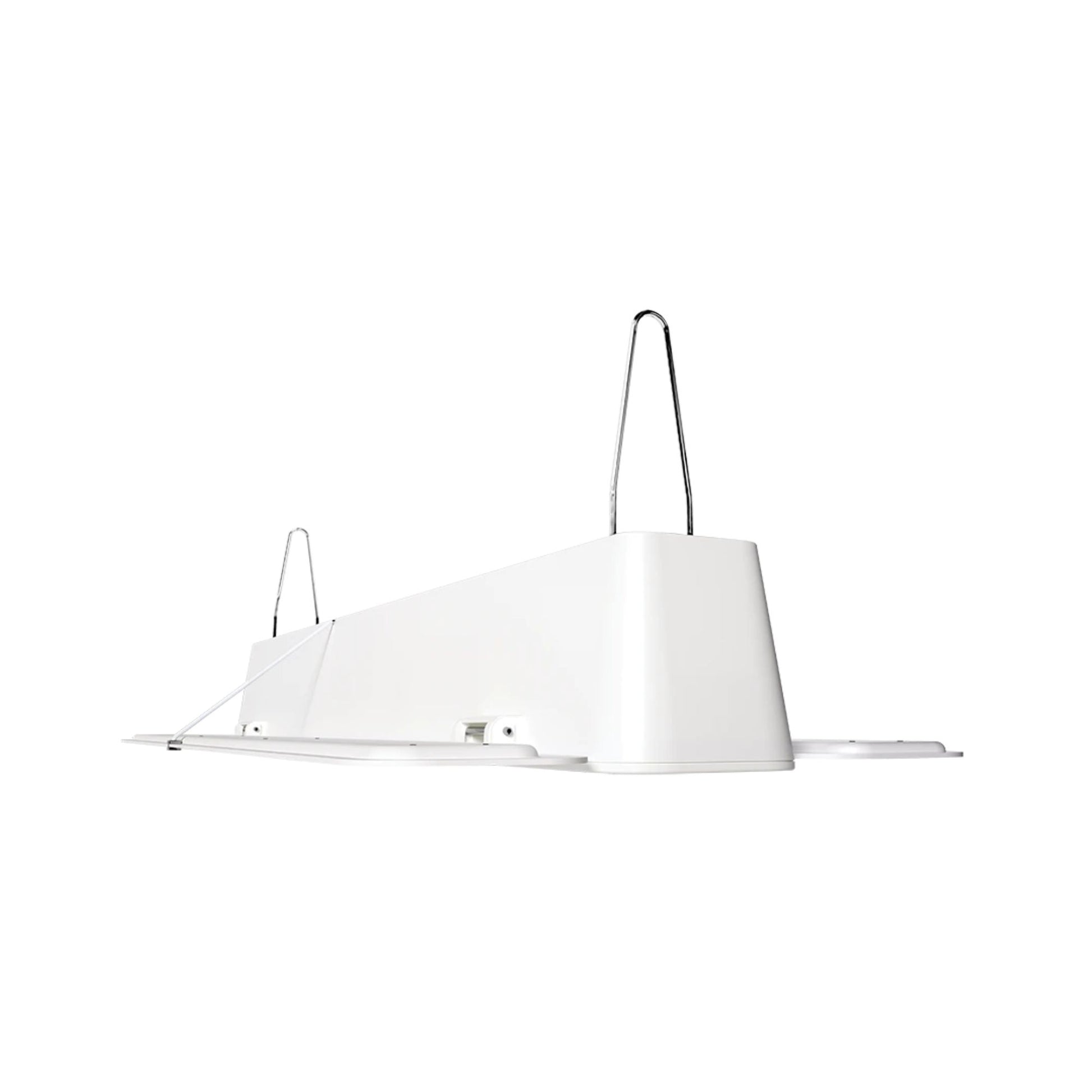

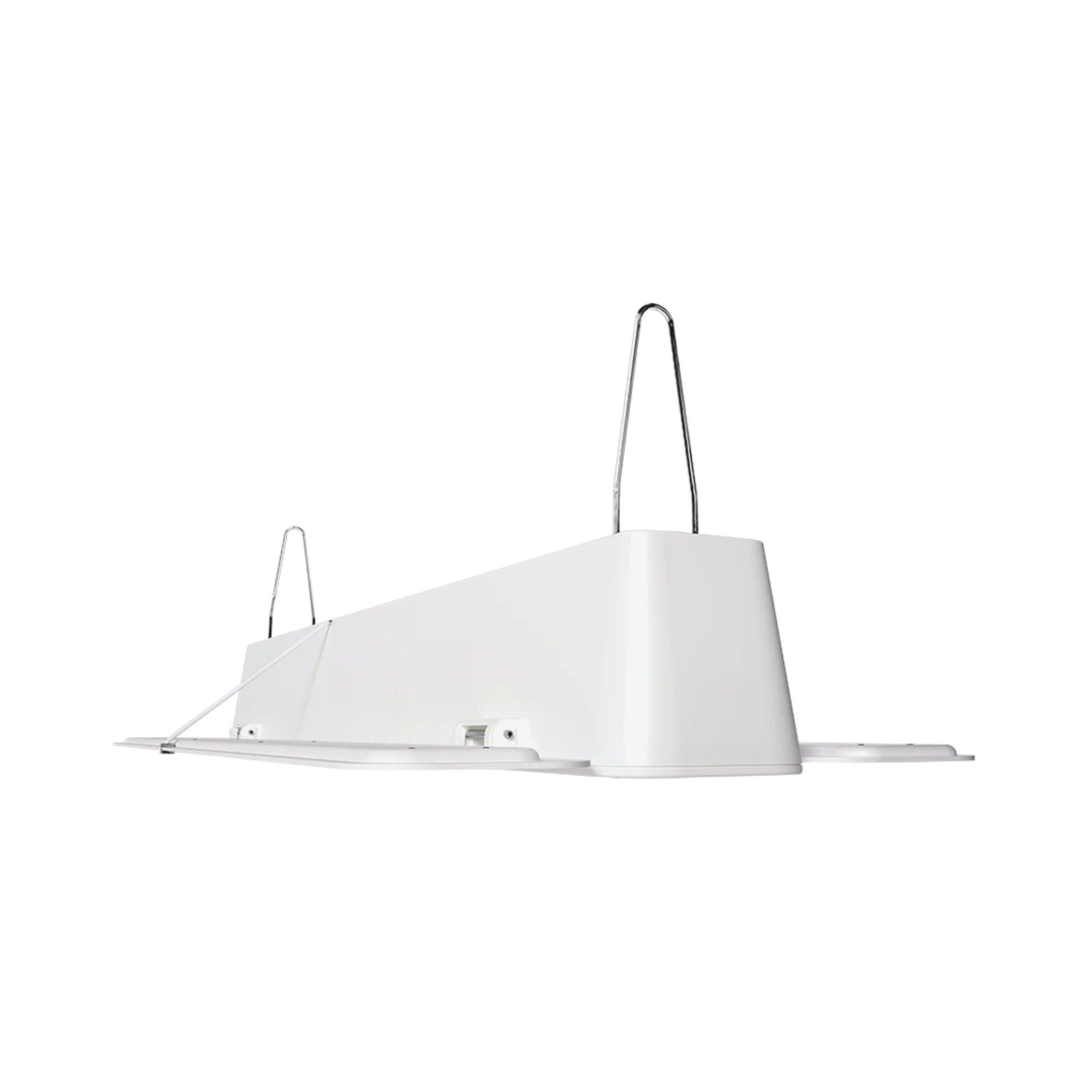

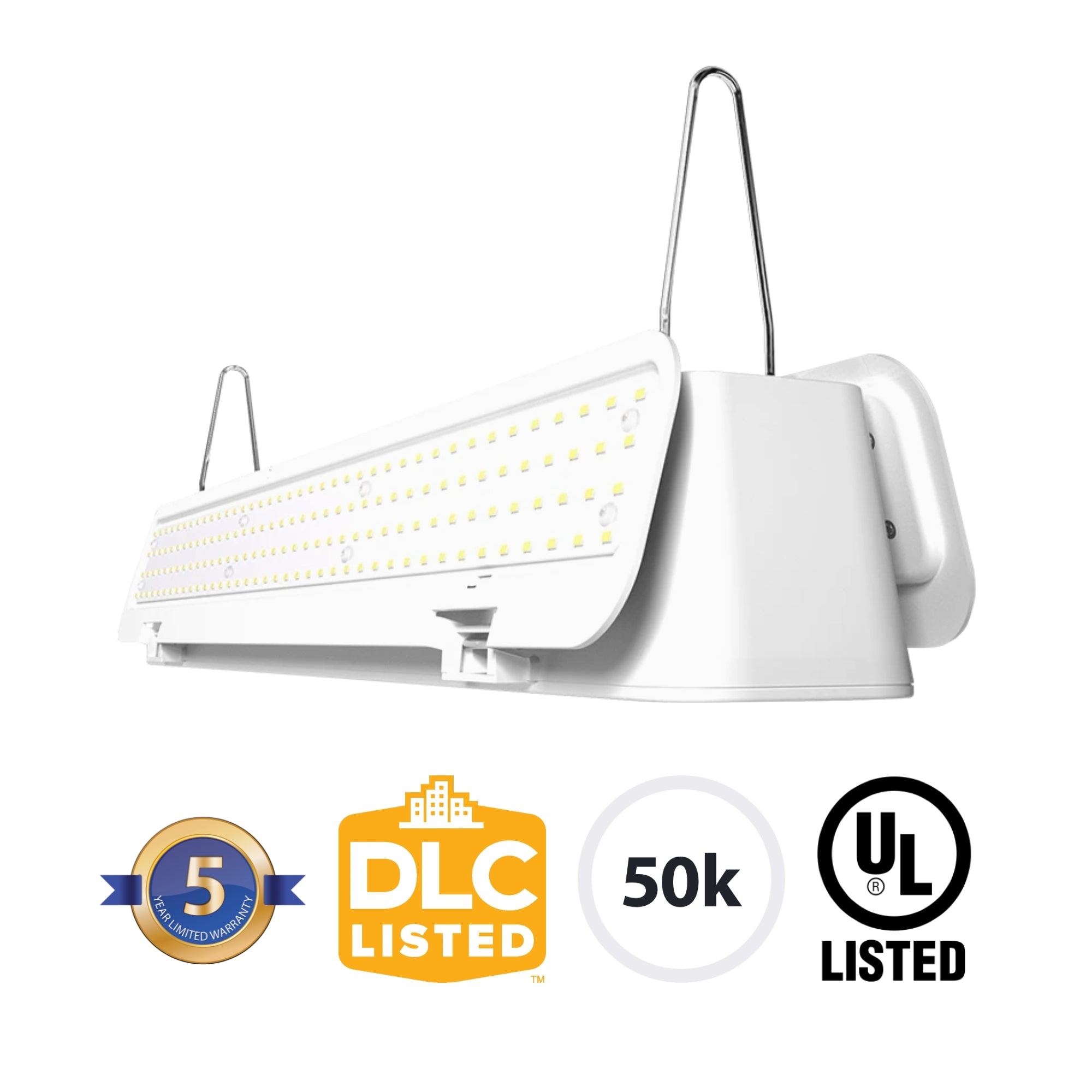

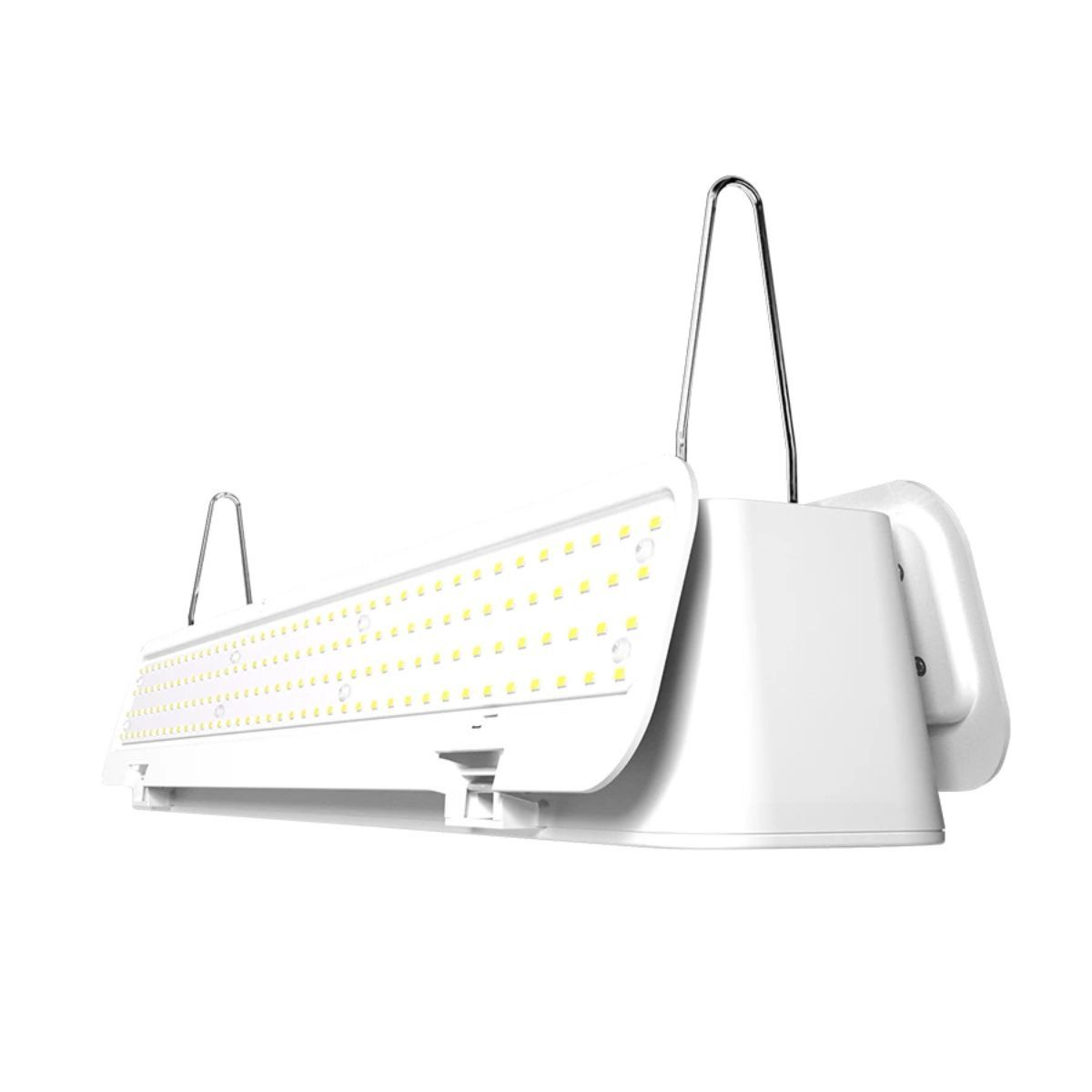

RAB L34-110 Linear LED High Bay — 100W — 5000K — White
Available in stock (253)
About this item
About this item
- Adjustable Fold-Up Wings — 5 Tilt Angles, One Fixture: Paracord-locking lens sets beam distribution at 0° / 15° / 27° / 39° / 50° uptilt — optimize aisle coverage, rack illumination, or indirect uplighting from a single SKU without ordering multiple optic configurations.
- Ultra-Economy Construction — 4.8 lbs, PC/ABS Housing: Lightweight polycarbonate and ABS construction reduces fixture cost and installation labor on large-footprint projects where structural load and budget are primary constraints.
- 136 lm/W Peak Efficacy — CRI 85 at 5000K: Delivers high-efficacy, high-CRI illumination at an entry-level price point — suitable for retail, warehouse, and light manufacturing environments requiring accurate color rendering.
- DLC Listed — DLC ID PTF2Z78V: Qualifies for utility rebate programs through DLC Member Utilities, reducing net project cost for warehouse and commercial retrofits.
- Lightcloud & Occupancy Sensor Ready — /LC, /LCS, /MVS Suffix Options: Order with Lightcloud Controller, Lightcloud Sensor, or microwave occupancy sensor for intelligent dimming and occupancy control without field modifications.
We process payments securely and do not store credit card information.
Description
Description
The RAB L34-110 is an ultra-economy, lightweight linear LED high bay engineered for cost-effective illumination of warehouses, retail spaces, and commercial facilities. Its signature adjustable fold-up wing design with paracord-locking lens allows beam distribution to be set at five tilt angles (0° / 15° / 27° / 39° / 50° uptilt) for optimized light output across varying ceiling heights and aisle widths. Fixed 5000K daylight CCT. Delivers up to 13,654 lumens at a peak efficacy of 136 lm/W. CRI 85, UL listed for damp locations, and DLC Listed (DLC ID: PTF2Z78V) for utility rebate eligibility. 7-step MacAdam Ellipse color consistency. 0–10V dimmable driver standard (10% minimum). Backed by RAB’s 5-year limited warranty.
Key Features

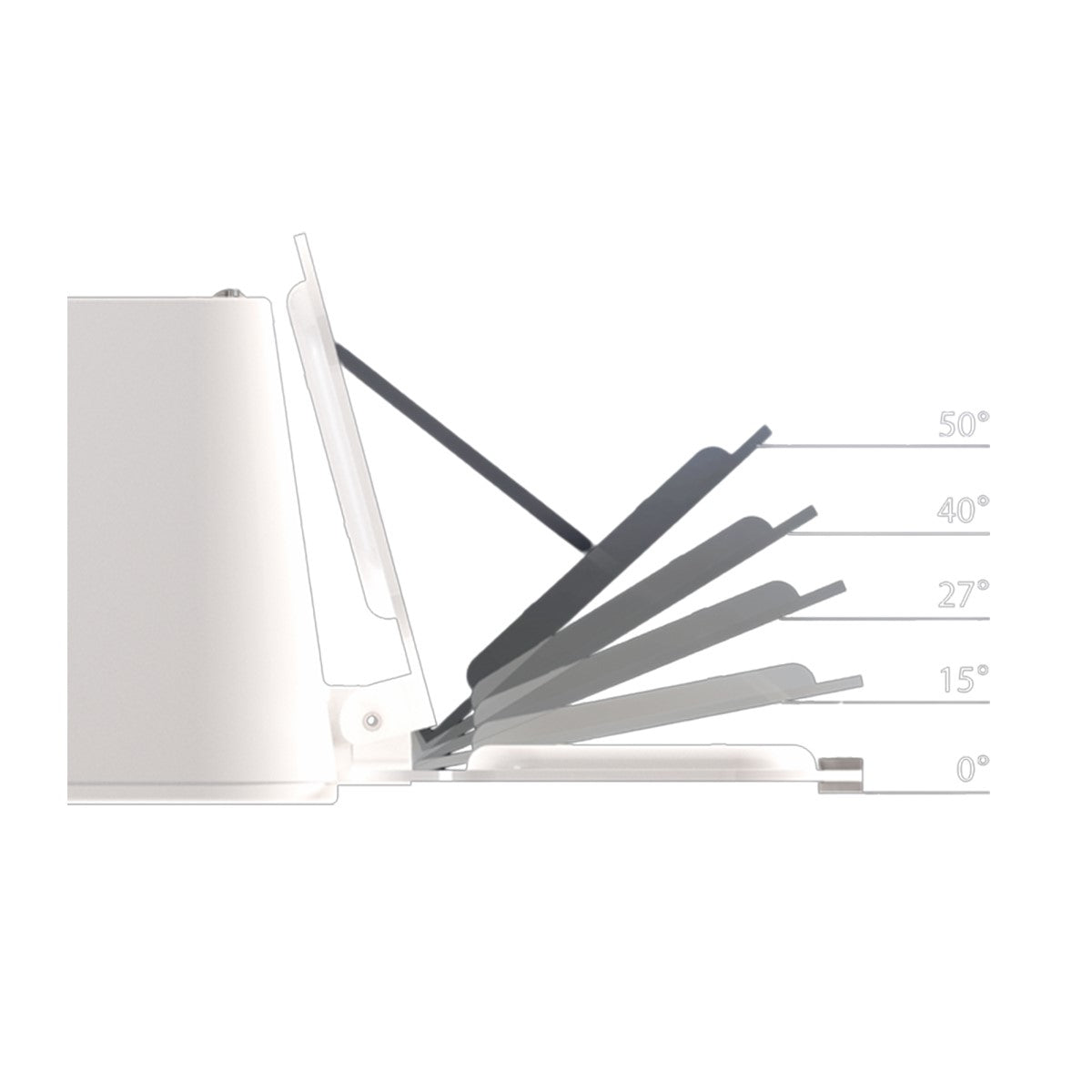

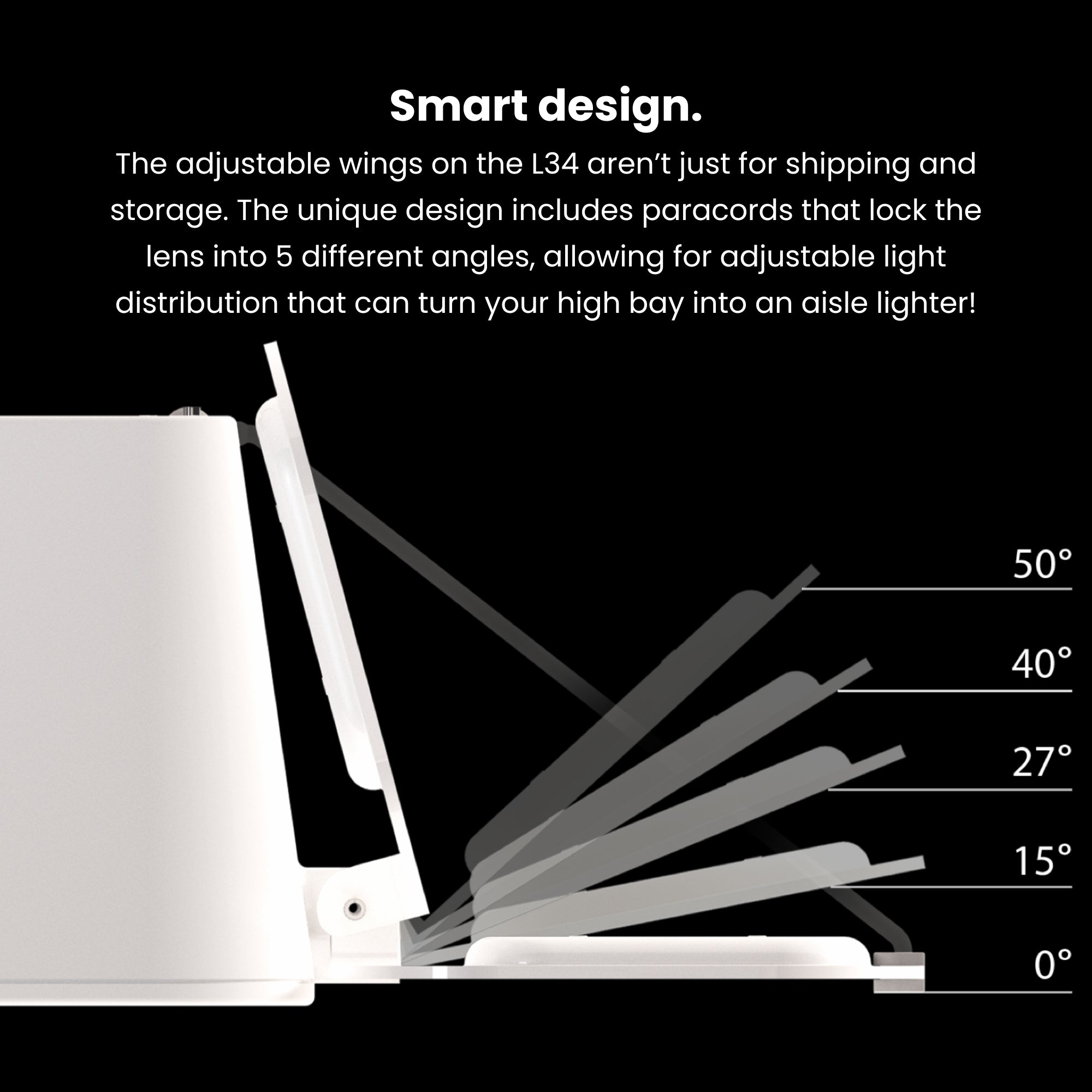

- Fold-Up Wing Design: Innovative adjustable wings with paracord lens lock — sets beam at 0° / 15° / 27° / 39° / 50° uptilt for optimized light distribution per application
- Fixed CCT: 5000K Daylight — crisp, high-contrast illumination for warehouse and commercial environments
- Lumen Output: Up to 13,654 lm (5000K, 0° uptilt)
- Peak Efficacy: 136 lm/W
- CRI: 85 (5000K)
- Color Consistency: 7-step MacAdam Ellipse binning
- Dimming: 0–10V dimmable driver standard (100% to 10% minimum)
- Voltage: 120–277V AC, 50/60 Hz
- Location Rating: UL listed for damp locations
- Cold-Start Rated: -20°C (-4°F)
- Max Ambient Temperature: 50°C (122°F)
- Housing: Polycarbonate and ABS (PC/ABS)
- Rated Life: 50,000 hours
- DLC Listed: DLC ID PTF2Z78V — qualifies for utility rebate programs
- Driver Class: Constant Current, Class 2, Class P
- Surge Protection: 2.5kV
- Green Technology: Mercury and UV free, RoHS-compliant components
- BAA: Available upon request — contact customer service for a BAA-compliant quote
- Warranty: 5-year limited warranty (light output, driver performance, paint finish)
Performance & Light Output
Fixed 5000K CCT. Lumen output is consistent across all five tilt angles — the fold-up wing angle redistributes the beam pattern rather than reducing total output. At 0° uptilt: 13,534 lm / 135 lm/W (100.5W input). At 15° uptilt: 13,601 lm / 136 lm/W (100.4W input). At 27° uptilt: 13,630 lm / 135 lm/W (100.3W input). At 39° uptilt: 13,646 lm / 136 lm/W (100.4W input). At 50° uptilt: 13,617 lm / 136 lm/W (100.2W input). THD: 6.48% at 120V / 8.9% at 277V. Power Factor: 99.7% at 120V / 97.2% at 277V. Rated life 50,000 hours.
Smart & Control Features
The RAB L34-110 is available with optional controls via suffix ordering:
- L34-110/LC: Lightcloud Controller — wireless control add-on
- L34-110/LCS: Lightcloud Sensor — integrated sensor + wireless control
- L34-110/MVS: Occupancy Sensor — microwave-based occupancy detection
- MVSREM: Remote for microwave sensor — sold separately
Standard fixture (L34-110) ships without controls. 0–10V dimming wiring is standard on all variants.
Electrical
Constant Current, Class 2, Class P driver. 120–277V AC, 50/60 Hz. 0–10V dimming from 100% to 10% minimum — requires separate 0-10V DC dimming circuit. Input current: 120V / 0.92A | 208V / 0.53A | 240V / 0.46A | 277V / 0.40A. THD: 6.48% at 120V / 8.9% at 277V. Power Factor: 99.7% at 120V / 97.2% at 277V. Surge protection: 2.5kV. Mercury and UV free, RoHS-compliant. Green Technology.
Construction

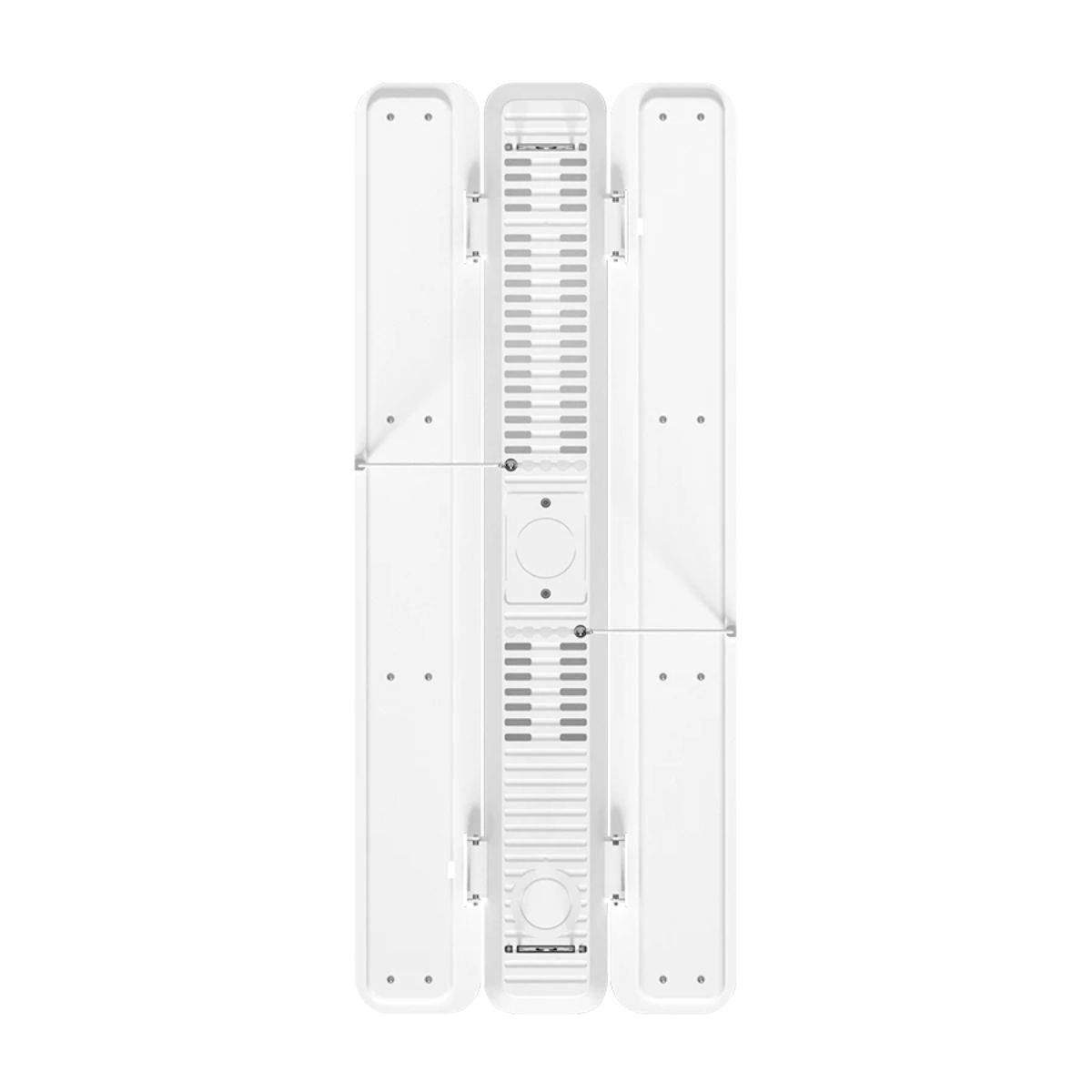

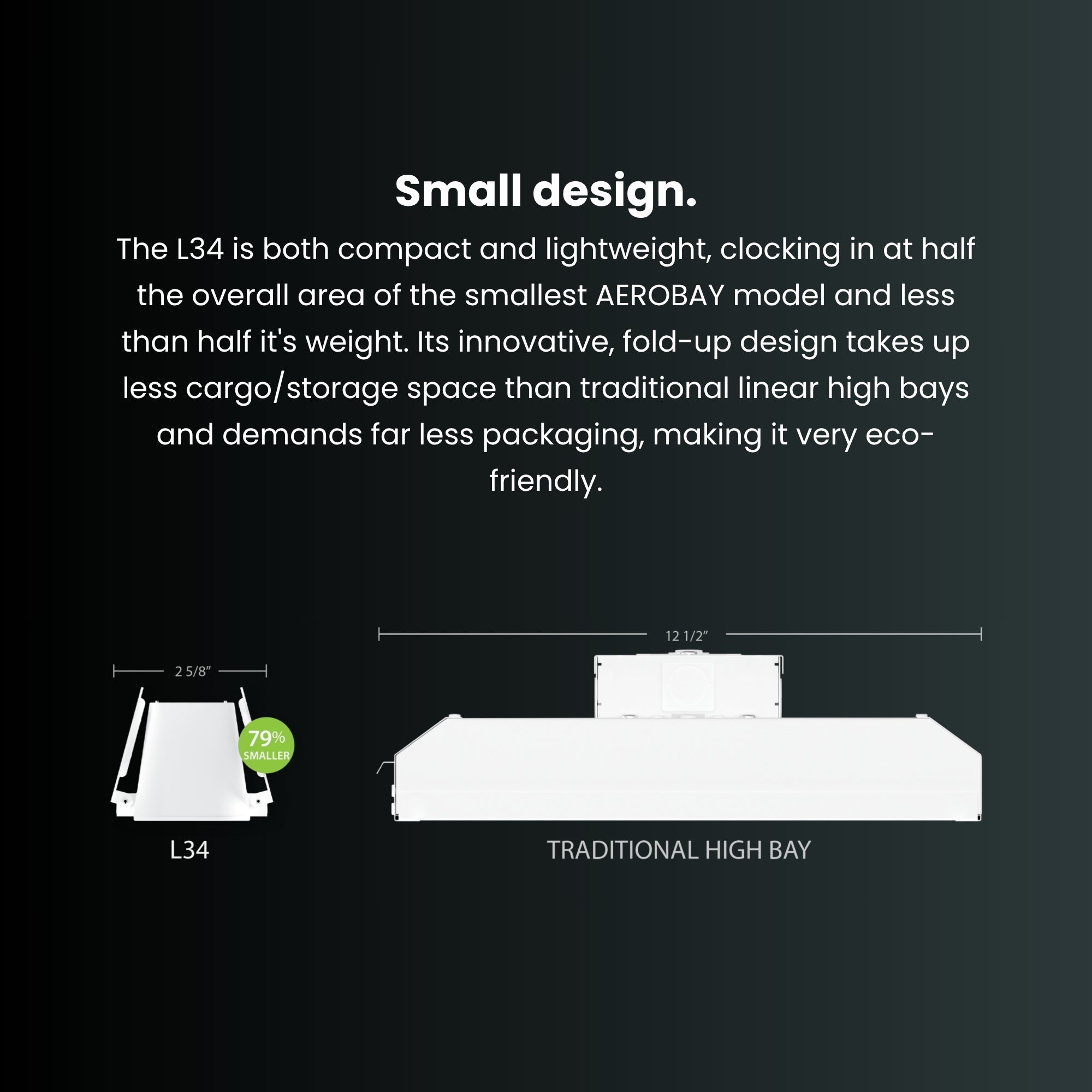

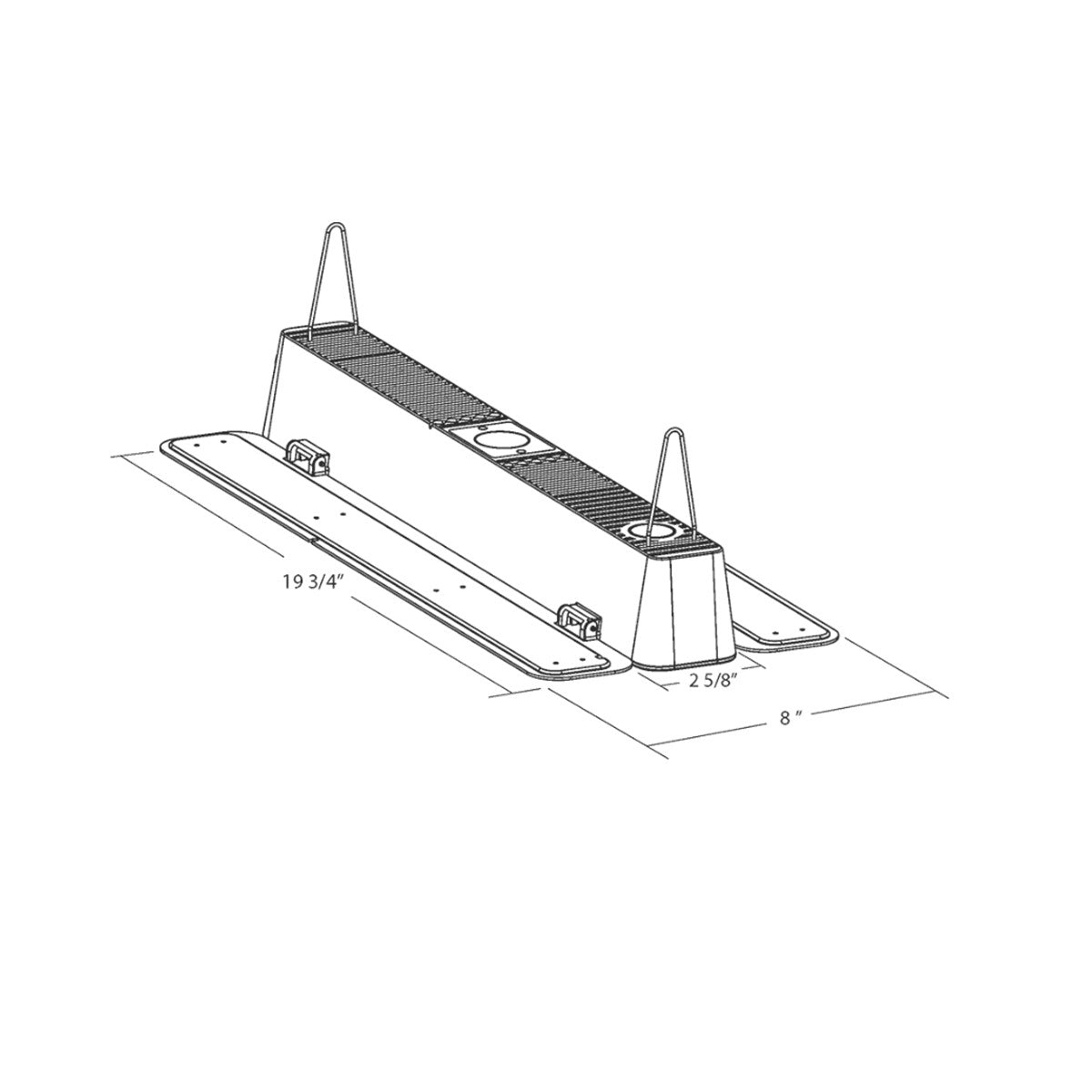

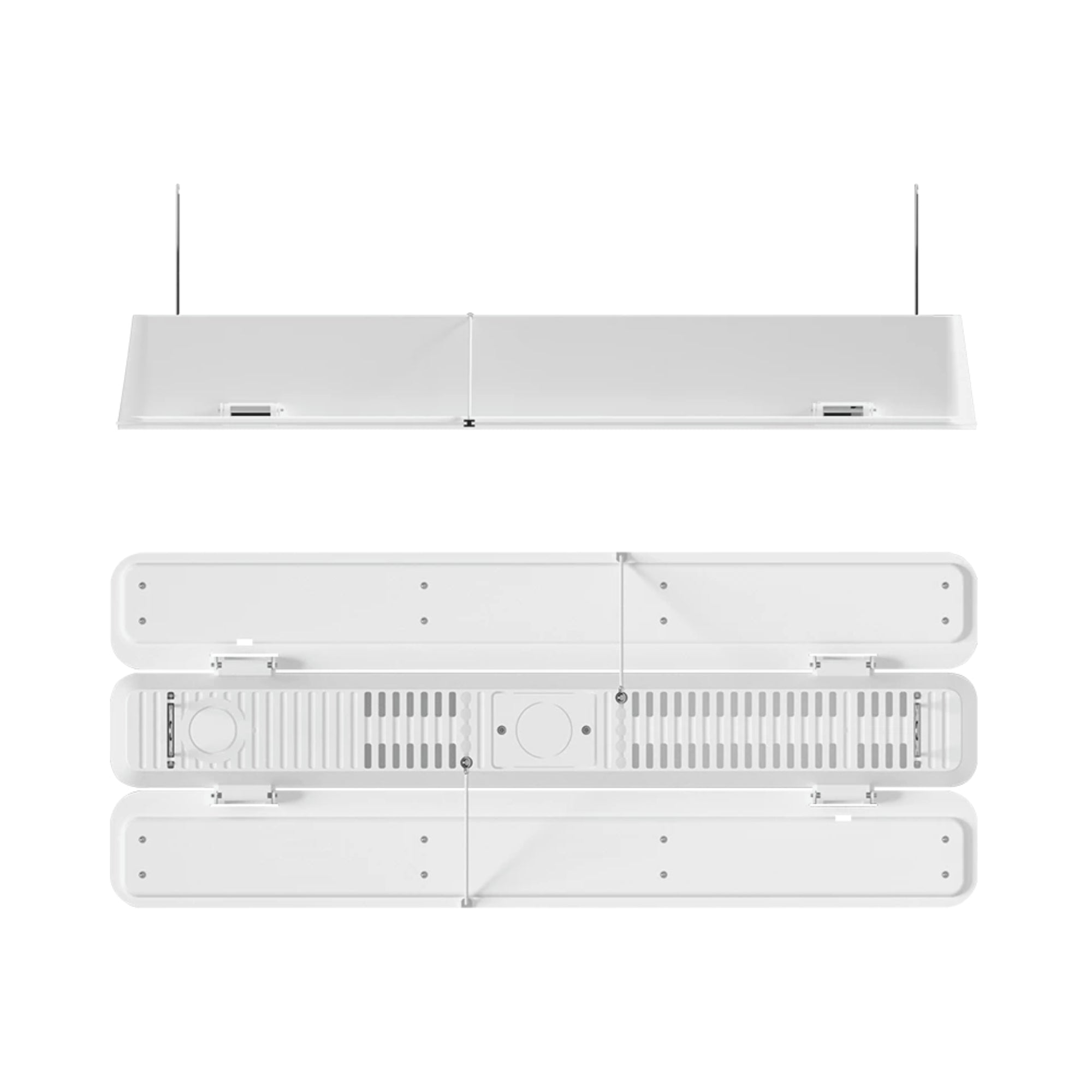

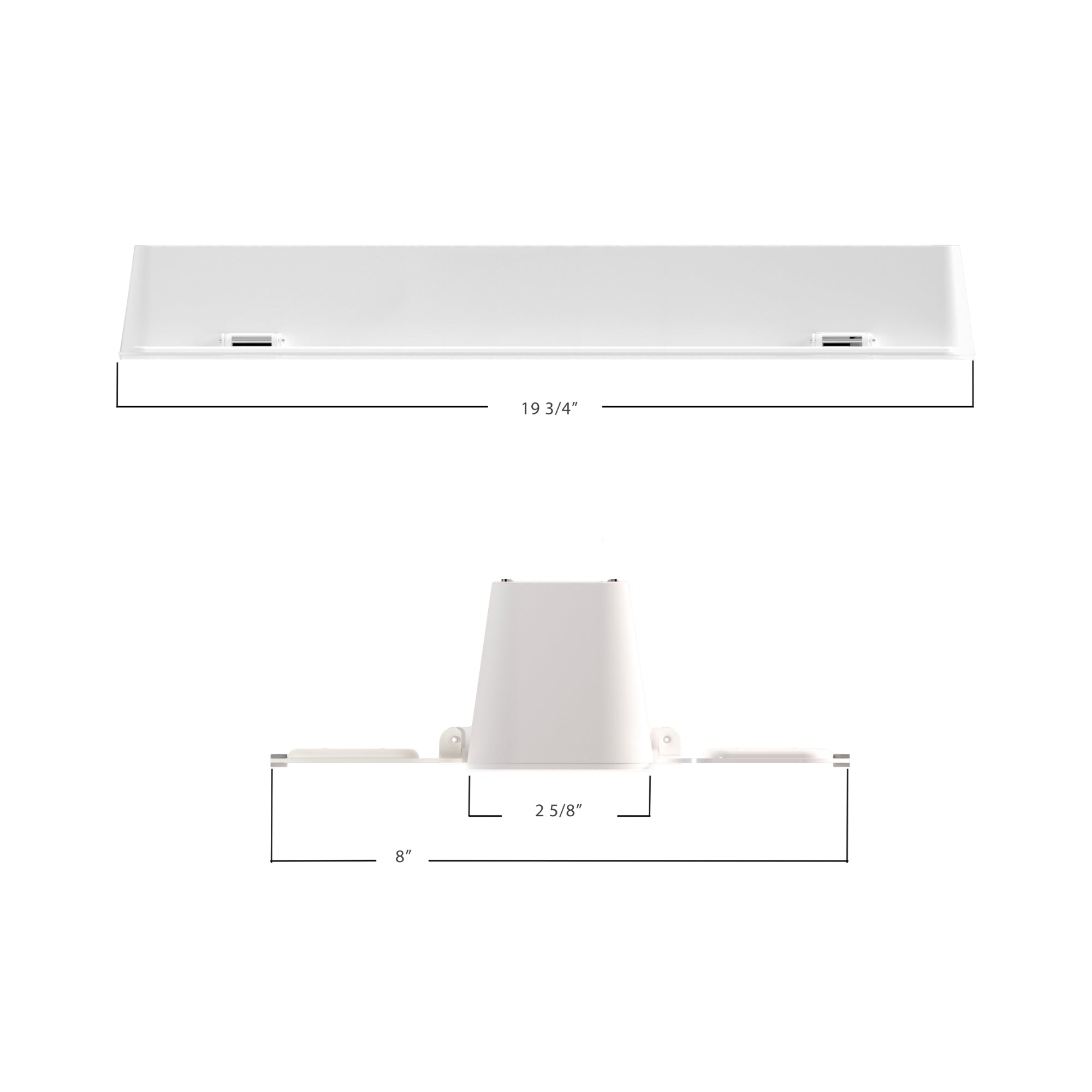

Lightweight polycarbonate and ABS (PC/ABS) housing — ultra-economy construction engineered for weight-sensitive applications where structural load is a consideration. Adjustable fold-up wings with paracord lens lock set beam angle at five tilt positions. Finish formulated for high durability and long-lasting color. Dimensions: 19-3/4" × 8" × 2-5/8". Weight: 4.8 lbs.
Installation & Mounting

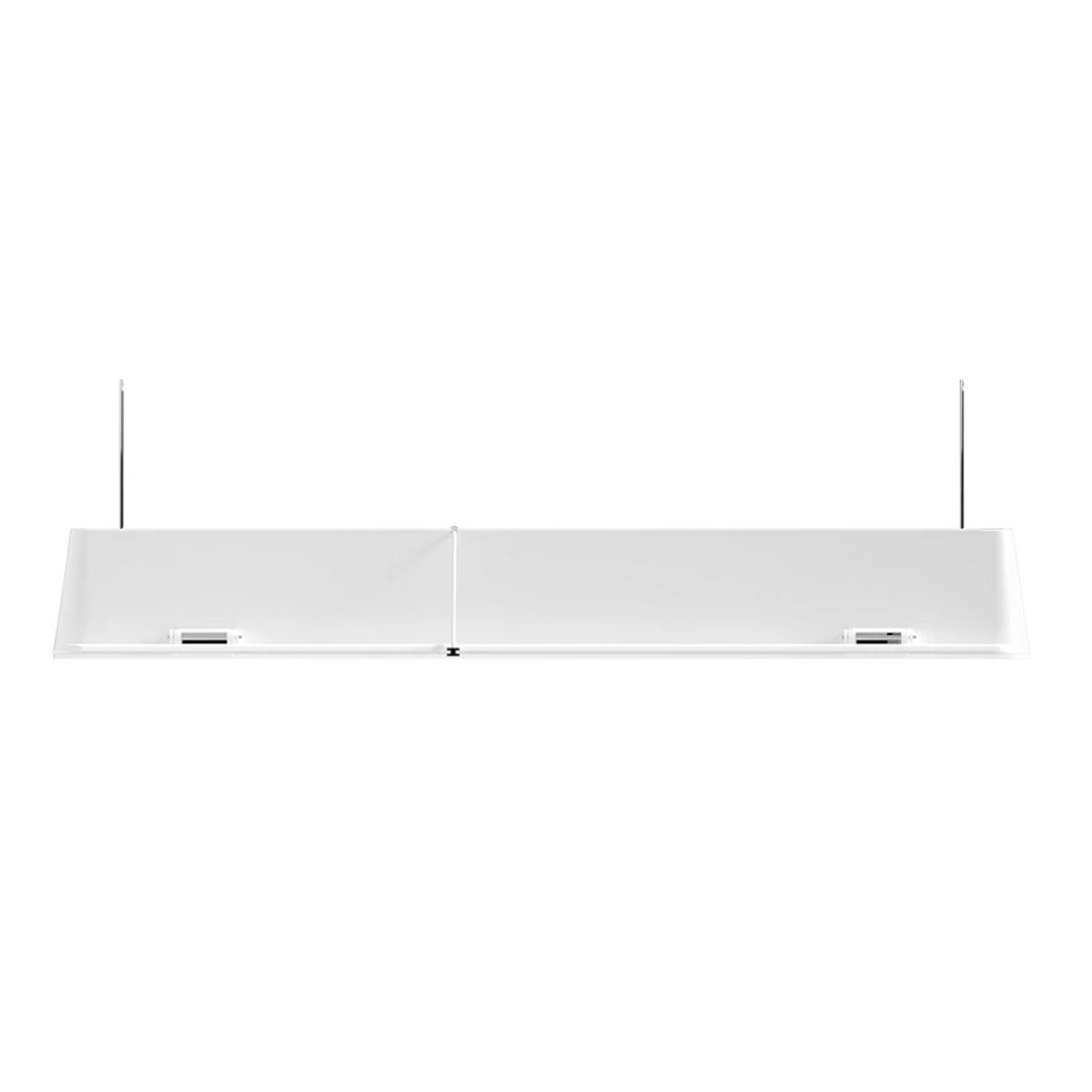

Mounts via V hooks (included). Optional pendant mounting supported (pendant by others). Set wing tilt angle before final installation using the paracord locking mechanism — five positions from 0° (direct down) to 50° uptilt for uplighting or wide-distribution applications.
- Mounting: V hooks (included); pendant mount by others
- Sensor Remote: MVSREM — remote for microwave sensor (for /MVS suffix units) — sold separately
Recommended ceiling height: 100W — 12–20 ft.
Certifications & Rebates

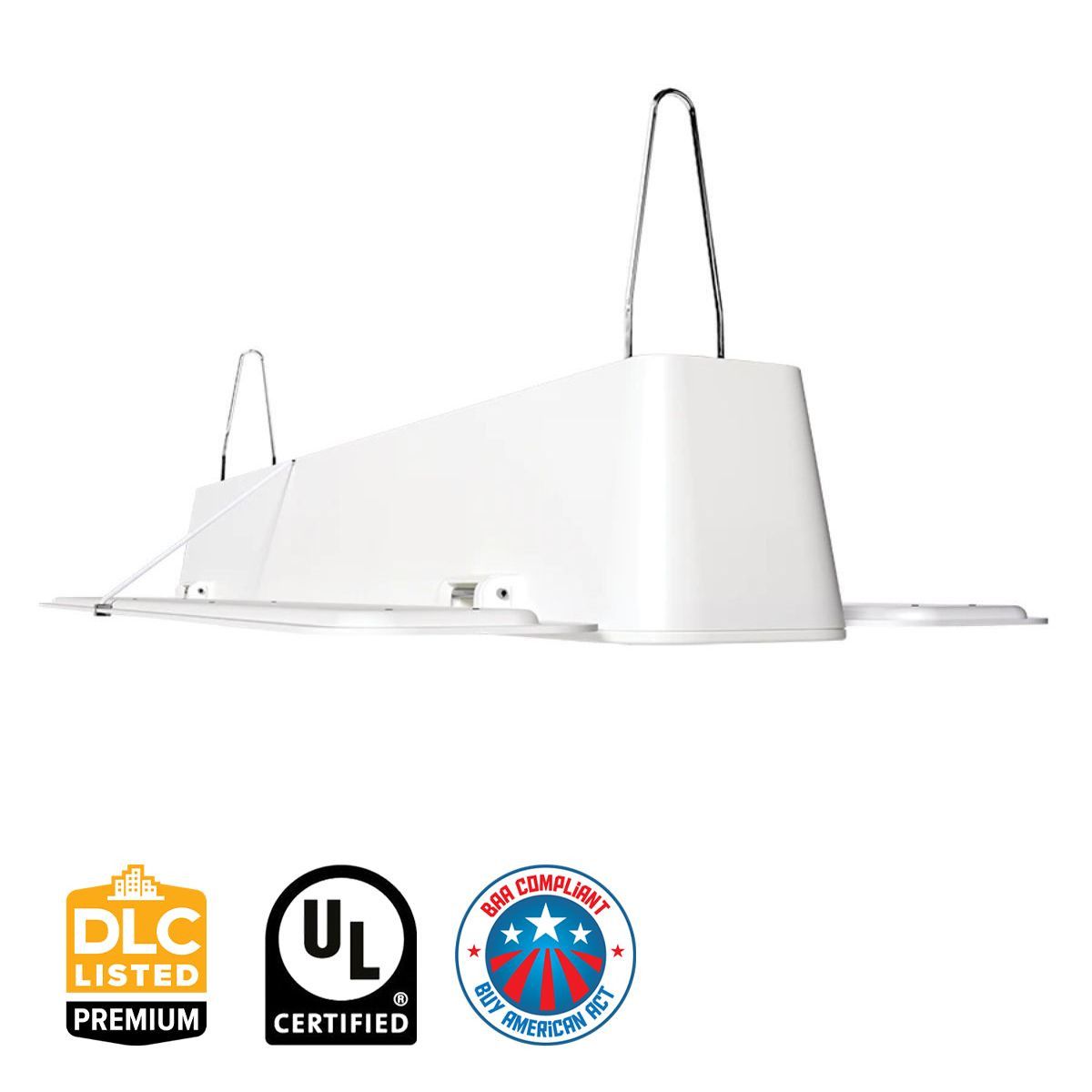

UL listed for damp locations. DLC Listed (DLC 5.1) — DLC ID PTF2Z78V. Eligible for utility rebate programs through DLC Member Utilities. Verify eligibility at designlights.org. RoHS compliant. BAA-compliant version available upon request.
Typical Applications
- Warehouses & Storage Facilities: 5000K daylight CCT and adjustable wing angle optimize aisle and rack illumination at low-to-mid ceiling heights
- Retail & Big-Box Stores: Ultra-economy construction reduces fixture cost on large-footprint projects; CRI 85 supports merchandise color rendering
- Light Manufacturing & Assembly: 13,646 lm at 100W delivers effective task illumination on production floors requiring cost-effective LED conversion
- Commercial & Office Warehousing: Lightweight PC/ABS construction eases installation in facilities with load-sensitive ceiling structures
- Gymnasium & Recreation Facilities: 50° uptilt wing position delivers uplight for indirect or supplemental illumination in high-ceiling venues
- Retrofit Projects: DLC Listed and 0–10V dimmable — qualifies for utility rebate programs to offset retrofit investment
What's Included
- RAB L34-110 Linear LED High Bay with integrated LED engine and driver
- V hooks for mounting
