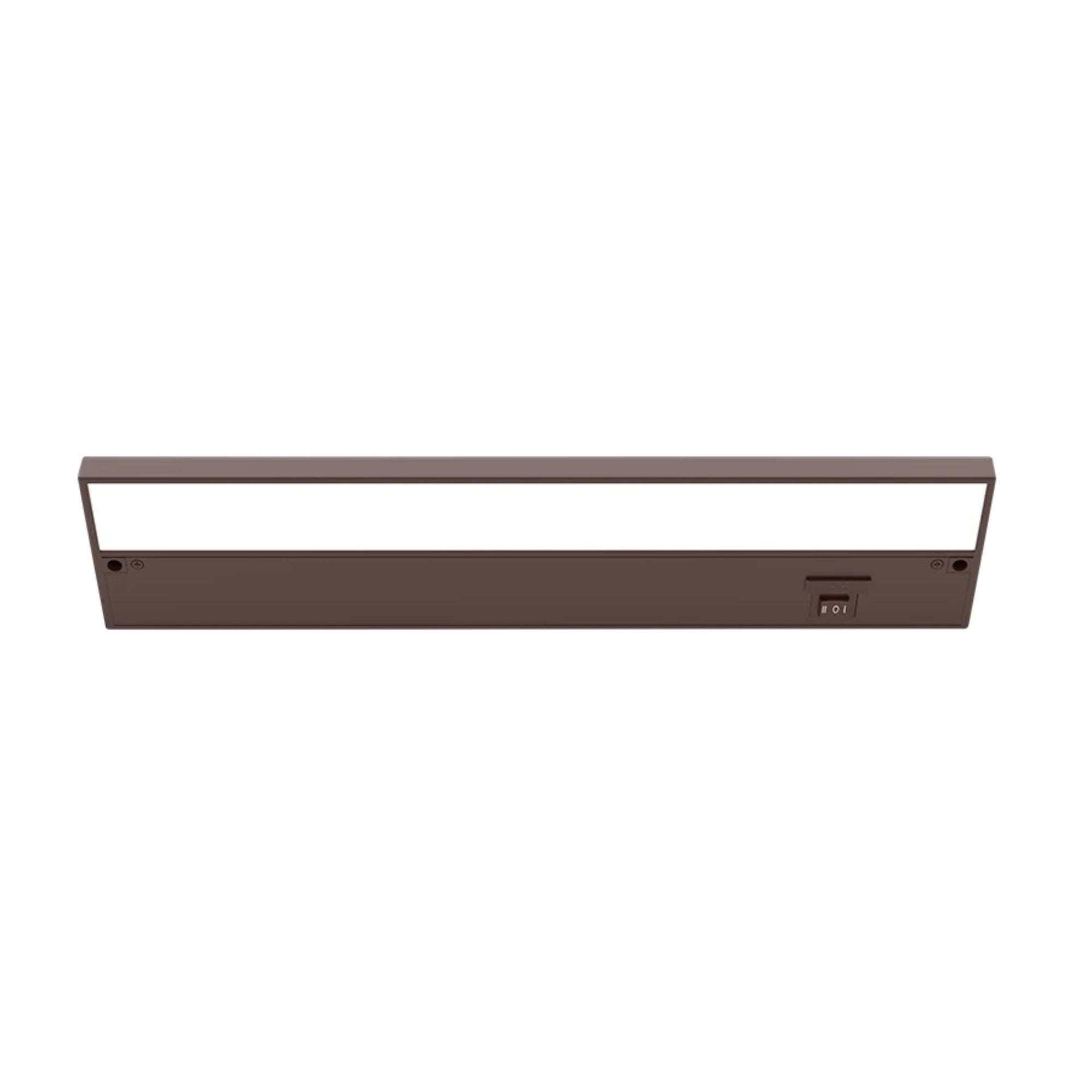

RAB Lighting KNOOK Under Cabinet Light — Bronze & Feature Summary

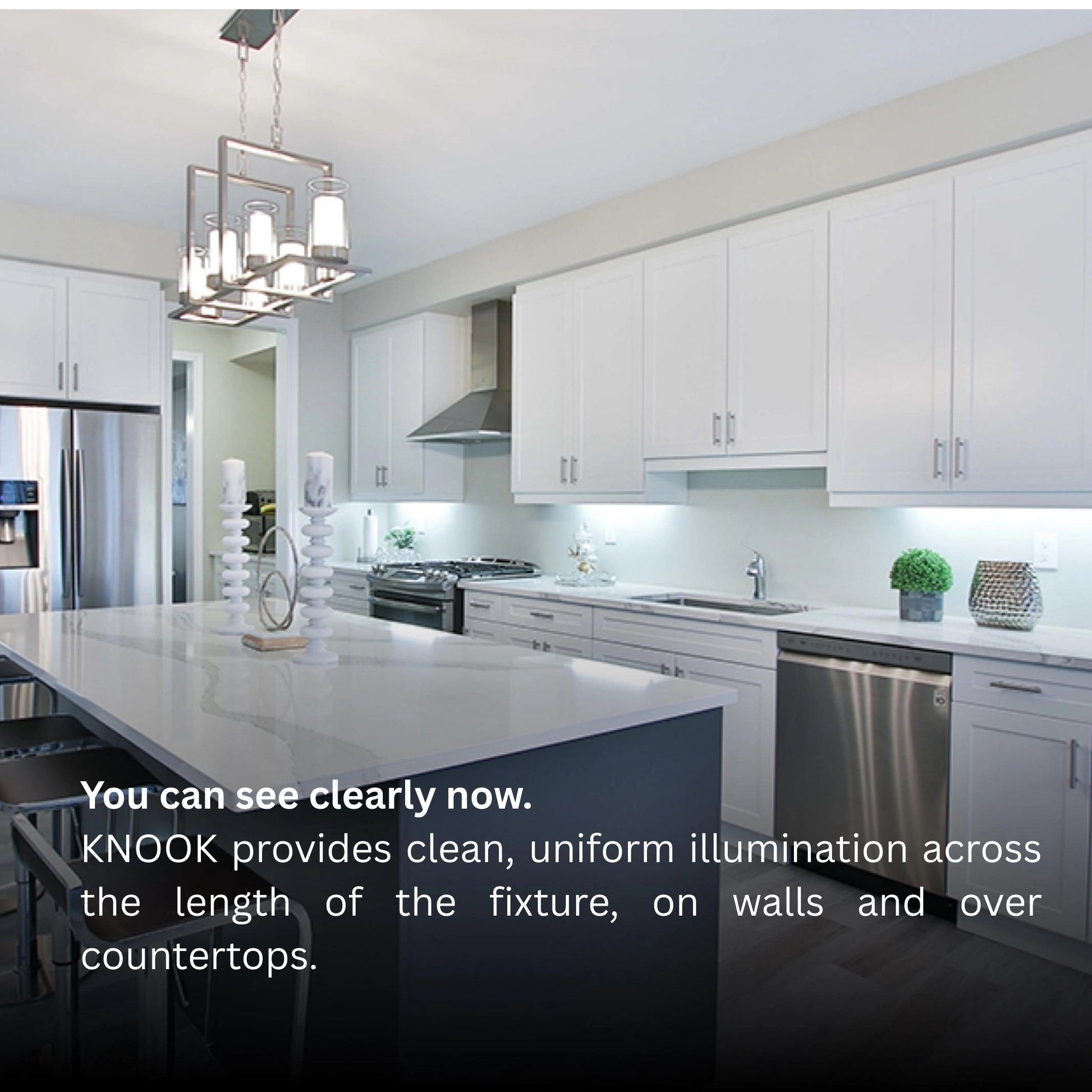

The RAB Lighting KNOOKFA16 is a bronze under cabinet light fixture, crafted from die-formed steel with a polycarbonate lens. This fixture measures 16 inches in width and is designed to provide soft, uniform lighting on work surfaces. It features an integrated LED light source with a 120V input.

Key Features

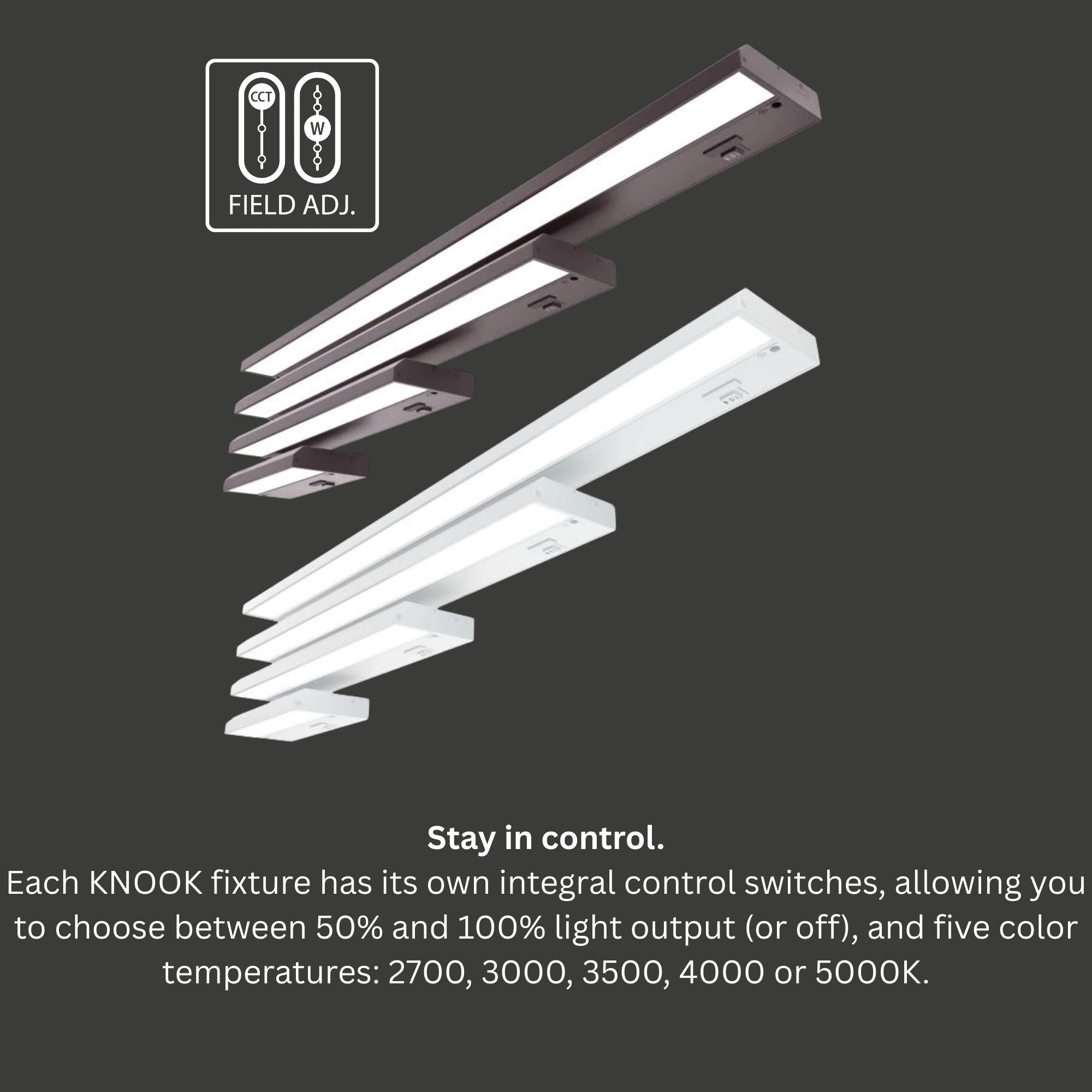

• Selectable CCT: Offers five color temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K.
• Lumen Output: Provides 351 to 796 lumens, selectable by 100% and 50% output.
• Wattage: Consumes 9 watts of power.
• CRI: High color accuracy with a CRI of 94-97.
• Lifespan: Long-lasting with a 50,000-hour lifespan.

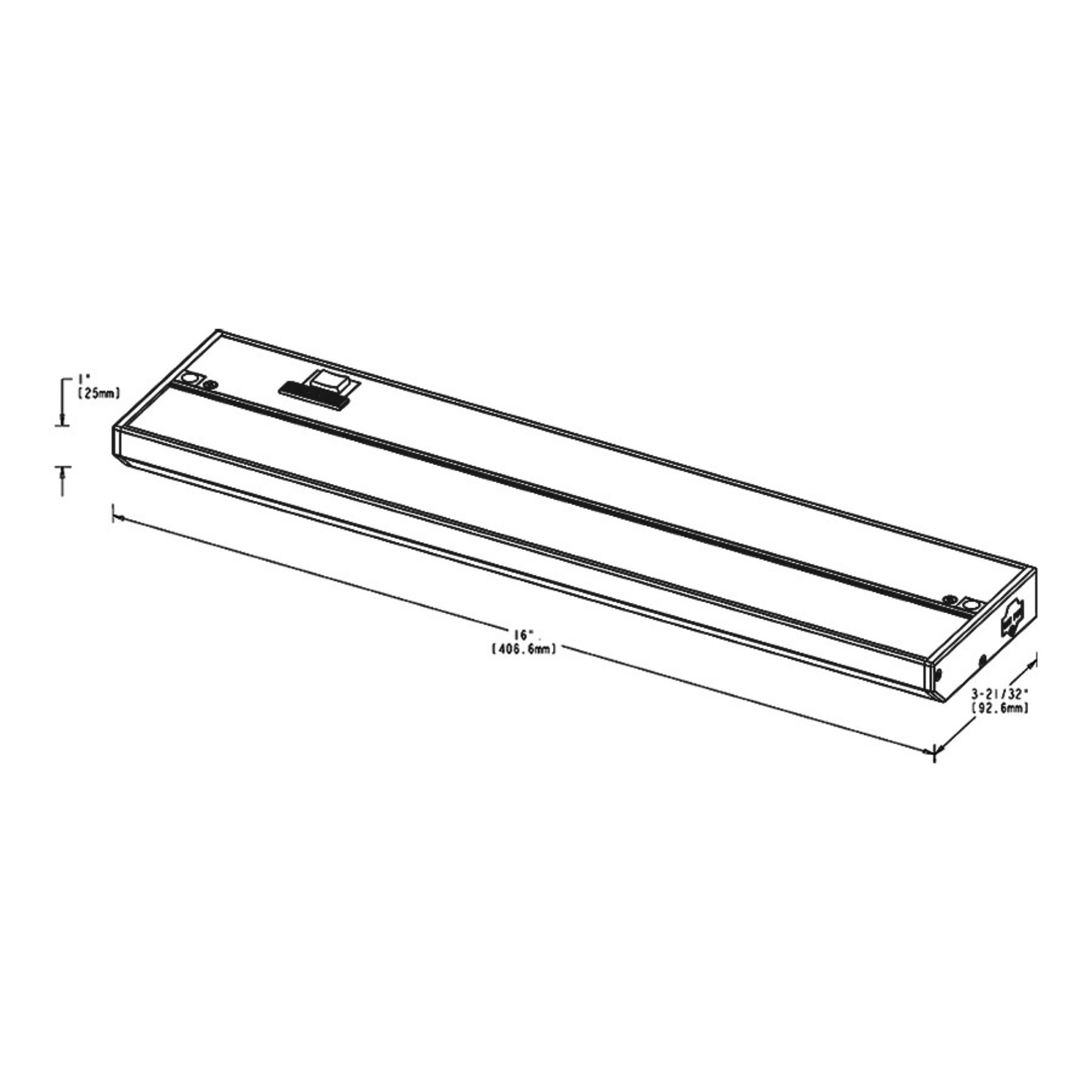

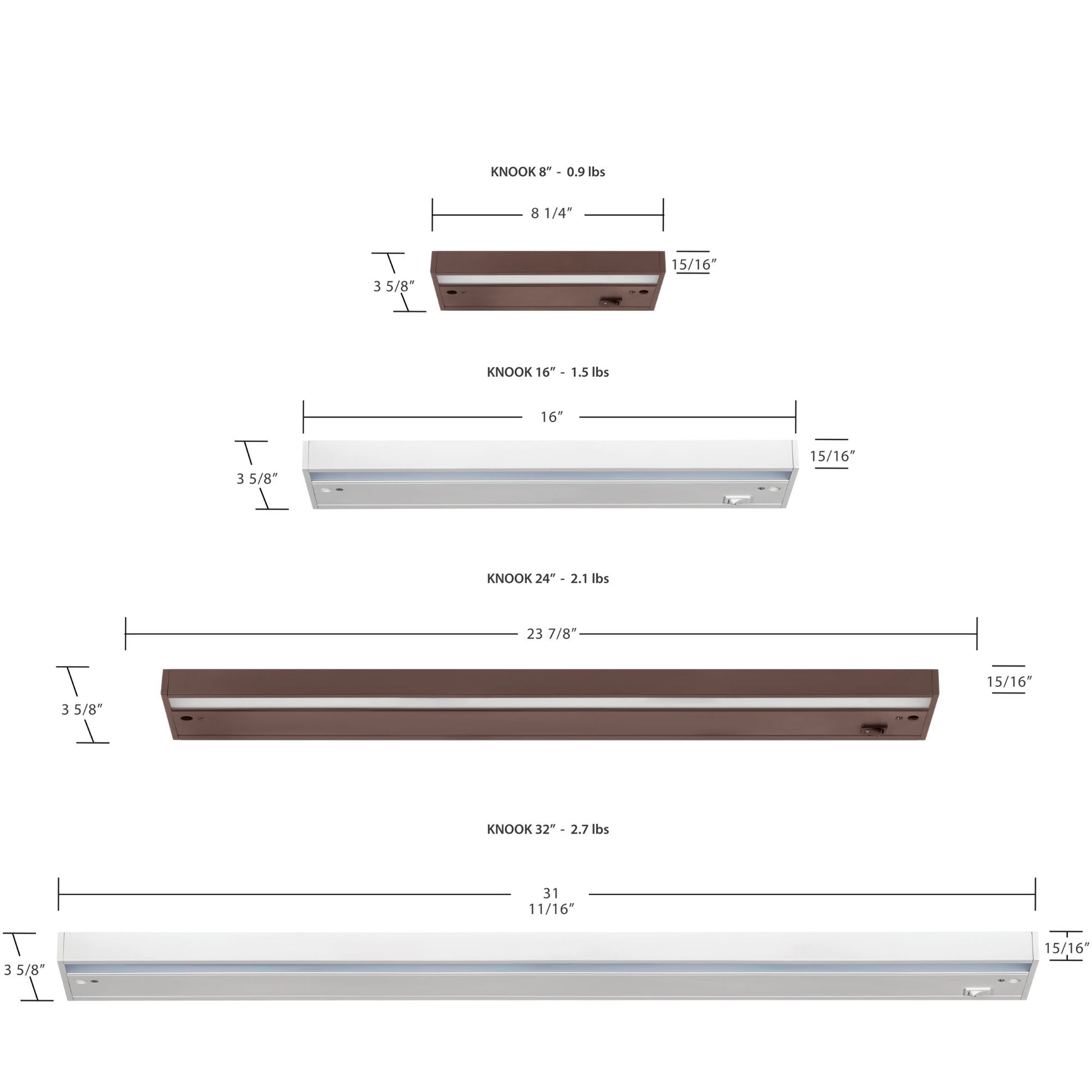

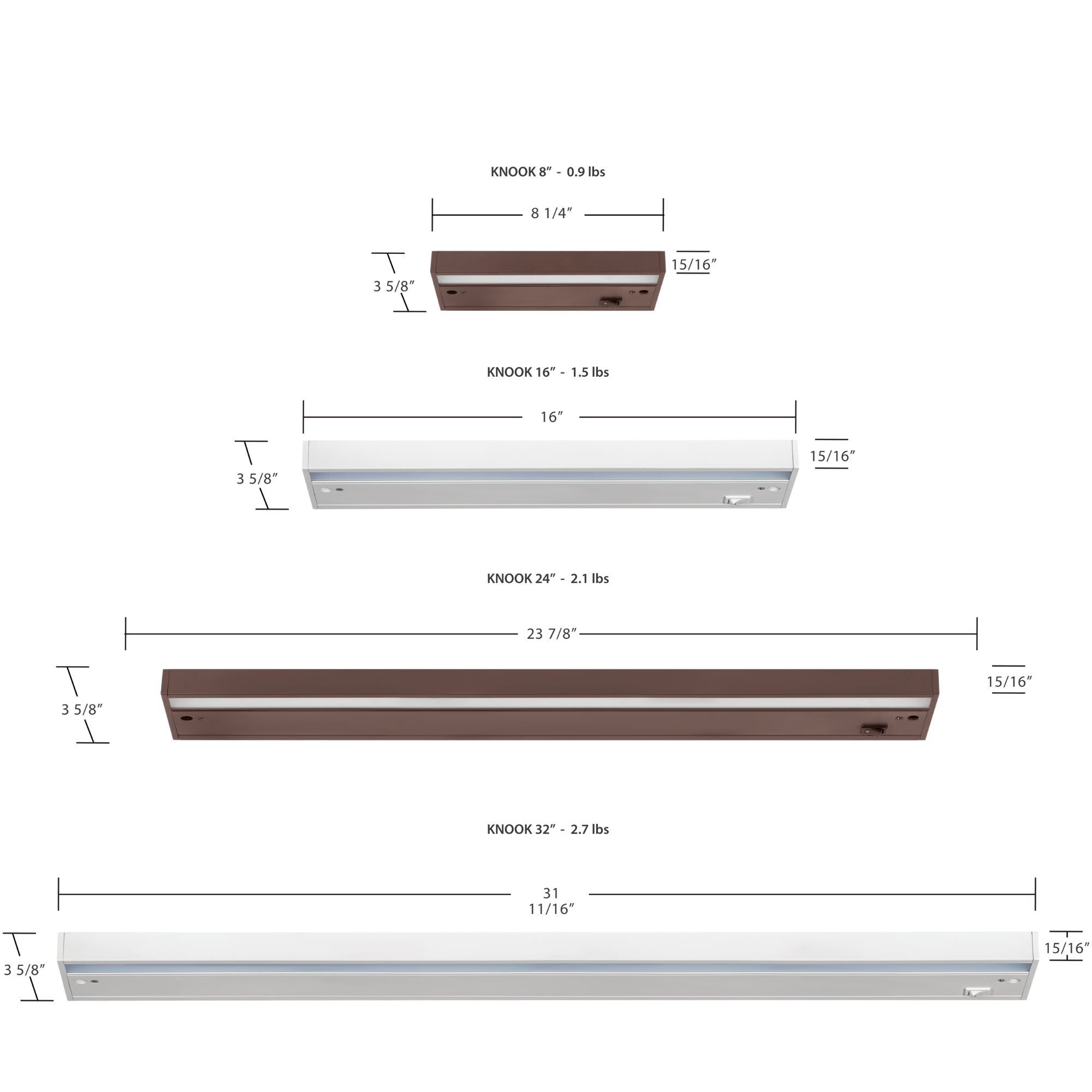

• Dimensions: Measures 16in. width, 3.63in. length, and 1in. height.

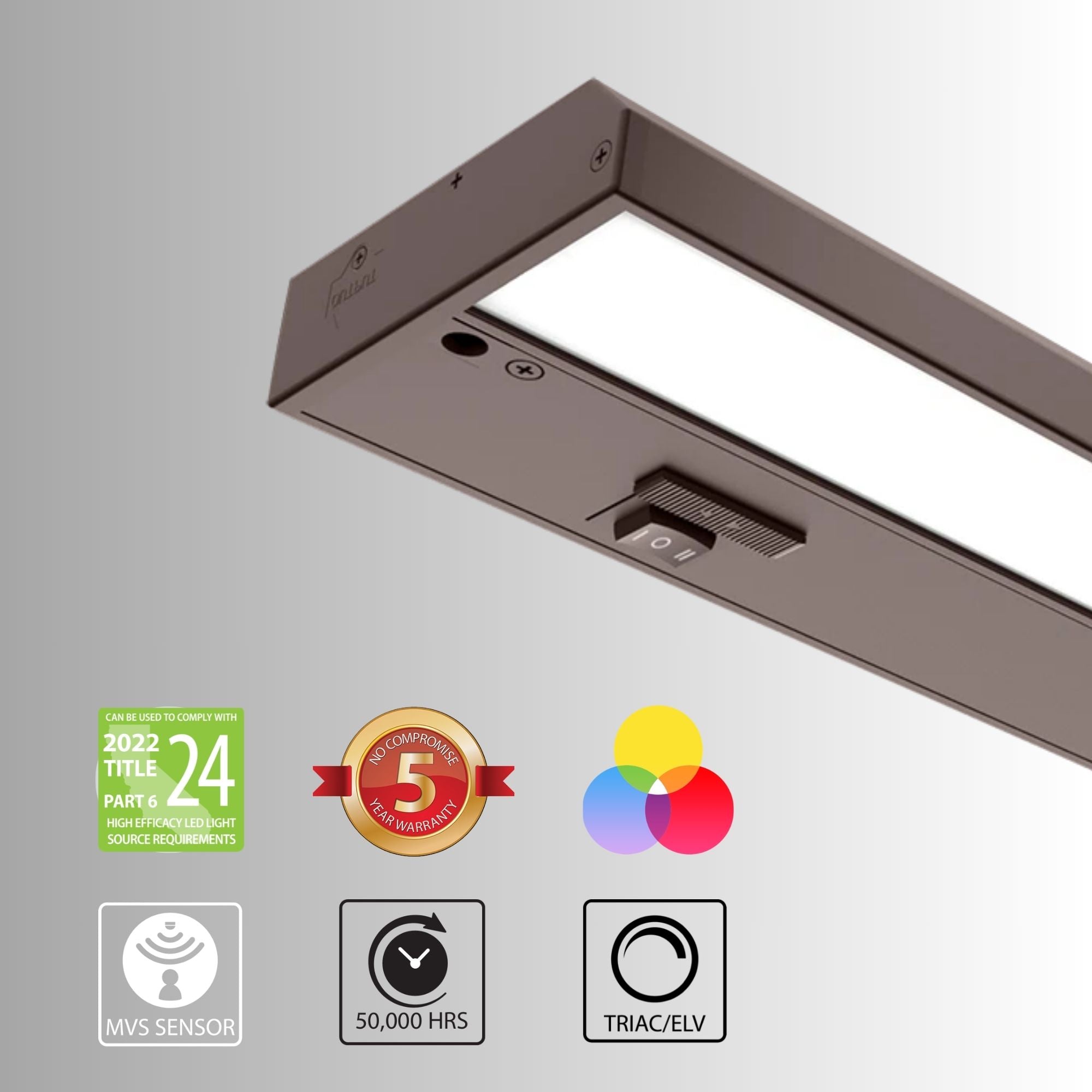

• Dimmable: Compatible with ELV and TRIAC dimmers.
• Construction: Die-formed steel housing with injection-molded endcaps.
• Finish: Durable bronze finish for long-lasting color.
• Voltage: Operates at 120V with a constant current driver.

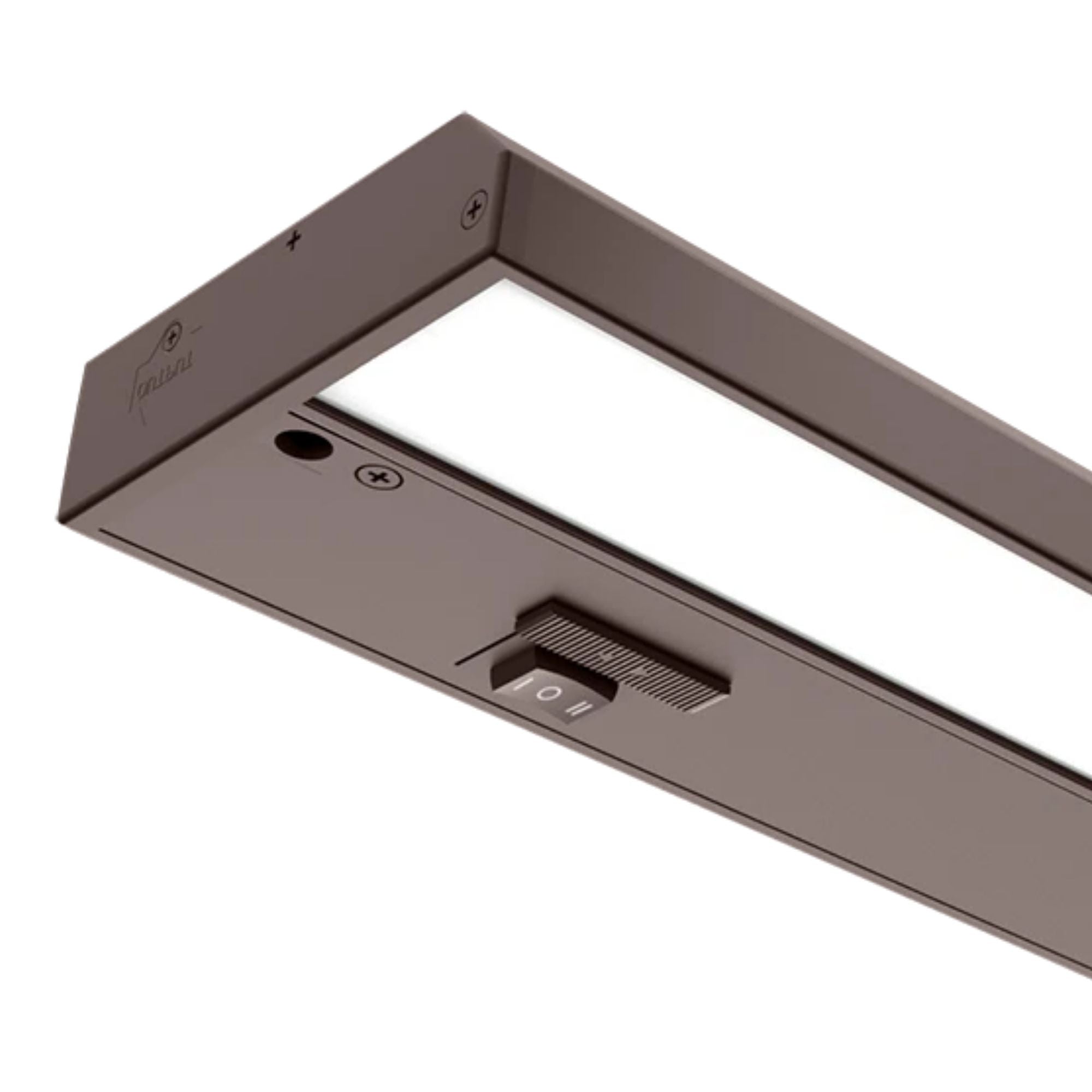

Core Design & Profile

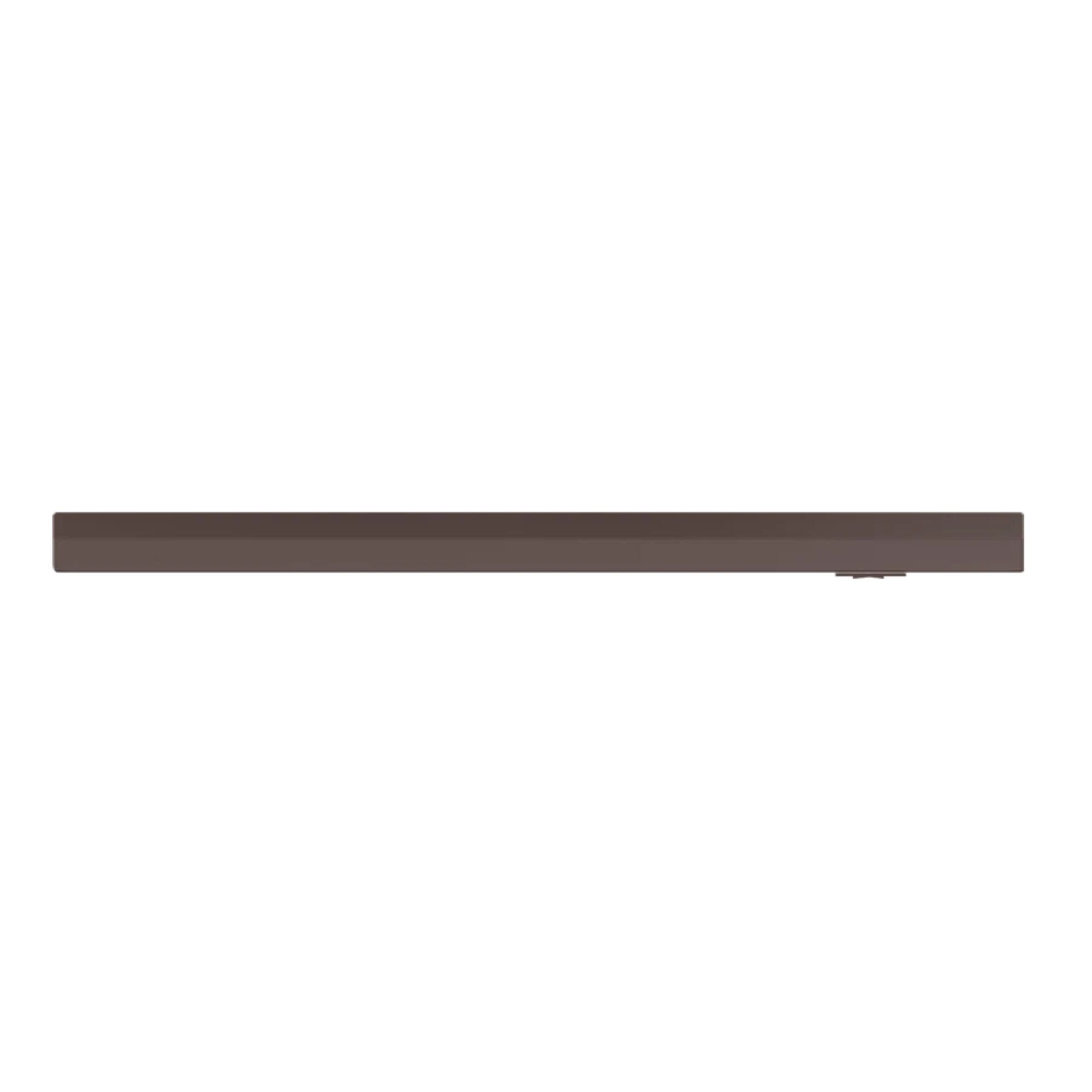

The KNOOK series features a slim profile with a durable die-formed steel housing and a polycarbonate lens. Available in a bronze finish, it is UL listed for dry locations.

LED Illumination & Performance

This fixture delivers up to 796 lumens with a power consumption of 9 watts. It offers a high CRI of 94-97 and selectable CCT from 2700K to 5000K, ensuring versatile lighting performance.

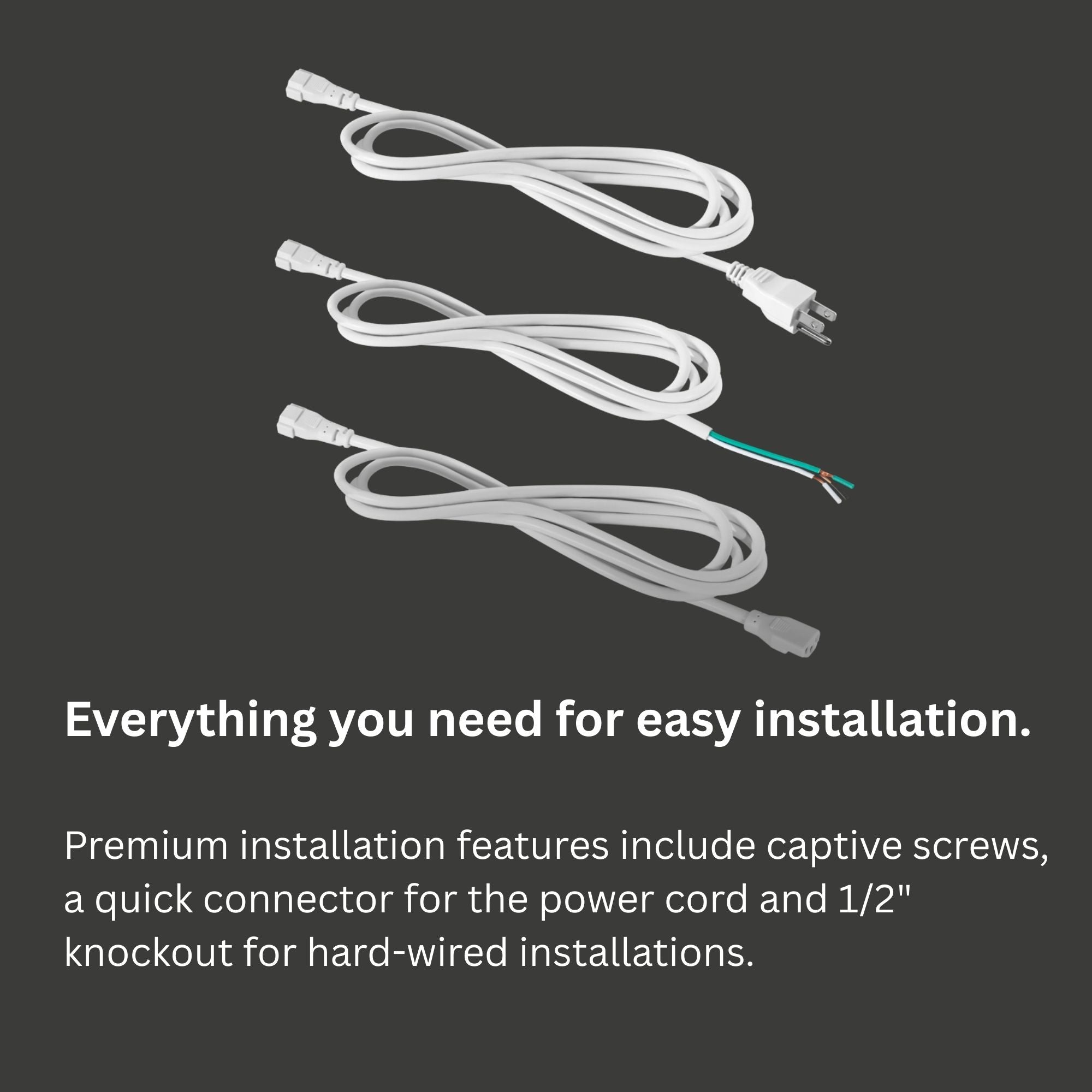

Power, Wiring & Linkability

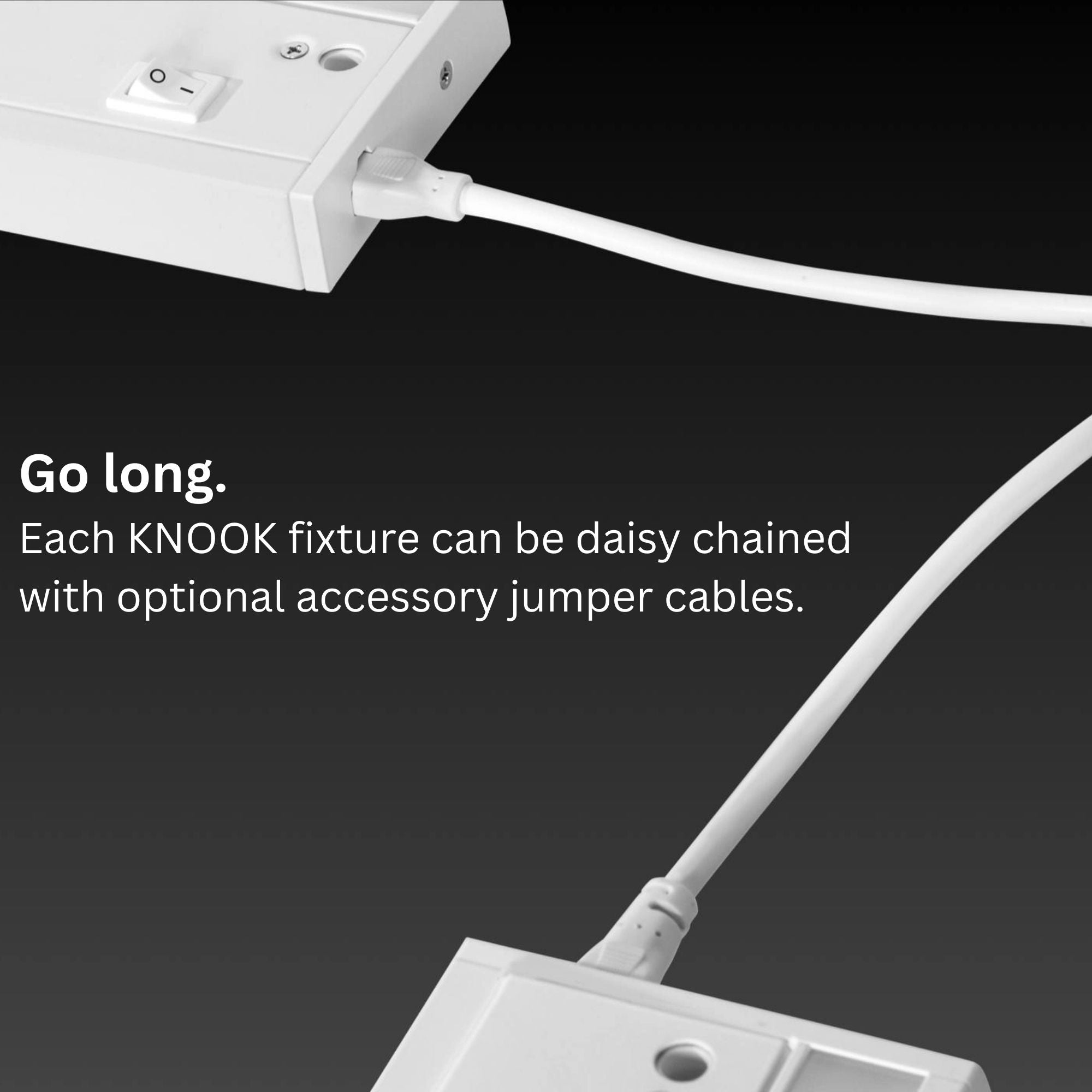

The KNOOKFA16 is designed for direct wire installation at 120V. It features a constant current driver and is compatible with common dimmers. Multiple fixtures can be linked for extended runs.

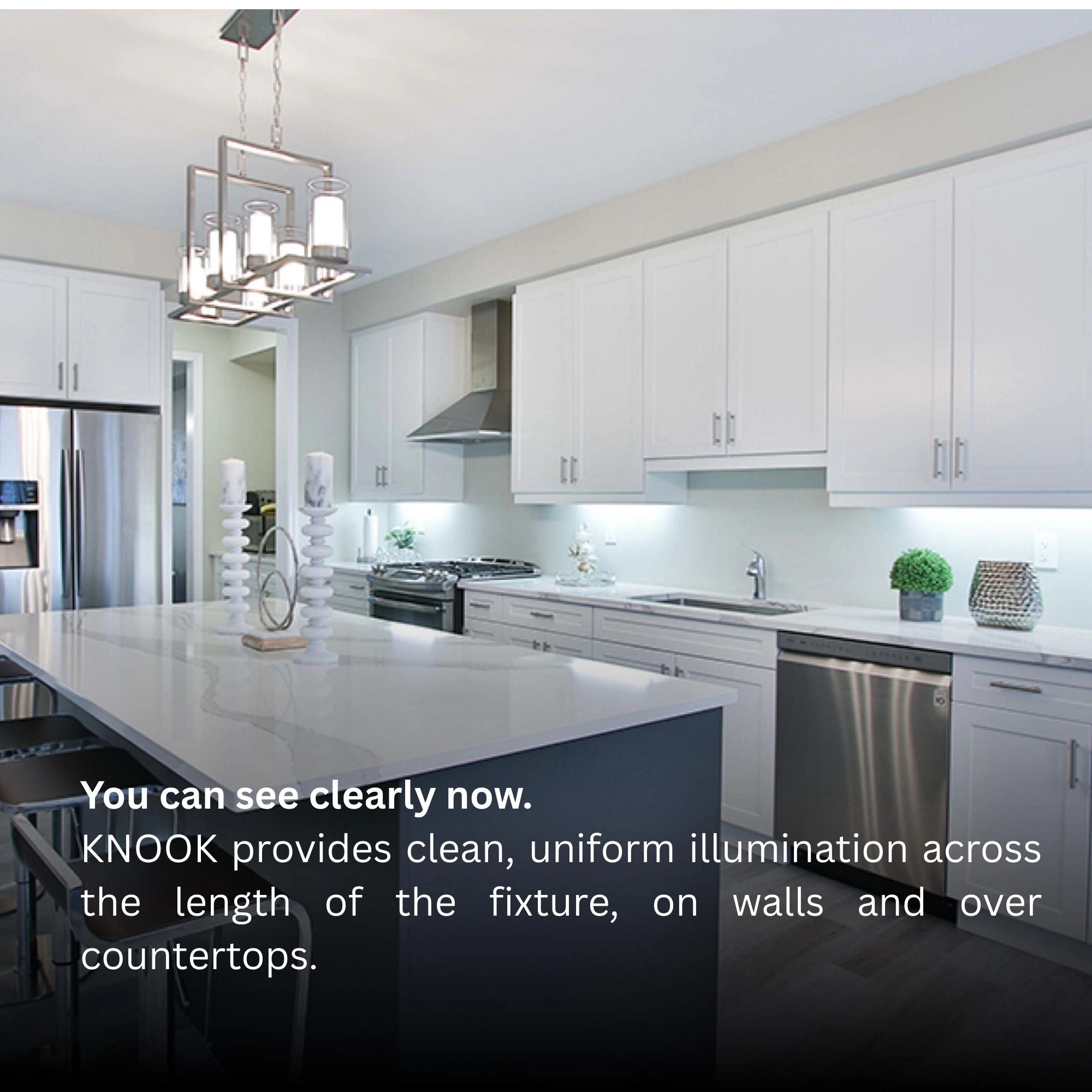

Where This Fixture Works Best

• Kitchen countertops
• Workshops
• Office desks
• Retail displays
• Study areas

What's Included

• Mounting hardware
• Installation instructions
