Overview

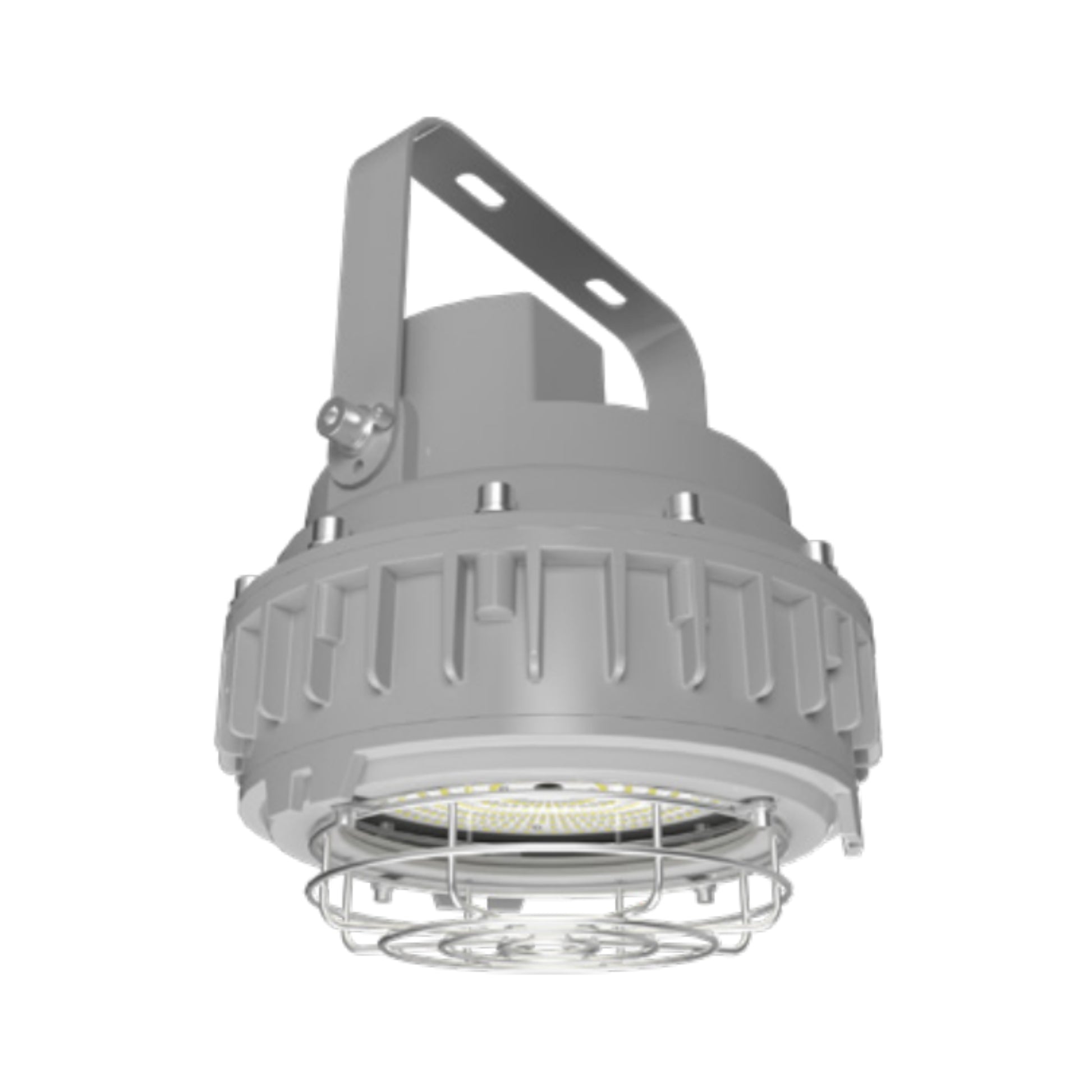

The RAB HAZX80CF Explosion-Proof LED High Bay is built for the highest-risk industrial locations. It is certified for Class I, Division 1 environments, ensuring safe operation where flammable gases and vapors are constantly present. Made from tough, copper-free aluminum, this fixture is IP66 rated against dust and water and IK08 rated for impacts. It delivers a bright 11,203 lumens of 5000K daylight and includes both yoke and stanchion mounts, making it a complete and durable solution for refineries, processing plants, and other critical facilities.

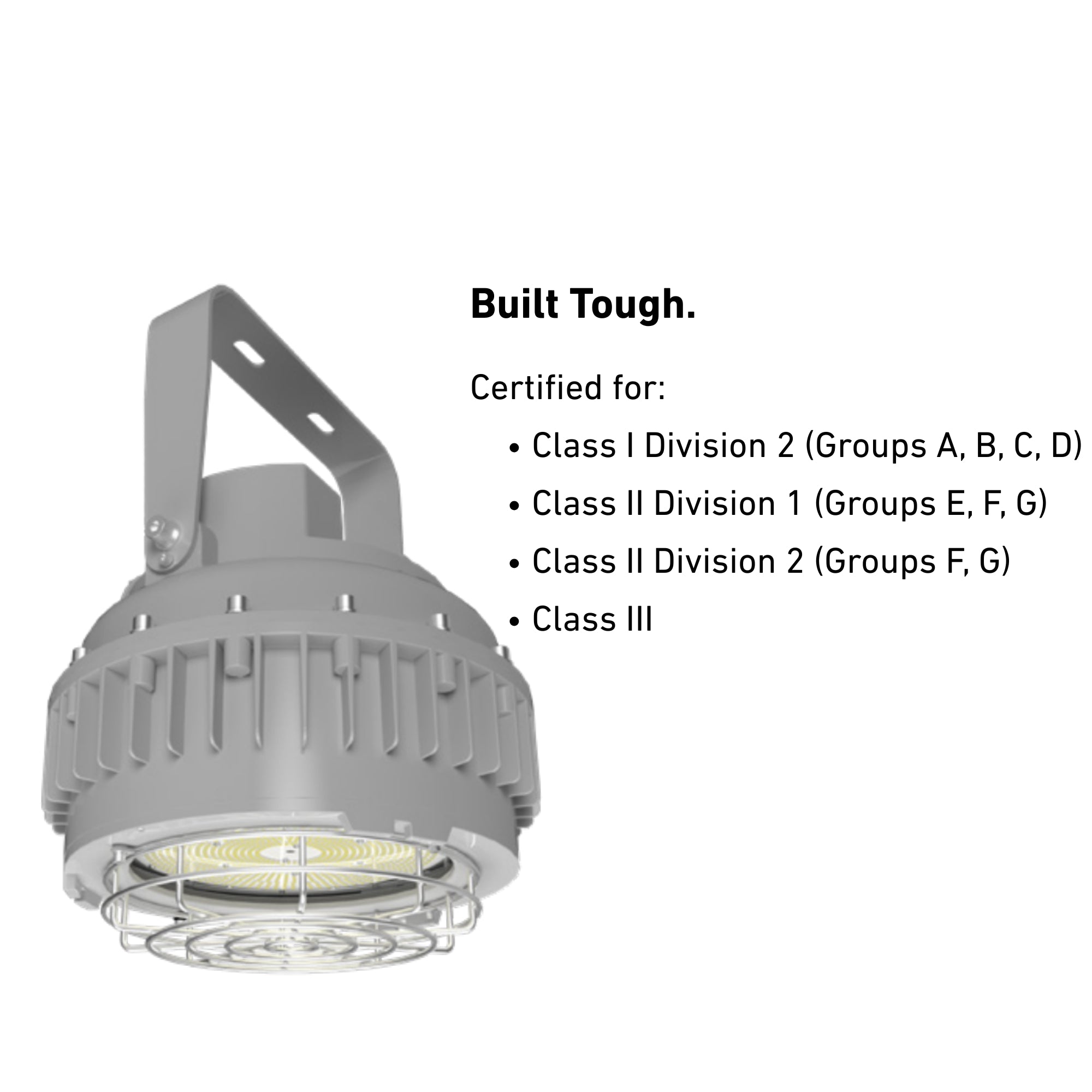

  • Comprehensive Hazardous Certifications: Certified for Class I, Div 1 (Groups B, C, D); Class I, Div 2 (Groups A, B, C, D); Class II, Div 1 (Groups E, F, G); Class II, Div 2 (Groups F, G); and Class III.
  • Durable & Impact-Resistant: Features a copper-free aluminum housing with a tempered glass lens. It is IK08 rated for high resistance to mechanical impact.
  • High-Output Lighting: Produces a powerful 11,203 lumens with just 80W of power, delivering crisp 5000K cool white light for excellent visibility.
  • Sealed for Harsh Conditions: Carries a full IP66 rating, making it completely dust-tight and resistant to powerful water jets. Operates in temperatures from -40°F to 149°F.

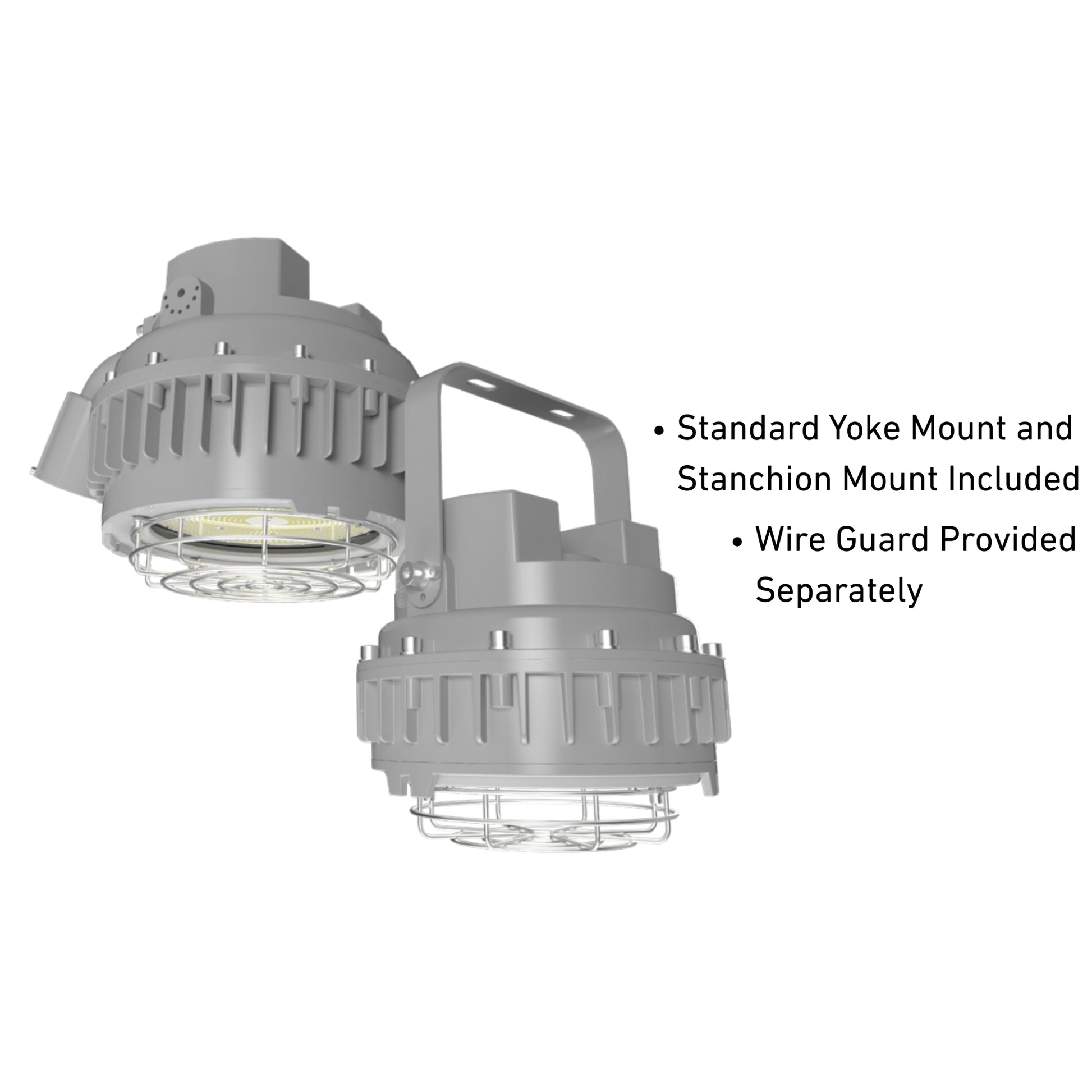

  • Dual Mounting Included: Comes ready to install with a standard yoke mount and an additional stanchion mount kit included in the box.

Technical Resources

Specifications

Size:

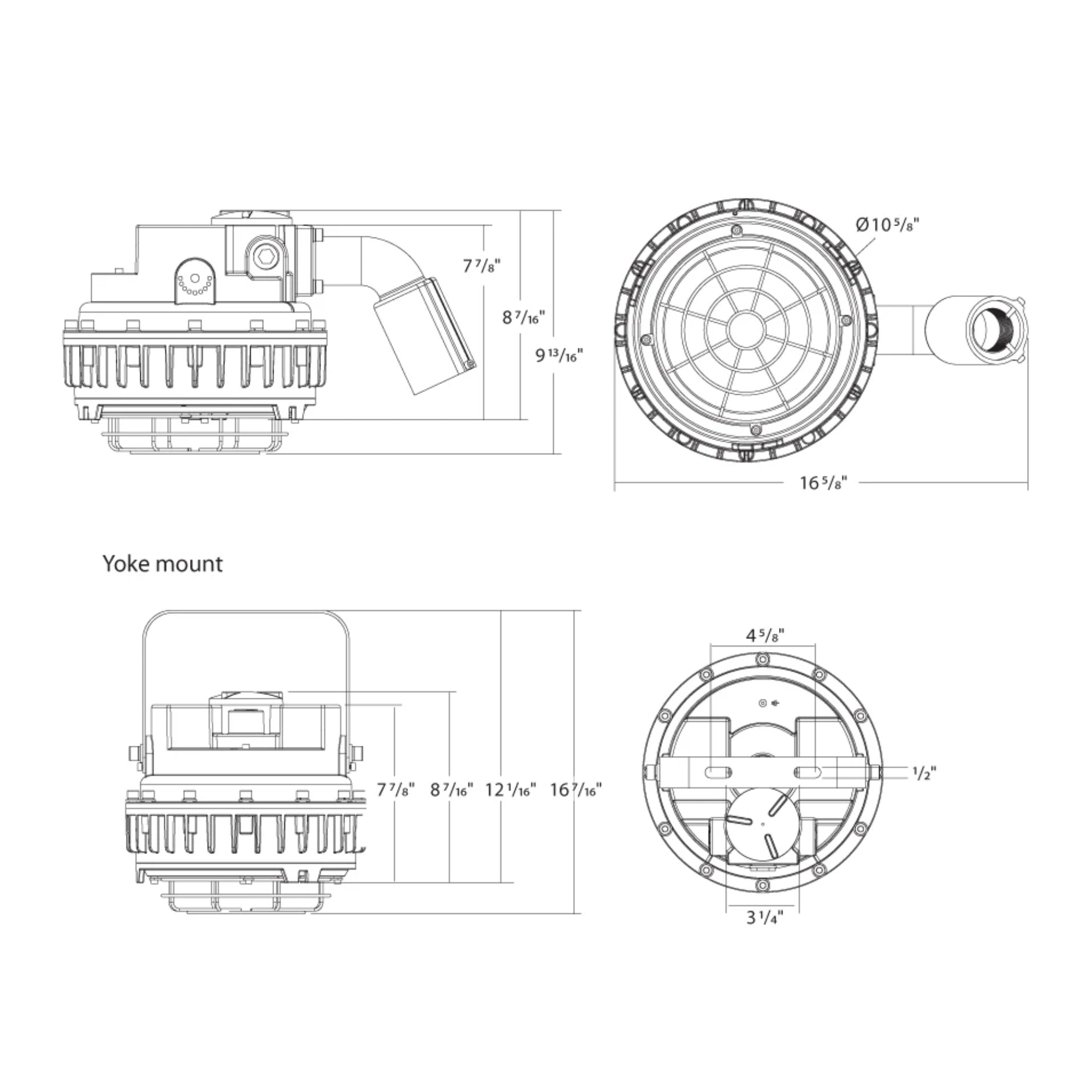

10.625'' L X 10.625'' W X 16.44'' H
Materials:
Aluminum
Total Wattage:
80
Lamp Color:
5000K
Color Rendering:
80
Lamp Life:
100,000 Hours
