Overview

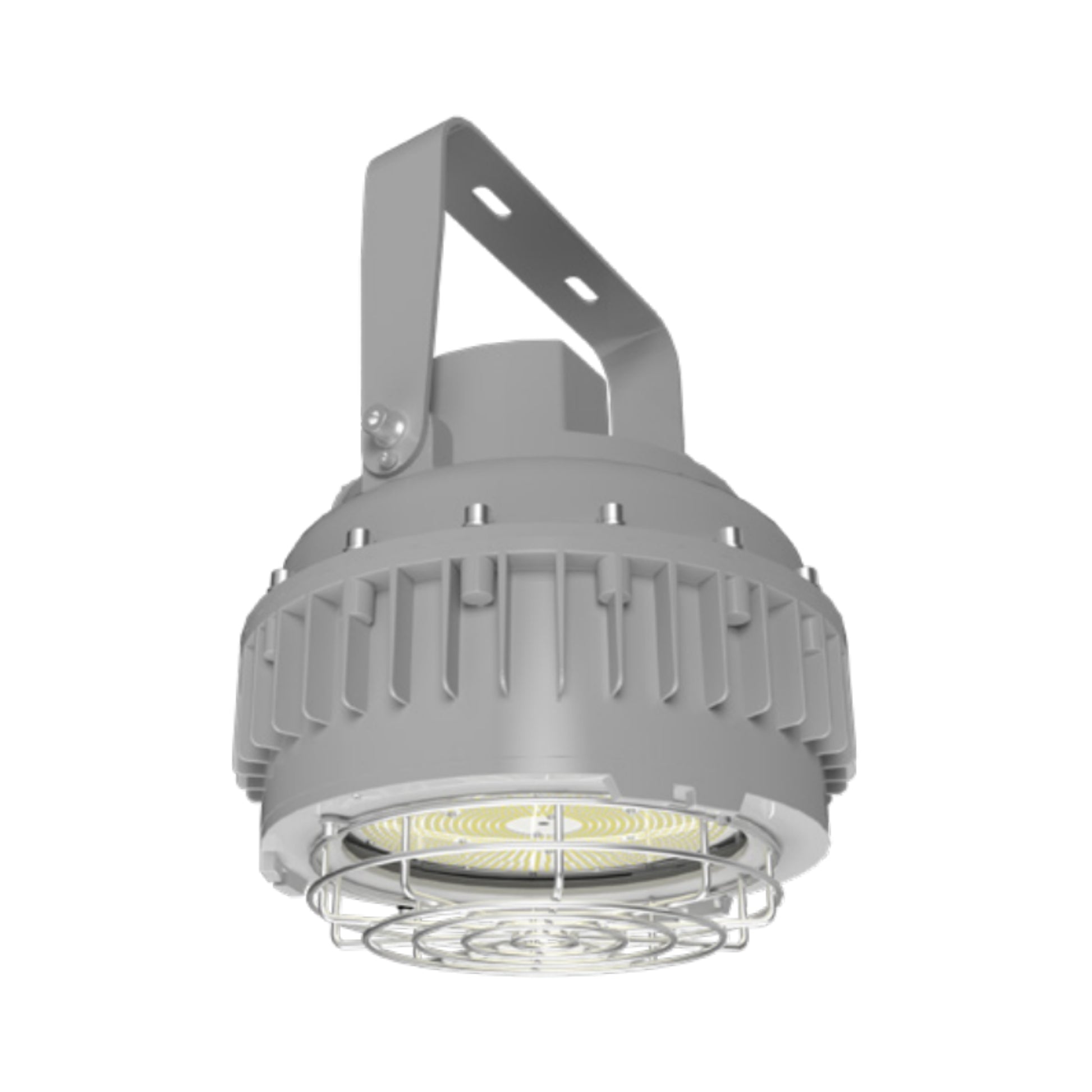

When maximum illumination is non-negotiable, the RAB HAZX200CF Explosion-Proof LED High Bay provides an uncompromising lighting solution. This is the ultimate fixture in the HAZX line, designed to overwhelm darkness in the largest and most demanding hazardous locations. It boasts a staggering 29520-lumen output, powerful enough to replace multiple older fixtures while ensuring every corner of your facility is brightly and safely lit. The HAZX200CF is certified for the most dangerous Class I, Division 1 applications, so its immense power is matched by its safety. Its IP66 and IK08-rated copper-free aluminum construction means it is physically indestructible. For applications that demand the absolute peak of power, durability, and compliance, the 200W HAZX200CF stands alone.

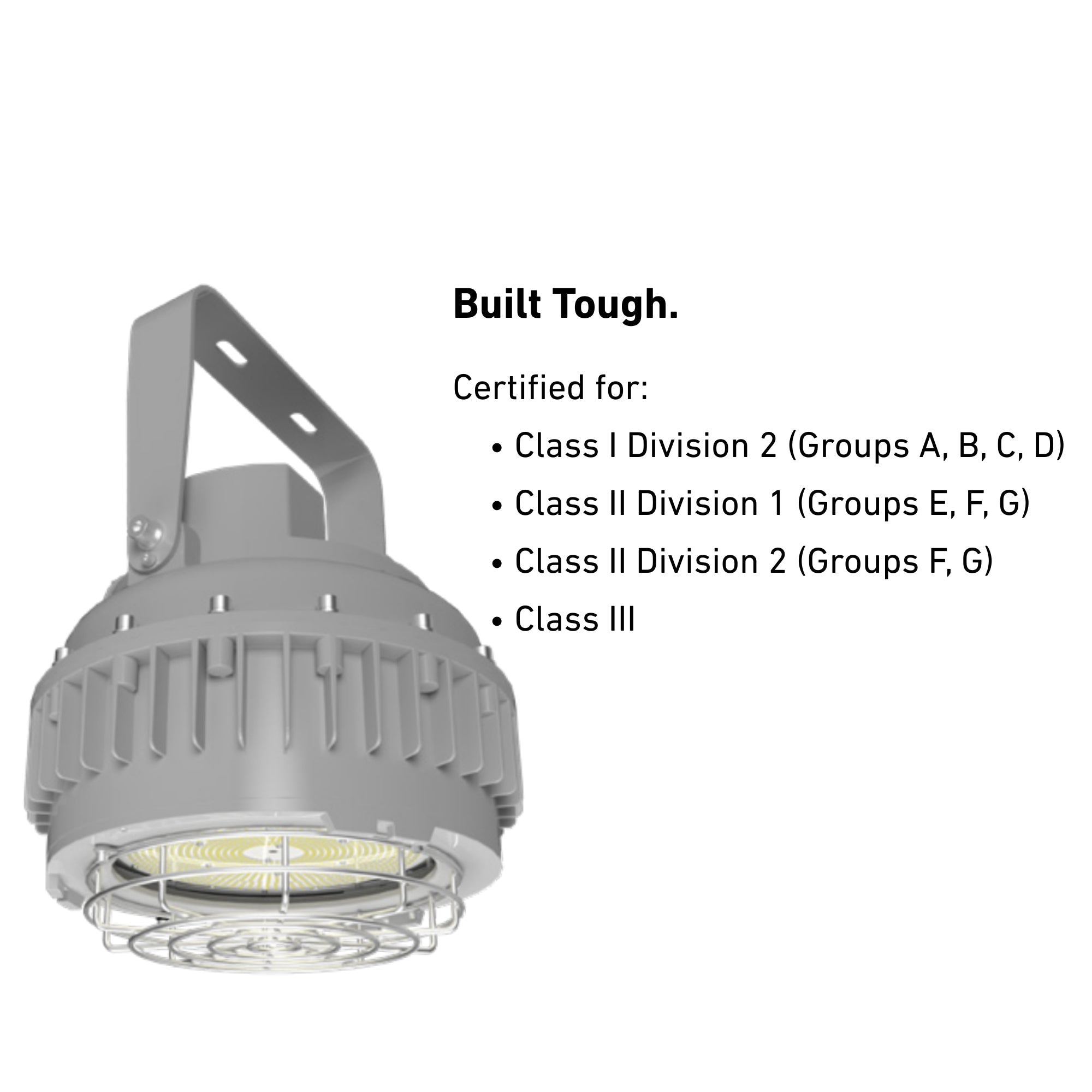

  • Comprehensive Hazardous Certifications: Certified for Class I, Div 1 (Groups B, C, D); Class I, Div 2 (Groups A, B, C, D); Class II, Div 1 (Groups E, F, G); Class II, Div 2 (Groups F, G); and Class III.
  • Peak Illumination Power: The 200W engine produces a monumental 29520 lumens of 5000K light, providing unmatched brightness for the highest ceilings and largest spaces.
  • Engineered for Toughness: The fixture’s industrial-grade design features a copper-free aluminum housing and is IK08 rated to withstand significant physical abuse.
  • Impervious to the Elements: An IP66 rating ensures it is completely sealed against fine dust and powerful jets of water, guaranteeing a long operational life.

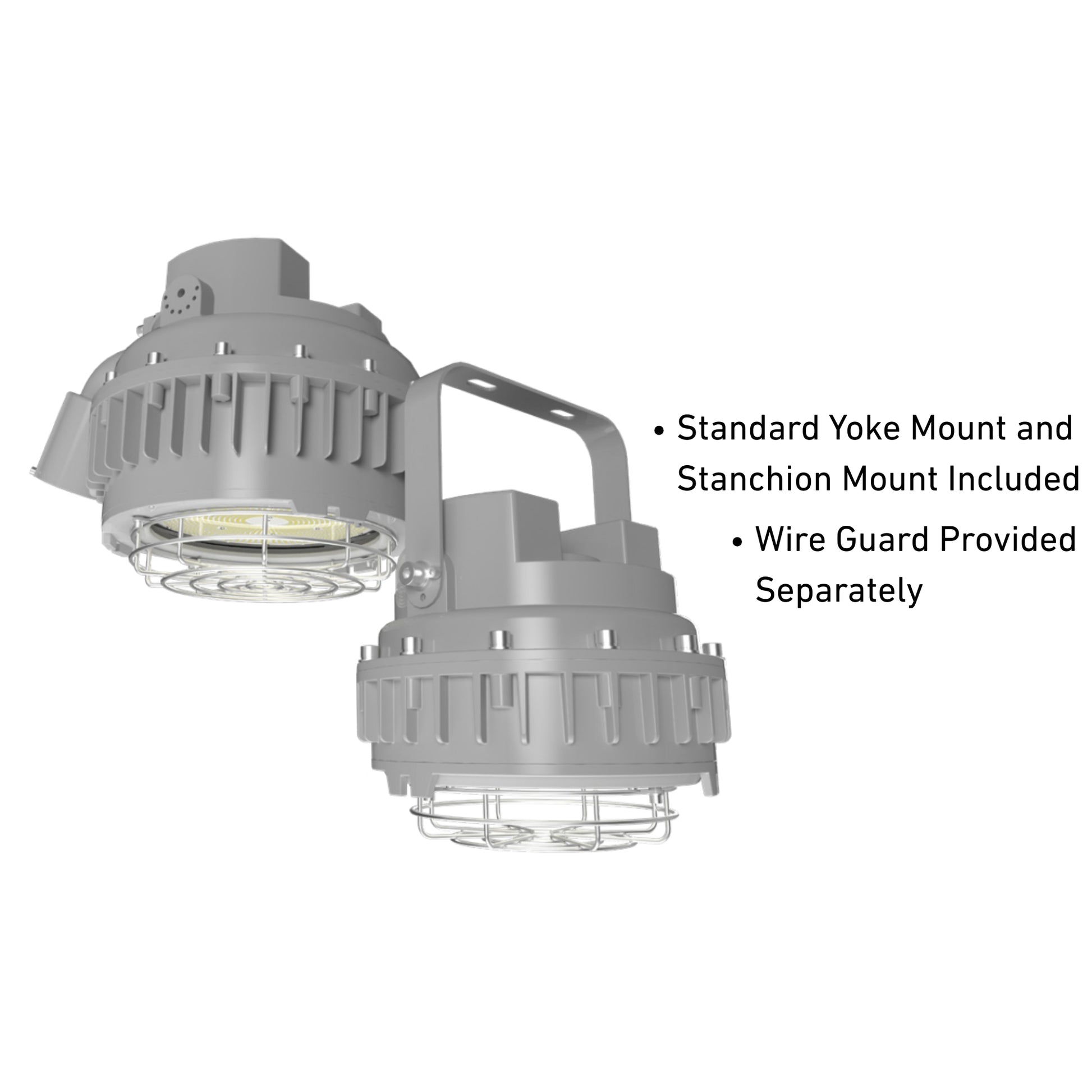

  • Complete Mounting Solution: A fully adjustable yoke mount and an included stanchion mount kit ensure you have everything needed for a robust and secure installation.

Technical Resources

Specifications

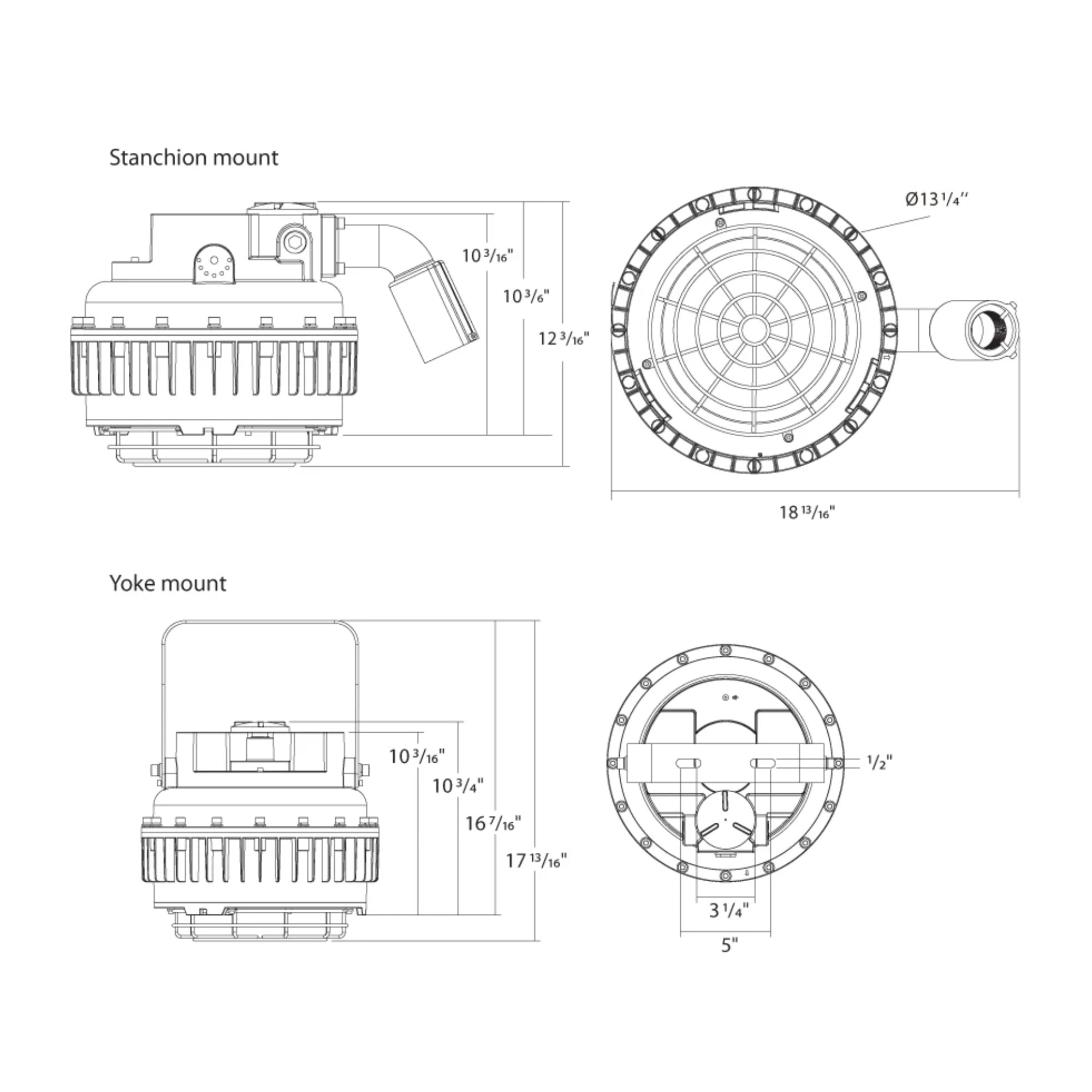

Size:
13.25'' L X 13.25'' W X 17.82'' H
Materials:
Aluminum
Total Wattage:
200
Lamp Color:
5000K
Color Rendering:
80
Lamp Life:
100,000 Hours
LED Wall Pack, 19000 Lumens, 120W, 30K|40K|50K, On/Off Photocell, 120-277V - Bees Lighting

RAB Lighting

RAB Lighting is a leading manufacturer of professional-grade LED lighting, with a reputation built on innovation, performance, and an unwavering commitment to quality. For over 75 years, RAB has engineered durable, energy-efficient fixtures for commercial and industrial applications. From powerful floodlights to high-performance high bays, RAB is the definitive choice for contractors, specifiers, and facility managers who demand superior and reliable lighting solutions.

Shop RAB Lighting

Frequently Asked Questions
