Overview

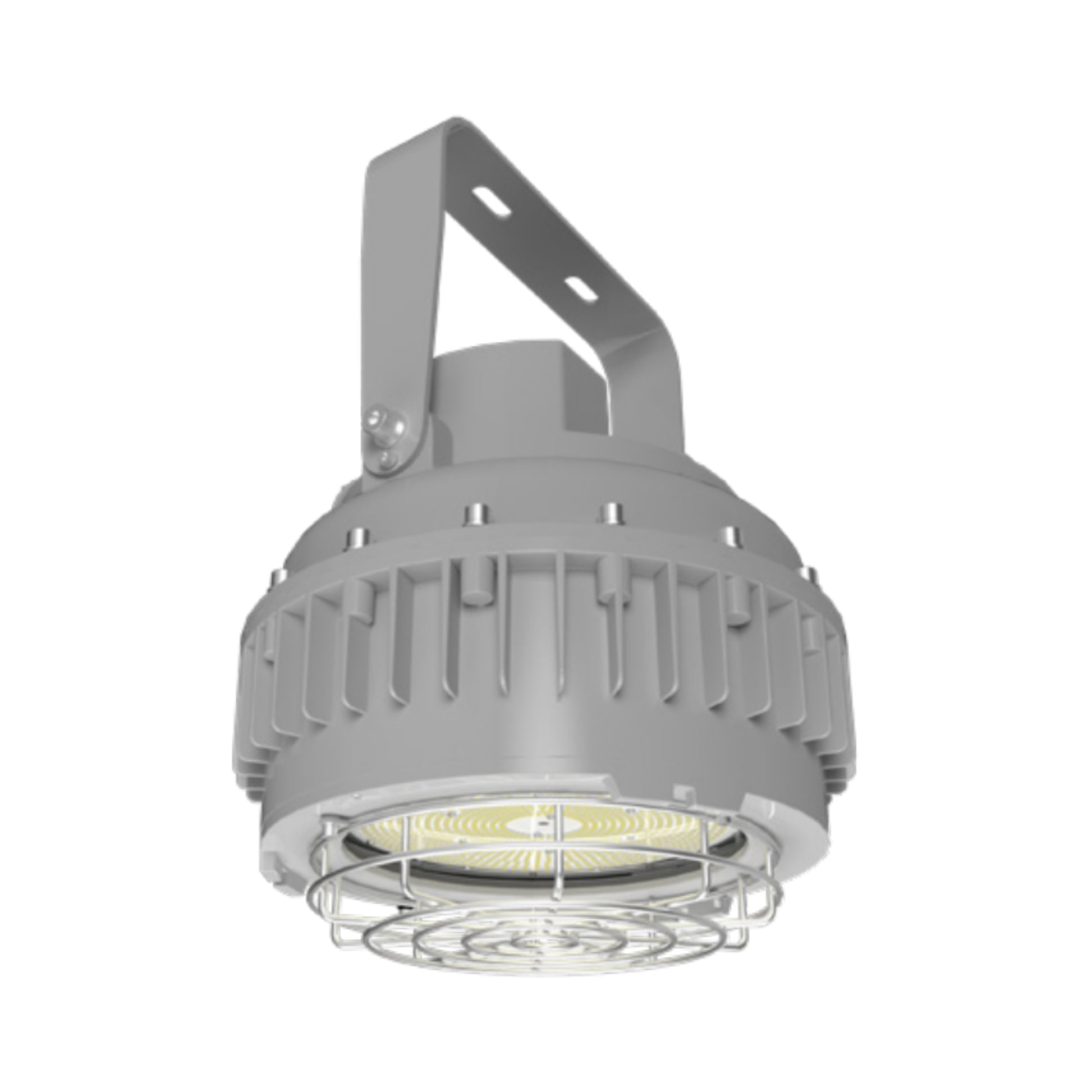

Power through the most demanding visual conditions with the RAB HAZX150CF Explosion-Proof LED High Bay. Designed as a high-performance powerhouse, this fixture is engineered to flood large, hazardous locations with brilliant light. Its immense 23666-lumen output cuts through airborne dust and vapor, dramatically improving visibility and operational safety. Beyond its raw power, the HAZX150CF carries the critical Class I, Division 1 certification required for the most volatile zones. The rugged build, featuring an IK08-rated copper-free aluminum body and an IP66 seal, ensures it can withstand harsh physical and environmental abuse. For large-scale facilities needing superior brightness without compromising on safety, this 150W fixture is the clear choice.

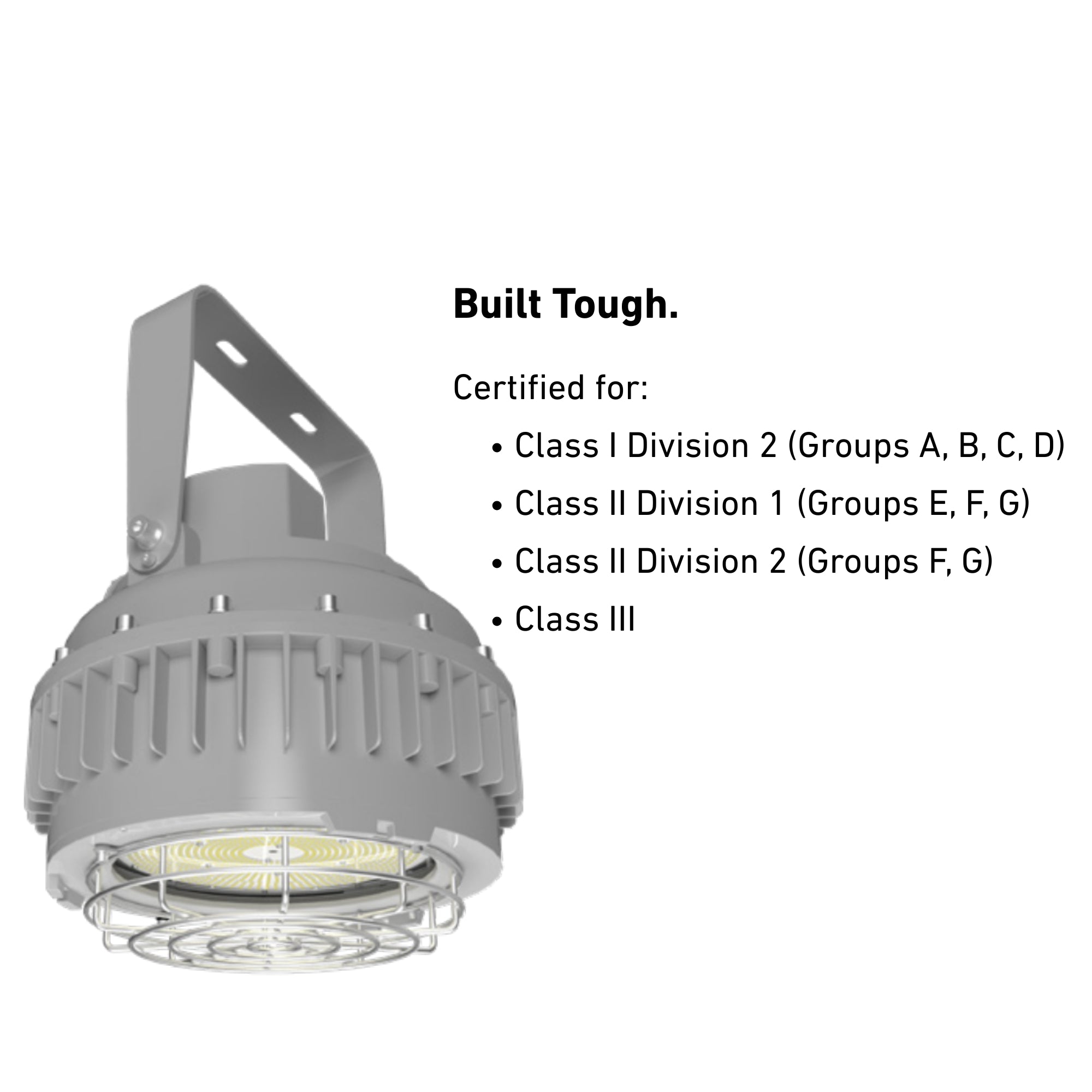

  • Comprehensive Hazardous Certifications: Certified for Class I, Div 1 (Groups B, C, D); Class I, Div 2 (Groups A, B, C, D); Class II, Div 1 (Groups E, F, G); Class II, Div 2 (Groups F, G); and Class III.
  • Intense Light Output: The high-output 150W source generates a massive 23666 lumens of 5000K daylight, ideal for high ceilings and expansive floor areas.
  • Impact-Ready Construction: Engineered with tough materials, including a copper-free aluminum body and tempered glass, to achieve an IK08 rating against impacts.
  • Resilient in Extreme Climates: With an IP66 rating and an operating range of -40°F to 149°F, this fixture is built to perform reliably in any weather condition.

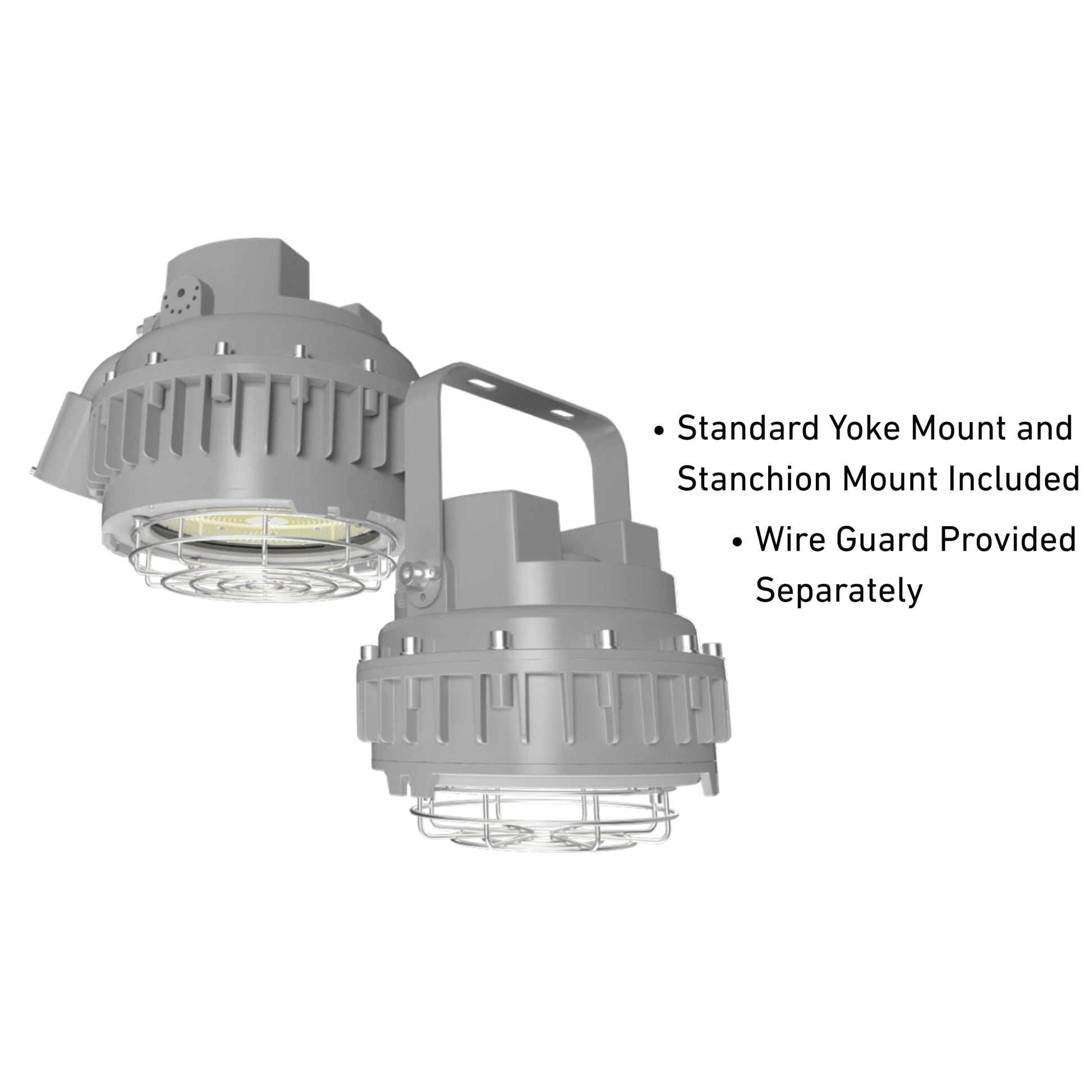

  • Flexible Mounting Hardware: Includes a heavy-duty yoke for easy tilting and a stanchion mount kit, offering multiple solutions for secure installation.

Technical Resources

Specifications

Size:

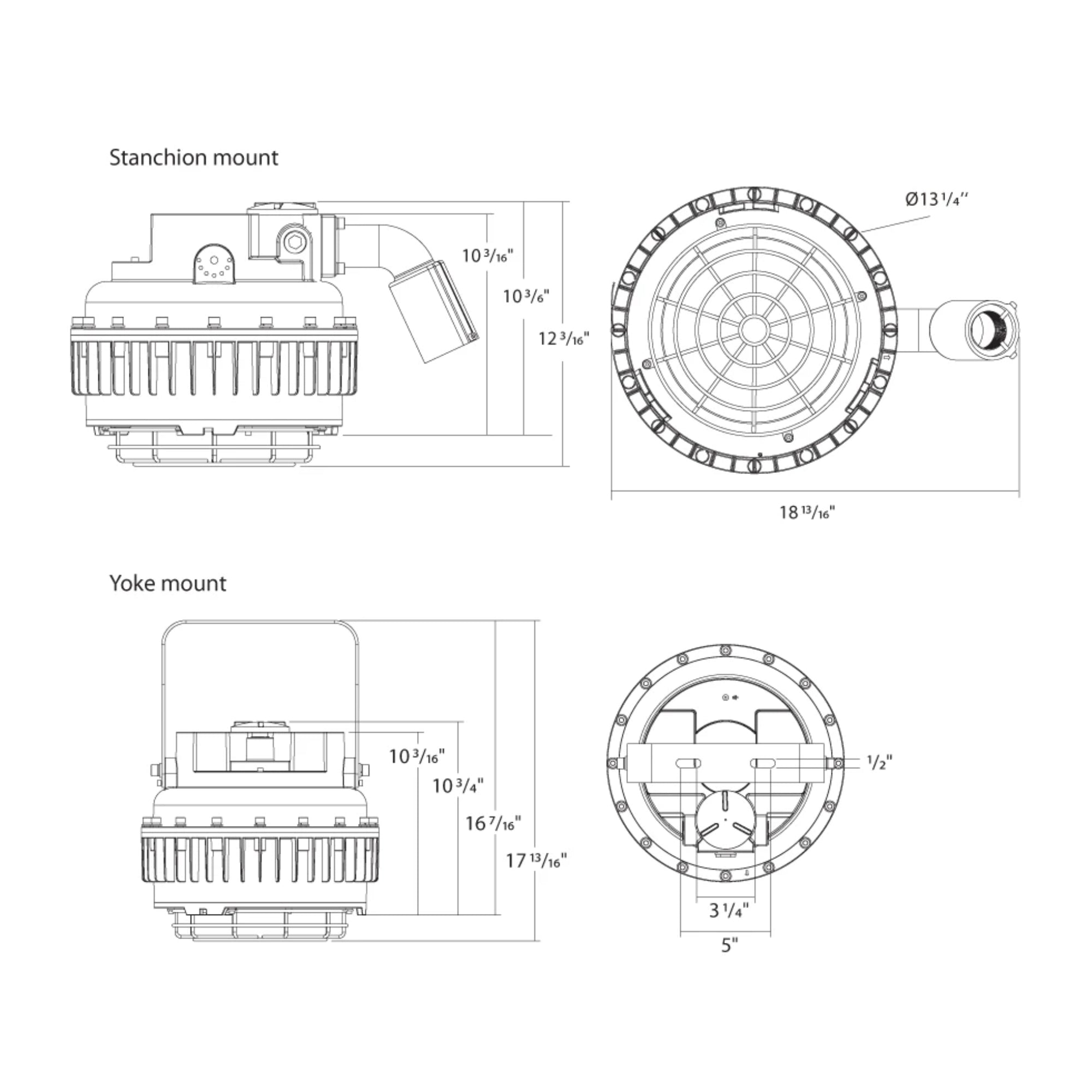

13.25'' L X 13.25'' W X 17.82'' H
Materials:
Aluminum
Total Wattage:
150
Lamp Color:
5000K
Color Rendering:
80
Lamp Life:
100,000 Hours
