RAB HA6 6 in Round LED Downlight Module — 18W / 1,600–1,800 lm / Selectable CCT / 120V

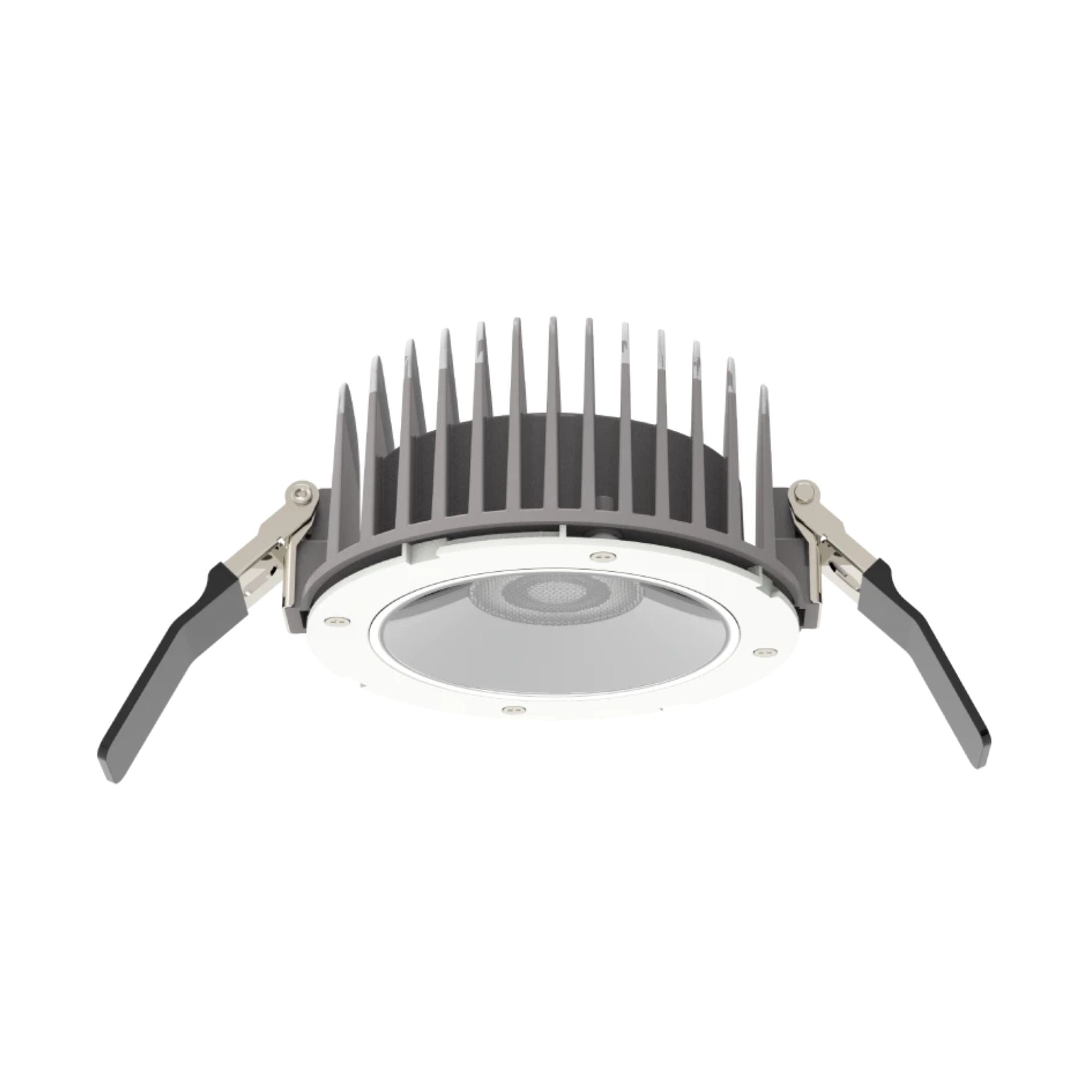

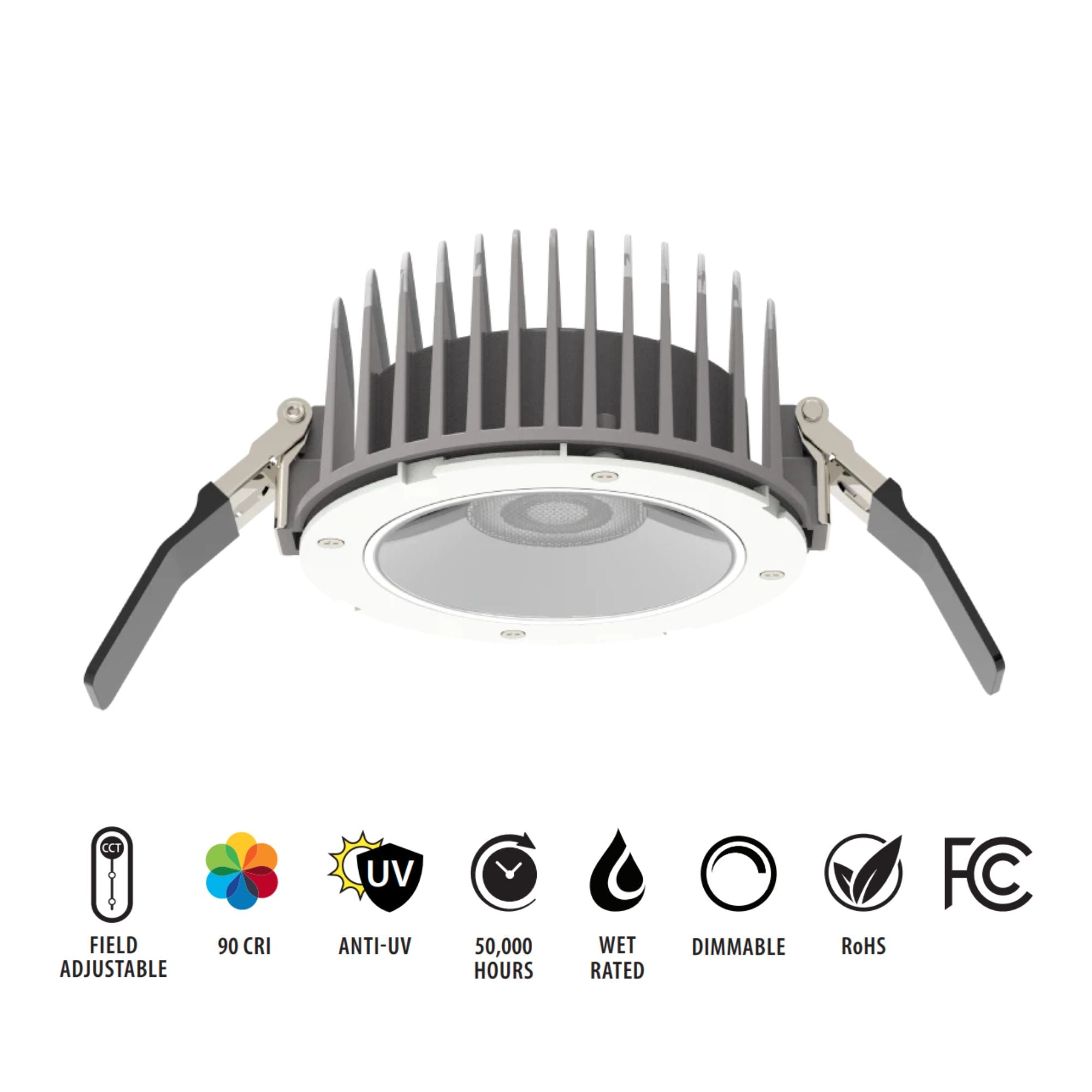

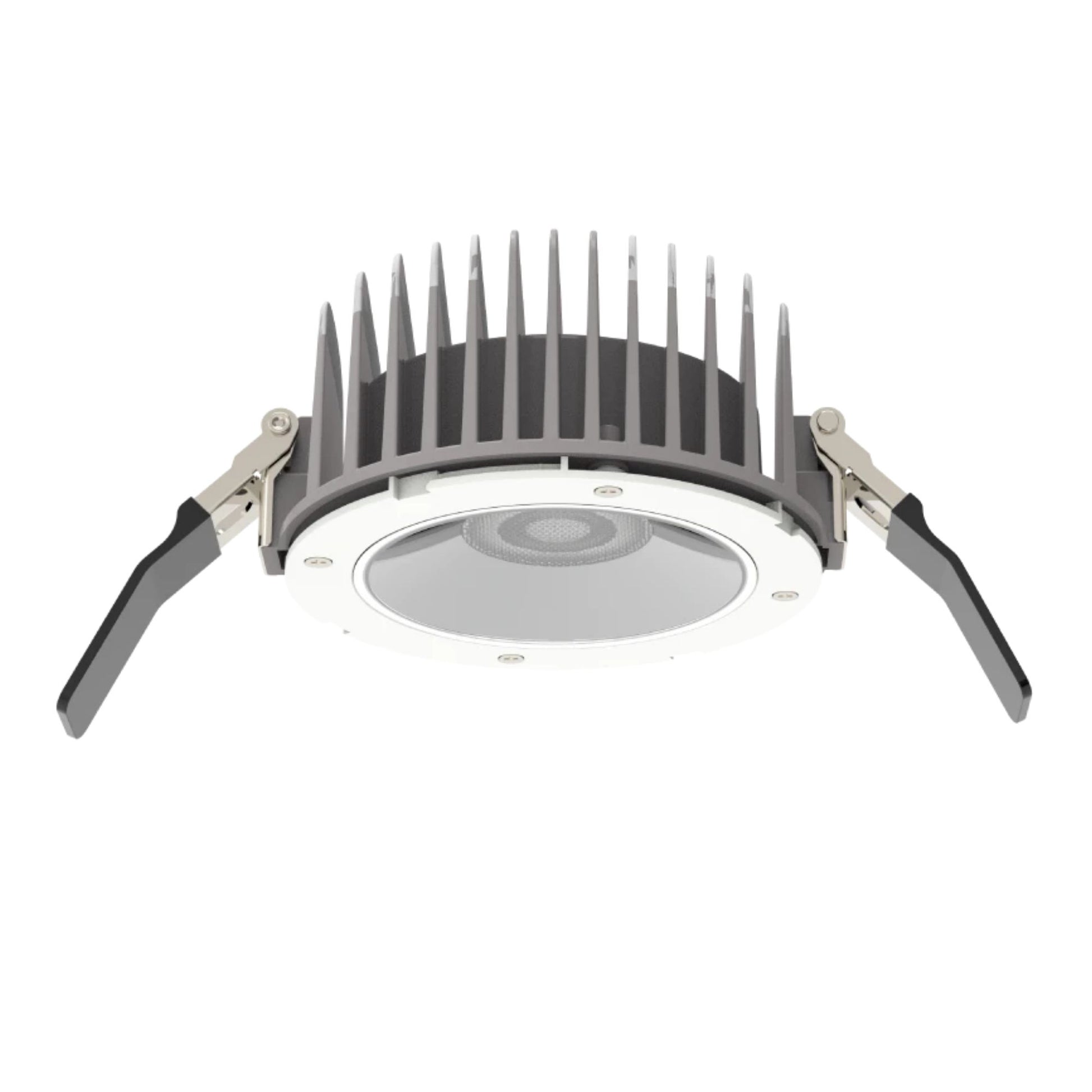

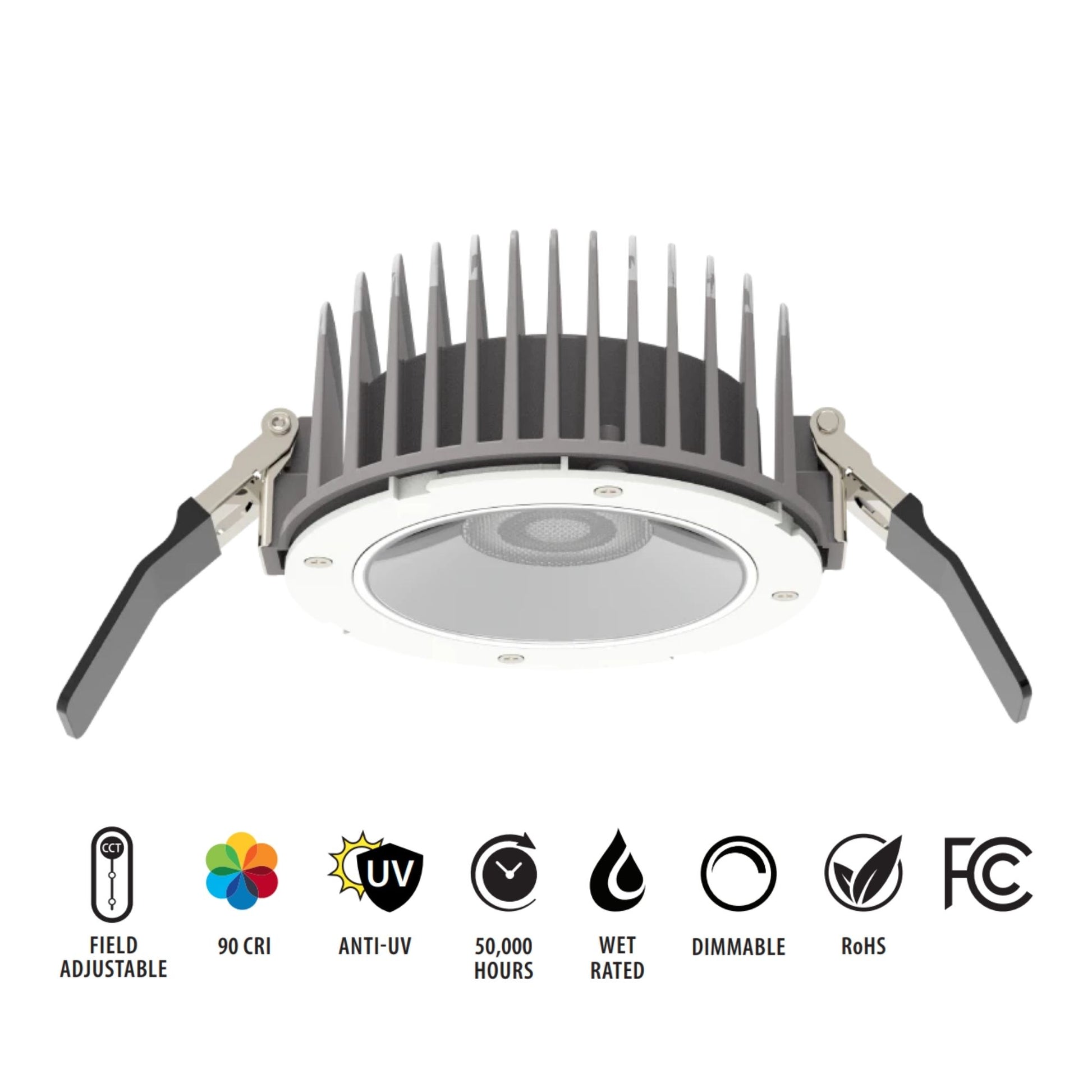

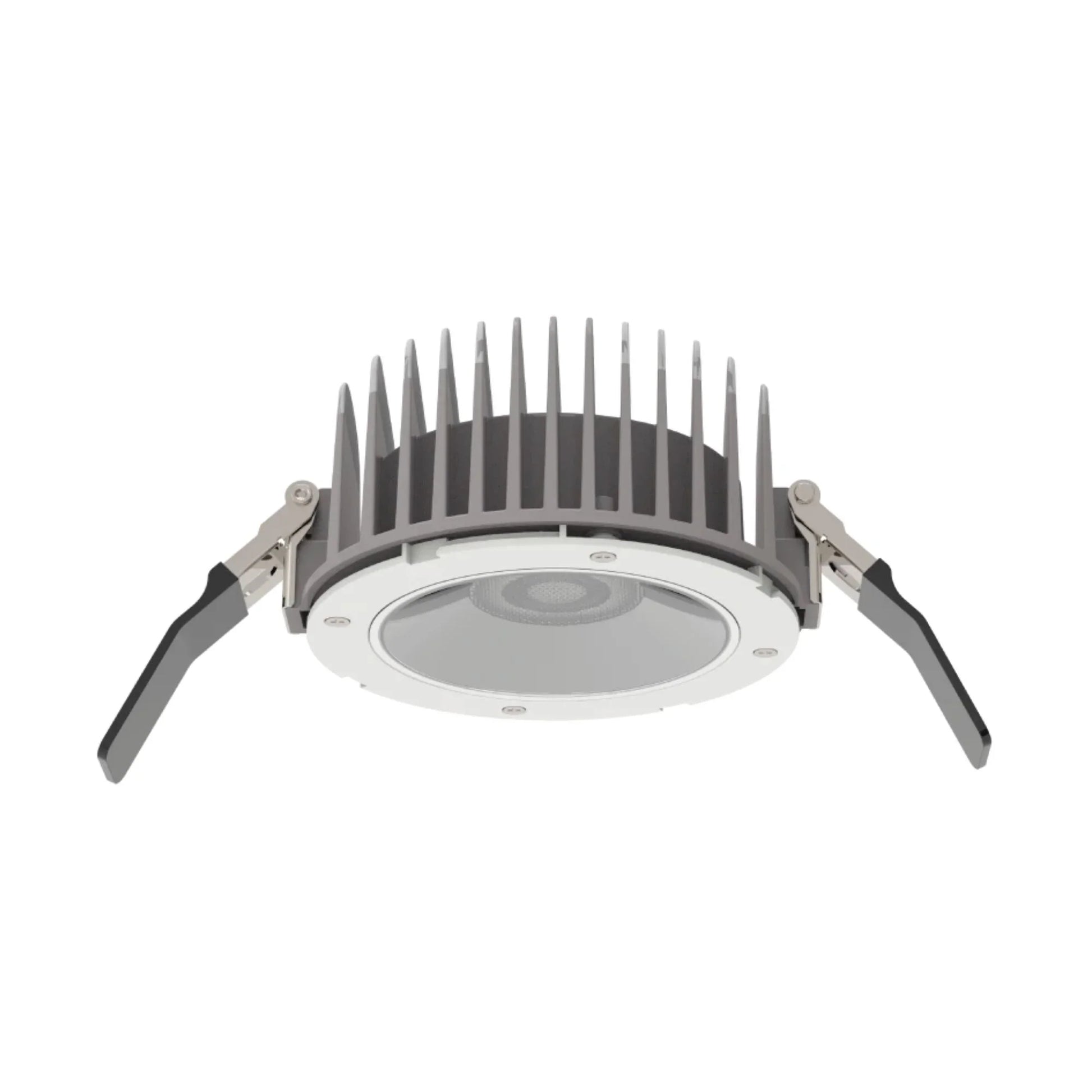

The RAB HA6 is a 6 in round LED downlight module for the HALED modular recessed lighting system. Delivering 1,600–1,800 lm at 18W (89–100 lm/W), with field-selectable CCT from 2700K to 5000K, IC rating, airtight construction, TRIAC and 0-10V dimming, and California Title 24 JA8 compliance. Anti-UV metal construction rated for wet locations. Must be paired with a compatible 6 in HALED trim (sold separately) to complete the fixture. For 120-277V applications, order the HAD6/D10 driver separately.

Key Features

• Module Type: 6 in round LED downlight module | HALED modular system | Requires 6 in HALED trim to complete fixture
• Construction: Metal | Anti-UV | Round | Smooth trim interface | 45° optical lens for uniform light distribution | Weight: 1.2 lbs | Color: Black/white module body
• Wattage: 18W | Replaces 26W CFL
• Light Output: 1,600–1,800 lm (varies by CCT)
• Efficacy: 89–100 lm/W

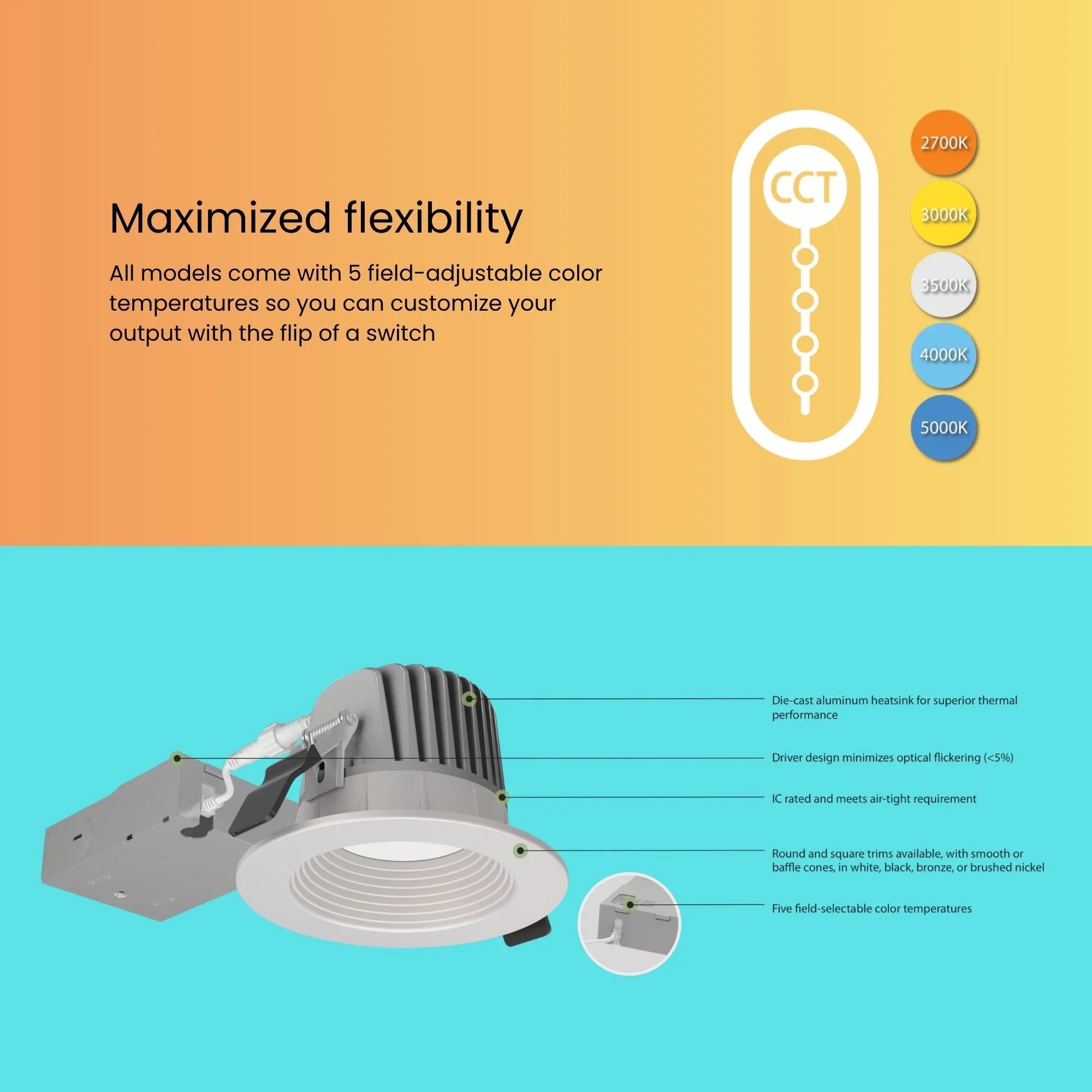

• Field-Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
• CRI: 90 | Color stability ≤200K over 5 years (ANSI C78.377-2017)
• Input Voltage: 120V | 60 Hz | 0.17A | For 120-277V: order HAD6/D10 separately
• Driver: Constant Current | PF: 0.9 | THD: ≤20%

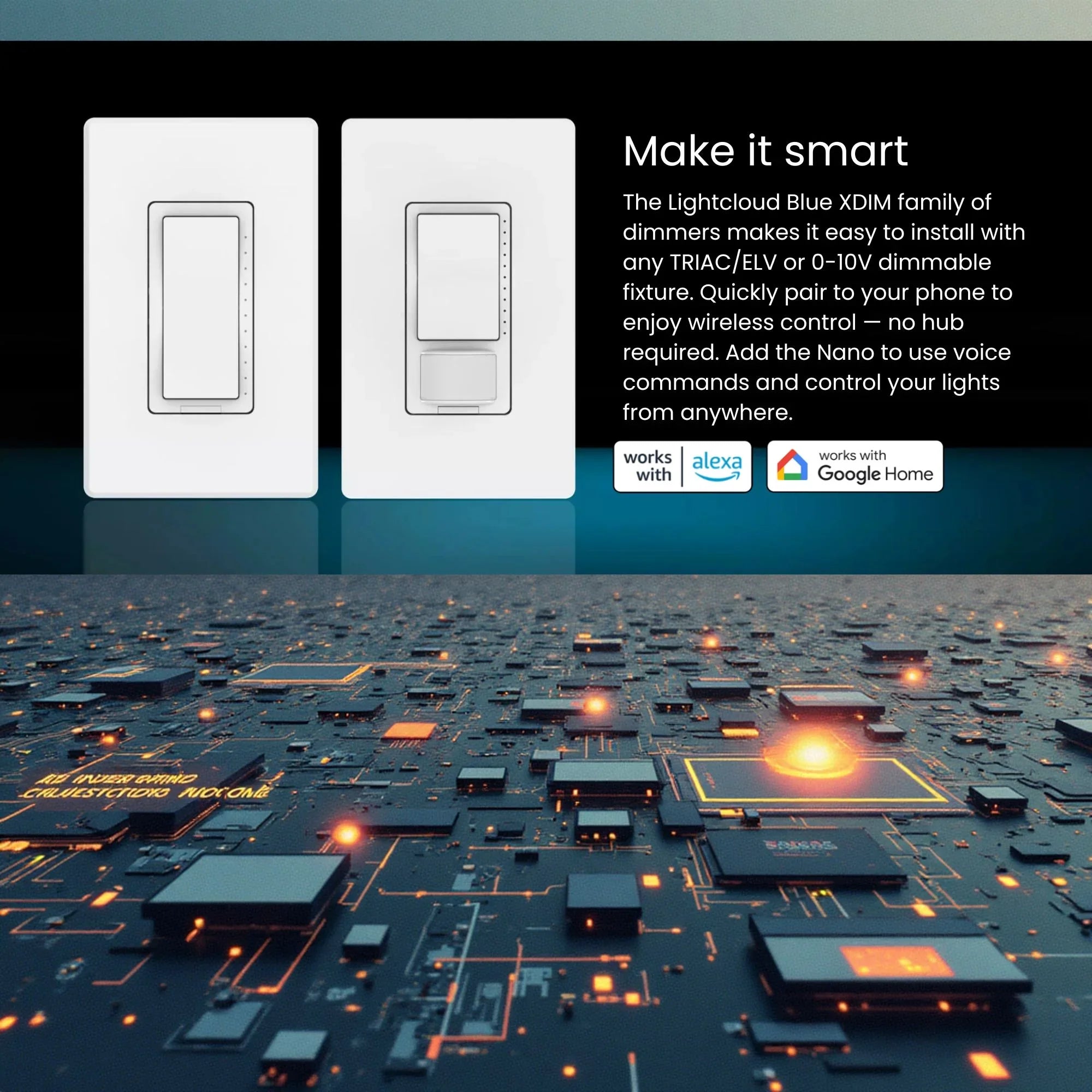

• Dimming: TRIAC and 0-10V dimmable | See RAB Dimmer Compatibility List
• IC Rating: Type IC — inherently protected; suitable for direct contact with air-permeable insulation; cULus listed for damp locations; NOT for spray foam insulation (consult NEMA LSD57-2013)
• Air Tight: Yes — per ASTM-E283-04
• Environment: Wet rated (UL Listed) | Op temp: -4°F to 104°F (-20°C to 40°C)
• Certifications: UL Listed (wet locations) | ENERGY STAR Certified (v2.2) | California Title 24 Part 6 / JA8 Compliant | FCC Part 15 | IESNA LM-70 | ANSI C78.377-2017
• Note: All values typical (tolerance +/- 10%). BAA compliant upon request — contact RAB customer service.
• Lifespan: 50,000 hours L70 (IES LM-70) | Warranty: 5-year no-compromise warranty

Light Output & Performance

The HA6 delivers 1,600–1,800 lm at 18W, with efficacy ranging from 89–100 lm/W across the five CCT settings. The 45° optical lens provides uniform light distribution. With a CRI of 90, colors render accurately across all CCT selections. Color temperature is warranted to shift no more than 200K over 5 years per ANSI C78.377-2017.

Electrical & Installation

The HA6 operates at 120V / 60 Hz / 0.17A with a constant current driver. TRIAC and 0-10V dimmable — see the RAB Dimmer Compatibility List for compatible dimmers. PF: 0.9, THD ≤20%. For 120-277V applications, order the HAD6/D10 driver (sold separately). IC rated for direct contact with air-permeable insulation; airtight per ASTM-E283-04. Rated for operation from -4°F to 104°F. Recessed ceiling mount. Requires a compatible 6 in HALED trim to complete the fixture.

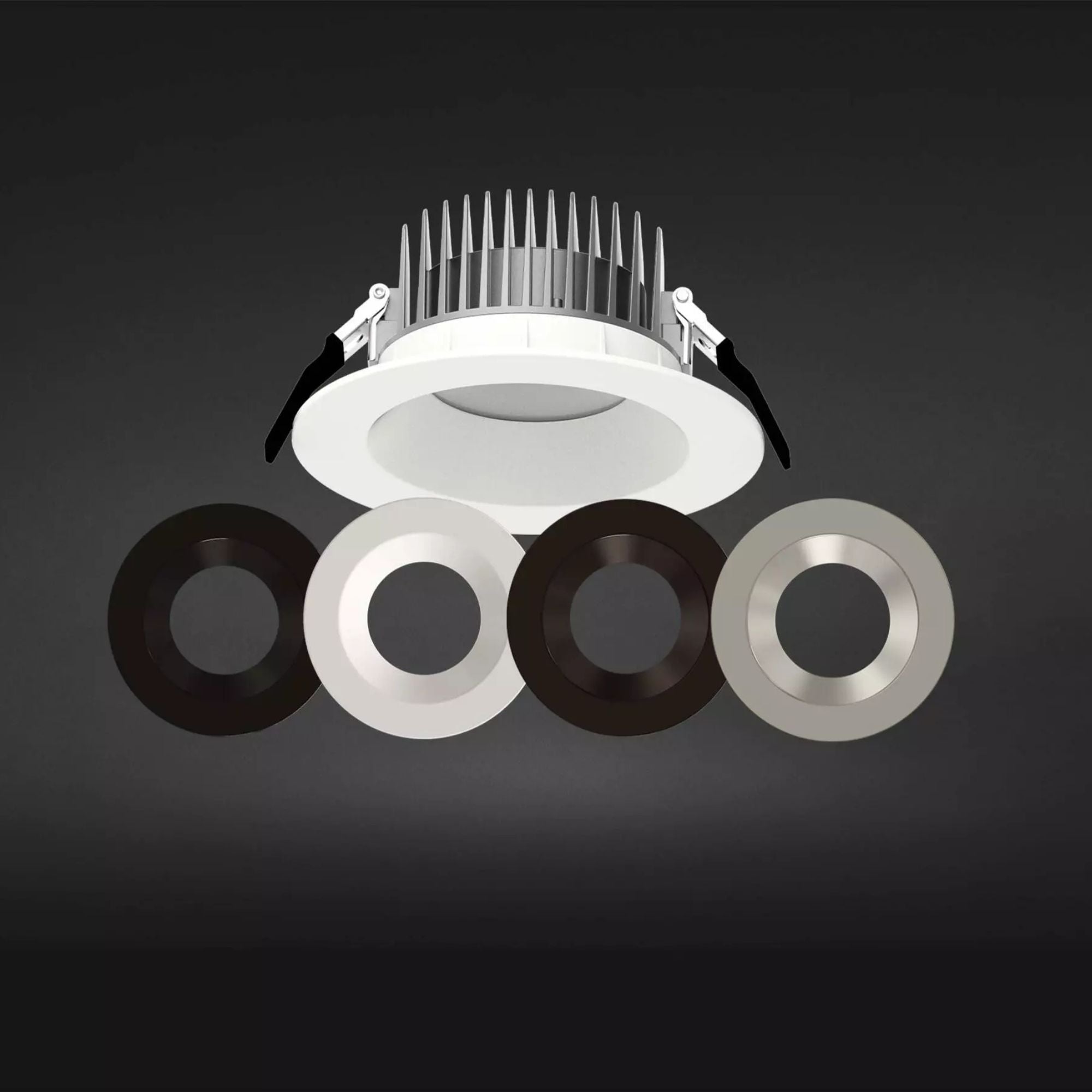

Compatible Trims (Sold Separately)

• 6 in Round Smooth: HAT6RW (white) | HAT6RB (black) | HAT6RBN (brushed nickel) | HAT6RA (bronze)
• 6 in Round Baffle: HAT6RBW (white)
• 6 in Square Smooth: HAT6SW (white) | HAT6SB (black) | HAT6SBN (brushed nickel) | HAT6SA (bronze)
• 6 in Square Baffle: HAT6SBW (white)
• 120-277V Driver: HAD6/D10 (120-277V, 0-10V + TRIAC)

Typical Applications

• Residential kitchens, bathrooms, and living areas
• Commercial offices and retail spaces
• Hospitality environments
• Wet and damp locations including bathrooms and covered outdoor areas
• California Title 24 JA8 compliant installations
• IC-rated and airtight applications with air-permeable insulation

What’s Included

• RAB HA6 6 in round LED downlight module
• Note: HALED trim required — sold separately. See Compatible Trims above.
