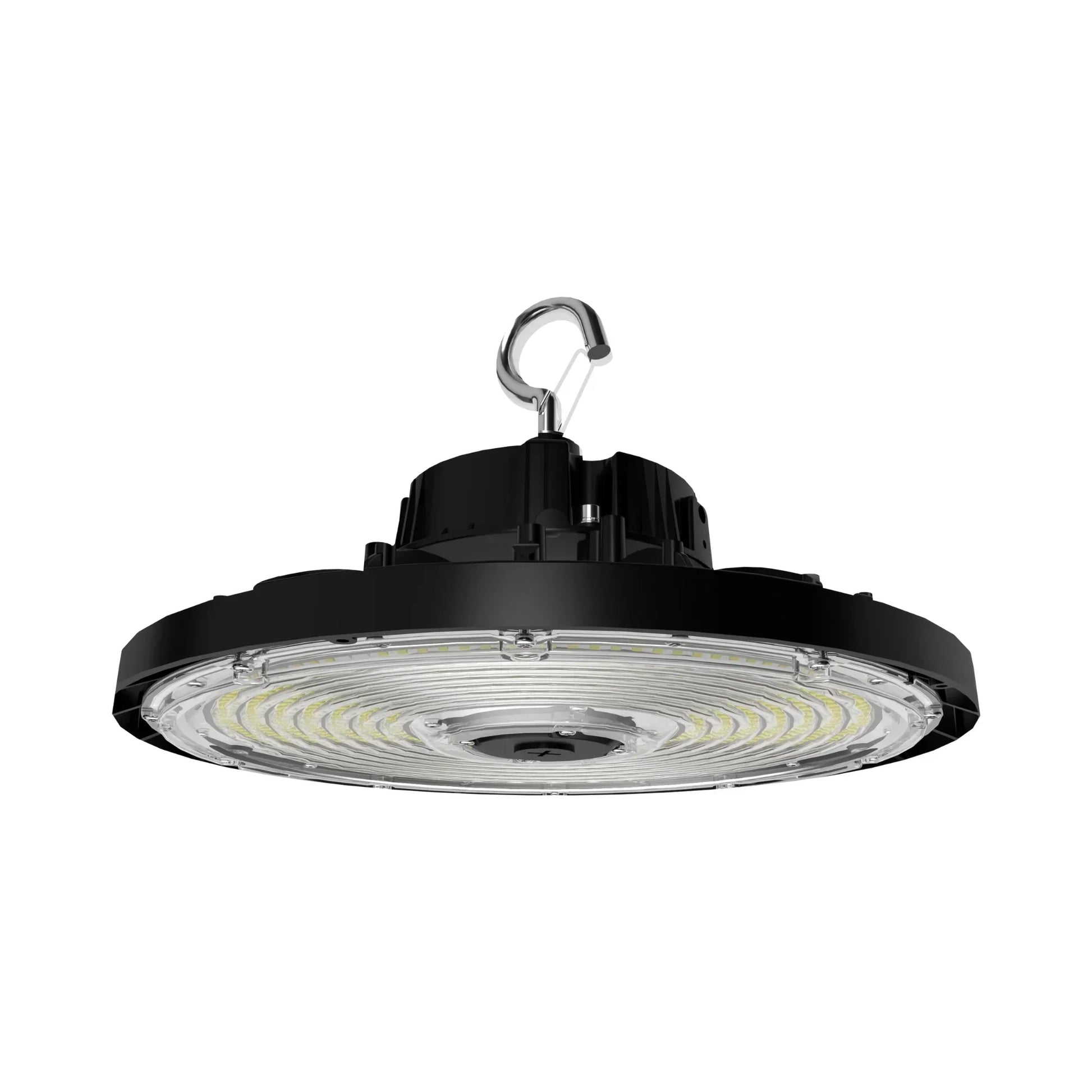

RAB H17XXLB Field-Adjustable UFO LED High Bay — 500W / 400W / 300W Selectable — Black

The RAB H17XXLB is a high-output, field-adjustable UFO LED high bay in a black finish delivering up to 79,203 lumens with selectable wattage of 500W, 400W, and 300W (factory default 500W) and selectable CCT of 3000K, 4000K, and 5000K (factory default 4000K). It operates on universal 120–277V, 50/60Hz with integrated 0-10V dimming to 10%, carries a UL Wet Location listing and IP65 ingress protection rating, and is certified DLC 5.1 Premium (S-YB69RP) — qualifying for the highest tier of utility rebate programs. Cold weather rated to -40°F (-40°C). Designed for very high-ceiling industrial applications where maximum lumen output is required.

Key Features

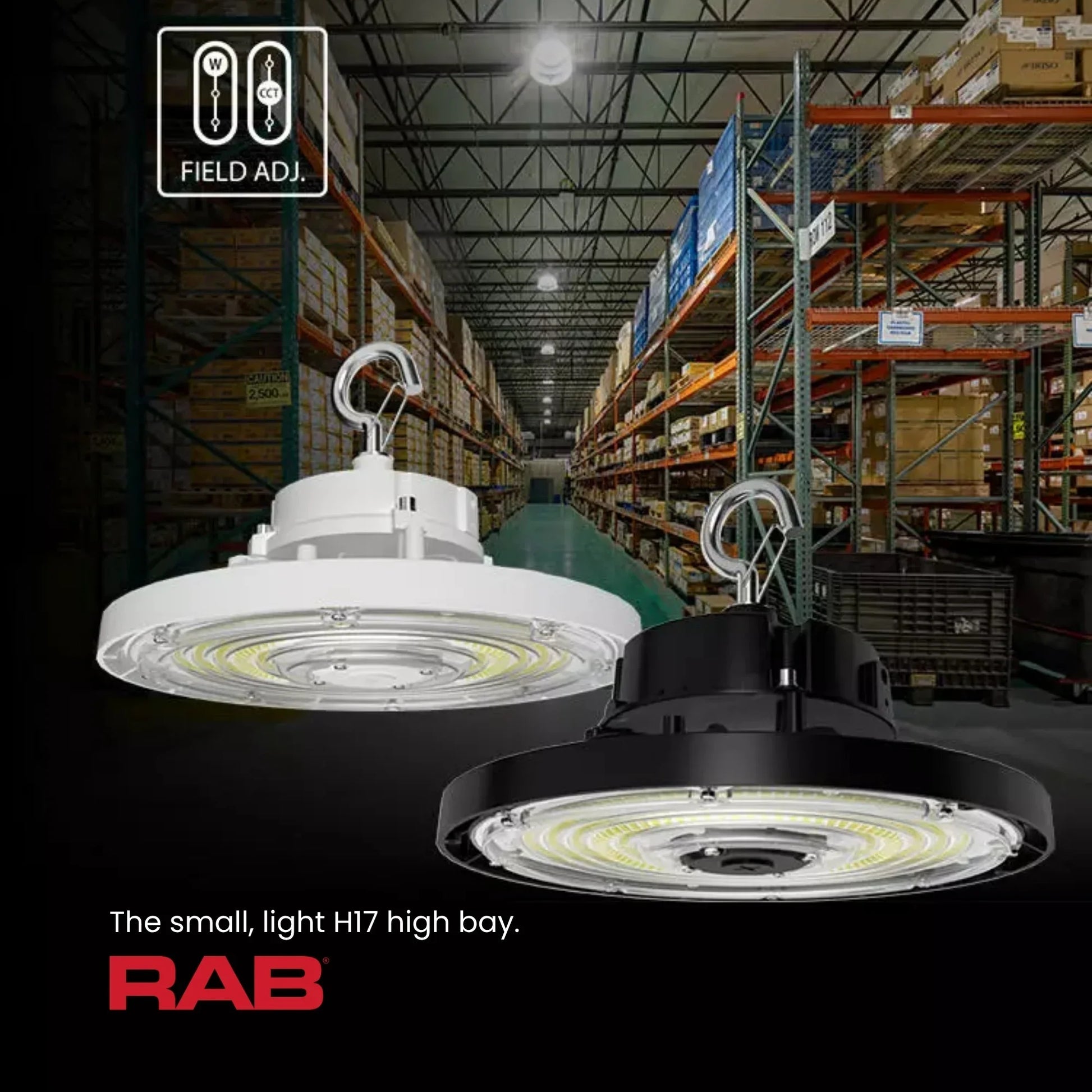

• Selectable Wattage: 500W / 400W / 300W — field-adjustable via built-in selector switch, factory default 500W
• Selectable CCT: 3000K / 4000K / 5000K — field-adjustable, factory default 4000K
• Maximum Lumen Output: 79,203 lm at 500W
• Lumen Range: 49,020–79,203 lm across all configurations
• Peak Efficacy: 178 lm/W
• CRI: 81–84 across all wattage and CCT configurations
• Color Consistency: 7-step MacAdam Ellipse binning for consistent fixture-to-fixture color
• Dimming: 0-10V dimming standard, dim to 10%; Dim to Off capable
• Voltage / Driver: 120–277V, 50/60Hz; Constant Current, Class 1 driver
• Location Rating: UL Listed for wet locations; IP65 rated for dust and water ingress
• Cold Weather Start: Minimum starting temperature -40°F (-40°C)
• Maximum Ambient Temperature: 122°F (50°C) at 500W; 135°F (57°C) at 400W; 145°F (63°C) at 300W
• Certifications: UL Wet Location, DLC 5.1 Premium (S-YB69RP), IES LM-79 and LM-80 tested
• Rated Life: 100,000 hours L70
• Warranty: 5-year limited — covers light output, driver performance, and paint finish
• Wattage Equivalency: 500W replaces 1500W Metal Halide
• BAA Compliant: Available on request — contact RAB for a BAA-compliant quote

Performance & Light Output

The H17XXLB delivers 49,020–79,203 lm across all wattage and CCT configurations, with peak efficacy of 178 lm/W and input watts ranging from 292.9–489.8W. CRI 81–84 across all settings. Rated life 100,000 hours L70. Note: per-wattage × CCT lumen breakdown is not published in the RAB H17XXLB specification sheet; the figures above represent the full range across all configurations. Contact RAB Lighting for full photometric data by wattage and CCT setting.

Smart & Control Features

The H17XXLB supports two factory-configured control options and is compatible with the full RAB Lightcloud Blue wireless mesh sensor ecosystem:

• 0-10V Dimming (standard): Dims to 10% via standard 0-10V DC circuit; Dim to Off capable. Compatible with most commercial building control and energy management systems.
• Lightcloud Blue (accessory): Add PIR40B/LCB or MVS50B/LCB sensor/controller accessories for wireless Bluetooth mesh group control without additional wiring. Low-ceiling variants PIR20B/LCB and MVS20B/LCB also available.

Remote control accessory (catalog# MSR1) available for field adjustment of wattage and CCT without ladder access. Occupancy sensors available in high-ceiling (PIR40B · MVS50B) and low-ceiling (PIR20B · MVS20B) variants.

Electrical

Constant Current, Class 1 driver. Input: 120–277V, 50/60Hz. Input watts: 292.9–489.8W. Power Factor: 99.7% at 120V · 95.5% at 277V (500W); 99.6% at 120V · 94.3% at 277V (400W); 99.4% at 120V · 91.8% at 277V (300W). Surge protection: L-N: 6kV · L/N-PE: 10kV. Mercury-free, UV-free, RoHS-compliant components.

Construction

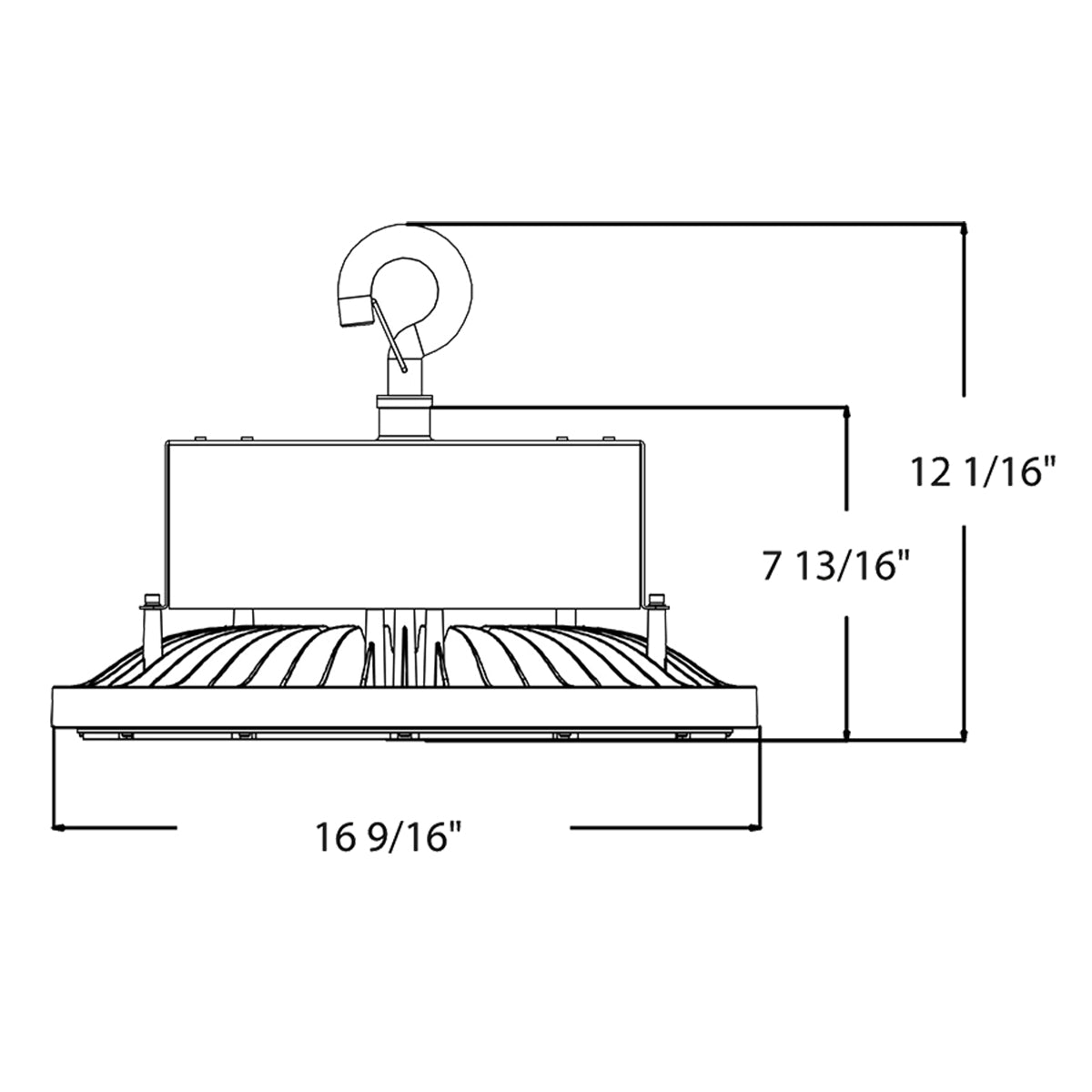

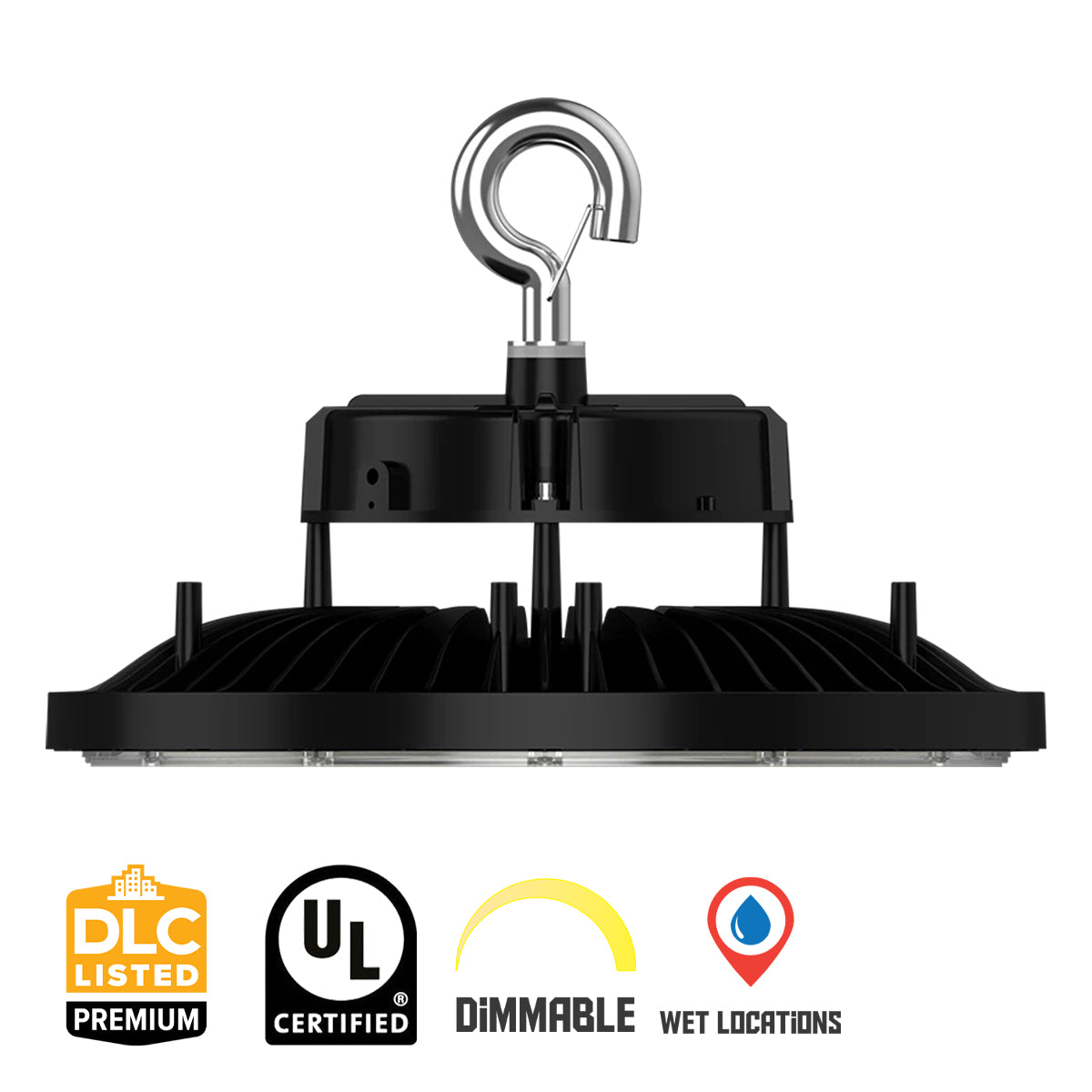

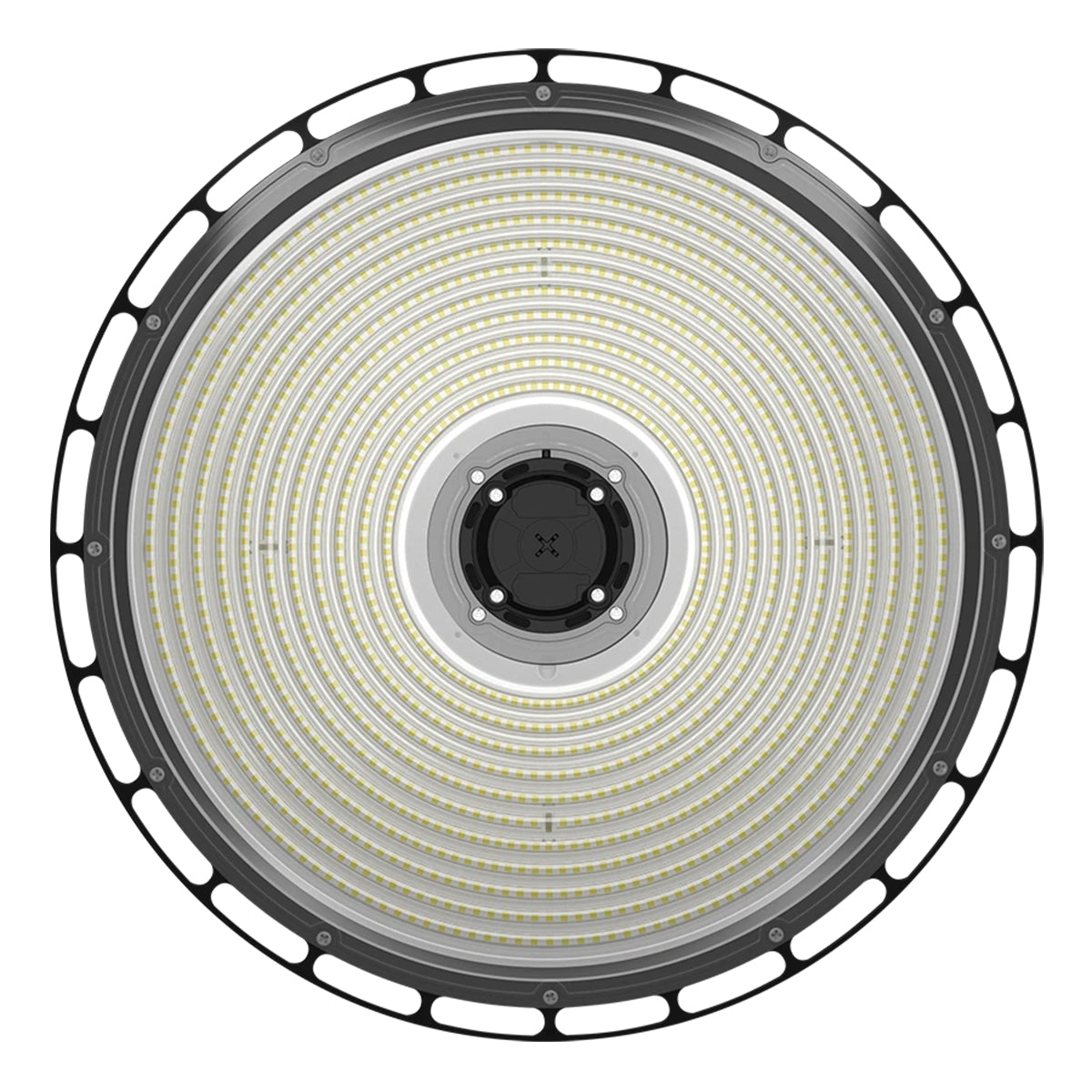

Precision die-cast aluminum housing in black finish formulated for high durability and long-lasting color. Polycarbonate lens. Polycarbonate and aluminum reflector (sold separately). IP65 rated for dust and water ingress. Weight: 17.4 lbs. Dimensions: 16 9/16" dia × 7 13/16" H.

Installation & Mounting

Comes standard with a heavy-duty hanging hook and 6-foot cord. Heavy-duty 3/4"-14 NPT hook; 3/4"-14 pendant mount capable (pendant by others). Optional accessories (sold separately):

• Reflectors: H17XXL-RAL (Aluminum)
• Wire Guards: H17XXL-DWG (Black)
• Pendant Mount Kit: H17XXL-PM KIT Black
• Surface / Yoke Mount Kit: H17XXL-SM KIT Black
• Emergency Battery: EMHB60B (60W, Black) — 90 min runtime, rated for 500W fixtures

Recommended ceiling height: 35–50 ft at 300–400W; 40+ ft at 500W. For ceiling heights of 20–40 ft, consider the RAB H17XLB (240W / 200W / 150W).

Certifications & Rebates

UL Listed for wet locations. DLC 5.1 Premium Listed — product code S-YB69RP. To verify rebate eligibility with your utility provider, visit designlights.org and search product code S-YB69RP. RoHS compliant. IES LM-79 and LM-80 tested per IESNA standards. BAA-compliant version available on request.

Typical Applications

• High-Bay Warehouses & Distribution Centers: Up to 79,203 lm at 500W delivers the high-intensity illumination needed for very tall racking and open-floor distribution operations at 40+ ft ceilings
• Aircraft Hangars & Large Manufacturing Facilities: Field-selectable wattage allows output to be right-sized for massive open-span industrial spaces without over-illuminating at lower ceiling zones
• Cold Storage & Freezer Warehouses: Rated to -40°F (-40°C) for reliable cold-start performance in refrigerated high-bay distribution facilities
• Covered Loading Docks & Industrial Outdoor Areas: UL Wet Location listing and IP65 rating handle direct moisture and dust exposure in demanding semi-outdoor environments
• Arenas & Large Recreation Facilities: 0-10V dimming and Lightcloud Blue sensor compatibility enable event-level control across large high-ceiling venues
• Government & Municipal Facilities: DLC 5.1 Premium certification and BAA-compliant availability support public sector procurement and utility rebate programs

What's Included

• RAB H17XXLB UFO LED high bay fixture — Black (1)
• Heavy-duty hanging hook
• 6-foot cord
• Mounting hardware
