RAB H17SB UFO High Bay 14,959 Lumens 100W/80W/60W Selectable 3000K/4000K/5000K 120-277V Black
Available in stock (600)
About this item
About this item
- Selectable Output: 60W / 80W / 100W field-adjustable
- Universal Voltage: 120–277V operation for standard commercial systems
- Integrated Dimming: 0–10V control compatible with building lighting systems
- Wet Location Rated: IP65 protection for demanding environments
- Rebate Eligible: DLC Premium Listed and UL Listed
We process payments securely and do not store credit card information.
Description
Description

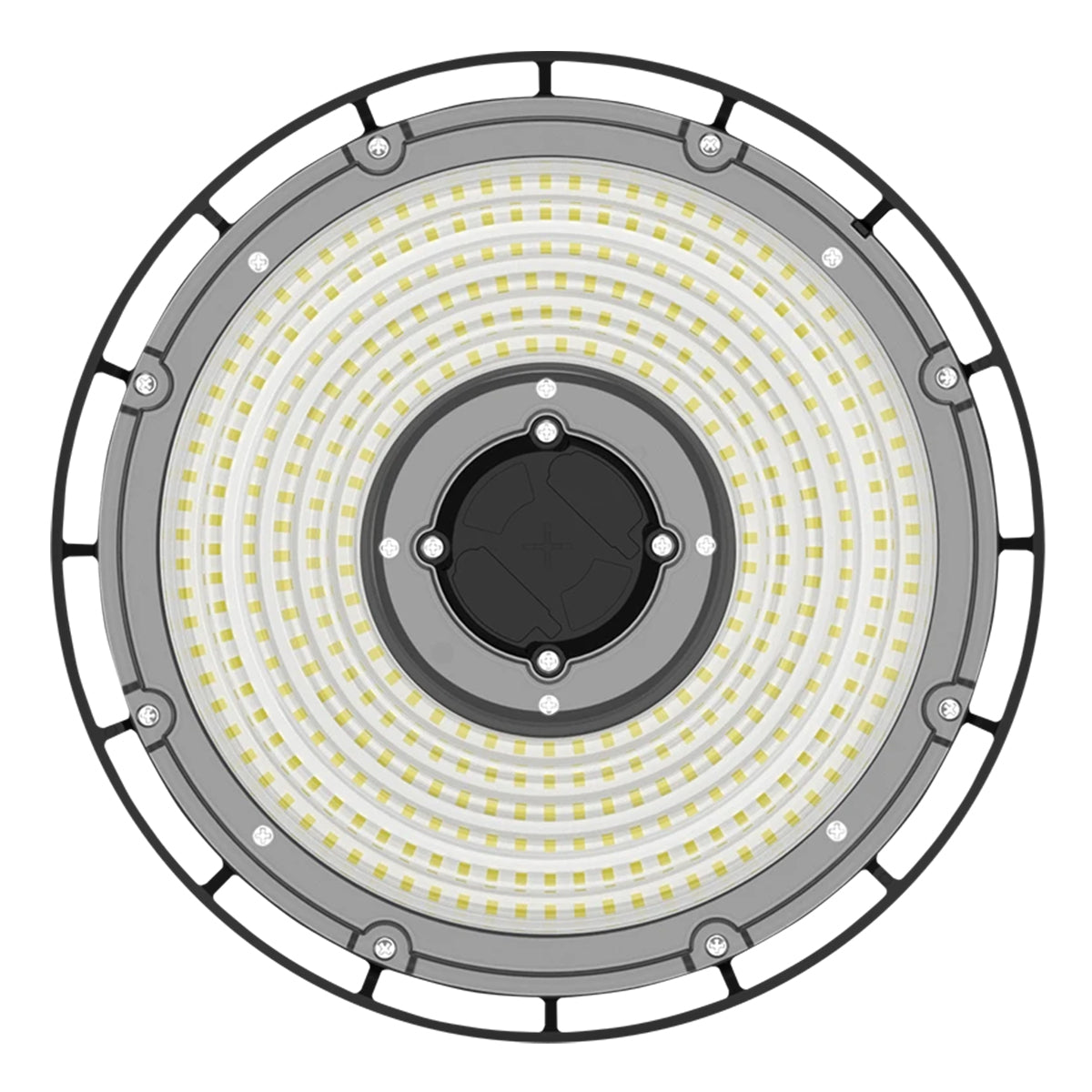

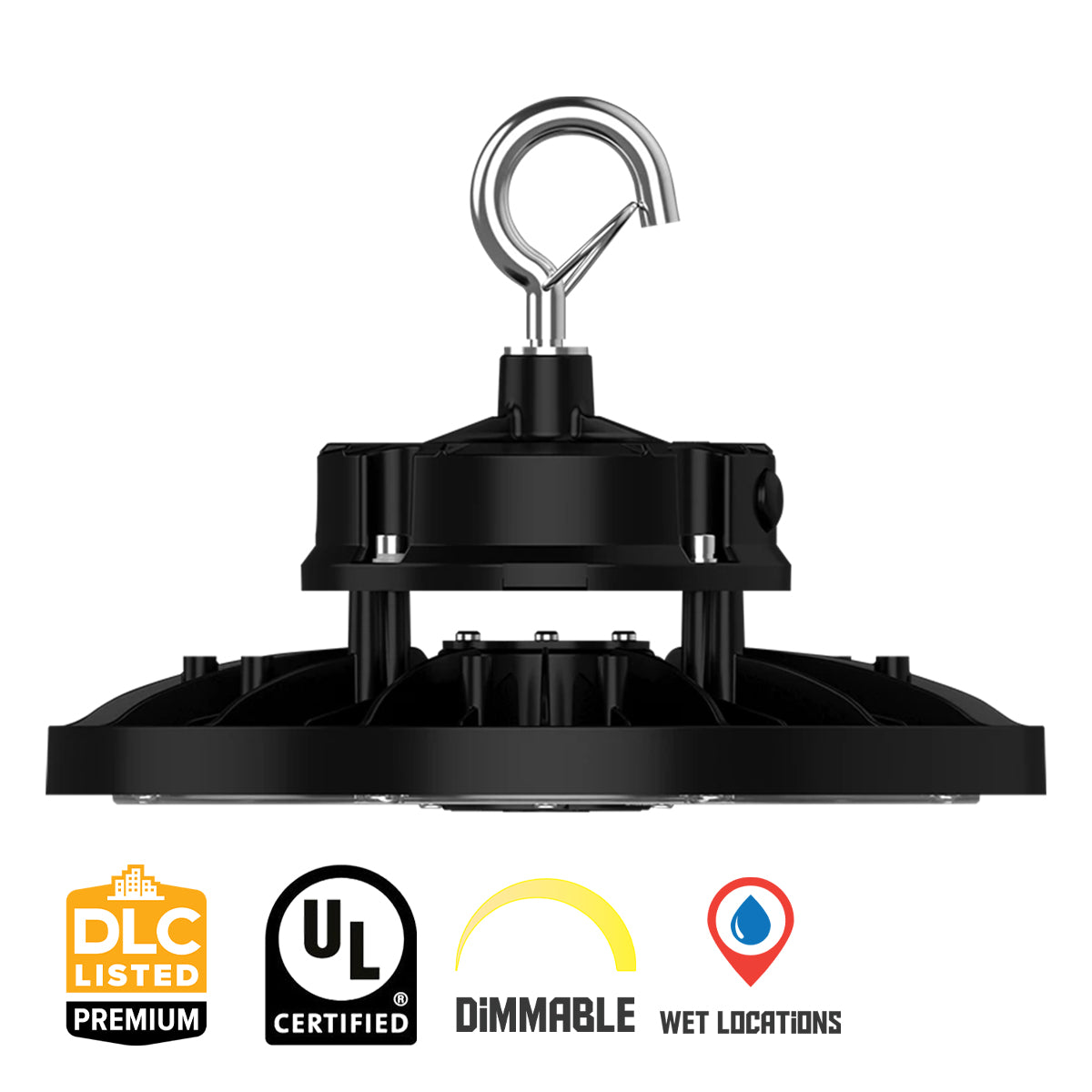

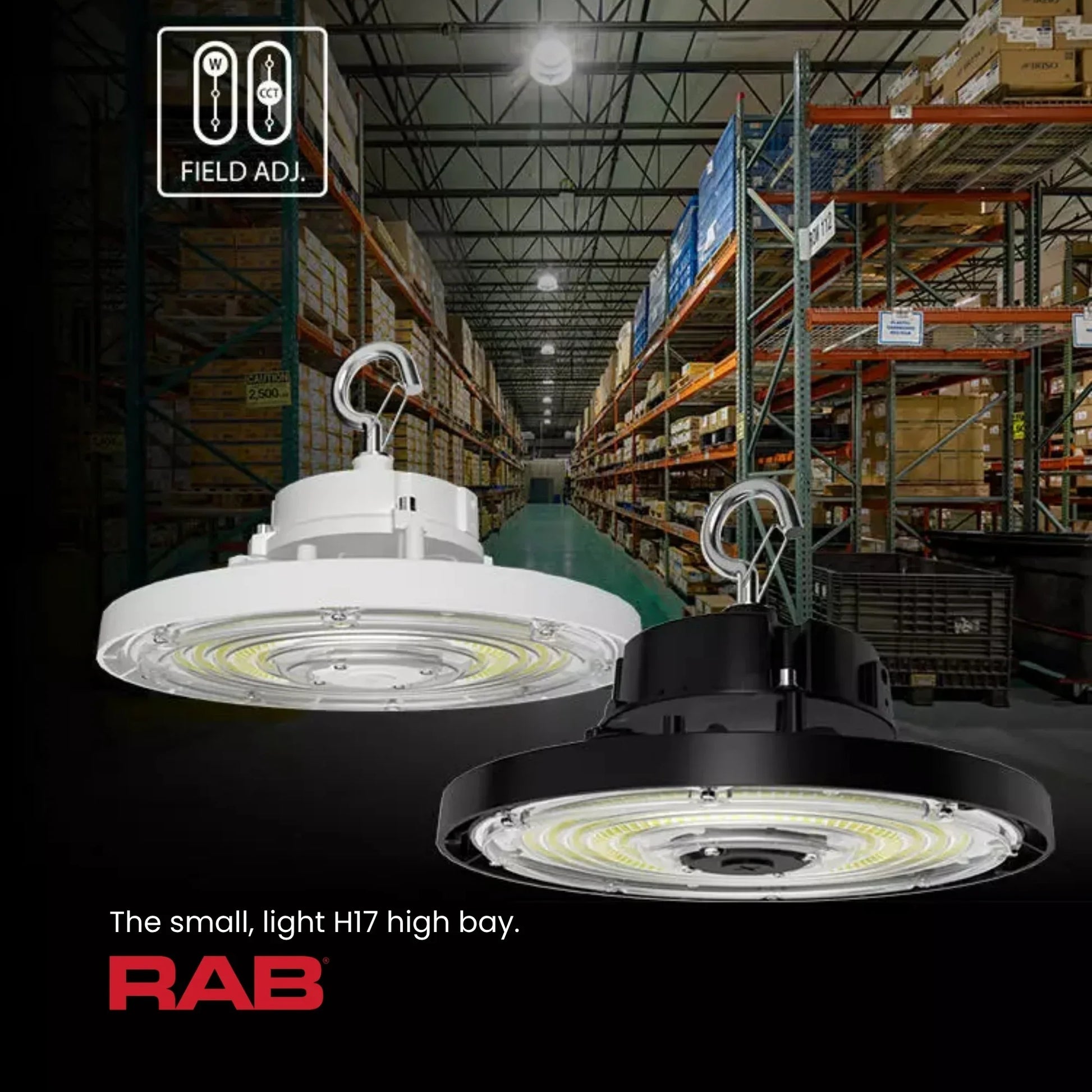

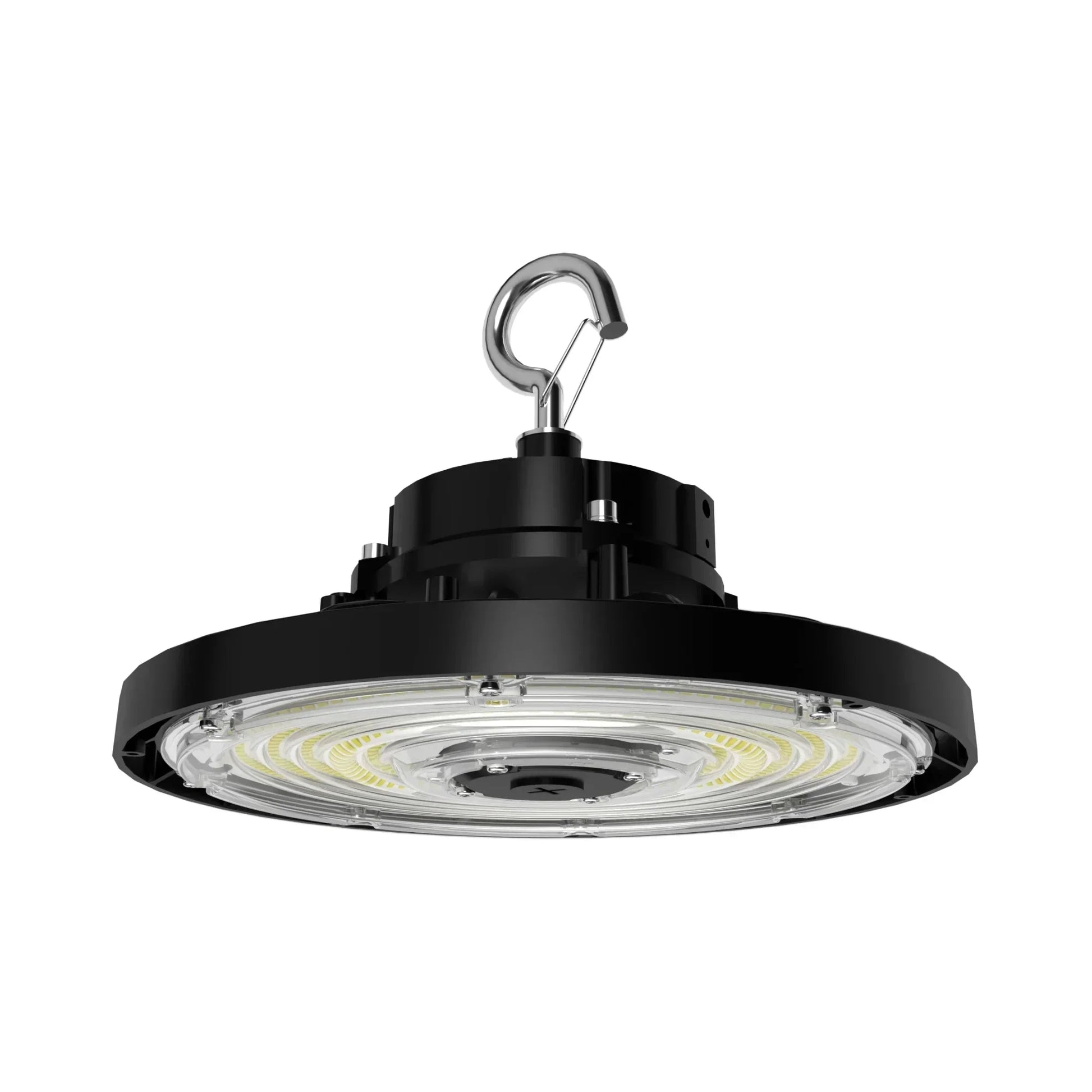

RAB H17SB Black Field-Adjustable LED High Bay — 100W / 80W / 60W Selectable
The RAB H17SB is a round, black field-adjustable LED high bay delivering up to 14,959 lumens with selectable wattage options of 100W, 80W, and 60W and selectable CCT of 3500K / 4000K / 5000K. It operates on universal 120–277V with integrated 0–10V dimming to 10%. The fixture is UL Listed for wet locations with an IP65 ingress protection rating and is DLC Premium Listed for rebate eligibility. Designed for commercial and industrial spaces with lower bay heights or compact high bay requirements.
Key Features
- Selectable Wattage: 100W / 80W / 60W
- Selectable CCT: 3500K / 4000K / 5000K
- Maximum Output: Up to 14,959 lumens
- Voltage Range: 120–277V
- Dimming: Integrated 0–10V dimming to 10%
- Environmental Rating: Wet location rated, IP65
- Certifications: UL Listed, DLC Premium Listed
- LED Lifespan: 100,000 hours (L70)
- Driver Type: Constant current
Typical Applications
- Warehouses
- Distribution centers
- Manufacturing facilities
- Gymnasiums
- Industrial workshops
- Retail stockrooms
Performance & Light Output:
Delivered lumen output varies by selectable configuration up to 14,959 lumens with consistent efficacy and reliable CRI performance across selectable CCT options.
Electrical & Controls:
Operates on 120–277V, 50/60Hz with a constant current driver. Integrated 0–10V dimming allows dimming to 10%. Built-in surge protection supports stable industrial operation with high power factor.
Construction & Durability:
Durable die-cast aluminum housing in black with polycarbonate lens. IP65 wet location rating provides performance in challenging environments. Mercury-free and RoHS compliant.
Installation & Mounting:
Includes a hanging hook and 6-foot cord for suspension mounting. Compatible with optional pendant mount kits sold separately.
Included
LED high bay fixture, hanging hook, and 6-foot cord.
Accessories

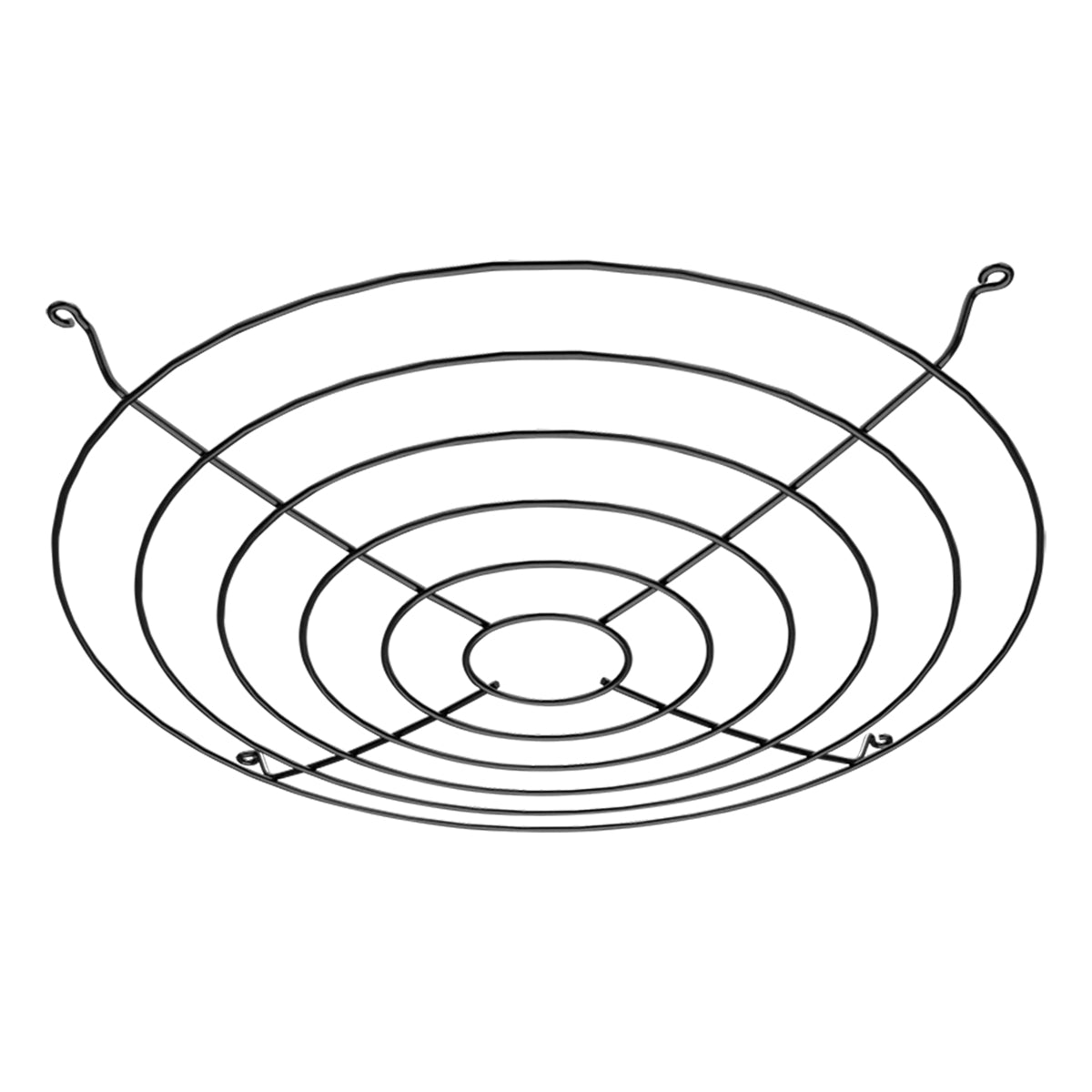

Optional reflectors, refractors, wire guards, PIR and microwave sensors, Lightcloud Blue control options, surface and pendant mounting kits, and emergency battery backup solutions.
Specifications
Specifications

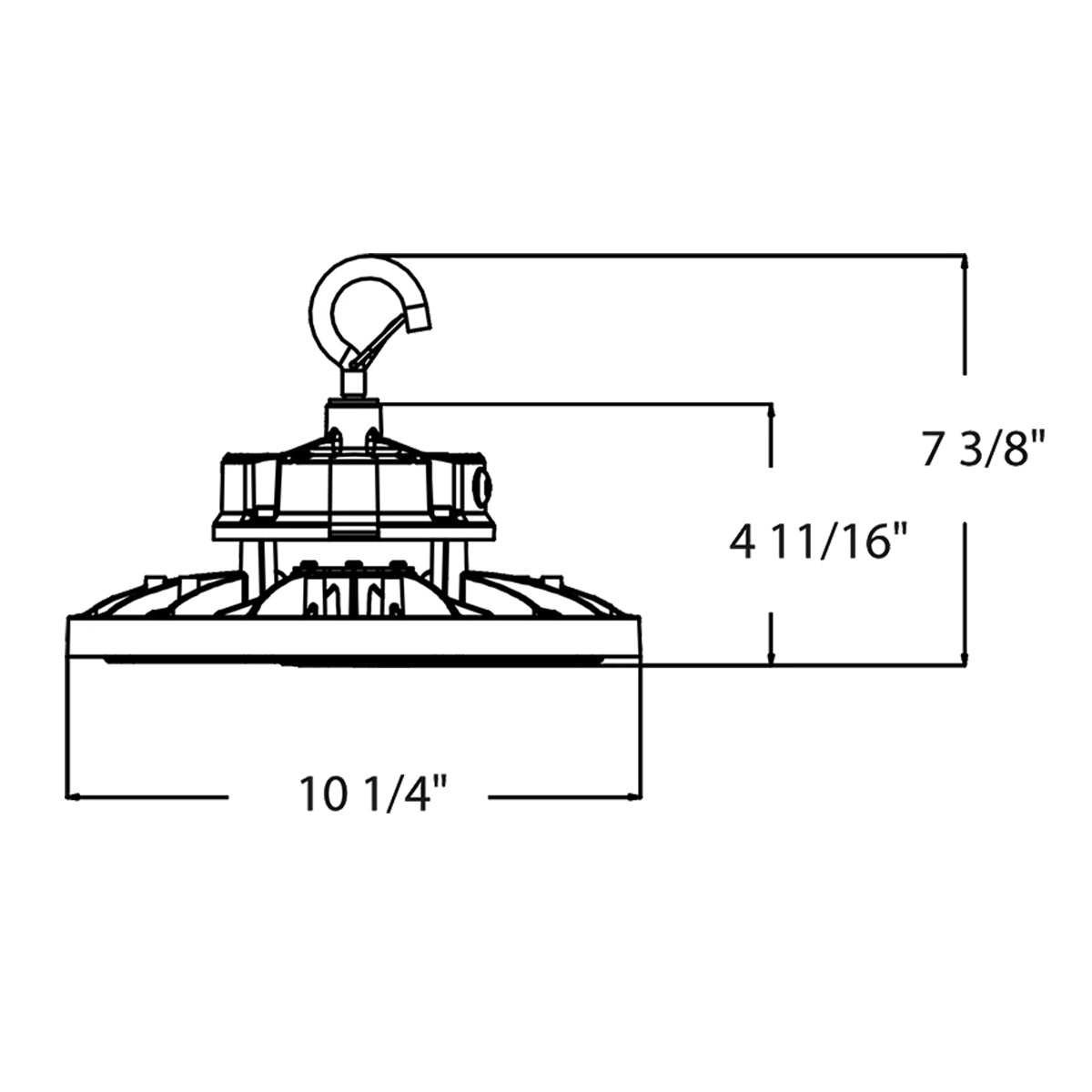

Dimensions
