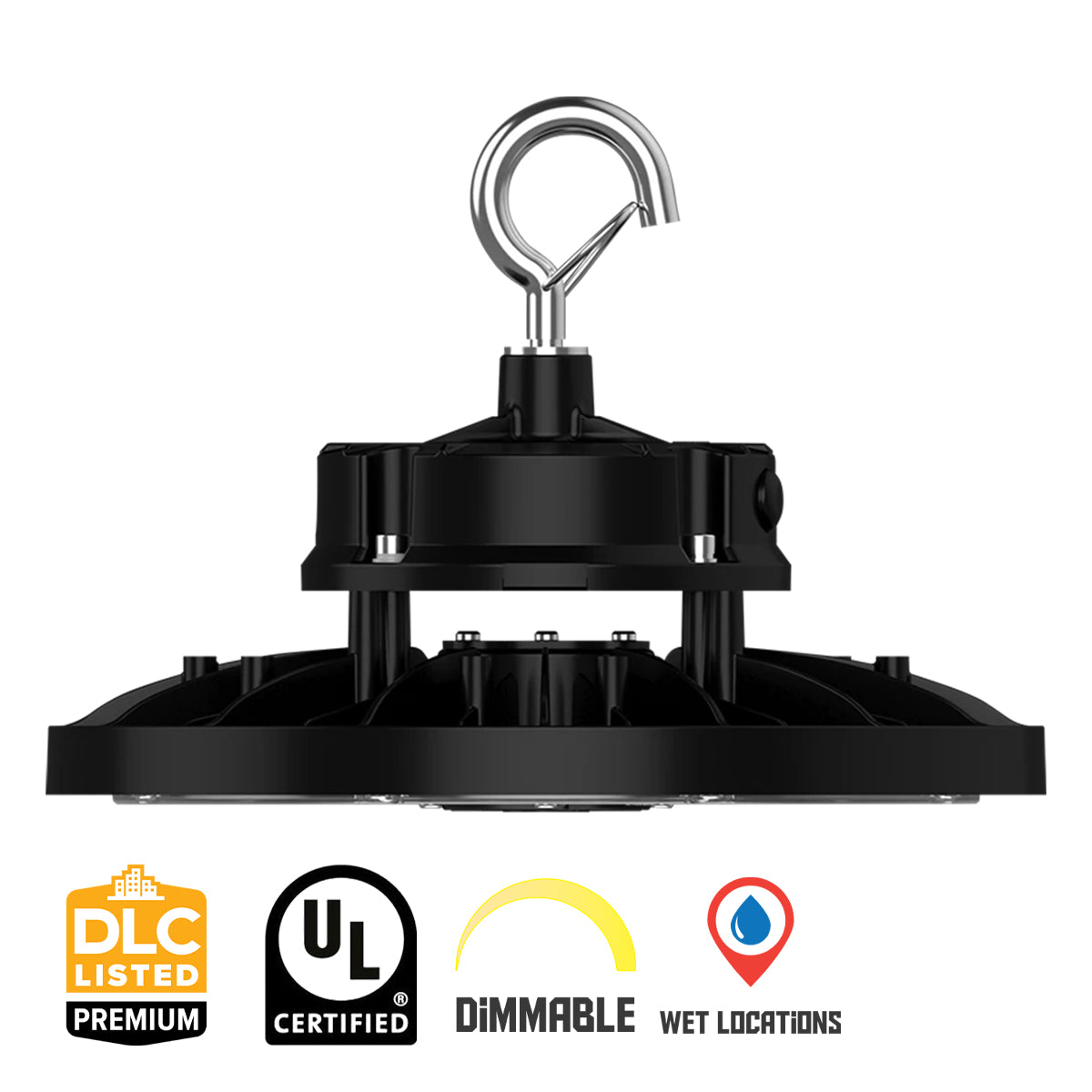

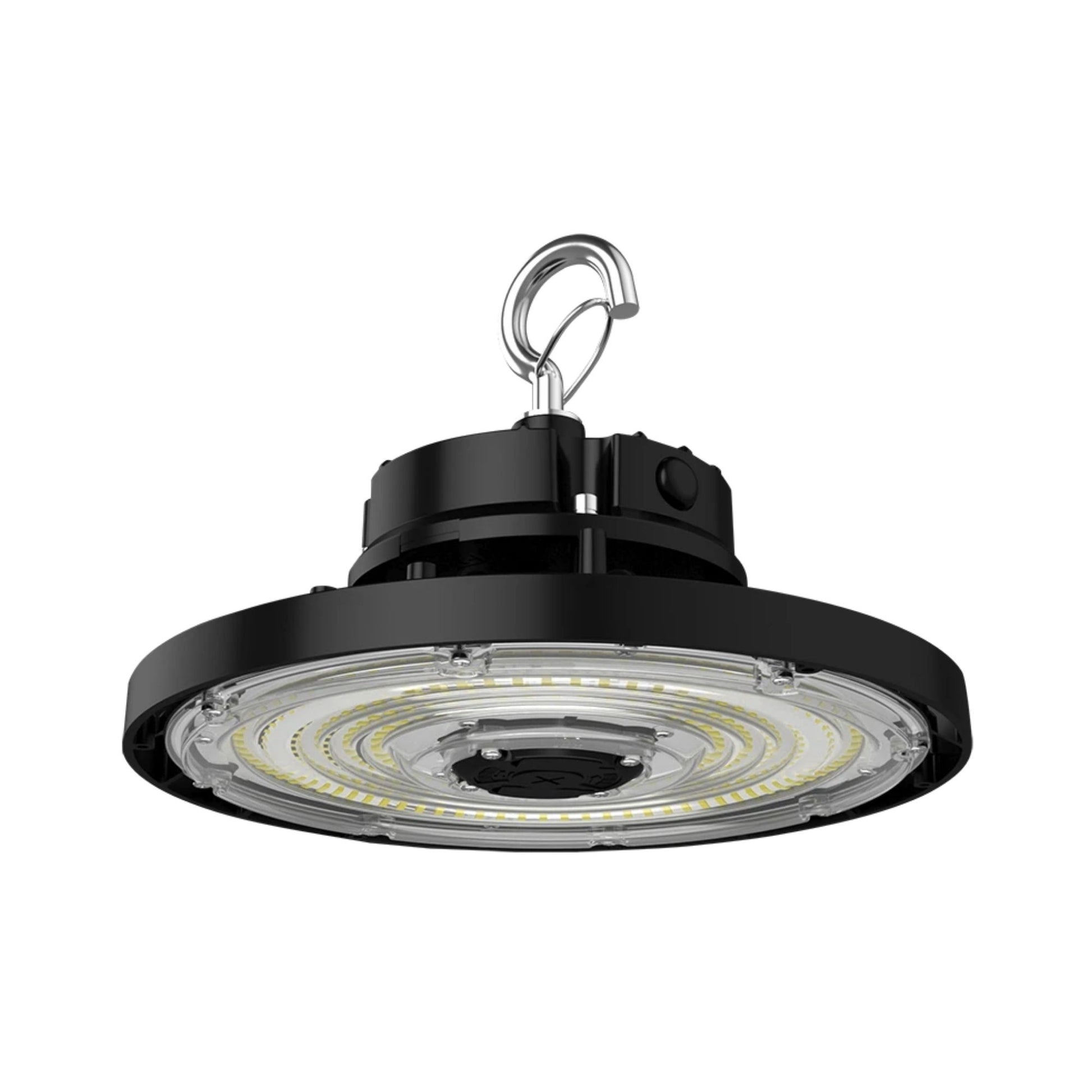

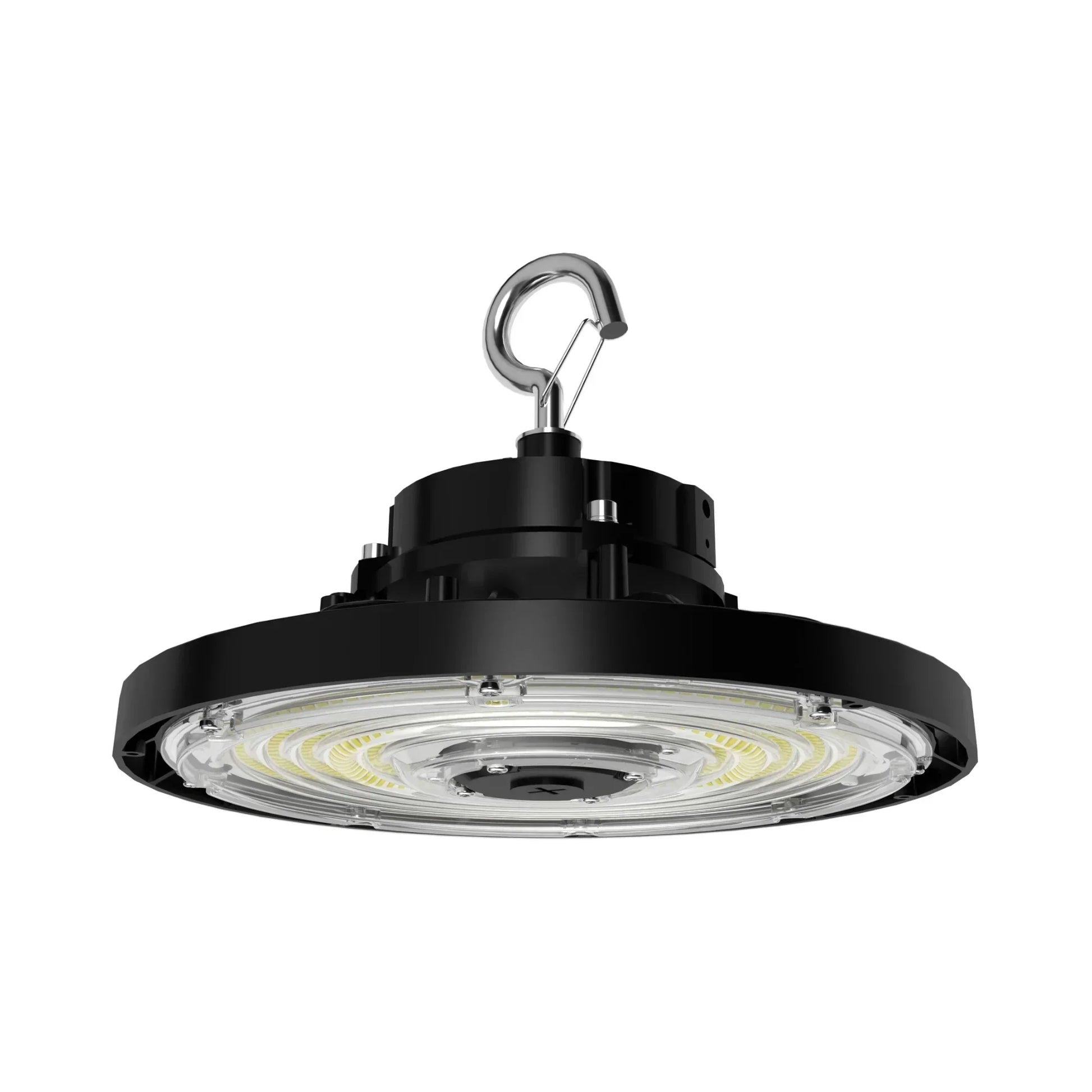

RAB H17B Field-Adjustable UFO LED High Bay — 150W / 120W / 100W Selectable — Black

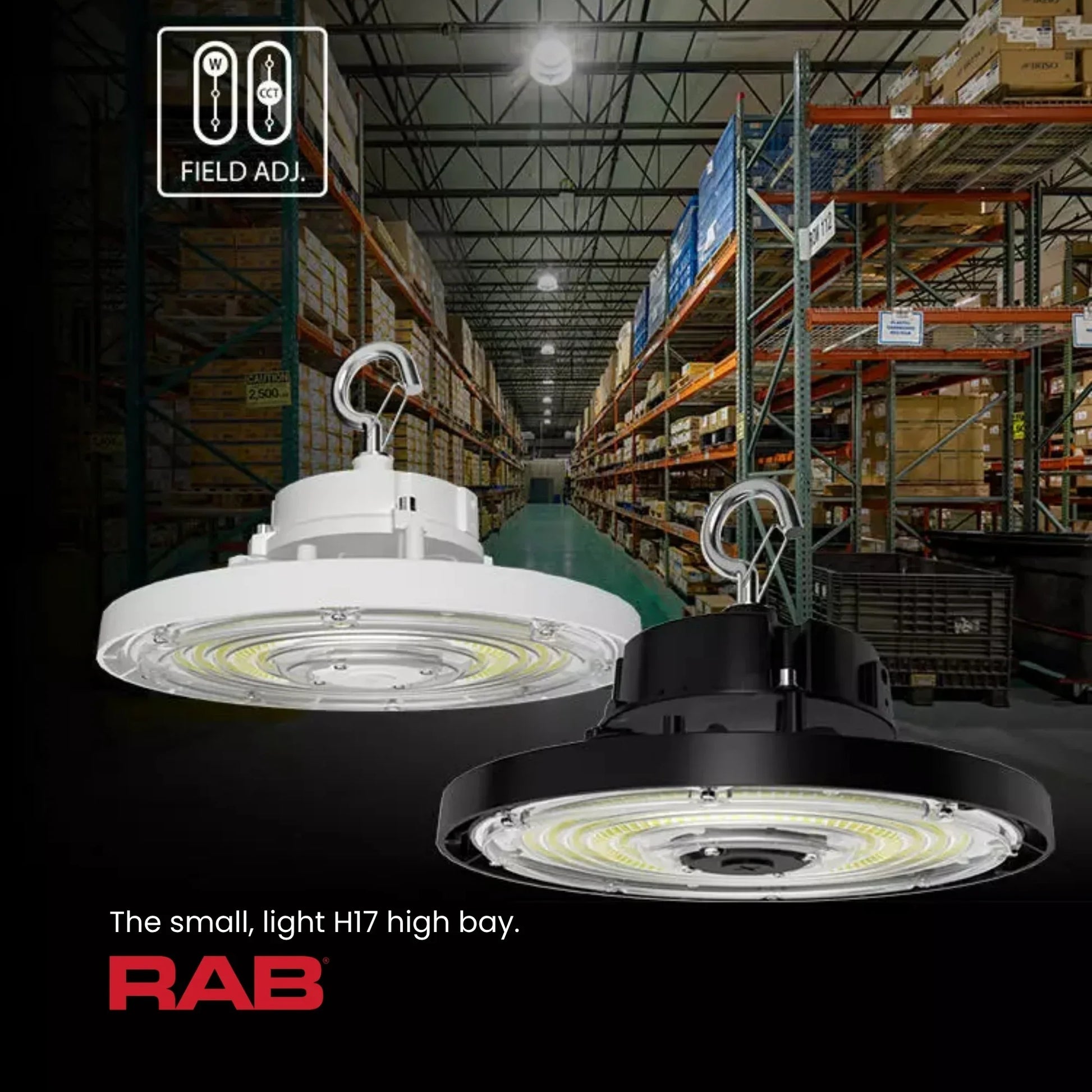

The RAB H17B is a field-adjustable UFO LED high bay in a black powder coat finish delivering up to 22,224 lumens with selectable wattage of 150W, 120W, and 100W and selectable CCT of 3000K, 4000K, and 5000K. It operates on universal 120–277V with integrated 0-10V dimming to 10%, carries a UL Wet Location listing and IP65 ingress protection rating, and is certified DLC Premium (S-AXTFS7) — qualifying for the highest tier of utility rebate programs. Cold weather rated to -40°F (-40°C). Replaces 400W Metal Halide at the 150W setting. For white finish, see the RAB H17.

Key Features

• Selectable Wattage: 150W / 120W / 100W — field-adjustable via built-in selector switch, factory default 150W
• Selectable CCT: 3000K / 4000K / 5000K — field-adjustable, factory default 4000K
• Maximum Lumen Output: 22,224 lm at 150W / 5000K
• Lumen Range: 15,317–22,224 lm across all configurations
• Peak Efficacy: 168.8 lm/W
• CRI: 83–86 across all wattage and CCT configurations
• Color Consistency: 7-step MacAdam Ellipse binning for consistent fixture-to-fixture color
• Dimming: 0-10V dimming standard, dim to 10%; Dim to Off capable
• Voltage: 120–277V, 50/60Hz; constant current driver
• Location Rating: UL Listed for wet locations; IP65 rated for dust and water ingress
• Cold Weather Start: Minimum starting temperature -40°F (-40°C)
• Maximum Ambient Temperature: 122°F (50°C)
• Certifications: UL Wet Location, DLC Premium (S-AXTFS7), IES LM-79 and LM-80 tested
• Rated Life: 100,000 hours L70 (IES LM-80 / TM-21)
• Warranty: 5-year limited — covers light output, driver performance, and paint finish
• Wattage Equivalency: 150W replaces 400W Metal Halide

Performance & Light Output

Lumen output range across all wattage and CCT configurations: 15,317–22,224 lm. Input watts: 101–149.1W. Peak efficacy: 168.8 lm/W. CRI 83–86 across all configurations. Rated life 100,000 hours L70 per IES LM-80 / TM-21. Note: per-wattage lumen breakdown for 120W and 100W settings is not published in the RAB H17B specification sheet; contact RAB Lighting for full photometric data.

Smart & Control Features

The H17B supports two factory-configured control options:

• 0-10V Dimming (standard): Dims to 10% via standard 0-10V DC circuit, Dim to Off capable. Compatible with most commercial building control and energy management systems.

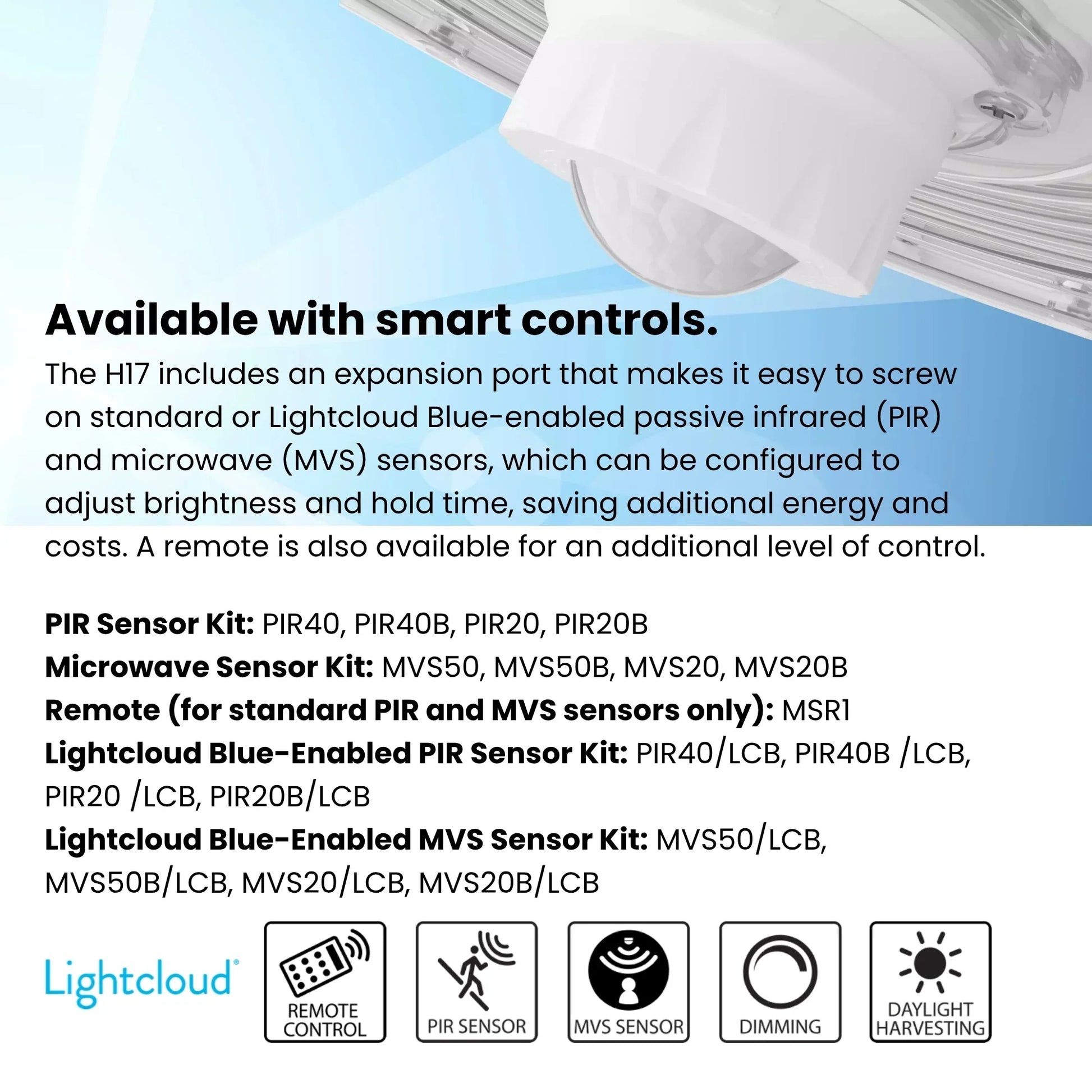

• Lightcloud Blue (accessory): Add PIR40B/LCB or MVS50B/LCB sensor/controller accessories for wireless Bluetooth mesh group control without additional wiring. Low-ceiling sensor options PIR20B/LCB and MVS20B/LCB also available.

Remote control accessory (catalog# MSR1) available for field adjustment of wattage and CCT. Occupancy sensors available in high-ceiling (PIR40B · MVS50B) and low-ceiling (PIR20B · MVS20B) Black finish variants, each with standard or Lightcloud Blue (/LCB) options.

Electrical

Constant Current driver. Input: 120–277V, 50/60Hz. Input watts: 101–149.1W. THD: 3.25% at 120V · 5.6% at 277V. Power Factor: 99.71% at 120V · 93.05% at 277V. Surge protection: 4kV L-N · 6kV L/N-PE. Input amps: 150W — 1.25A (120V) / 0.72A (208V) / 0.63A (240V) / 0.54A (277V); 120W — 1.00A (120V) / 0.58A (208V) / 0.50A (240V) / 0.43A (277V); 100W — 0.83A (120V) / 0.48A (208V) / 0.42A (240V) / 0.36A (277V). Mercury-free, UV-free, RoHS-compliant components.

Construction

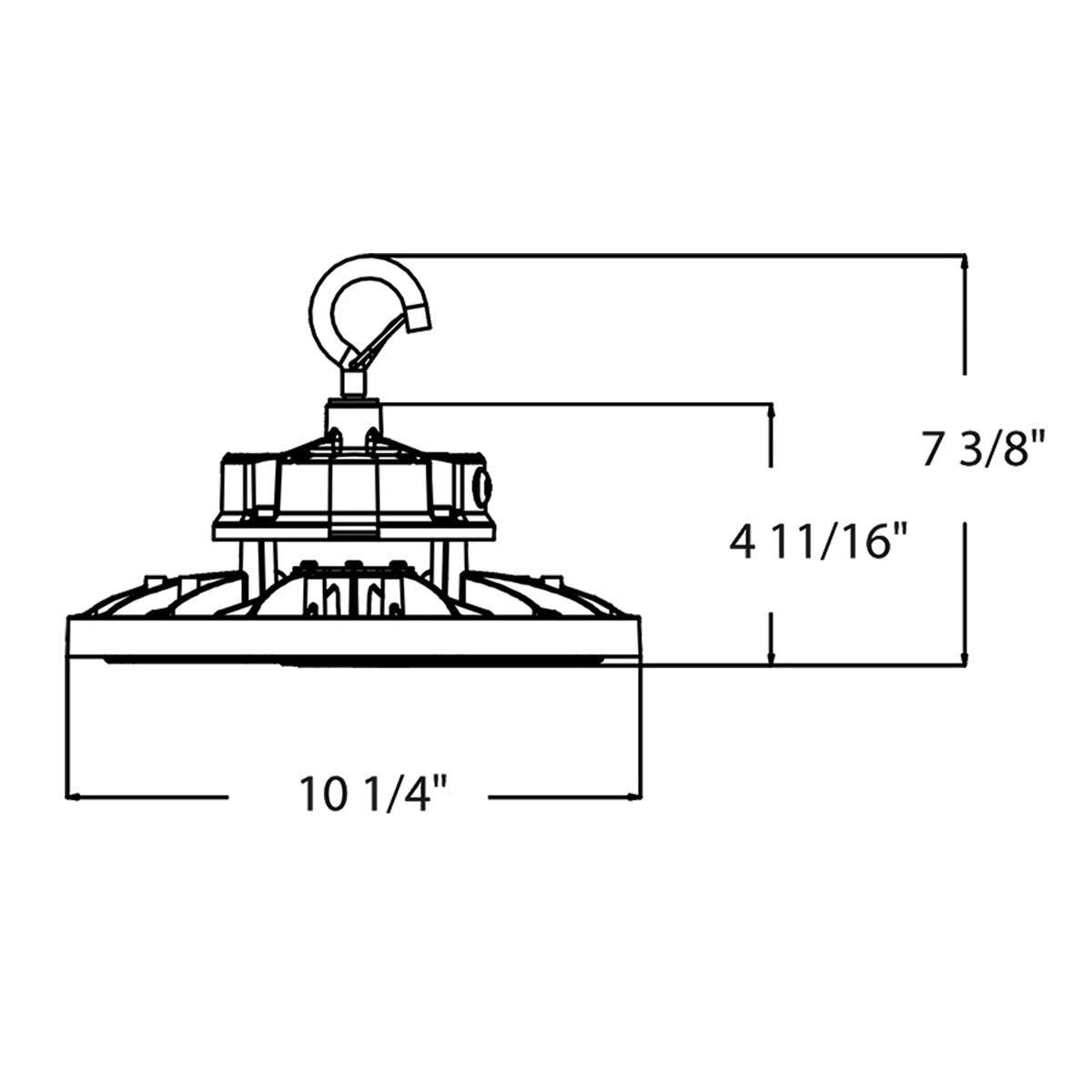

Precision die-cast aluminum housing in black powder coat finish formulated for high durability and long-lasting color. Polycarbonate lens. Polycarbonate and aluminum reflector (sold separately). IP65 rated for dust and water ingress. Weight: 4.7 lbs. Dimensions: 10 1/4 in dia × 7 3/8 in H.

Installation & Mounting

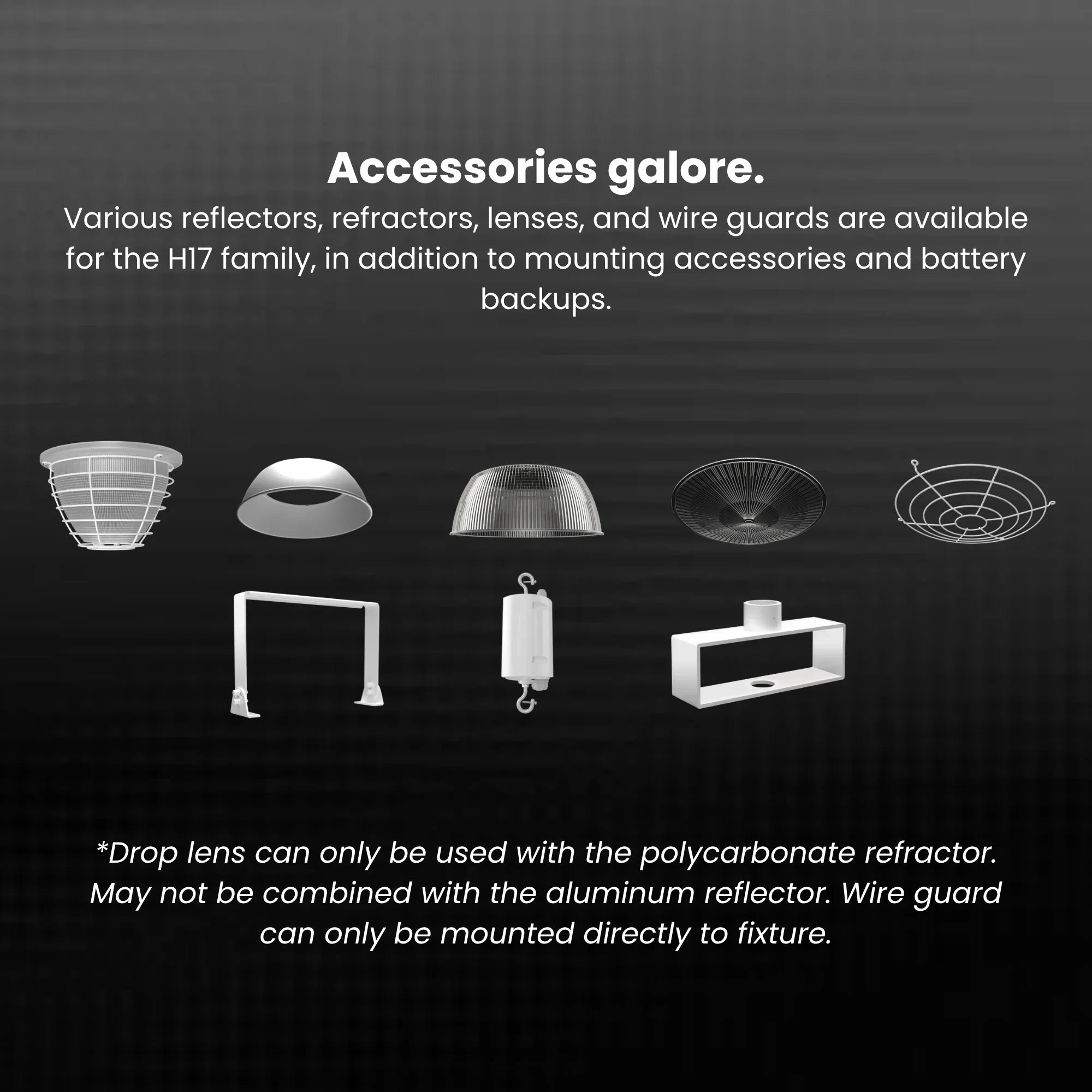

Comes standard with a heavy-duty hanging hook and 6-foot cord. Heavy-duty 3/4–14 NPT hook and 3/4–14 pendant mount capable (pendant by others). Optional accessories (sold separately):

• Reflectors: H17-RAL (Aluminum)
• Refractor: H17-RPC (Polycarbonate)
• Drop Lens: H17-RDL
• Wire Guards: H17B-WG (Black) | H17-DWG
• Pendant Mount Kit: H17B-PM KIT (Black)
• Surface / Yoke Mount Kit: H17B-SM KIT (Black)
• Occupancy Sensors (high ceiling): PIR40B · PIR40B/LCB (Black)
• Occupancy Sensors (low ceiling): PIR20B · PIR20B/LCB (Black)
• MVS Sensors (high ceiling): MVS50B · MVS50B/LCB (Black)
• MVS Sensors (low ceiling): MVS20B · MVS20B/LCB (Black)
• Remote Control: MSR1

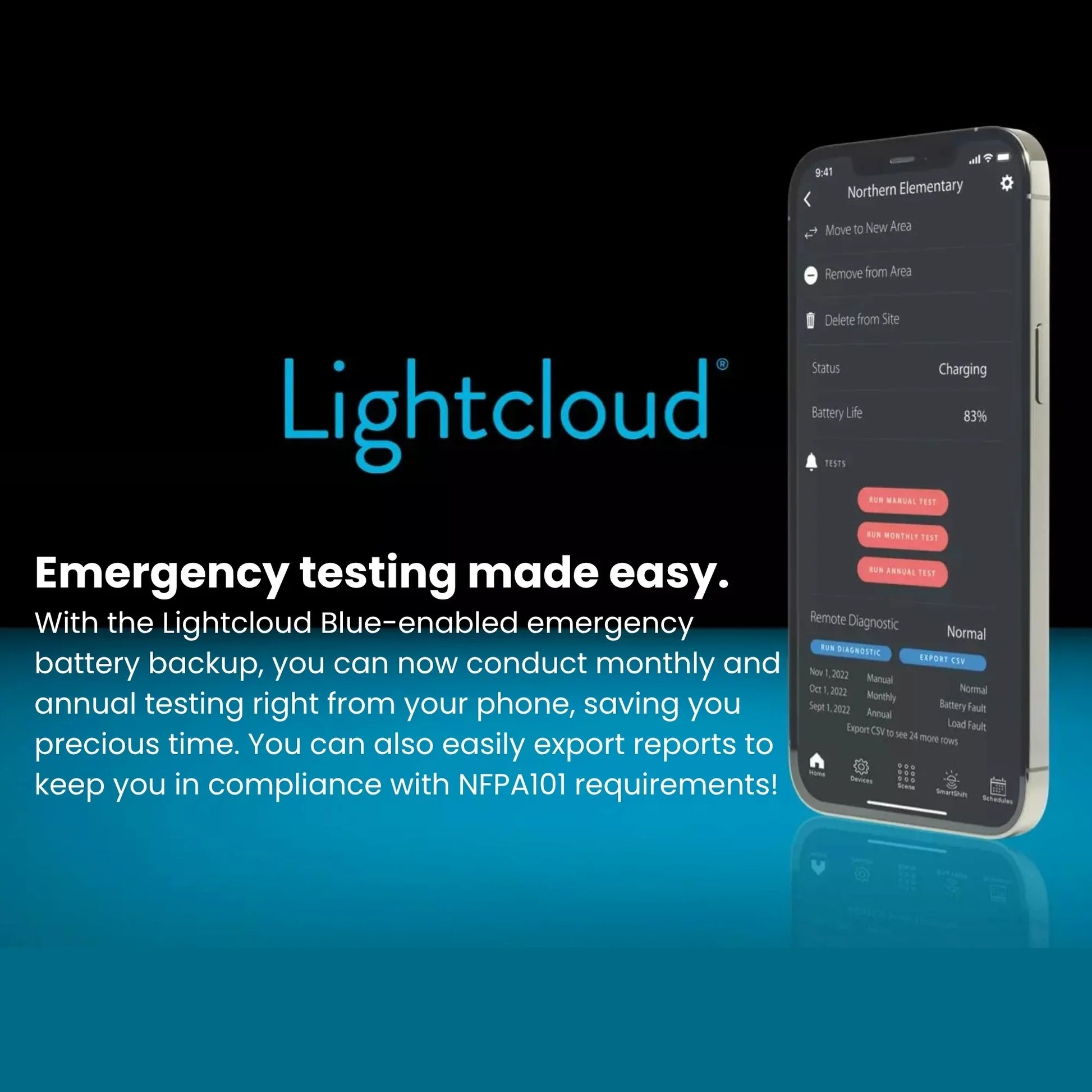

• Emergency Battery Backup (120-277V): EMHB30B (30W, Black) | EMHB30B/LCB (30W, Black, Lightcloud Blue) — 90 min runtime

Certifications & Rebates

UL Listed for wet locations. DLC Premium listed — product code S-AXTFS7. To verify rebate eligibility with your utility provider, visit designlights.org and search product code S-AXTFS7. RoHS compliant. IES LM-79 and LM-80 tested per IESNA standards. Certification model number: H17-002.

Typical Applications

• Warehouses and distribution centers — black finish preferred for dark ceiling installations; up to 22,224 lm replaces 400W Metal Halide without rewiring
• Manufacturing and assembly facilities — field-selectable wattage right-sizes output to task area without rewiring
• Cold storage and freezer warehouses — rated to -40°F (-40°C) for dependable cold-start performance
• Covered loading docks and car washes — UL wet location listing and IP65 rating handle direct moisture exposure
• Gymnasiums and recreation centers — 0-10V dimming enables daytime/evening output adjustment

What’s Included

• RAB H17B UFO LED high bay fixture — Black
• Heavy-duty hanging hook
• 6-foot cord
• Mounting hardware
