RAB GUSJR4 Field Adjustable 4ft Wraparound Light 5500 Lumens 40W Selectable CCT 120-277V White
Available in stock (200)
About this item
About this item
- Lumens: Provides up to 5,540 lumens for bright illumination.
- Wattage: Operates at 40W with field-adjustable settings for flexibility.
- Voltage: Compatible with 120-277V for versatile installation.
- Dimming: Features 0-10V dimming capability down to 10%.
- Construction: Made with durable 24-gauge cold-rolled steel housing.
We process payments securely and do not store credit card information.
Description
Description

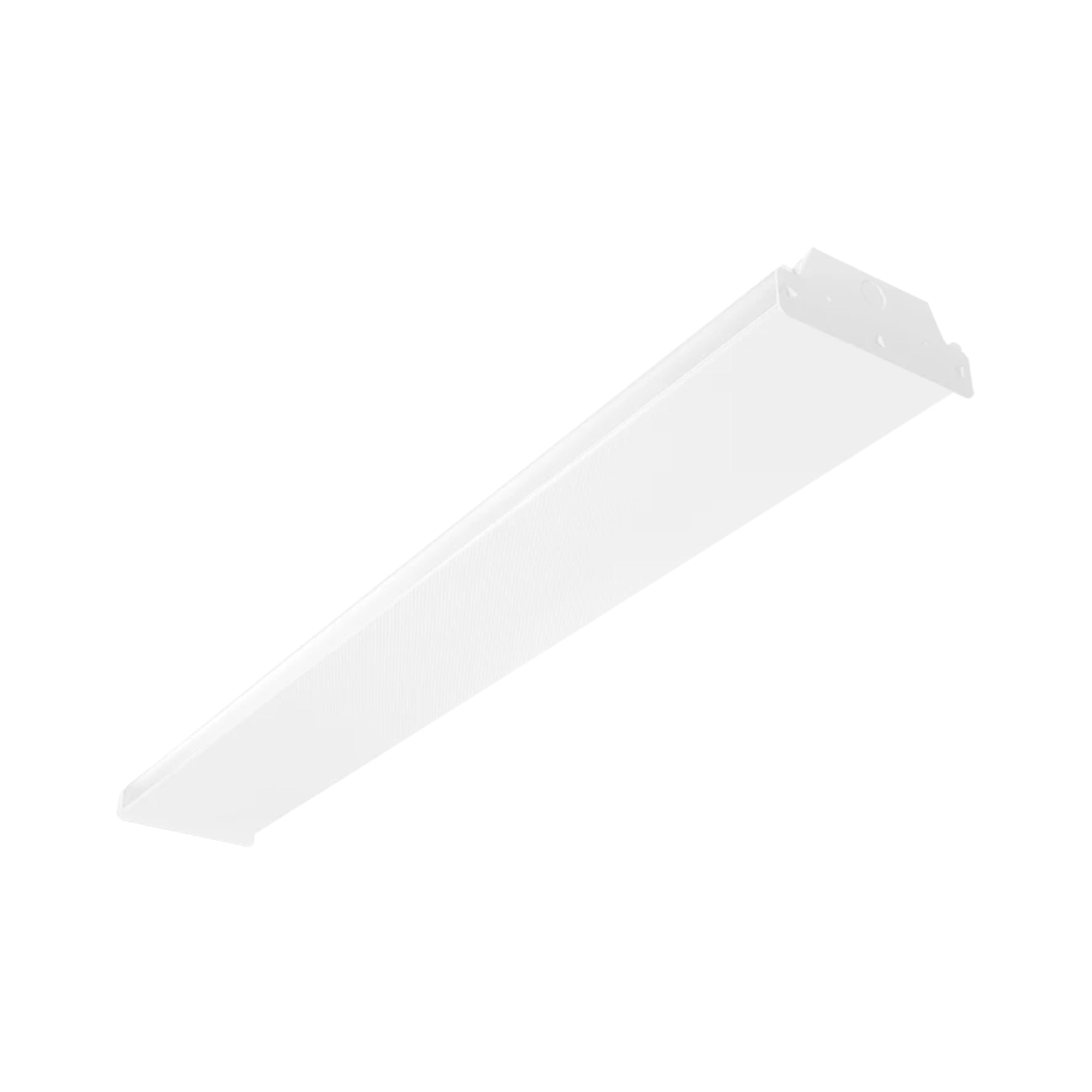

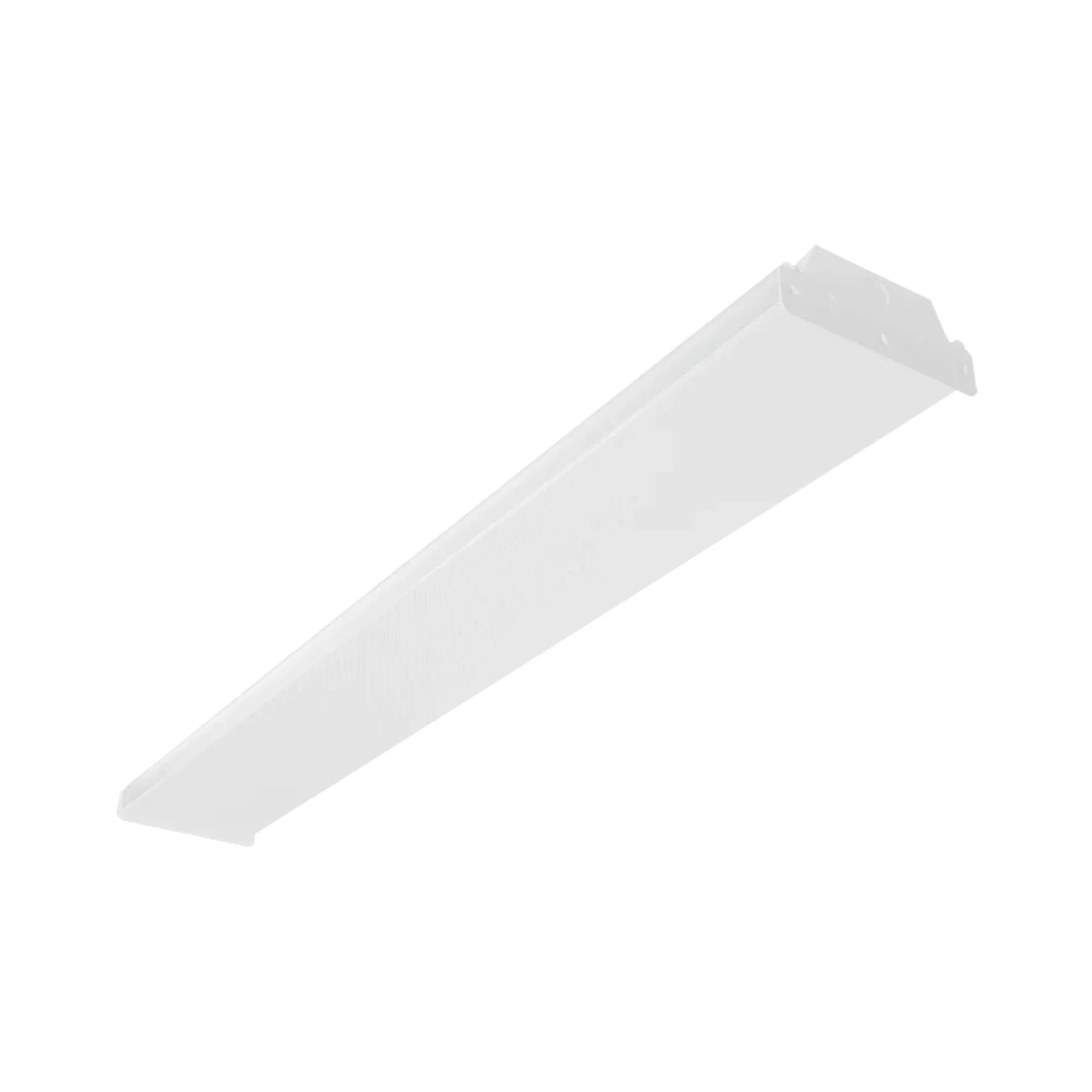

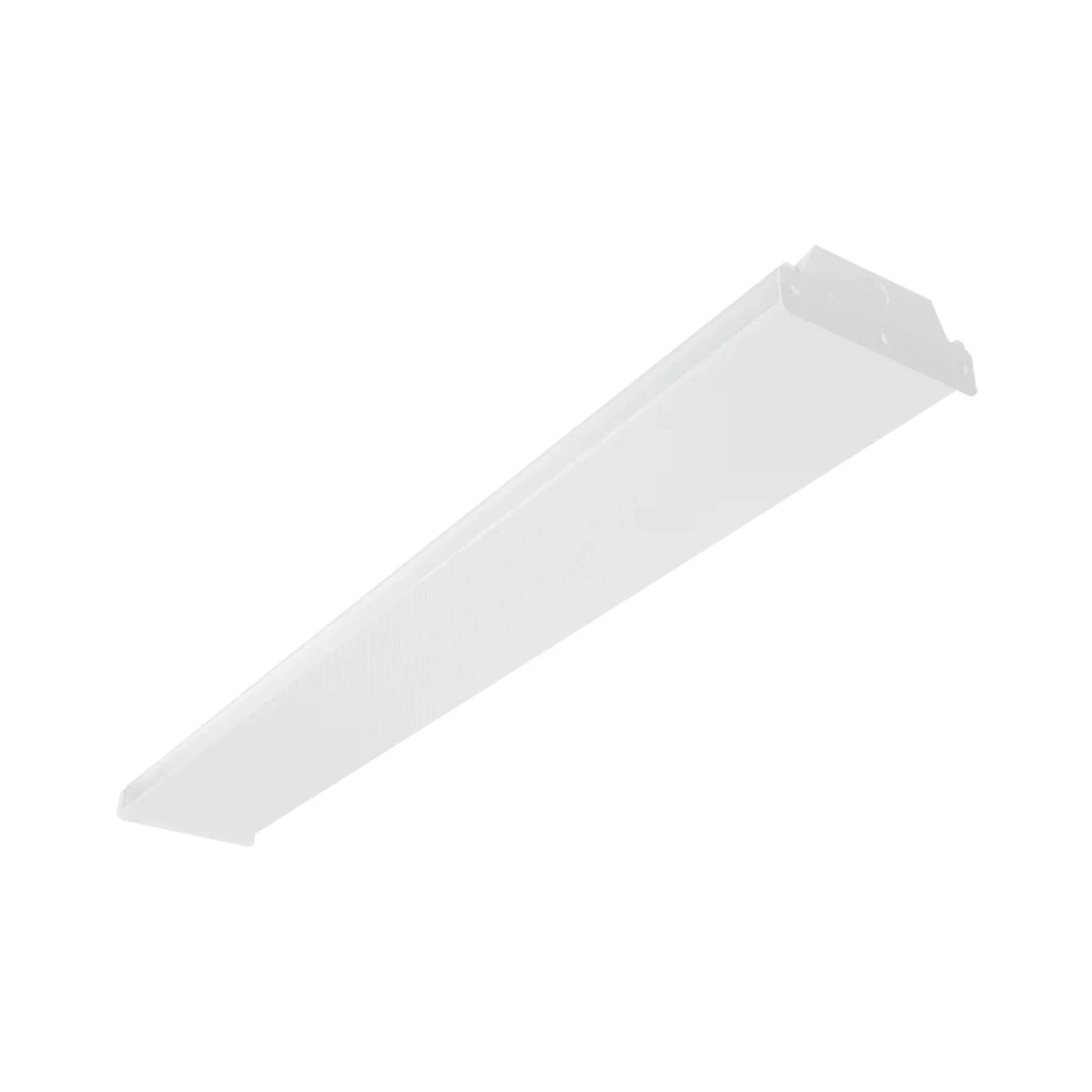

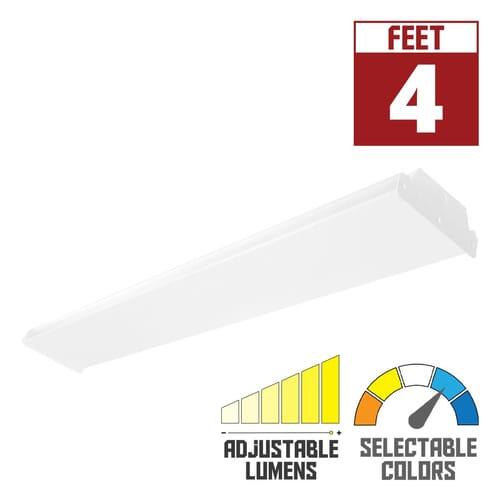

RAB GUS JR Field Adjustable Wraparound Light — 40W Configuration
The RAB GUSJR4 is a versatile wraparound light designed for general ambient lighting in surface-mount ceiling or wall applications. This fixture, with MPN GUSJR4, delivers 40W of power and up to 5,540 lumens with a selectable CCT of 3500K, 4000K, or 5000K. It operates on a 120-277V input, making it suitable for various environments. The fixture is DLC listed for energy efficiency and compliance.
Key Features

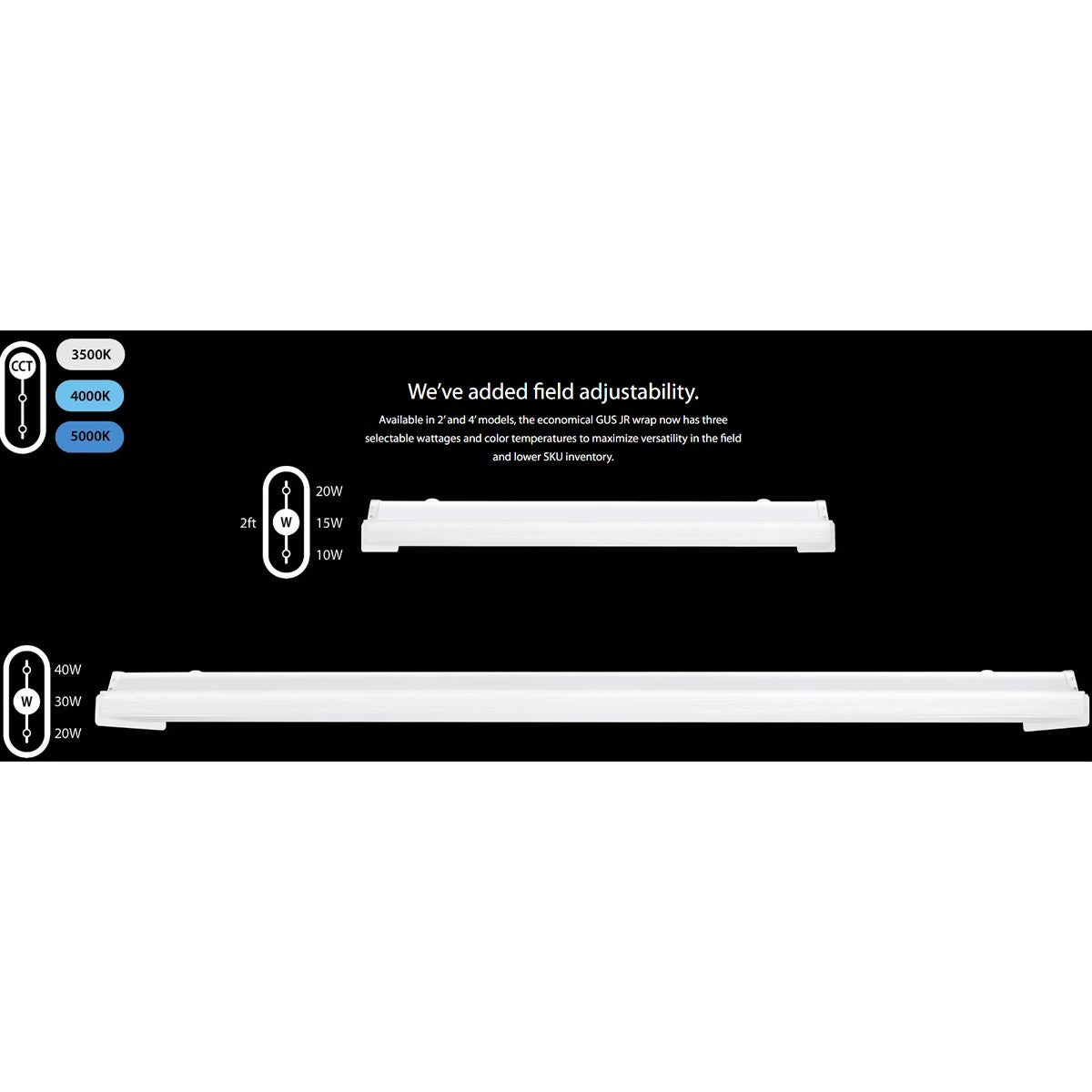

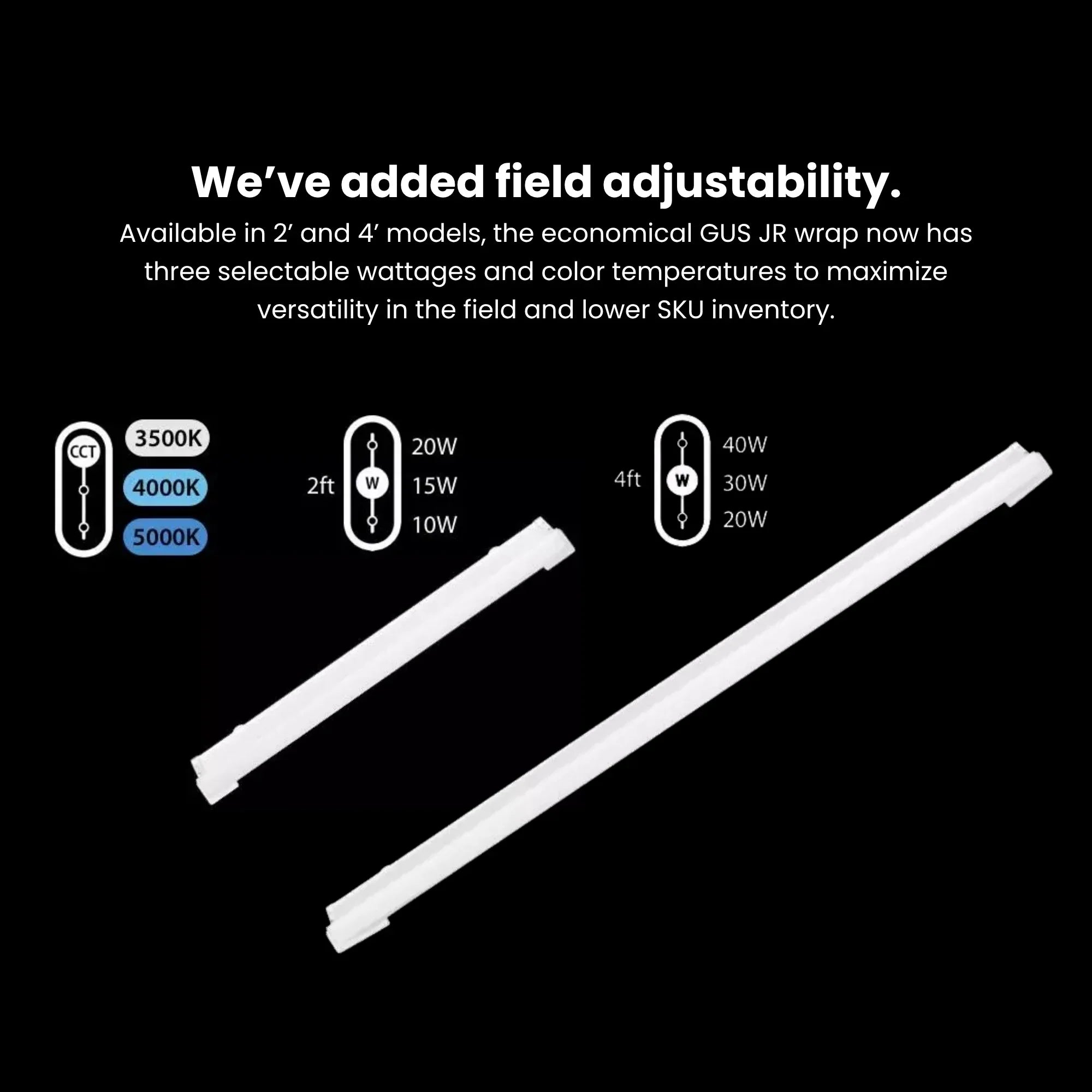

- Field Adjustability: Offers adjustable wattage settings of 40W, 30W, and 20W for tailored light output.
- Selectable CCT: Allows selection between 3500K, 4000K, and 5000K for optimal color temperature.
- Driver: Equipped with a constant current driver supporting 120-277V, 50/60 Hz.
- Dimming: Includes 0-10V dimming control, requiring a separate dimming circuit.
- Surge Protection: Features 2KV line-to-neutral and 4KV line/neutral-to-ground protection.
- Construction: Built with a 24-gauge cold-rolled steel housing and a diffused PMMA lens.
- Compliance: UL listed for damp locations and DLC 5.1 qualified.
- Warranty: Backed by a 5-year limited warranty covering light output and driver performance.
Typical Applications
- Commercial offices
- Retail spaces

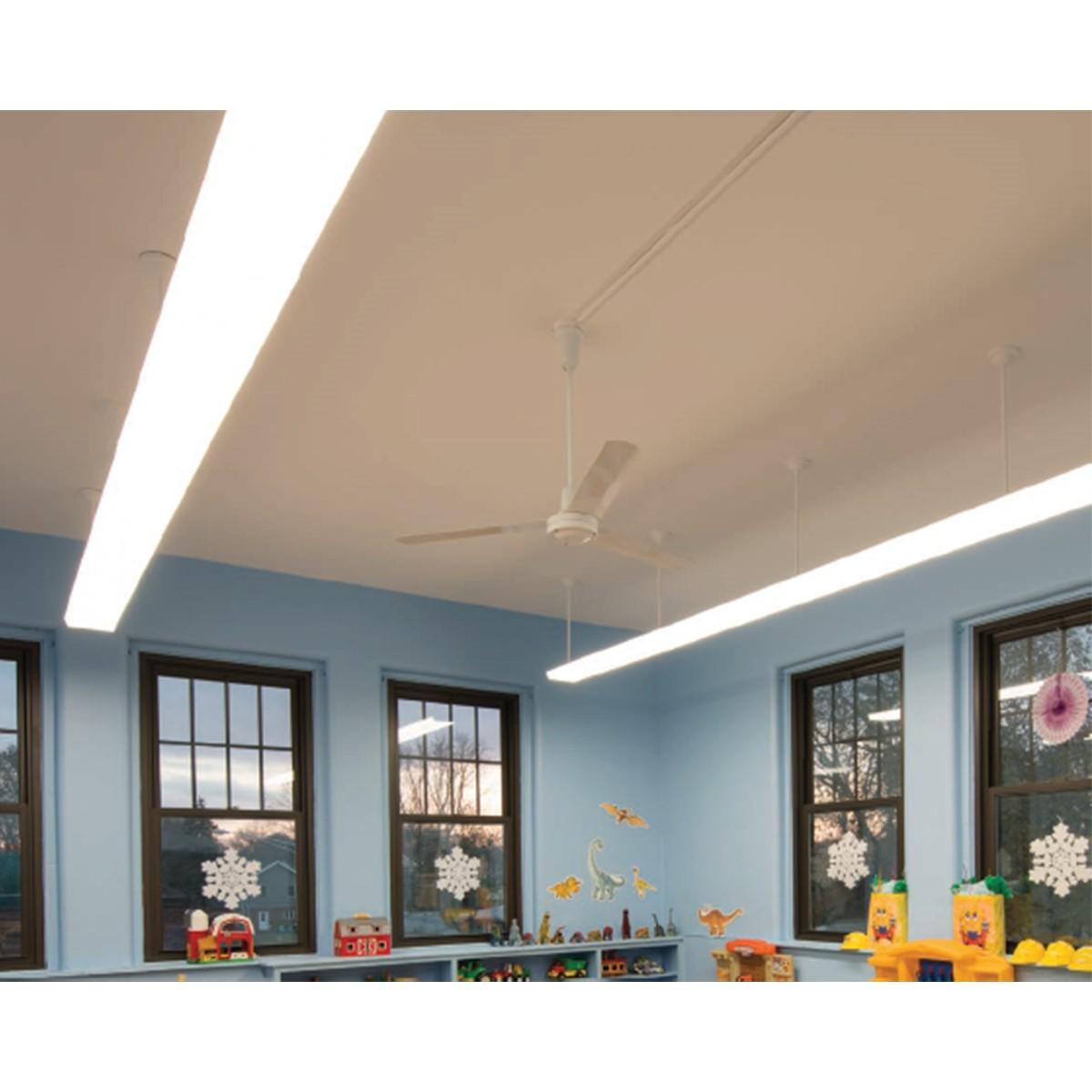

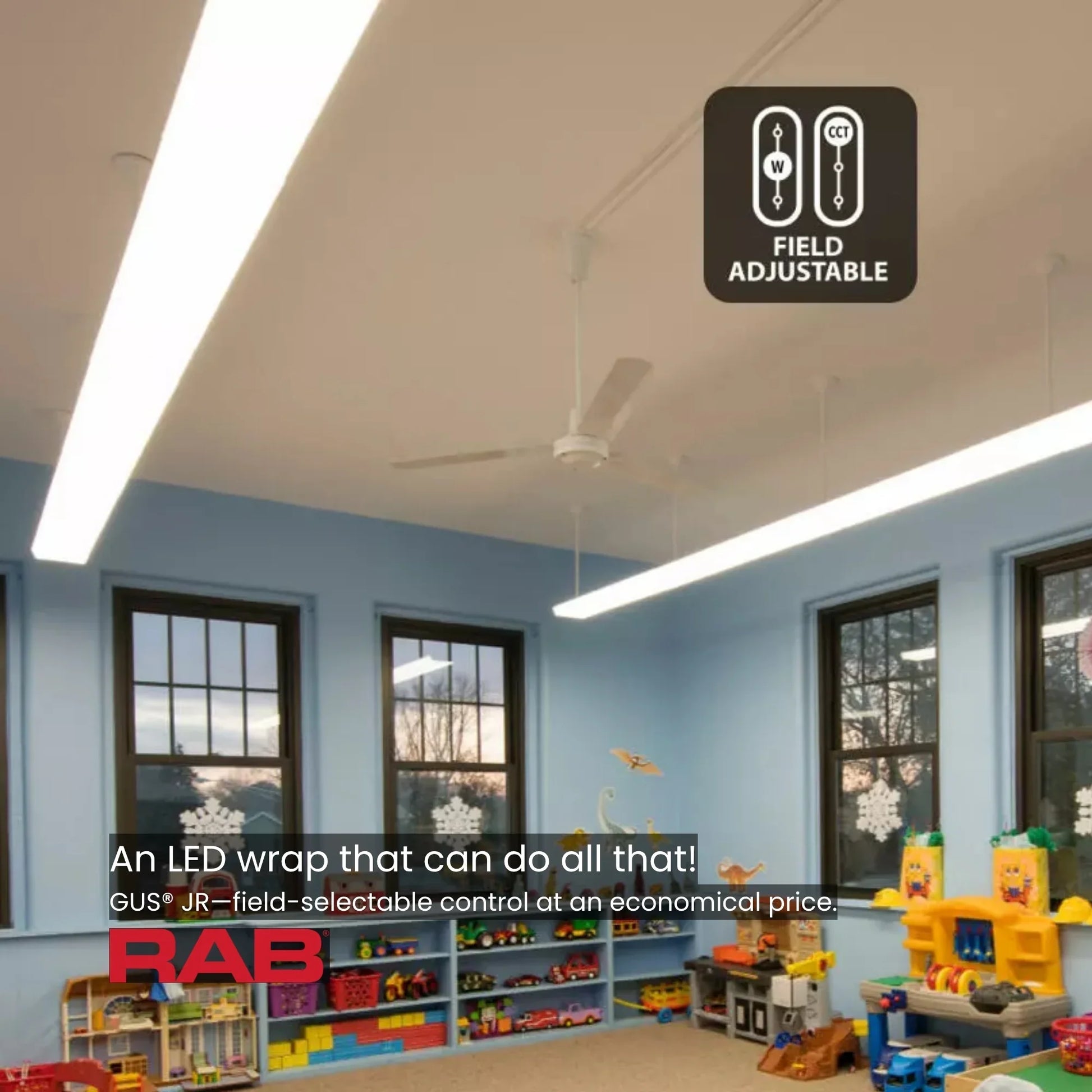

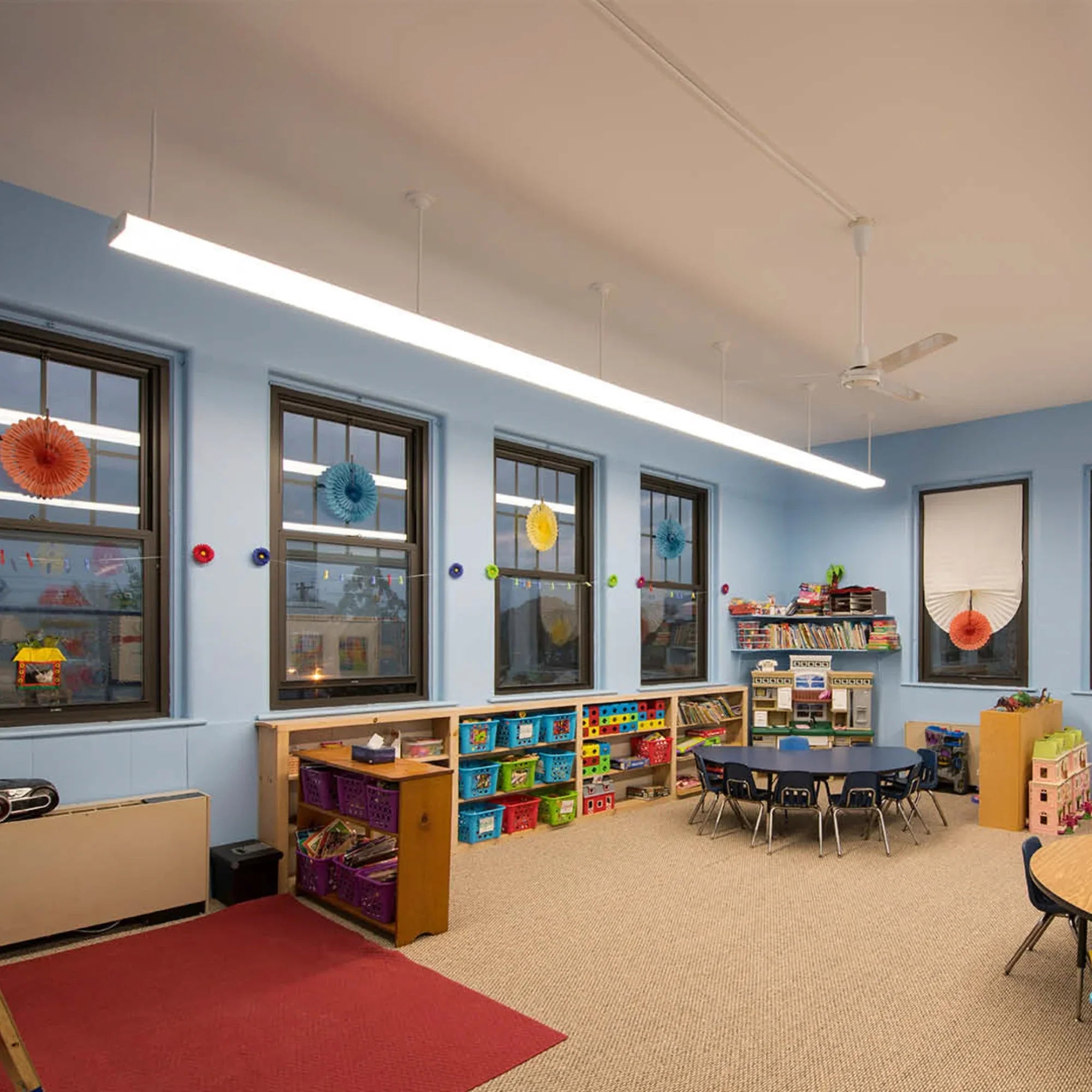

- Educational facilities
- Healthcare environments
- Warehouses
Performance & Light Output
This fixture delivers a luminous efficacy of 127.7-150.1 lm/W, with a CRI of 83-85, ensuring high-quality light output. It is designed for a 50,000-hour lifespan based on IES LM-80 results.
Electrical & Controls
Operating on 120-277V, the fixture includes a dimming driver for 0-10V systems. It features a power factor of 99.1% at 120V and 95.9% at 277V, with THD of 8% and 7% respectively.
Construction & Durability
The housing is made from 24-gauge cold-rolled steel, with a white powder coat finish for durability. It is suitable for ambient temperatures up to 45°C (113°F) and starts at temperatures as low as -20°C (-4°F).

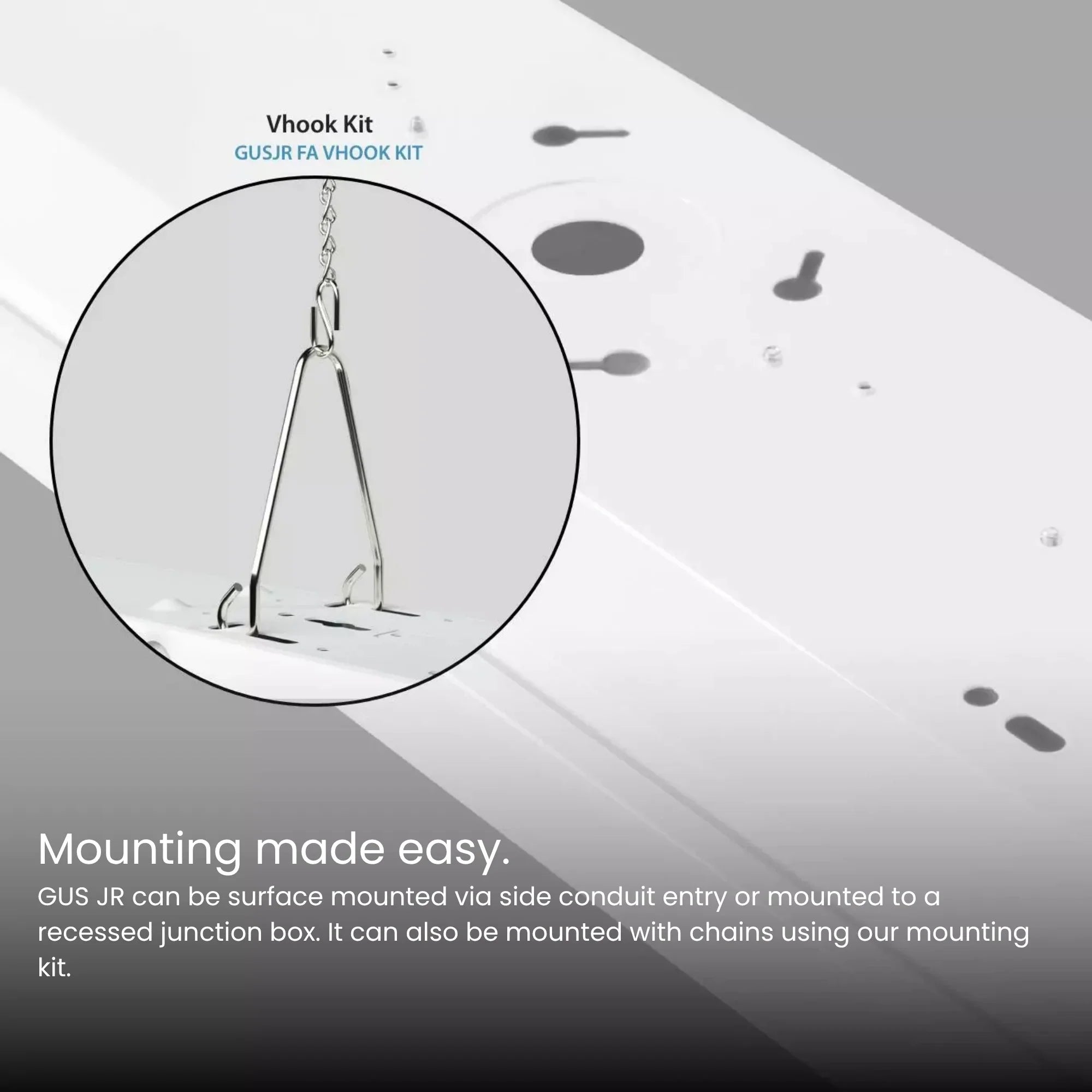

Installation & Mounting

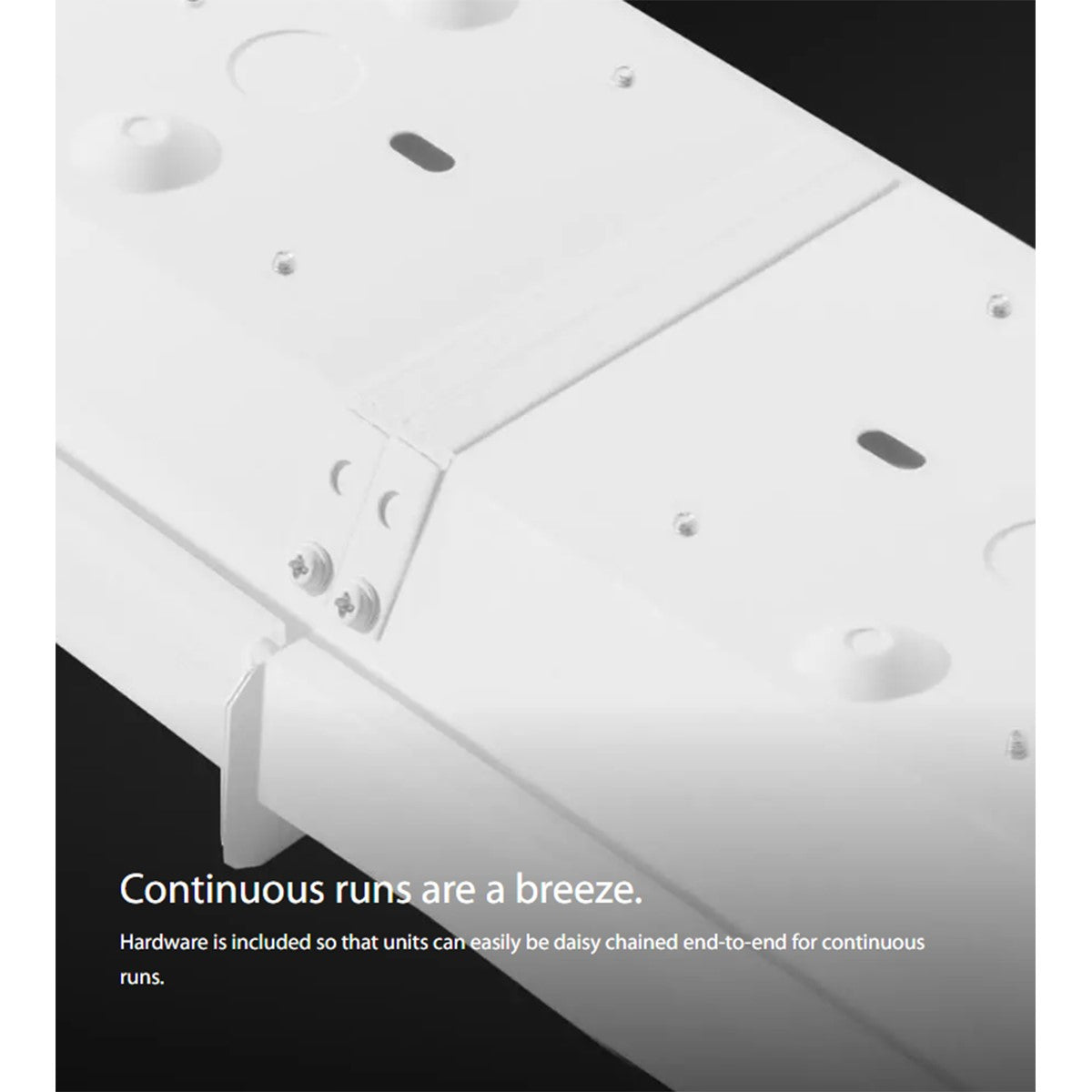

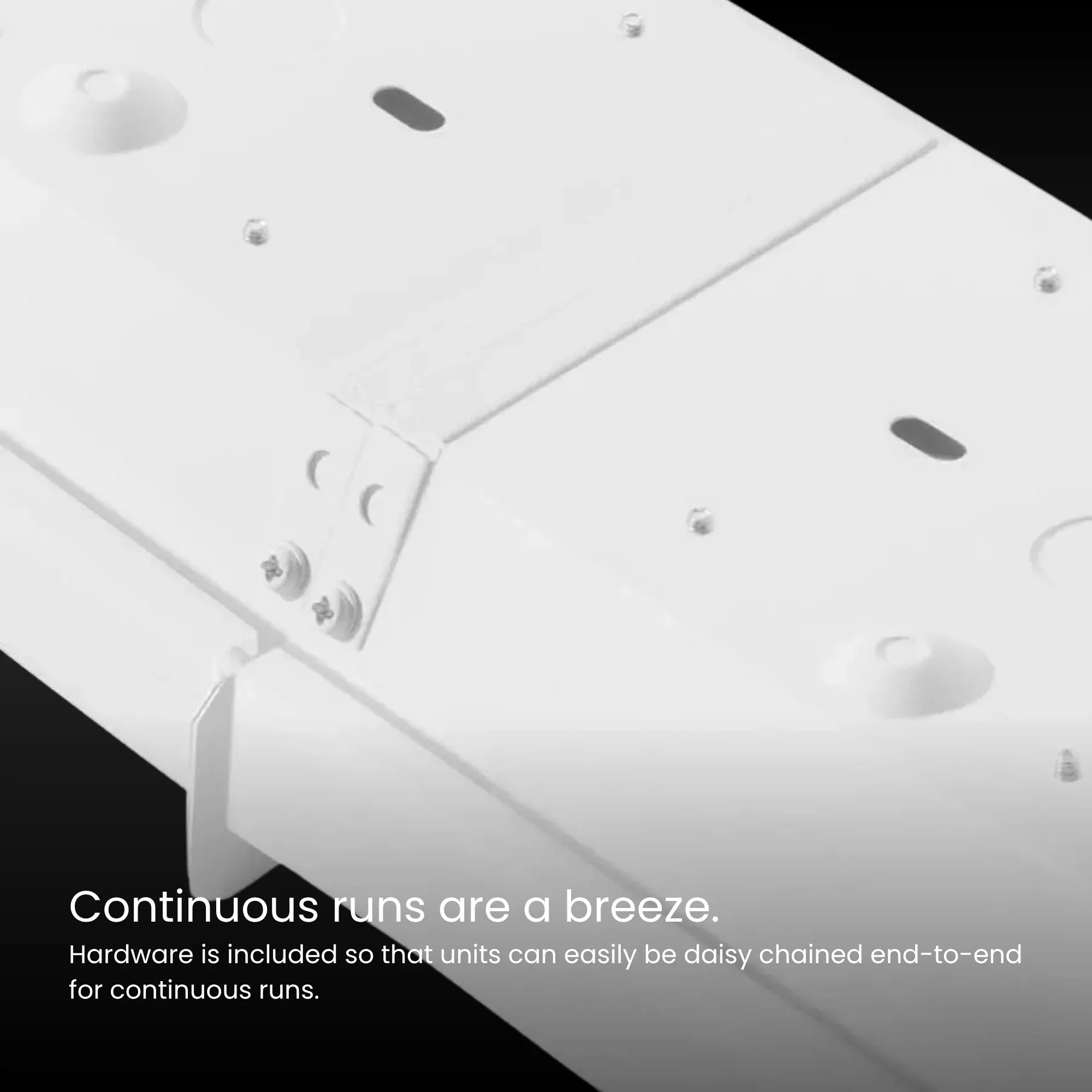

Designed for surface mounting, the fixture can also be installed with v-hooks, which are available separately.
What's Included
- Wraparound light fixture
Specifications
Specifications

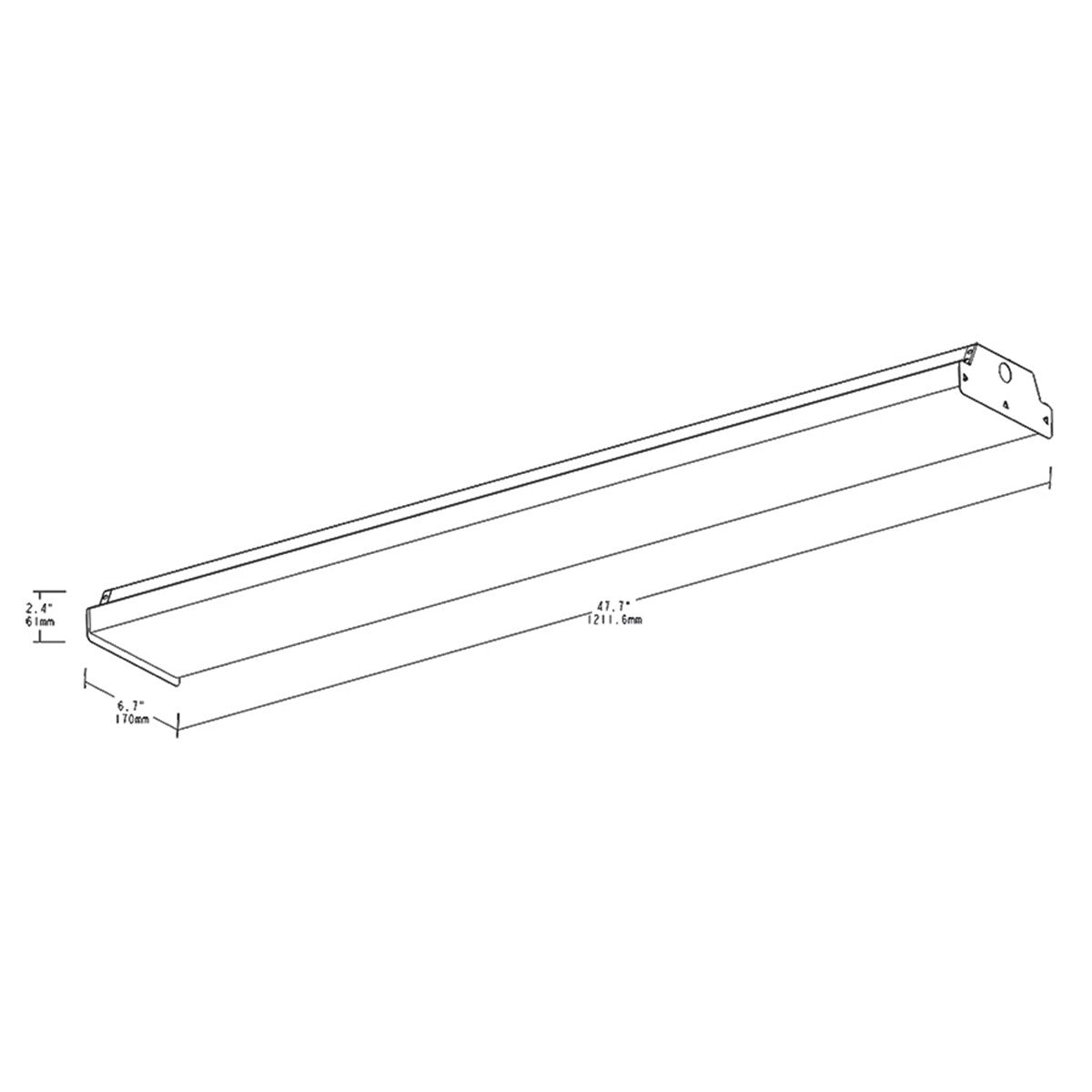

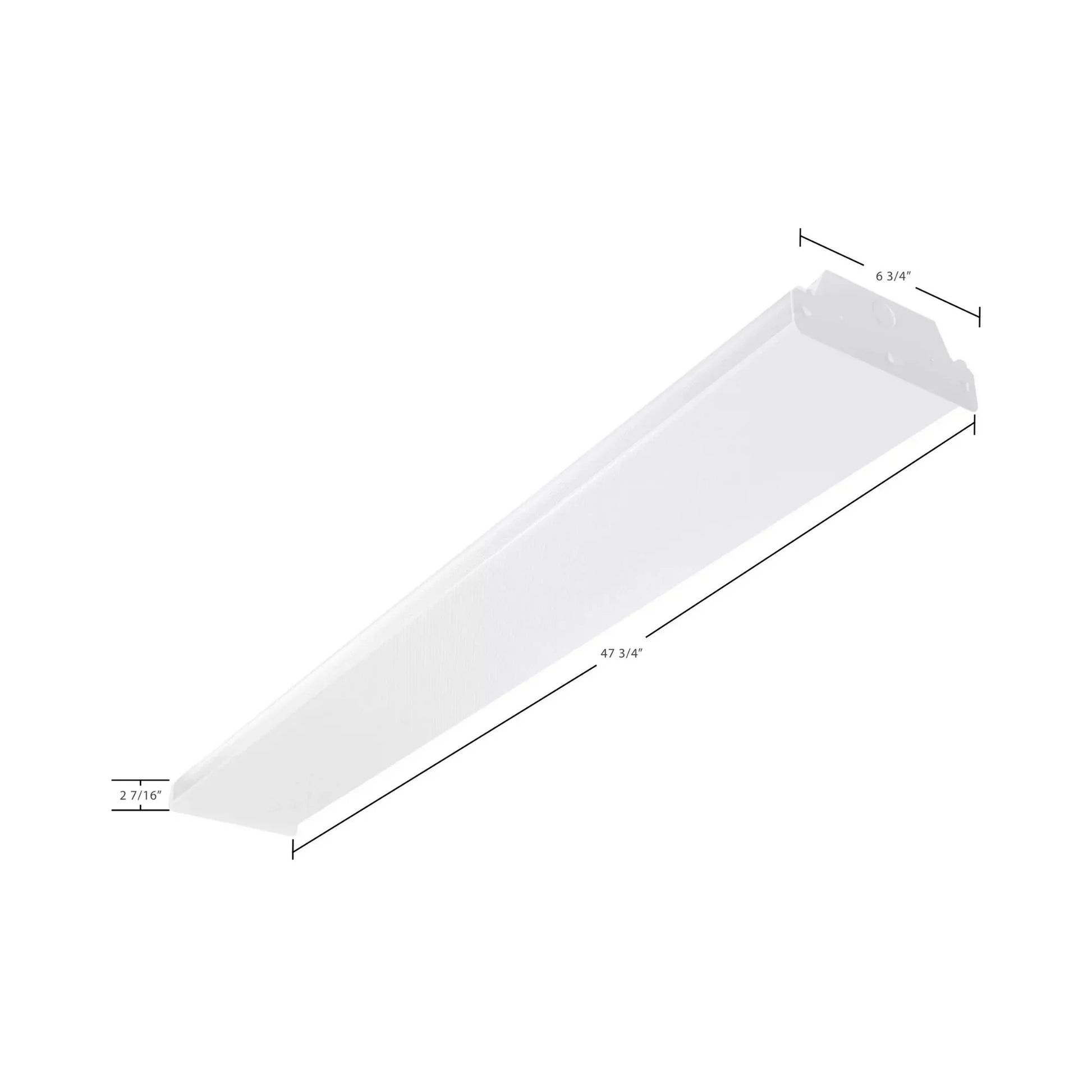

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
