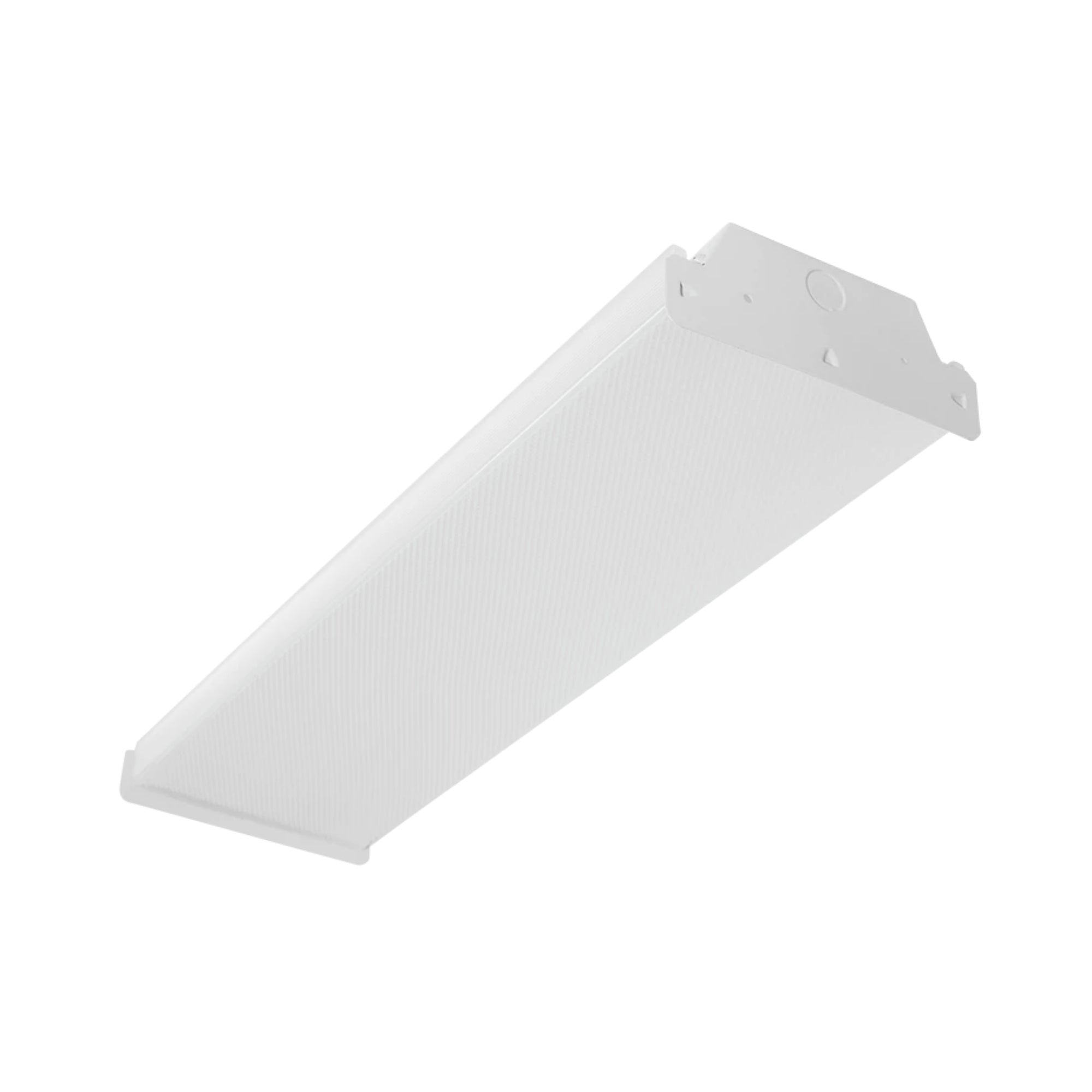

RAB GUSJR2 Field-Adjustable 2ft LED Wrap — 20W/15W/10W Selectable — 3500K/4000K/5000K — White

The RABGUSJR2is a commercial2ft LED Wrapengineered to deliver up to2,790 lumenswith field-adjustable20W/15W/10Wpower settings and switchable3500K/4000K/5000Kcolor temperatures. Operating on120–277Velectrical systems with0–10V continuous dimming down to 10%, this luminaire provides high-efficacy illumination up to143.8 lm/W. Built with aUL Listed damp locationrating, it is qualified for commercial utility rebates underDLC 5.1 Listedstandards and features included through-wiring kits for continuous-run tandem row mounting.

Key Features

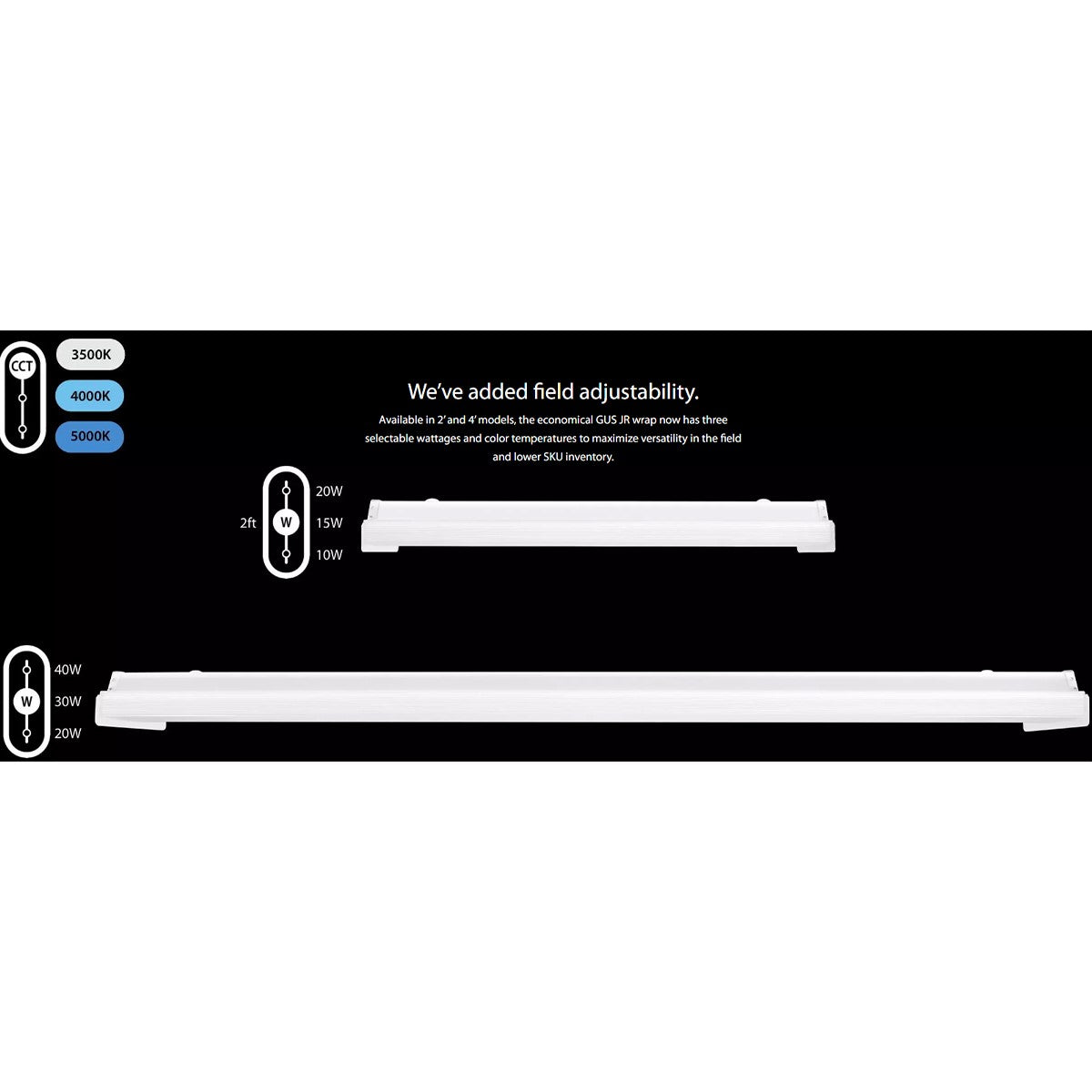

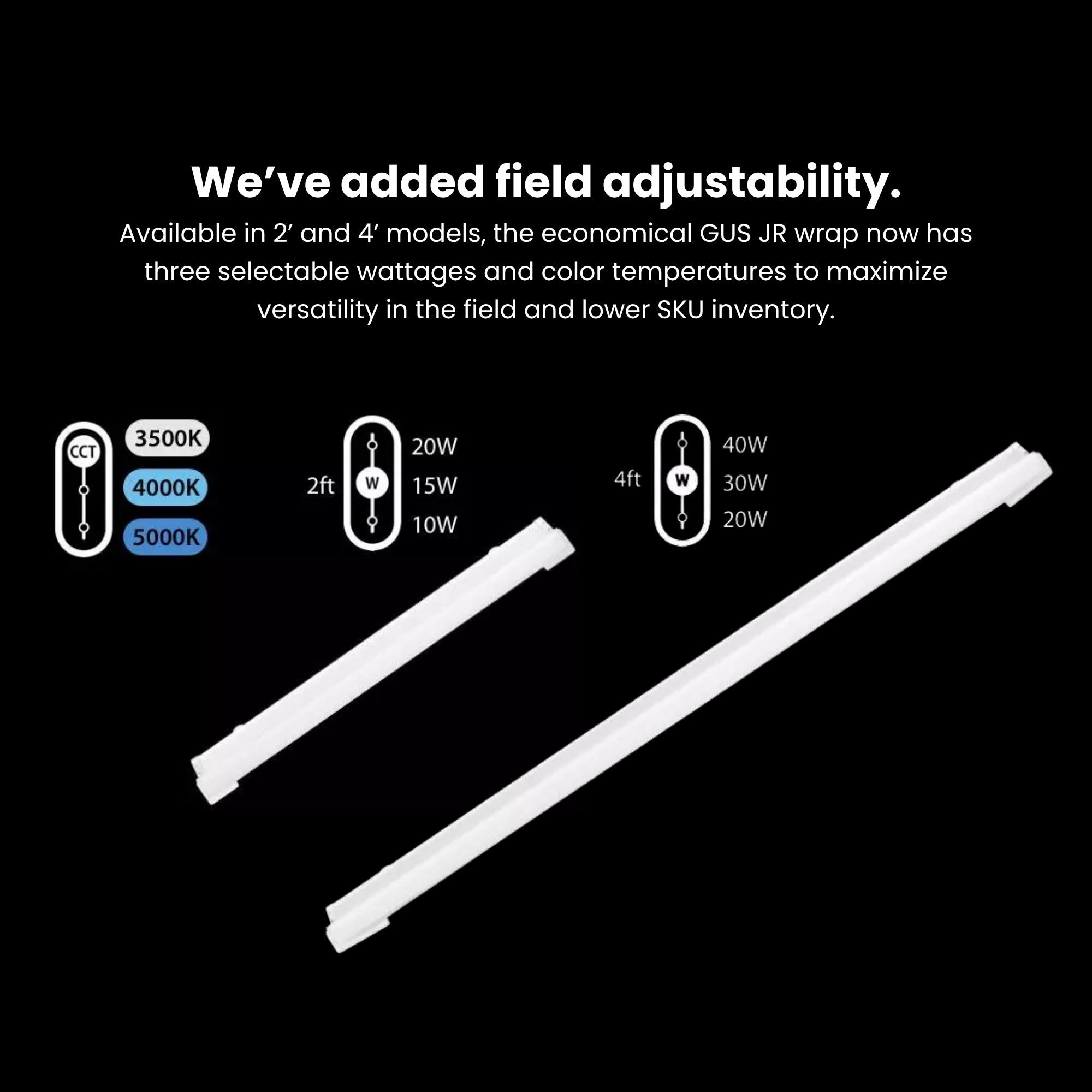

• Selectable Wattage:20W / 15W / 10W (factory default: 20W) — field-adjustable via onboard switch
• Maximum Lumen Output:2,790 lm at 20W (4000K)
• Peak Efficacy:143.8 lm/W for high-efficiency commercial operation
• CRI:83–85 color rendering across all settings
• Color Consistency:7-step MacAdam Ellipse binning per ANSI C78.377-2017 standards
• Selectable CCT:3500K / 4000K / 5000K (factory default: 4000K) — field-adjustable via onboard switch
• Lens & Optics:Diffused Polymethyl Methacrylate (PMMA) lens for uniform, glare-free distribution
• Dimming:0–10V continuous dimming down to 10% standard
• Voltage:Universal 120–277V AC, 50/60Hz Class 1 constant current driver
• Location Rating:UL Listed for damp locations
• Operating Temperature:-4°F (-20°C) minimum starting temperature to 113°F (45°C) maximum ambient range
• Certifications:DLC 5.1 Listed, UL Listed, TAA Compliant, RoHS Compliant
• Rated Life:50,000 hours (L70) per IESNA LM-79 and LM-80 testing
• Warranty:5-year limited warranty — RAB
• Form Factor & Design:24-gauge cold-rolled steel housing with included through-wiring kits for row mounting

Performance & Light Output

At20W:2,550 lm(3500K / 126.2 lm/W at 20.2W input, 83 CRI),2,790 lm(4000K / 143.8 lm/W at 19.4W input, 85 CRI),2,632 lm(5000K / 130.3 lm/W at 20.2W input, 84 CRI). At15W:1,931 lm(3500K / 127.0 lm/W at 15.2W input, 84 CRI),2,088 lm(4000K / 141.1 lm/W at 14.8W input, 85 CRI),1,979 lm(5000K / 131.1 lm/W at 15.1W input, 84 CRI). At10W:1,382 lm(3500K / 128.0 lm/W at 10.8W input, 84 CRI),1,474 lm(4000K / 139.1 lm/W at 10.6W input, 85 CRI),1,410 lm(5000K / 131.8 lm/W at 10.7W input, 84 CRI).

CRI 83–85 across all configurations. Rated life50,000 hours (L70)per IESNA LM-79 and LM-80 testing.

Smart & Control Features

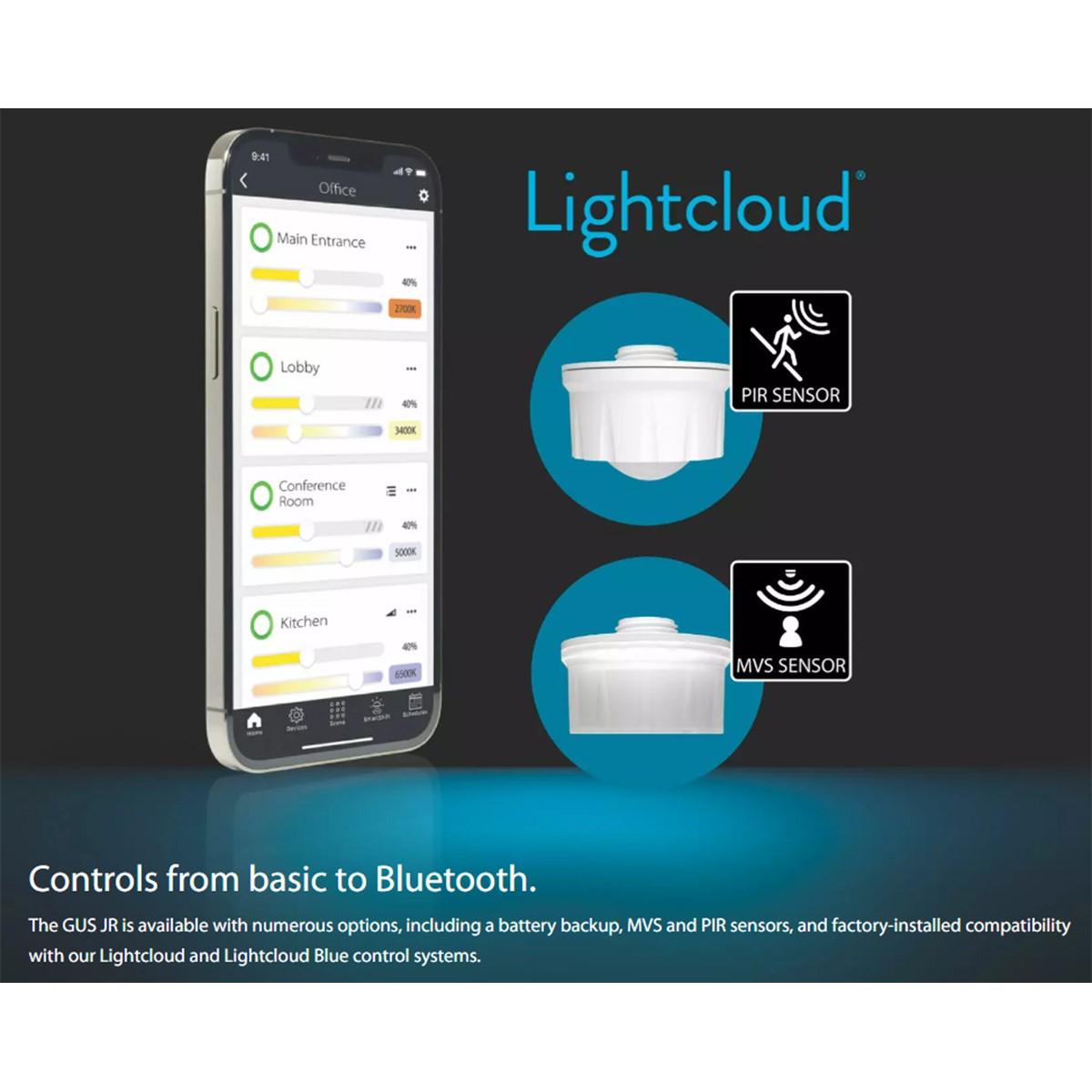

The GUSJR2 includes dimming control wiring for standard 0–10V DC dimming systems, dimming smoothly down to 10% (requires a separate 0–10V DC dimming circuit). The GUSJR family is also available in factory-configured models with passive infrared (PIR) or microwave (MVS) occupancy sensors, Lightcloud Blue Bluetooth mesh controls, and Lightcloud Enterprise wireless networking. Field adjustments for compatible non-Lightcloud sensors can be managed using the optional multi-sensor remote control (catalog #MSR1, sold separately).

Electrical

Powered by a Class 1 constant current driver operating on 120–277V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor of 99.44% at 120V (94.47% at 277V) and Total Harmonic Distortion (THD) of 7% at 120V (7% at 277V). Integrated 2kV (L-N) and 4kV (L/N-GND) surge protection protects internal electronics against transient voltage spikes. Includes pre-wired 0–10V dimming leads.

Operating current andamp drawacross input voltages for branch circuit and breaker loading calculations:

Construction

Housing & Build:Sheet metal stamping 24-gauge cold-rolled steel housing paired with a formed 24-gauge cold-rolled steel reflector with a white powder coat.

Location & Environmental Rating:UL Listed for damp locations to withstand indoor commercial humidity and moisture.

Operating Temperature:Cold weather minimum starting temperature of -4°F (-20°C); suitable for use in ambient temperatures up to 113°F (45°C).

Lens & Optics:Diffused Polymethyl Methacrylate (PMMA) wrap lens engineered for smooth, even light distribution.

Finish:White powder-coated finish formulated for high durability and long-lasting color.

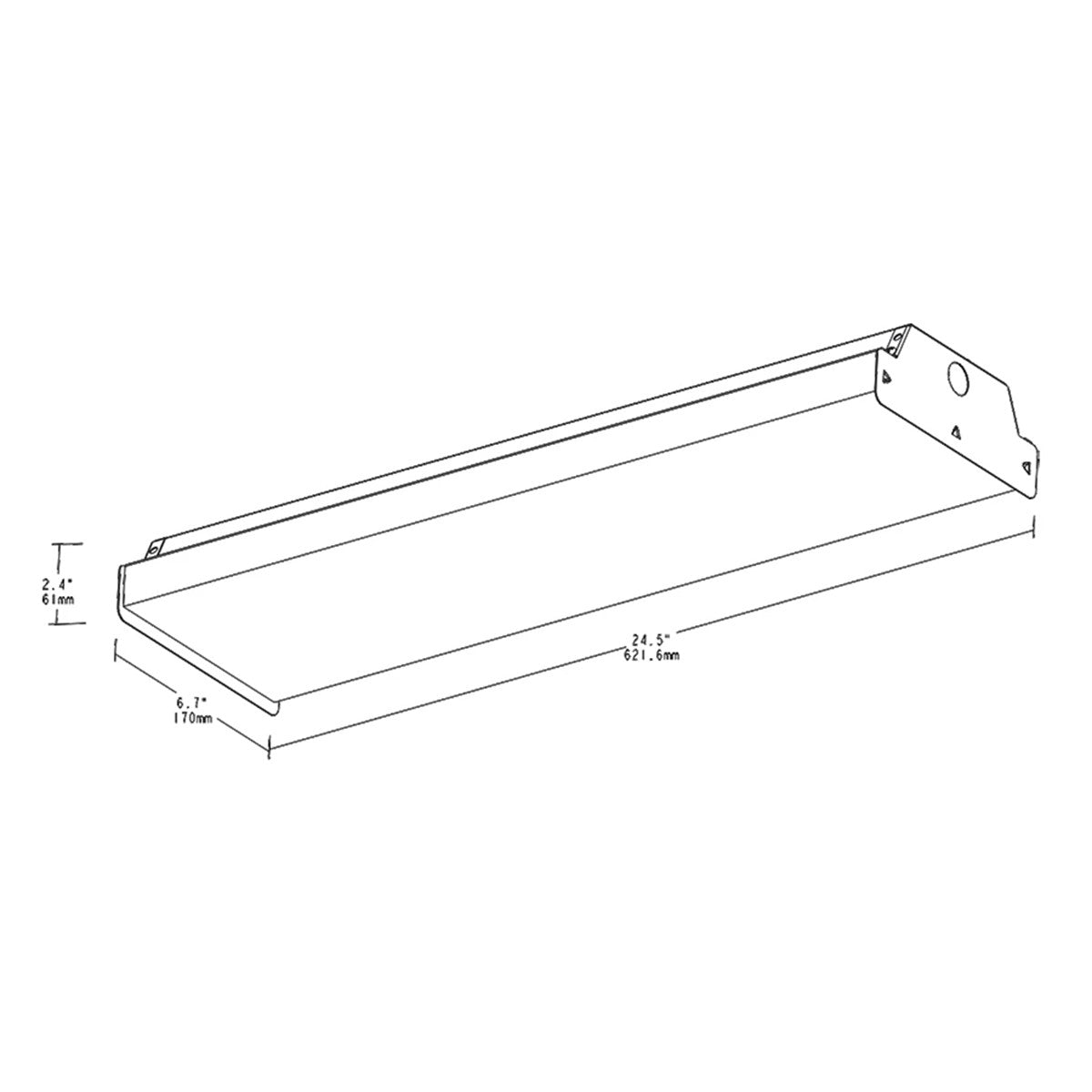

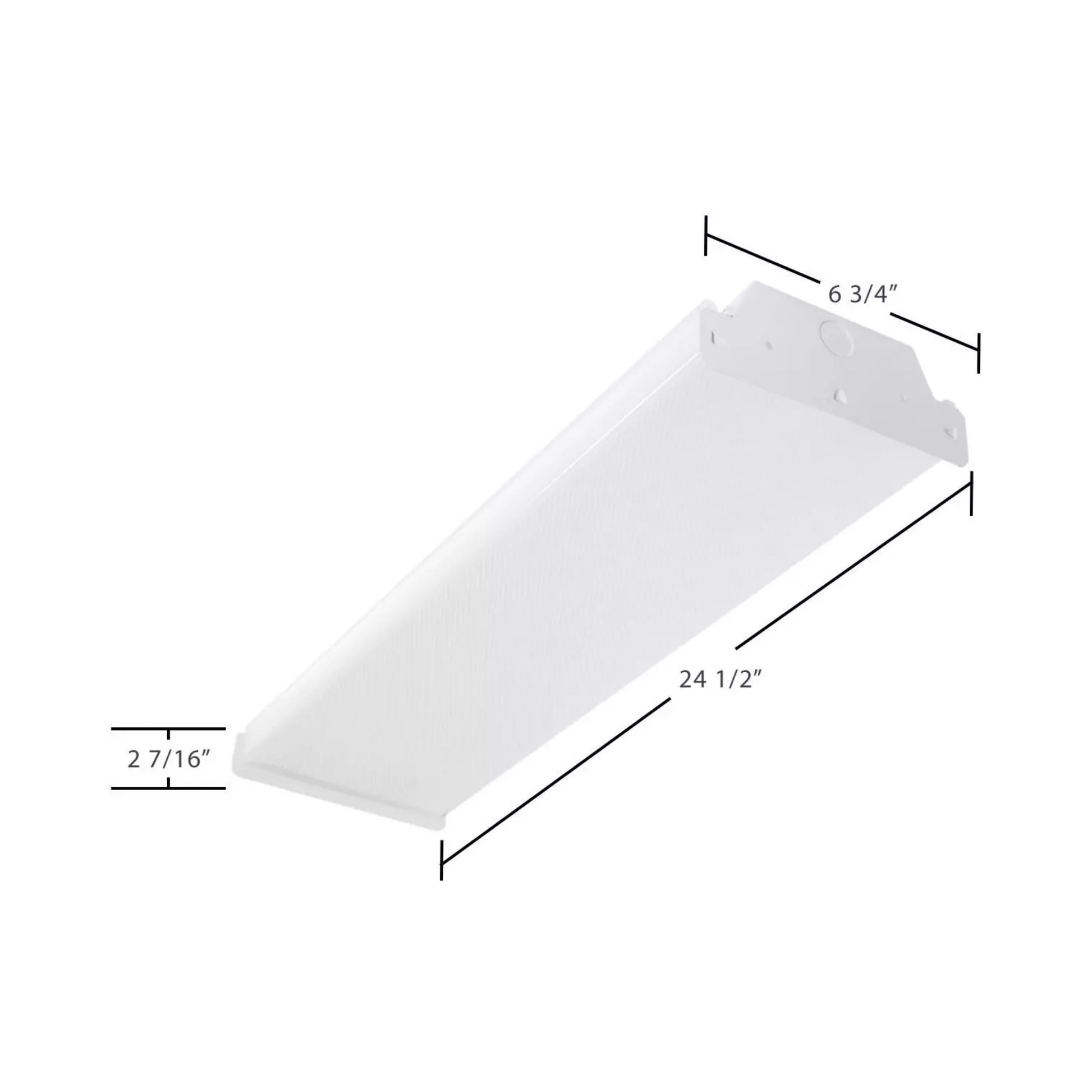

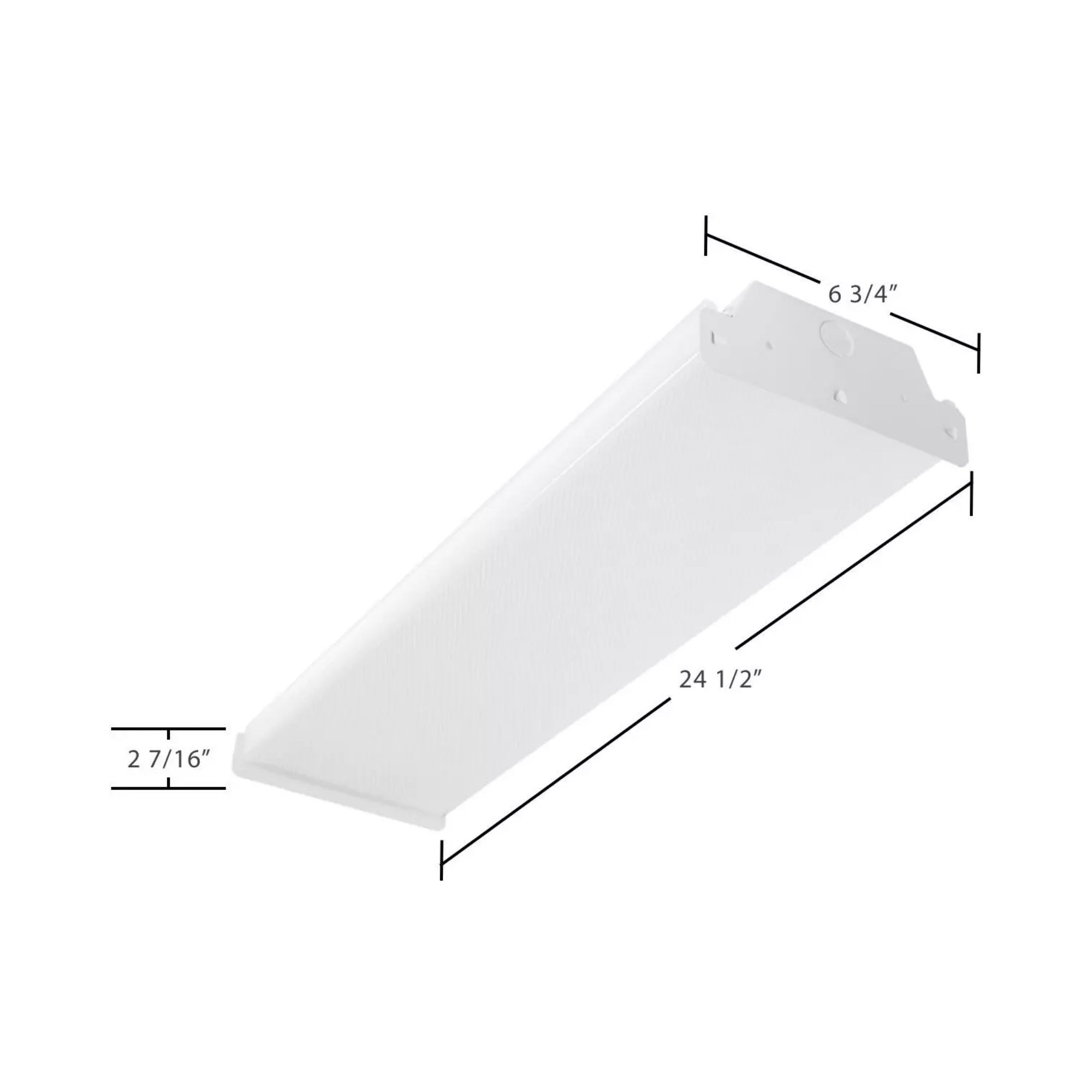

Dimensions & Weight:24.50" L × 6.75" W × 2.50" H(24 1/2" × 6 3/4" × 2 1/2"). Fixture weight:5.1 lbs.

Installation & Mounting

Standard Mounting:Surface mounting standard directly to ceiling or wall junction boxes.

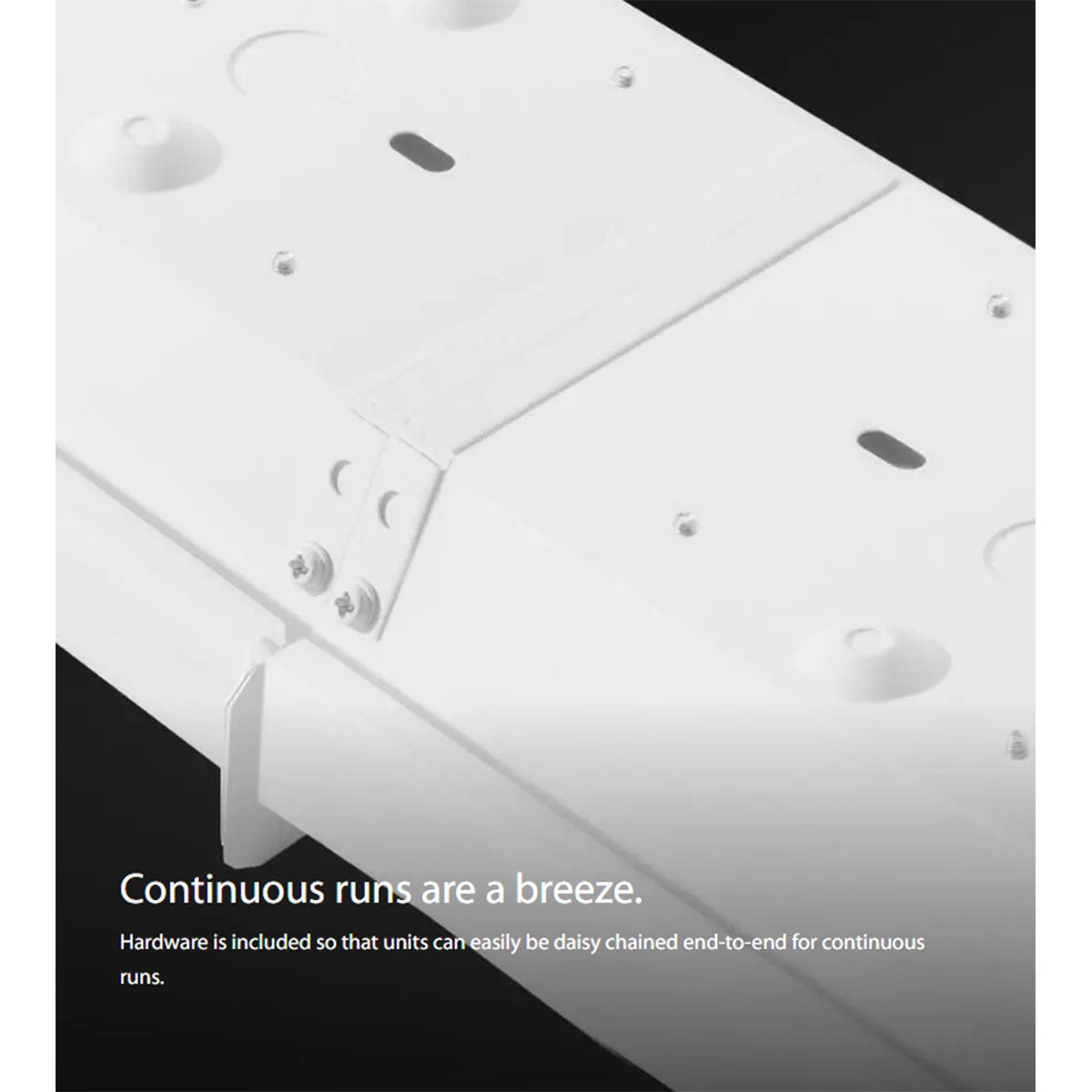

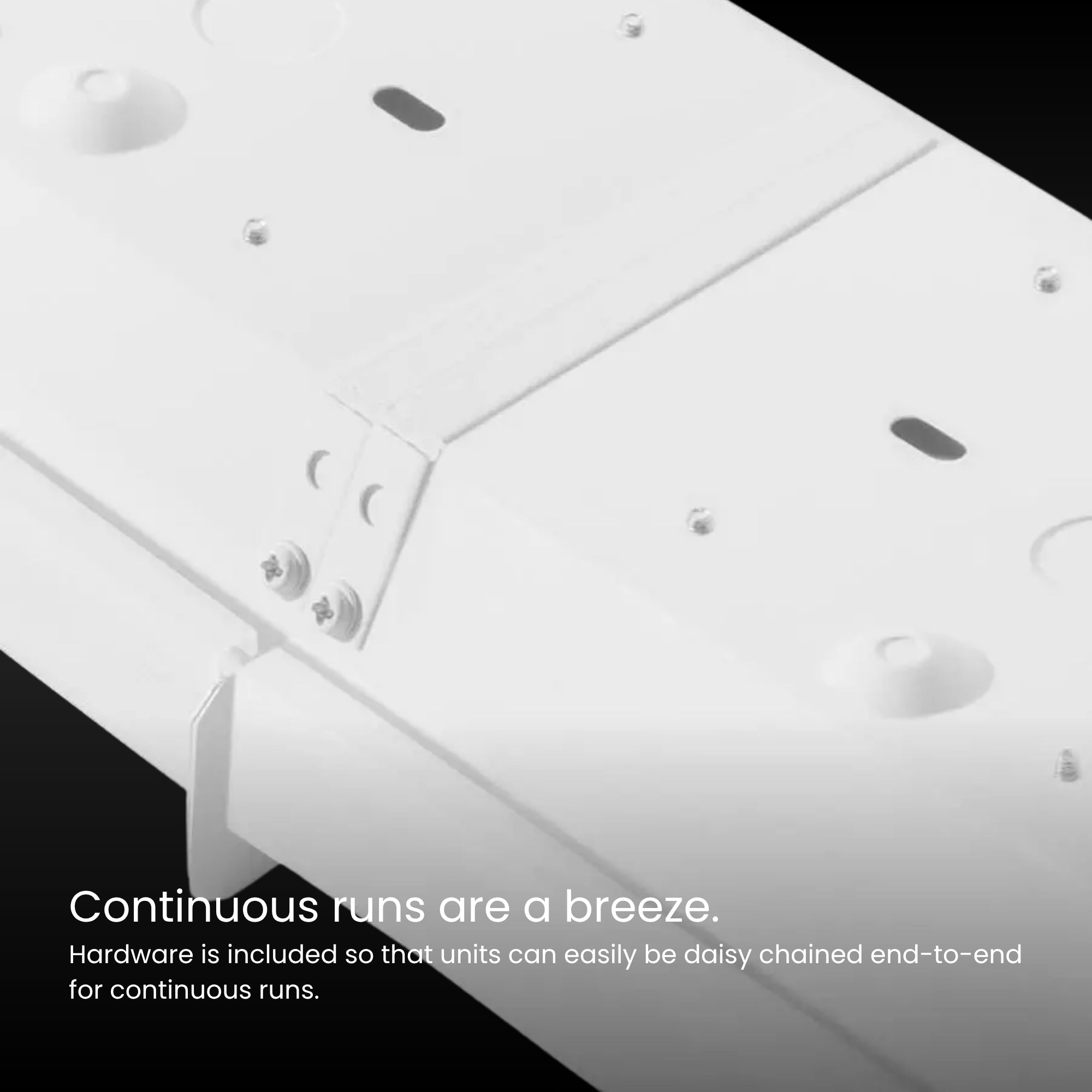

Continuous Run Mounting:Through-wiring kits included in the packaging for tandem row mounting.

Accessories (Sold Separately):

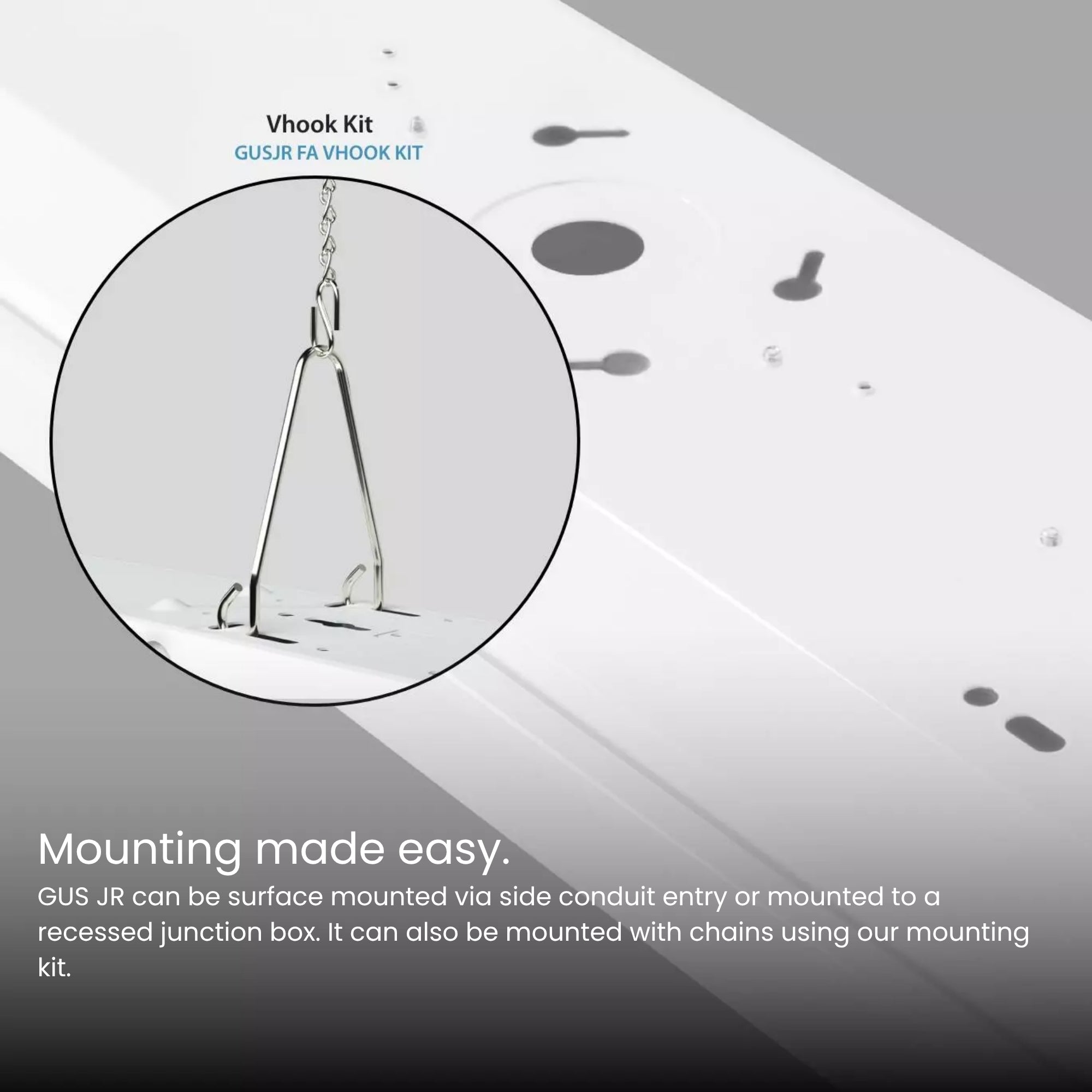

• Suspension Hardware:VHOOKGUSJR (V-hook and chain kit for GUSJR, 2 pieces each)
• Sensors & Controls:MSR1 (Multi-sensor remote control, IP20)

Certifications & Rebates

• DLC 5.1 Listed:Qualifies for commercial utility rebate incentives under Direct Linear Ambient Luminaires. To confirm rebate eligibility with your local utility provider, visitdesignlights.organd search DLC Product IDS-IWJQ5M.
• UL Listed:Certified for damp locations.
• TAA Compliant:Product of Cambodia ("designated country" end product) that complies with the Trade Agreements Act (TAA) for federal and GSA schedule procurement. Buy American Act (BAA) compliant manufacturing available upon request.
• RoHS Compliant:Mercury and UV free with RoHS-compliant components.

Typical Applications

• Corridors & Hallways— Continuous-run row mounting via included through-wiring kits provides uniform linear illumination across narrow passages.
• Stairwells & Landings— Compact 24.5-inch length and selectable 10W/15W/20W output fit tight wall or ceiling spaces while preventing over-lighting.
• Utility & Mechanical Rooms— Durable 24-gauge cold-rolled steel housing and damp location rating protect against ambient moisture in service areas.
• Restrooms & Locker Rooms— Diffused PMMA lens and switchable 3500K/4000K/5000K color temperatures deliver clean, glare-free ambient lighting.
• Federal & Municipal Facilities— Trade Agreements Act (TAA) compliance and DLC 5.1 qualification meet strict government procurement and energy efficiency mandates.

What's Included

• RAB GUSJR2 2ft Field-Adjustable LED Wrap — White
• Through-wiring kit for continuous row mounting
• Installation and operation manual
