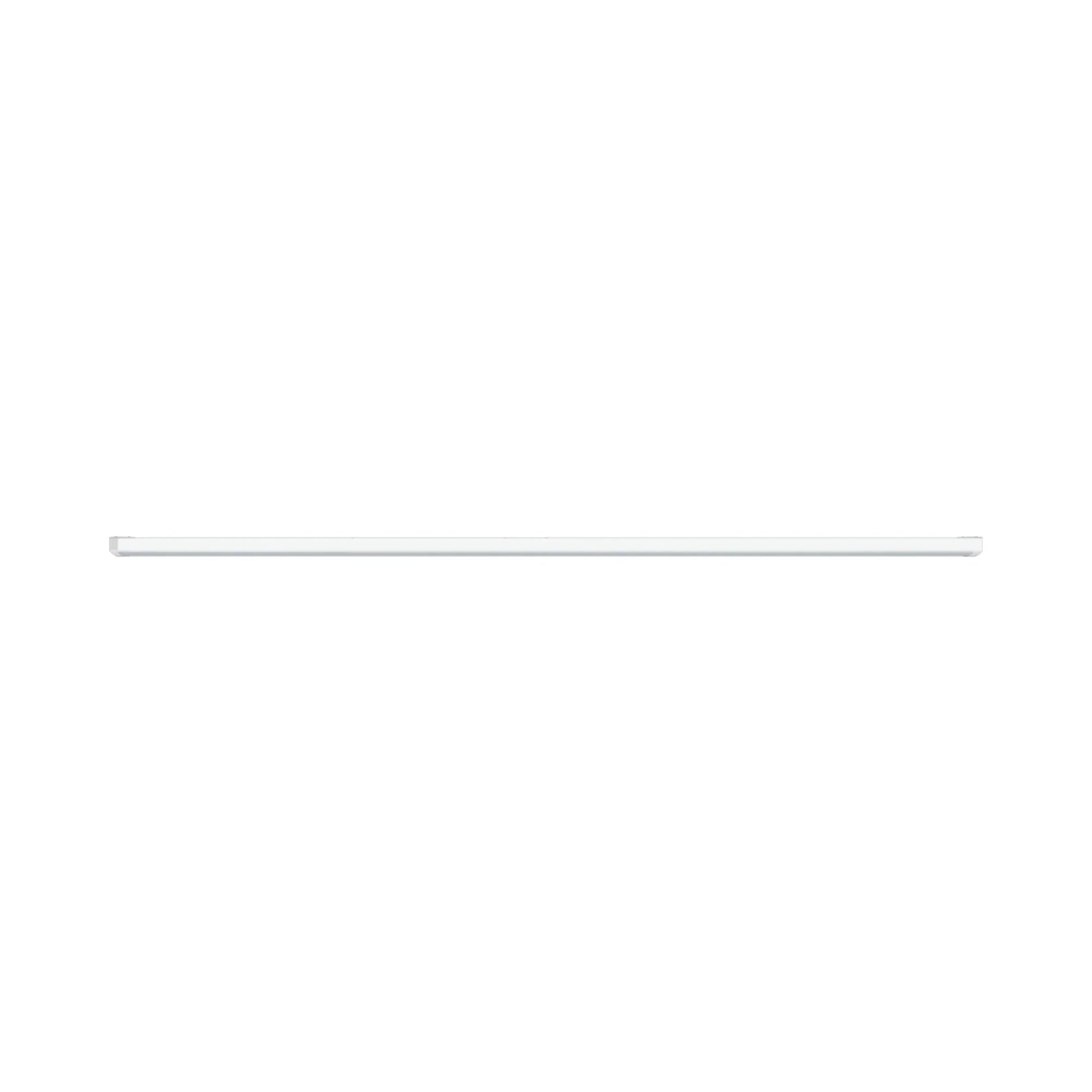

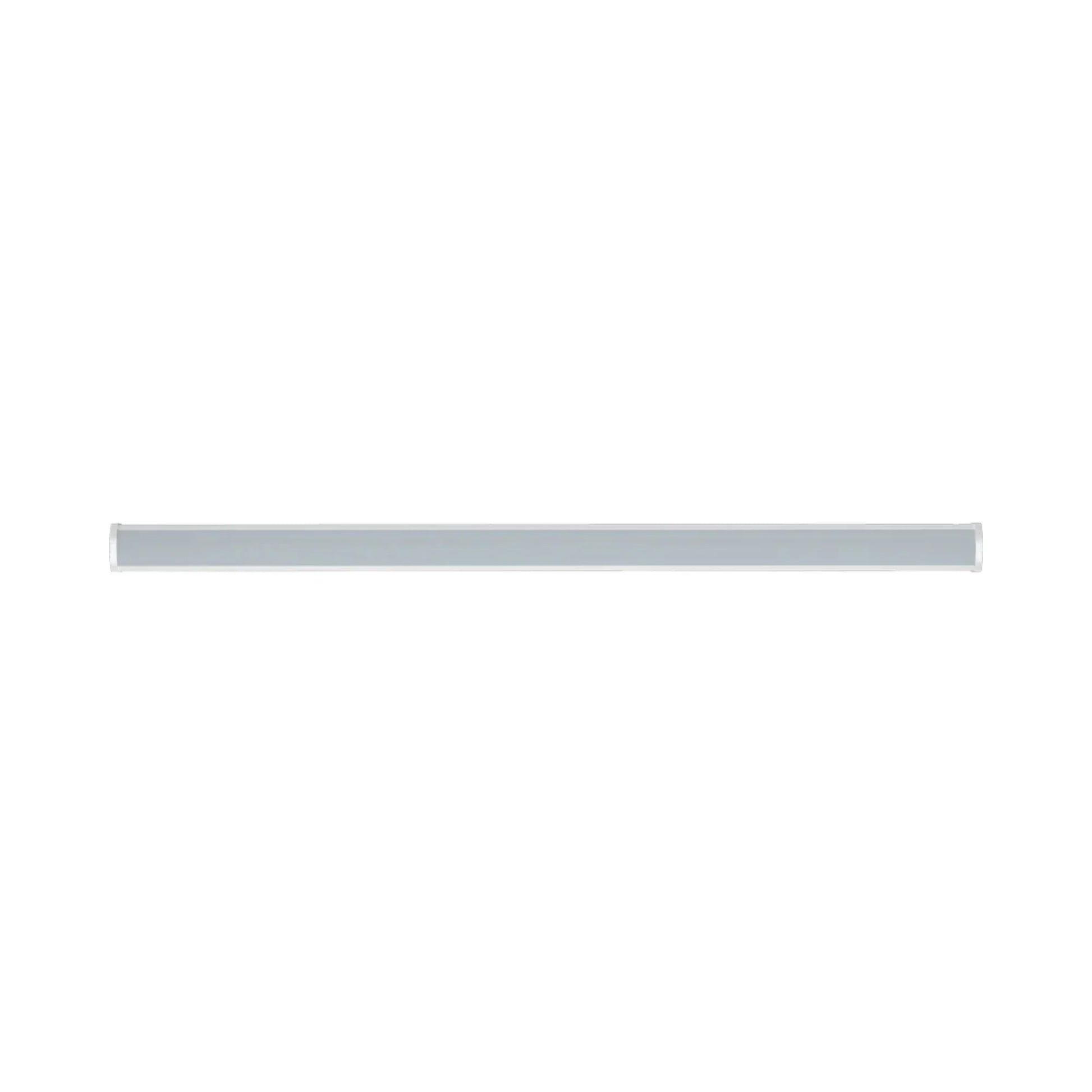

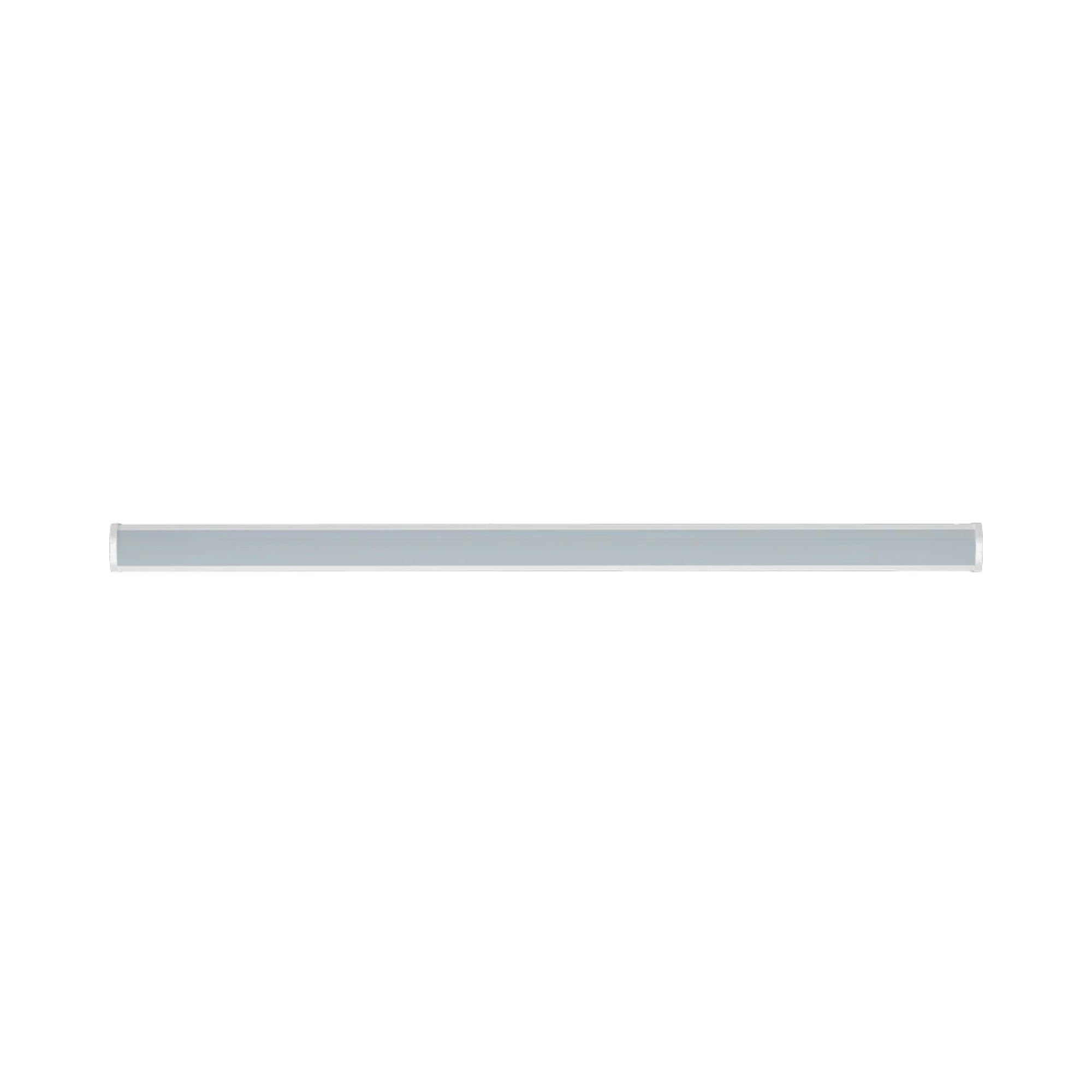

RAB GUS17-8-MVS Field Adjustable Wrap 8ft Wraparound Light 12700 Lumens 90W Selectable CCT 120-277V White
In stock
About this item
About this item
- Lumens: Provides up to 12,721 lumens for optimal brightness in large spaces.
- Wattage: Field adjustable wattage options of 90W, 80W, and 70W for flexible energy use.
- Voltage: Operates on a wide voltage range of 120-277V for versatile installation.
- Mounting: Designed for surface mounting with optional v-hooks for varied installation needs.
- Dimming: Includes 0-10V dimming capability, allowing light level adjustments down to 10%.
We process payments securely and do not store credit card information.
Description
Description

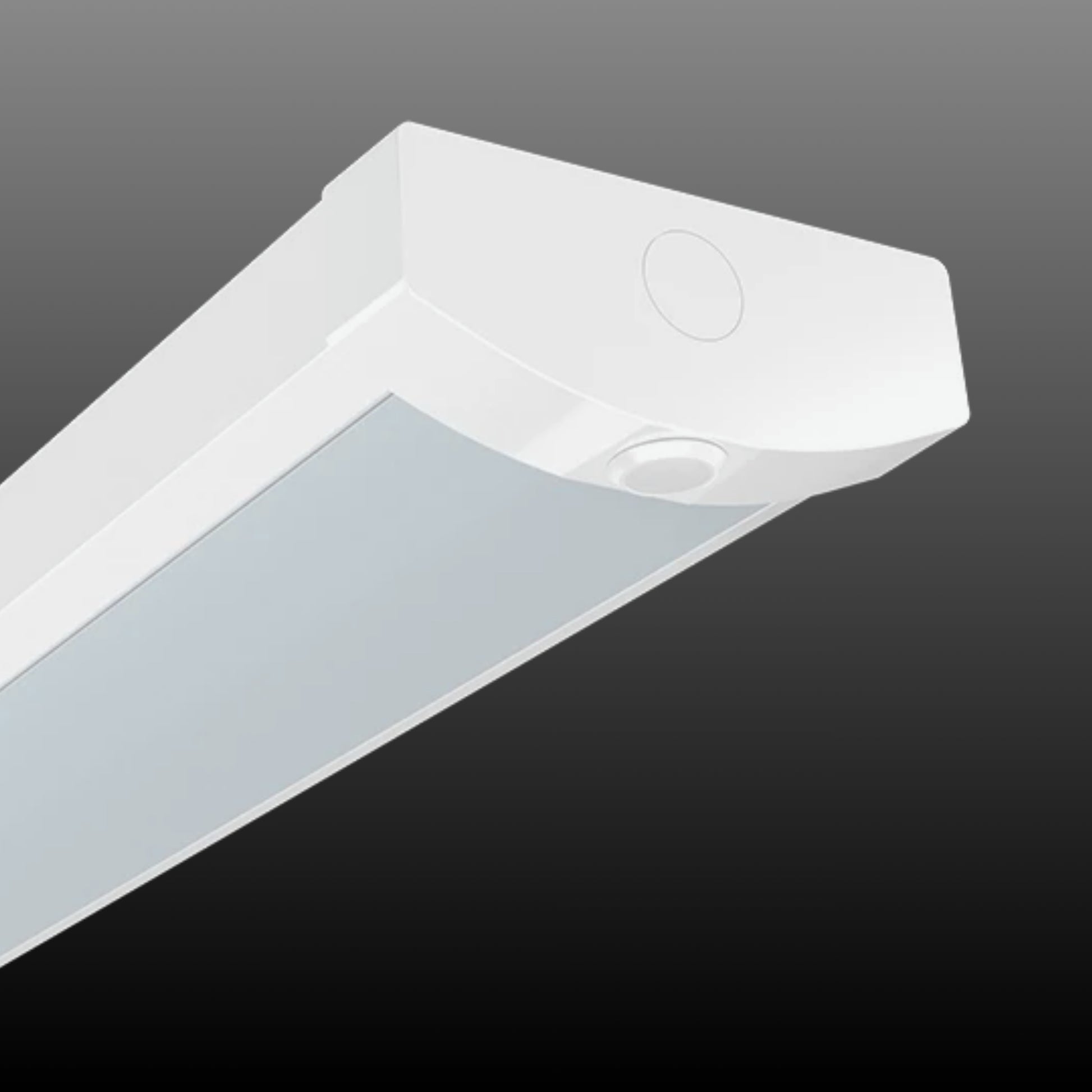

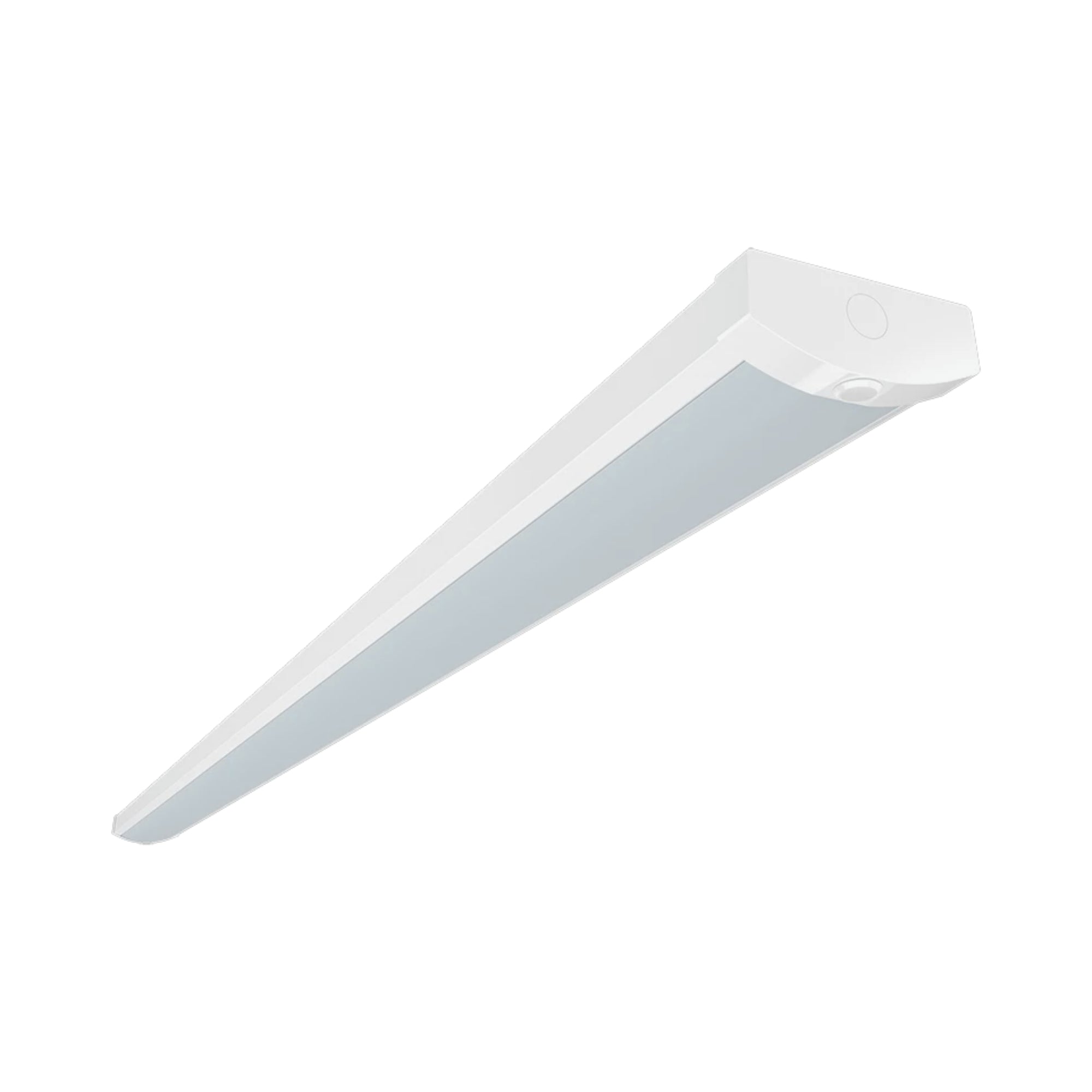

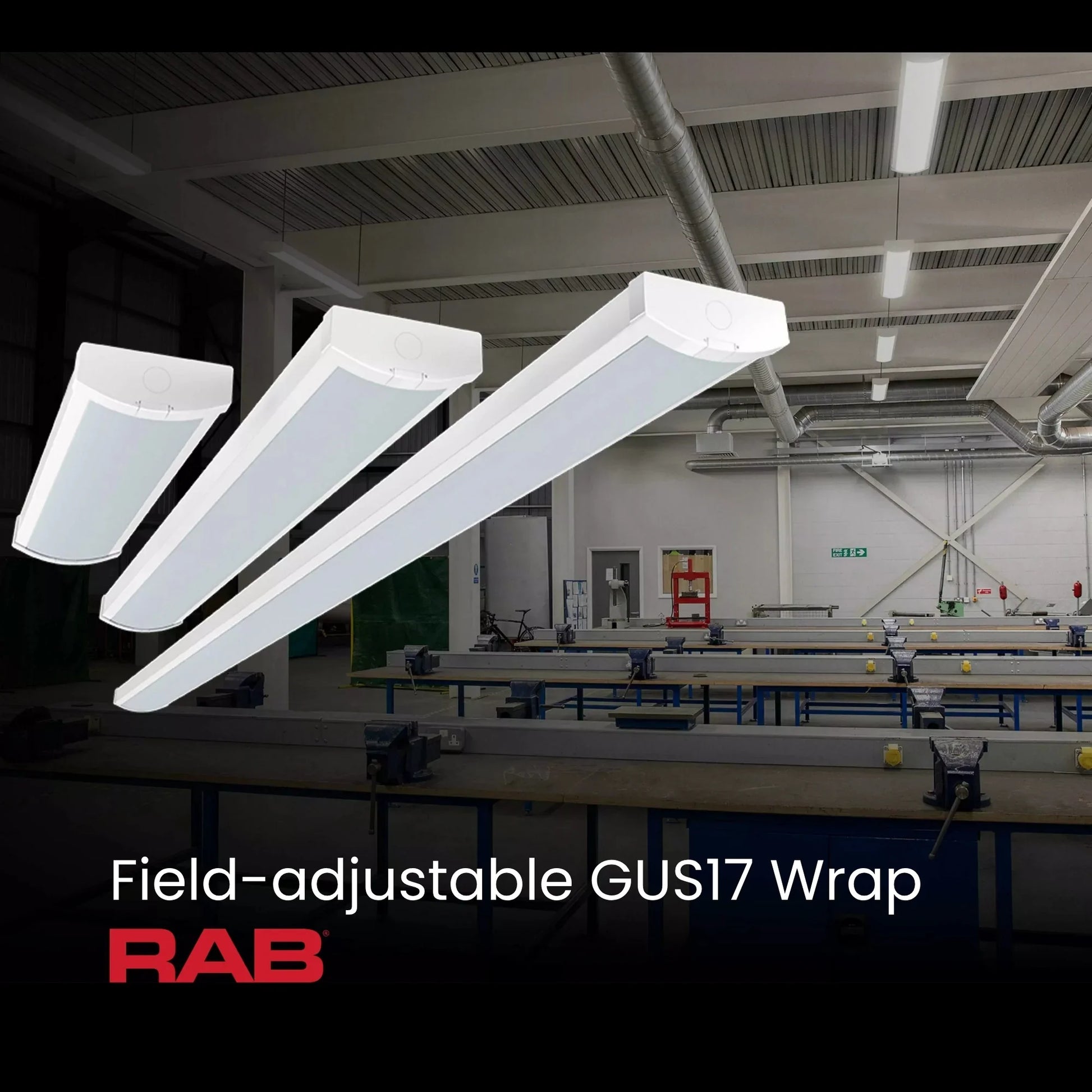

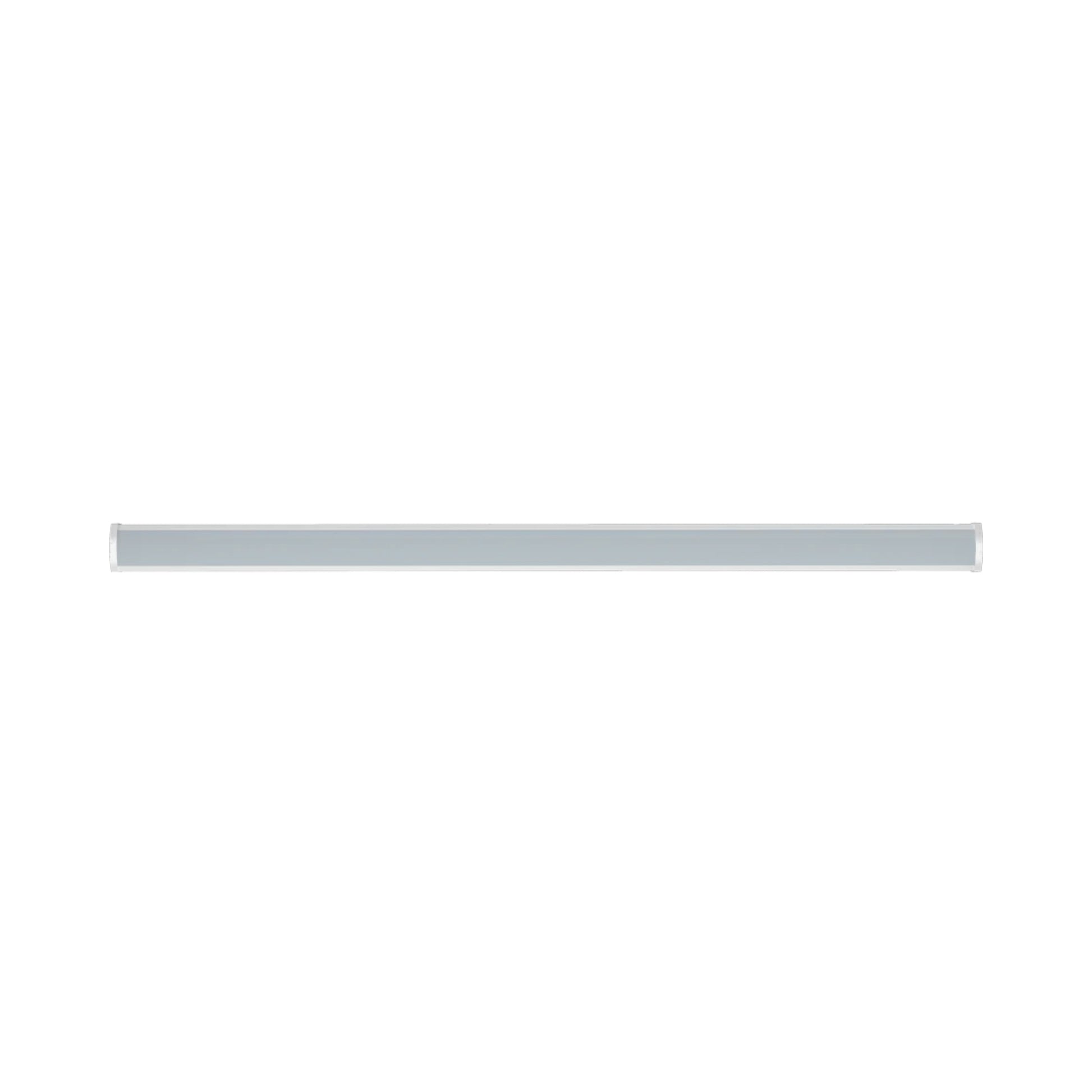

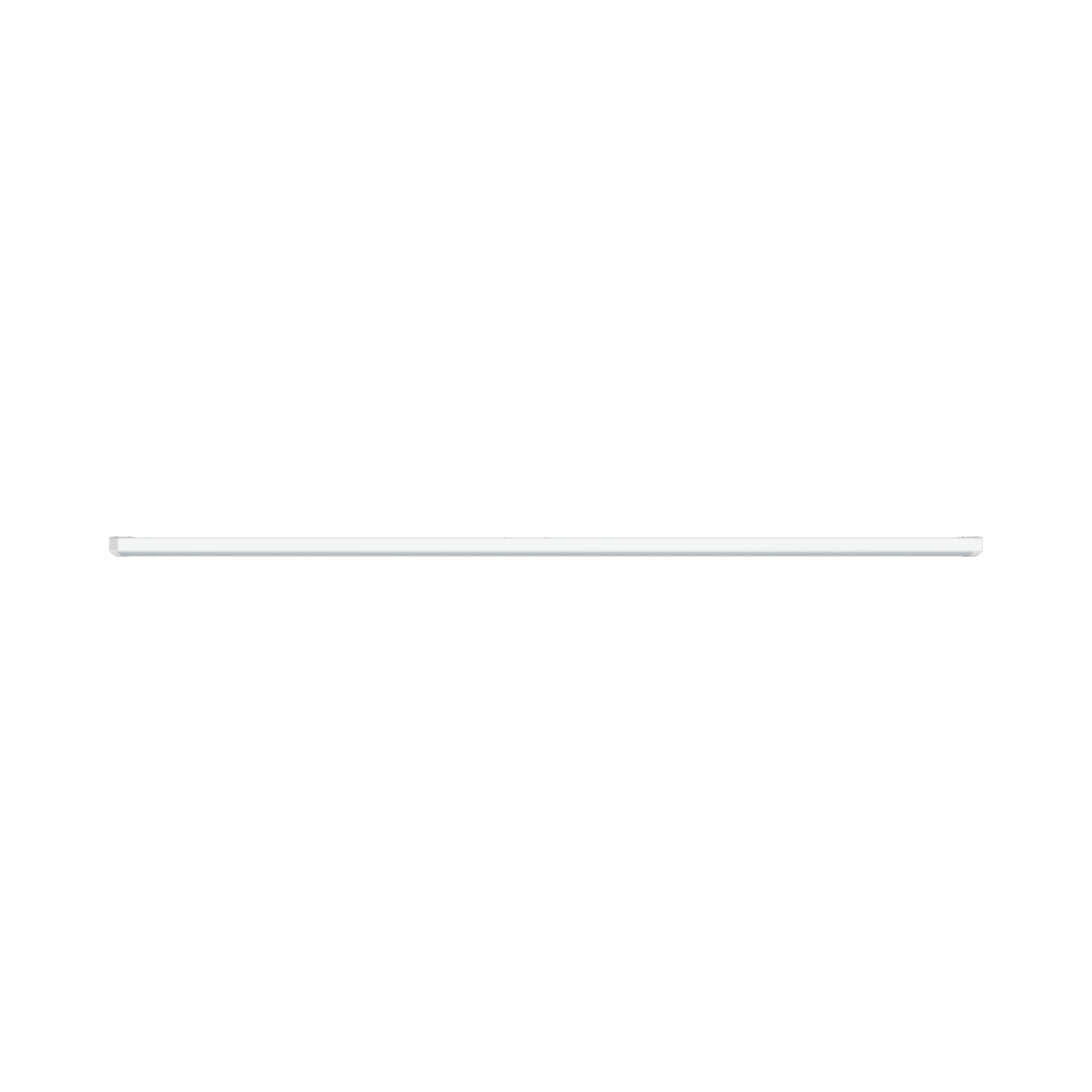

RAB GUS17 Field Adjustable Wraparound Light — 90W Configuration
The RAB GUS17-8/MVS is a versatile wraparound light offering 90W power with a light output of up to 12,721 lumens. It supports a wide input voltage range of 120-277V and features selectable color temperatures of 3500K, 4000K, and 5000K. This fixture is suitable for damp locations and is DLC listed for energy efficiency.
Key Features

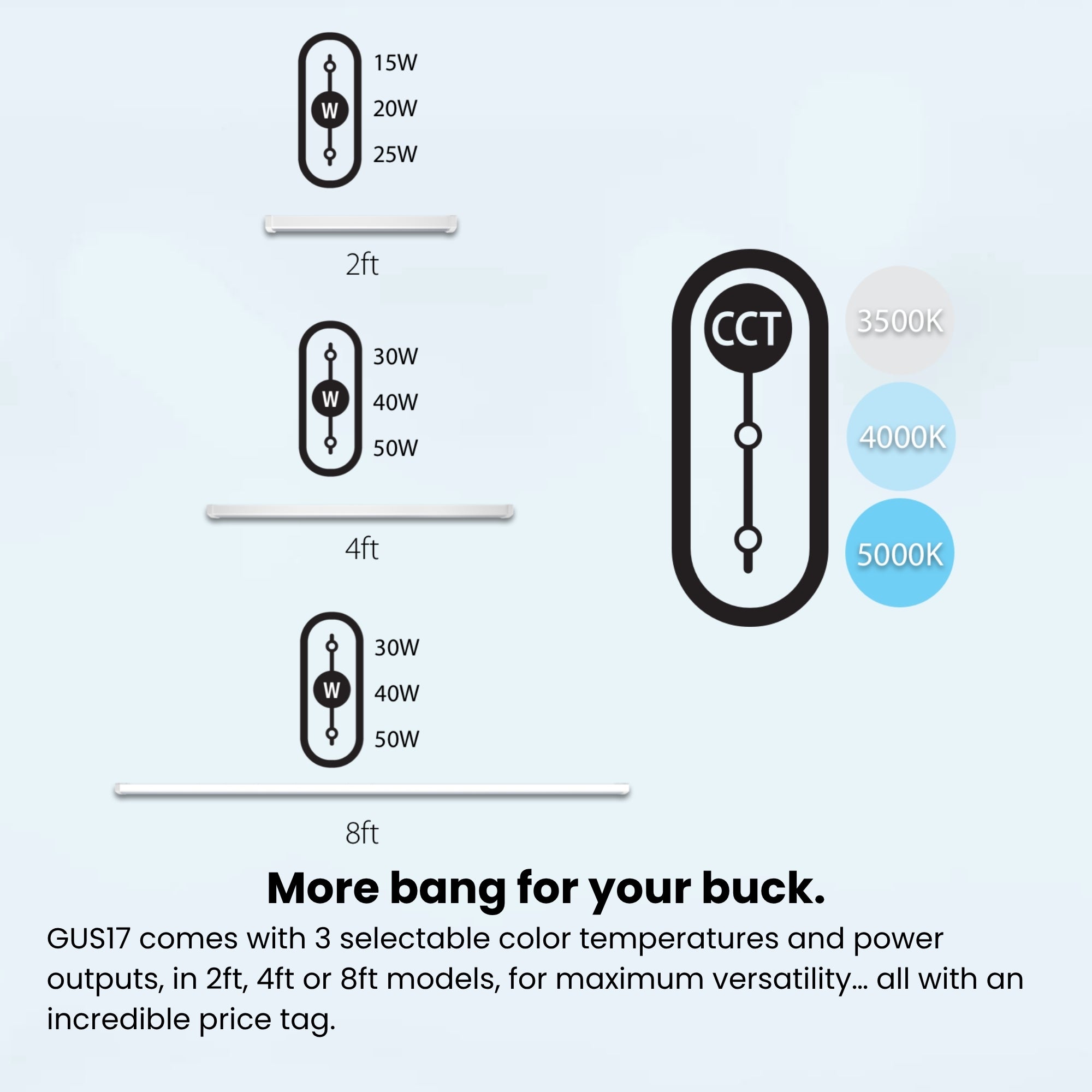

- Field Adjustability: Easily adjust the wattage between 90W, 80W, and 70W to suit different lighting needs.
- Selectable CCT: Choose from 3500K, 4000K, or 5000K color temperatures for desired ambiance.
- High Efficacy: Achieves an efficacy of 130.5-141.3 lm/W, ensuring efficient light output.
- Durable Construction: Built with color-coated steel sheets and a polycarbonate lens for longevity.
- Long Lifespan: Offers a 100,000-hour LED lifespan based on IES LM-80 results.
- Dimming Capability: Supports 0-10V dimming systems, allowing for light level customization.
- Surge Protection: Equipped with 1 kV L-N and 2 kV L/N-PG surge protection for reliability.
- Compliance: UL listed for damp locations and meets DLC 5.1 requirements.
- Motion Sensing: Integrated microwave occupancy sensor for energy-saving automation.
- Remote Control: Compatible with remote control (MSR1) for easy setting adjustments.

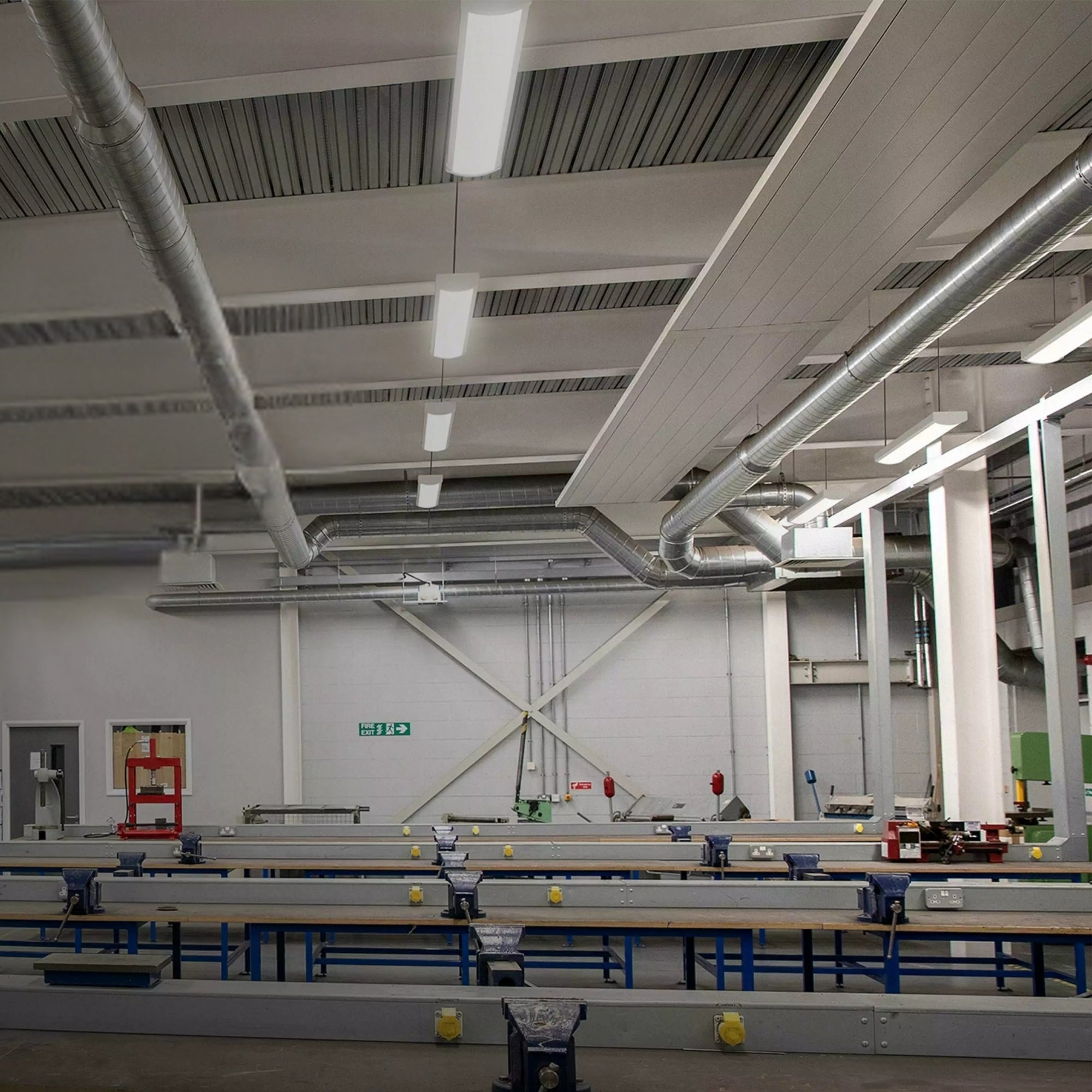

Typical Applications
- Warehouses
- Commercial Offices
- Retail Spaces
- Educational Facilities
- Corridors
- Stairwells
Performance & Light Output
This fixture delivers up to 12,721 lumens with a color rendering index (CRI) of 84-86, ensuring high-quality light output. It maintains color uniformity in line with ANSI C78.377-2017 standards.
Electrical & Controls
The GUS17-8/MVS operates on 120-277V with a constant current driver. It includes 0-10V dimming capability and surge protection, ensuring stable performance.
Construction & Durability
Constructed with color-coated steel and a polycarbonate lens, this fixture is designed for durability. It is suitable for operation in temperatures ranging from -4°F to 113°F.

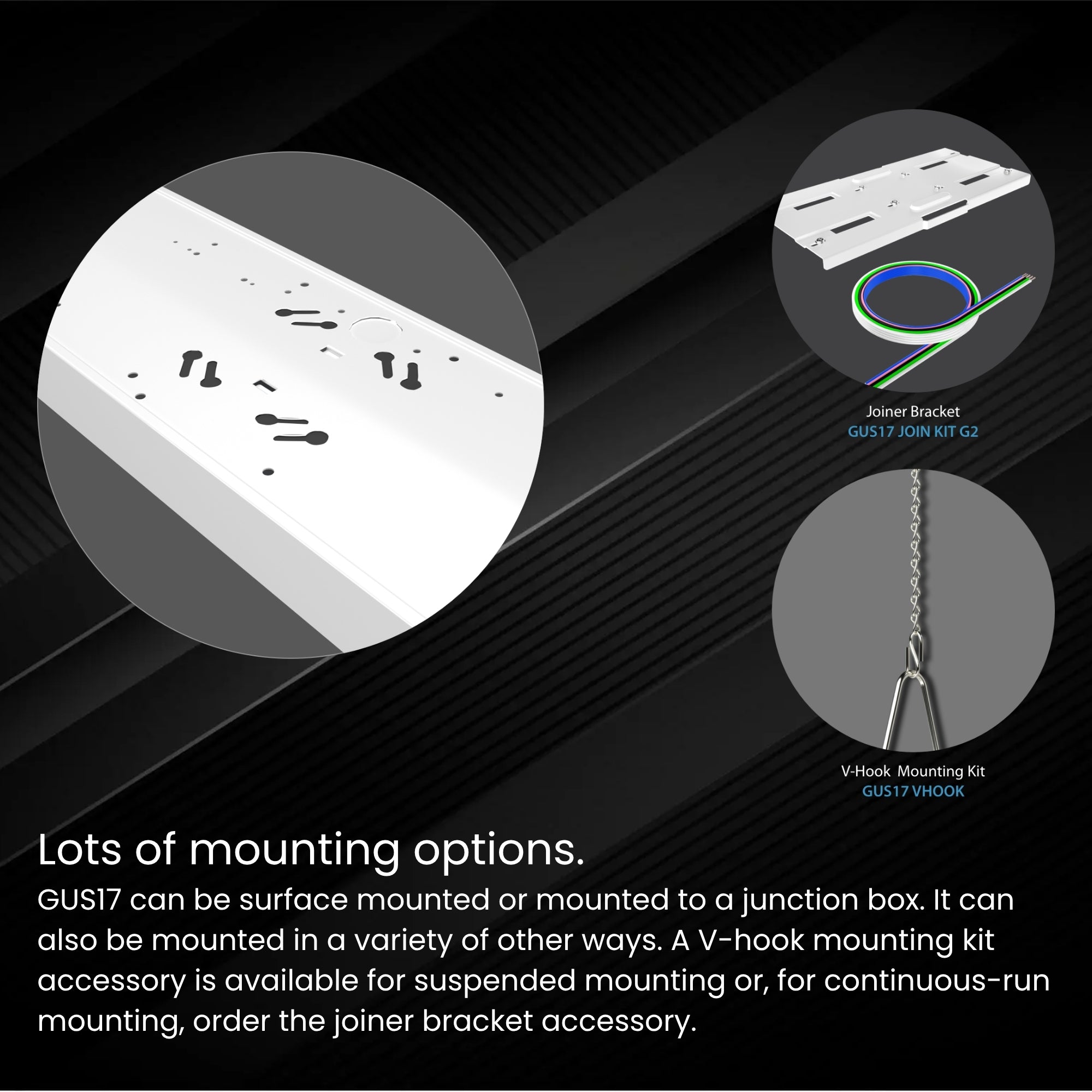

Installation & Mounting
This fixture is designed for surface mounting and can be installed with optional v-hooks. It supports ceiling mounting up to 39.37 ft with a detection range of 45.92 ft.
What's Included
- RAB GUS17-8/MVS Wraparound Light
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the wattage range for the RAB GUS17-8/MVS?
What is the wattage range for the RAB GUS17-8/MVS?
Is the RAB GUS17-8/MVS suitable for damp locations?
Is the RAB GUS17-8/MVS suitable for damp locations?
Does the RAB GUS17-8/MVS support dimming?
Does the RAB GUS17-8/MVS support dimming?
What mounting options are available for the RAB GUS17-8/MVS?
What mounting options are available for the RAB GUS17-8/MVS?
What is the lifespan of the RAB GUS17-8/MVS LEDs?
What is the lifespan of the RAB GUS17-8/MVS LEDs?
