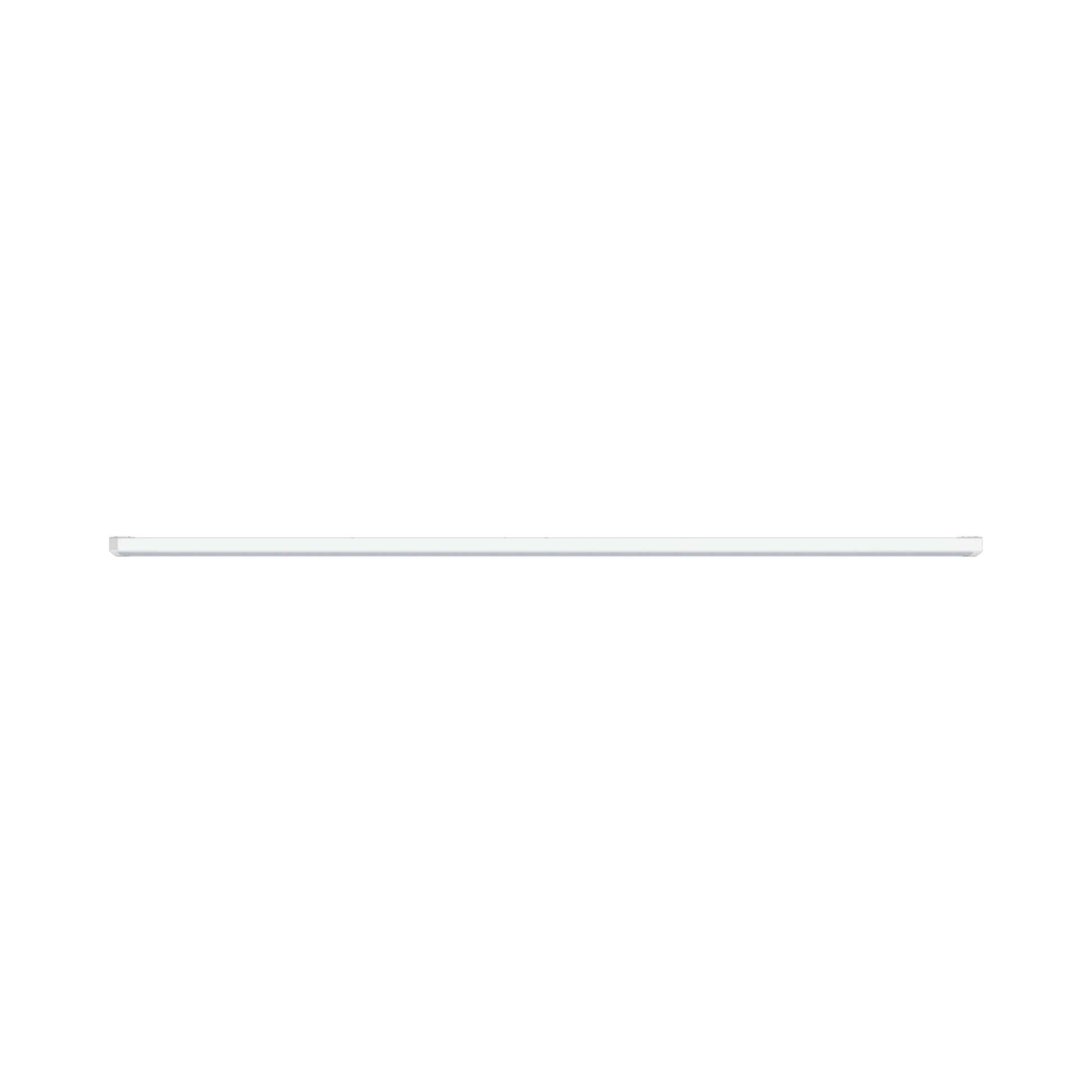

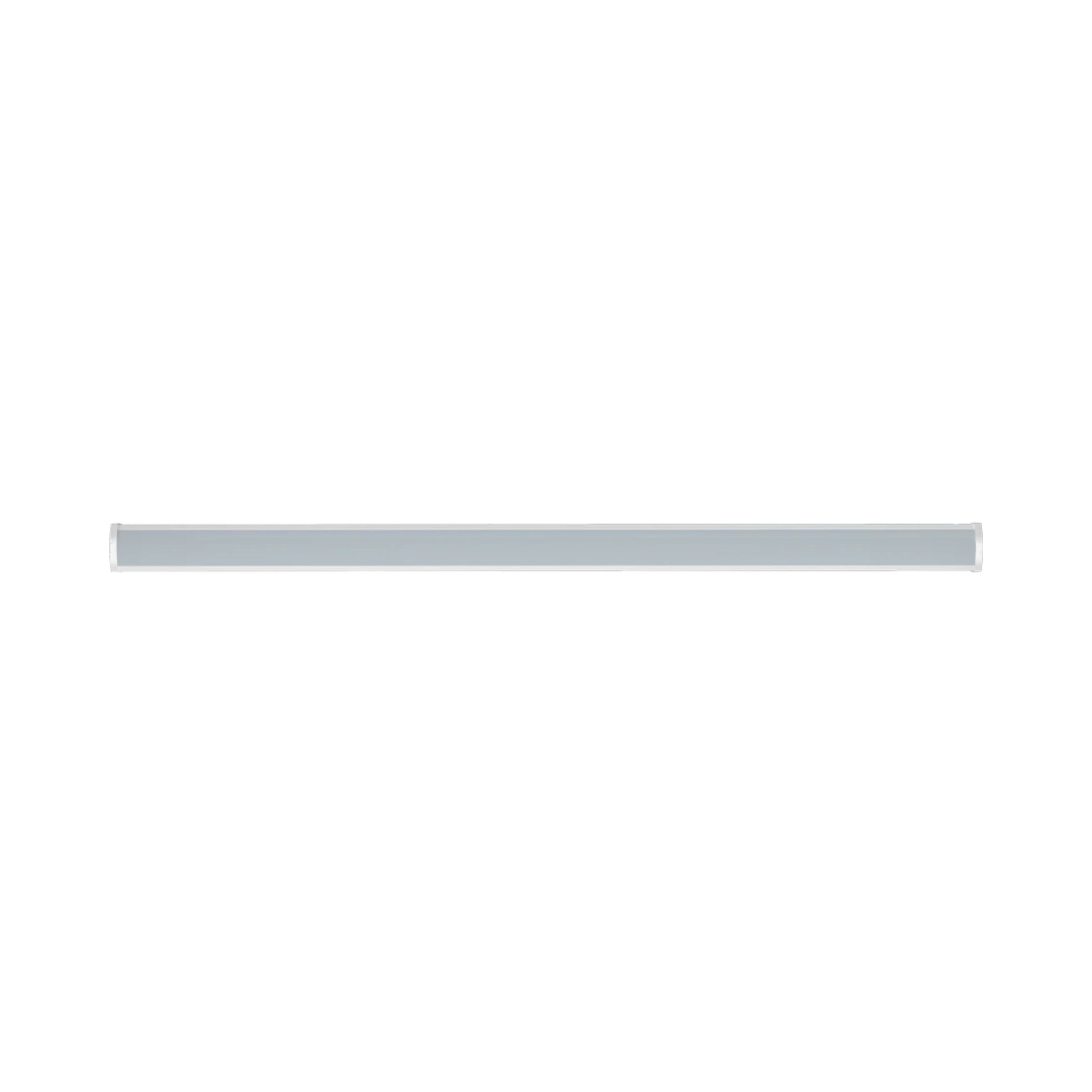

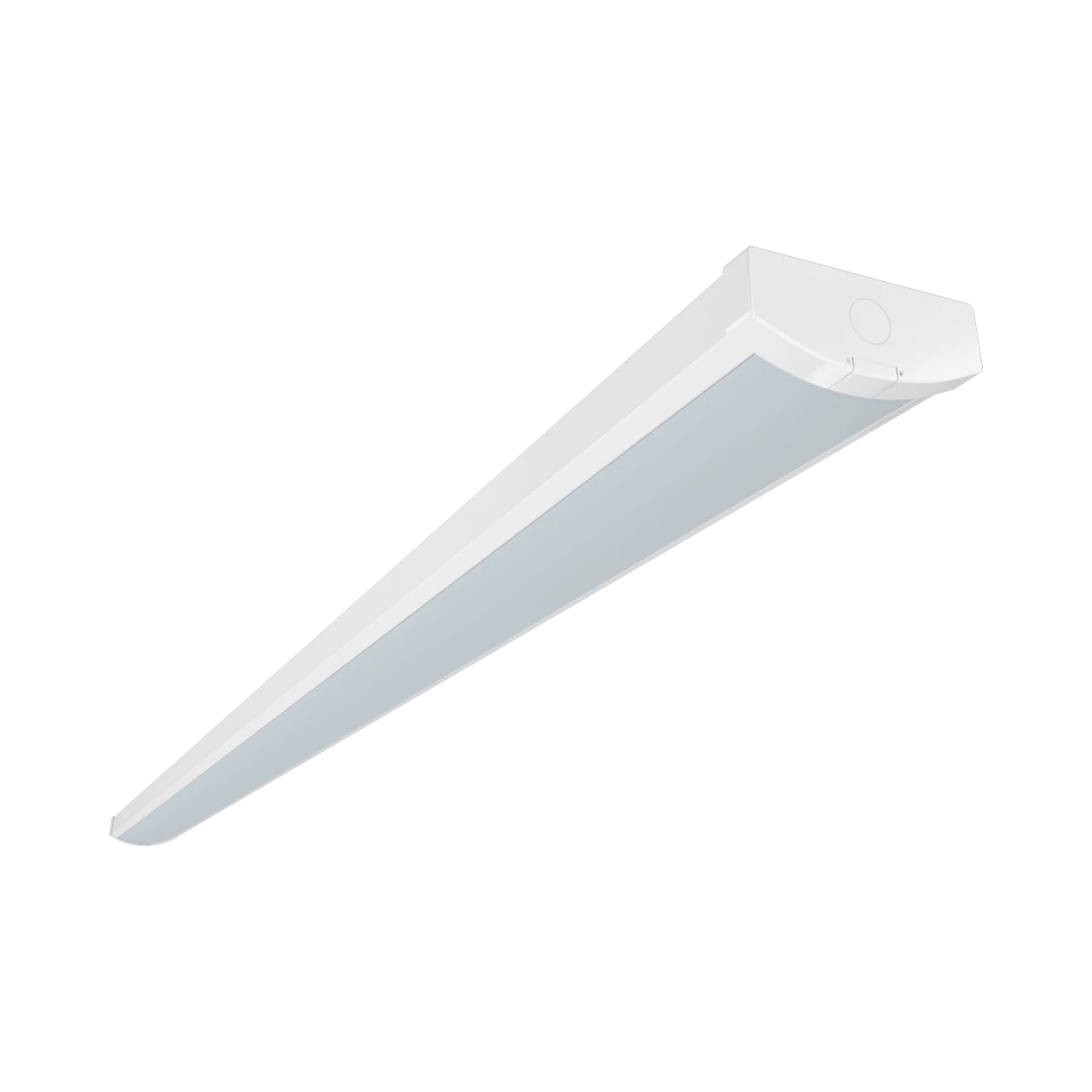

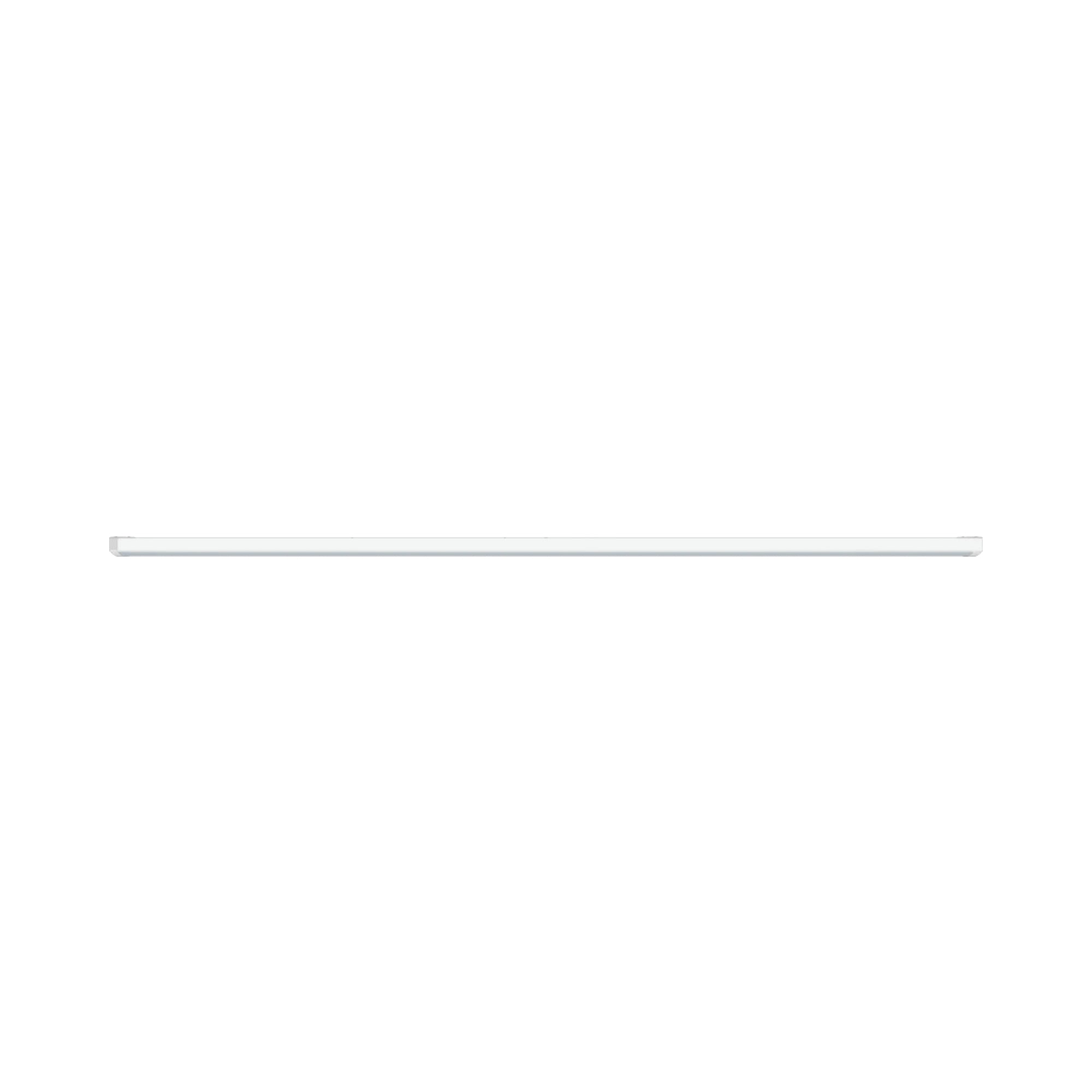

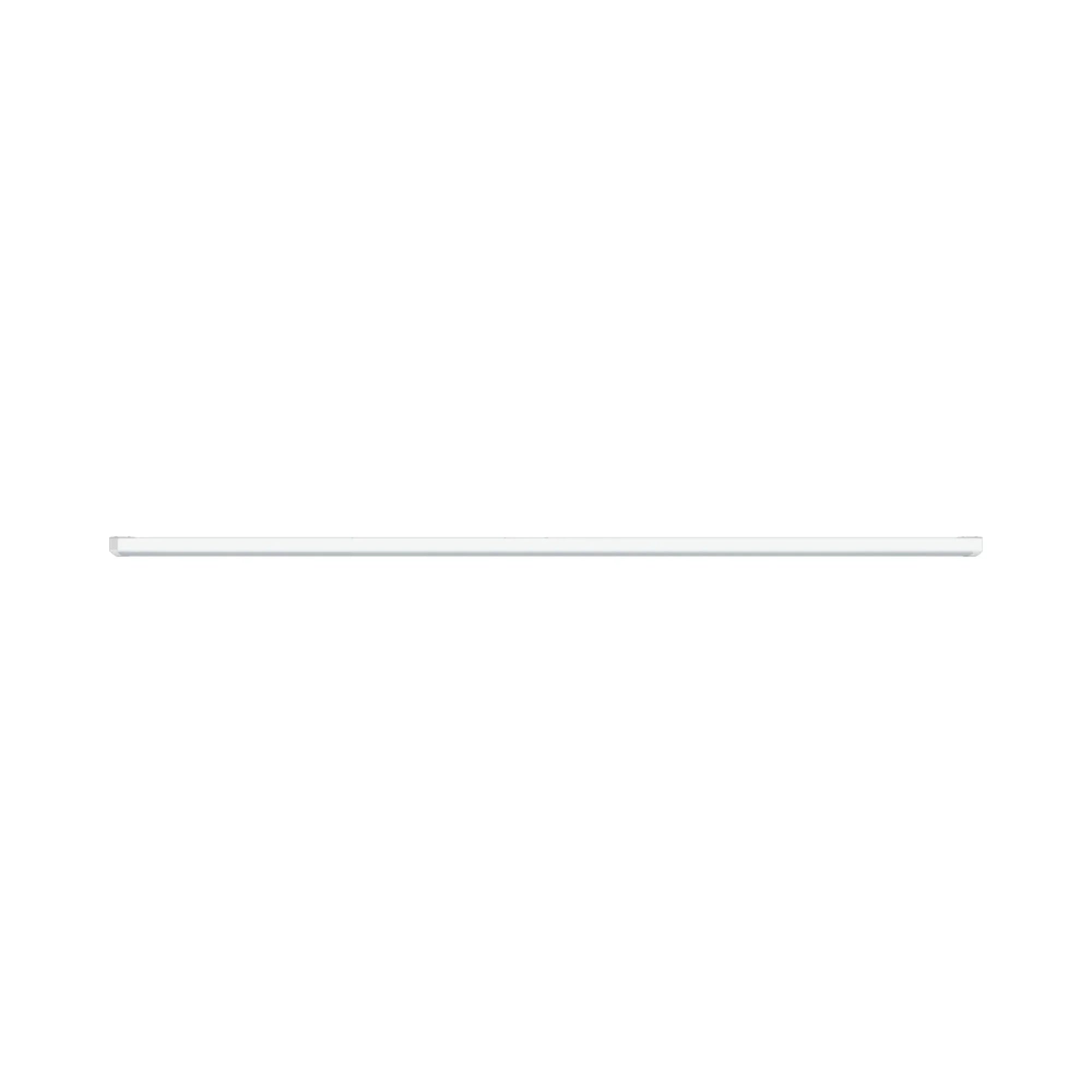

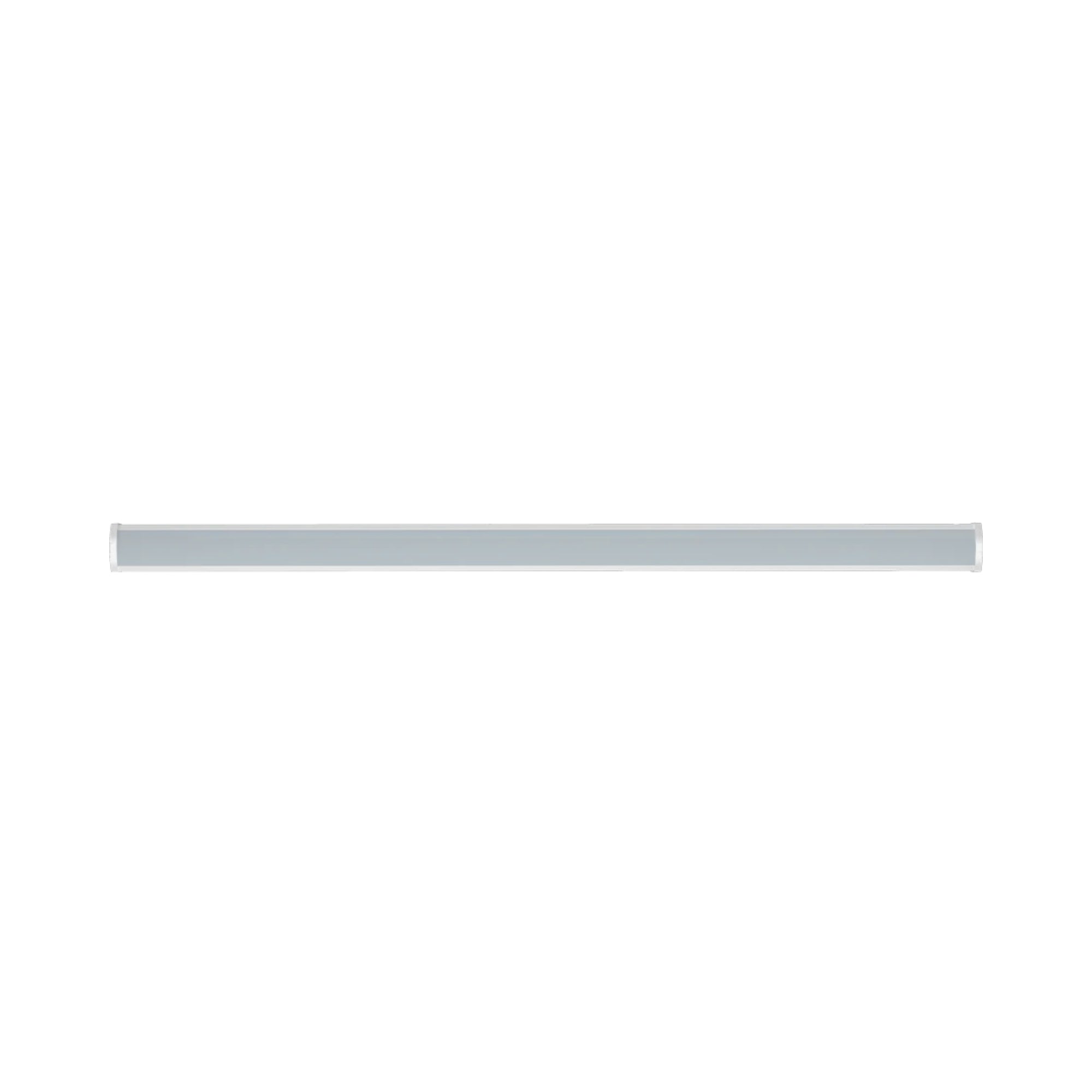

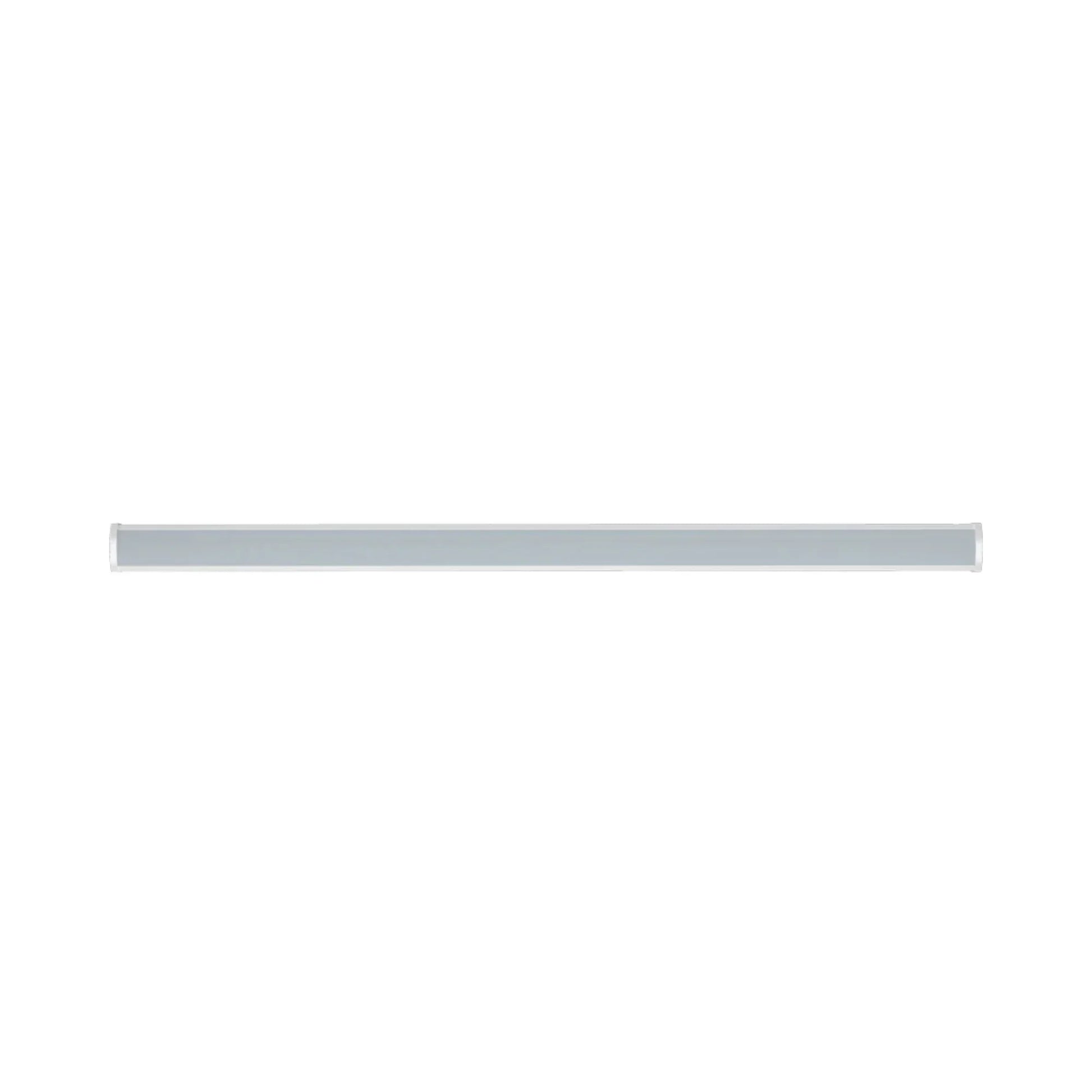

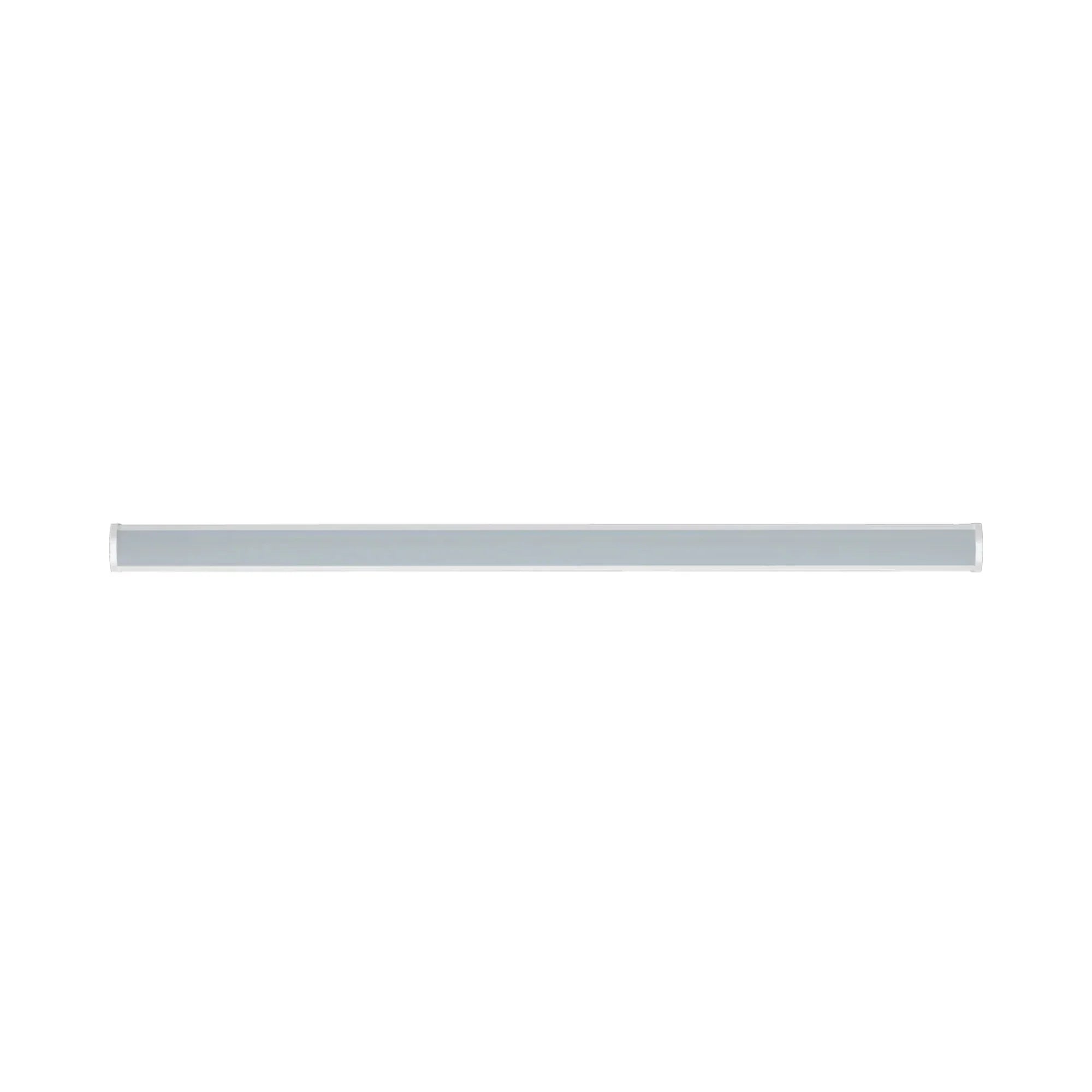

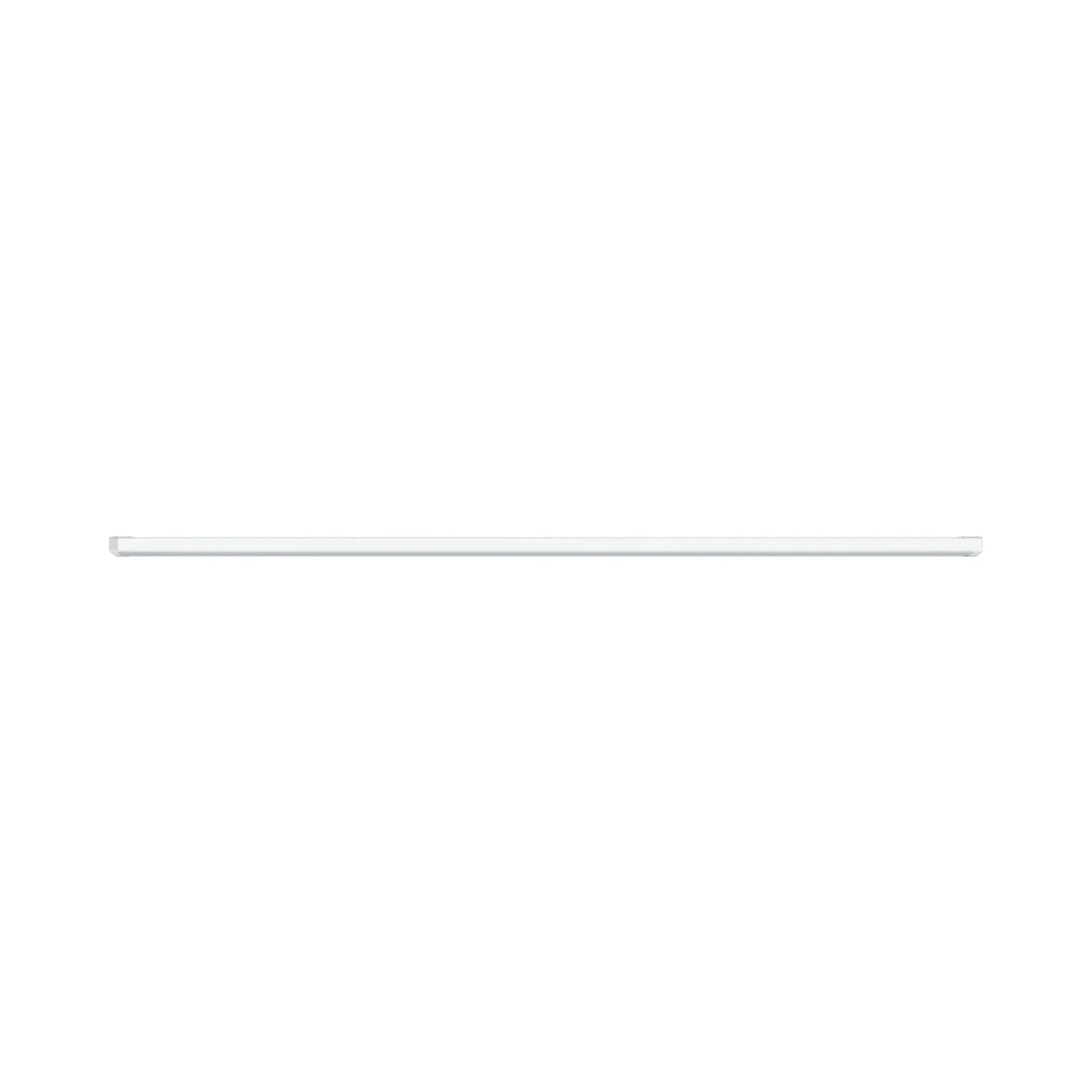

RAB GUS17 Field Adjustable Wraparound Light — 90W Configuration

The RAB GUS17-8 is a versatile wraparound light offering 90W power, delivering up to 12,721 lumens with selectable color temperatures of 3500K, 4000K, and 5000K. It operates on a 120-277V input, making it suitable for various commercial and industrial applications. This model is DLC listed, ensuring compliance with energy efficiency standards.

Key Features

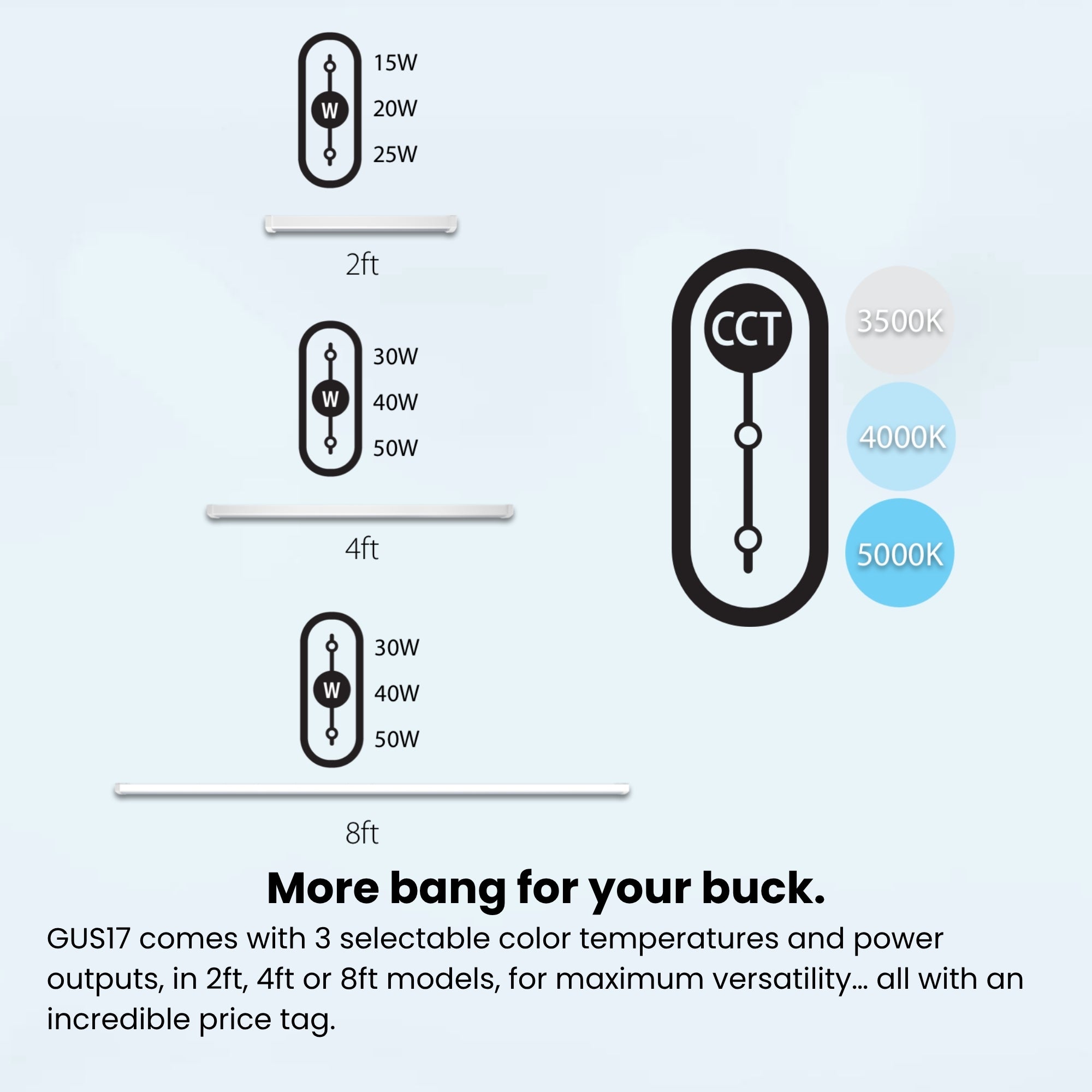

• Field Adjustability: Offers adjustable wattage settings of 90W, 80W, and 70W, with a factory default of 90W.
• Color Temperature: Selectable CCT options of 3500K, 4000K, and 5000K, with a factory default of 4000K.
• Driver: Constant current, Class 2, Class P driver compatible with 120-277V, 50/60 Hz systems.
• Dimming: Equipped with 0-10V dimming capability, requiring a separate dimming circuit.
• Surge Protection: Includes 1 kV line-to-neutral and 2 kV line/neutral-to-ground protection.
• Construction: Built with color-coated steel sheets and a durable polycarbonate lens.
• Environmental Rating: Suitable for damp locations, ensuring reliable performance in various settings.
• Lifespan: Designed for a 100,000-hour LED lifespan based on IES LM-80 results.
• Compliance: UL listed and DLC 5.1 qualified, meeting stringent industry standards.
• Warranty: Backed by a 5-year limited warranty covering light output, driver performance, and paint finish.

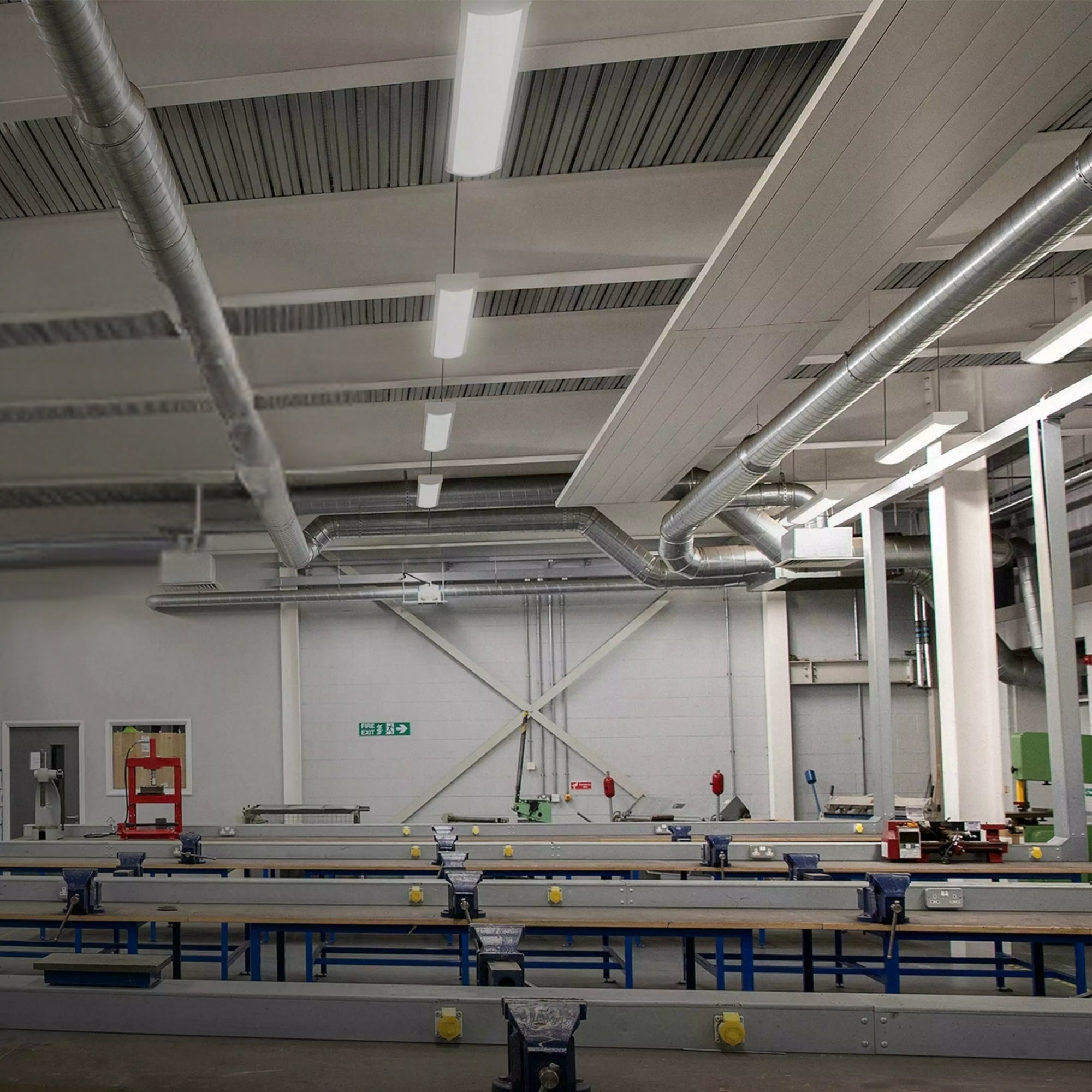

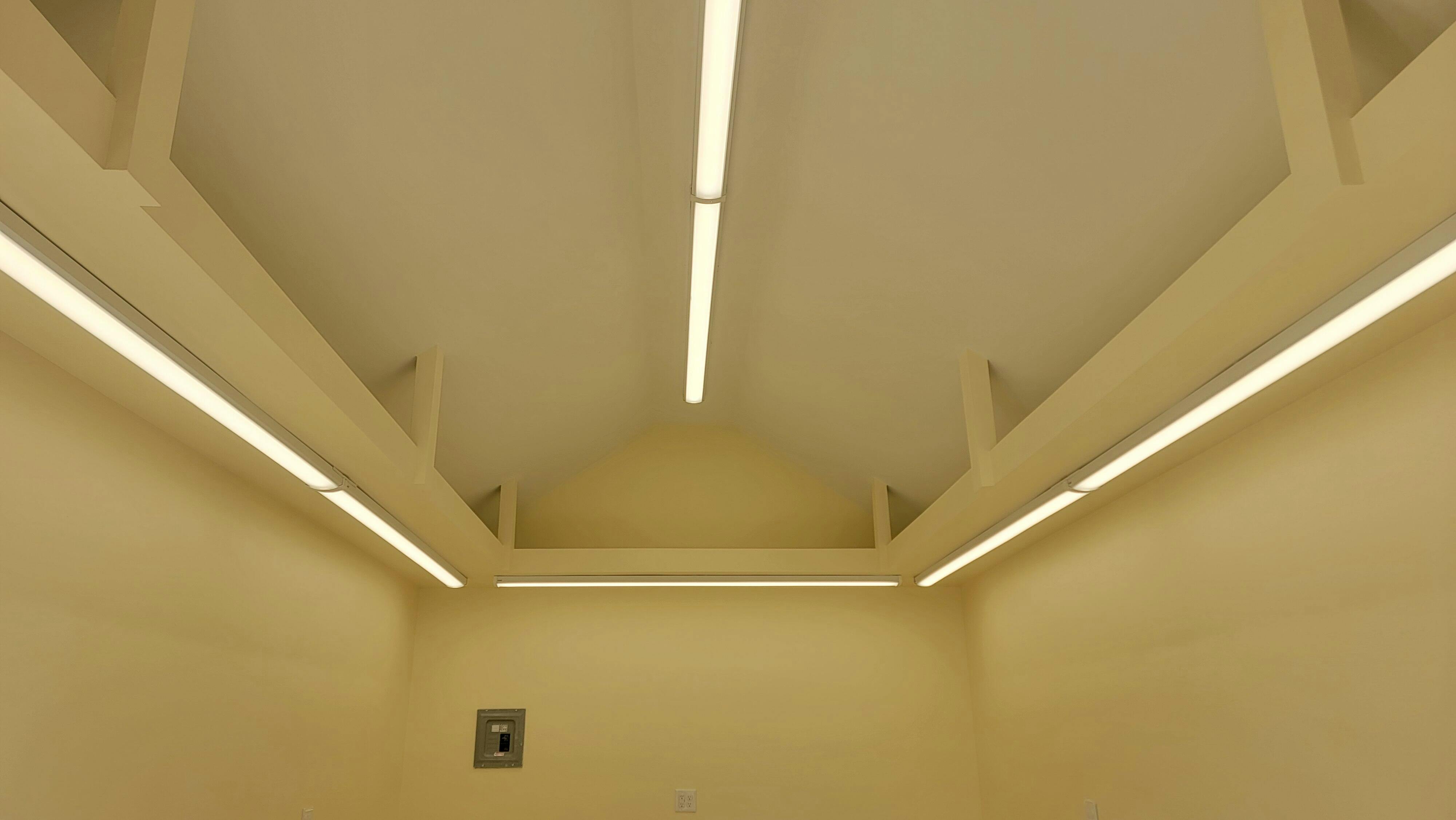

Typical Applications

• Warehouses
• Retail Stores
• Workshops
• Parking Garages
• Corridors
• Stairwells

Performance & Light Output

This fixture delivers a luminous efficacy of 130.5 to 141.3 lm/W, with a CRI of 84-86, ensuring high-quality light output. It is designed for a long lifespan of 100,000 hours, providing reliable performance over time.

Electrical & Controls

The GUS17-8 operates on a universal voltage range of 120-277V and features a constant current driver. It supports 0-10V dimming, allowing for flexible light level adjustments. Surge protection is included for enhanced reliability.

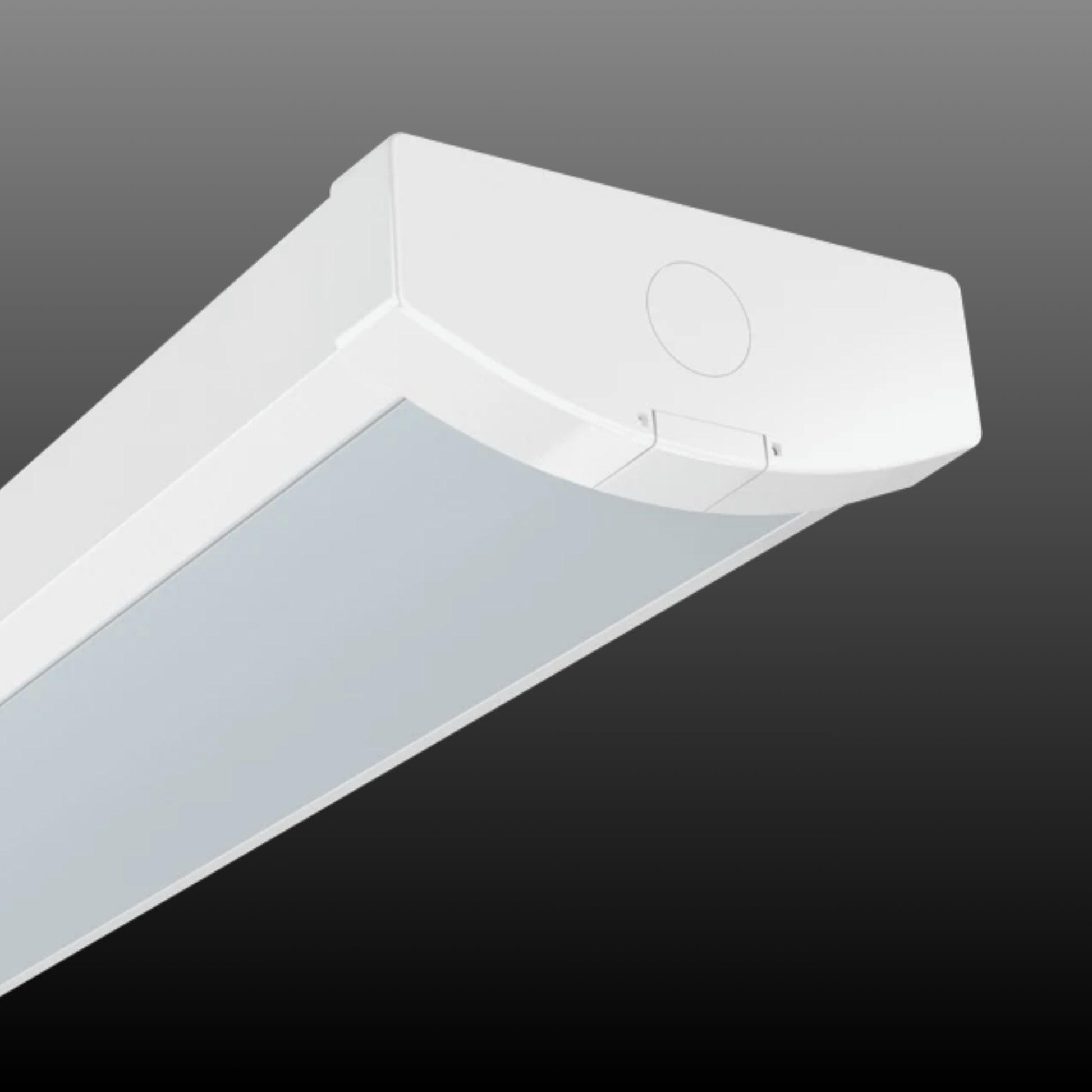

Construction & Durability

Constructed with color-coated steel sheets and a polycarbonate lens, this fixture is designed for durability. It is suitable for damp locations and operates within a temperature range of -4°F to 113°F.

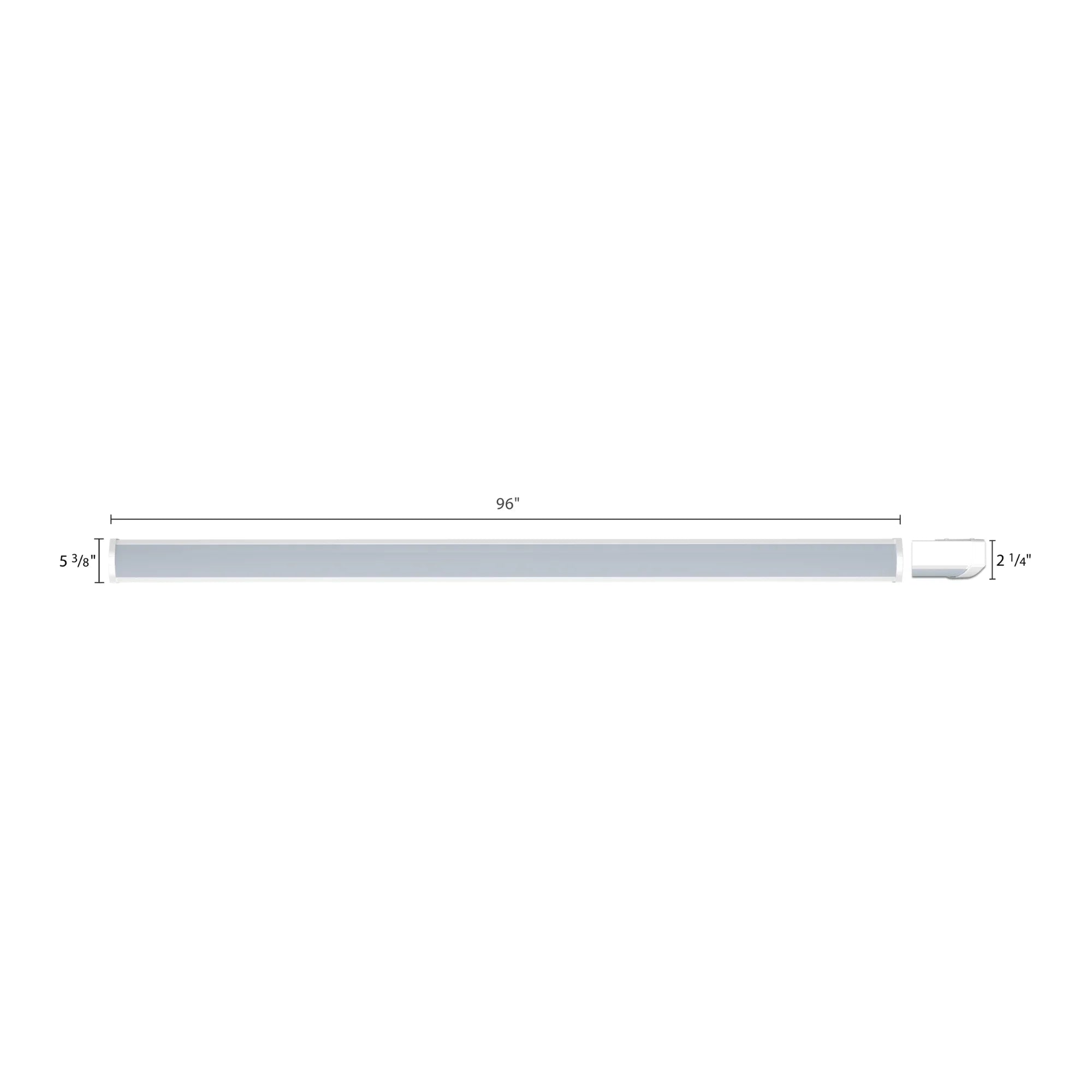

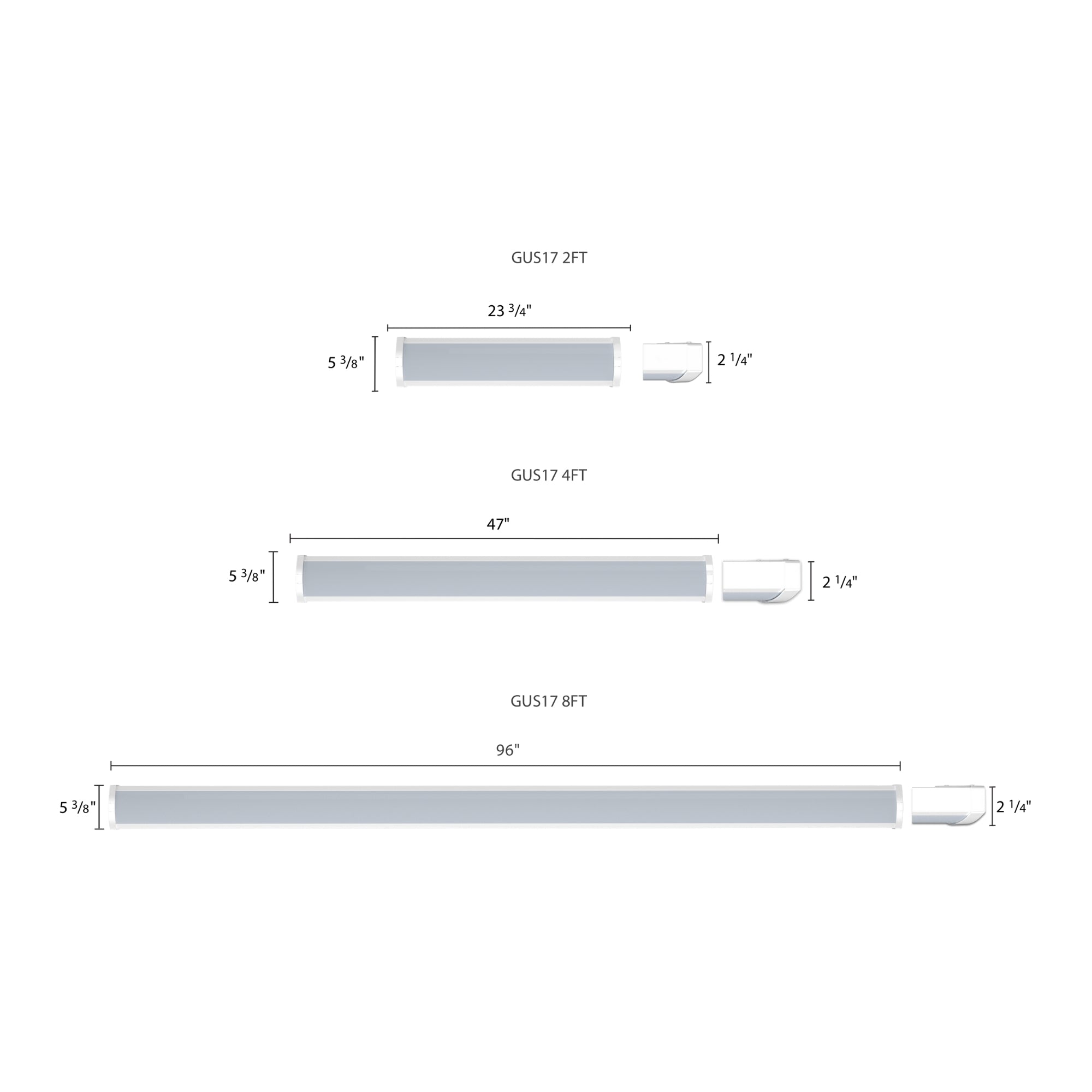

Installation & Mounting

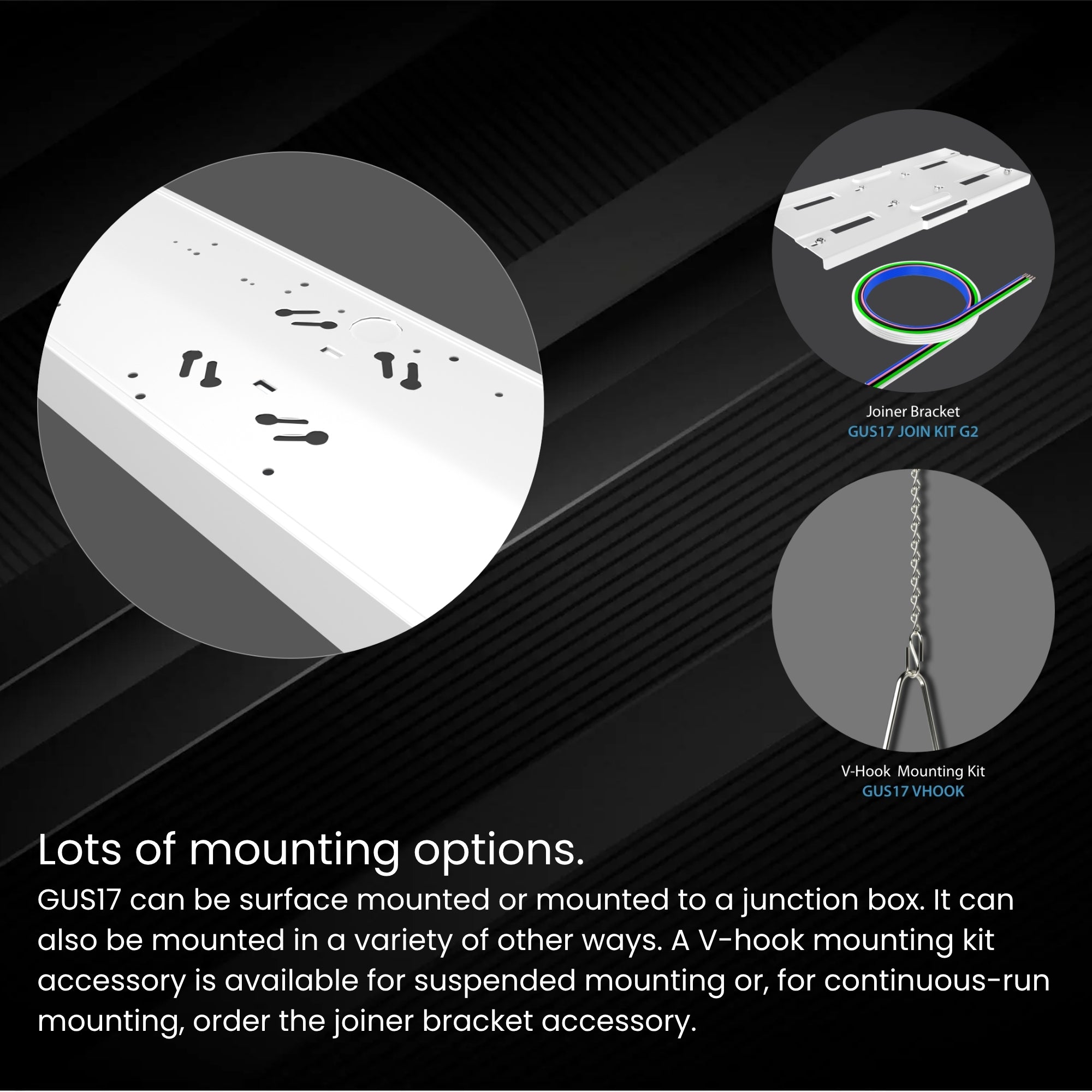

This wraparound light is designed for surface mounting and can be installed using v-hooks, which are available separately. It offers straightforward installation for various applications.

What's Included

• RAB GUS17-8 Wraparound Light
