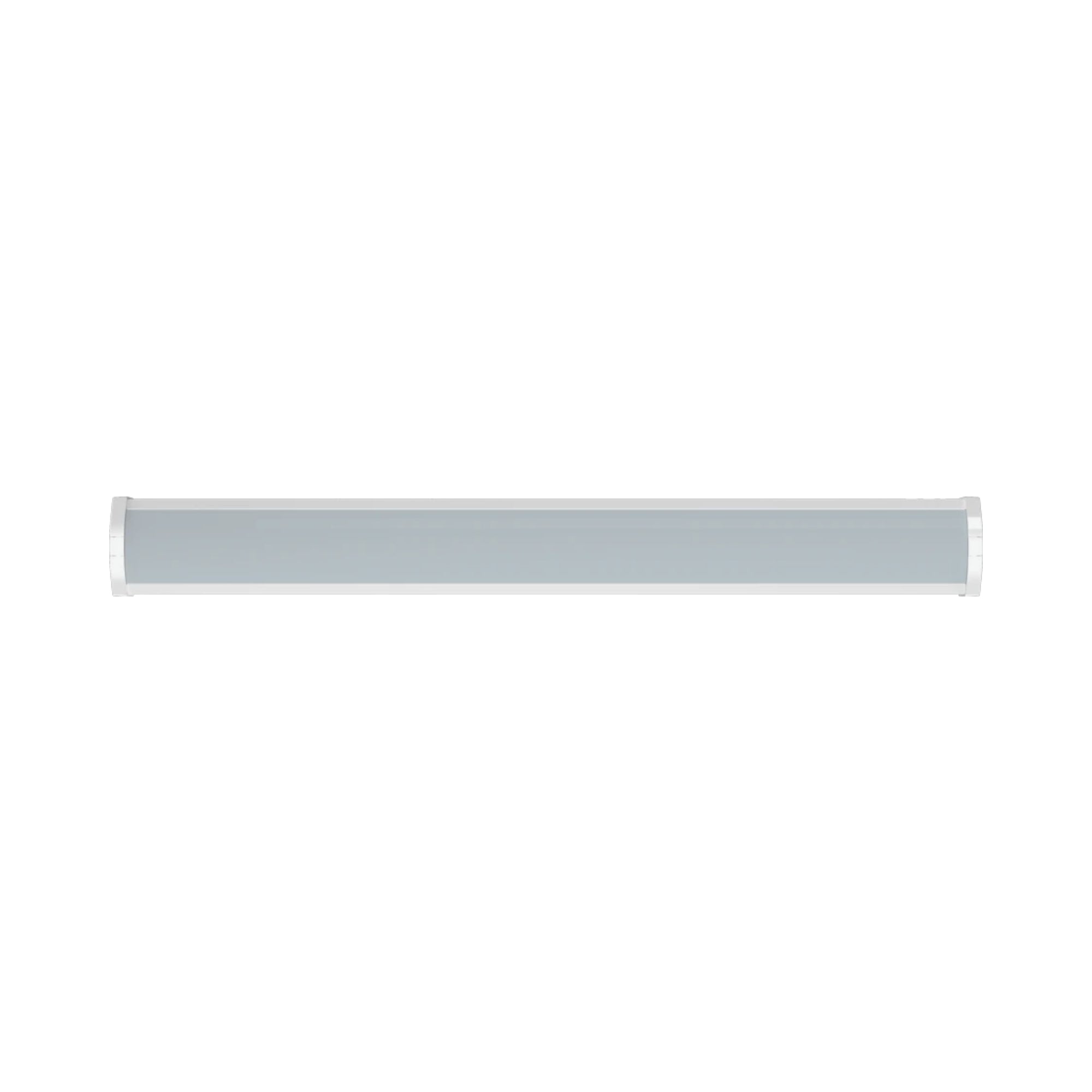

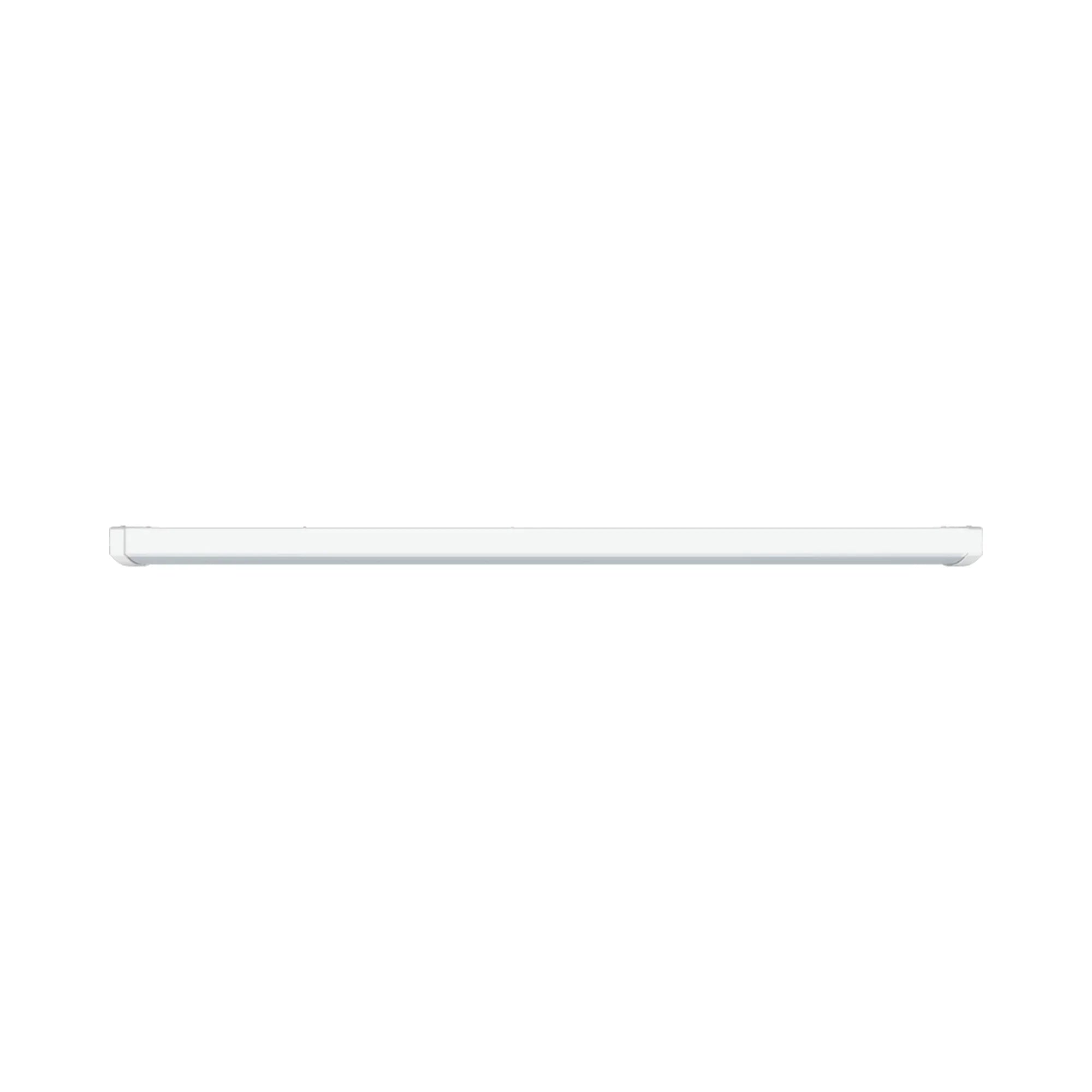

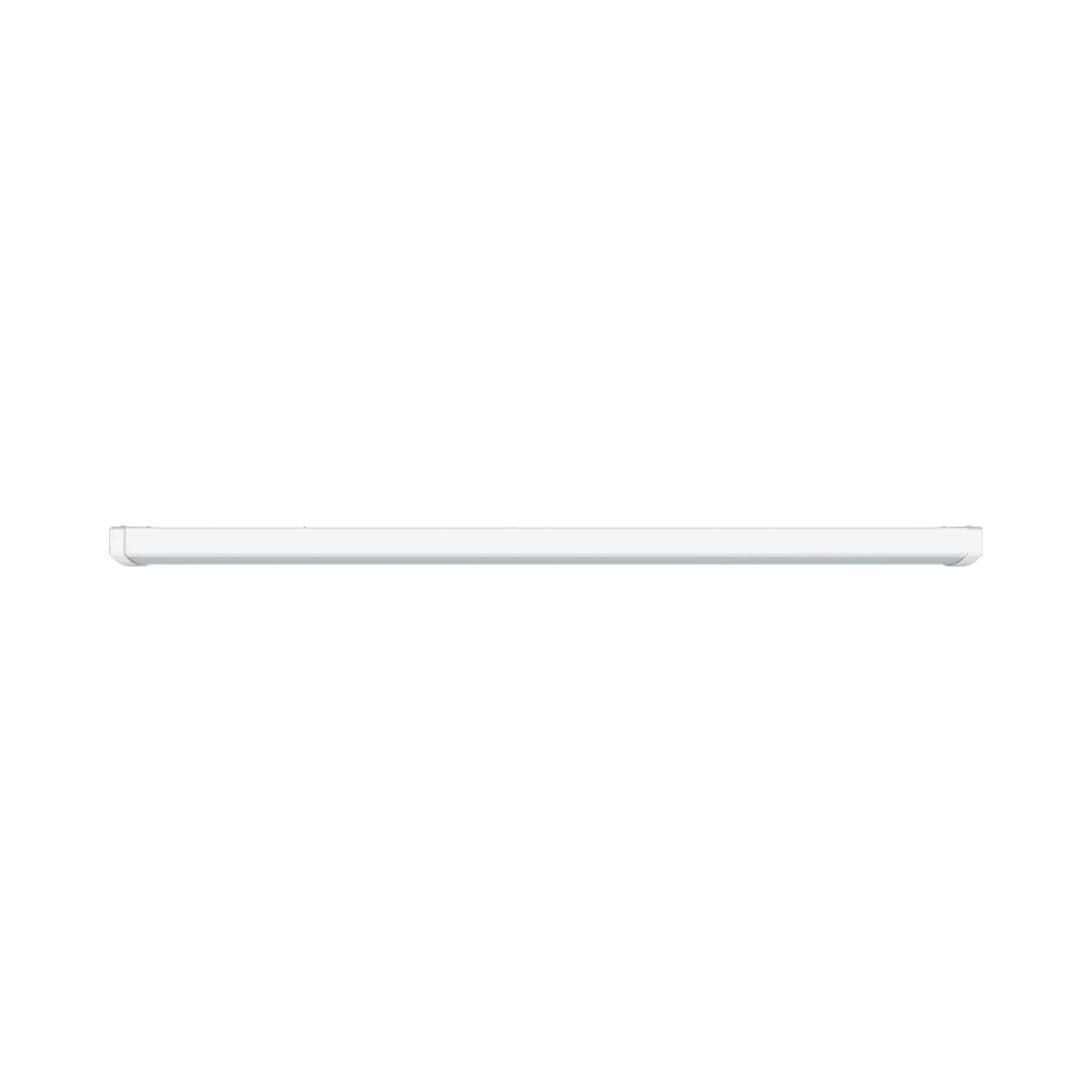

RAB GUS17-4-MVS-E Field Adjustable Wrap 4ft Wraparound Light 5800 Lumens 50W Selectable CCT 120-277V White
Available in stock (200)
About this item
About this item
- Lumens: Delivers up to 5,873 lumens for bright illumination.

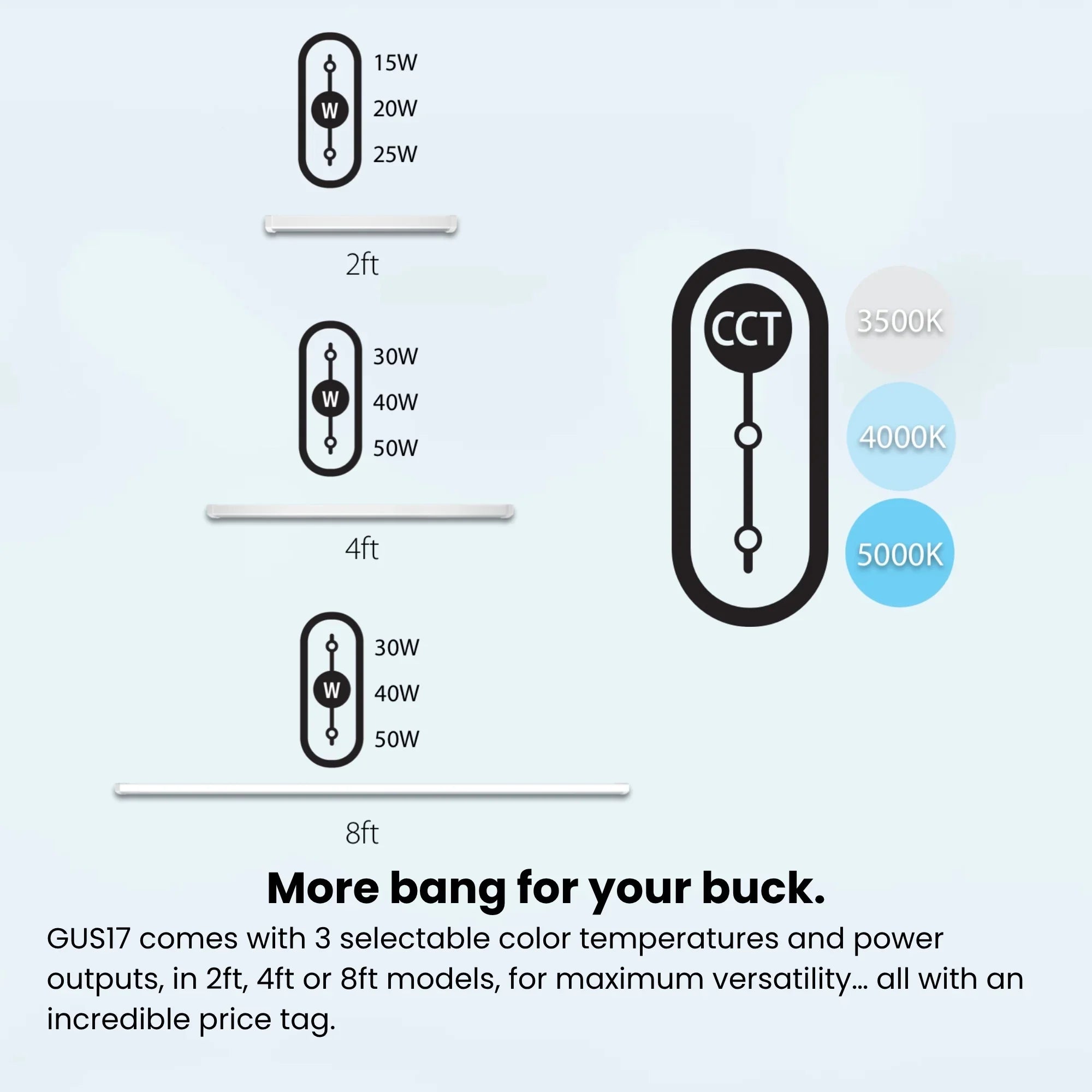

- Wattage: Field adjustable wattage options of 50W, 40W, and 30W.
- Voltage: Operates on a wide range of 120-277V input voltage.
- Color Temperature: Selectable CCT options of 3500K, 4000K, and 5000K for varied lighting needs.
- Dimming: Compatible with 0-10V dimming systems for customizable light levels.
We process payments securely and do not store credit card information.
Description
Description

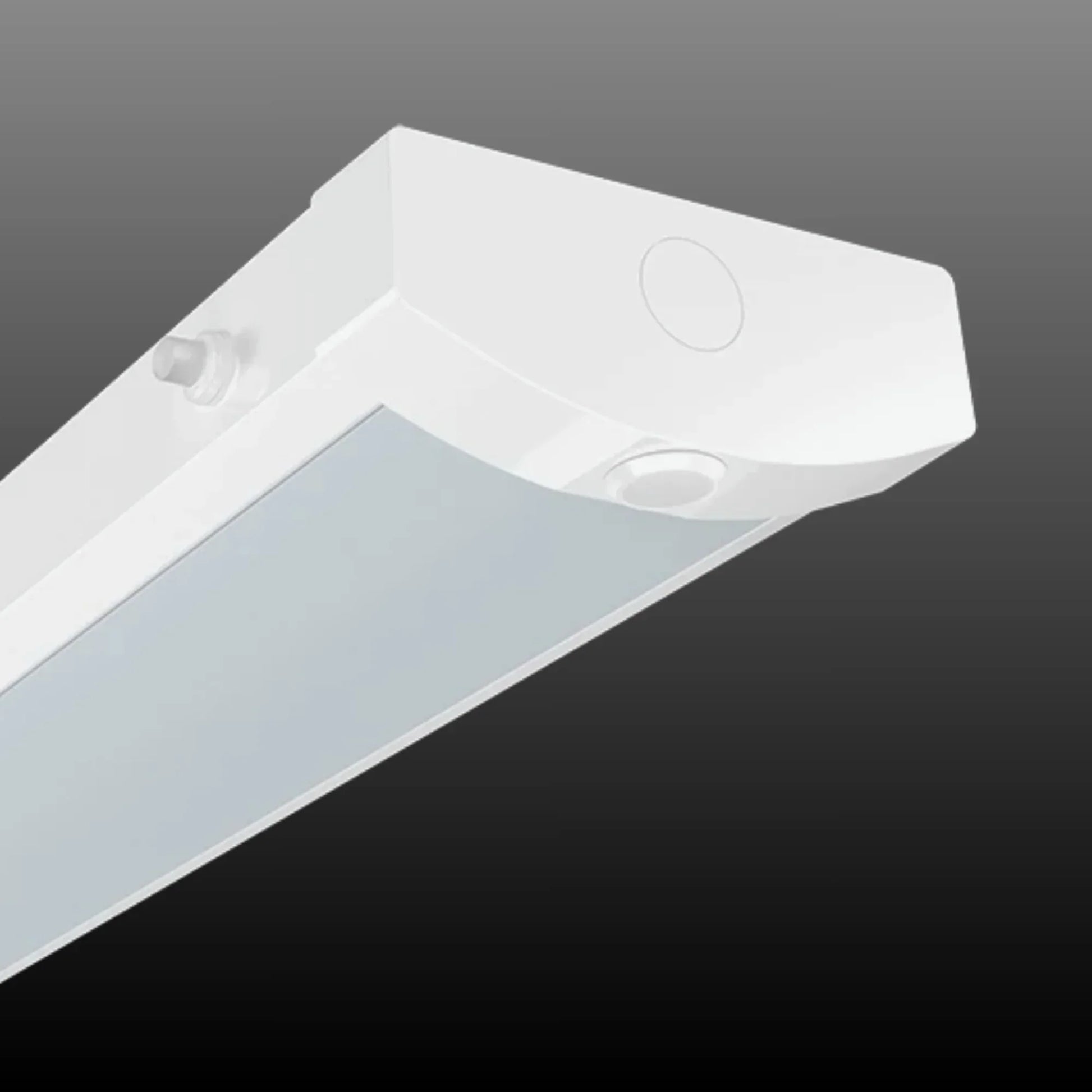

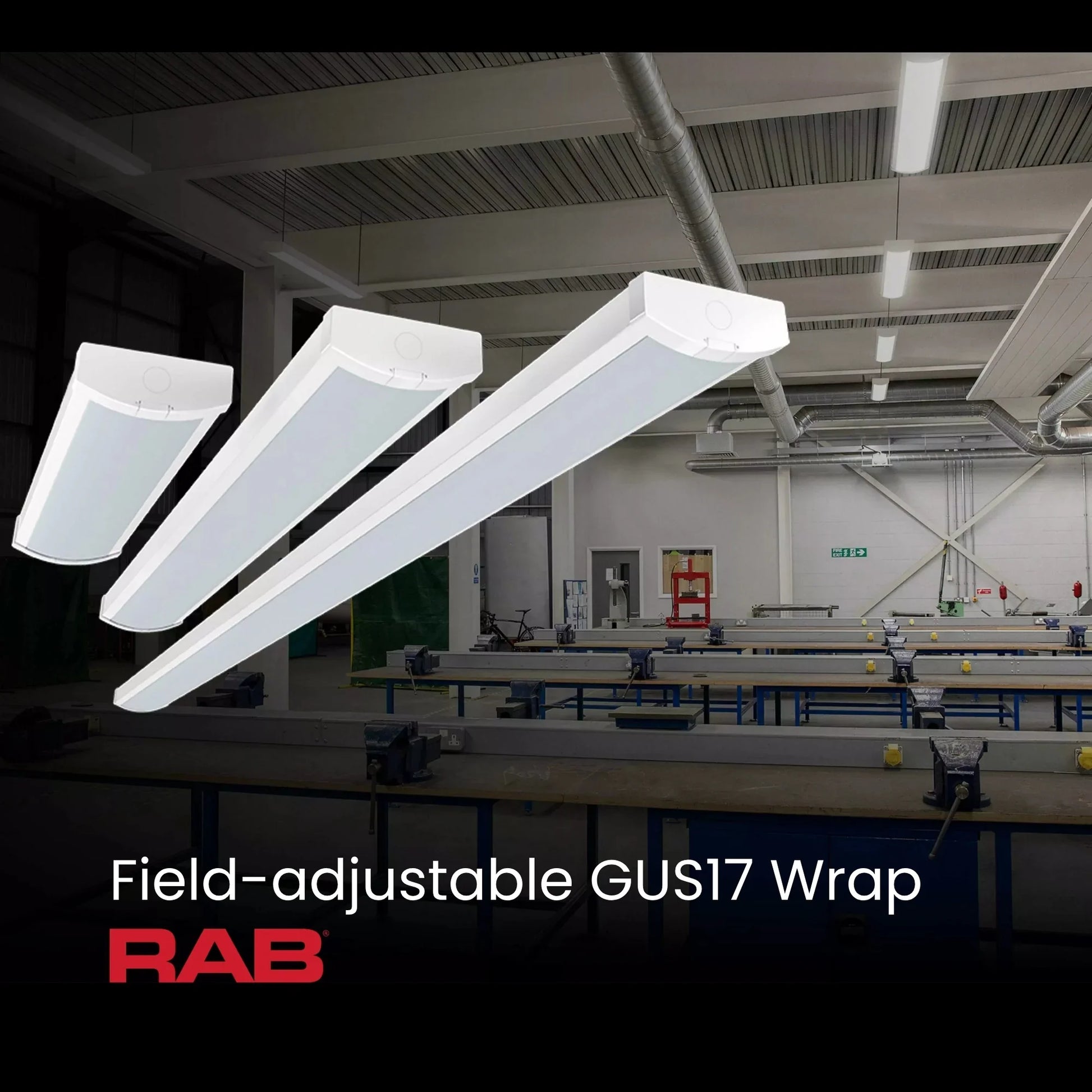

RAB GUS17 Field Adjustable Wrap Wraparound Light — 50W Configuration
The RAB GUS17-4/MVS/E is a versatile wraparound light offering 5800 lumens with a selectable wattage of 50W, 40W, or 30W. It operates on 120-277V and features selectable color temperatures of 3500K, 4000K, and 5000K. This fixture is DLC listed and suitable for damp locations, making it ideal for various commercial and industrial applications.
Key Features
- Field Adjustability: Easily adjust light output and color temperature to suit specific needs.
- DLC Listed: Eligible for rebates from DLC Member Utilities, meeting DLC 5.1 requirements.
- Battery Backup: Provides 90 minutes of operation during power outages.
- Durable Construction: Made with color-coated steel sheets and a polycarbonate lens for longevity.
- High Efficacy: Achieves efficacy between 115.4 and 128.1 lm/W.
- Long Lifespan: Designed for a 100,000-hour lifespan based on IES LM-80 results.
- Surge Protection: Includes 1 kV L-N and 2 kV L/N-PG surge protection.
- Motion Sensing: Integrated microwave occupancy sensor for energy efficiency.
- Remote Control: Settings adjustable via remote control (sold separately).
- Environmentally Friendly: Mercury and UV free, RoHS-compliant components.

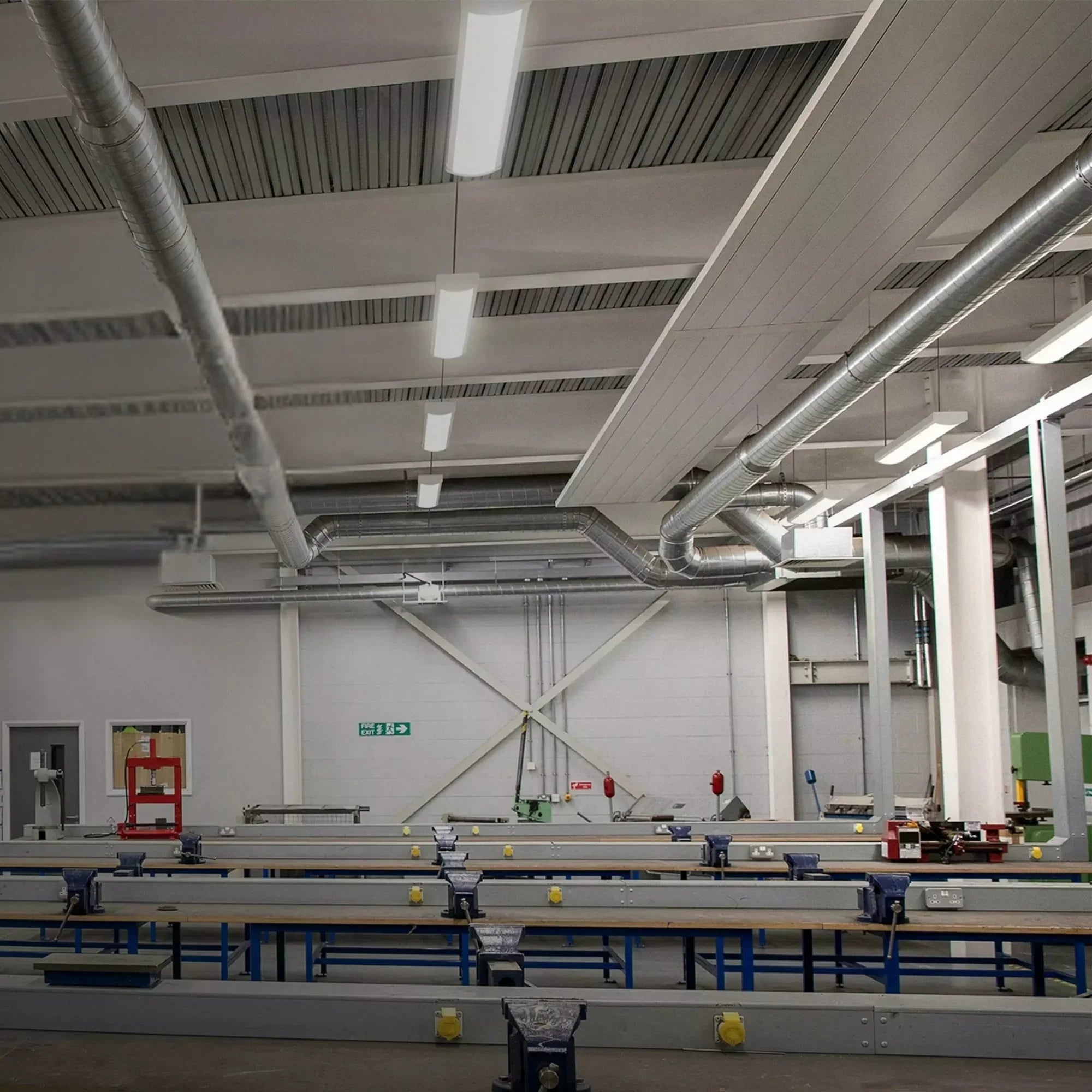

Typical Applications
- Warehouses
- Retail Stores
- Offices
- Parking Garages
- Educational Facilities
Performance & Light Output
This fixture provides a luminous output ranging from 3,662 to 5,873 lumens with a color rendering index (CRI) of 82-86, ensuring high-quality light output. It features a long lifespan of up to 100,000 hours.
Electrical & Controls
The GUS17 operates on a 120-277V input with a constant current driver. It supports 0-10V dimming, allowing for light level adjustments down to 10%. The fixture includes surge protection and a battery backup for emergency situations.

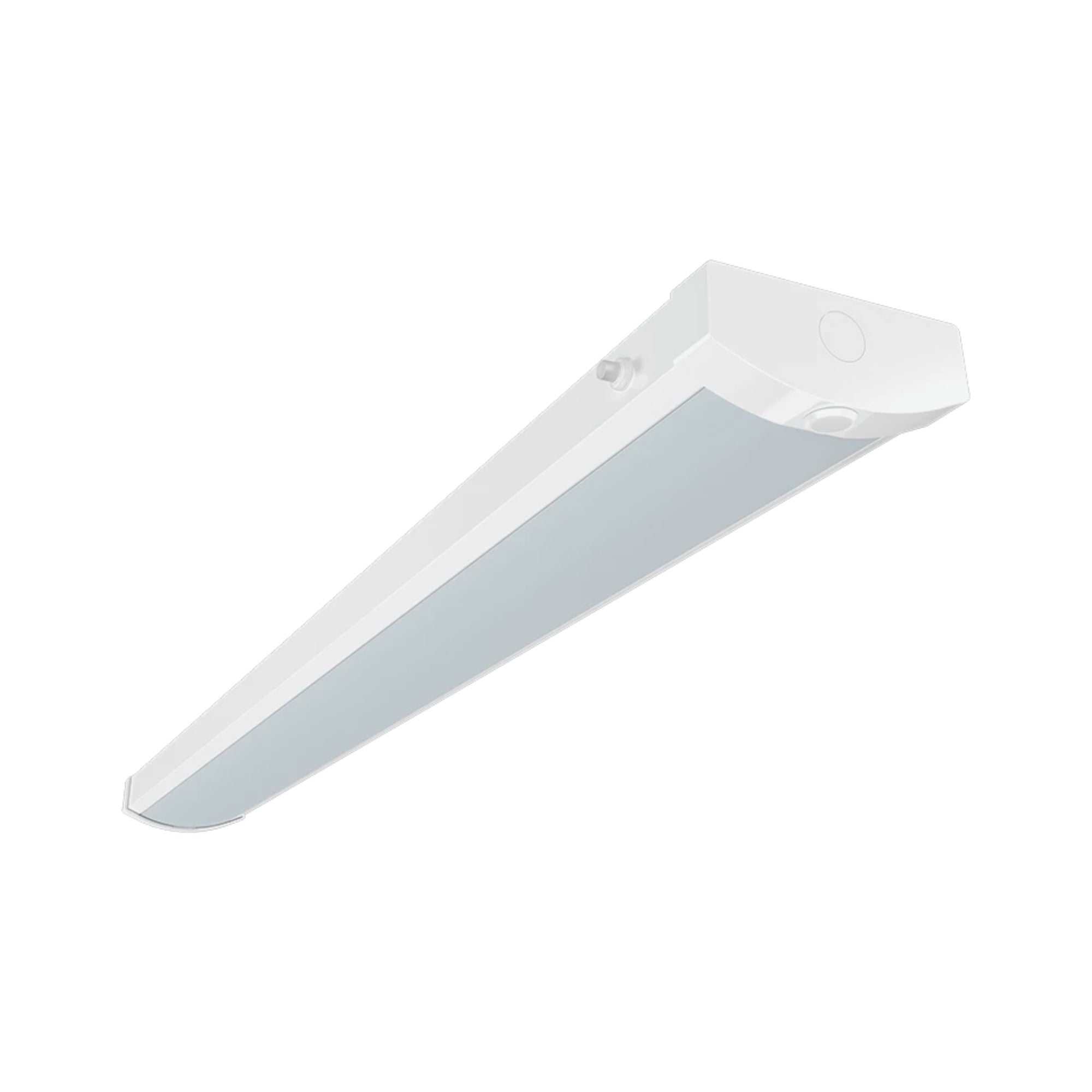

Construction & Durability
Constructed from color-coated steel sheets and a polycarbonate lens, this fixture is designed for durability and is suitable for use in environments up to 122°F (50°C). It is UL listed for damp locations.

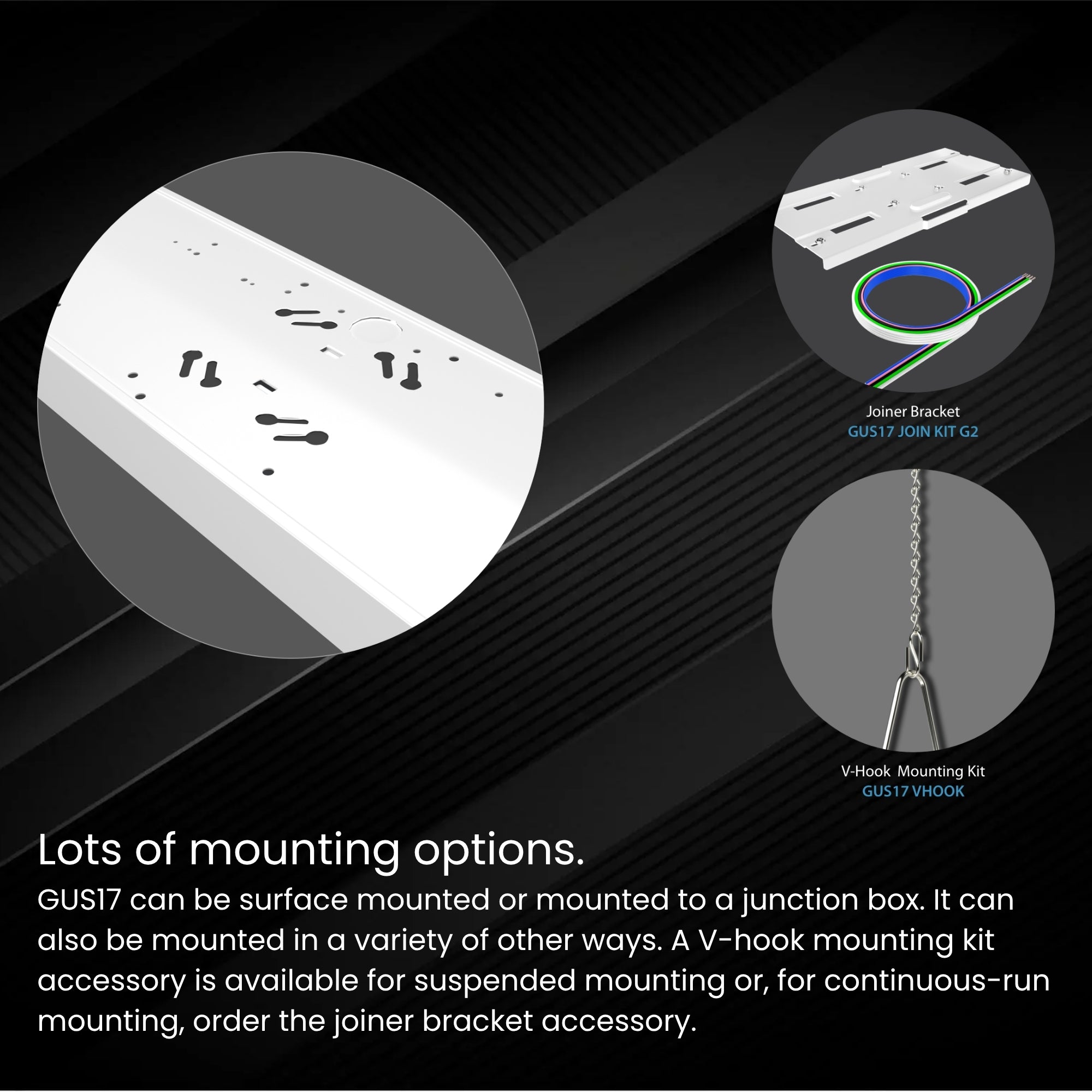

Installation & Mounting
This wraparound light is designed for surface mounting and can be installed using v-hooks, which are available separately. The integrated motion sensor enhances energy efficiency.
What's Included
- RAB GUS17-4/MVS/E Wraparound Light
Specifications
Specifications

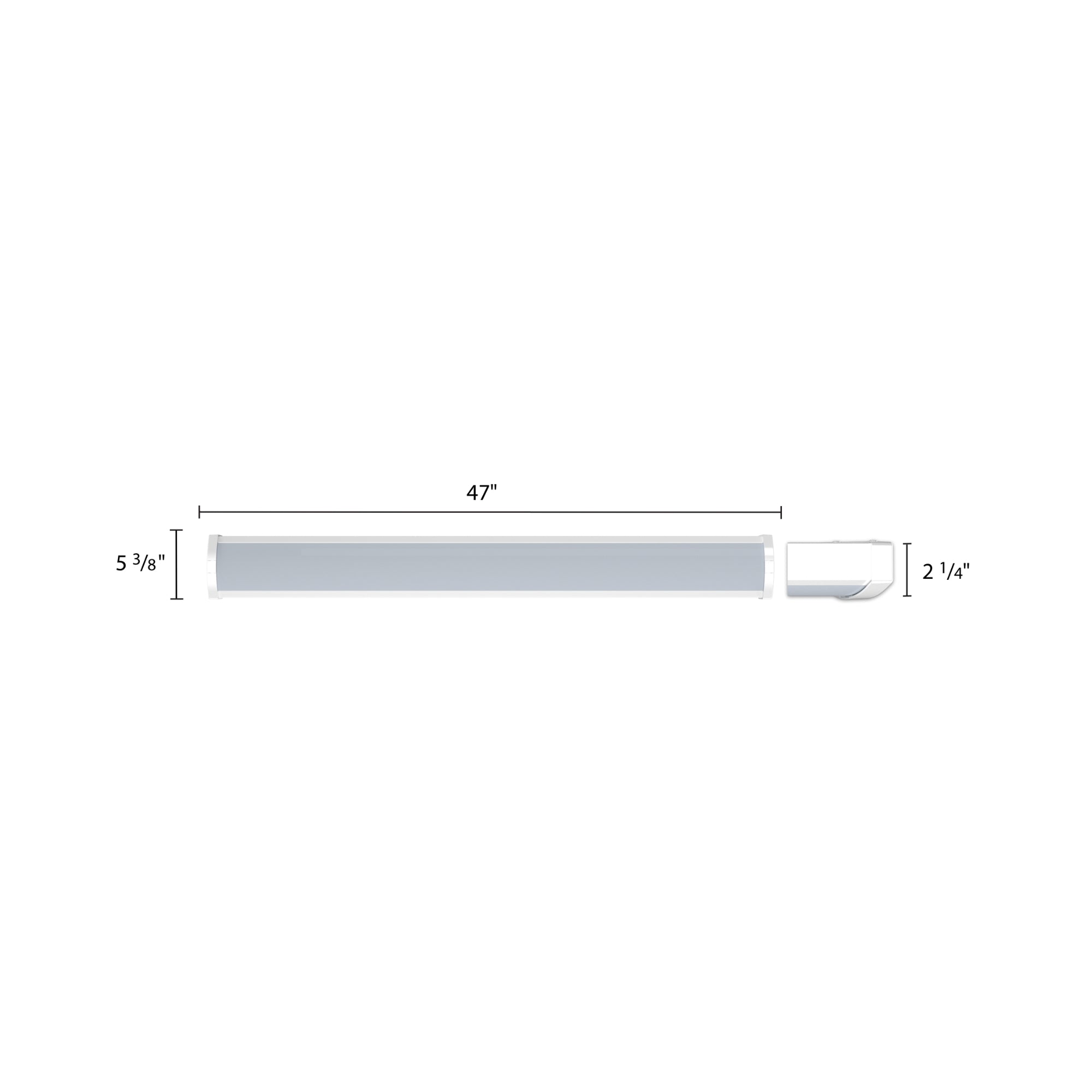

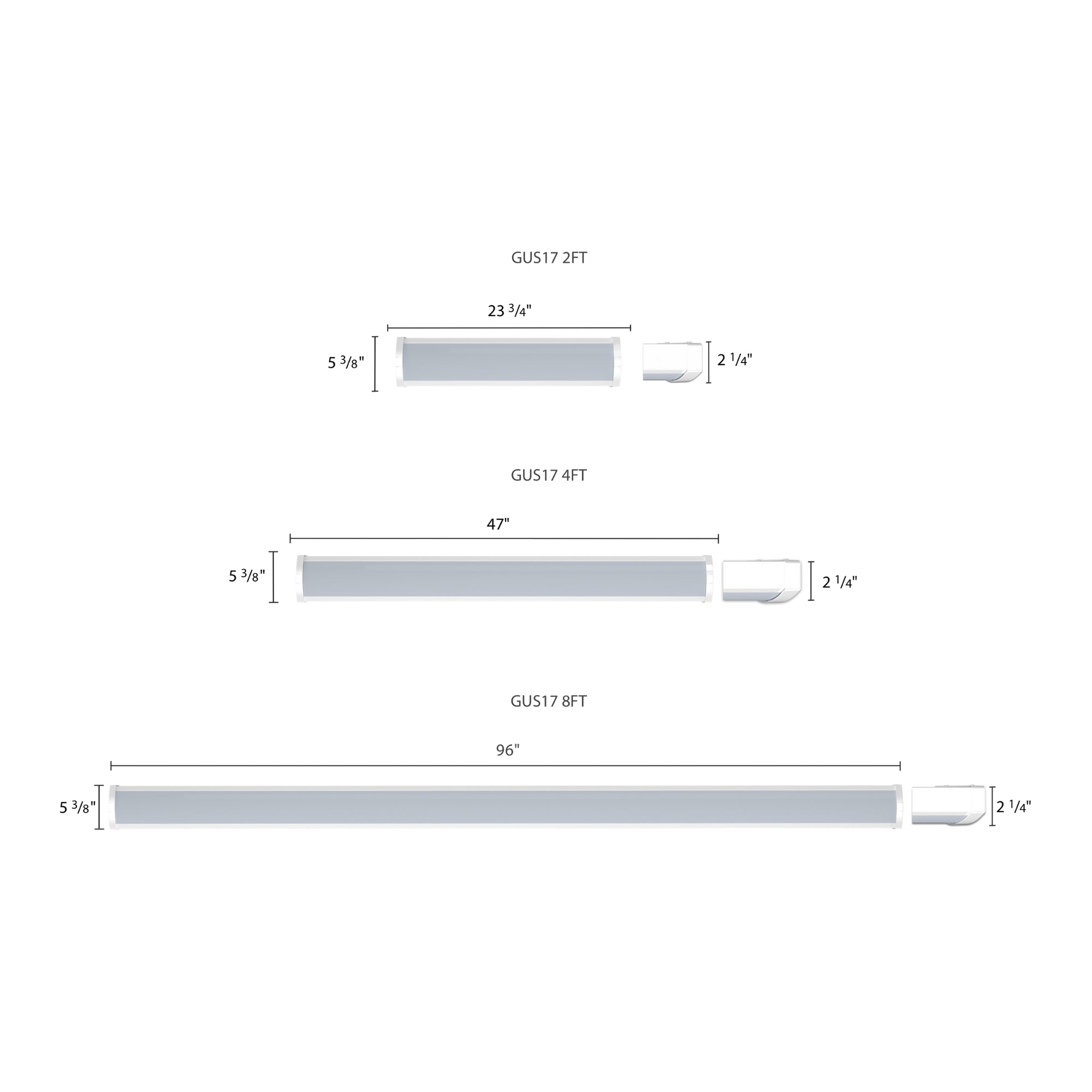

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
