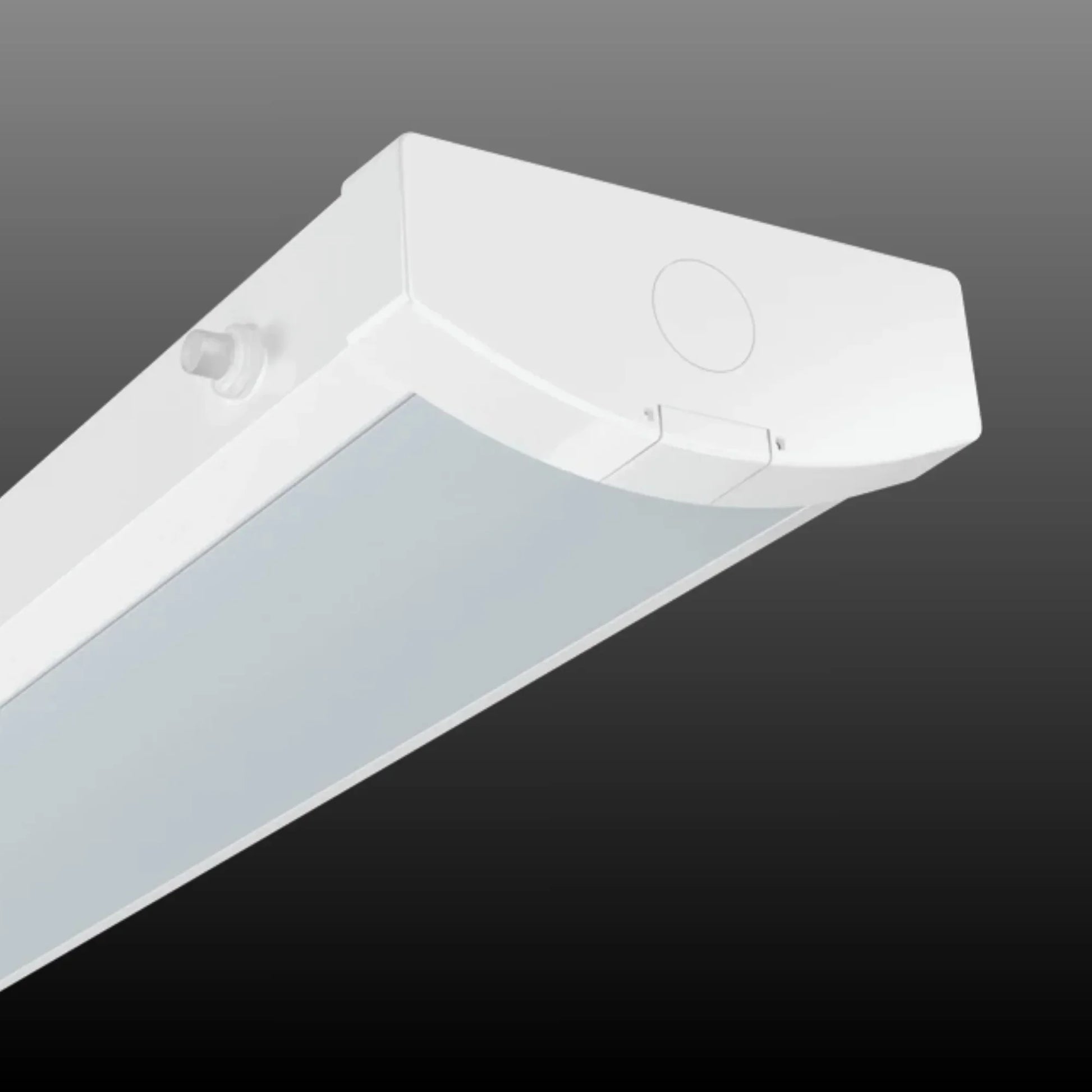

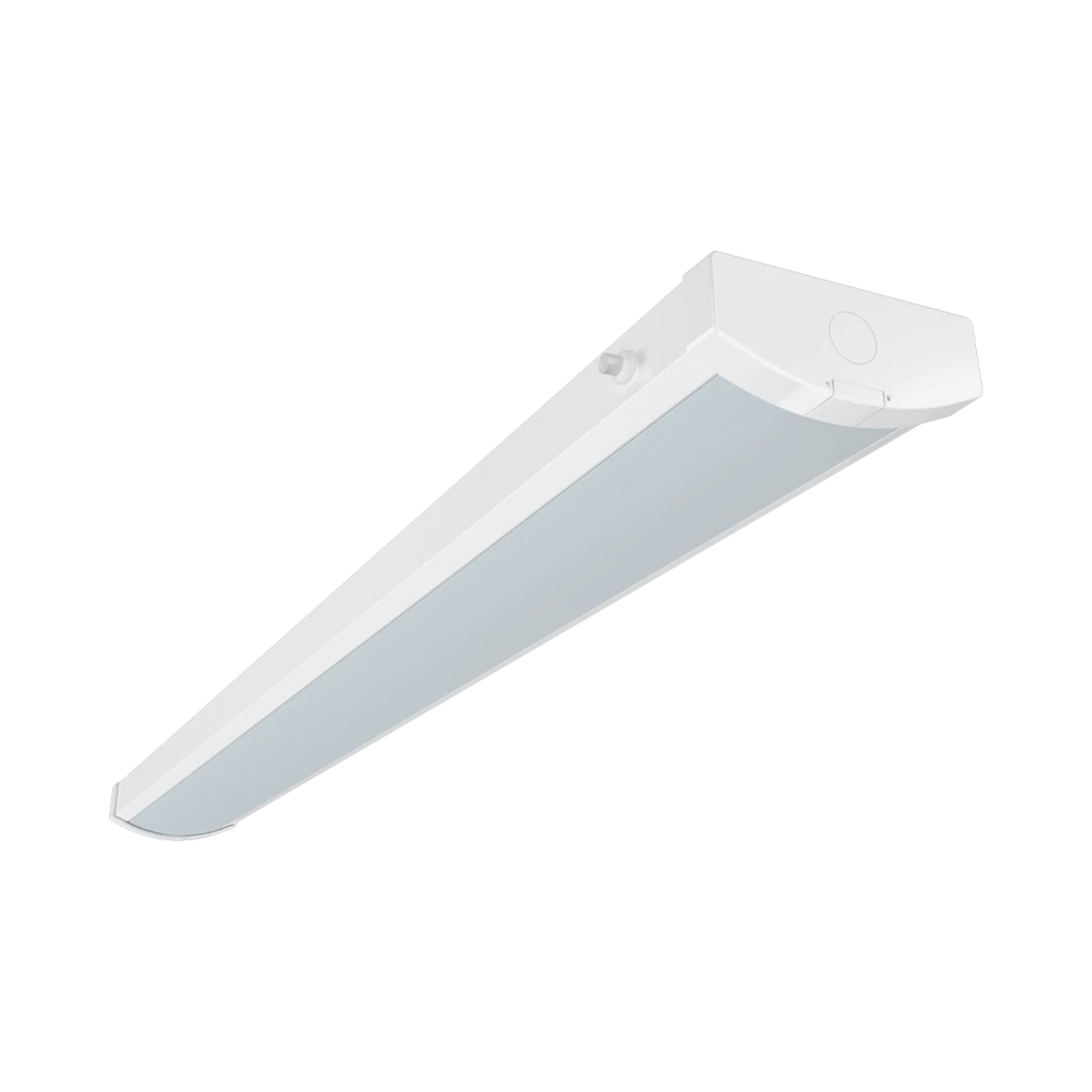

RAB GUS17-4 Field-Adjustable 4ft LED Wrap — 50W/40W/30W Selectable — 3500K/4000K/5000K — Battery Backup — White

The RAB GUS17-4/E is a commercial 4ft GUS17 LED Wrap engineered to deliver up to 5,873 lumens with field-adjustable 50W/40W/30W power settings and switchable 3500K/4000K/5000K color temperatures. Operating on 120–277V electrical systems with 0–10V continuous dimming down to 10%, this luminaire provides an energy-efficient replacement for legacy 3-lamp or 2-lamp F32T8 linear fluorescent fixtures. Built with a UL Listed damp location rating, it is qualified for commercial utility rebates under DLC 5.1 Listed standards and features a factory-installed emergency battery backup system for egress compliance and a durable color-coated steel housing with a polycarbonate wraparound lens.

Key Features

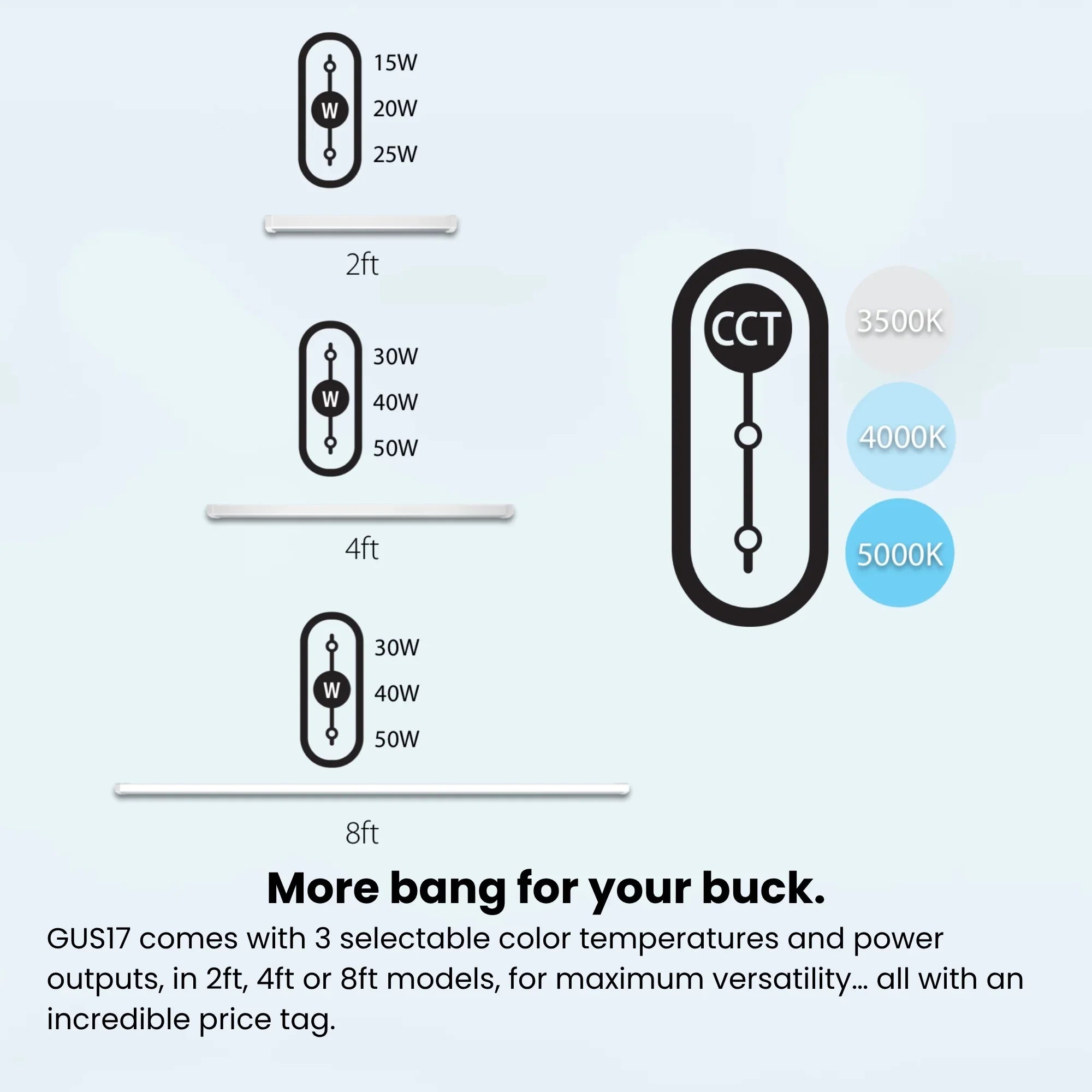

• Selectable Wattage: 50W / 40W / 30W — field-adjustable via onboard switch (factory default 50W)
• Wattage Equivalency: 50W replaces up to (3) F32T8; 40W and 30W replace up to (2) F32T8
• Maximum Lumen Output: 5,873 lm at 50W (4000K)
• Peak Efficacy: 128.1 lm/W for high-efficiency commercial operation
• CRI: 82–86 CRI color rendering across all settings
• Color Consistency: 7-step MacAdam Ellipse binning (with 4-step MacAdam Ellipse fixture-to-fixture binning per cut sheet) following ANSI C78.377-2017 standards
• Selectable CCT: 3500K / 4000K / 5000K — field-adjustable via onboard switch (factory default 4000K)

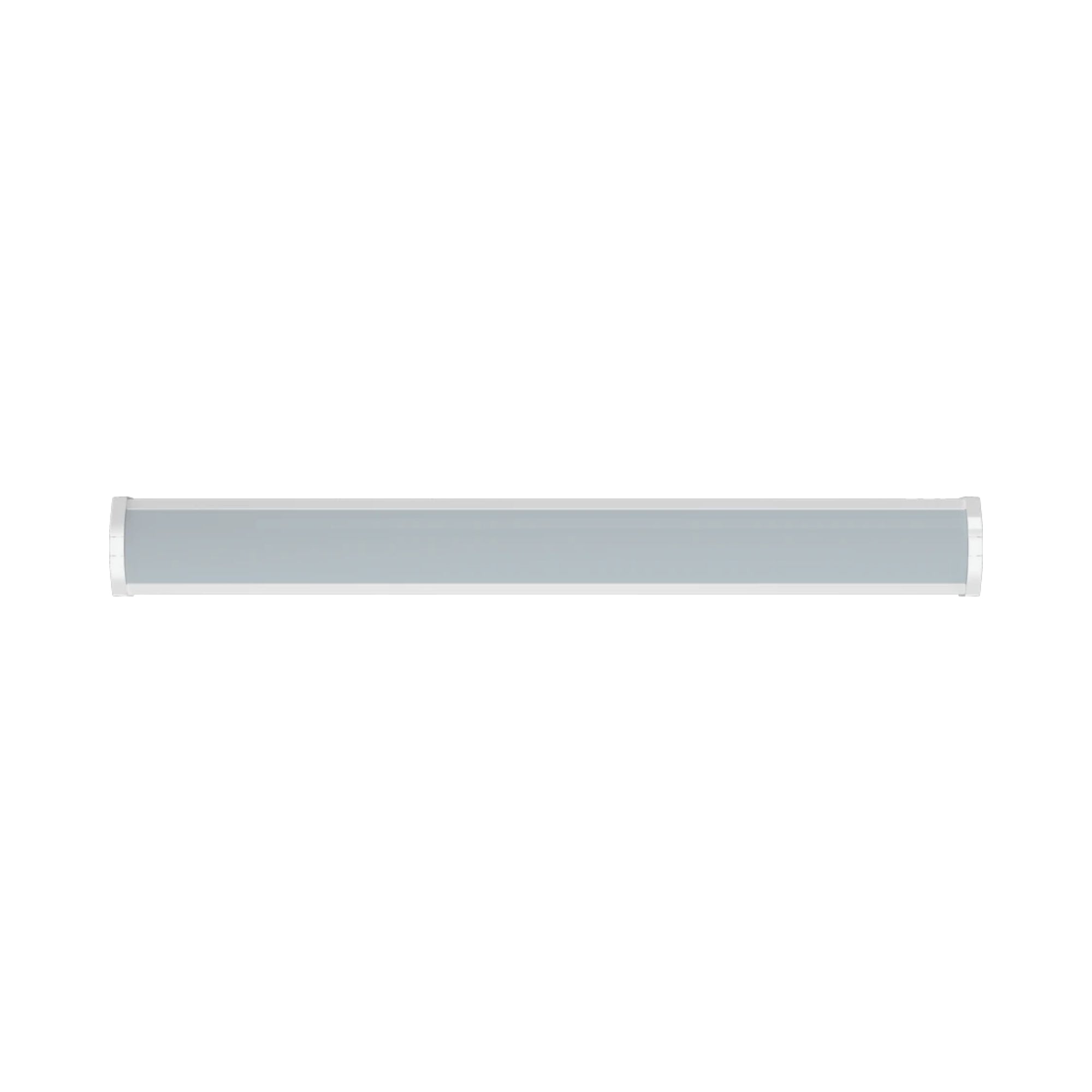

• Lens & Optics: Prismatic polycarbonate wraparound lens for uniform, glare-free distribution
• Dimming: 0–10V continuous dimming standard down to 10%
• Voltage: Universal 120–277V AC, 50/60Hz constant current Class 2, Class P driver
• Location Rating: UL Listed for damp locations
• Operating Temperature: 32°F (0°C) to 122°F (50°C) ambient range
• Certifications: DLC 5.1 Listed, UL Listed, IESNA LM-79 & LM-80 Tested, RoHS Compliant
• Rated Life: 100,000 hours (L70) per IES LM-80 and TM-21 standards
• Warranty: 5-year limited warranty — RAB
• Emergency Backup: Factory-installed emergency battery backup with Light Loss Factor (LLF) of 0.19 at 50W (~1,116 lm), 0.24 at 40W (~1,170 lm), and 0.31 at 30W (~1,158 lm)

Performance & Light Output

At 50W (Replaces up to (3) F32T8): 5,694 lm (3500K / 115.4 lm/W / 86 CRI / 50W input), 5,873 lm (4000K / 125.7 lm/W / 84 CRI / 50W input), 5,869 lm (5000K / 122.5 lm/W / 82 CRI / 50W input).

At 40W (Replaces up to (2) F32T8): 4,749 lm (3500K / 121.2 lm/W / 83 CRI / 40W input), 4,877 lm (4000K / 127.3 lm/W / 84 CRI / 40W input), 4,882 lm (5000K / 124.9 lm/W / 82 CRI / 40W input).

At 30W (Replaces up to (2) F32T8): 3,662 lm (3500K / 123.2 lm/W / 83 CRI / 30W input), 3,734 lm (4000K / 128.1 lm/W / 84 CRI / 30W input), 3,772 lm (5000K / 126.9 lm/W / 82 CRI / 30W input).

CRI 82–86 across all configurations. Rated life 100,000 hours (L70) per IES TM-21 testing.

Smart & Control Features

The GUS17-4/E includes factory-wired 0–10V dimming control leads for smooth continuous dimming down to 10% when connected to a separate 0–10V DC dimming circuit, commercial wall dimmer, or building automation system. Standalone Passive Infrared (/PIR), Microwave (/MVS), and Lightcloud Blue Bluetooth Mesh (/LCBS, /LCBS/MVS) sensor configurations, as well as field-installable PIR20 and MVS20 sensors and the MSR1 commissioning remote, are available — sold separately.

Electrical

Powered by a Class 2, Class P constant current driver operating on 120–277V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor of 99.56% at 120V (95.91% at 277V) and Total Harmonic Distortion (THD) of 6.6% at 120V (14.51% at 277V). Integrated 1 kV differential mode (DM, L/N) and 2 kV common mode (CM, L/N-PE) surge protection protects internal electronics against transient voltage spikes. Includes pre-wired 0–10V dimming leads.

Emergency Battery Backup: Includes a factory-installed emergency battery backup system for standby illumination during primary power outages. Battery Backup Light Loss Factor (LLF) for GUS17-4 is 0.19 at 50W (~1,116 emergency lumens), 0.24 at 40W (~1,170 emergency lumens), and 0.31 at 30W (~1,158 emergency lumens) based on 4000K nominal lumen ratings.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Construction

Housing & Build: Color-coated steel sheet housing engineered for structural rigidity and thermal dissipation.

Location & Environmental Rating: UL Listed for indoor damp location commercial environments.

Operating Temperature: Minimum starting temperature of 32°F (0°C) for battery backup operation (-4°F / -20°C standard fixture rating); operating ambient temperature range of 32°F (0°C) to 122°F (50°C) (-4°F (-20°C) to 113°F (45°C) standard fixture rating).

Lens & Optics: Durable polycarbonate wraparound lens engineered for even illumination and glare control.

Finish: High-durability white finish formulated for long-lasting color stability and corrosion resistance.

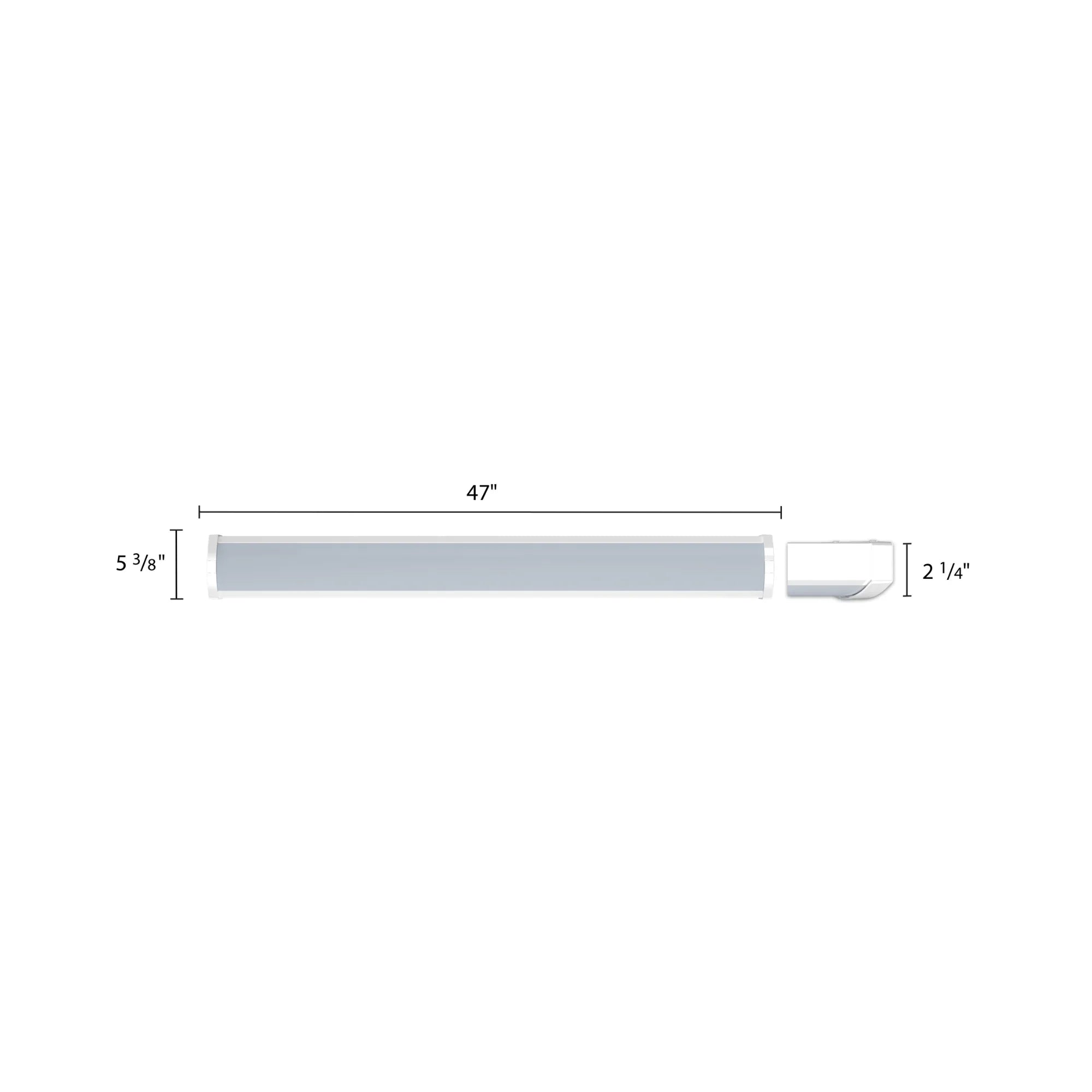

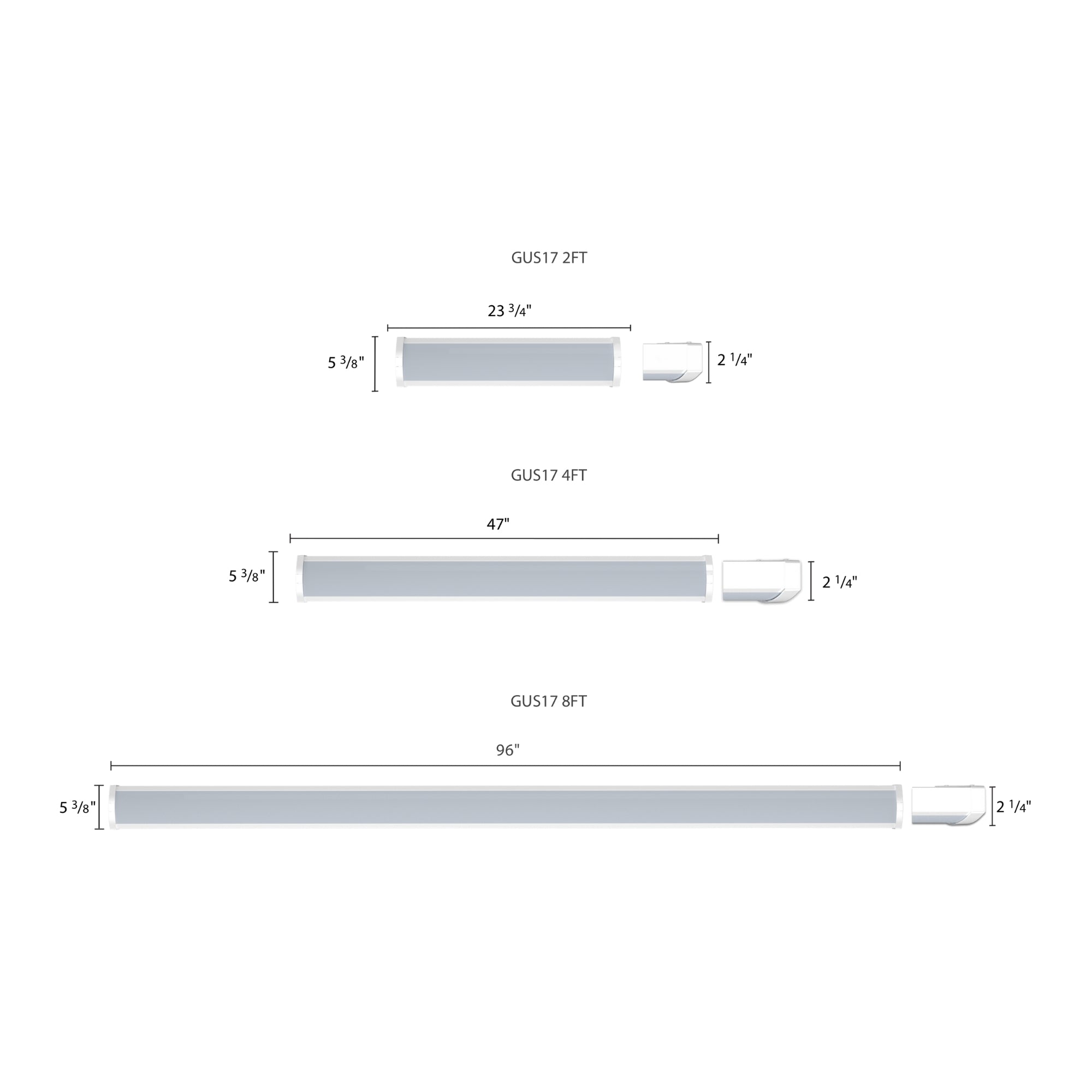

Dimensions & Weight: 47.00" L × 5.38" W × 2.25" H (47" × 5 3/8" × 2 1/4"). Fixture weight: 3.84 lbs.

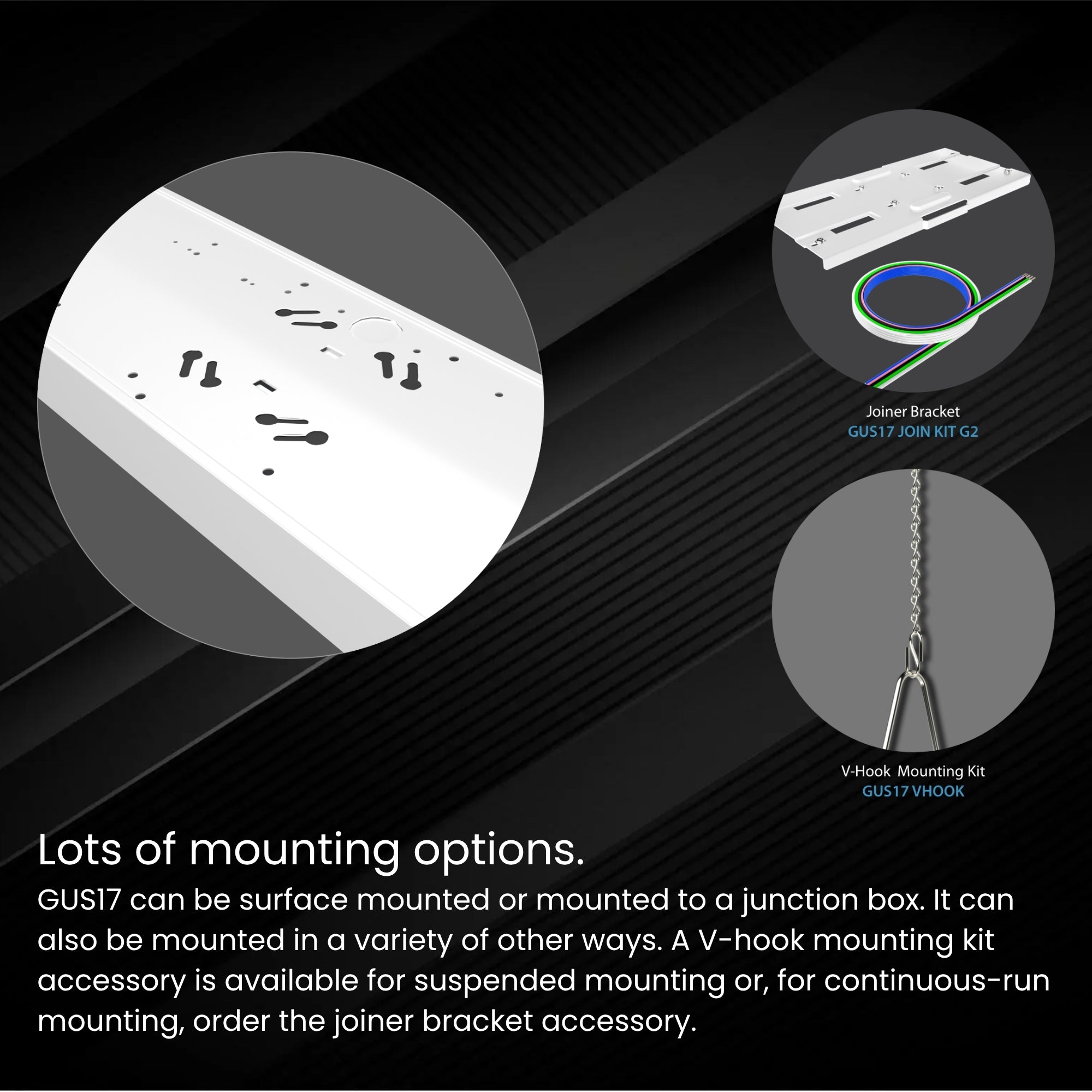

Installation & Mounting

Standard Mounting: Engineered for direct ceiling or wall surface mounting standard.

Continuous Run & Suspended Mounting: Supports chain suspension and continuous row joining using dedicated mounting accessories ordered separately.

Accessories (Sold Separately):

• Suspension Hardware: GUS17 VHOOK (2 V-Hooks and two 40" chains, UPC: 192552028493 — sold separately)
• Continuous Joining Kit: GUS17-JOIN-KIT-G2 (GUS17 Join Kit with bracket, nuts, and wire, UPC: 192552046312 — sold separately)
• Sensors & Controls: MSR1 (Multi-Sensor Remote Control IP20, UPC: 192552026055 — sold separately); PIR20[B][/LCB] and MVS20[B][/LCB] sensors (20 ft diameter mounted at 9 ft — sold separately)

Certifications & Rebates

• DLC 5.1 Listed: Qualifies for commercial utility rebate incentives across regional energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search DLC Product ID S-Y281AB (Direct Linear Ambient Luminaires), S-OZBJQS (Low-Bay Luminaires), or S-CHAQND (Stairwell and Passageway Luminaires).
• UL Listed: Certified for damp locations per UL standards.
• IESNA LM-79 & LM-80 Tested: Luminaire photometrics and LED components tested by an independent laboratory in accordance with IESNA LM-79 and LM-80 standards.
• RoHS Compliant: Mercury and UV free with RoHS-compliant components.

Typical Applications

• Stairwells & Passageways — DLC 5.1 qualified for stairwell and passageway applications with uniform wraparound light distribution.
• Commercial Corridors & Hallways — Low-profile 2.25-inch depth and optional GUS17-JOIN-KIT-G2 continuous row linking streamline linear corridor runs.
• Utility & Mechanical Rooms — UL damp-location rating and color-coated steel housing withstand humid indoor service environments.

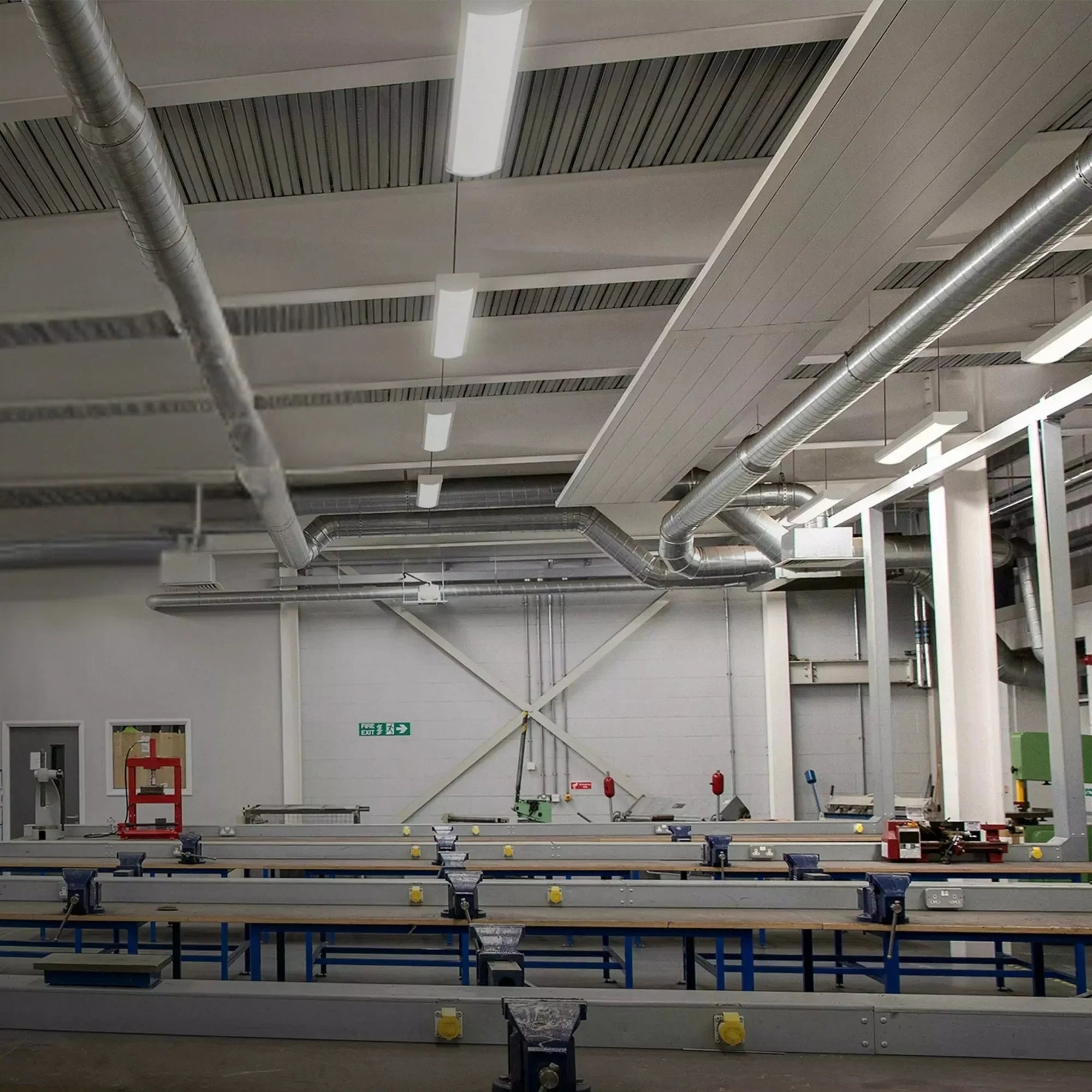

• Warehouses & Storage Areas — Field-adjustable 50W/40W/30W output adapts illumination levels to racking layouts and ceiling heights.
• Educational & Office Facilities — Switchable 3500K/4000K/5000K color temperatures and 0–10V dimming support classroom and workspace visual comfort.

What's Included

• RAB GUS17-4/E GUS17 4ft Field-Adjustable LED Wrap with Factory-Installed Emergency Battery Backup — White
• Installation and operation manual
