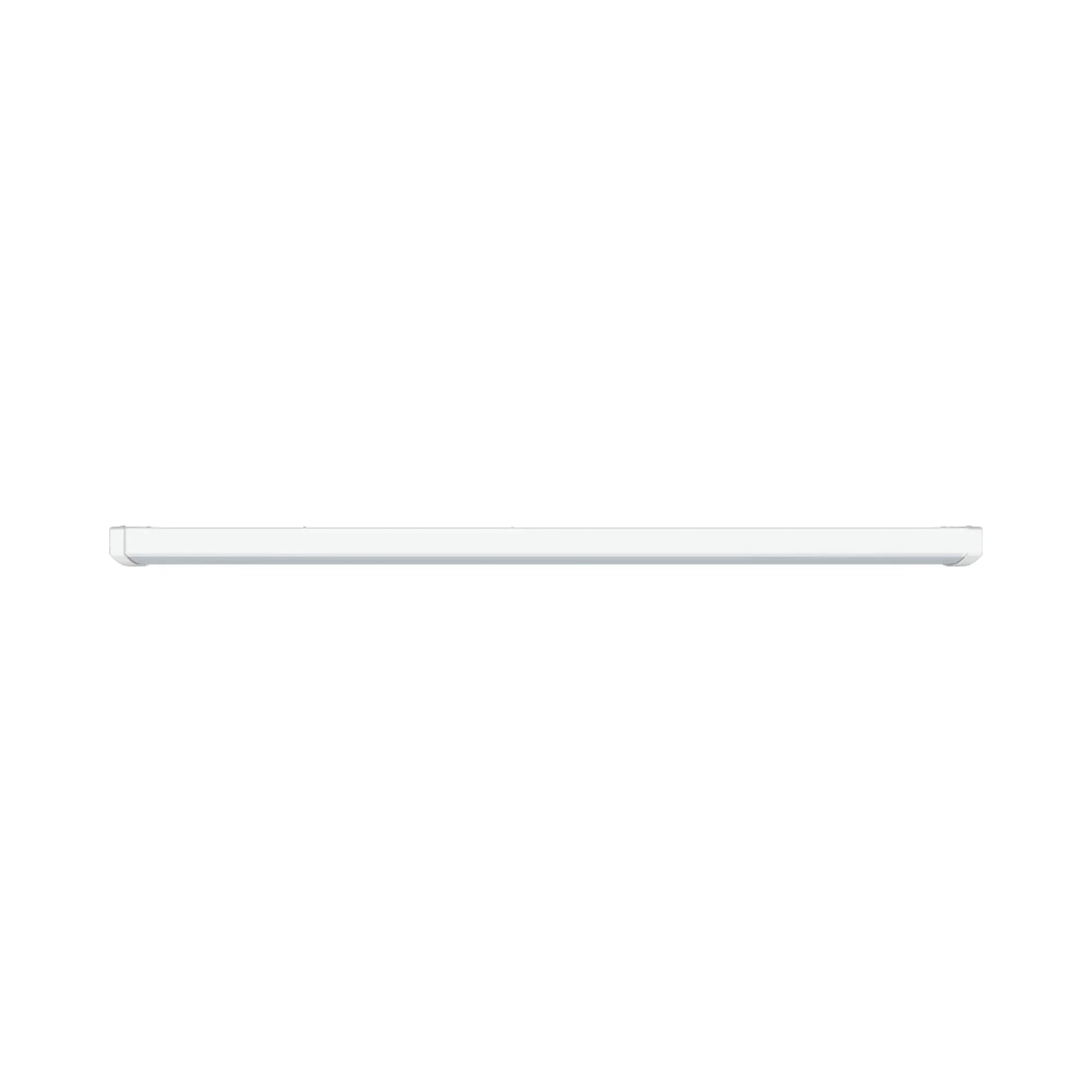

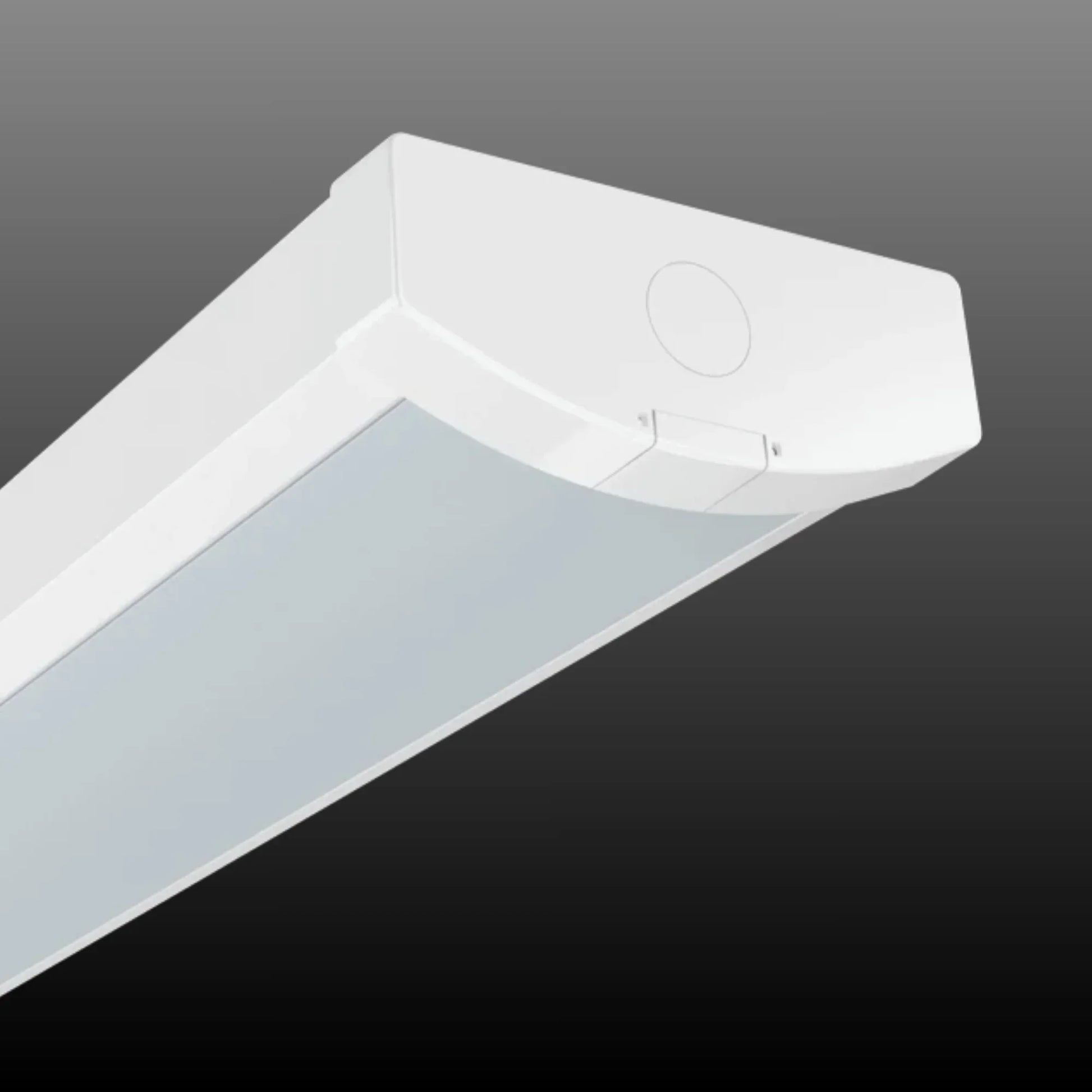

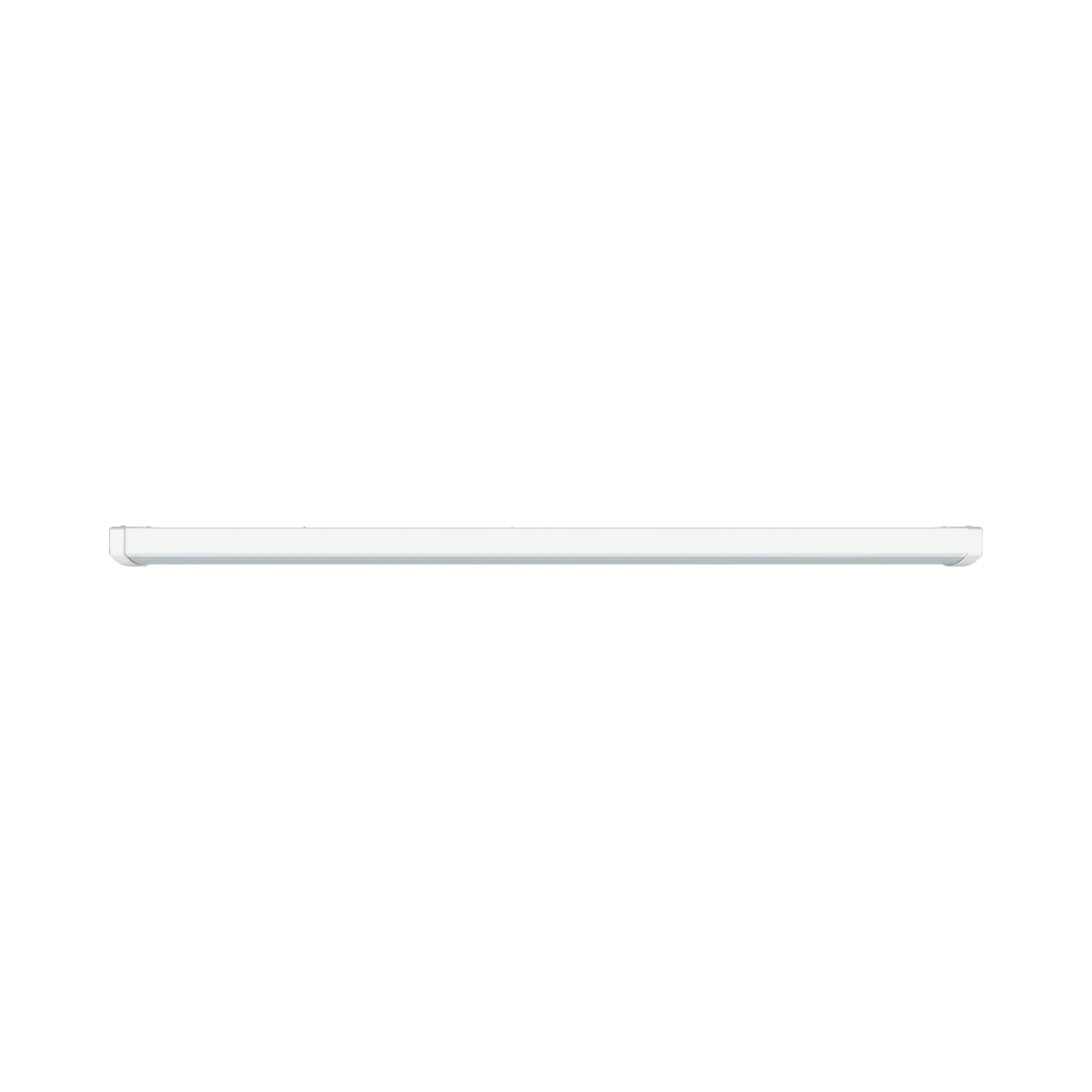

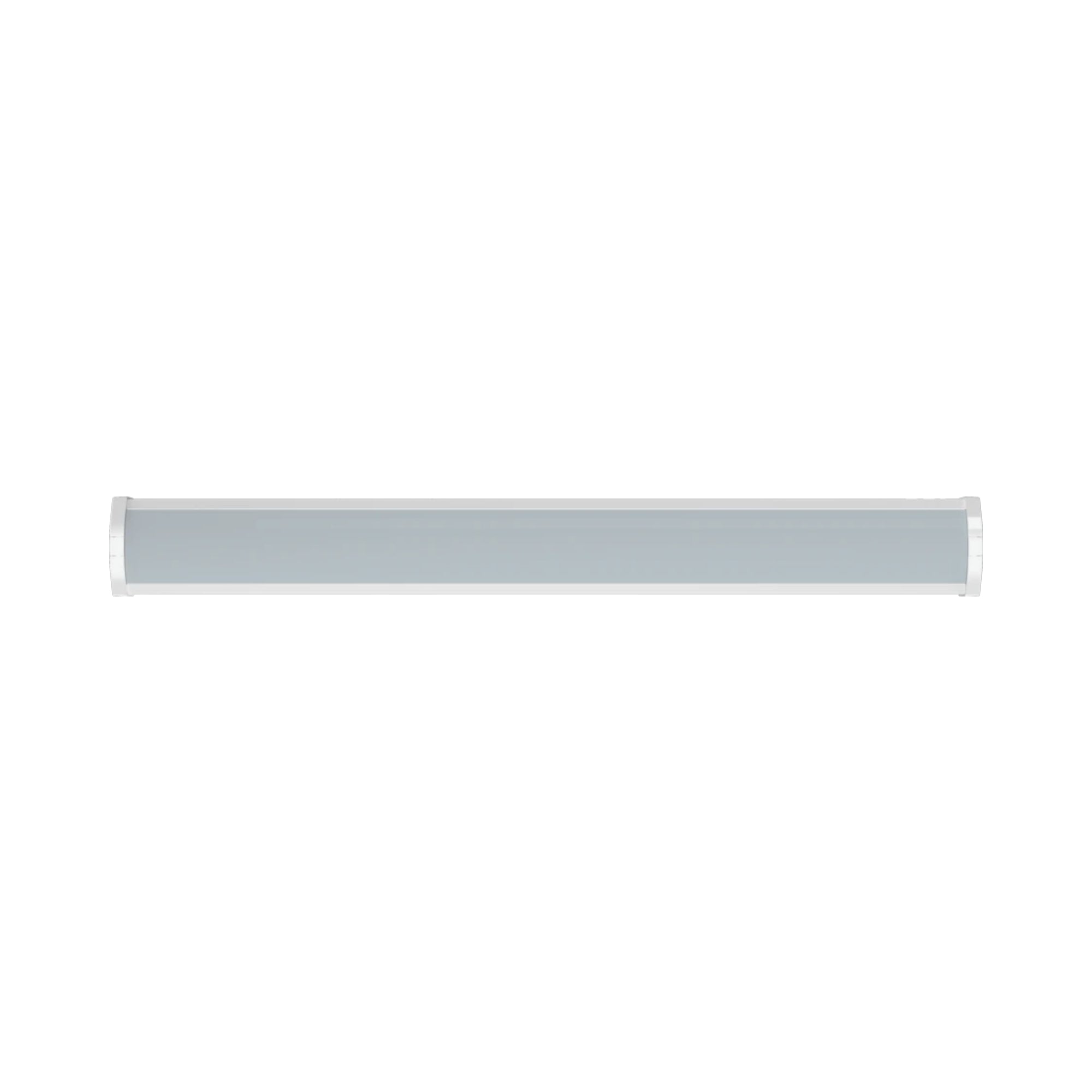

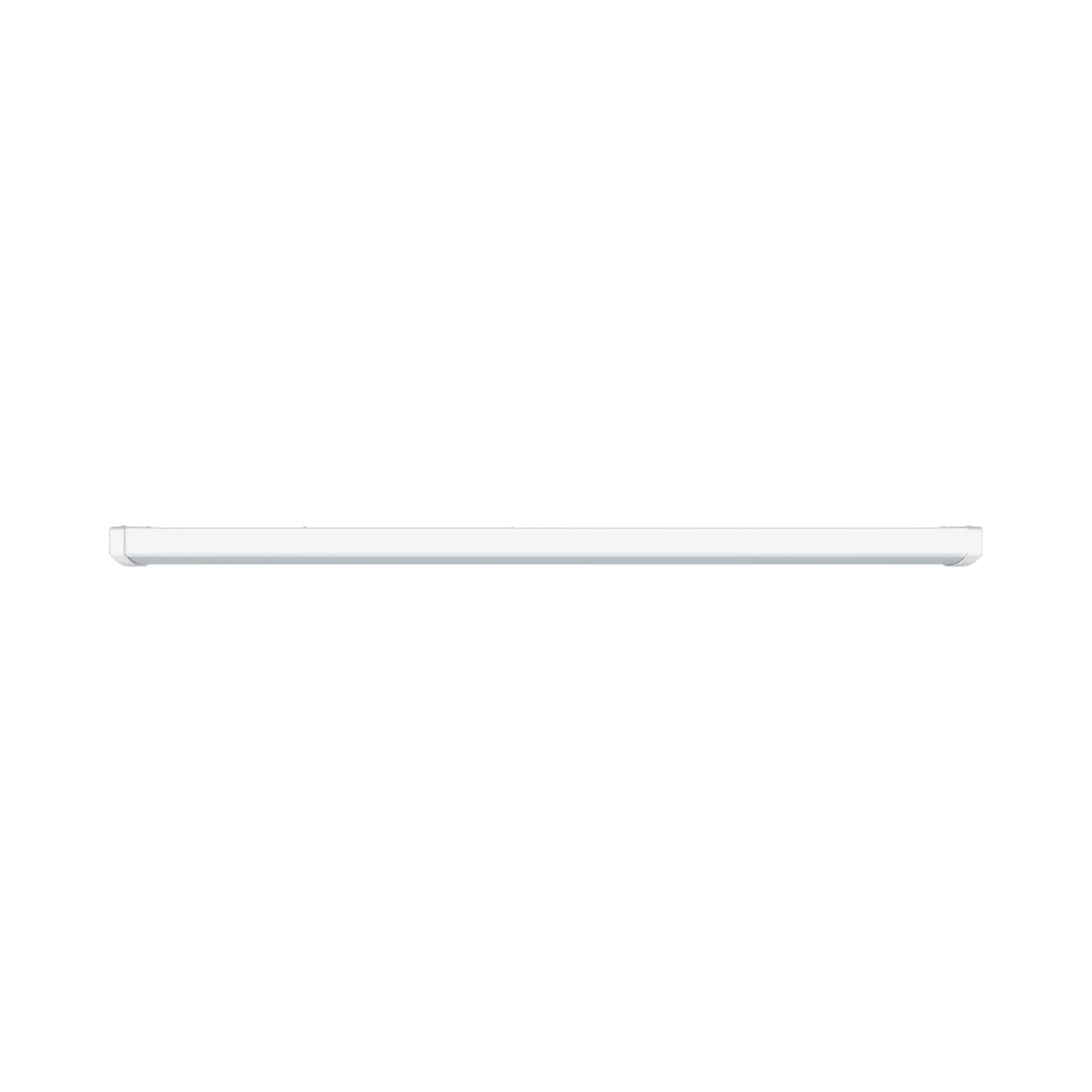

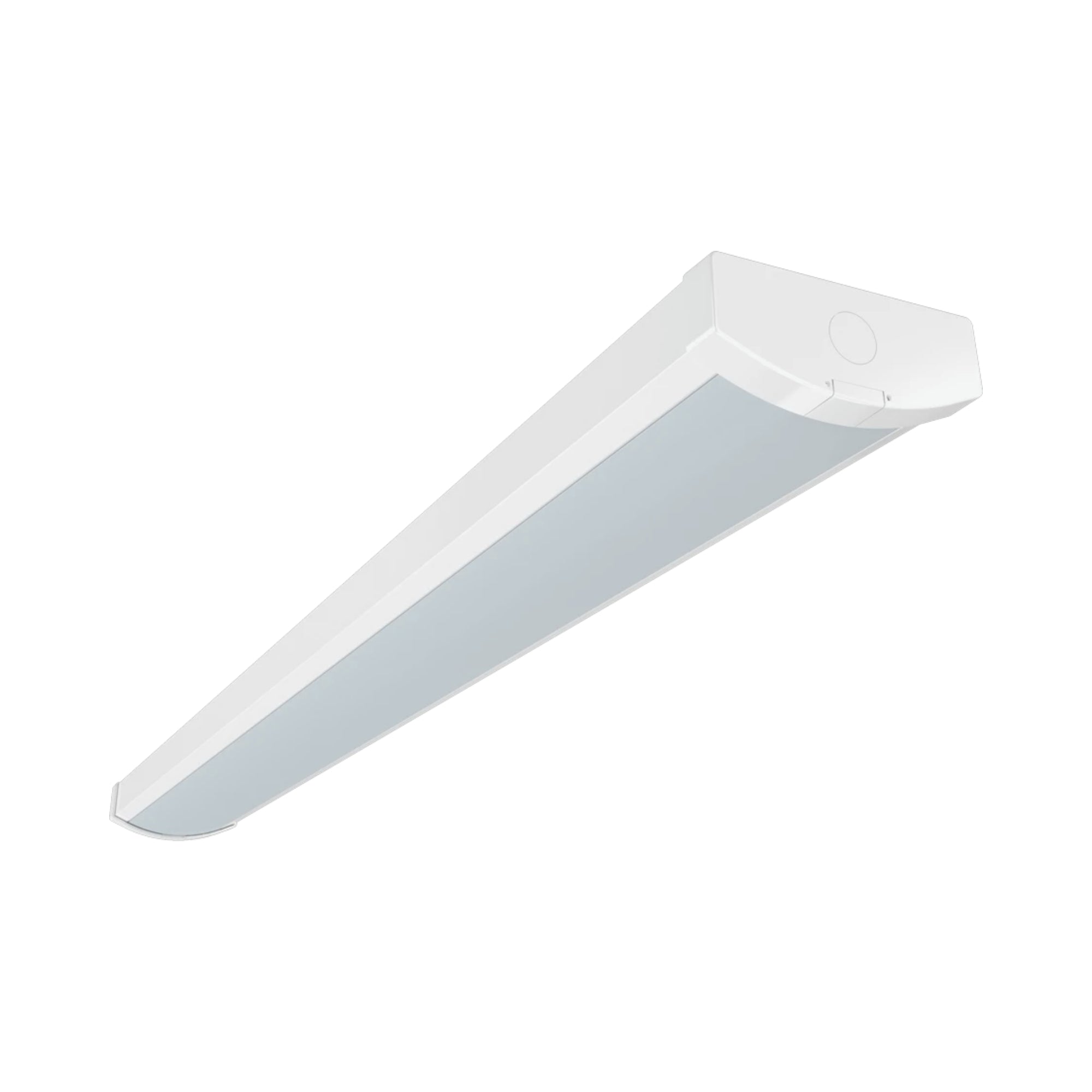

RAB GUS17 Field Adjustable Wrap Wraparound Light — 50W Configuration

The RAB GUS17-4 is a versatile wraparound light offering 50W power with selectable color temperatures of 3500K, 4000K, and 5000K. Delivering up to 5,873 lumens, it operates on 120-277V input voltage, making it suitable for a wide range of applications. This model is DLC listed, ensuring eligibility for rebates and compliance with industry standards.

Key Features

• Field Adjustable Wattage: Easily switch between 50W, 40W, and 30W settings to optimize energy use.
• Selectable CCT: Choose from 3500K, 4000K, or 5000K to match your lighting needs.
• High Efficacy: Achieves an efficacy of up to 128.1 lm/W for energy-efficient performance.
• Long Lifespan: Rated for 100,000 hours based on IES LM-80 and TM-21 standards.
• Dimmable Driver: Includes 0-10V dimming capability, allowing for light level adjustments down to 10%.
• Durable Construction: Built with color-coated steel sheets and a polycarbonate lens for longevity.
• Surge Protection: Equipped with 1 kV L-N and 2 kV L/N-PG surge protection for enhanced safety.
• UL Listed: Suitable for damp locations, ensuring reliable operation in various environments.
• Green Technology: Mercury and UV-free, complying with RoHS standards.
• Mounting Options: Designed for surface mounting, with v-hooks available separately for additional flexibility.

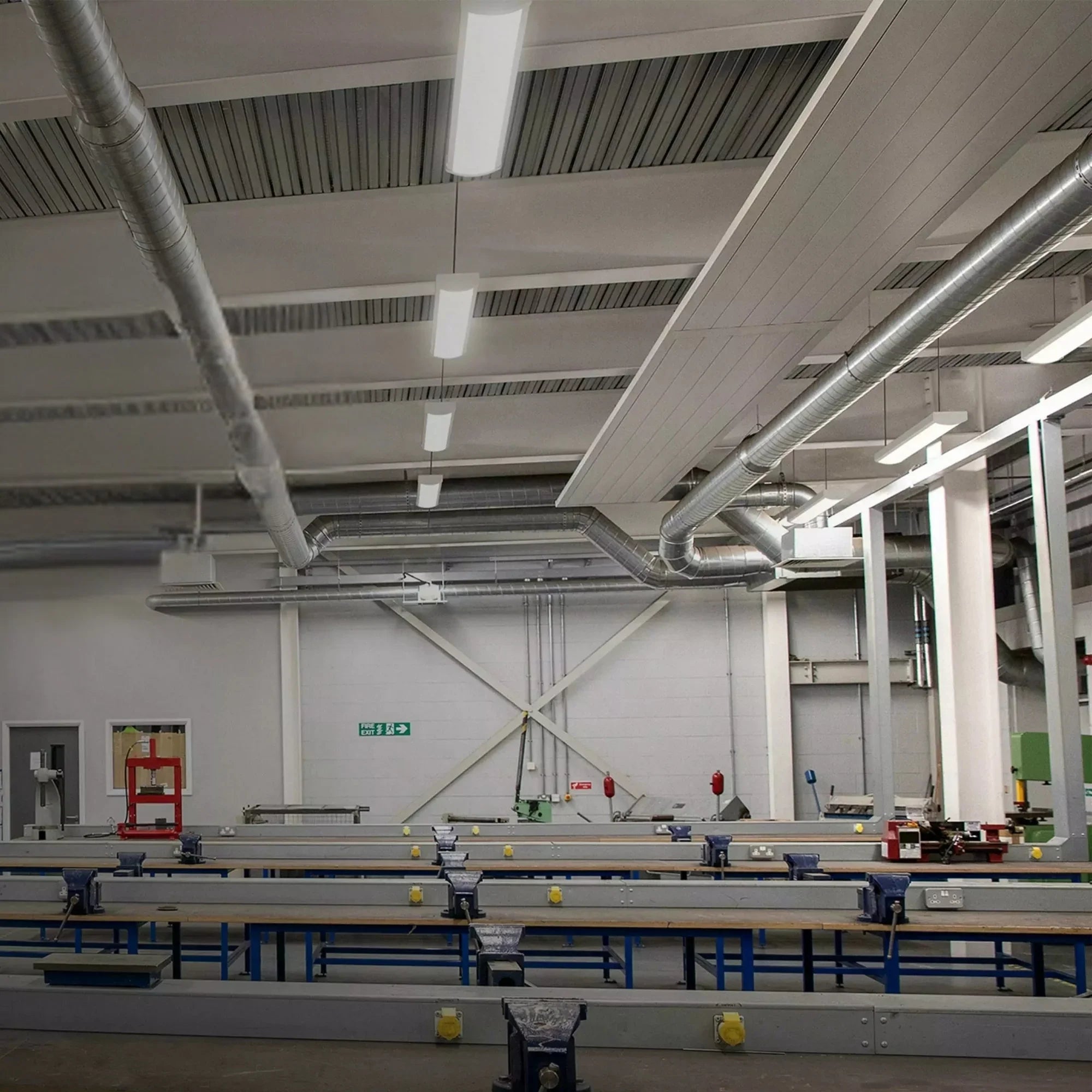

Typical Applications

• Commercial Offices
• Retail Spaces
• Educational Facilities
• Healthcare Environments
• Industrial Warehouses
• Corridors

Performance & Light Output

This fixture provides a luminous output ranging from 3,662 to 5,873 lumens with a color rendering index (CRI) of 82-86, ensuring high-quality light output. It maintains color uniformity in line with ANSI C78.377-2017 standards.

Electrical & Controls

The GUS17-4 operates on a constant current driver with a voltage range of 120-277V and supports 0-10V dimming. It features a power factor of 99.56% at 120V and 95.91% at 277V, with THD levels of 6.6% and 14.51% respectively. Surge protection is included for added reliability.

Construction & Durability

Constructed with durable color-coated steel and a polycarbonate lens, this fixture is designed to withstand operating temperatures from -4°F to 113°F. It is UL listed for damp locations, ensuring robust performance in challenging environments.

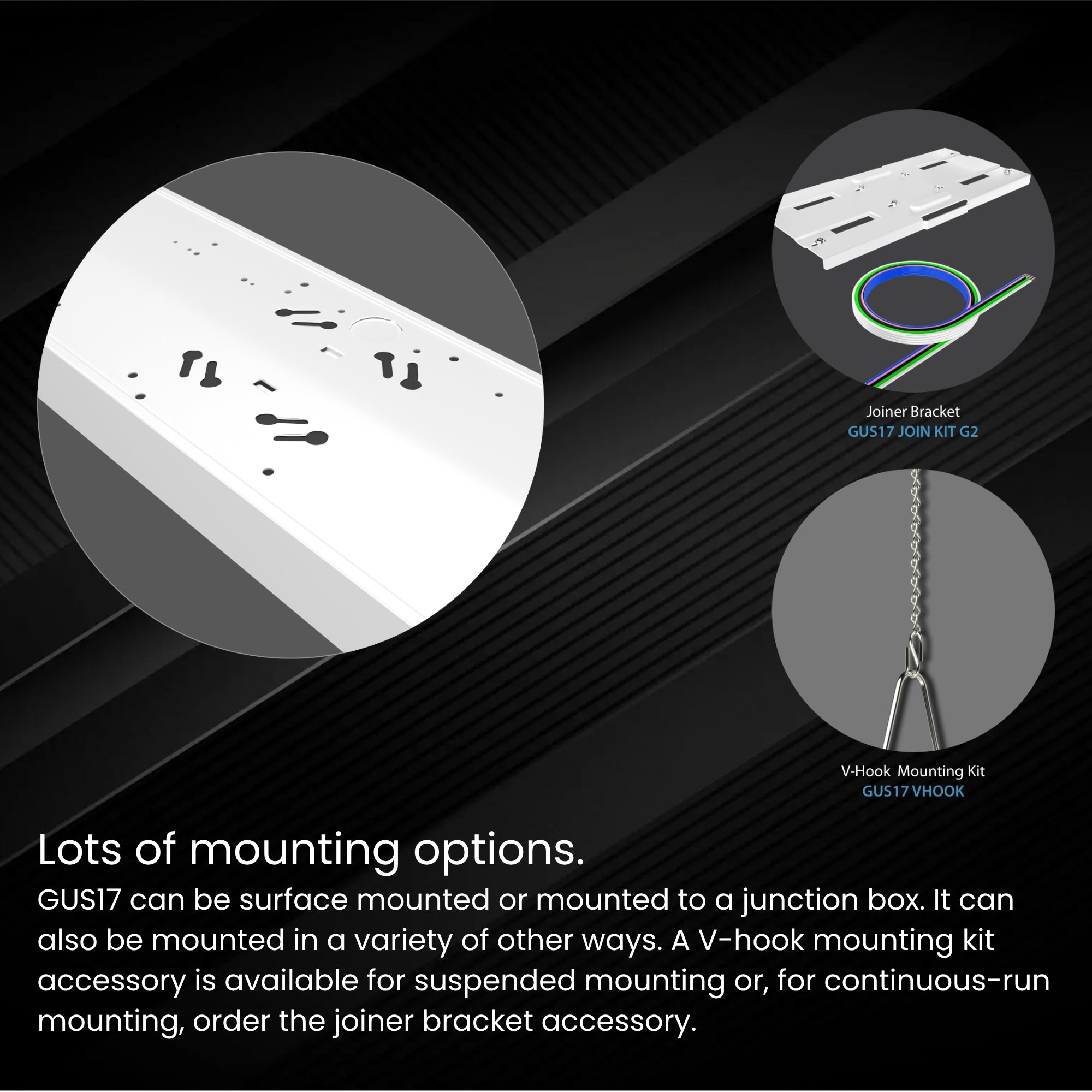

Installation & Mounting

The fixture is designed for surface mounting and can be installed using optional v-hooks for additional mounting flexibility. It is suitable for a variety of indoor applications.

What's Included

• RAB GUS17-4 Wraparound Light Fixture
