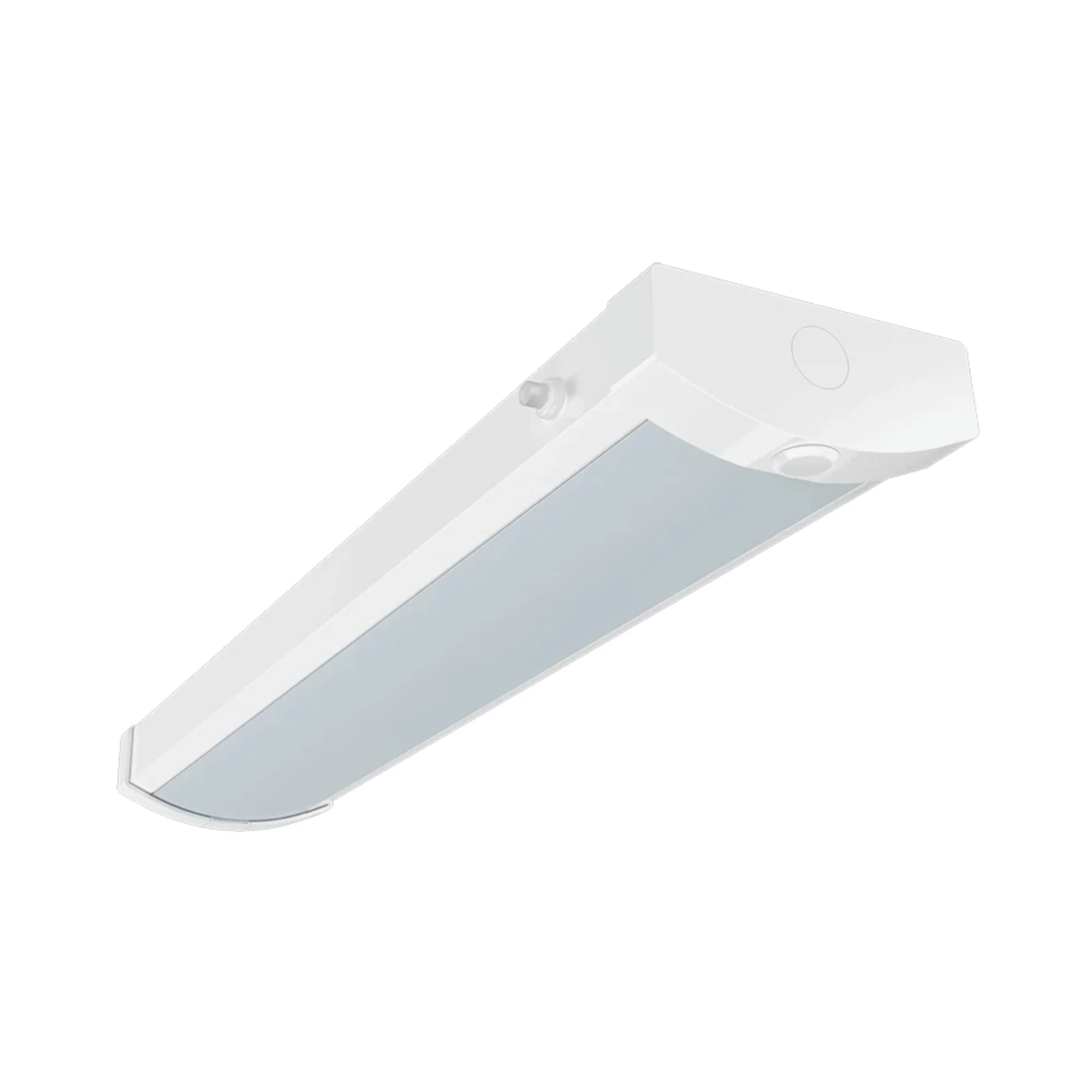

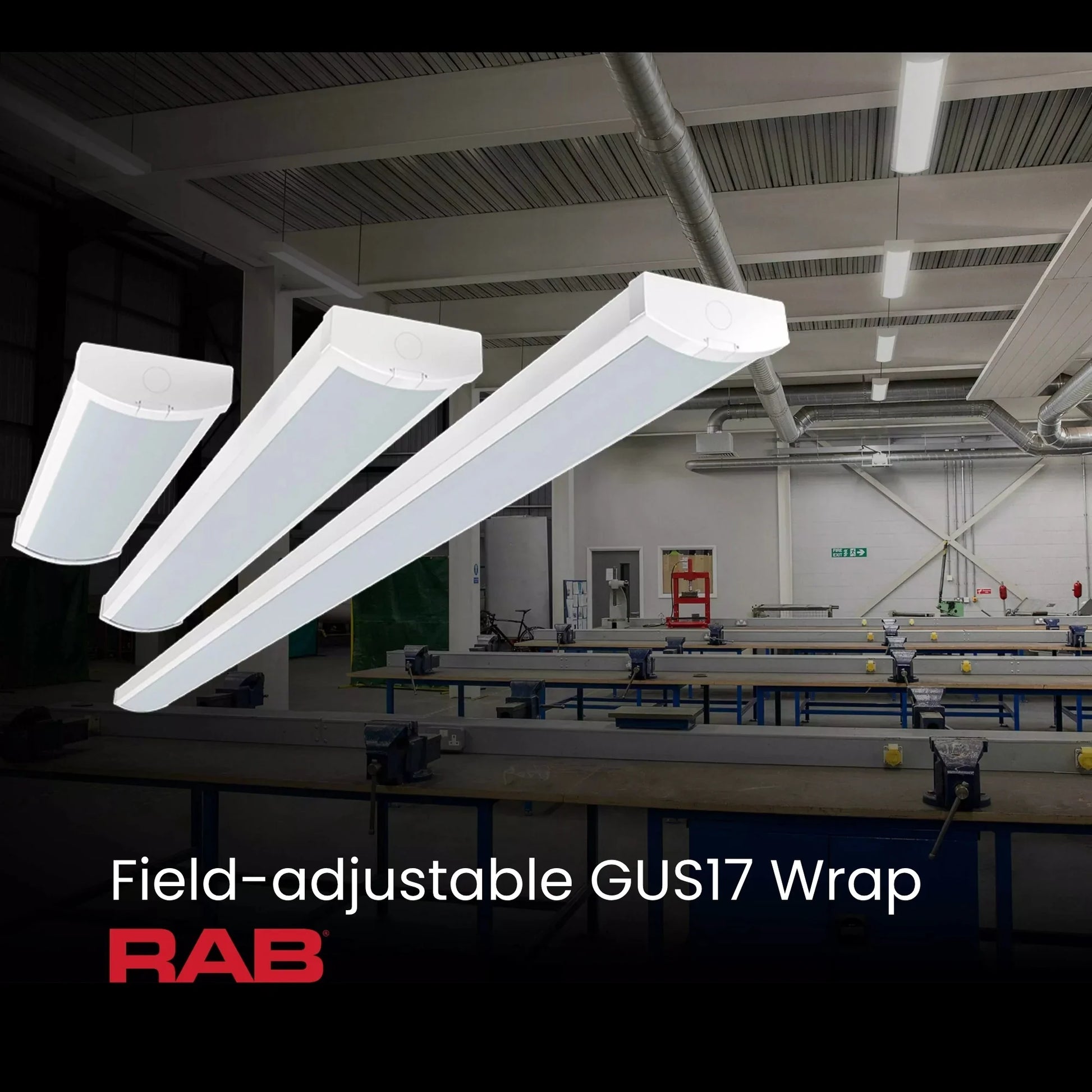

RAB Lighting GUS17 Field Adjustable Wrap — 25W Configuration

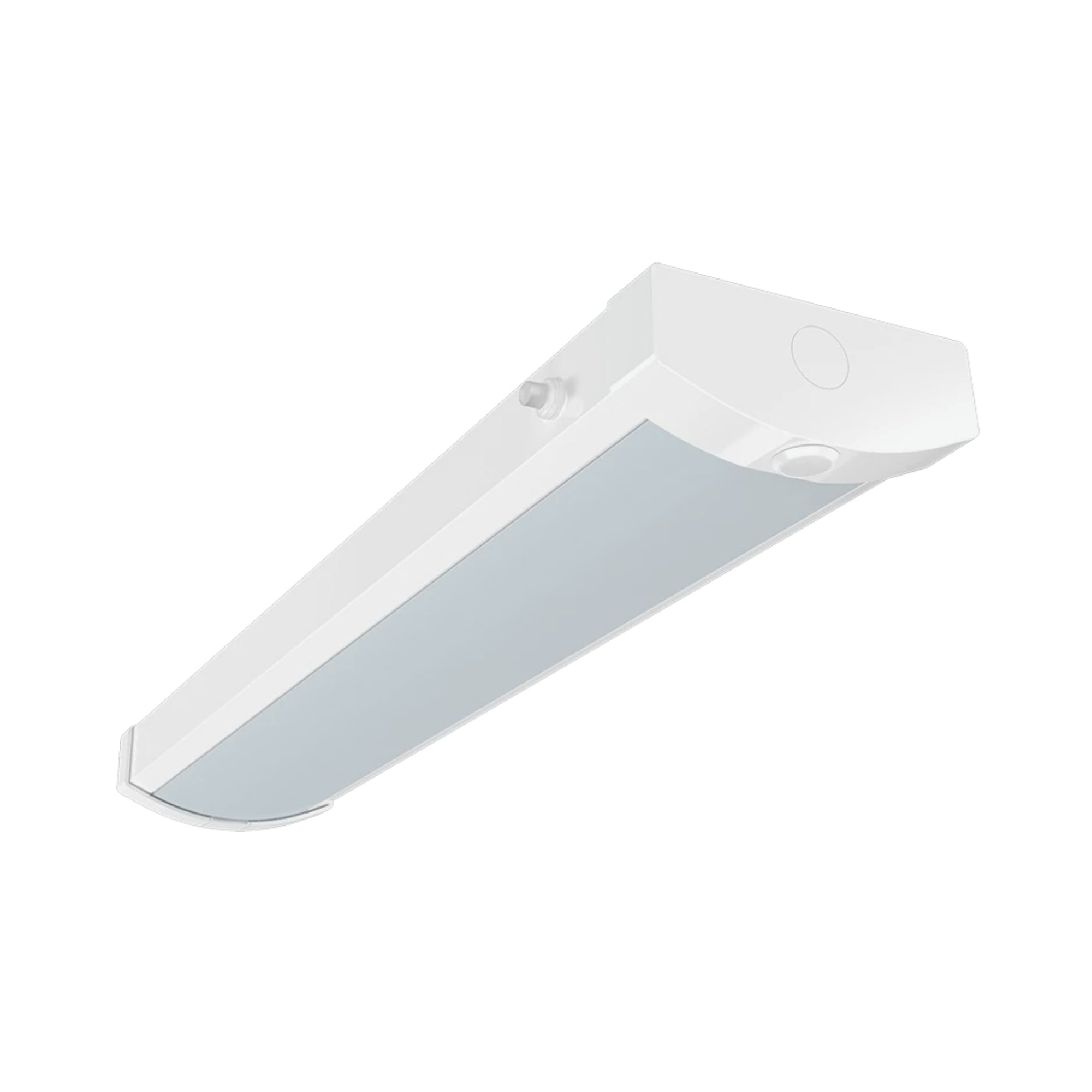

The RAB Lighting GUS17-2/MVS/E is a versatile wraparound light offering 25W power, delivering up to 3000 lumens with a selectable CCT of 3500K, 4000K, and 5000K. It operates on 120-277V input, making it suitable for various applications. This fixture is DLC listed and UL listed for damp locations, ensuring compliance and eligibility for utility rebates.

Key Features

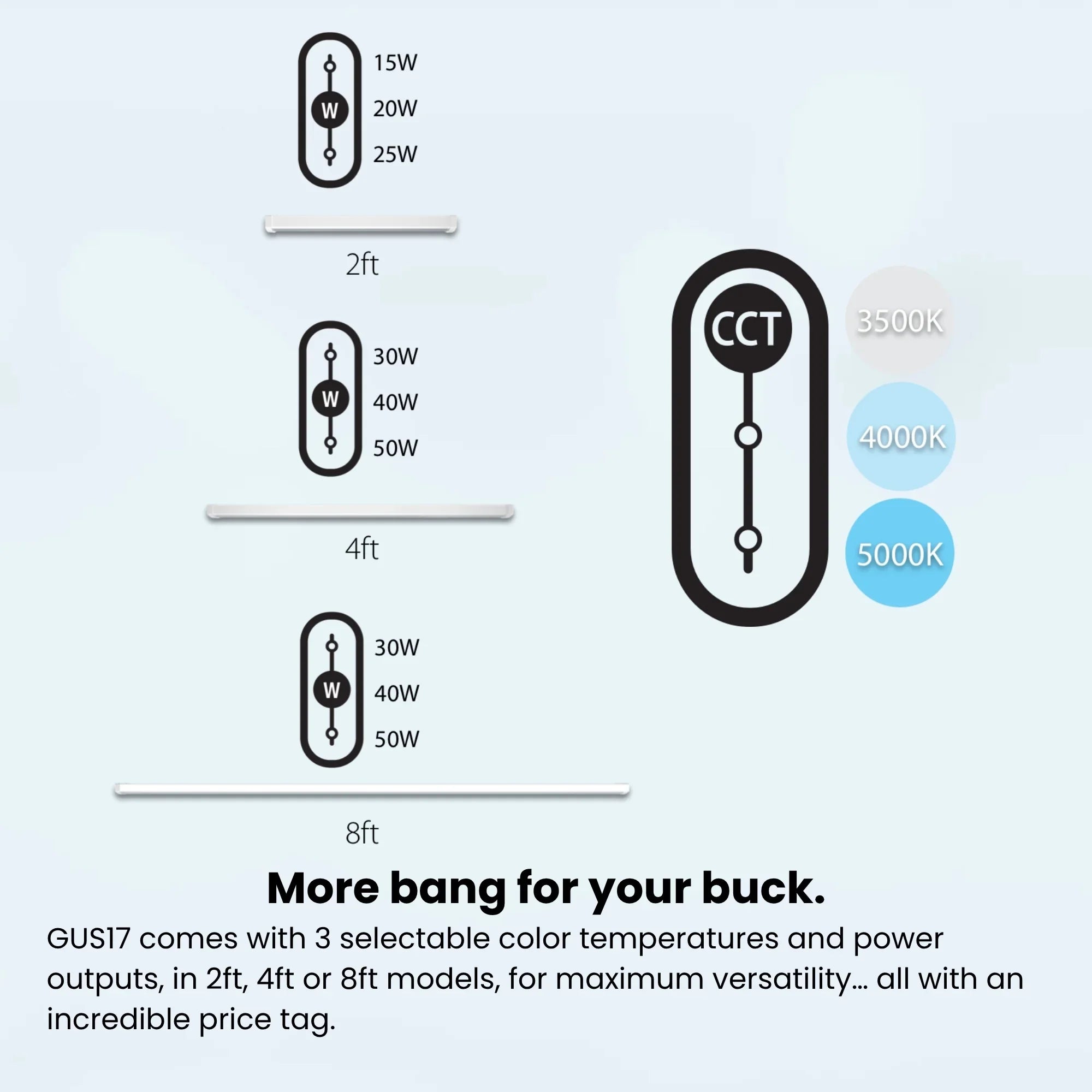

• Field Adjustable Output: Offers wattage options of 25W, 20W, and 15W, with factory default at 25W.
• Selectable CCT: Choose from 3500K, 4000K, or 5000K, with a factory default of 4000K.
• High Efficacy: Provides an efficacy range of 117.4 to 123.6 lm/W for energy efficiency.
• Long Lifespan: Features a 100,000-hour LED lifespan based on IES LM-80 results.
• Dimming Capability: Includes 0-10V dimming down to 10% for adjustable lighting.
• Battery Backup: Integrated battery backup operates the fixture for 90 minutes during power outages.
• Durable Construction: Made from color-coated steel sheets with a polycarbonate lens for durability.
• Surge Protection: Equipped with 1 kV L-N and 2 kV L/N-PG surge protection.
• Motion Sensing: Features a microwave occupancy sensor for enhanced energy savings.
• Remote Control Option: Settings can be adjusted using a remote control (sold separately).

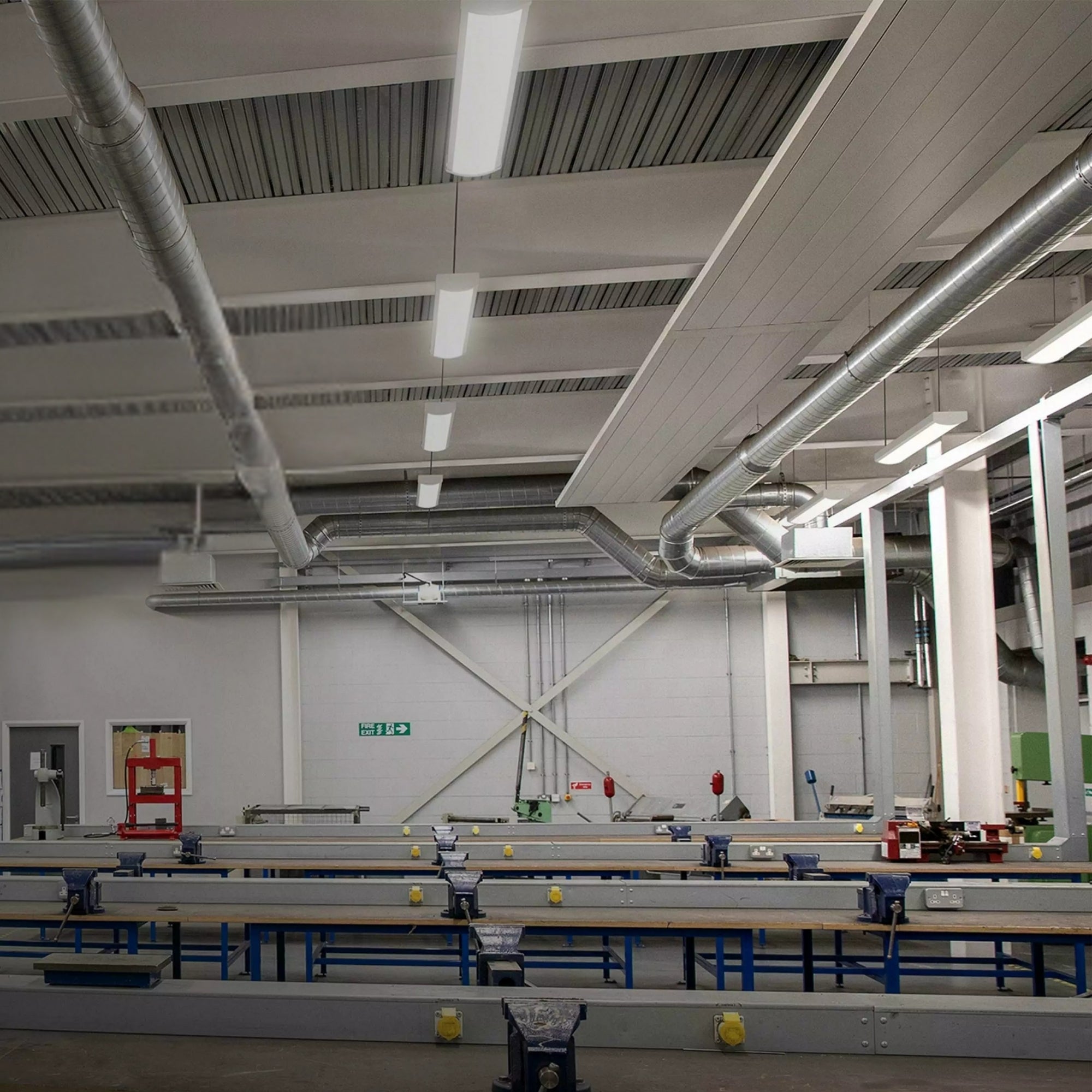

Typical Applications

• Commercial Offices
• Retail Spaces
• Educational Facilities
• Healthcare Facilities
• Warehouses

Performance & Light Output

This fixture provides a lumen output range of 1,798 to 2,974 lumens with a color rendering index (CRI) of 82-86, ensuring high-quality light output. It maintains color uniformity in accordance with ANSI C78.377-2017 standards.

Electrical & Controls

The GUS17-2/MVS/E operates on a constant current driver, compatible with 120-277V systems. It includes 0-10V dimming and surge protection, with a power factor of 99.44% at 120V.

Construction & Durability

Constructed with color-coated steel and a polycarbonate lens, this fixture is designed for durability and is suitable for use in temperatures up to 122°F (50°C). It is mercury and UV-free, complying with RoHS standards.

Installation & Mounting

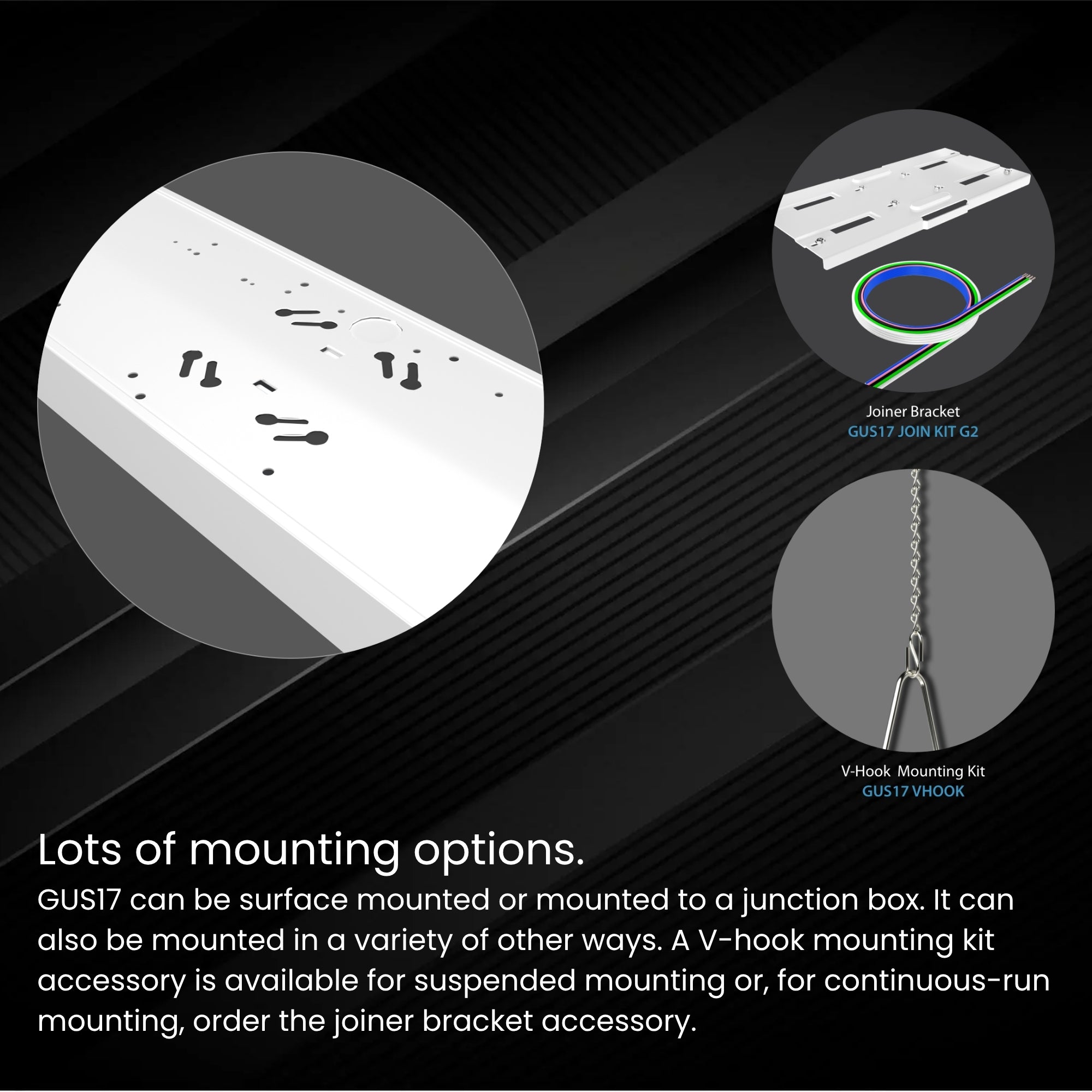

This wraparound light is designed for surface mounting and can be installed with v-hooks, which are ordered separately. It supports ceiling mounting up to 12 meters high.

What's Included

• Wraparound Light Fixture
• Integrated Battery Backup
