RAB GUS17-2-MVS Field Adjustable Wrap 2ft Wraparound Light 3000 Lumens 25W Selectable CCT 120-277V White
Available in stock (200)
About this item
About this item
- Lumens: Provides a range of 1,798 to 2,974 lumens for versatile lighting needs.
- Wattage: Field adjustable wattage options of 25W, 20W, and 15W for energy efficiency.
- Voltage: Operates on a wide input voltage range of 120-277V for flexible installation.
- Dimming: Includes 0-10V dimming capability, allowing light level adjustments down to 10%.
- Compliance: DLC listed and UL listed for damp locations, ensuring quality and safety.
We process payments securely and do not store credit card information.
Description
Description

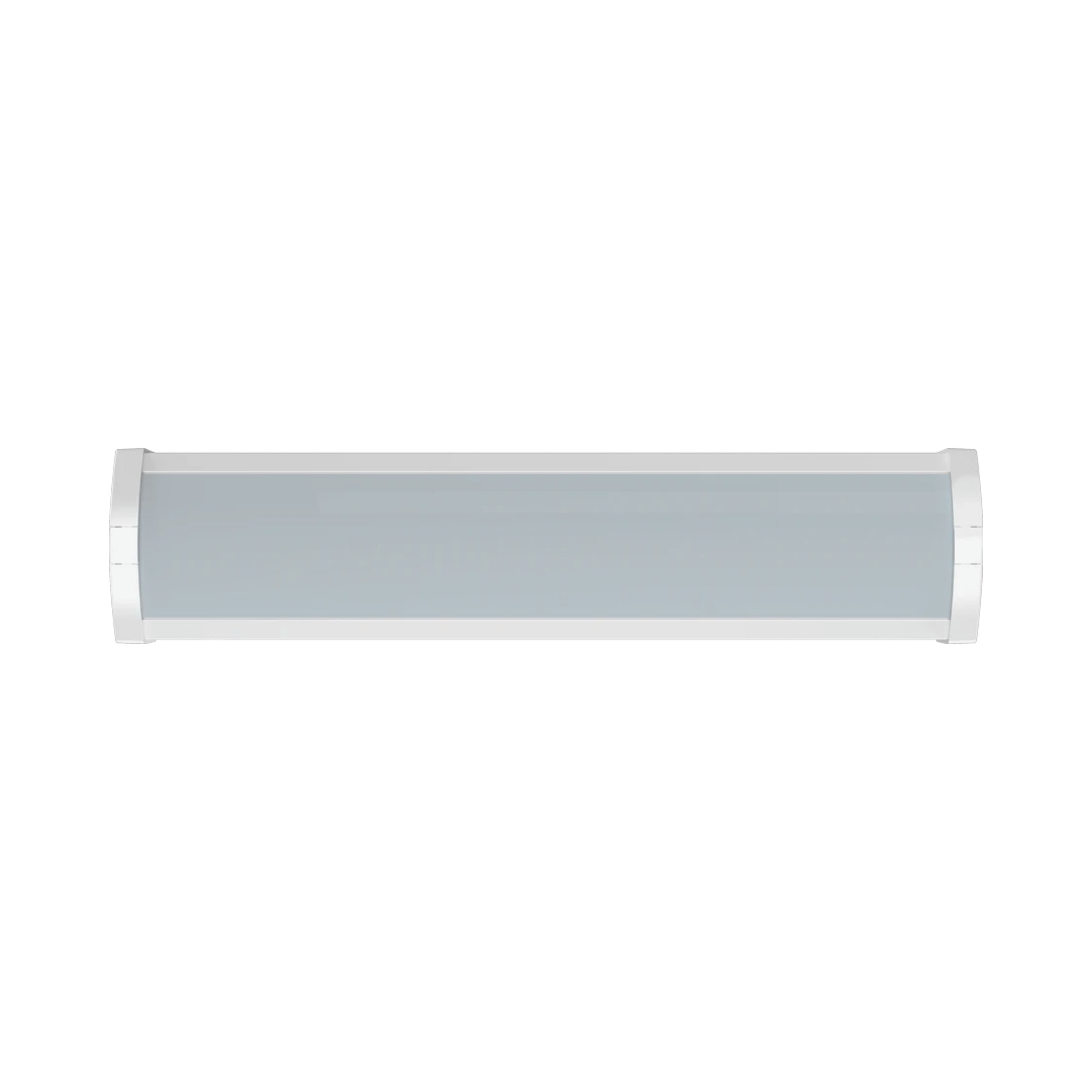

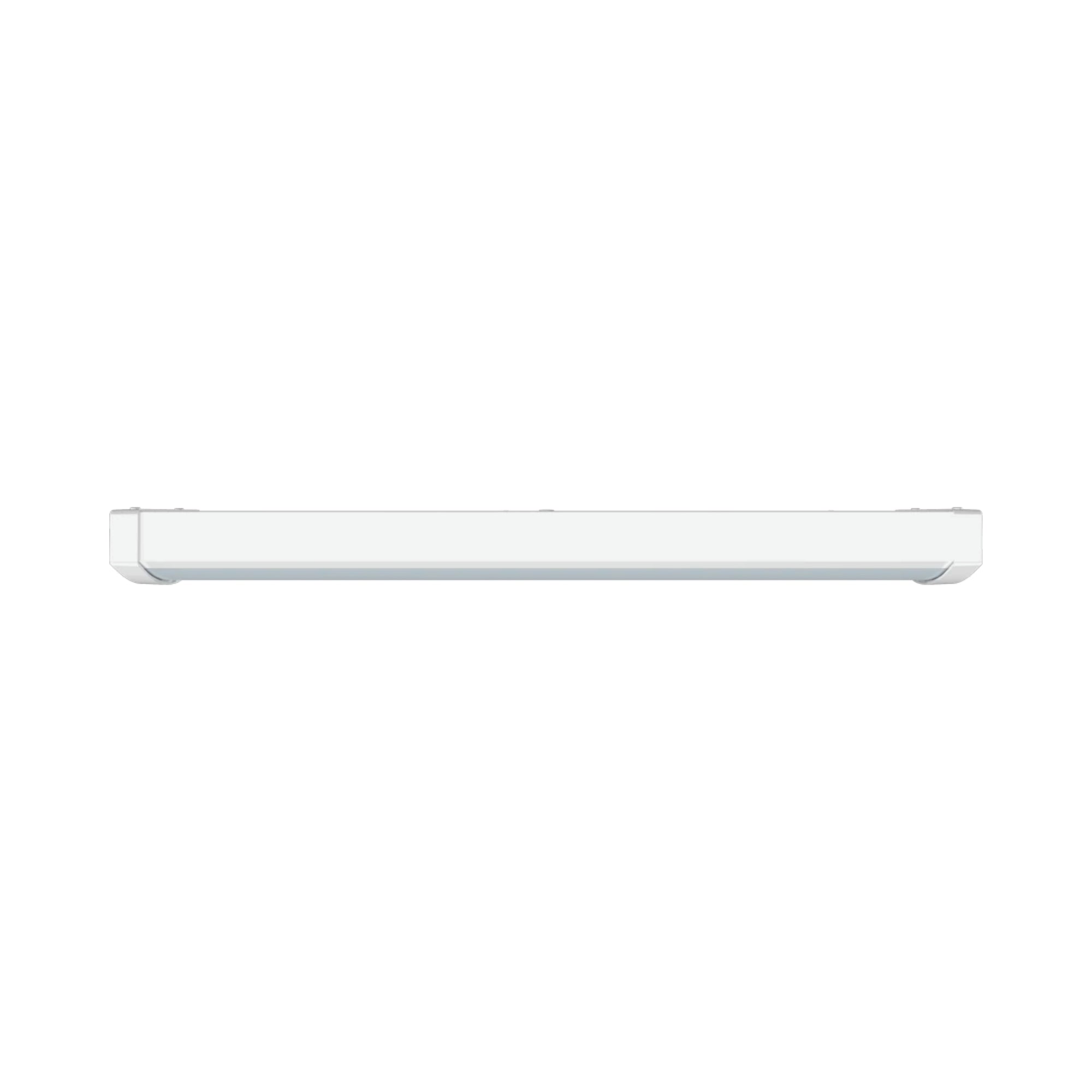

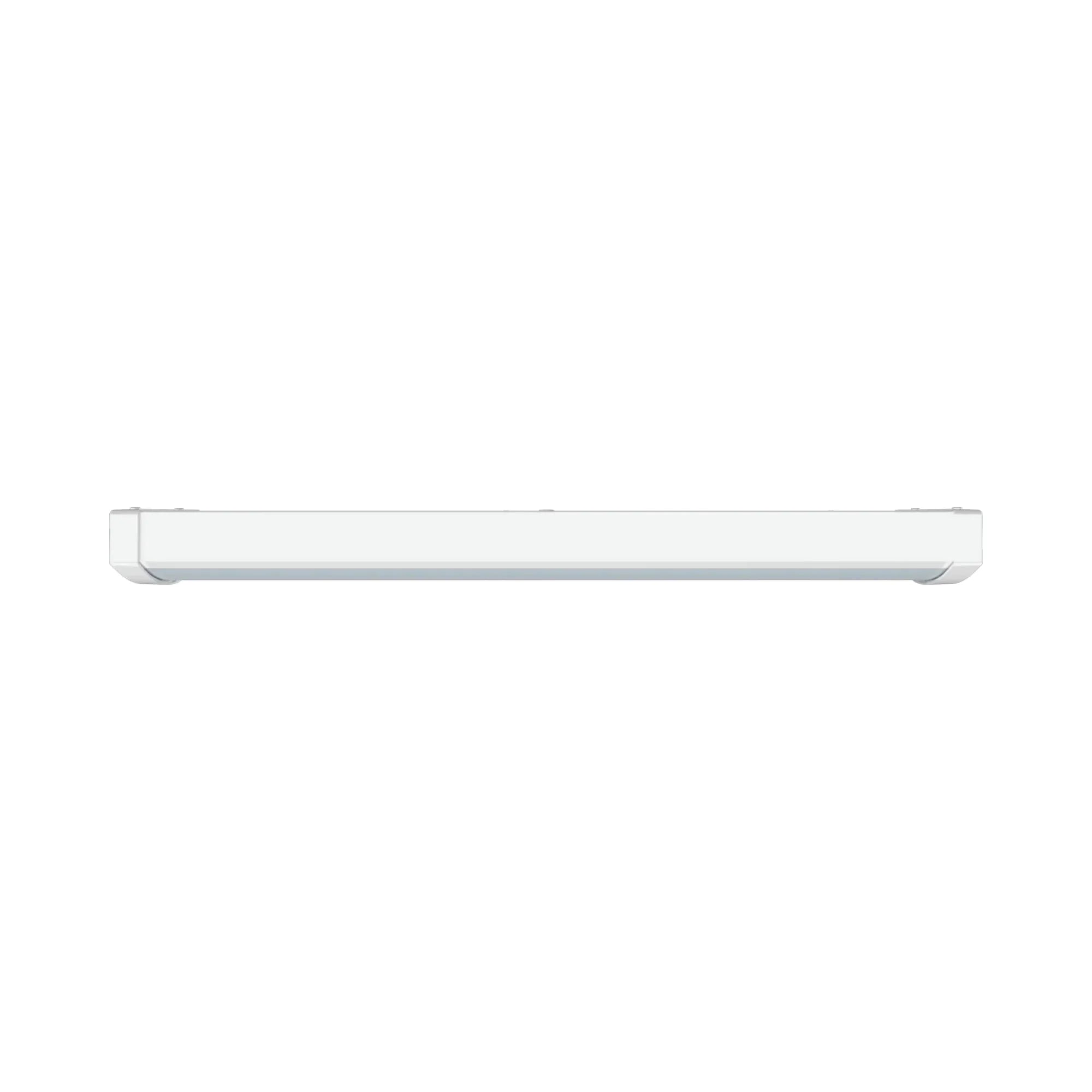

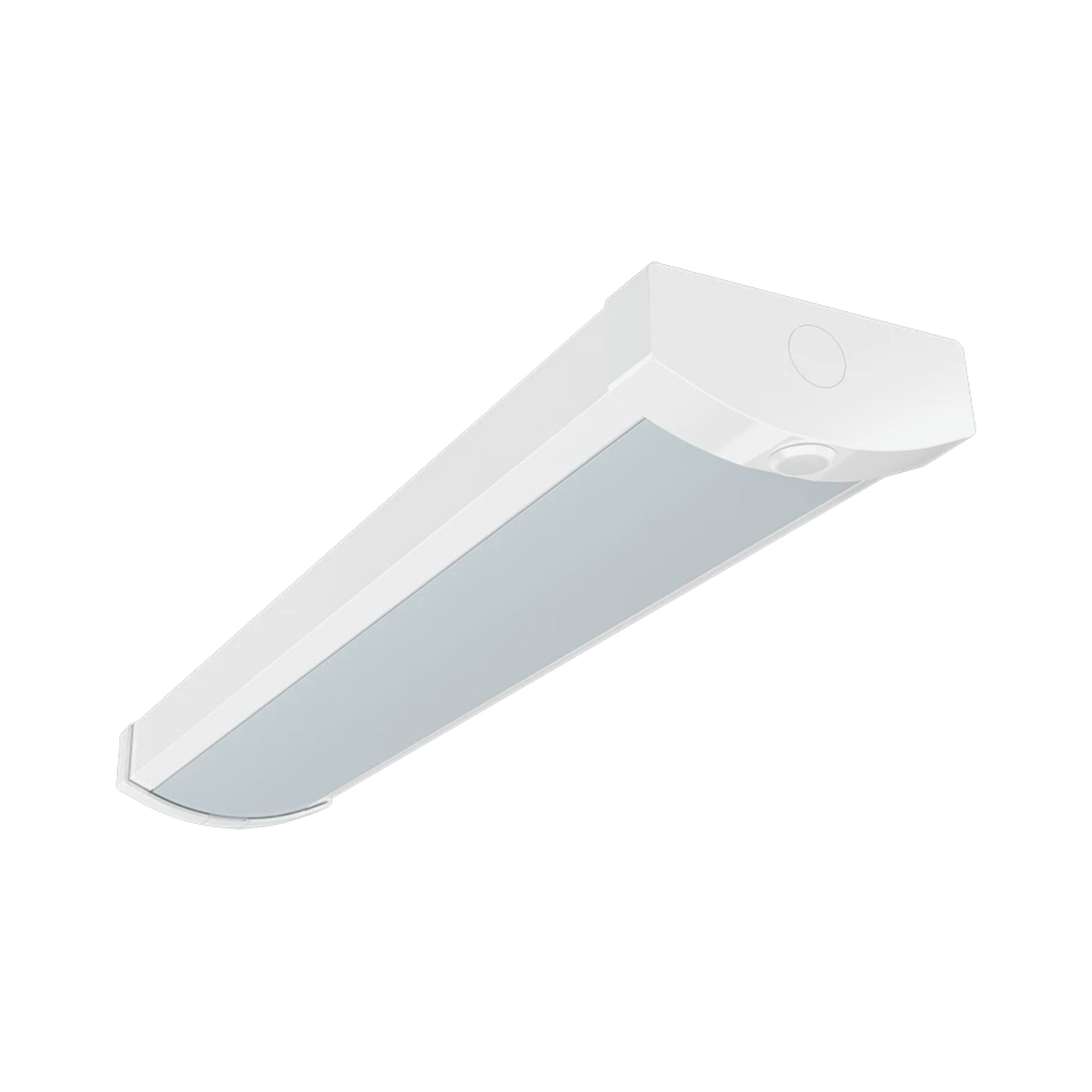

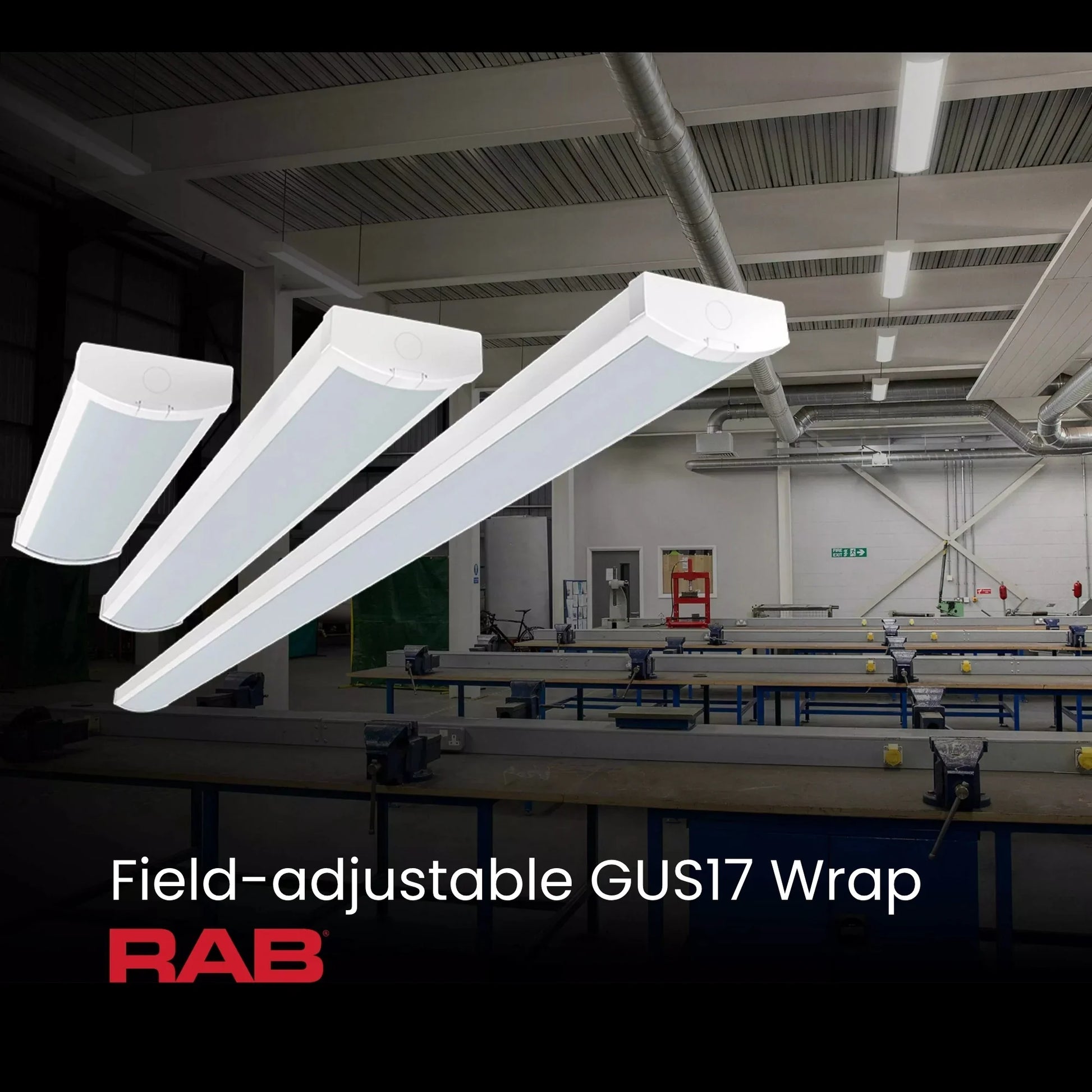

RAB GUS17 Field Adjustable Wrap — 25W Configuration
The RAB GUS17-2/MVS is a versatile wraparound light offering 25W power with selectable 3000 lumens output. It supports 120-277V input and features selectable CCT options of 3500K, 4000K, and 5000K. This fixture is DLC listed and suitable for damp locations, making it ideal for various indoor applications.
Key Features

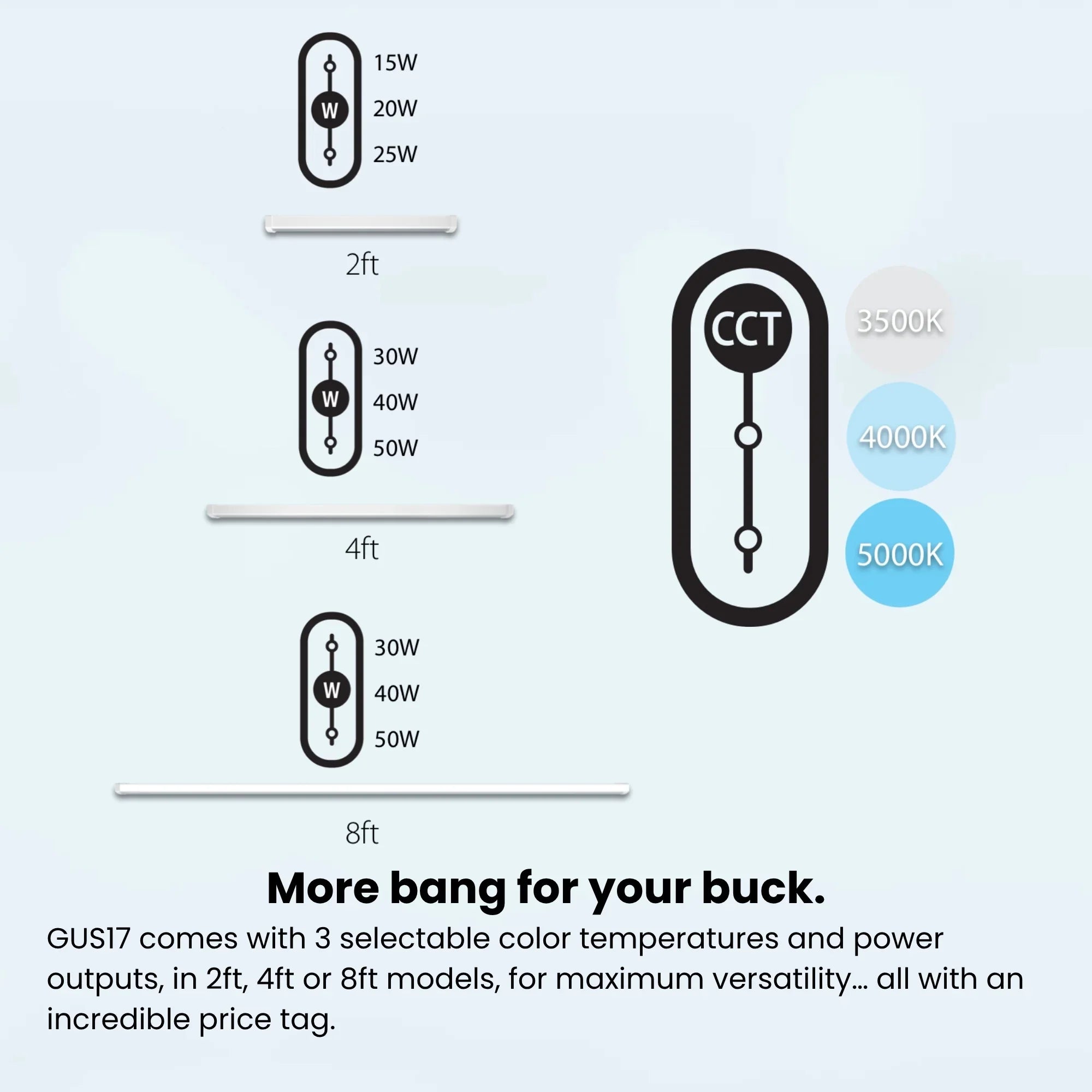

- Field Adjustability: Offers adjustable wattage settings of 25W, 20W, and 15W with a factory default of 25W.
- Selectable CCT: Choose from 3500K, 4000K, or 5000K color temperatures to suit different environments.
- Driver: Constant current, Class 2, Class P driver compatible with 120-277V, 50/60 Hz.
- Dimming: 0-10V dimming capability, requiring a separate dimming circuit.
- Surge Protection: Equipped with 1 kV L-N and 2 kV L/N-PG surge protection.
- Construction: Durable color-coated steel housing with a polycarbonate lens.
- Operating Temperature: Functions in temperatures ranging from -20°C to +60°C.
- Mounting: Surface mountable, with optional v-hooks available separately.
- Warranty: Backed by a 5-year limited warranty covering light output and driver performance.

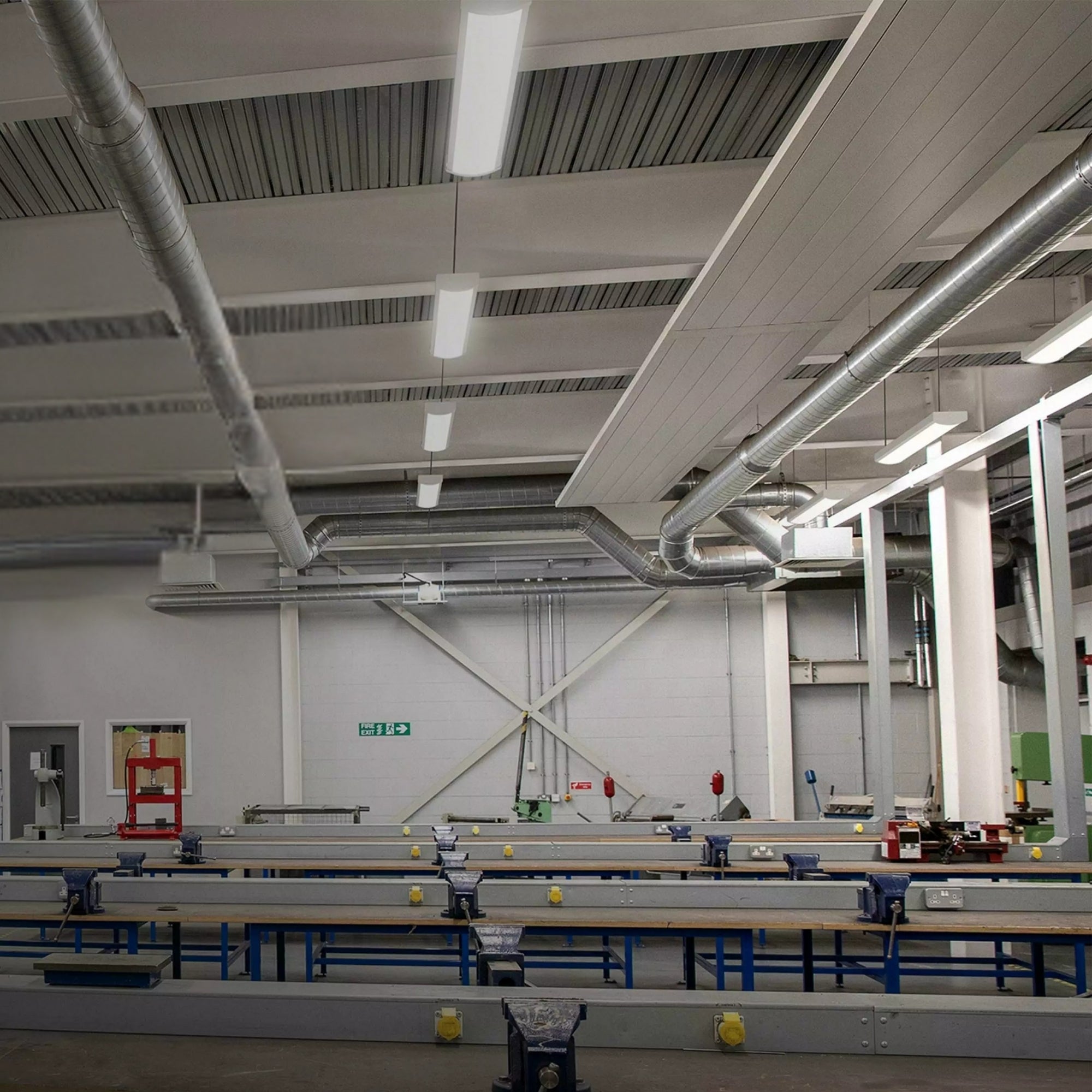

Typical Applications
- Office Spaces
- Retail Stores
- Educational Facilities
- Healthcare Facilities
- Warehouses
Performance & Light Output
This fixture delivers a lumen output range of 1,798 to 2,974 lumens with an efficacy of 117.4 to 123.6 lm/W. It features a CRI range of 82-86 and a long lifespan of 50,000 hours.
Electrical & Controls
The GUS17-2/MVS operates on a 120-277V input with a constant current driver. It supports 0-10V dimming and includes surge protection of 1 kV L-N and 2 kV L/N-PG.
Construction & Durability

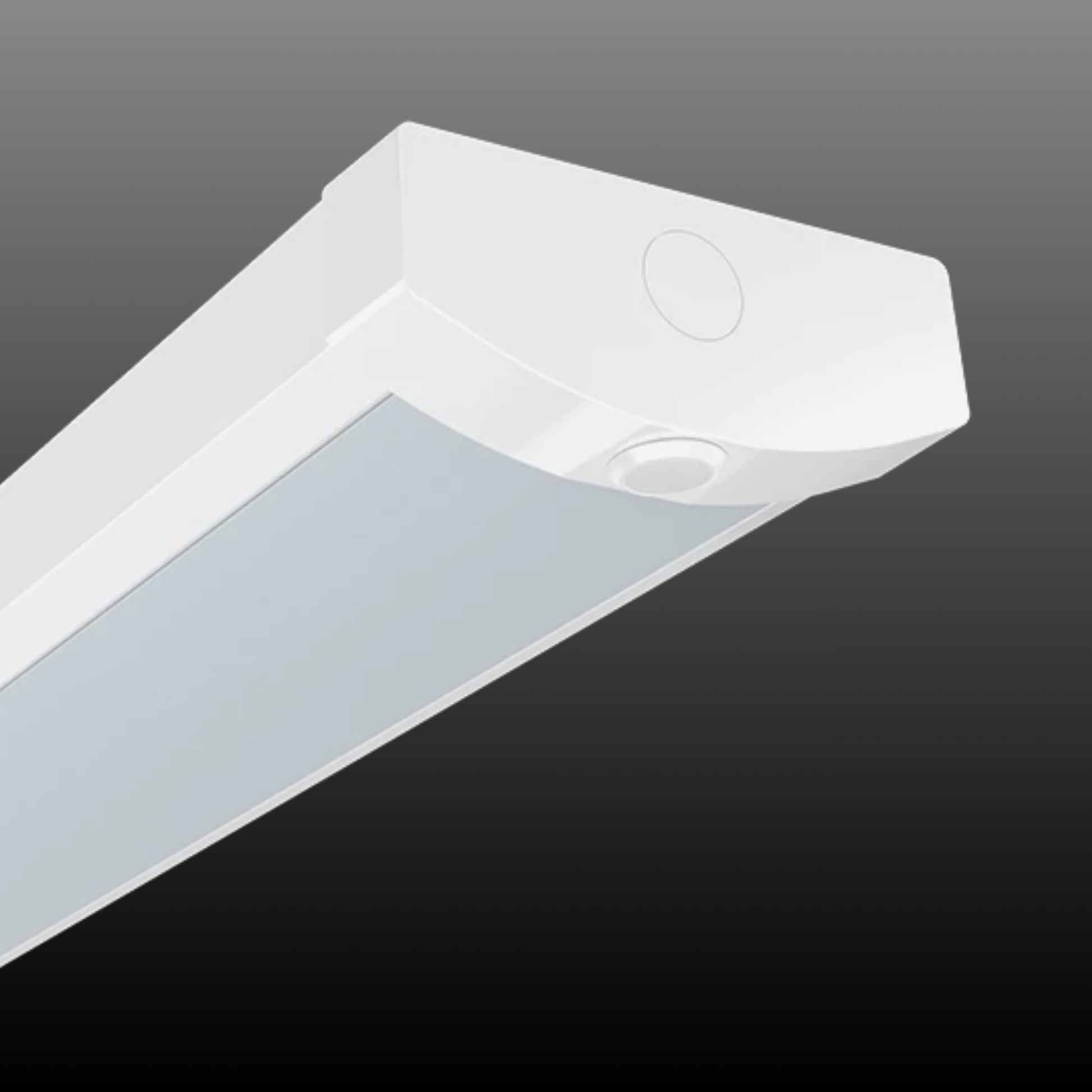

Constructed with color-coated steel and a polycarbonate lens, this fixture is designed for durability. It is UL listed for damp locations and operates in temperatures from -20°C to +60°C.

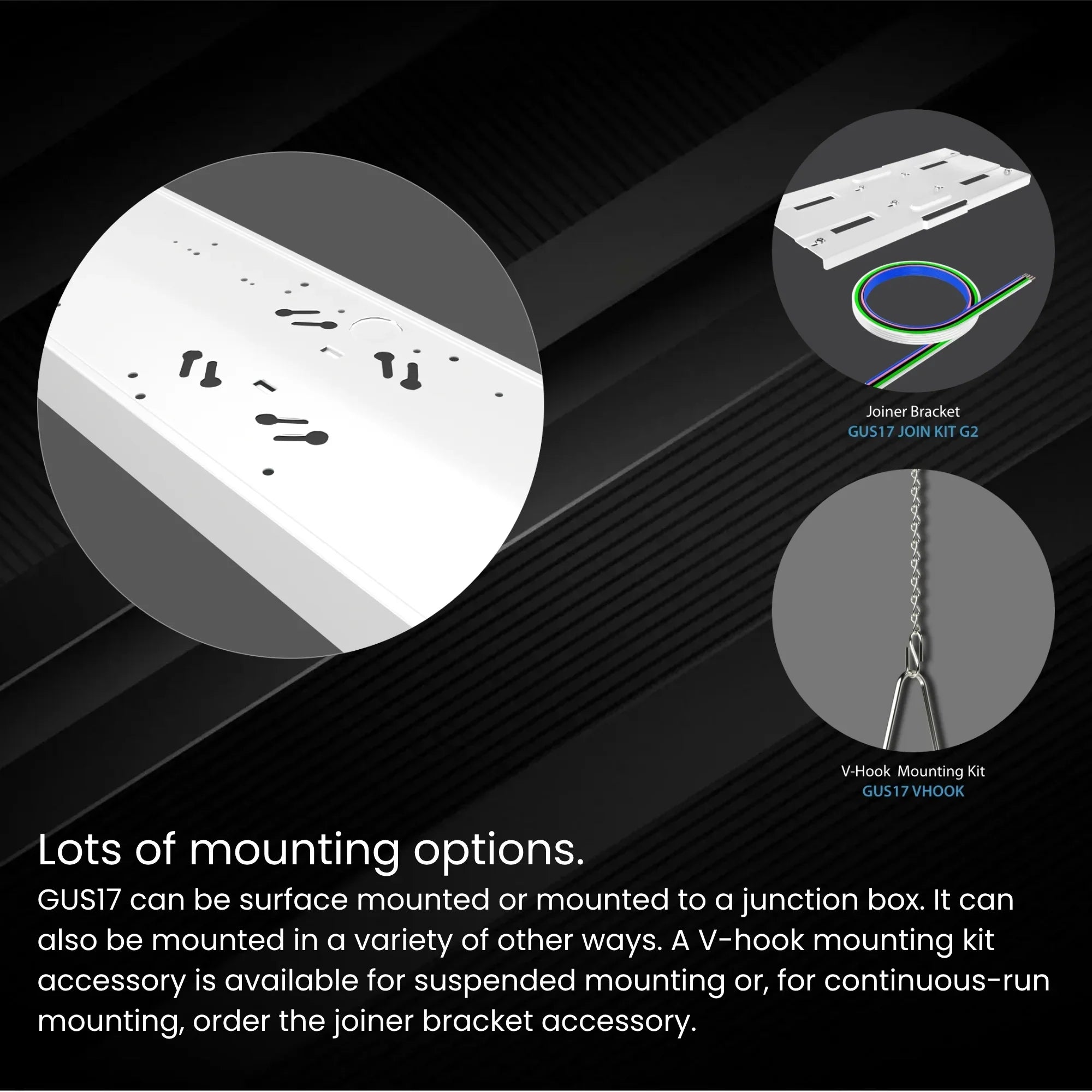

Installation & Mounting
This wraparound light is designed for surface mounting and can be installed with optional v-hooks, which are sold separately.
What's Included
- RAB GUS17-2/MVS Wraparound Light
Specifications
Specifications

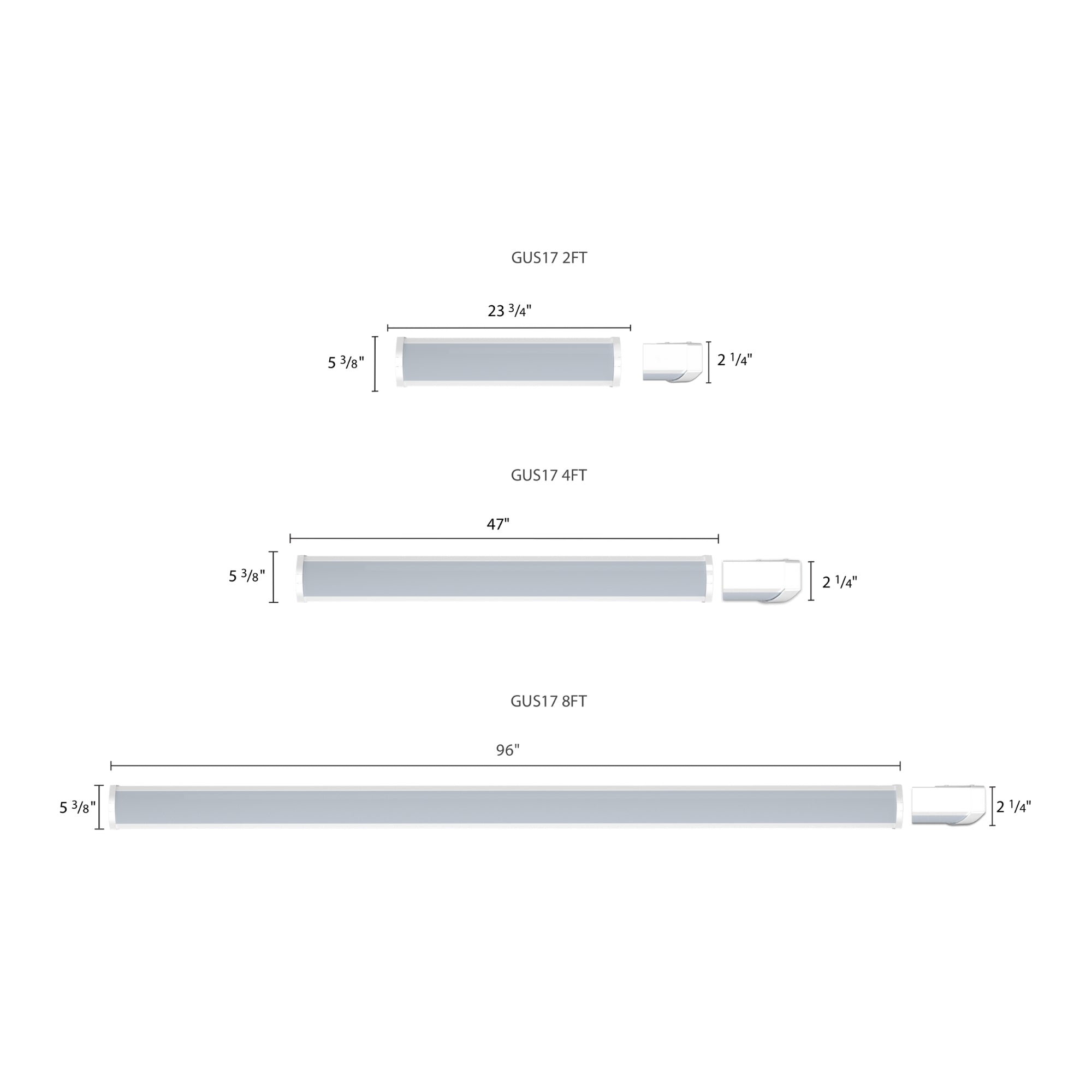

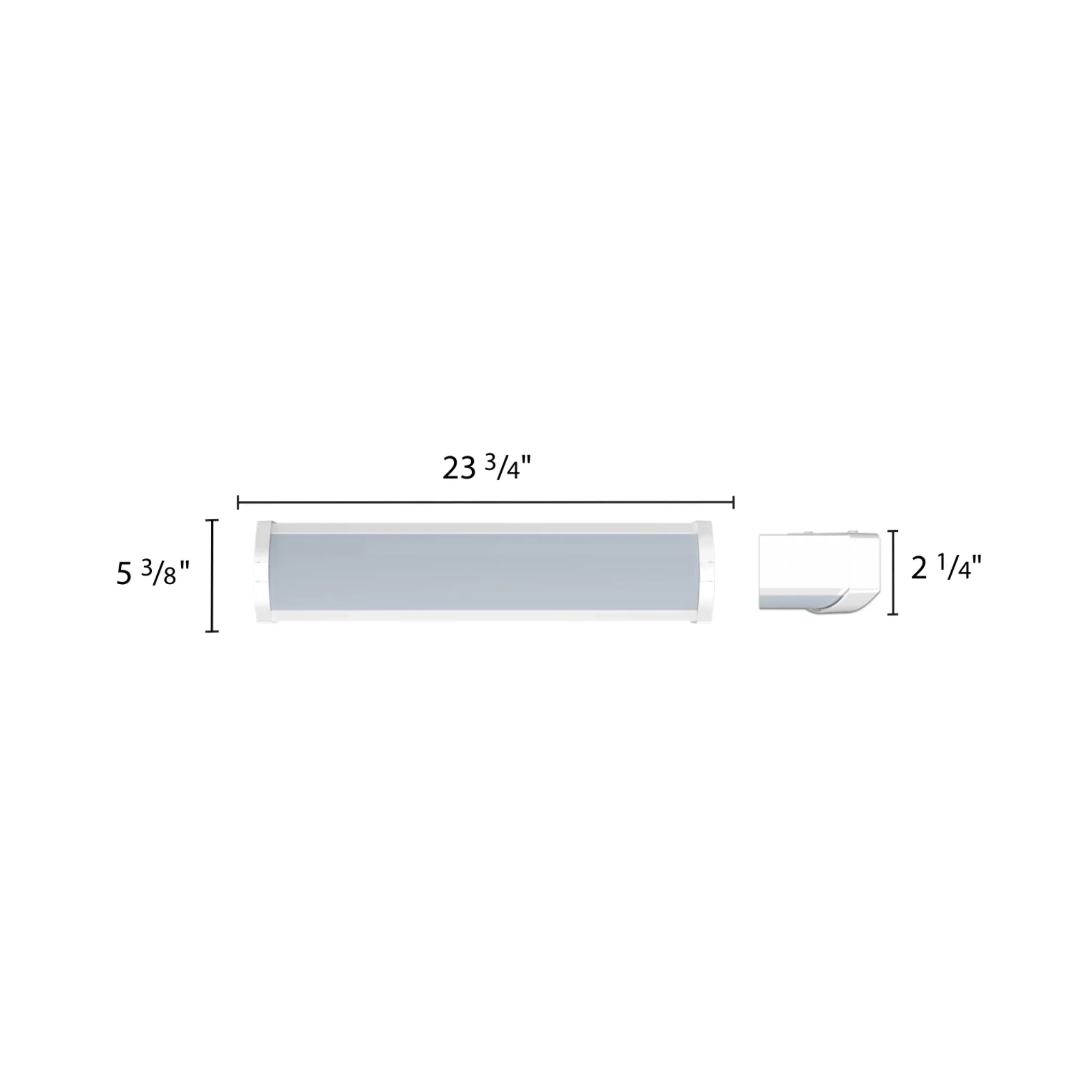

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
