RAB GUS17-2-E Field Adjustable Wrap 2ft Wraparound Light 3000 Lumens 25W Selectable CCT 120-277V White
Available in stock (100)
About this item
About this item
- Lumens: Provides a light output range from 1,798 to 2,974 lumens, ensuring adequate illumination for various applications.
- Wattage: Field adjustable wattage options of 25W, 20W, and 15W, allowing for energy savings and flexibility.
- Voltage: Operates on a universal input voltage range of 120-277V, suitable for diverse electrical systems.
- Dimmable: Features 0-10V dimming capability, enabling light level adjustments down to 10%.
- Battery Backup: Includes a battery backup that powers the fixture for 90 minutes during power outages.
We process payments securely and do not store credit card information.
Description
Description

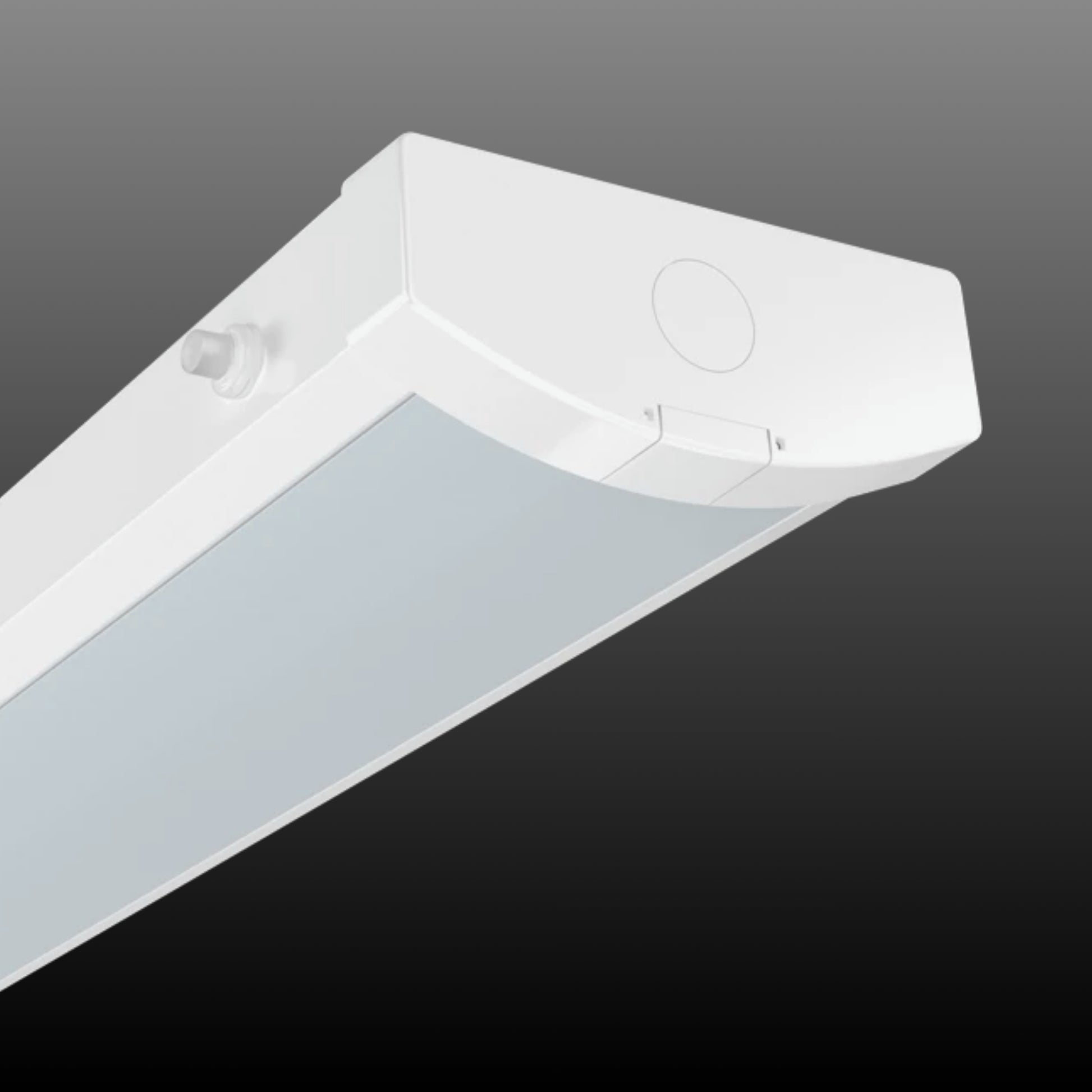

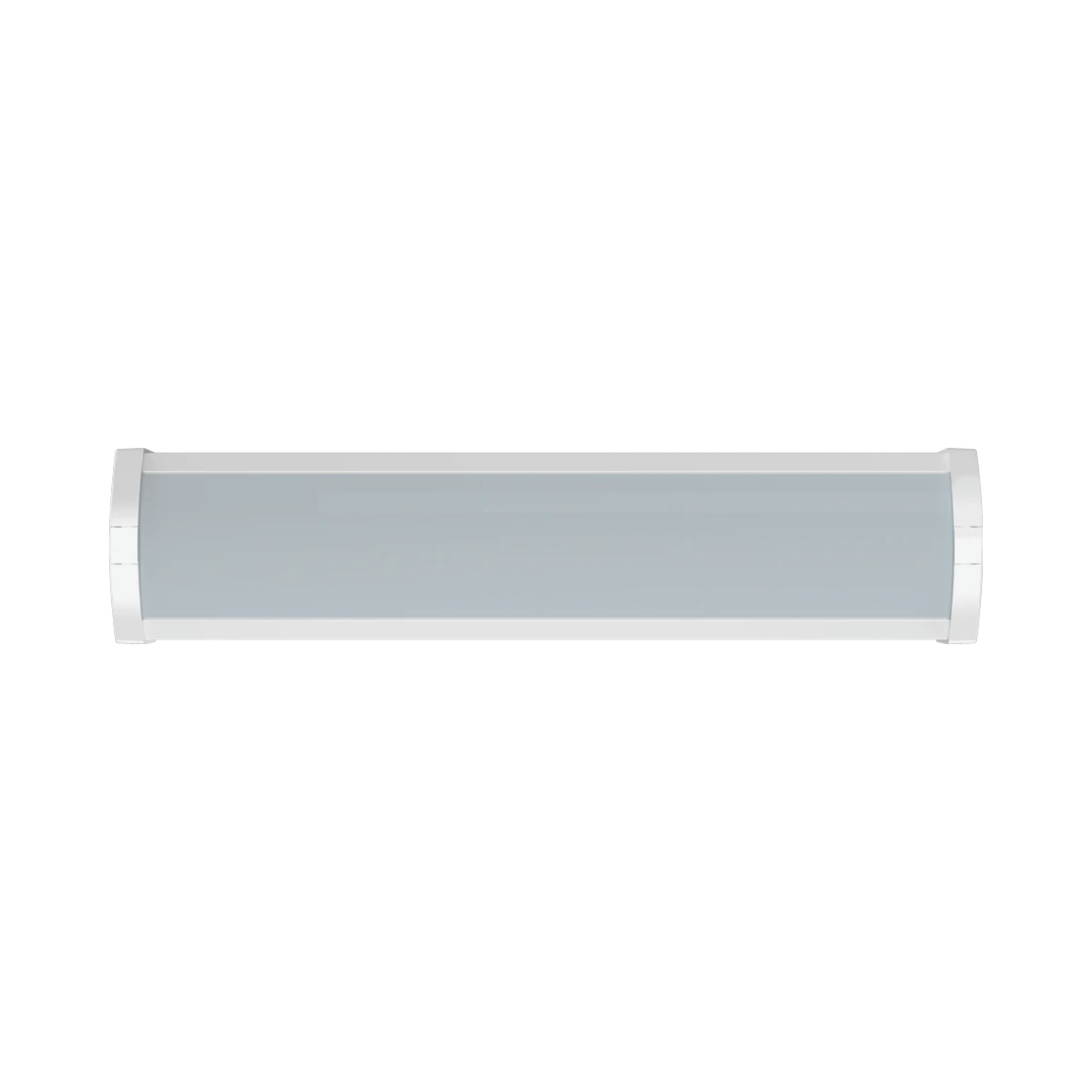

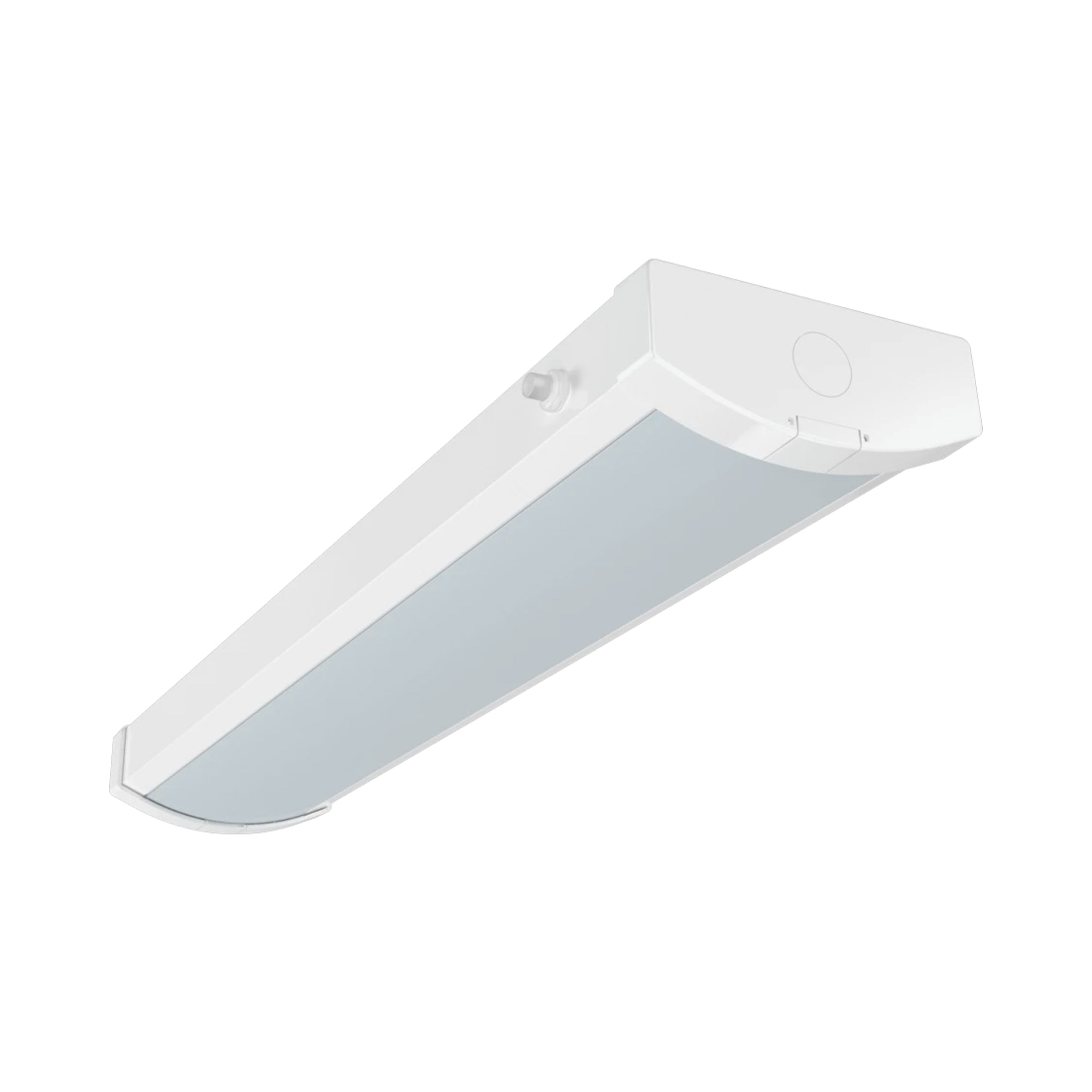

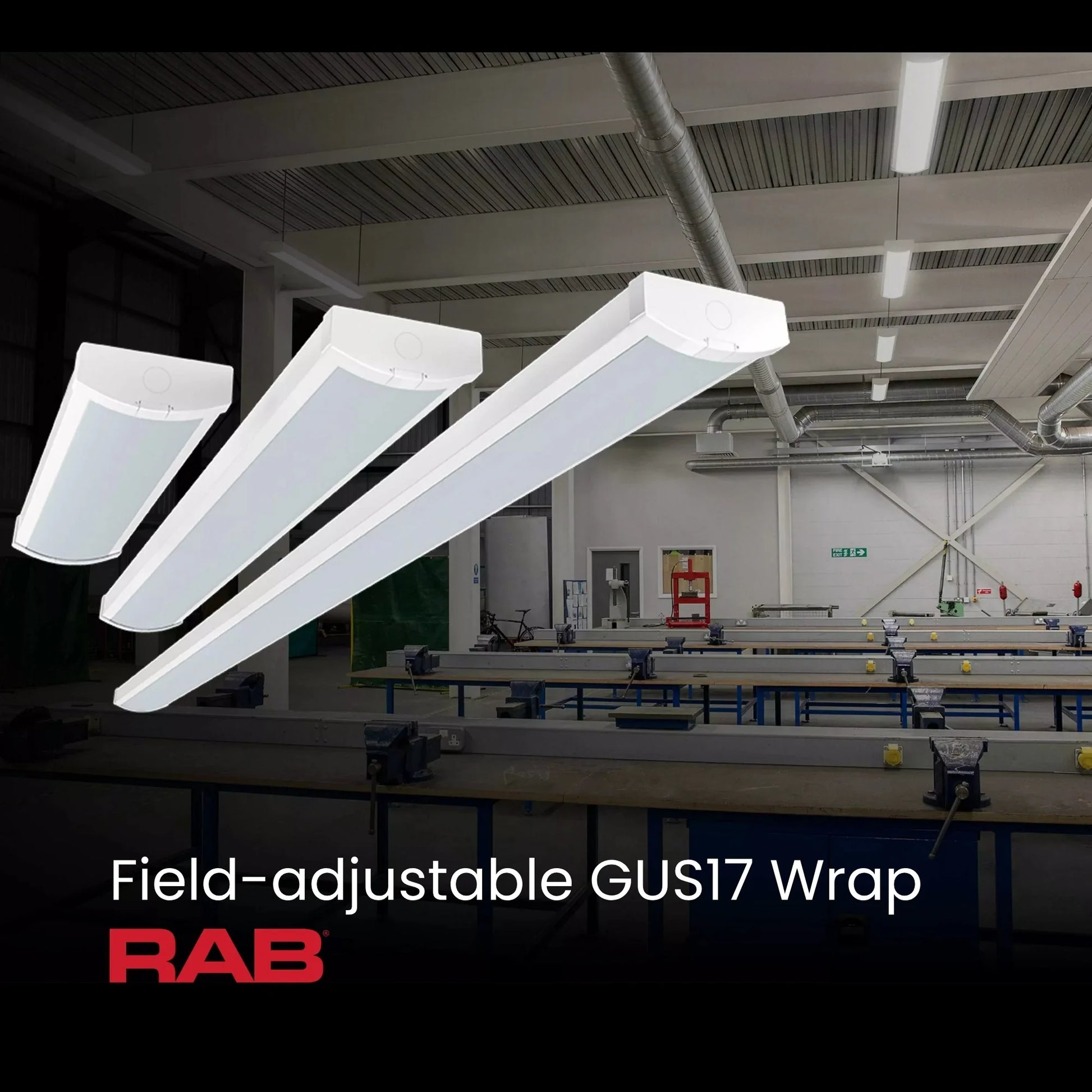

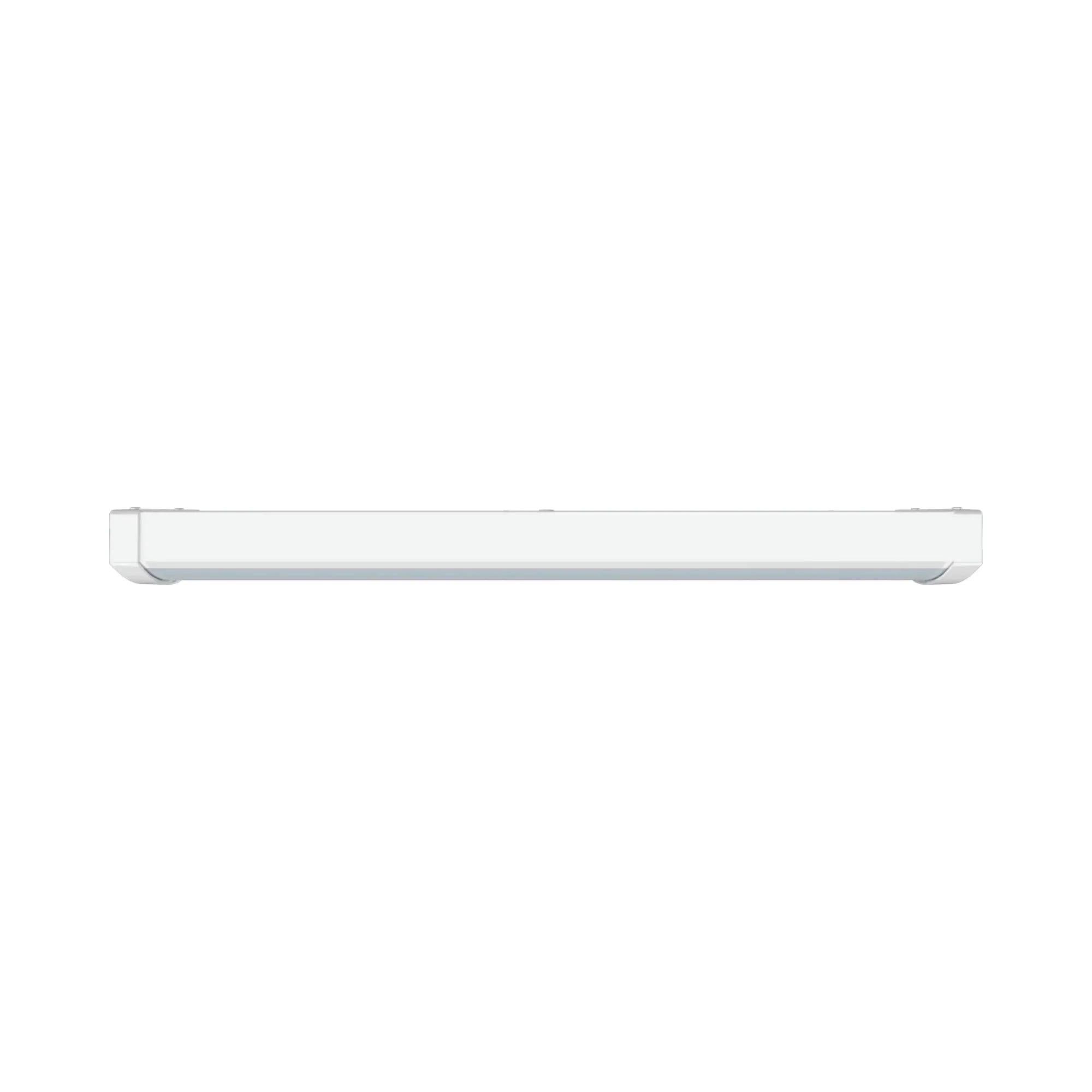

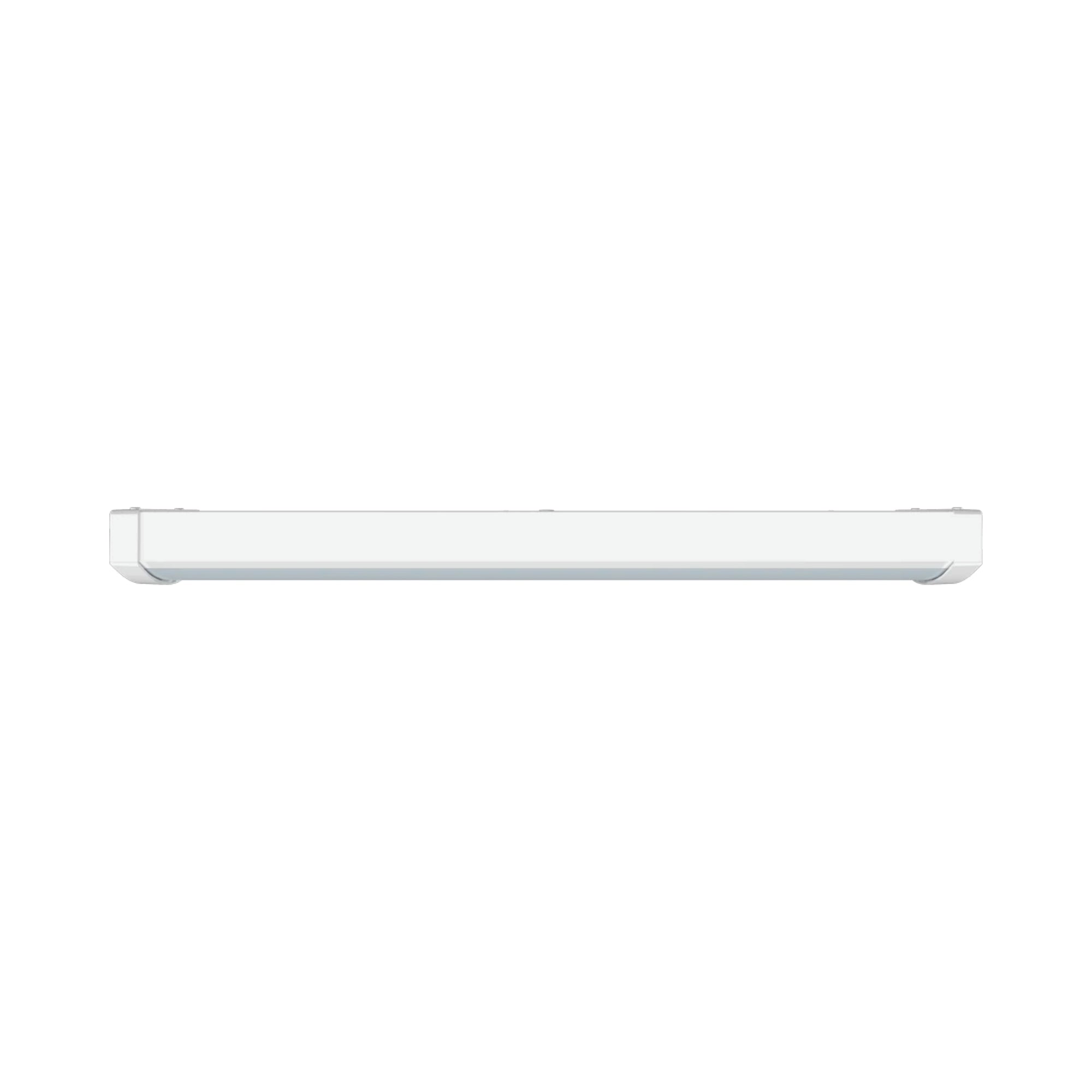

RAB GUS17 Field Adjustable Wrap Wraparound Light — 25W Configuration
The RAB GUS17-2/E is a versatile wraparound light offering 25W power with selectable 3500K, 4000K, and 5000K color temperatures. Delivering up to 2,974 lumens and operating on 120-277V, this fixture is ideal for various lighting applications. It is DLC listed and suitable for damp locations, ensuring compliance with industry standards.
Key Features

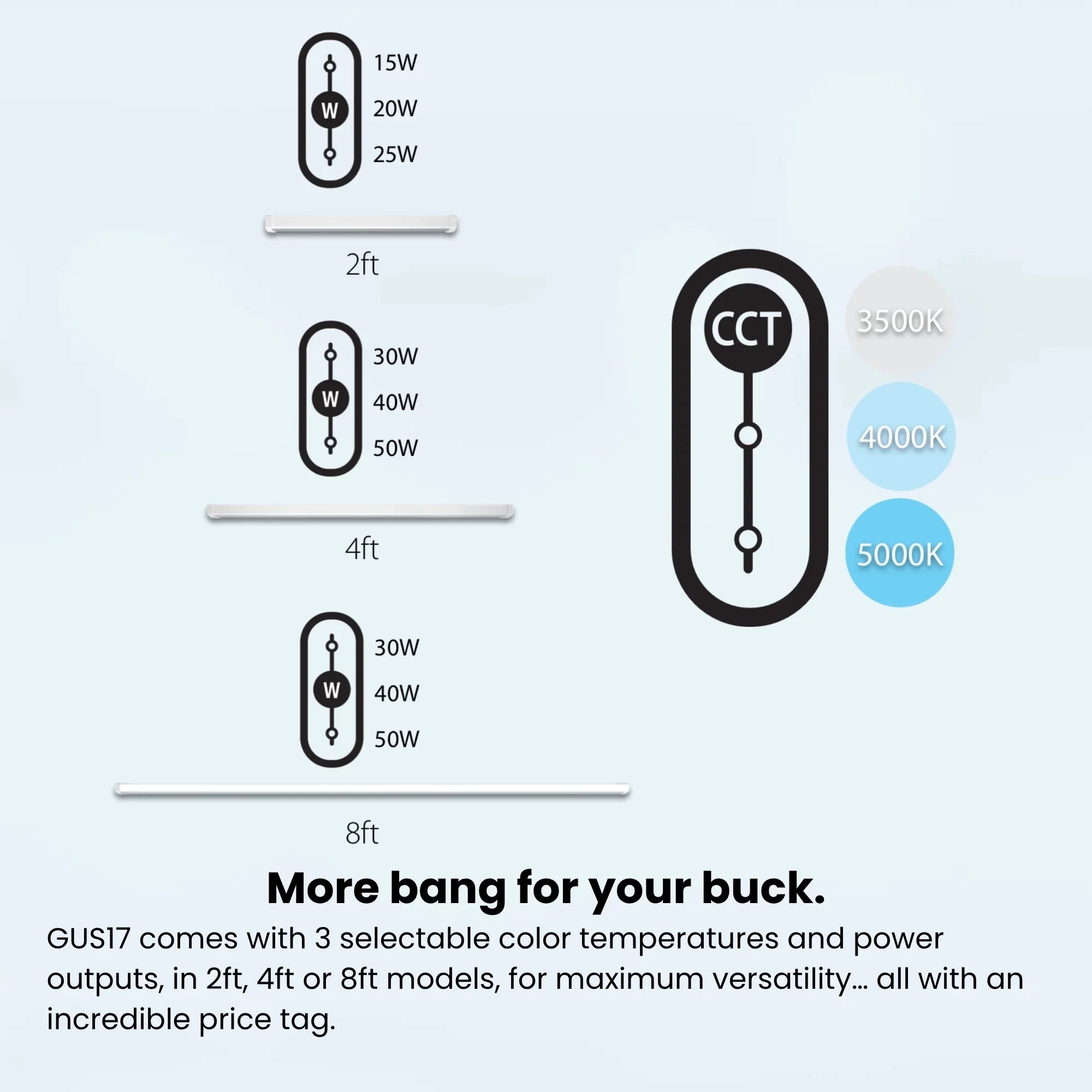

- Field Adjustability: Offers wattage options of 25W, 20W, and 15W, with a factory default of 25W.
- Selectable CCT: Choose from 3500K, 4000K, and 5000K color temperatures, with a factory default of 4000K.
- Driver: Constant current, Class 2, Class P driver compatible with 120-277V systems.
- Dimming: Supports 0-10V dimming systems, requiring a separate dimming circuit.
- Surge Protection: Equipped with 1 kV L-N and 2 kV L/N-PG surge protection.
- Battery Backup: Provides 90 minutes of operation during power failures.
- Construction: Made from color-coated steel sheets with a polycarbonate lens for durability.
- Compliance: UL listed for damp locations and DLC listed for energy efficiency.
- Warranty: Comes with a 5-year limited warranty covering light output, driver performance, and paint finish.

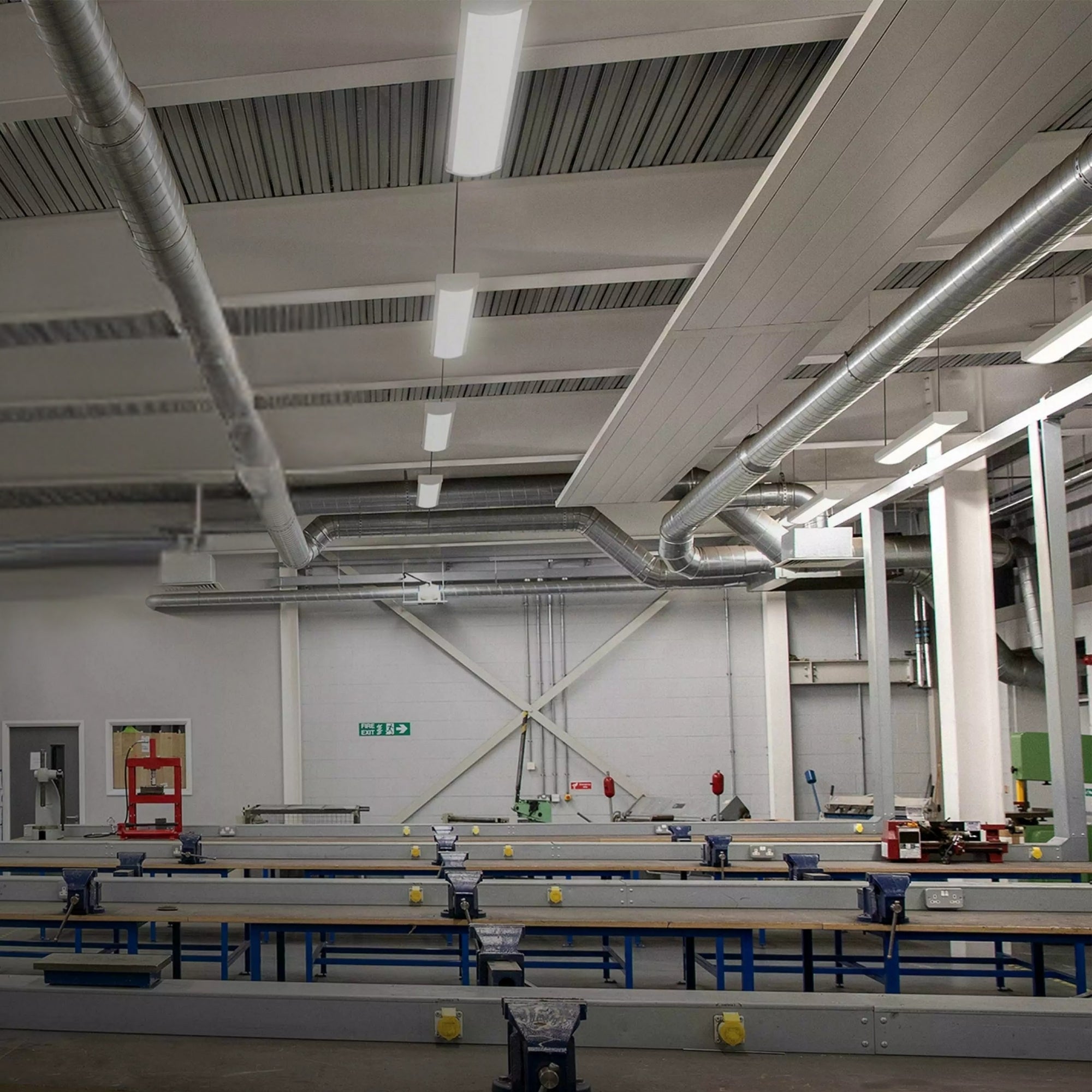

Typical Applications
- Offices
- Retail Spaces
- Educational Facilities
- Healthcare Facilities
- Corridors
Performance & Light Output
This fixture delivers a lumen output range from 1,798 to 2,974 lumens with an efficacy of 117.4-123.6 lm/W. It features a CRI of 82-86 and an L70 lifespan of 50,000 hours, ensuring long-lasting performance.
Electrical & Controls
Operating on 120-277V, the fixture includes a constant current driver with 0-10V dimming capability. It features a power factor of 99.44% at 120V and 94.47% at 277V, with surge protection of 1 kV L-N and 2 kV L/N-PG.
Construction & Durability
The housing is constructed from color-coated steel sheets with a polycarbonate lens, suitable for use in environments up to 122°F (50°C). The fixture is mercury and UV-free, complying with RoHS standards.
Installation & Mounting

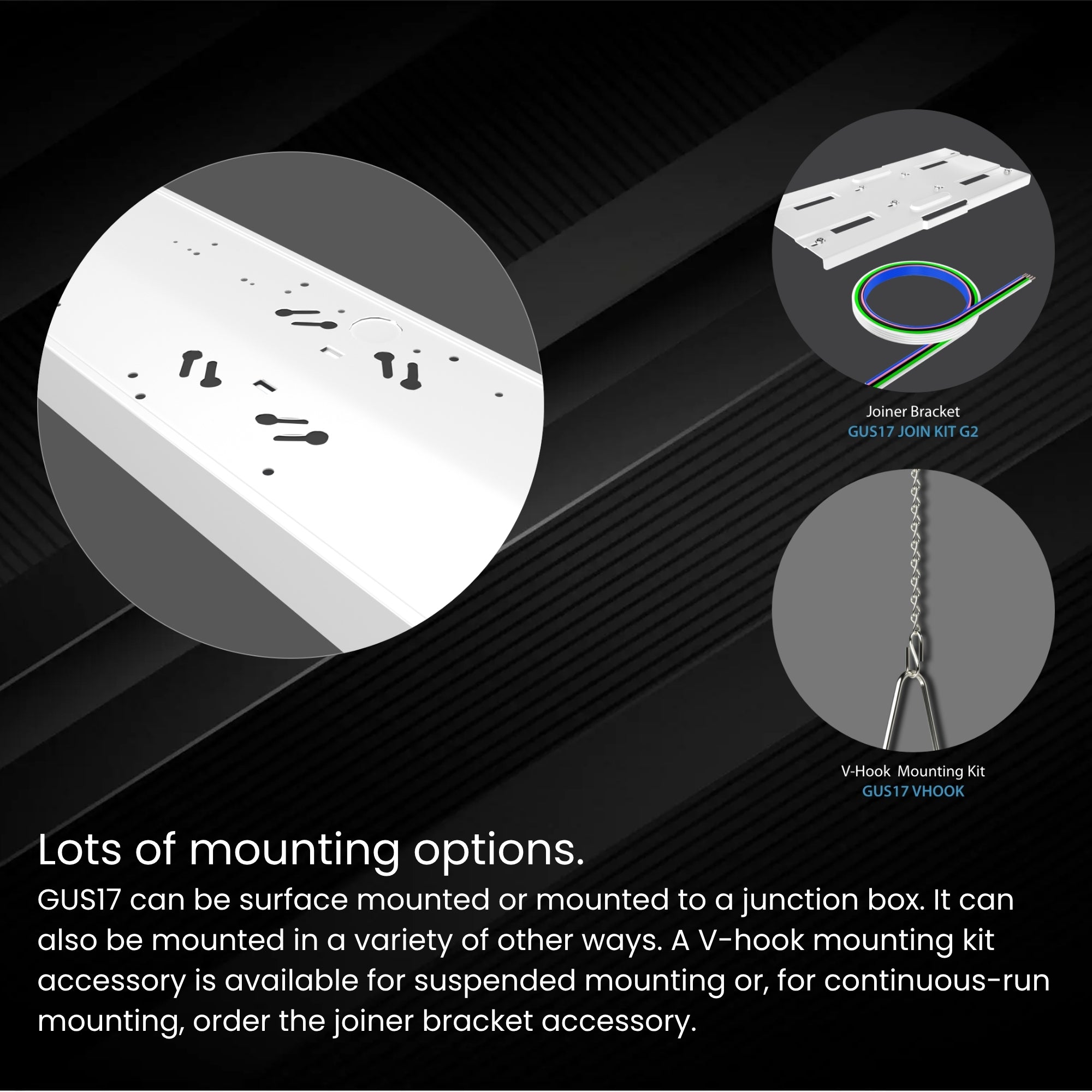

Designed for surface mounting, the fixture can also be mounted with v-hooks, which are ordered separately.
What's Included
- Wraparound Light Fixture
- Battery Backup
Specifications
Specifications

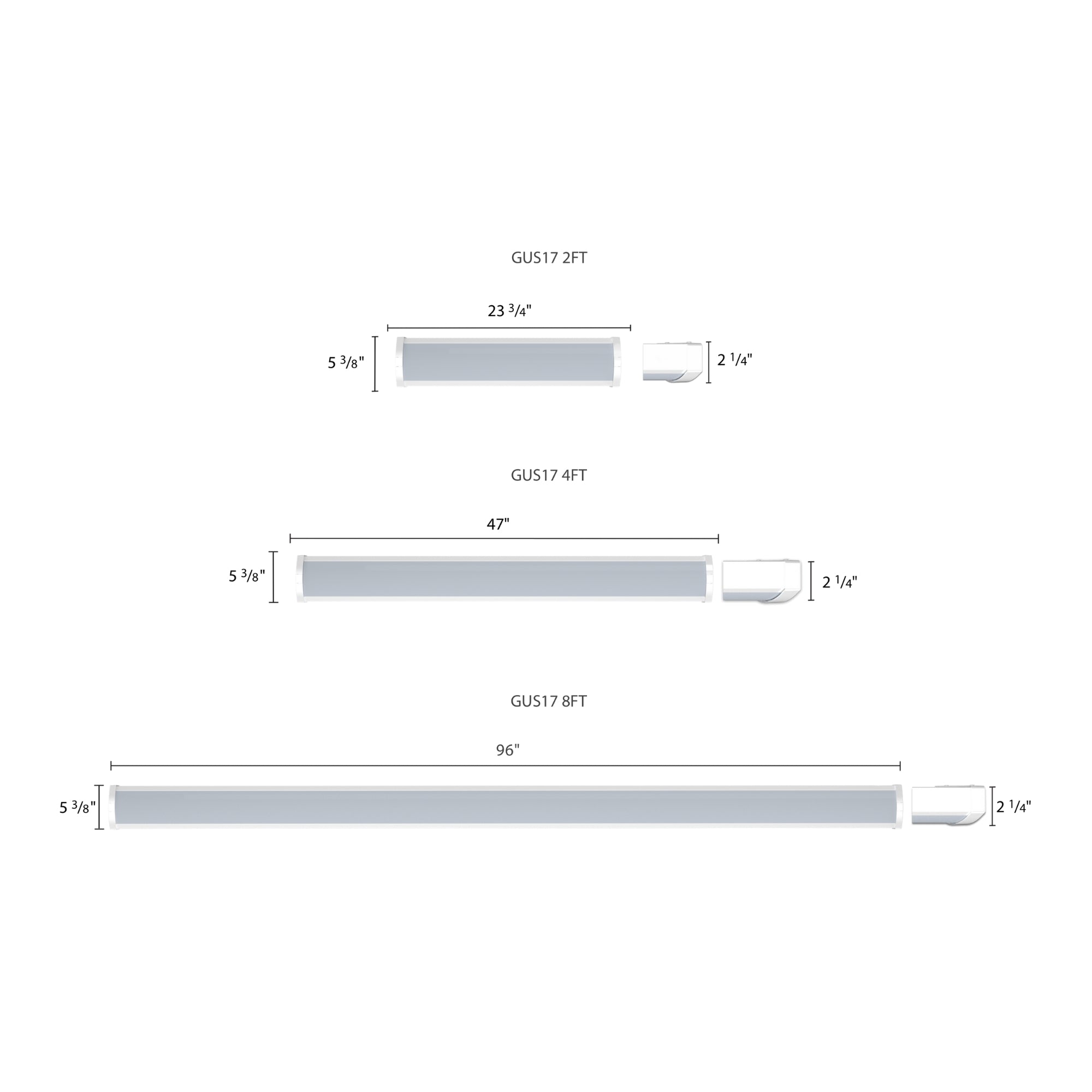

Dimensions
