RAB GUS17-2 Field Adjustable Wrap 2ft Wraparound Light 3000 Lumens 25W Selectable CCT 120-277V White
Available in stock (200)
About this item
About this item
- Lumens: Provides a light output range of 1,798 to 2,974 lumens for versatile applications.
- Wattage: Features field-adjustable wattage settings of 25W, 20W, and 15W for tailored energy use.
- Voltage: Operates on a wide input voltage range of 120-277V, suitable for various installations.
- Dimmable: Includes a 0-10V dimming driver, allowing dimming down to 10% for customizable lighting.
- Compliance: DLC listed and UL listed for damp locations, ensuring quality and rebate eligibility.
We process payments securely and do not store credit card information.
Description
Description

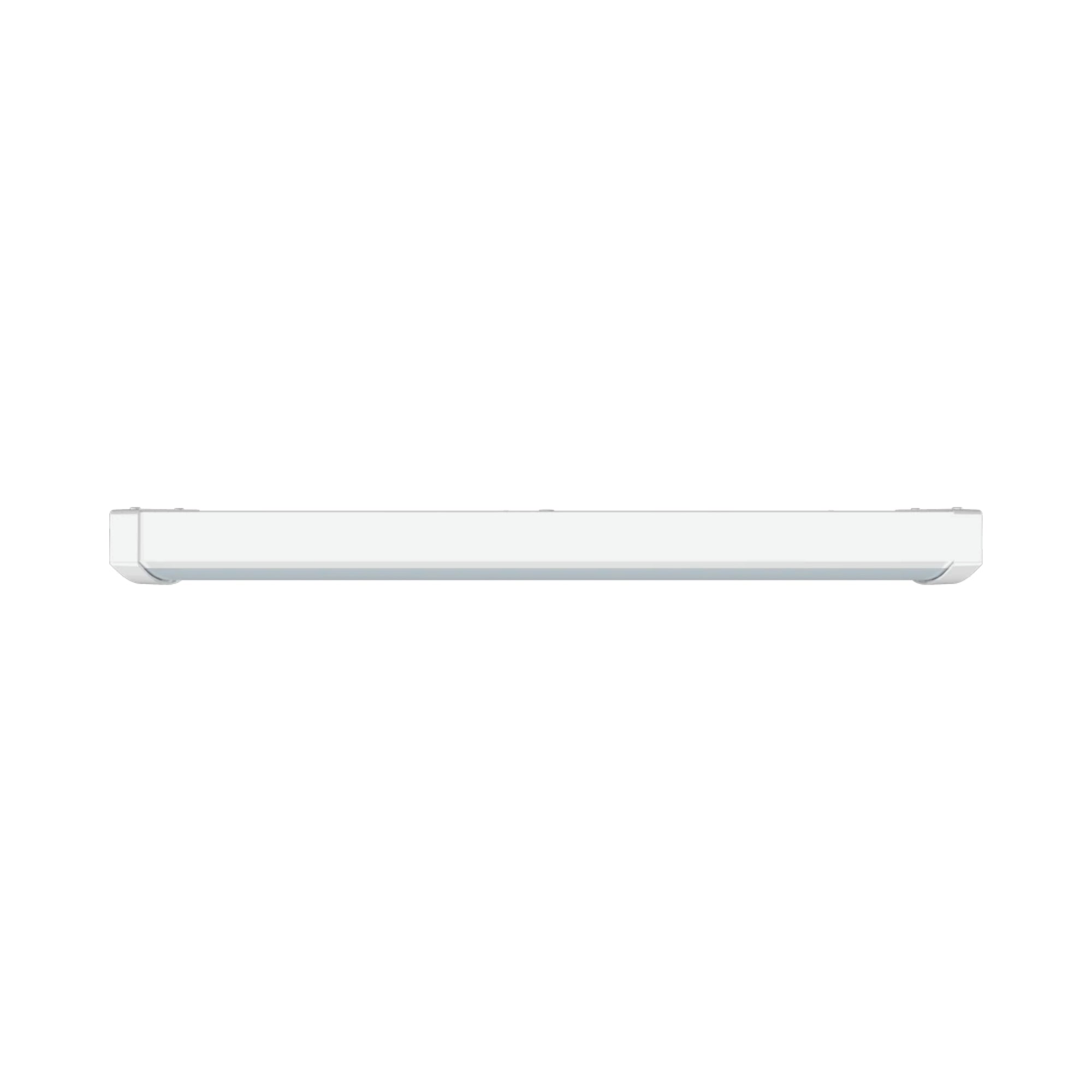

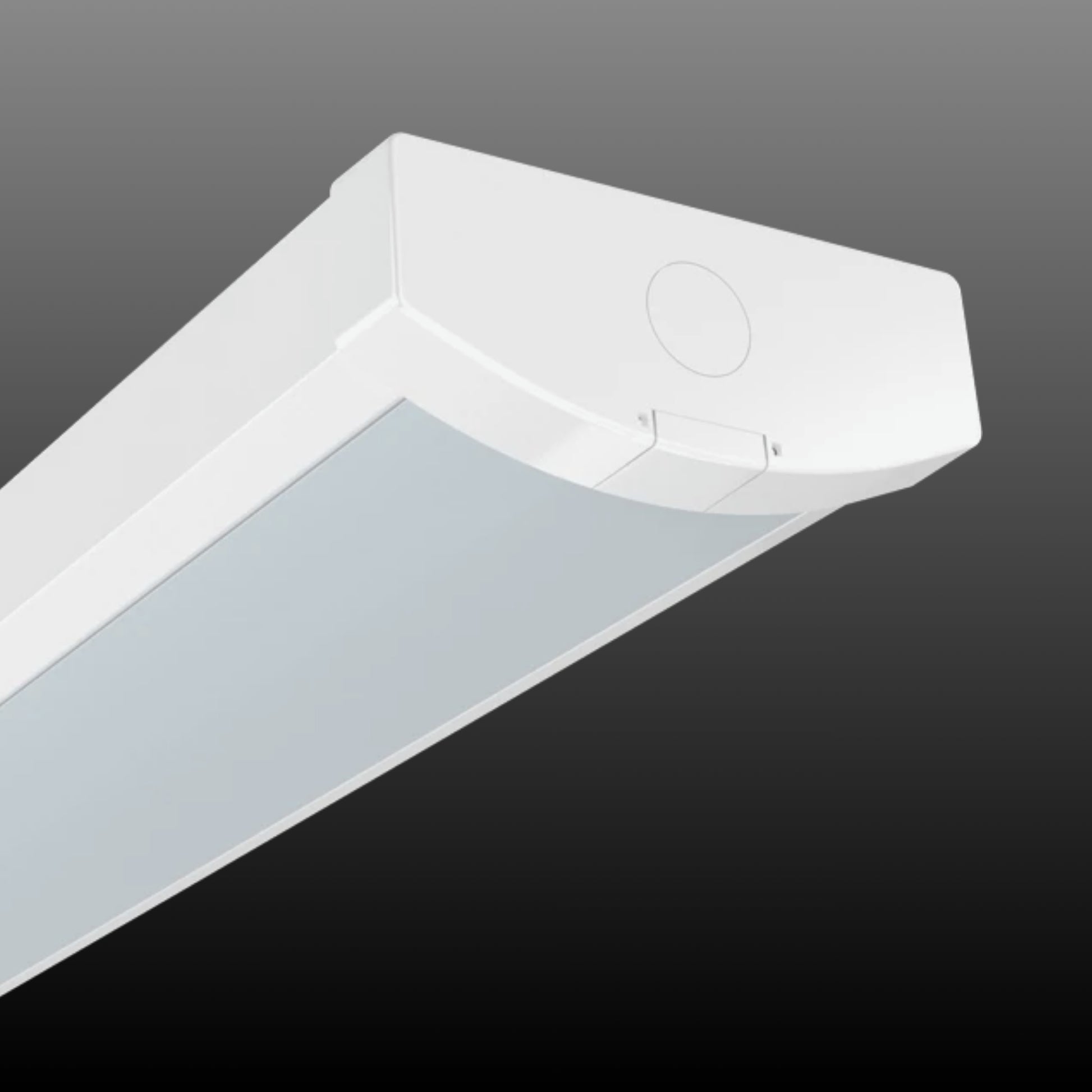

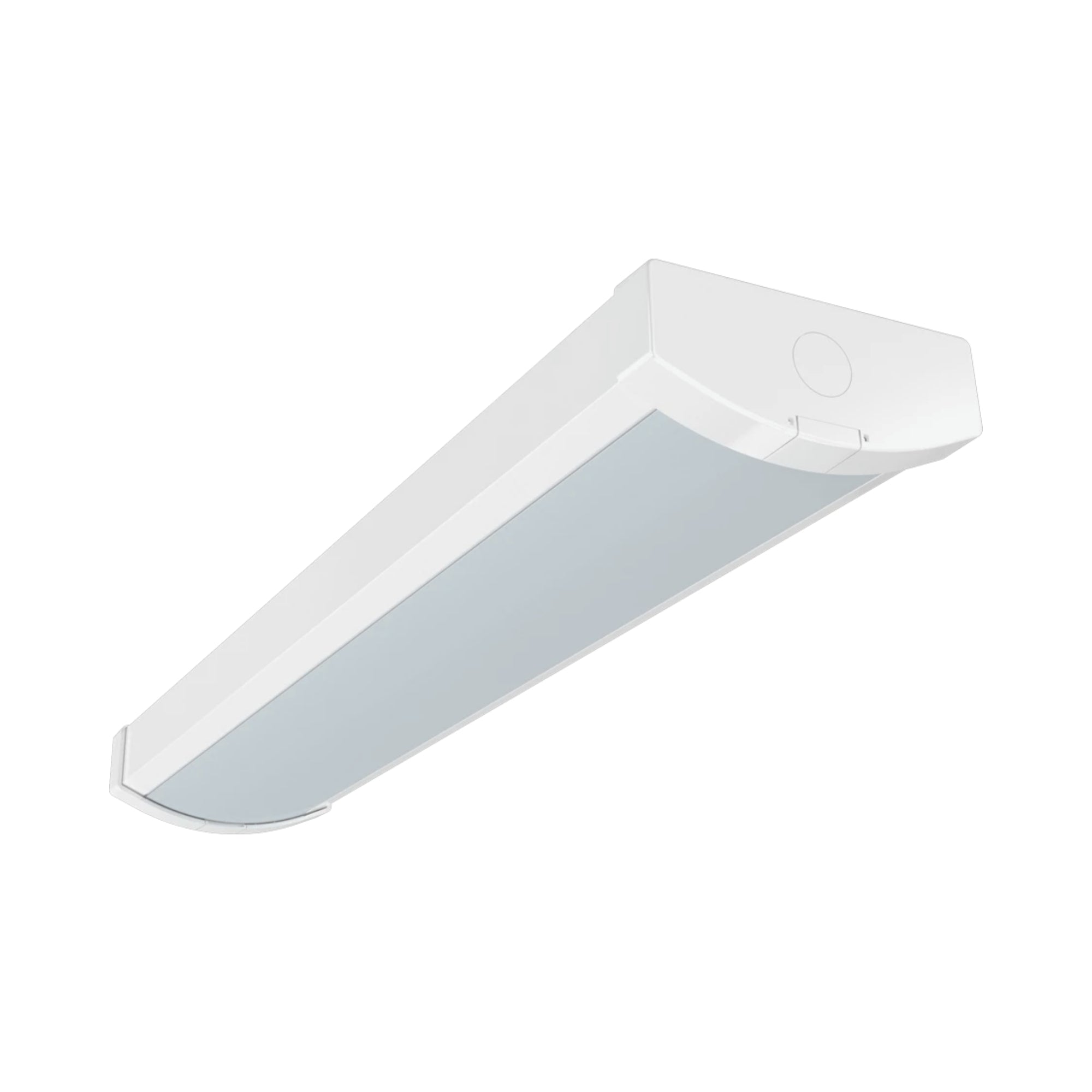

RAB GUS17 Field Adjustable Wrap Wraparound Light — 25W Configuration
The RAB GUS17-2 is a versatile wraparound light offering 25W power, delivering up to 2,974 lumens with selectable color temperatures of 3500K, 4000K, and 5000K. It operates on a 120-277V input, making it suitable for a range of commercial and industrial applications. This model is DLC listed, ensuring eligibility for utility rebates and compliance with energy efficiency standards.
Key Features

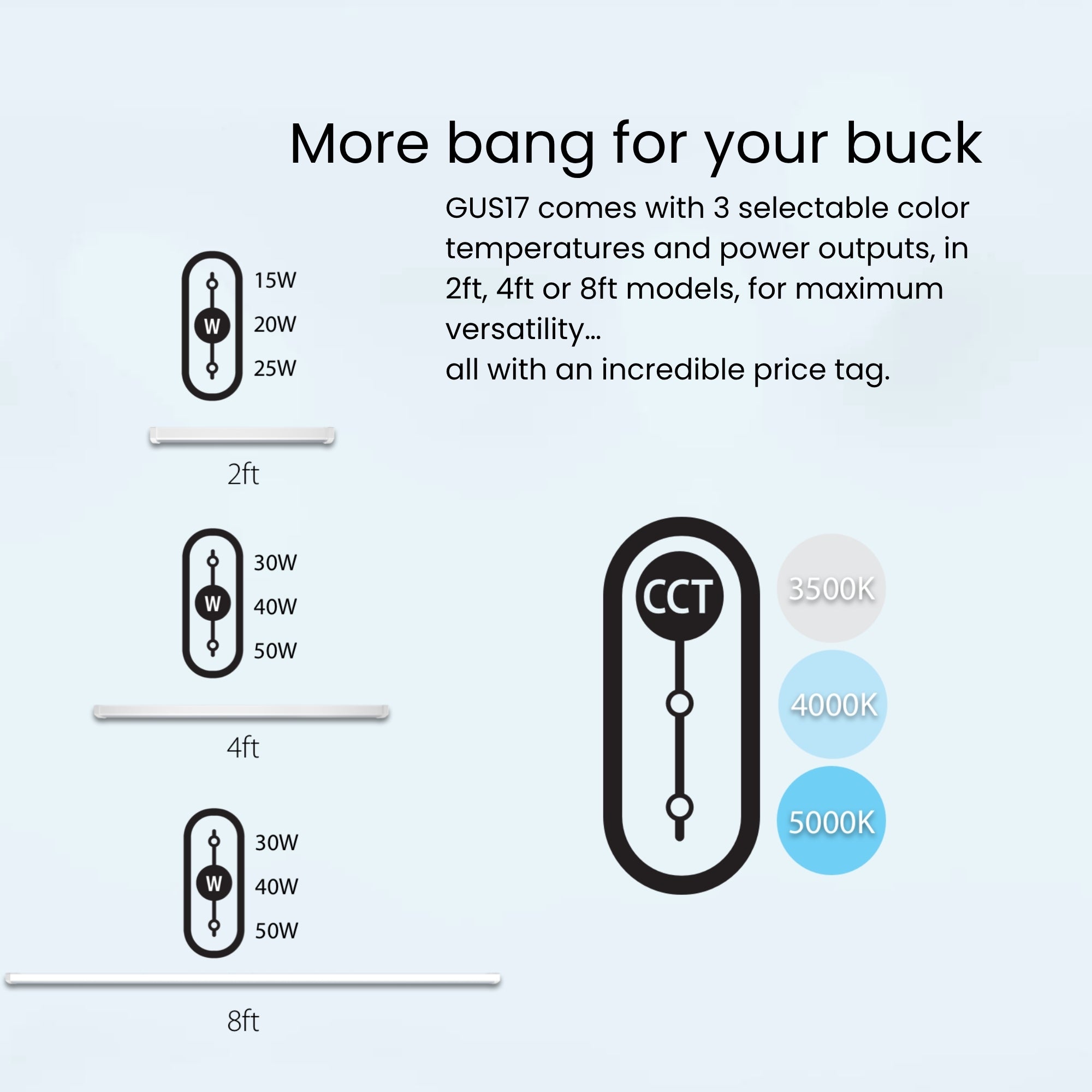

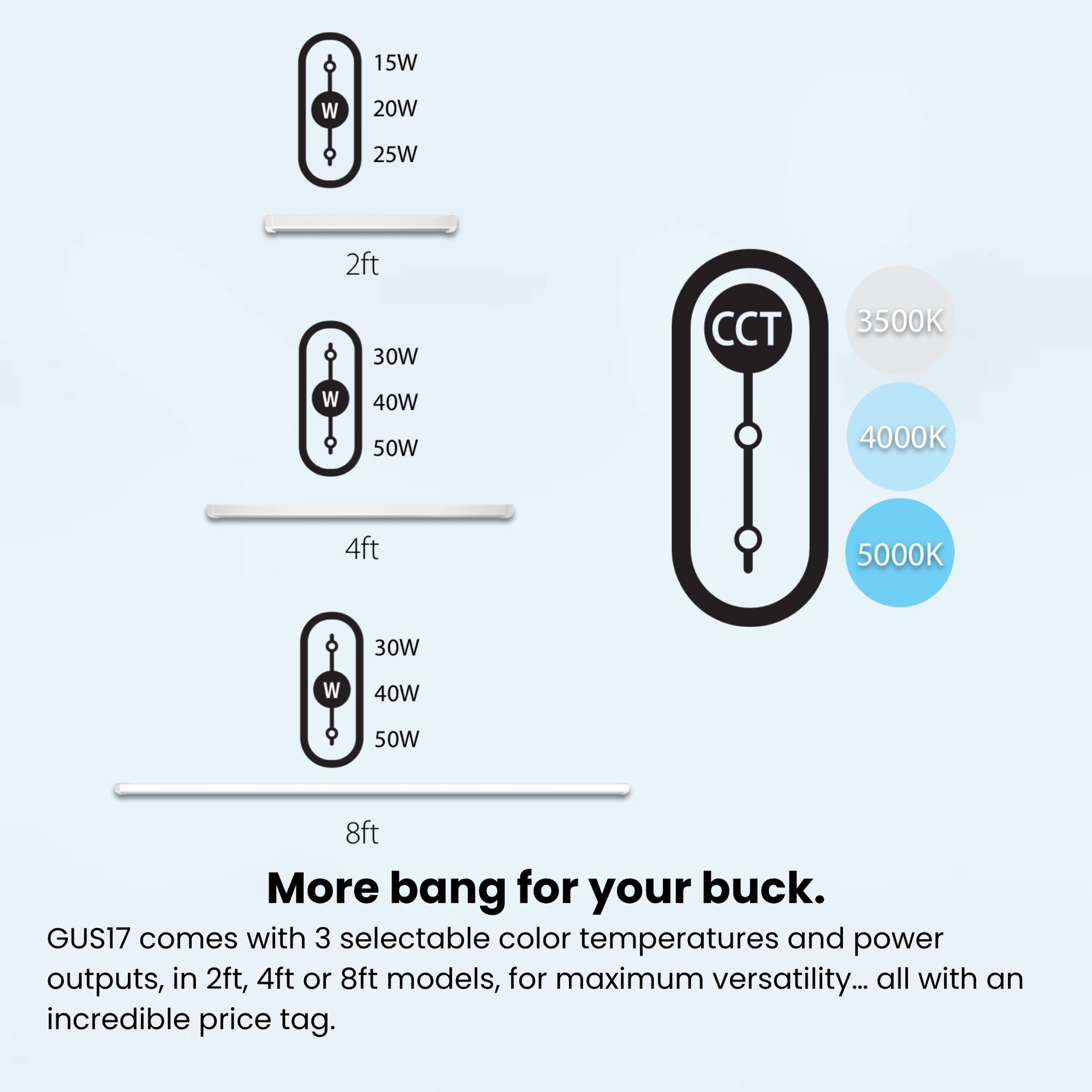

- Field Adjustability: Offers adjustable wattage settings of 25W, 20W, and 15W, with factory default at 25W.
- Selectable CCT: Allows selection between 3500K, 4000K, and 5000K color temperatures, with a default of 4000K.
- Driver: Equipped with a constant current, Class 2, Class P driver for reliable performance.
- Dimming Capability: Supports 0-10V dimming, requiring a separate dimming circuit.
- Surge Protection: Includes 1 kV L-N and 2 kV L/N-PG surge protection for enhanced durability.
- Construction: Built with color-coated steel sheets and a polycarbonate lens for durability.
- Cold Weather Starting: Operates in temperatures as low as -4°F (-20°C).
- Compliance: UL listed for damp locations and DLC listed for energy efficiency.
- Warranty: Backed by a 5-year limited warranty covering light output, driver performance, and paint finish.

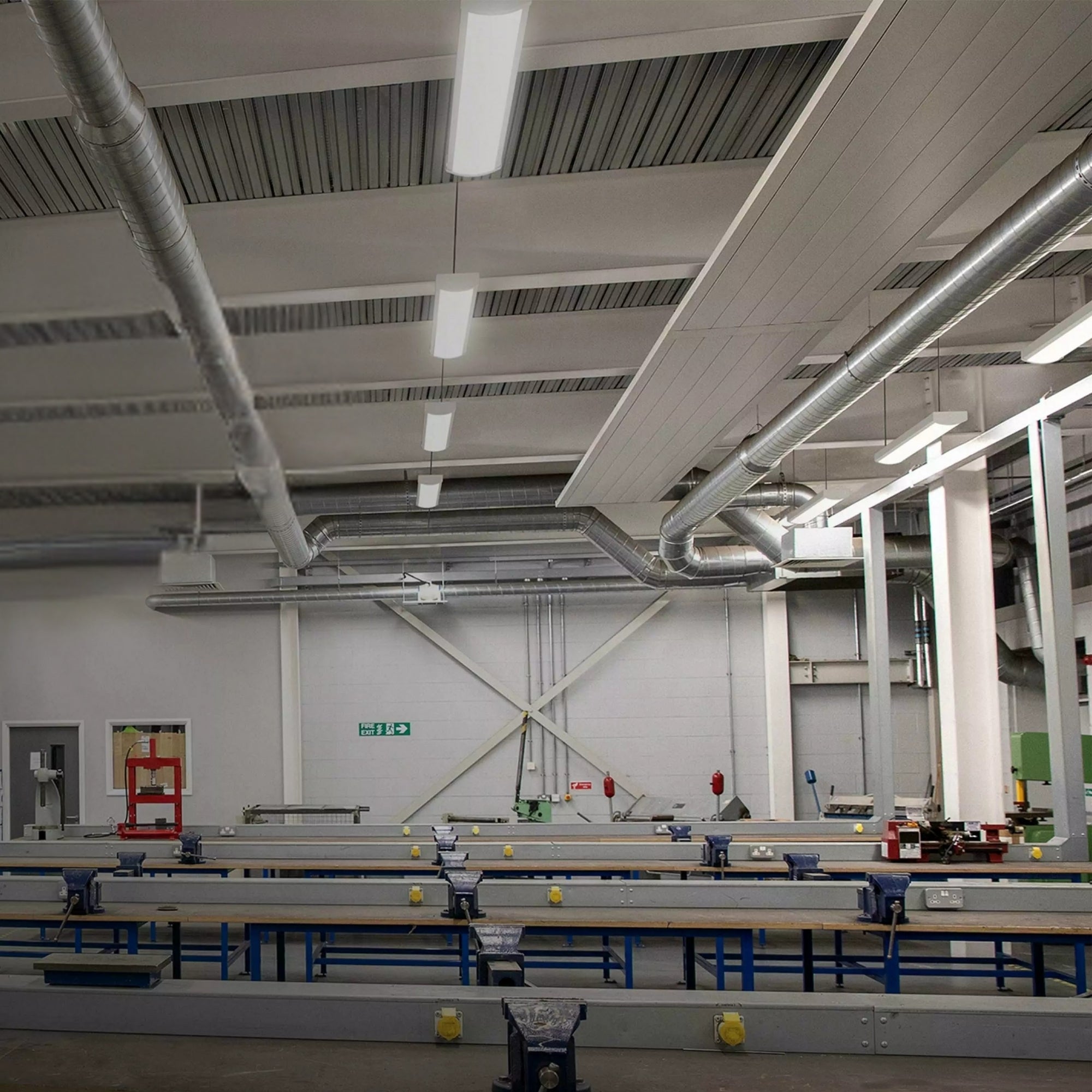

Typical Applications
- Warehouses
- Retail Spaces
- Offices
- Educational Facilities
- Healthcare Facilities
Performance & Light Output
This fixture provides a lumen output range of 1,798 to 2,974 lumens with an efficacy of 117.4 to 123.6 lm/W. It features a CRI range of 82-86 and an L70 lifespan of 50,000 hours, ensuring long-lasting performance.
Electrical & Controls
The GUS17-2 operates on a 120-277V input with a constant current driver. It supports 0-10V dimming and includes surge protection of 1 kV L-N and 2 kV L/N-PG. The power factor is 99.44% at 120V and 94.47% at 277V.
Construction & Durability
Constructed with color-coated steel sheets and a polycarbonate lens, this fixture is designed for durability. It is UL listed for damp locations and operates in temperatures ranging from -4°F to 113°F.

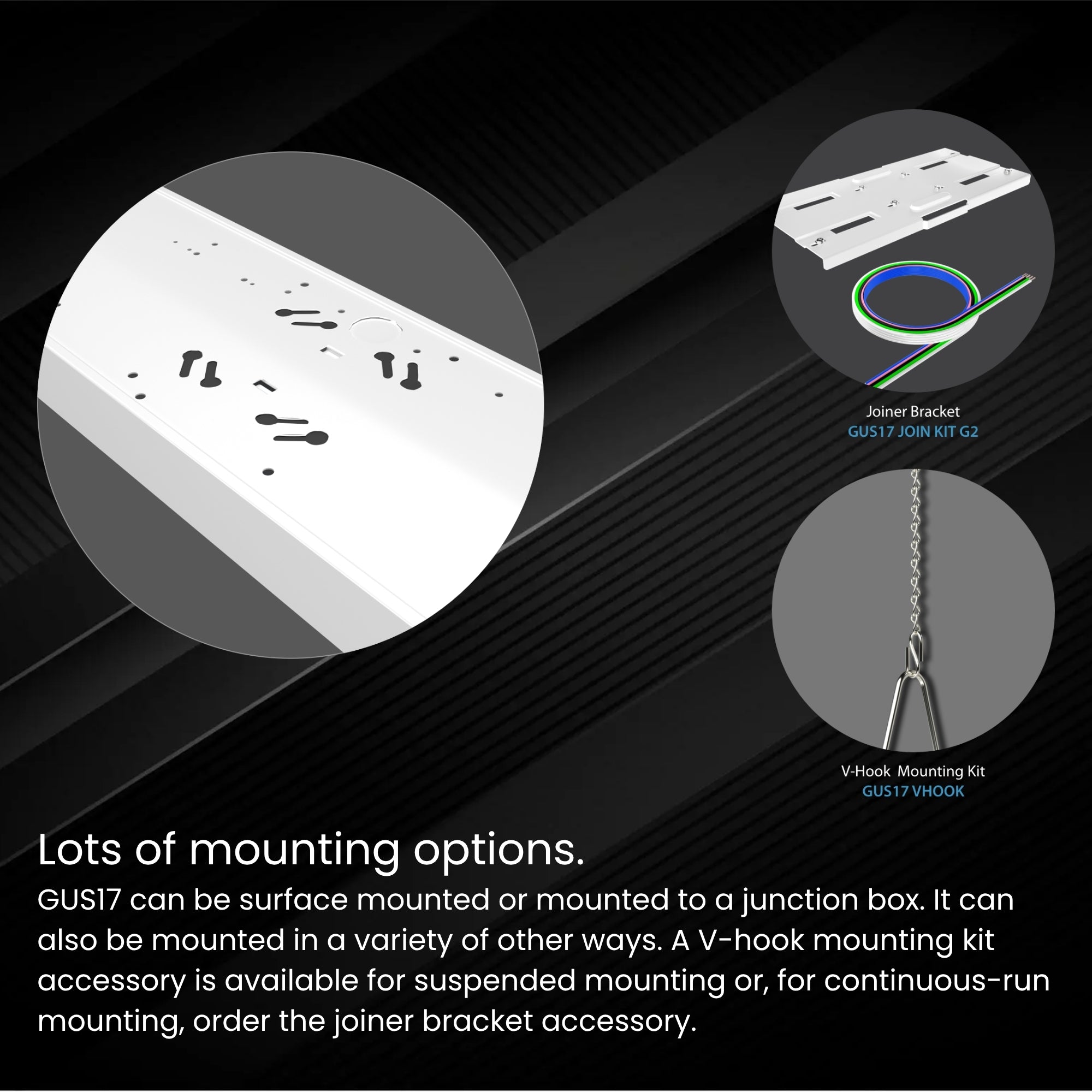

Installation & Mounting
The fixture is designed for surface mounting and can be installed with v-hooks, which are ordered separately.
What's Included
- RAB GUS17-2 Wraparound Light
Specifications
Specifications

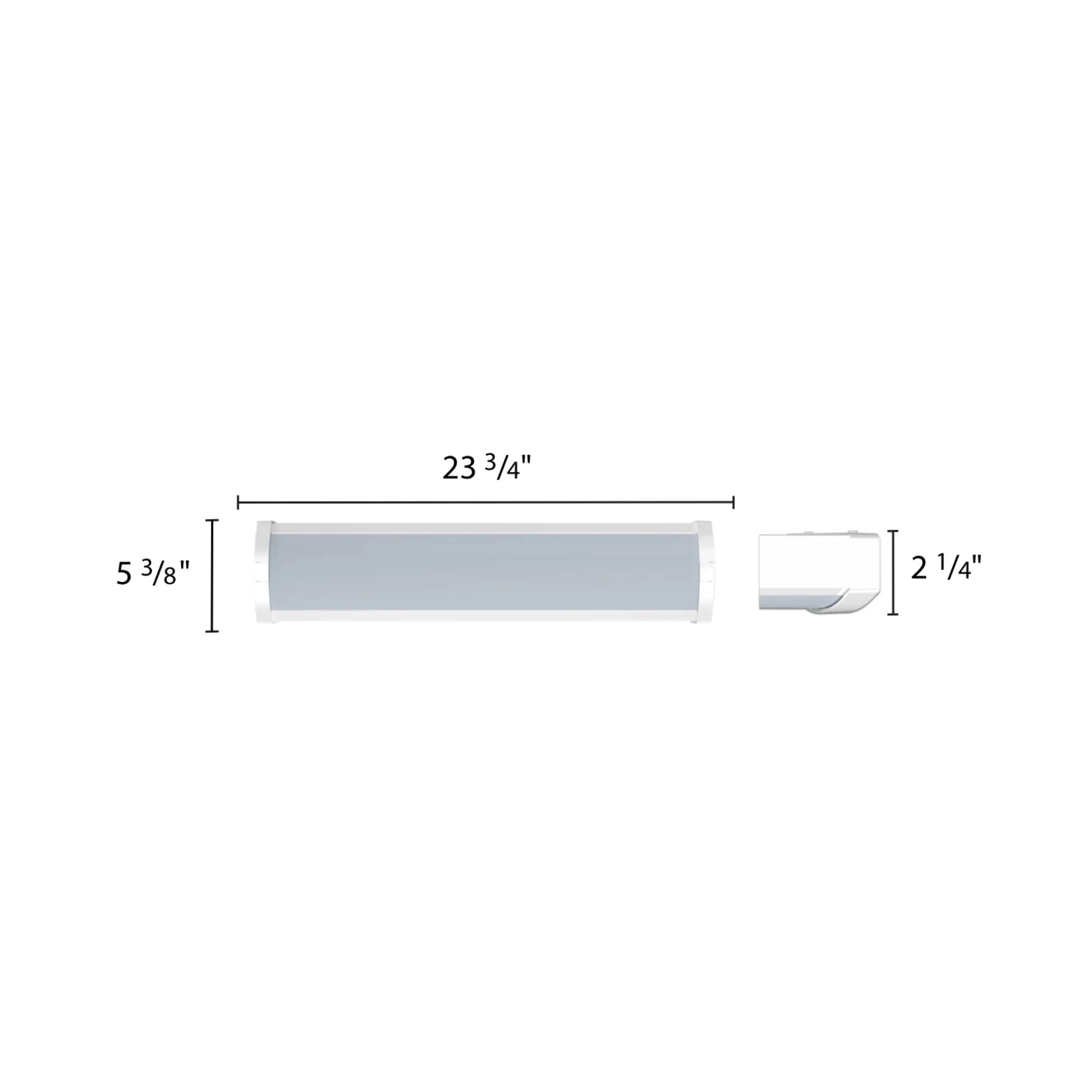

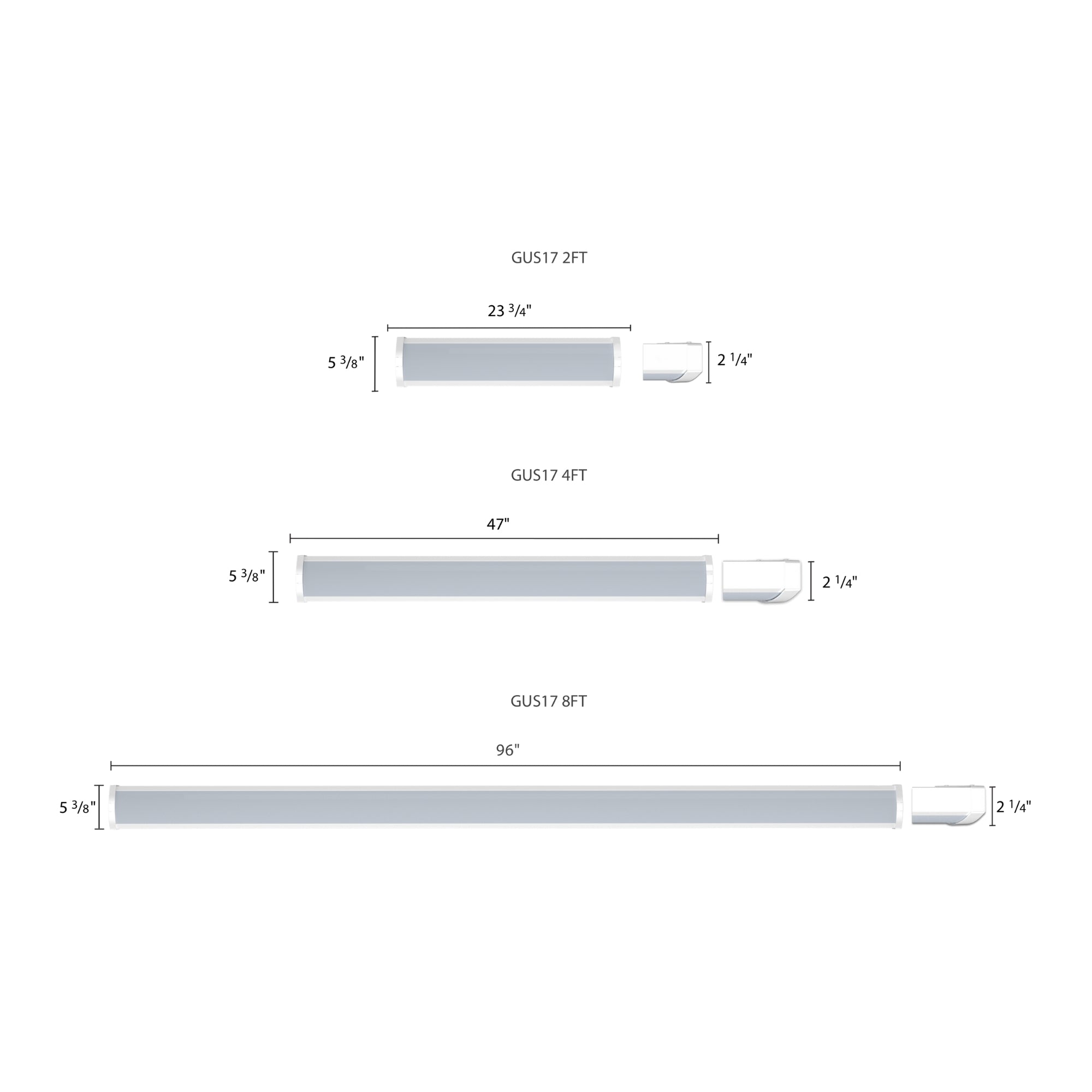

Dimensions
