RAB GR4TLB 4 in. Trimless Downlight — 15W / Selectable CCT

The RAB GR4TLB is a 4-inch trimless downlight delivering up to 1,305 lumens using 15W. This fixture features a selectable CCT range from 2700K to 5000K, making it versatile for various lighting needs. With a high color accuracy of 90 CRI, it ensures vibrant and true-to-life colors.

Key Features

• Wattage: 15W
• Lumens: 1,189lm (2700K) to 1,305lm (4000K)
• Voltage: 120V
• Dimming: TRIAC/ELV dimmable down to 10%
• Beam Angle: 38°
• CRI: 90
• Lifespan: 50,000 hours
• Compliance: ENERGY STAR, Title 24 JA8, RoHS
• Operating Temp: -13°F to 104°F
• Finish: Black

Construction & Aesthetics

The downlight features a smooth trimless design with a black finish, providing a modern aesthetic. It includes a clear polycarbonate lens for even light distribution. The fixture is suitable for both indoor and outdoor use in wet environments.

Electrical & Installation

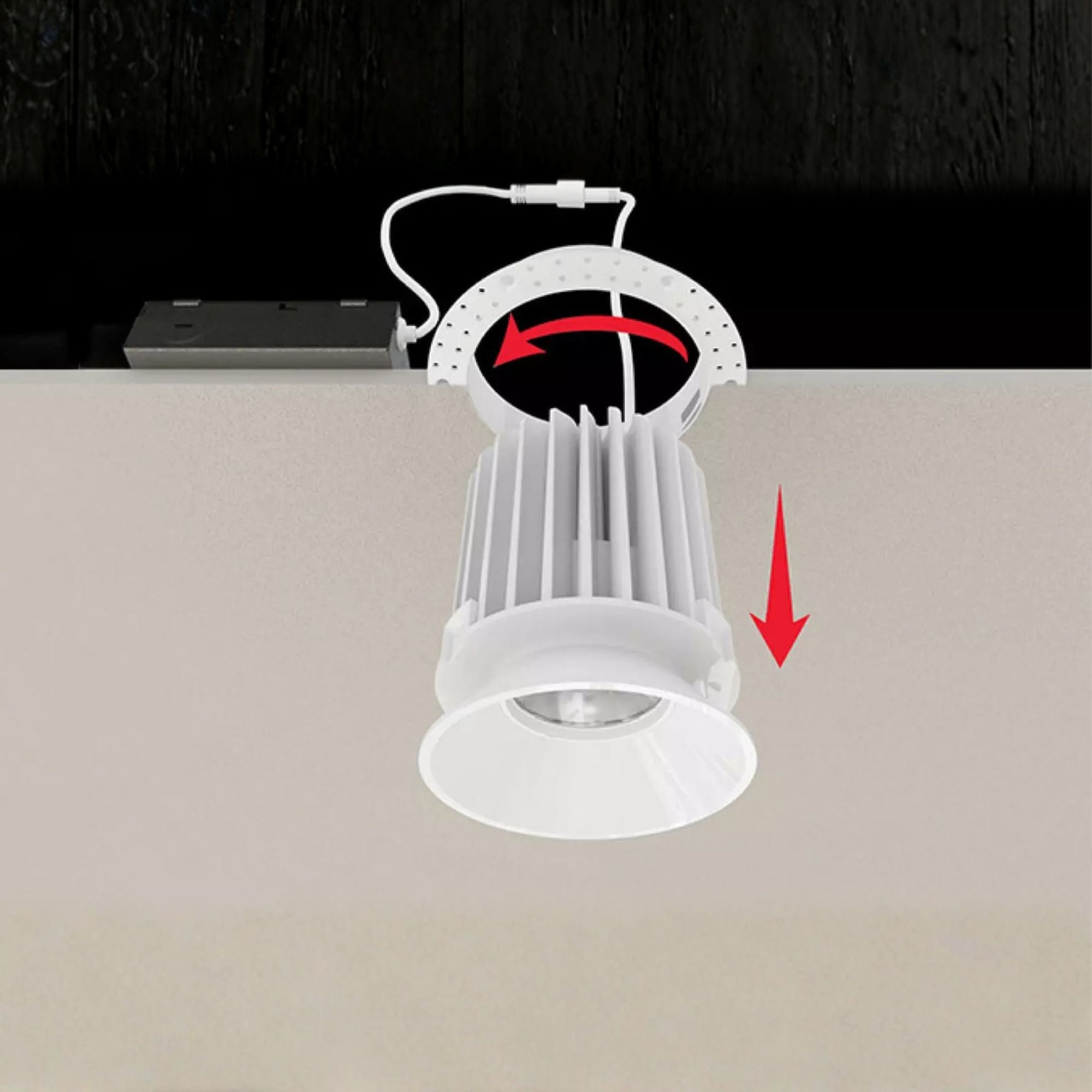

This fixture operates at 120V with a constant current driver. It is designed for recessed mounting without the need for a housing or J-box, simplifying installation. Compatible with emergency drivers for added functionality.

Light Output & Performance

With a selectable CCT and high CRI, this downlight provides flexible lighting solutions with consistent color uniformity. The fixture's efficacy ranges from 81 to 91 lm/W depending on the CCT setting.

Typical Applications

• Residential Lighting
• Commercial Spaces
• Retail Environments
• Hospitality Settings
• Outdoor Patios
