RAB GR3TLB 3 in Round Trimless Gimbal Downlight 9W Selectable CCT Black
Available in stock (66)
About this item
About this item
- Trimless Design: Seamless, flangeless round aperture sits flush with the ceiling — no visible trim ring for a clean, architectural finish in black
- Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K from a single fixture
- 817 lm at 9W: Up to 817 lumens at 4000K with 90 CRI and a focused 38° beam angle for precise, high-quality illumination
- Wet Rated, IC & Airtight: UL listed for wet locations, IC rated for direct insulation contact, and airtight certified per ASTM E283
- Certified Performance: ENERGY STAR certified, California Title 24 JA8 compliant, ETL listed, RoHS compliant, 50,000-hour L70 lifespan
We process payments securely and do not store credit card information.
Description
Description
RAB GR3TLB 3 in Round Trimless Gimbal Recessed Downlight — 9W / Selectable CCT
The RAB GR3TLB is a 3 in round trimless gimbal recessed downlight in black finish, delivering up to 817 lumens at 9W with a 38° beam angle and 90 CRI. Field-selectable from 2700K to 5000K, the gimbal mechanism allows precise light aiming while the flangeless trimless design sits flush with the ceiling — no trim ring, no housing, no compromise on aesthetics. Ideal for accent lighting, wall washing, and general illumination in modern interiors.
Key Features
- Gimbal Recessed: Adjustable gimbal allows light aiming up to 30° tilt — ideal for accent lighting, artwork, and architectural features
- Trimless Design: Flangeless round aperture with no visible trim ring — fixture sits flush with the ceiling for a clean, architectural finish in black
- Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K from a single fixture
- Lumen Output: Up to 817 lm (4000K) at 9W
- Wattage: 9W (equivalent to 60W incandescent)
- CRI: 90 with R9 > 50 for high color accuracy
- Beam Angle: 38° for focused, directional illumination
- Dimming: TRIAC/ELV dimmable down to 10%
- Voltage: 120V
- No Housing Required: Canless design with remote driver/junction box — installs directly into ceiling
- Certifications: ENERGY STAR, Title 24 JA8, ETL listed, RoHS compliant, NEC compliant (Sec. 410.16)
- Warranty: 5-year no-compromise warranty
Smart & Control Features
The GR3TLB dims down to 10% on compatible TRIAC and ELV dimming systems. CCT is field-adjustable via an integrated dip switch — select from 2700K, 3000K, 3500K, 4000K, or 5000K at installation without changing the SKU. Compatible emergency driver: DRI-21-EMGR-DC-D10; emergency driver T20.
Construction & Design
The GR3TLB features a metal enclosure with a smooth black finish and a clear polycarbonate lens for even, uniform light distribution. The gimbal mechanism provides up to 30° tilt for precise directional aiming. The trimless mud-in profile eliminates the traditional flange, integrating seamlessly into drywall for a high-end designer aesthetic.
Light Output & Performance
With efficacy up to 97 lm/W, a 90 CRI, R9 > 50, and a focused 38° beam angle, the GR3TLB delivers precise, high-quality illumination. Color temperature is warranted to shift no more than 200K over five years. Rated lifespan: 50,000 hours L70 per IES LM-70.
Electrical & Installation
Operates on 120V with a Constant Current, Class 2 driver. Dimmable to 10% via TRIAC/ELV systems. The remote driver/junction box installs easily with quick snap-in connectors — no recessed housing needed. Suitable for new construction and retrofit. IC rated and airtight certified (ASTM E283). Operating temperature: -13°F to 104°F.
What’s Included
- RAB GR3TLB 3 in round trimless gimbal recessed downlight (black)
- Remote driver/junction box
- Quick snap-in connectors
- Mounting hardware
- Compatible accessory: DRI-21-EMGR-DC-D10 emergency driver (sold separately)
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the RAB GR3TLB rated for wet locations?
Is the RAB GR3TLB rated for wet locations?

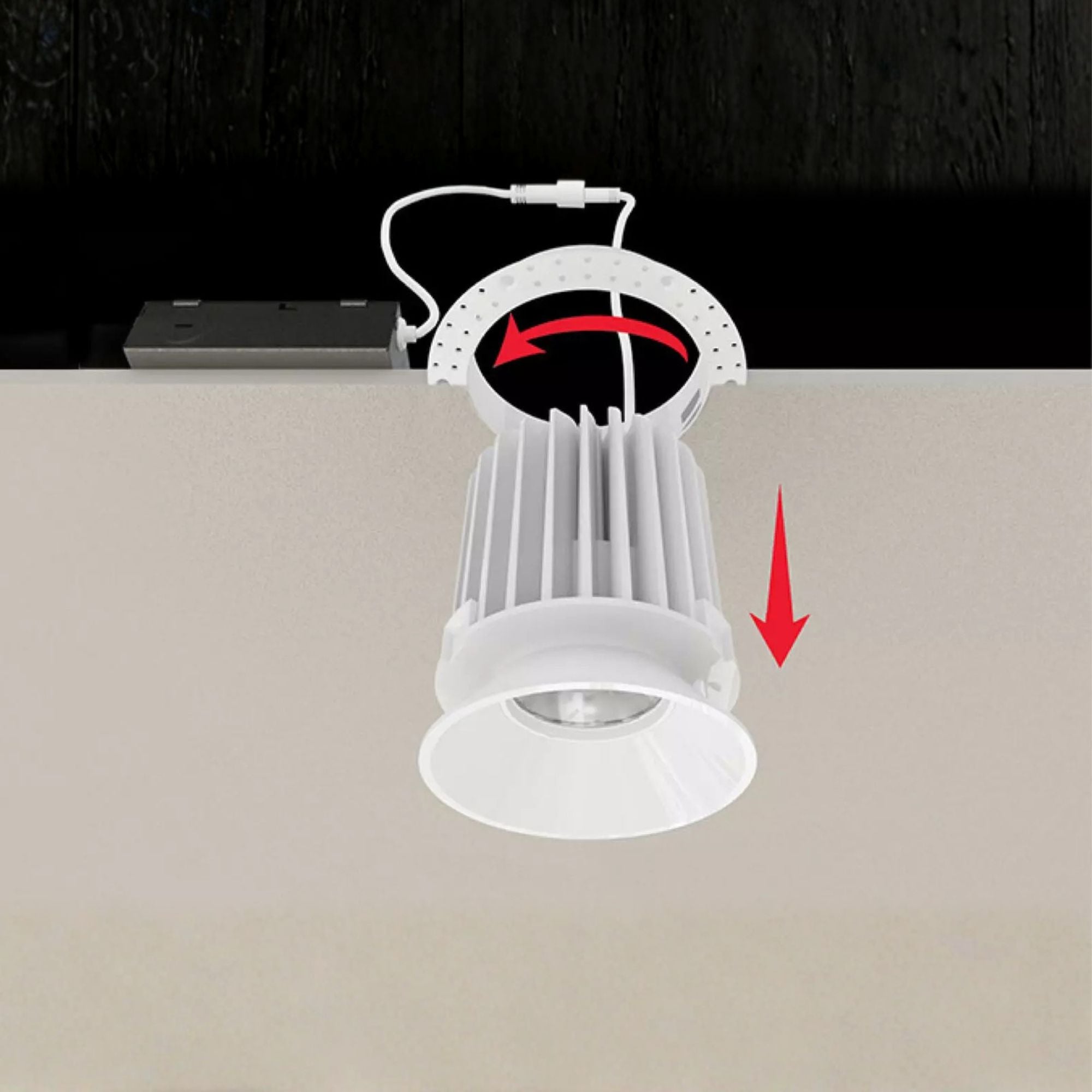

What does "trimless" mean and how does the GR3TLB install?
What does "trimless" mean and how does the GR3TLB install?
Is the RAB GR3TLB dimmable?
Is the RAB GR3TLB dimmable?
What is the beam angle and lumen output of the RAB GR3TLB?
What is the beam angle and lumen output of the RAB GR3TLB?
What accessories are compatible with the RAB GR3TLB?
What accessories are compatible with the RAB GR3TLB?
