RAB GR3STL 3 in Square Trimless Gimbal Downlight 9W Selectable CCT White
Available in stock (100)
About this item
About this item
- Trimless Design: Seamless, flangeless square aperture sits flush with the ceiling — no visible trim ring for a clean, architectural finish
- Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K from a single fixture
- 820 lm at 9W: Up to 820 lumens at 4000K with 90 CRI and a focused 38° beam angle for precise, high-quality illumination
- Wet Rated, IC & Airtight: UL listed for wet locations, IC rated for direct insulation contact, and airtight certified per ASTM E283
- Certified Performance: ENERGY STAR certified, California Title 24 JA8 compliant, ETL listed, RoHS compliant, 50,000-hour L70 lifespan
We process payments securely and do not store credit card information.
Description
Description

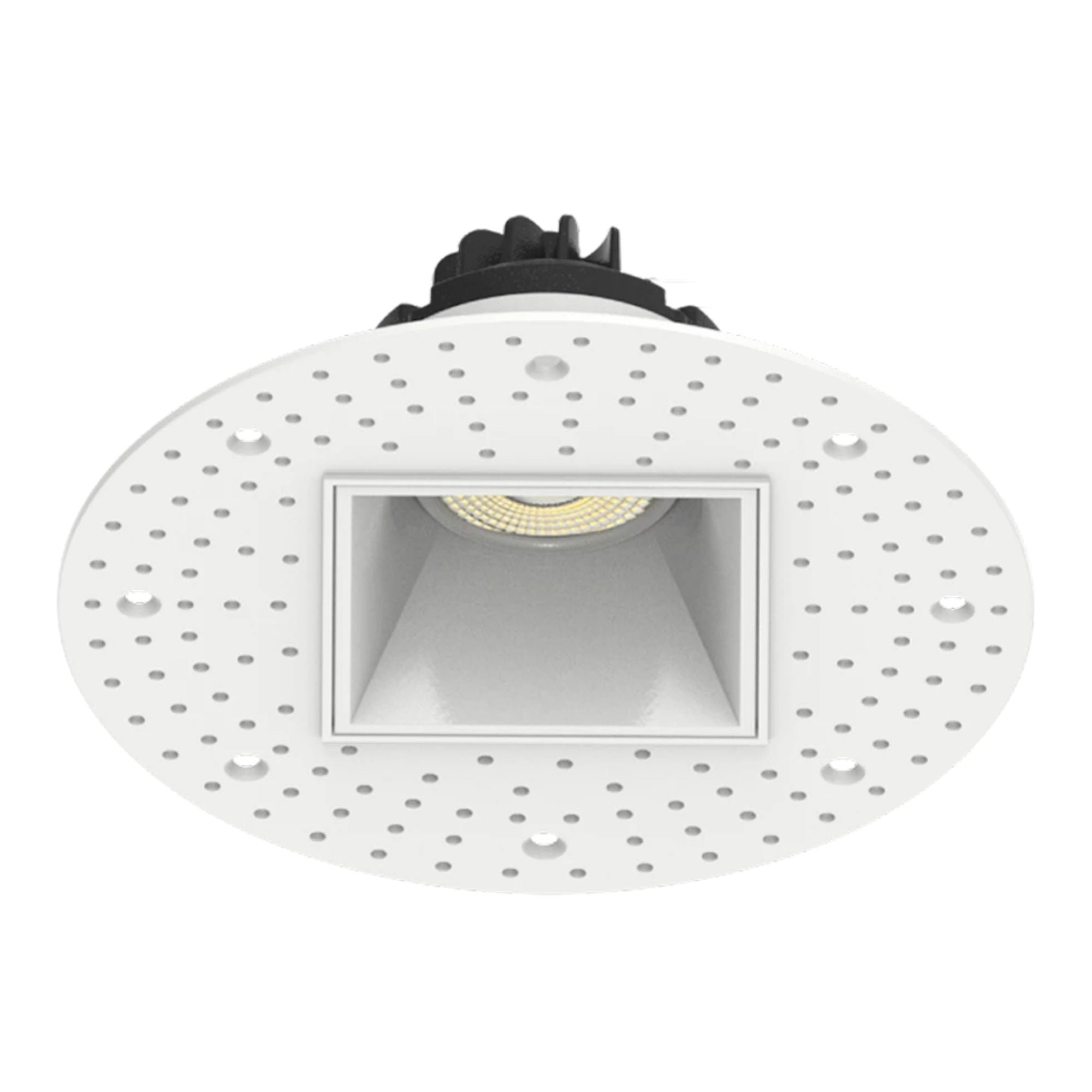

RAB GR3STL 3 in Square Trimless Gimbal Recessed Downlight — 9W / Selectable CCT
The RAB GR3STL is a 3 in square trimless gimbal recessed downlight delivering up to 820 lumens at 9W with a 38° beam angle and 90 CRI. Field-selectable from 2700K to 5000K, the gimbal mechanism allows precise light aiming while the flangeless trimless design sits flush with the ceiling — no trim ring, no housing, no compromise on aesthetics. Ideal for accent lighting, wall washing, and general illumination in modern interiors.
Key Features
- Gimbal Recessed: Adjustable gimbal allows light aiming up to 30° tilt — ideal for accent lighting, artwork, and architectural features
- Trimless Design: Flangeless square aperture with no visible trim ring — fixture sits flush with the ceiling for a clean, architectural finish
- Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K from a single fixture
- Lumen Output: Up to 820 lm (4000K) at 9W
- Wattage: 9W (equivalent to 60W incandescent)
- CRI: 90 with R9 > 50 for high color accuracy
- Beam Angle: 38° for focused, directional illumination
- Dimming: TRIAC/ELV dimmable down to 10%
- Voltage: 120V
- No Housing Required: Canless design with remote driver/junction box — installs directly into ceiling
- Certifications: ENERGY STAR, Title 24 JA8, ETL listed, RoHS compliant, NEC compliant (Sec. 410.16)
- Warranty: 5-year no-compromise warranty
Smart & Control Features
The GR3STL dims down to 10% on compatible TRIAC and ELV dimming systems. CCT is field-adjustable via an integrated dip switch — select from 2700K, 3000K, 3500K, 4000K, or 5000K at installation without changing the SKU. Compatible emergency driver: DRI-21-EMGR-DC-D10; emergency driver T20.
Construction & Design
The GR3STL features a metal enclosure with a smooth white finish and a clear polycarbonate lens for even, uniform light distribution. The gimbal mechanism provides up to 30° tilt for precise directional aiming. The trimless mud-in profile eliminates the traditional flange, integrating seamlessly into drywall for a high-end designer aesthetic.
Light Output & Performance
With efficacy up to 97 lm/W, a 90 CRI, R9 > 50, and a focused 38° beam angle, the GR3STL delivers precise, high-quality illumination. Color temperature is warranted to shift no more than 200K over five years. Rated lifespan: 50,000 hours L70 per IES LM-70.
Electrical & Installation

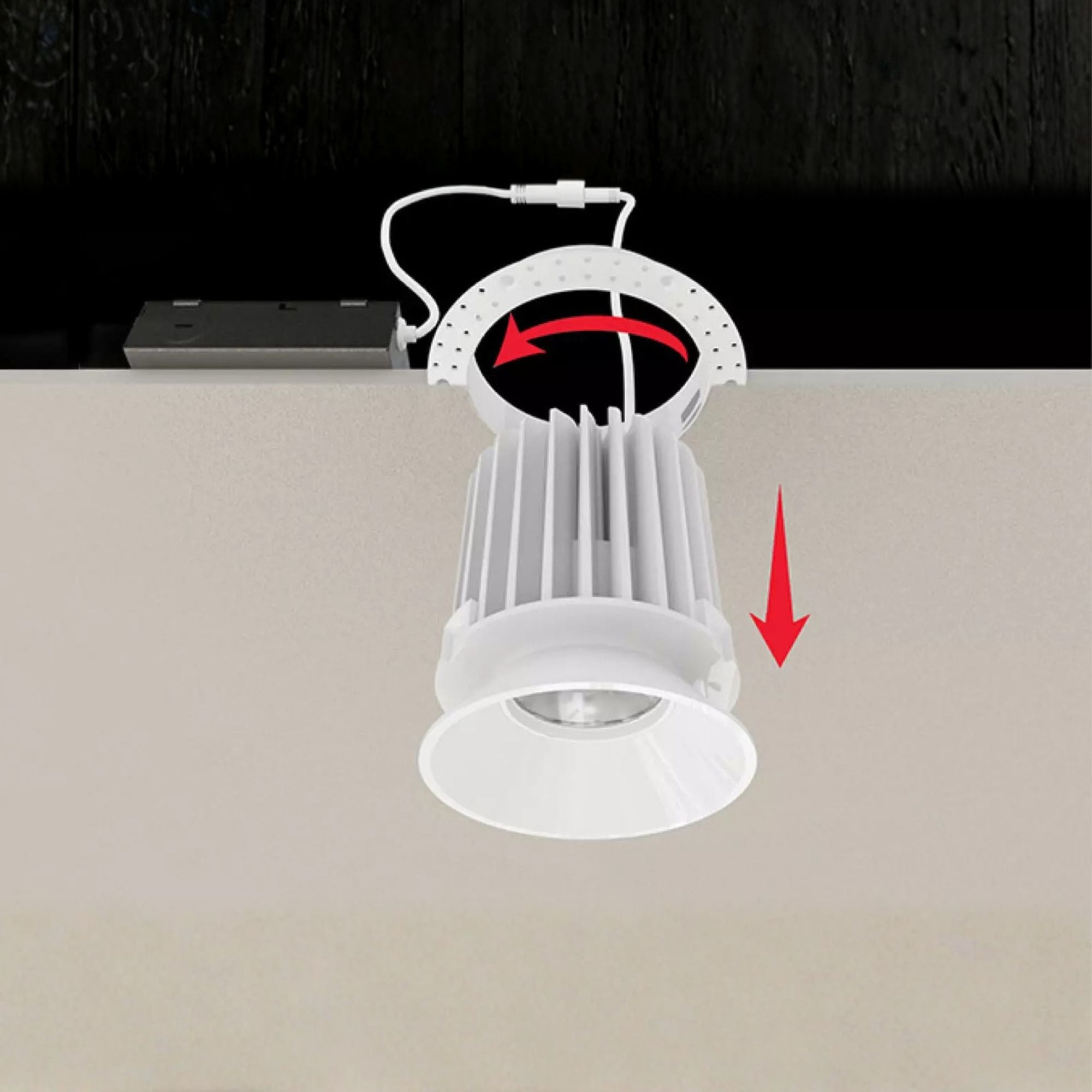

Operates on 120V with a Constant Current, Class 2 driver. Dimmable to 10% via TRIAC/ELV systems. The remote driver/junction box installs easily with quick snap-in connectors — no recessed housing needed. Suitable for new construction and retrofit. IC rated and airtight certified (ASTM E283). Operating temperature: -13°F to 104°F.
What’s Included
- RAB GR3STL 3 in square trimless gimbal recessed downlight (white)
- Remote driver/junction box
- Quick snap-in connectors
- Mounting hardware
- Compatible accessory: DRI-21-EMGR-DC-D10 emergency driver (sold separately)
Specifications
Specifications

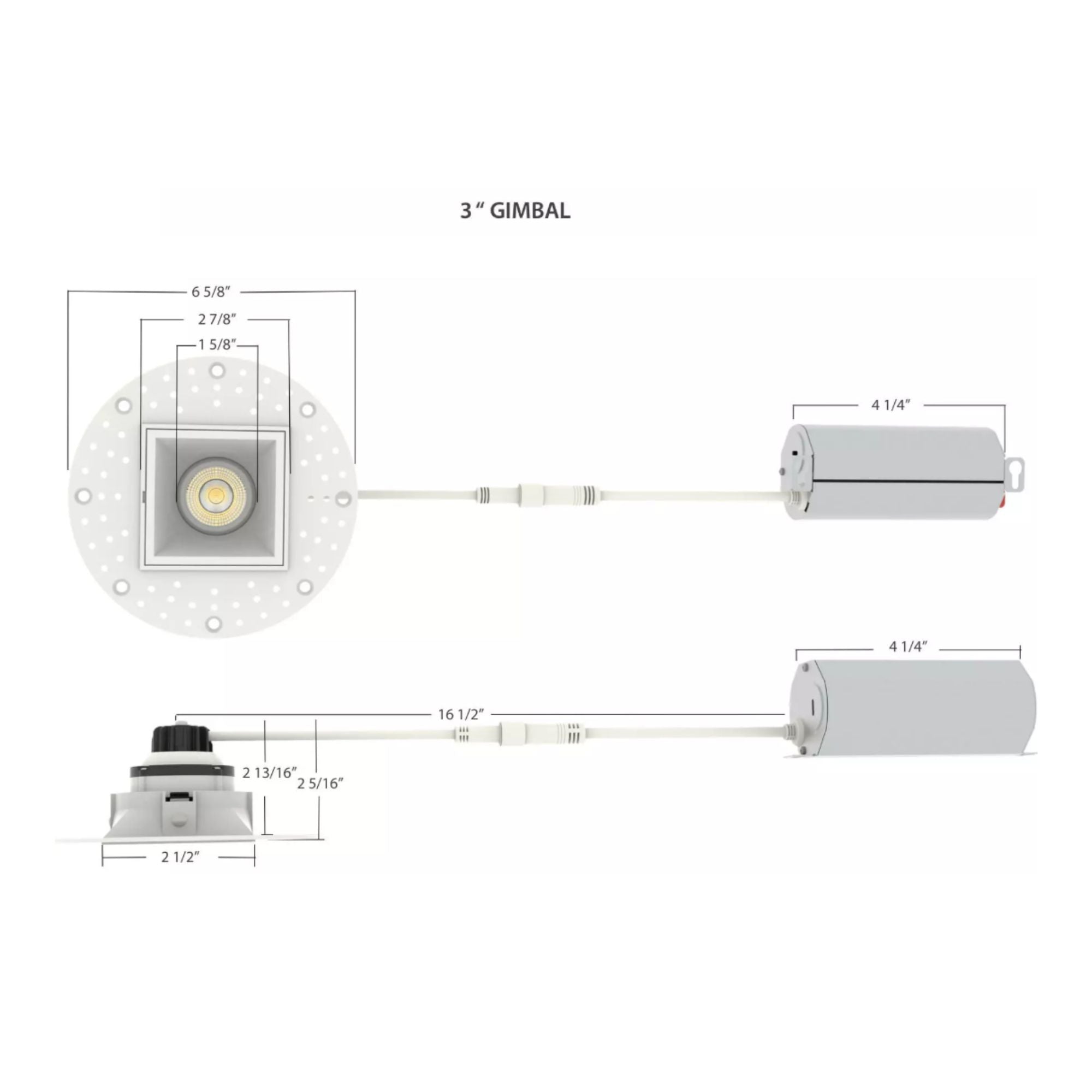

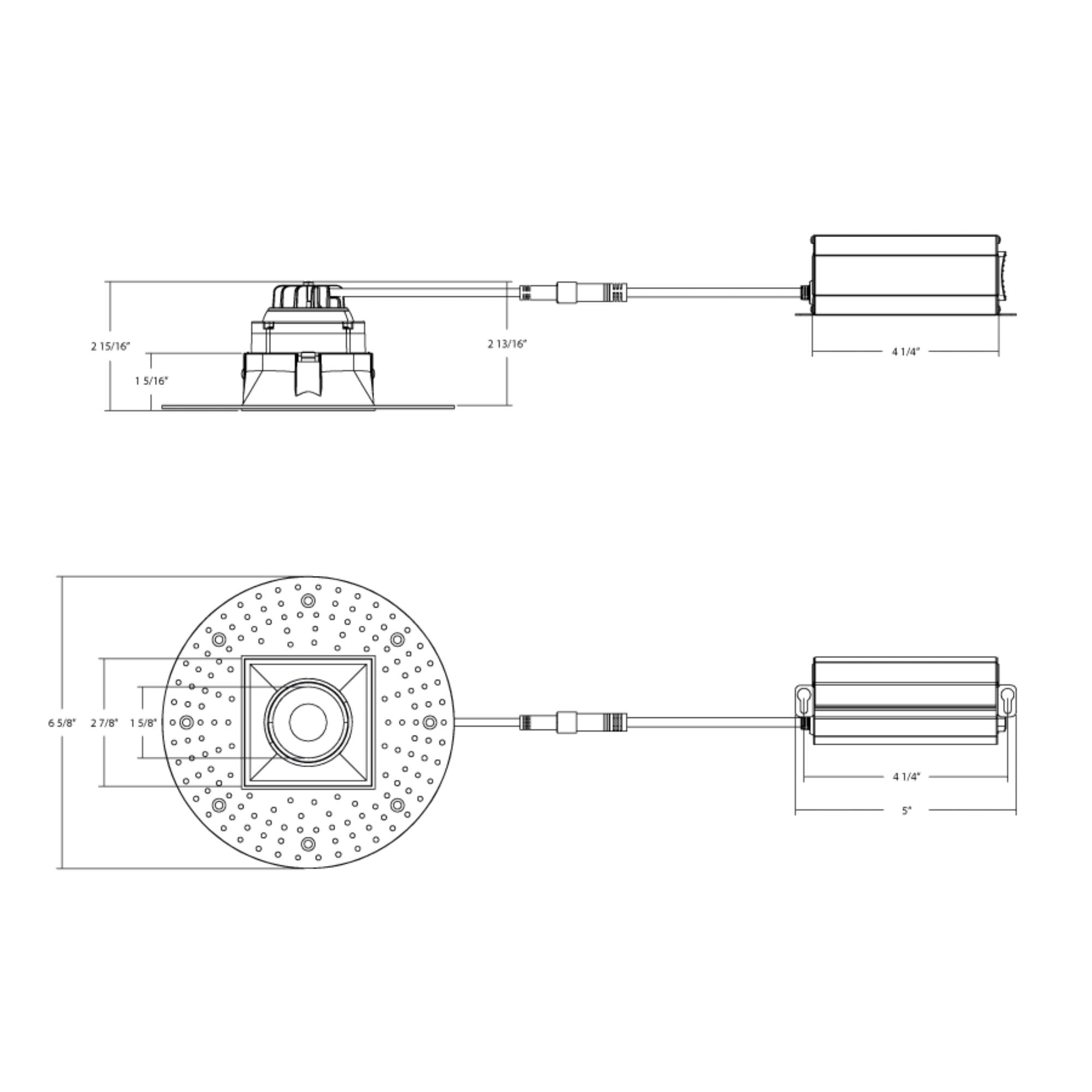

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
