RAB GR CCT-Selectable Gimbal Recessed Downlight
Available in stock (100)
-
Estimated delivery: Sep 19 - Sep 23
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
RAB CCT-Selectable Gimbal Recessed Downlight — 2 in / 3 in / 4 in / Selectable CCT / No Housing Required
RAB's gimbal recessed downlight series offers 2 in, 3 in, and 4 in canless fixtures with a remote driver — no housing or J-box required. Choose from standard, deep regress, or trimless depth profiles, and 38° or 20° narrow beam options. CCT is field-selectable 2700K–5000K via dip switch (default: 3000K) with TRIAC/ELV dimming at 120V. All models are IC rated, airtight per ASTM E283, and wet location rated.
Series Overview by Size
- 2 in / 6W — Standard (RAB G2): 400 lm | 66.67 lm/W | 38° beam | 50W equiv | 47mA

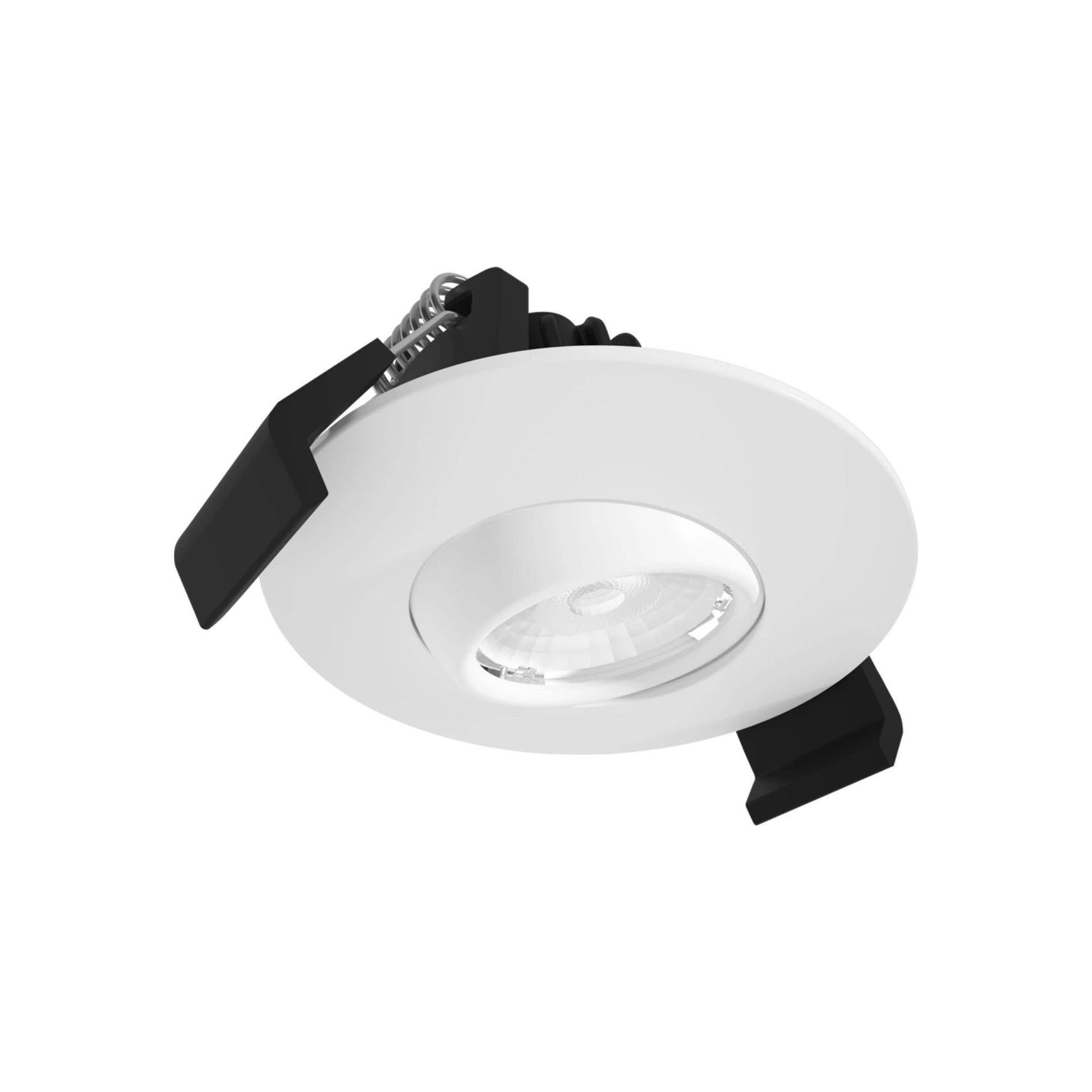

- 2 in / 6W — Standard Narrow Beam (RAB G2NB): 400 lm | 66.67 lm/W | 20° beam | 50W equiv | 50mA
- 2 in / 6W — Deep Regress (RAB GR2): 400 lm | 66.67 lm/W | 38° beam | 50W equiv | 50mA | superior glare control

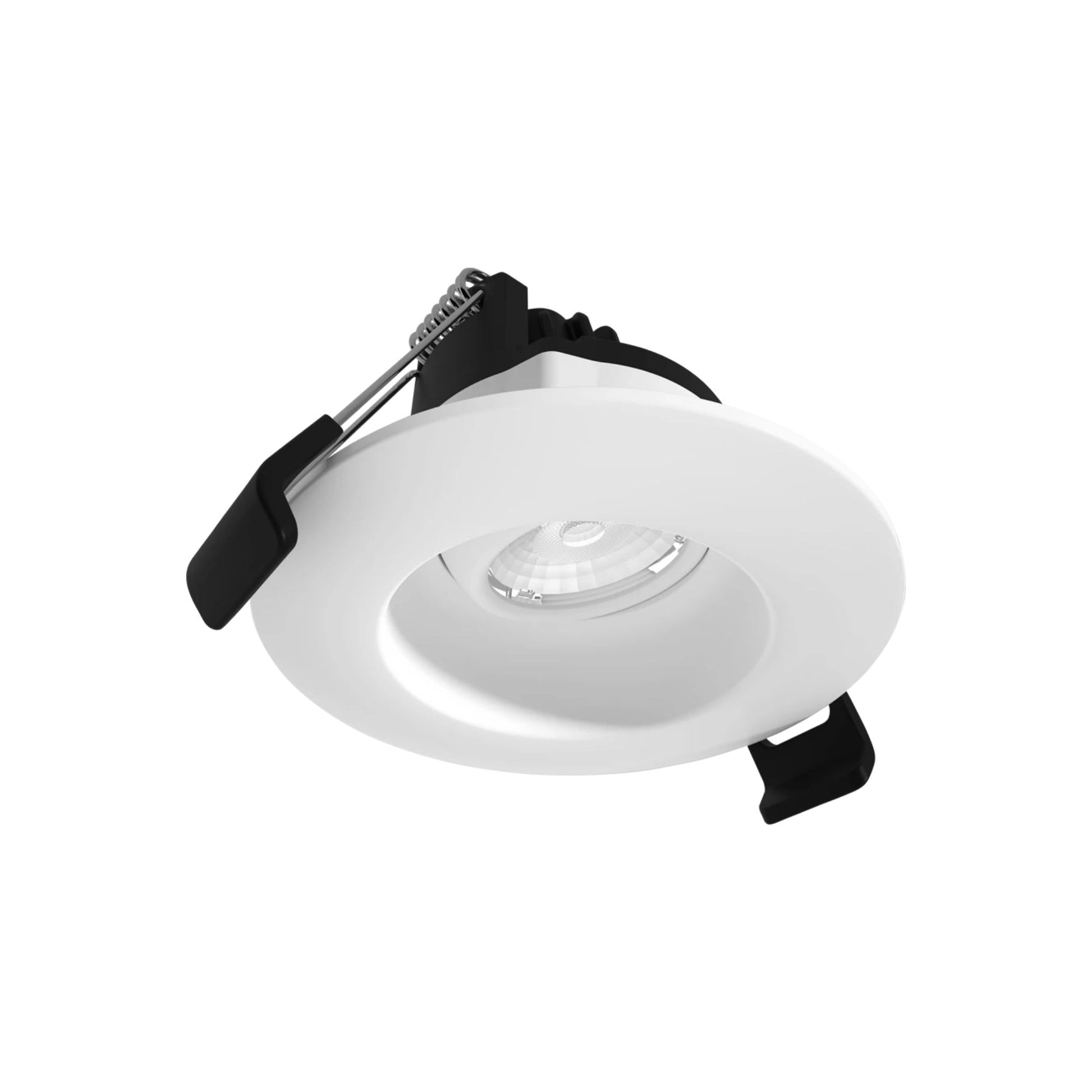

- 2 in / 6W — Deep Regress Narrow Beam (RAB GR2NB): 400 lm | 66.67 lm/W | 20° beam | 50W equiv | 50mA | glare control + tight beam

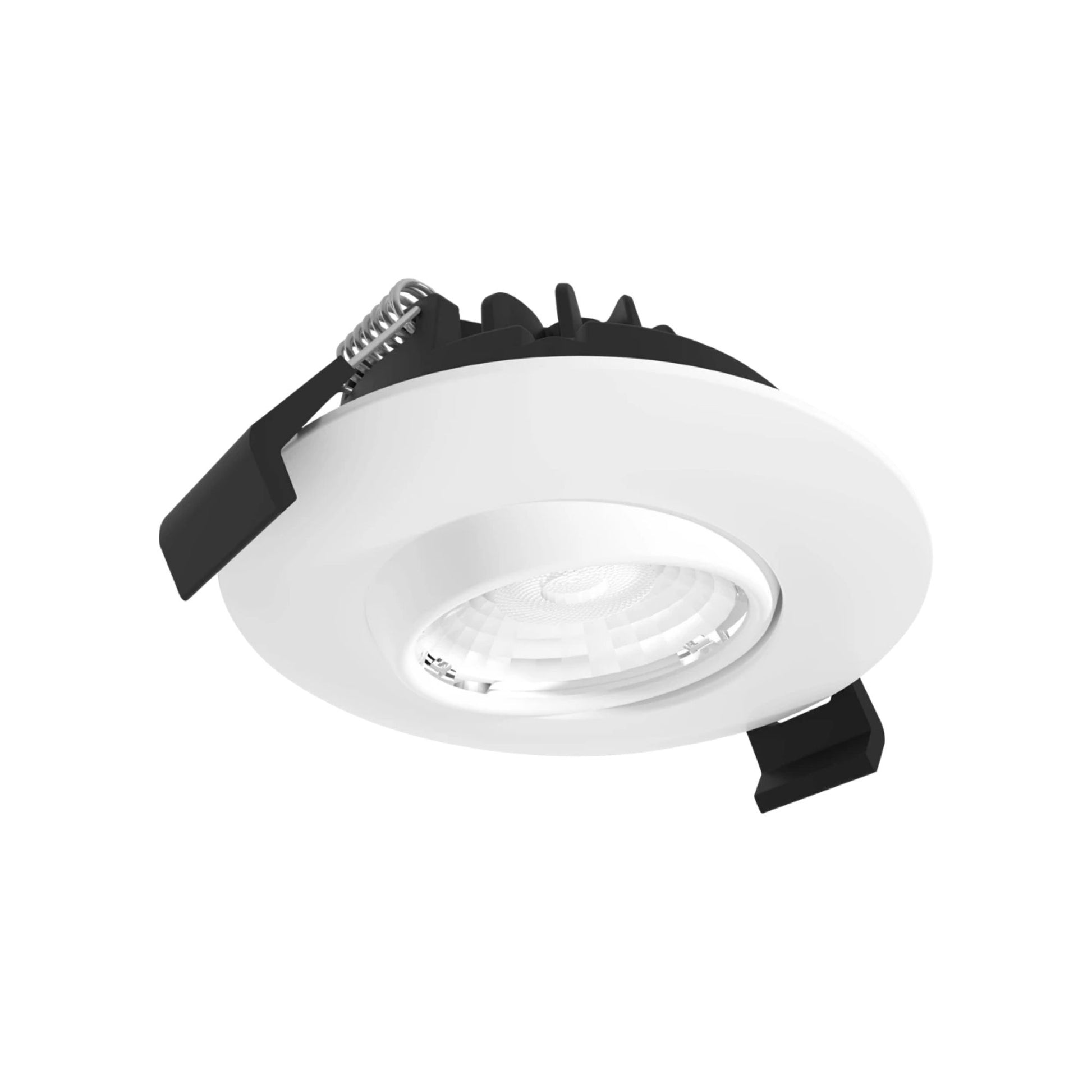

- 3 in / 9W — Standard (RAB G3): 600 lm | 66.67 lm/W | 38° beam | 65W equiv | 71mA

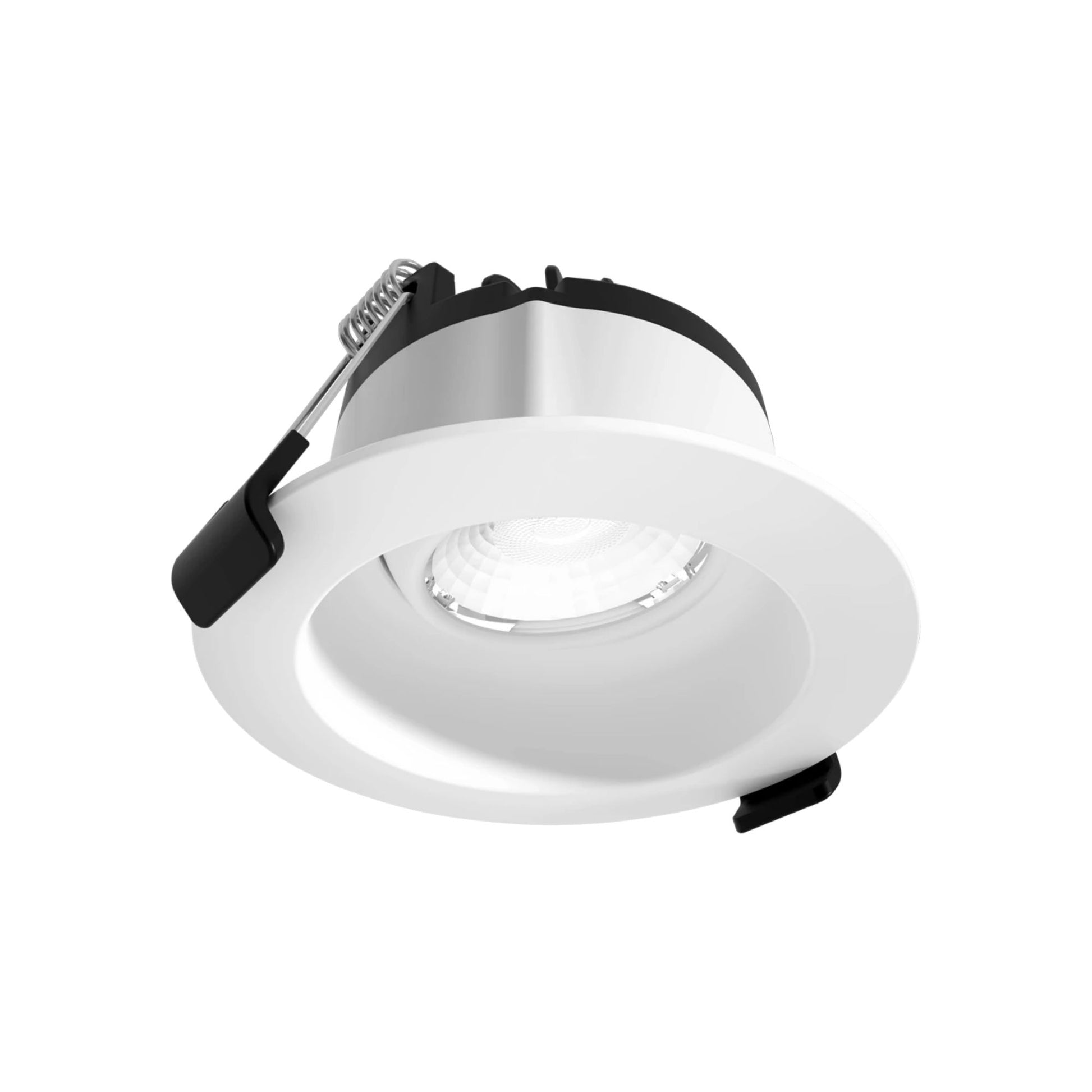

- 3 in / 9W — Deep Regress (RAB GR3): 600 lm | 66.67 lm/W | 38° beam | 65W equiv | 77mA | superior glare control

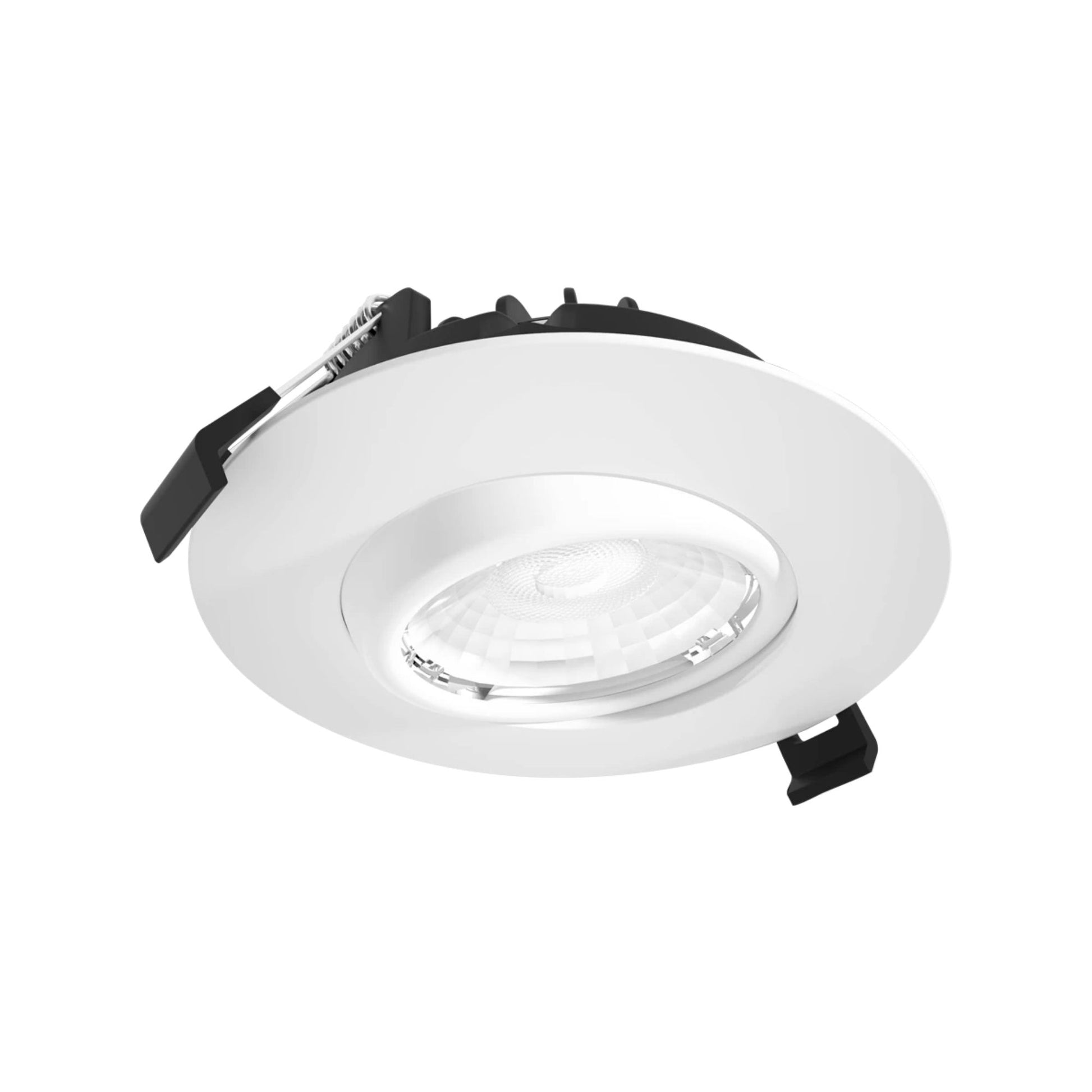

- 4 in / 15W — Standard (RAB G4): 1,050 lm | 70 lm/W | 38° beam | 125W equiv | 122mA
- 4 in / 15W — Deep Regress (RAB GR4): 1,050 lm | 70 lm/W | 38° beam | 125W equiv | 122mA | superior glare control
Shared Specifications (All Models)
- CRI: 90+, R9 ≥ 50 | 4-step MacAdam Ellipse | Flicker ≤30%
- CCT: Field-selectable 2700K, 3000K, 3500K, 4000K, 5000K via dip switch (default: 3000K)
- Dimming: TRIAC/ELV to 10% at 120V
- Driver: Constant Current Class 2 remote driver, 120V
- THD: ≤25% | PF: ≥0.9
- IC Rated — airtight per ASTM E283 | Wet location rated
- No housing or J-box required — spring-loaded retention clips
- Operating temp: -13°F to 104°F (-25°C to 40°C)
- Certifications: ETL Listed | ENERGY STAR v2.2 | Title 24 JA8 | RoHS | FCC Part 15B | NEC closet compliant
- Note: These products do NOT meet California Title 20 requirements
- Lifespan: 50,000 hours L70 | Warranty: 5-year no-compromise warranty
Construction & Design
Metal enclosure with white smooth trim. Polycarbonate light diffuser. Remote Class 2 driver. Housing certified airtight per ASTM E283. IC rated for direct contact with insulation (not spray foam; consult NEMA LSD57-2013). Wet location rated. 30° tilt on all gimbal models.
Typical Applications
- Residential new construction and retrofit recessed lighting
- Accent, task, and wall-wash lighting in living rooms, kitchens, and dining rooms
- Gallery, hospitality, and retail accent lighting (especially GR deep regress models)
- Precision display lighting (NB narrow beam models)
- Wet, damp, and dry interior and covered outdoor environments
