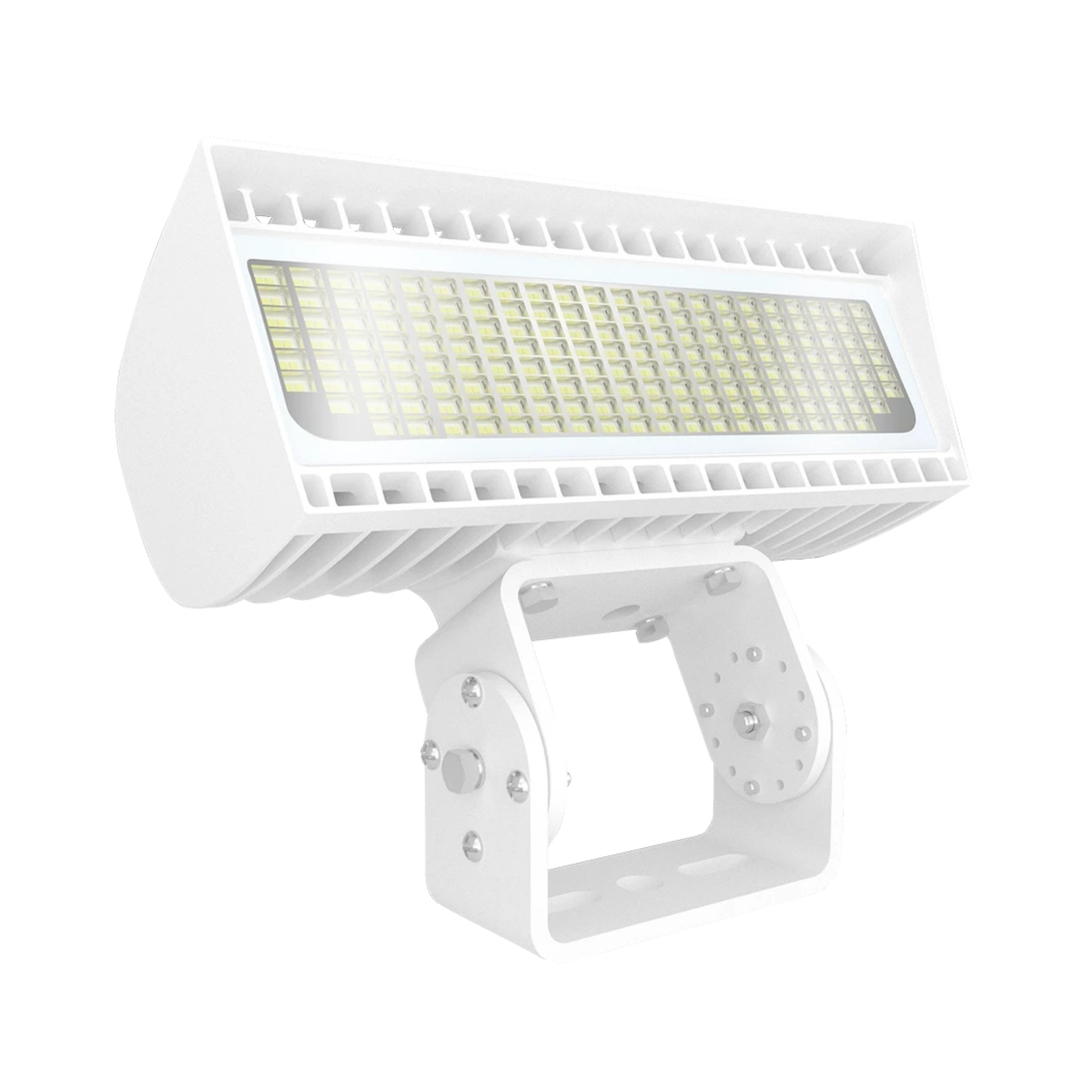

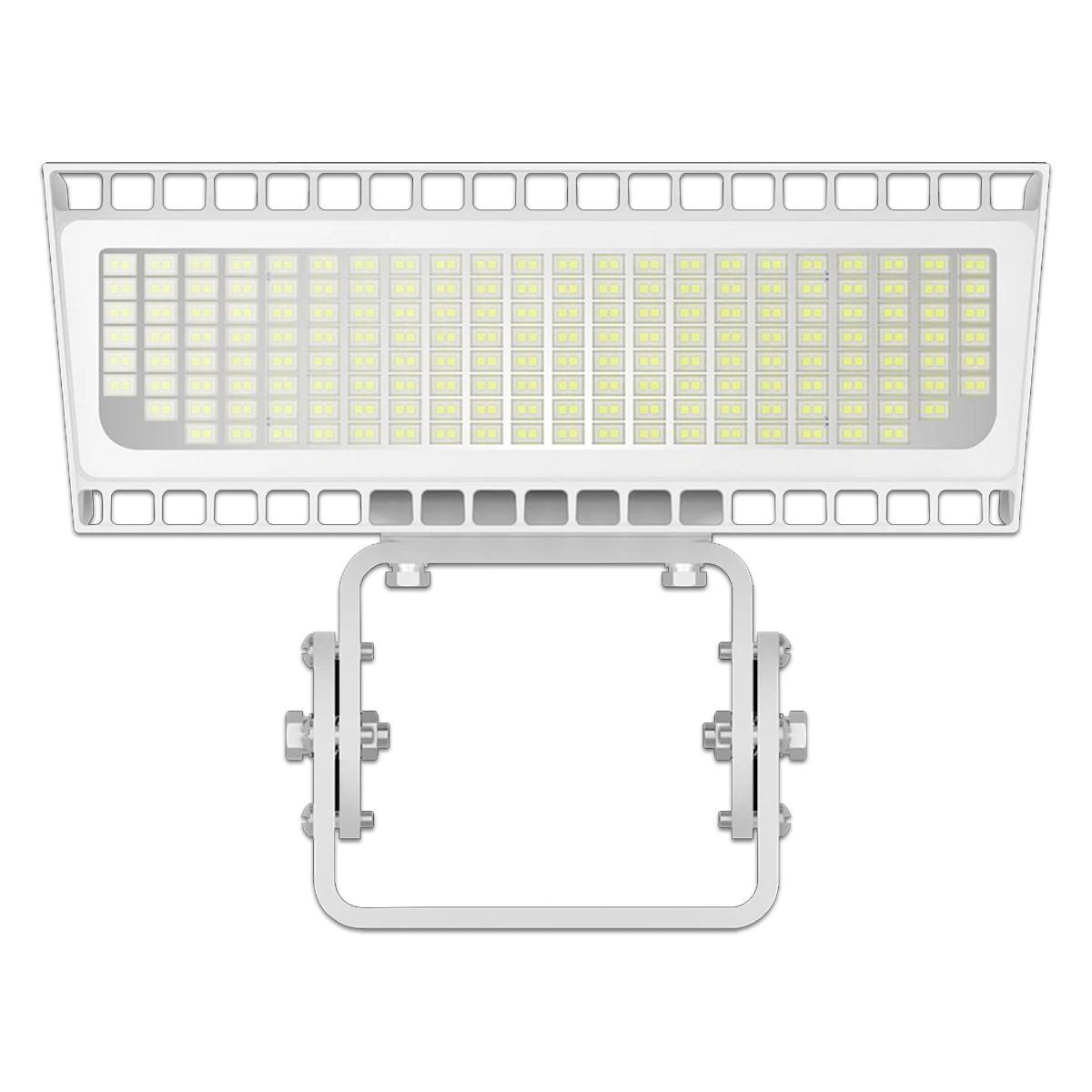

RAB FXLEDSTW Small Field-Adjustable Floodlight — 168W, Selectable CCT & Power, Trunnion Mount, 120-277V, White

The RAB FXLEDSTW is a highly efficient, professional-grade LED flood light in a clean white finish, designed for maximum flexibility and rugged outdoor performance. This versatile fixture produces up to 23,835 lumens and allows installers to choose between four power levels (168W, 132W, 97W, 69W) and three color temperatures (3000K, 4000K, 5000K) directly in the field. It features a NEMA 6H x 6V beam spread, providing a broad, powerful wash of light ideal for building facades, signs, and landscape accents. Built for longevity, the FXLEDSTW is housed in precision die-cast aluminum with an ultra-clear tempered glass lens and earns a rigorous IP66 rating for superior durability against the elements. With an industry-leading 10-year warranty, standard 0-10V dimming, and a highly stable trunnion mount, it is the perfect long-term solution for demanding exterior lighting applications.

Key Features

• Wattage: Field adjustable to 168W, 132W, 97W, or 69W (factory default 168W).
• Selectable CCT: Field adjustable between 3000K (Warm), 4000K (Neutral), and 5000K (Cool).
• Dimming: Integrated 0-10V dimming capabilities, dimming down to 10%.
• NEMA Type: Wide NEMA 6H x 6V beam spread.
• Mounting Type: Heavy-duty trunnion mount with 30° tilt increments.
• TAA Compliant: Trade Agreements Act compliant product.
• Delivered Lumens: Up to 23,835 lumens at the 168W 4000K setting.
• Environmental Ratings: IP66 rated for dust and water; UL Listed for wet locations.
• Warranty: Industry-leading 10-year, no-compromise warranty.

Typical Applications

• White-themed building perimeters and facade illumination
• Landscape, monument, and flag pole lighting
• Commercial signage and billboards
• General high-output exterior security lighting

Performance & Light Output

The FXLEDSTW provides high-intensity, uniform light with a maximum output of 23,835 lumens. Its advanced optical design ensures excellent color consistency through 7-step MacAdam Ellipse binning. With long-life LEDs rated for 100,000 hours, this fixture significantly reduces maintenance and energy costs over time.

Electrical & Controls

Equipped with a Class 2 constant current driver, the FXLEDSTW is built for stable performance on 120-277V systems. It supports standard 0-10V dimming for integration with motion sensors or building control systems to further enhance energy savings.

Construction & Durability

The fixture features a rugged die-cast aluminum housing finished in a durable white and sealed with high-temperature silicone gaskets. Its IP66 rating confirms total protection against dust and powerful water jets, safely operating in extreme starting temperatures down to -40°F (-40°C) up to 104°F (40°C) ambient.

Installation & Mounting

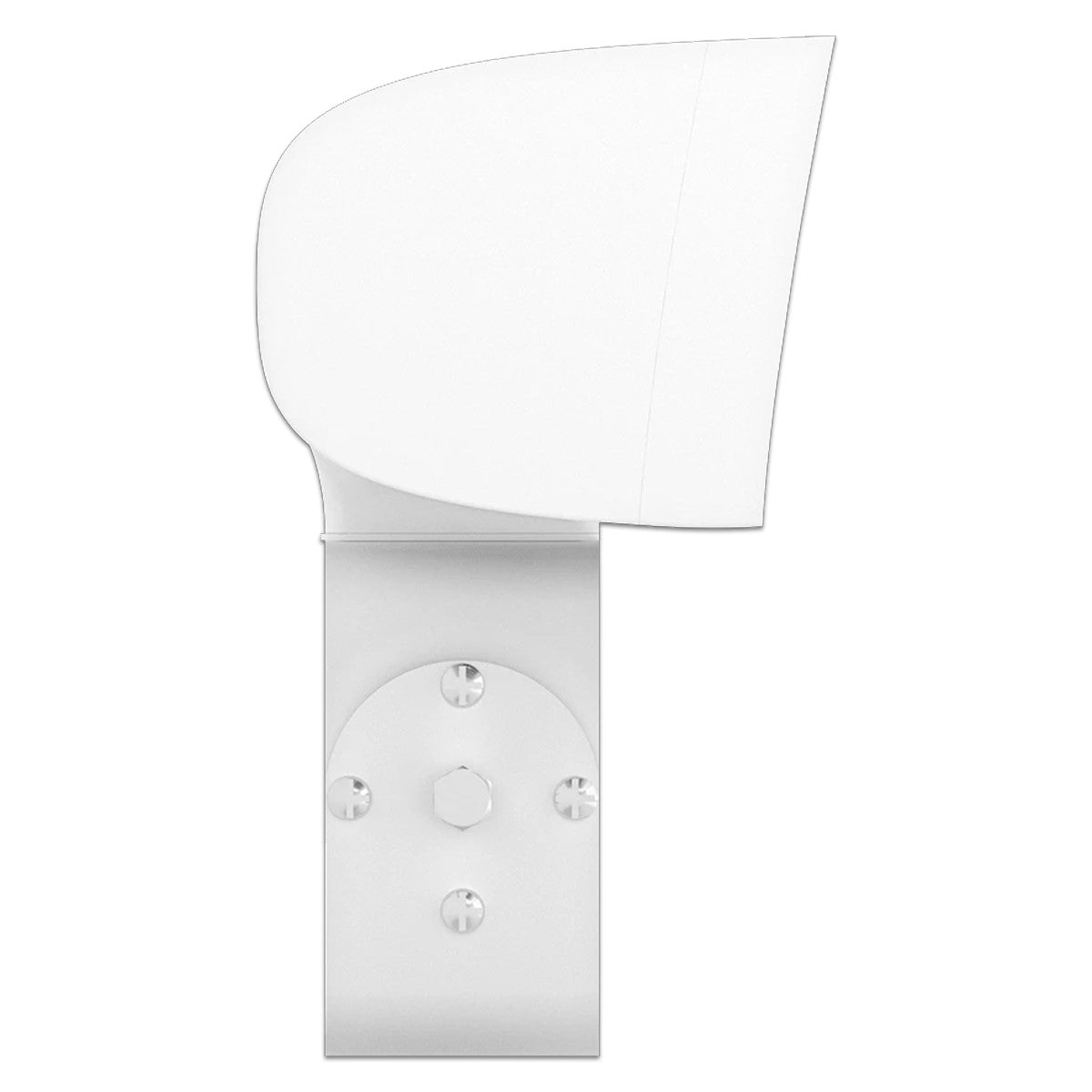

This model includes an integrated heavy-duty trunnion mount, ideal for surface installations such as walls, ceilings, or ground bases. The mount features a 30° tilt increment for very precise and secure light aiming.

What's Included

• RAB FXLEDSTW LED Field-Adjustable Floodlight (White)
• Integrated Trunnion Mount
• 10-Year Manufacturer Warranty
