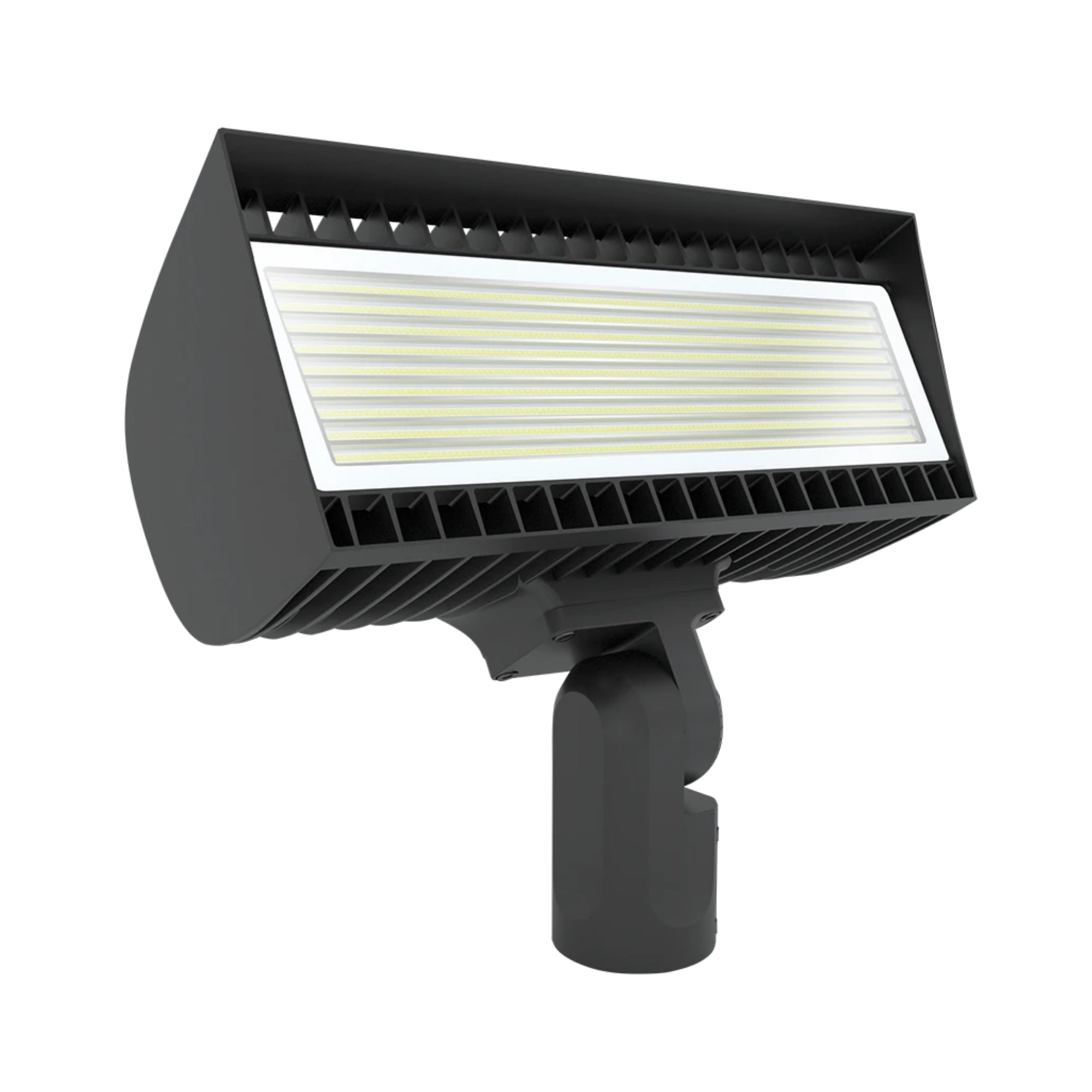

RAB FXLEDLSF/480 Large Field-Adjustable Floodlight — 534W, Selectable CCT & Power, Slipfitter Mount, 480V, Bronze

The RAB FXLEDLSF/480 is a highly efficient, professional-grade LED flood light designed for massive light output and compatibility with high-voltage industrial systems. This highly powerful large-sized fixture produces up to 76,088 lumens and allows installers to choose between two high-power levels (534W and 445W) and three color temperatures (3000K, 4000K, 5000K) directly in the field. It features a wide NEMA 7H x 6V beam spread, providing a broad, powerful wash of light ideal for expansive building facades, large commercial signs, and large parking areas. Built for longevity and operating exclusively on 480V systems, the FXLEDLSF/480 is housed in precision die-cast aluminum with an ultra-clear tempered glass lens and earns a rigorous IP66 rating for superior durability against the elements. With an industry-leading 10-year warranty, standard 0-10V dimming, and a highly stable slipfitter mount, it is the perfect long-term solution for the most demanding exterior lighting applications.

Key Features

• Wattage: Field adjustable to 534W or 445W (factory default 534W).
• Selectable CCT: Field adjustable between 3000K (Warm), 4000K (Neutral), and 5000K (Cool).
• Dimming: Integrated 0-10V dimming capabilities, dimming down to 10%.
• NEMA Type: Wide NEMA 7H x 6V beam spread.
• Mounting Type: Heavy-duty slipfitter mount with 5° tilt increments.
• Compliance: DLC Premium Listed (Product ID: S-4QD865).
• Delivered Lumens: Up to 76,088 lumens at the 534W 4000K setting on 480V.
• Environmental Ratings: IP66 rated for dust and water; UL Listed for wet locations.
• Warranty: Industry-leading 10-year, no-compromise warranty.

Typical Applications

• Large industrial building perimeters and facade illumination requiring 480V power
• Expansive landscape, monument, and flag pole lighting
• Large-scale commercial signage and billboards
• General high-output exterior area and security lighting

Performance & Light Output

The FXLEDLSF/480 provides high-intensity, uniform light with a massive maximum output of 76,088 lumens. Its advanced optical design ensures excellent color consistency through 7-step MacAdam Ellipse binning. With long-life LEDs rated for 100,000 hours, this fixture significantly reduces maintenance and energy costs over time.

Electrical & Controls

Equipped with a Class 1 constant current driver designed specifically for 480V systems, the FXLEDLSF/480 is built for extremely stable high-voltage performance. It supports standard 0-10V dimming for integration with motion sensors or building control systems to further enhance energy savings.

Construction & Durability

The fixture features a rugged die-cast aluminum housing finished in a durable bronze and sealed with high-temperature silicone gaskets. Its IP66 rating confirms total protection against dust and powerful water jets, safely operating in extreme starting temperatures down to -40°F (-40°C) up to 104°F (40°C) ambient.

Installation & Mounting

This model includes an integrated heavy-duty slipfitter mount, ideal for installations on standard poles or tenons. The mount features a 5° tilt increment for very precise and secure light aiming.

What's Included

• RAB FXLEDLSF/480 LED Field-Adjustable Floodlight (Bronze, 480V)
• Integrated Slipfitter Mount
• 10-Year Manufacturer Warranty
