RAB FWAFER4B 4 in. Baffle Downlight 11W 991 Lumens Selectable CCT Fire Rated
Available in stock (200)
About this item
About this item

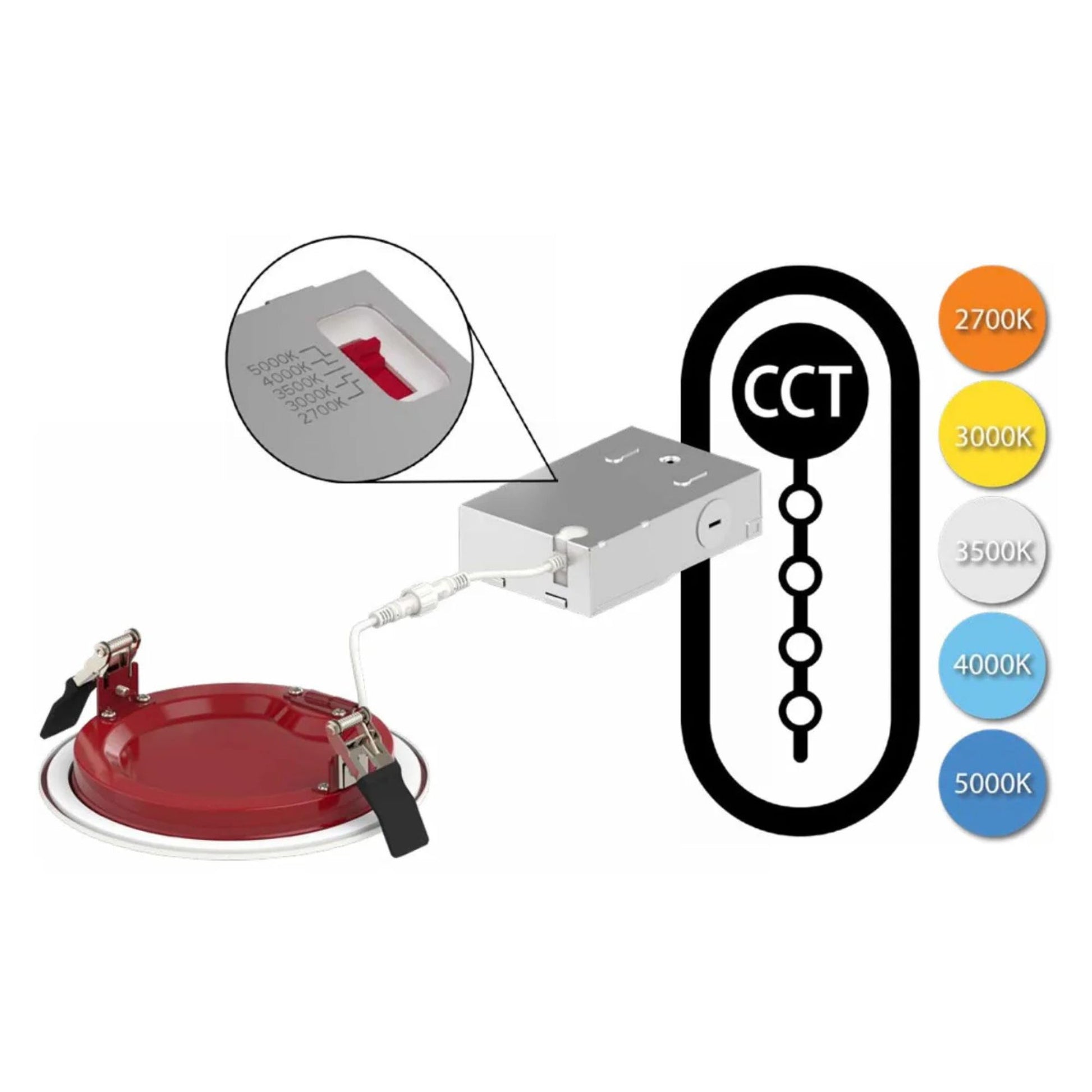

- Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- Lumens: Up to 991 lumens
- Wattage: 11W, equivalent to 60W incandescent
- Dimming: Compatible with TRIAC/ELV dimming systems

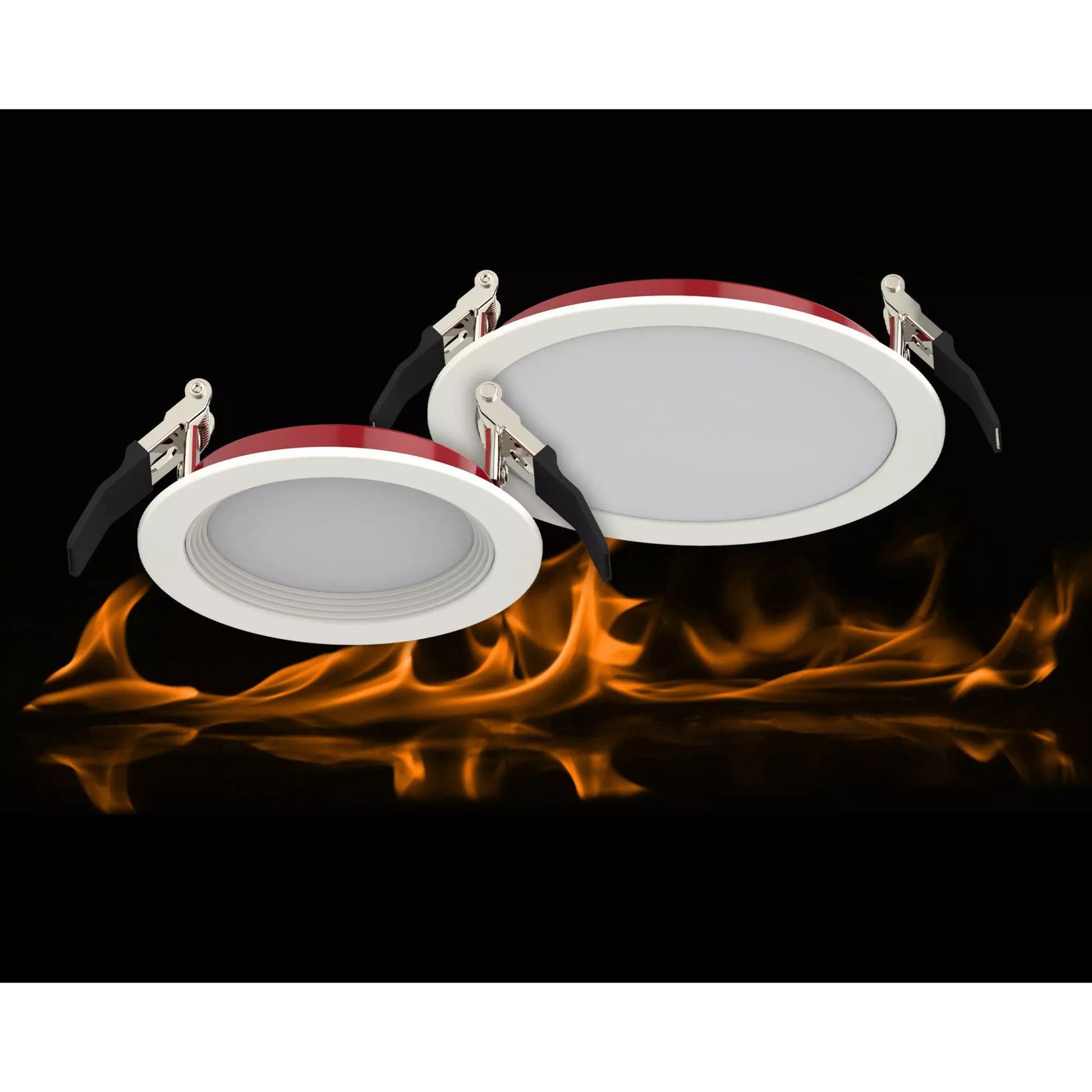

- Fire Rated: Complies with UL 263 for 2 hours
We process payments securely and do not store credit card information.
Description
Description

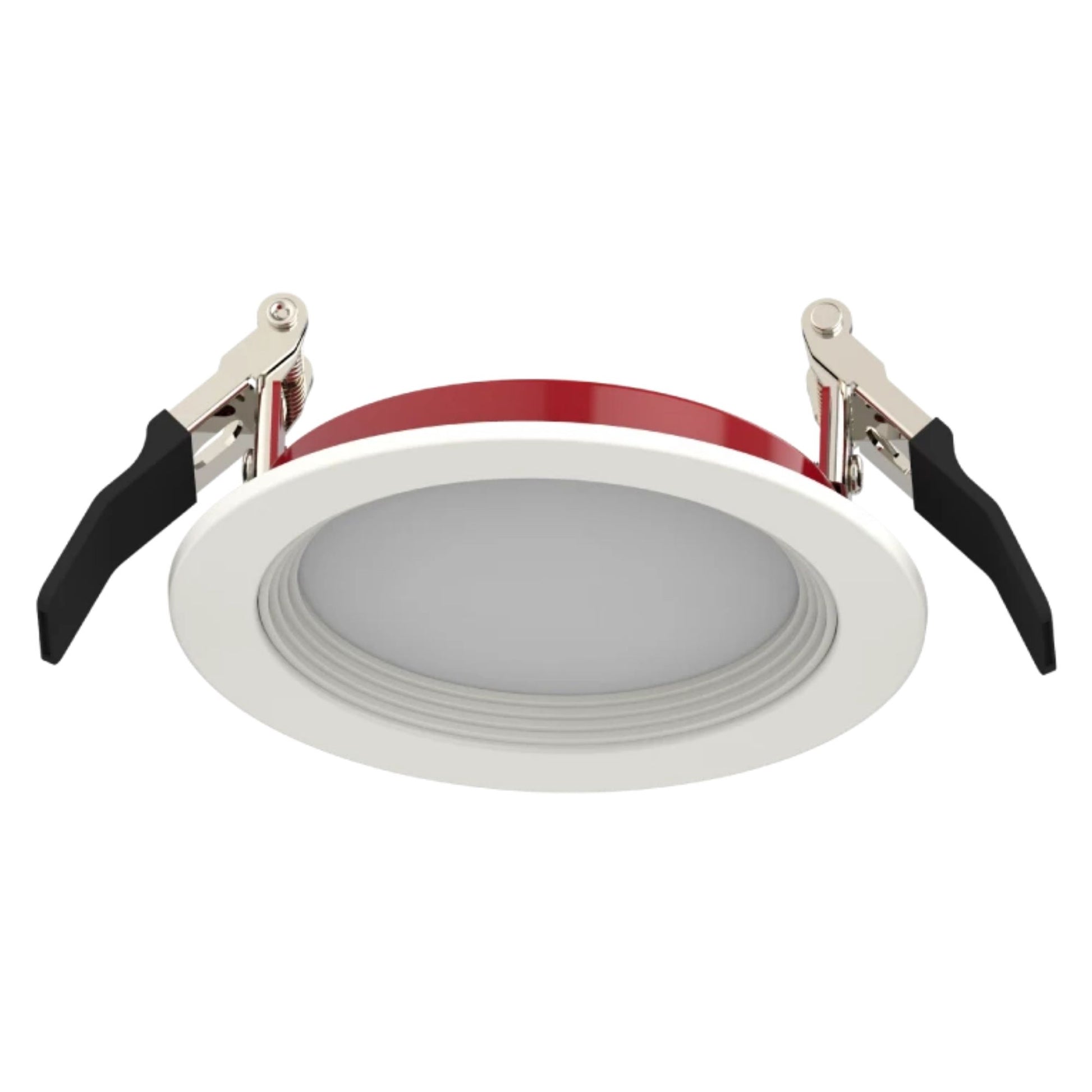

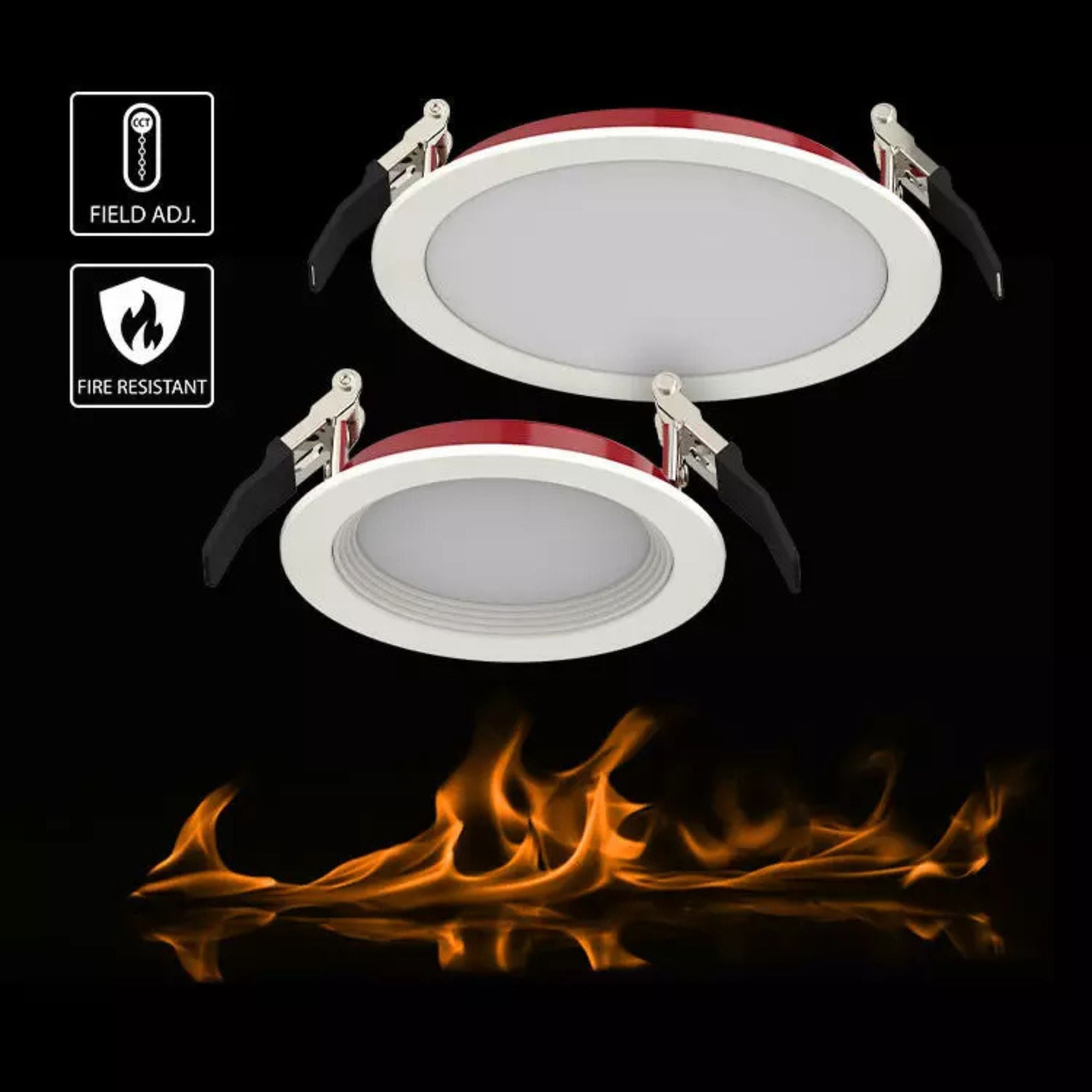

RAB FWAFER4B 4 in. Baffle Downlight — 11W / Selectable CCT
The RAB FWAFER4B is a 4-inch baffle downlight delivering up to 991 lumens using 11W. This fire-rated edge-lit wafer features selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K) for versatile lighting solutions. Ideal for both new construction and retrofit applications.

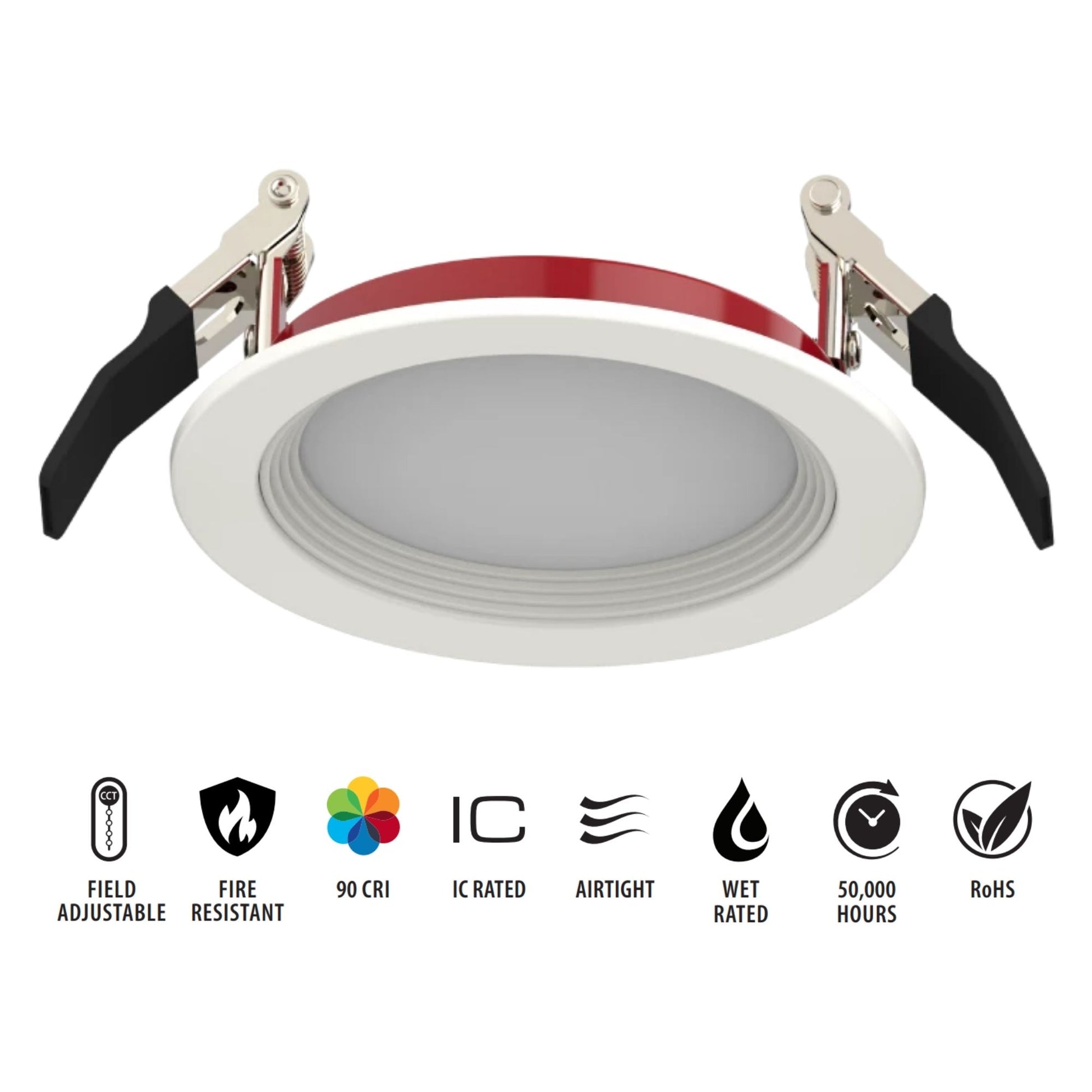

Key Features
- Wattage Equivalency: 60W Incandescent
- Input Voltage: 120V
- Color Accuracy: >90 CRI
- L70 Lifespan: 50,000 hours
- Beam Angle: 90°

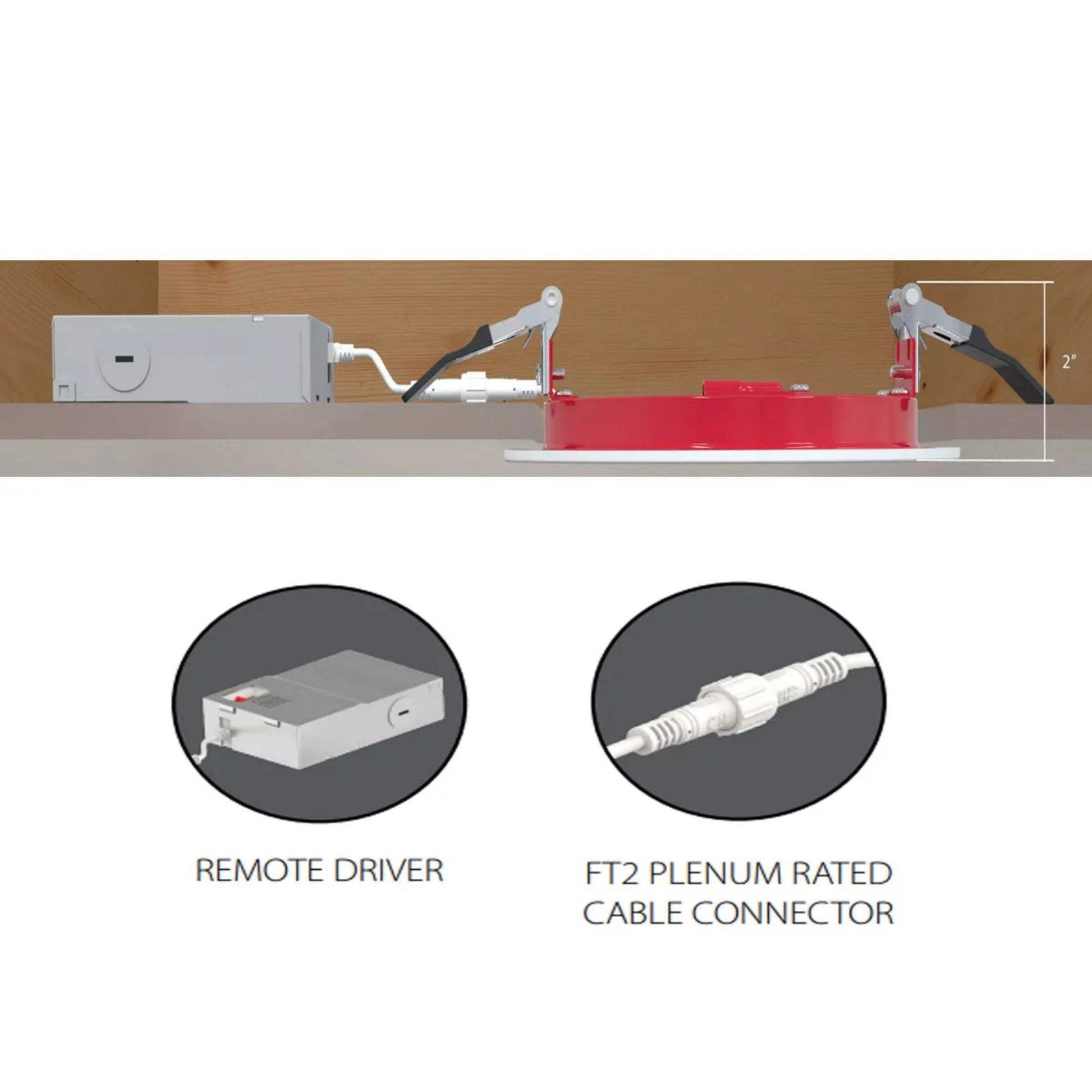

- Installation: Recessed with spring-loaded clips
- Driver: Constant Current, Class 2
- Energy Star Approved: Yes
- Title 24 JA8 Compliant: Yes
- RoHS Compliant: Yes
- Operating Temperature: -4°F to 104°F
- Warranty: 5 years
Construction & Aesthetics
The downlight features a baffle trim style with a polycarbonate light diffuser for even light distribution. It is available in a white and red finish. Accessories such as extension cables are available for extended installations.
Electrical & Installation
Designed for 120V systems, this fixture supports TRIAC/ELV dimming down to 10%. It includes a cutout template for easy installation and can be mounted in ceilings from 3/8'' to 5/8'' thick.
Light Output & Performance
With a high color accuracy of >90 CRI and a beam angle of 90°, this downlight ensures excellent light quality and performance. The LED lifespan is rated at 50,000 hours.
Typical Applications
- Residential lighting
- Commercial spaces
- Retail environments
- Hospitality settings
- Office lighting
Specifications
Specifications

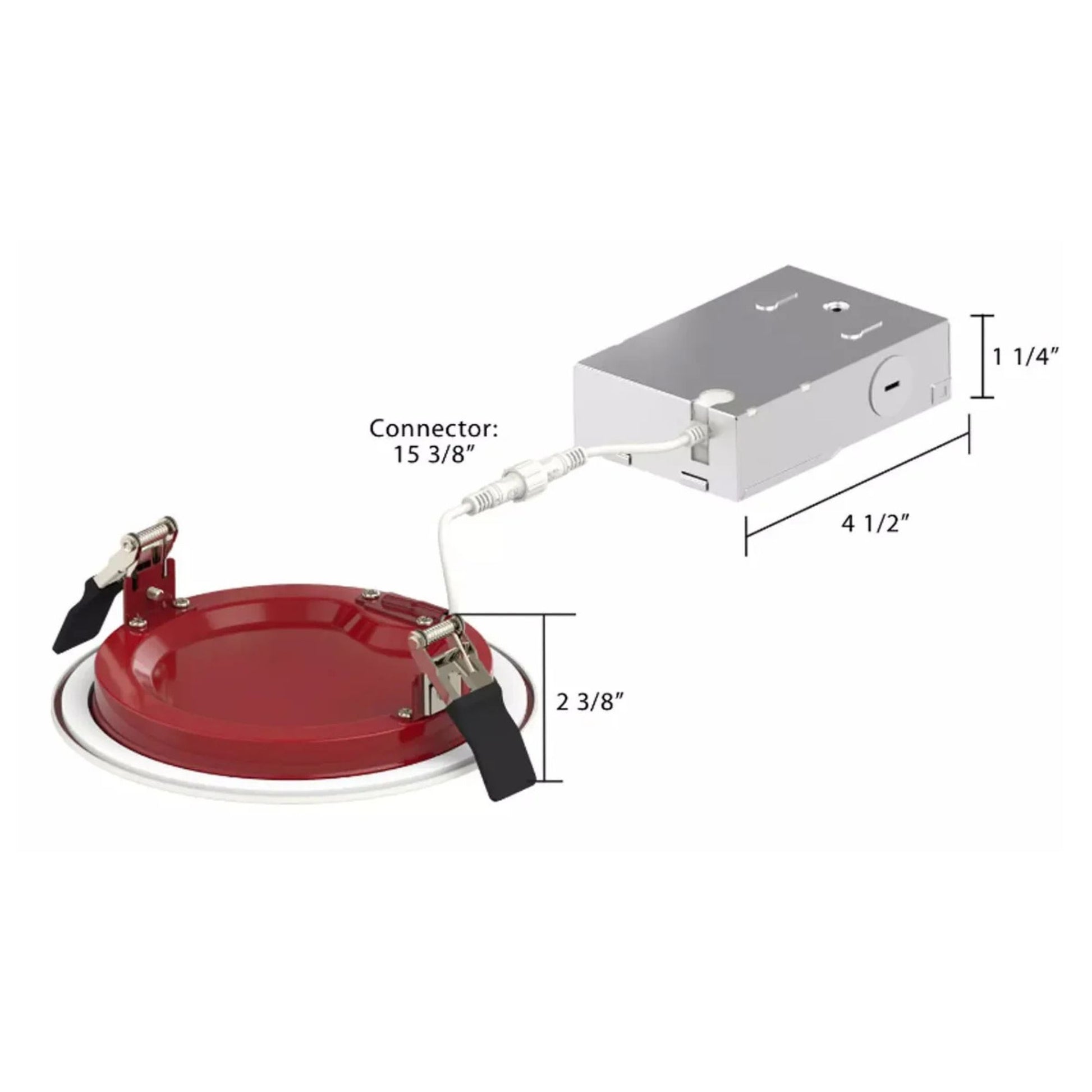

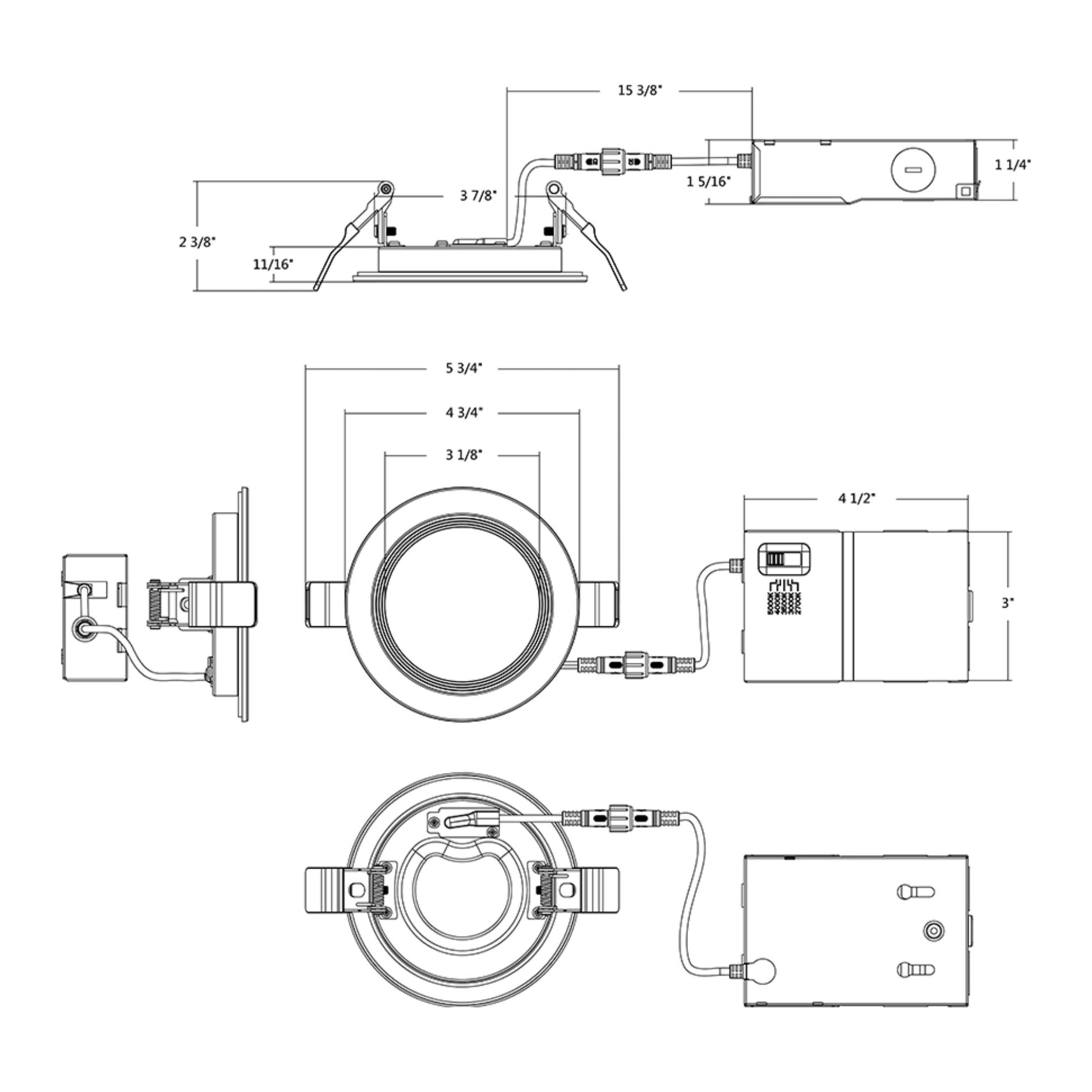

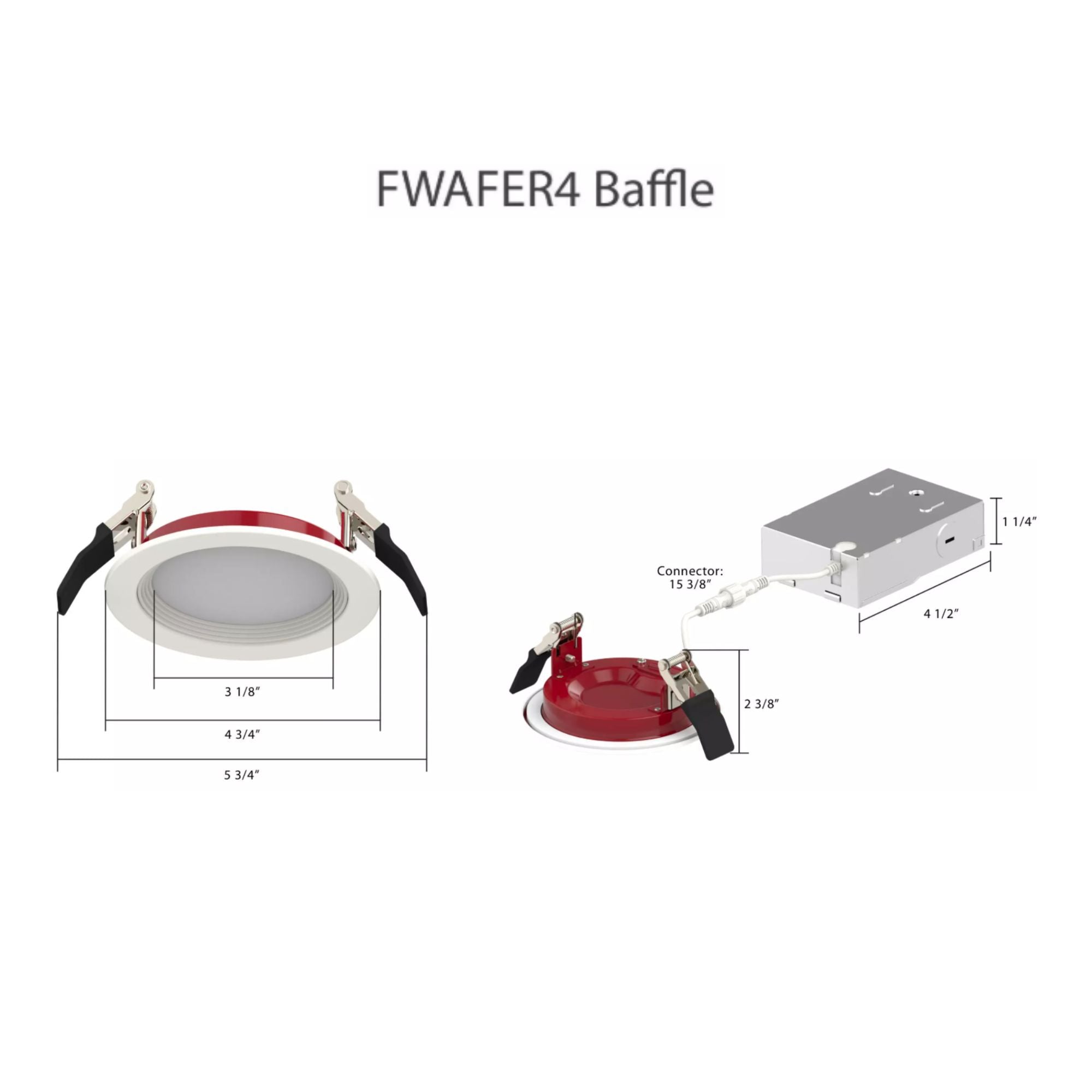

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can the RAB FWAFER4B be used in wet locations?
Can the RAB FWAFER4B be used in wet locations?
What is the wattage equivalency of the RAB FWAFER4B?
What is the wattage equivalency of the RAB FWAFER4B?
Is the RAB FWAFER4B dimmable?
Is the RAB FWAFER4B dimmable?
What is the beam angle of the RAB FWAFER4B?
What is the beam angle of the RAB FWAFER4B?
Does the RAB FWAFER4B come with a warranty?
Does the RAB FWAFER4B come with a warranty?
