RAB FGIMBAL4 4 in Smooth Trim Fire-Resistant Gimbal Downlight — 9W / Selectable CCT / 120V / White+Red

The RAB FGIMBAL4 is a 4 in round fire-resistant adjustable gimbal downlight in white+red finish with a smooth trim, delivering up to 784 lumens at 9W with an adjustable 40° beam angle and 90° gimbal tilt for precise directional illumination. Tested and certified to UL 263 and ASTM E119 for 2-hour fire resistance, this fixture is engineered for fire-rated ceiling assemblies in both new construction and retrofit applications. The canless design mounts directly to the ceiling via the included die-formed metal remote driver/junction box — no recessed housing required. CCT is field-selectable between five color temperatures via integrated dipswitch, with TRIAC/ELV dimming at 120V.

Key Features

• 2-Hour Fire Resistance: Tested and certified to UL 263 and ASTM E119 for 2-hour fire resistance
• Adjustable Gimbal: 90° tilt range for directional spot illumination; single optic and full face frosted lens for precise beam angle control

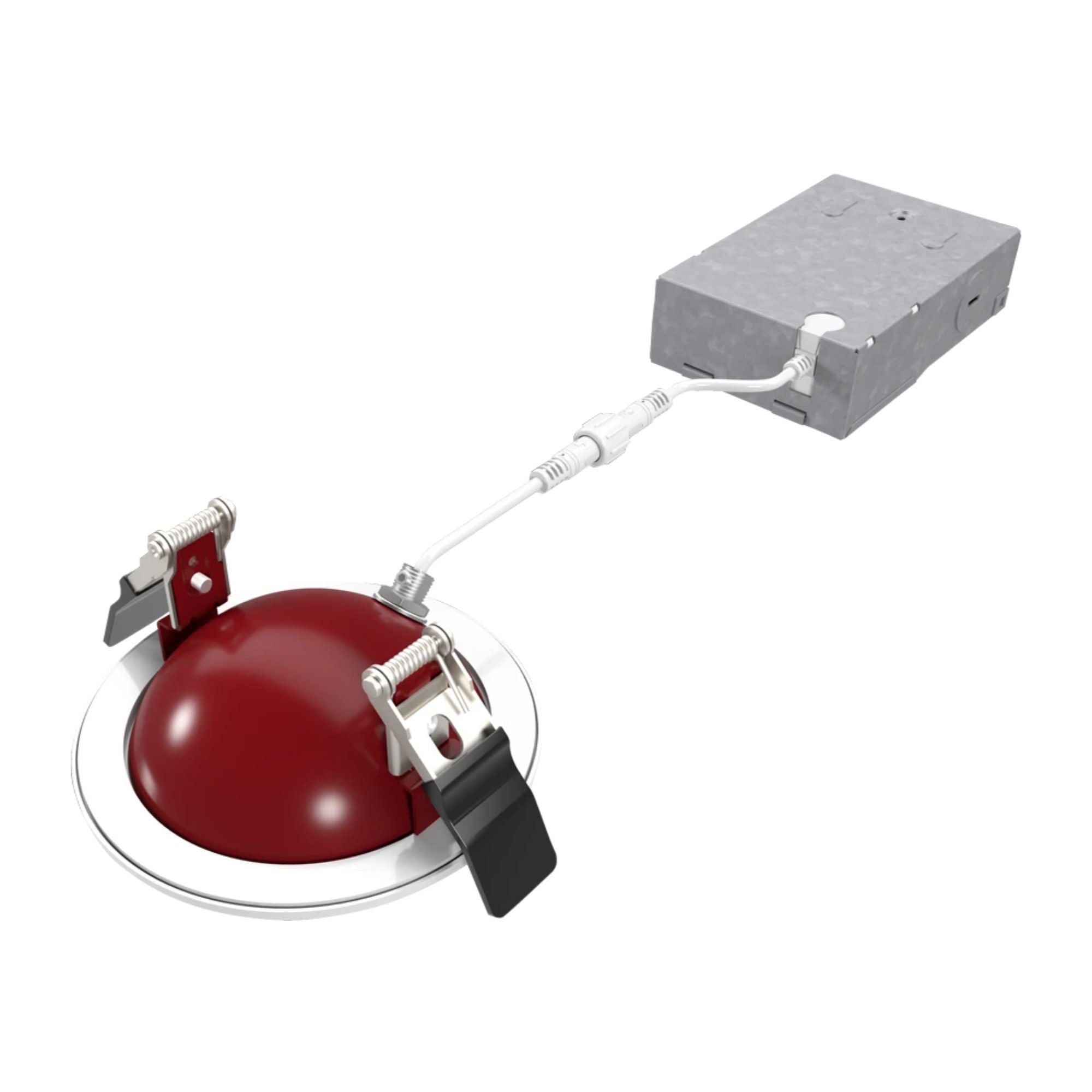

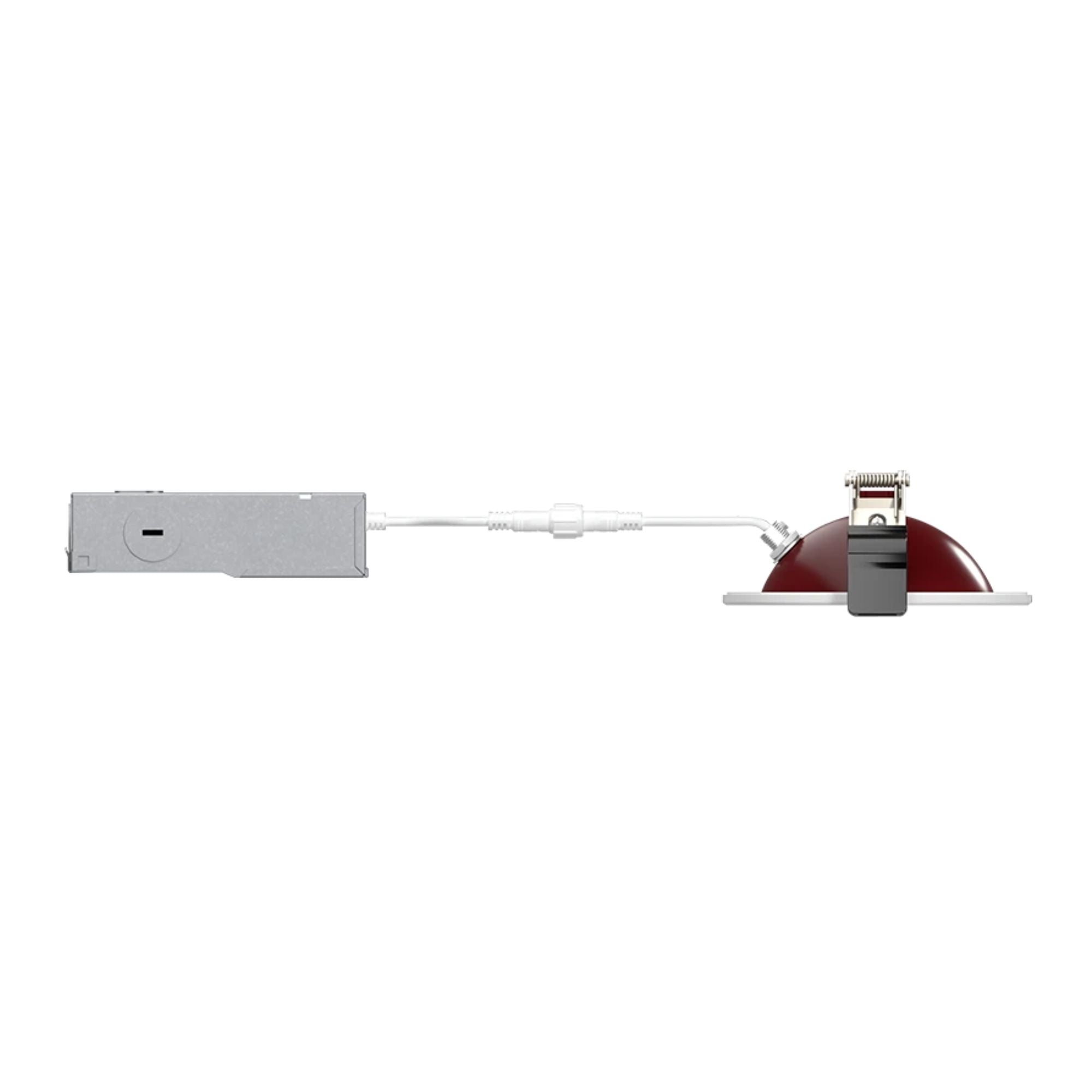

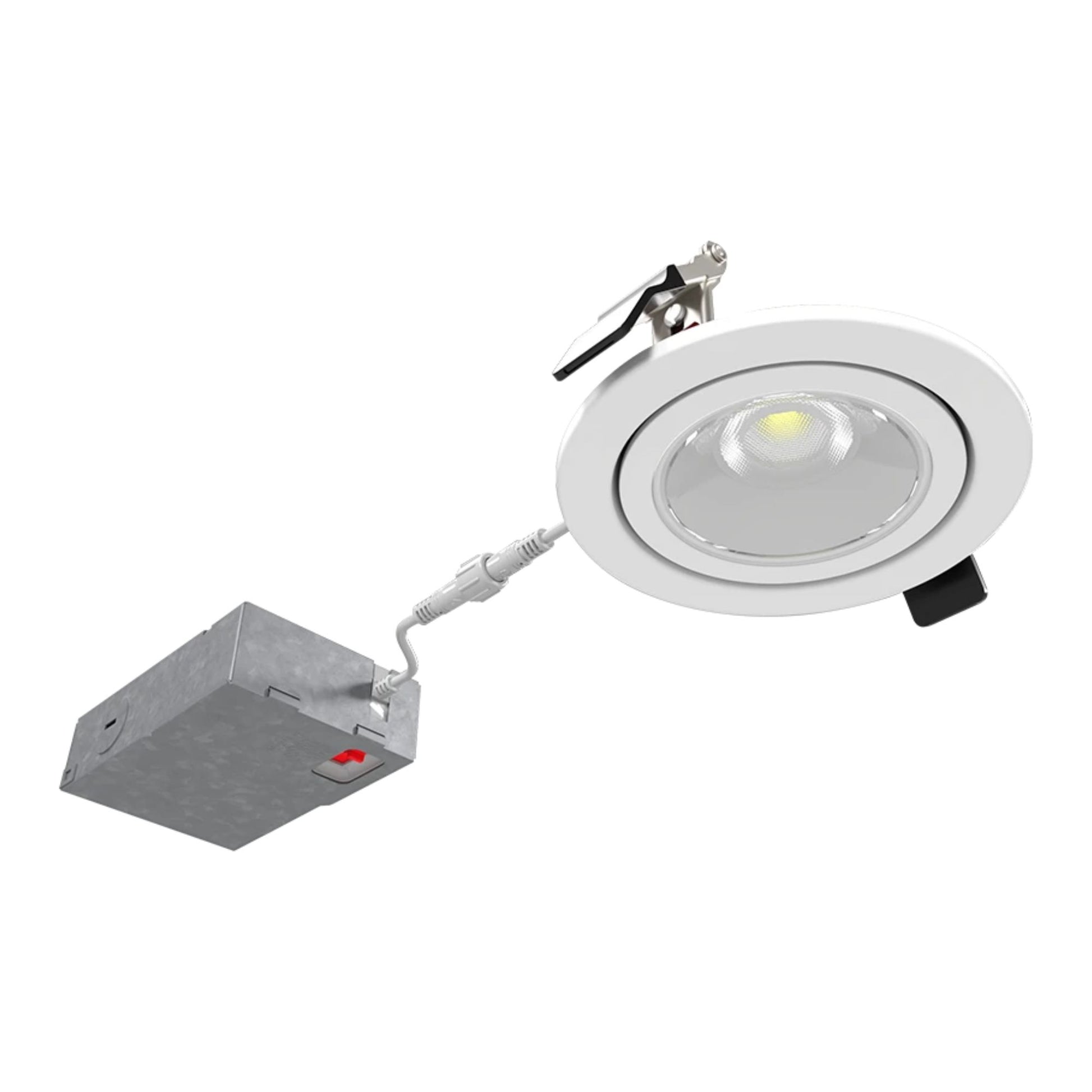

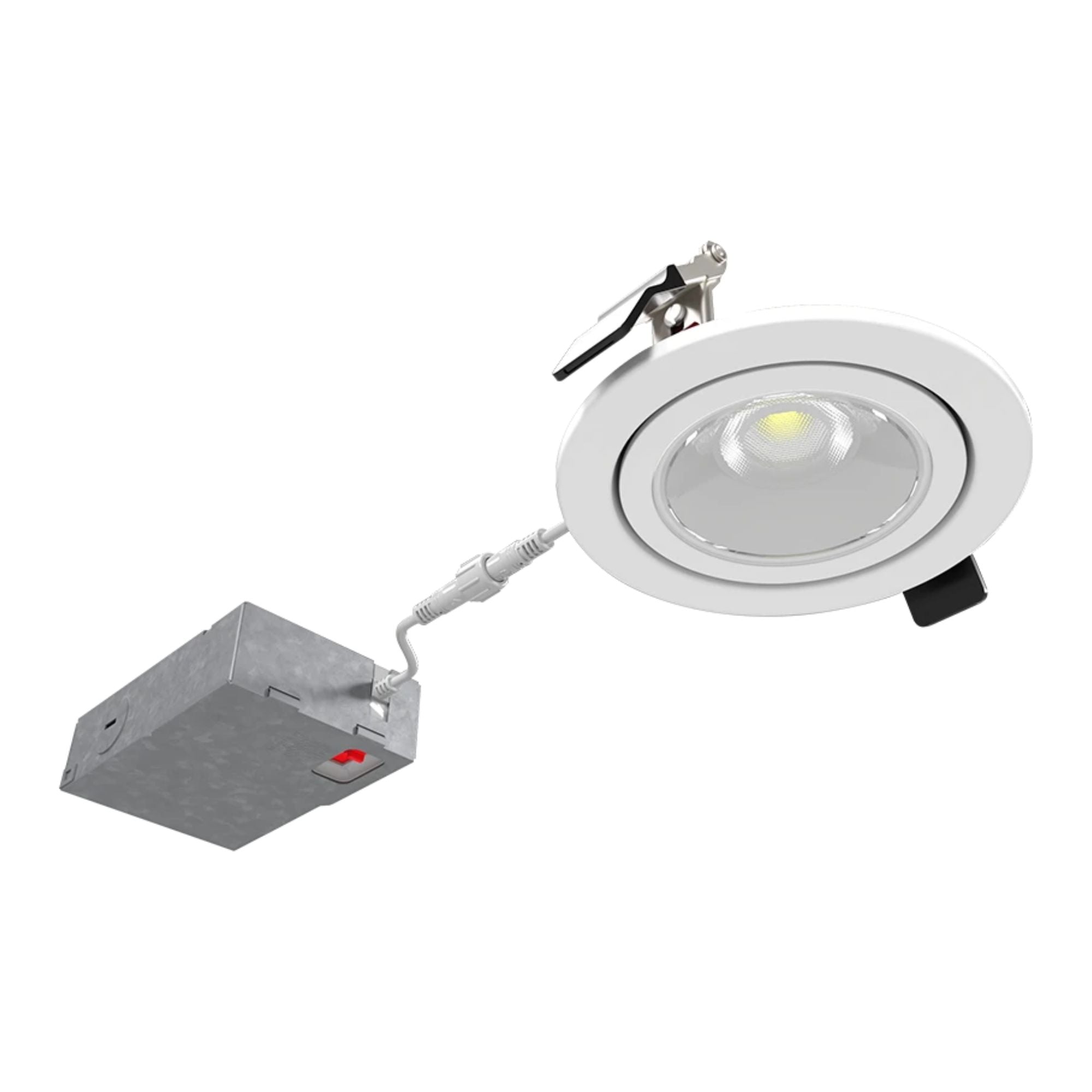

• No Housing Required: Mounts directly to ceiling via die-formed metal remote driver/J-box

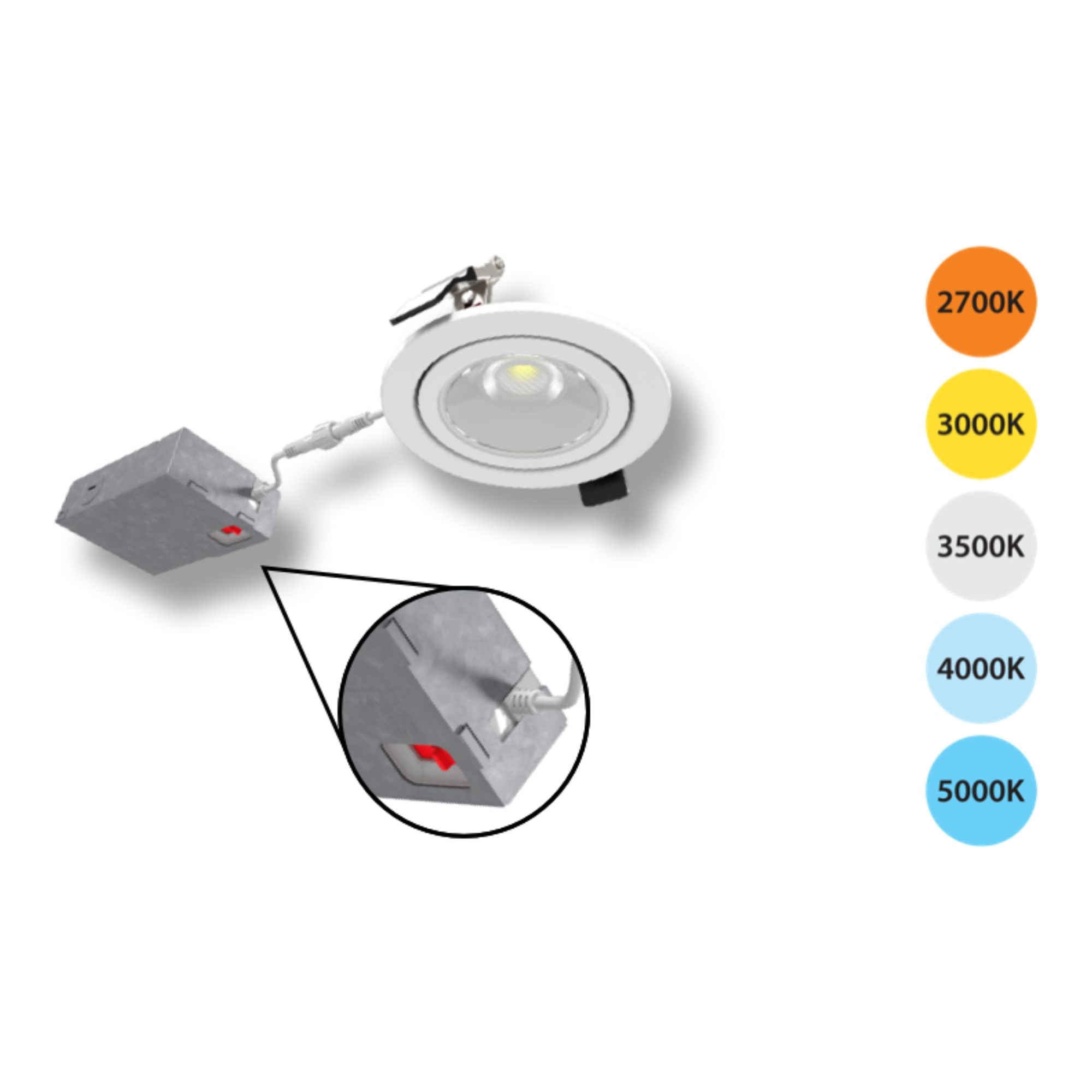

• Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K; 5 CCTs in 1 SKU
• Lumen Output: 784 lm (5000K); 780 lm (4000K); 757 lm (3500K); 714 lm (3000K); 693 lm (2700K)
• Wattage Equivalency: 60W incandescent equivalent
• Input Wattage: 9W
• CRI: >90 with R9 > 50
• Efficacy: 77–87 lm/W across all CCTs
• Beam Angle: 40° spot

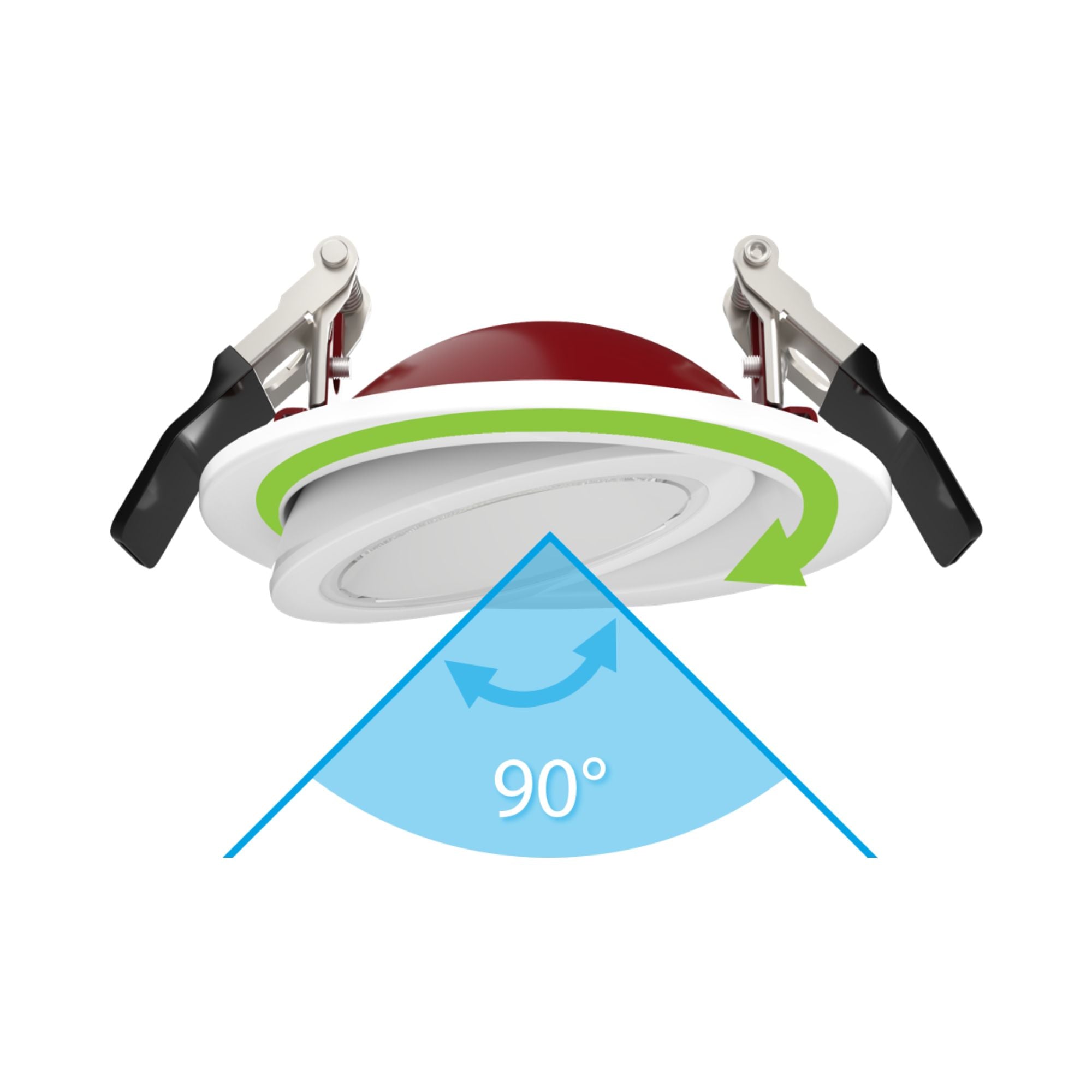

• Tilt: 90° gimbal range
• Dimming: TRIAC/ELV compatible; dimmable to 10%
• Voltage: 120V
• Trim Style: Smooth white+red
• Lens: Single optic + full face frosted lens for precise beam angle control
• Enclosure: Metal with fire-resistant red coating
• Mounting: Recessed; spring-loaded retention clips
• IC Rated: Suitable for direct insulation contact (not for direct contact with spray foam insulation; consult NEMA LSD57-2013)
• NEC Compliant for Closets: Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3)
• Certifications: UL Listed, ENERGY STAR, Title 24 JA8, RoHS, FCC Part 15, Trade Agreements Act compliant
• Warranty: 5-year no-compromise warranty

Smart & Control Features

The FGIMBAL4 is compatible with TRIAC/ELV dimming systems at 120V, dimmable to 10%. CCT is field-adjustable via integrated dipswitch — select from 2700K, 3000K, 3500K, 4000K, or 5000K at installation. Compatible with the DRI-EMB-15S-LV 2-in-1 Driver + Battery Backup (sold separately) for code-compliant emergency lighting.

Construction & Design

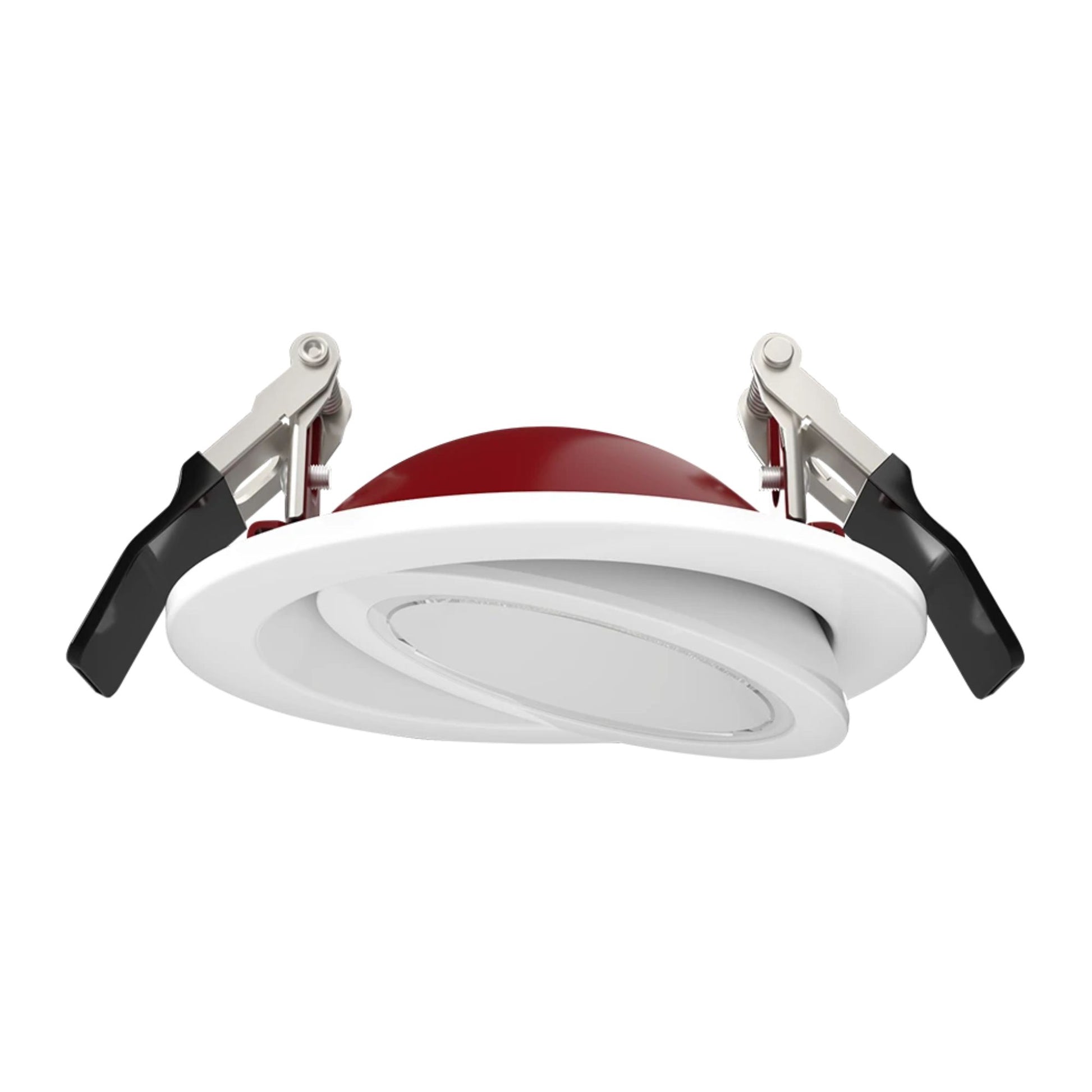

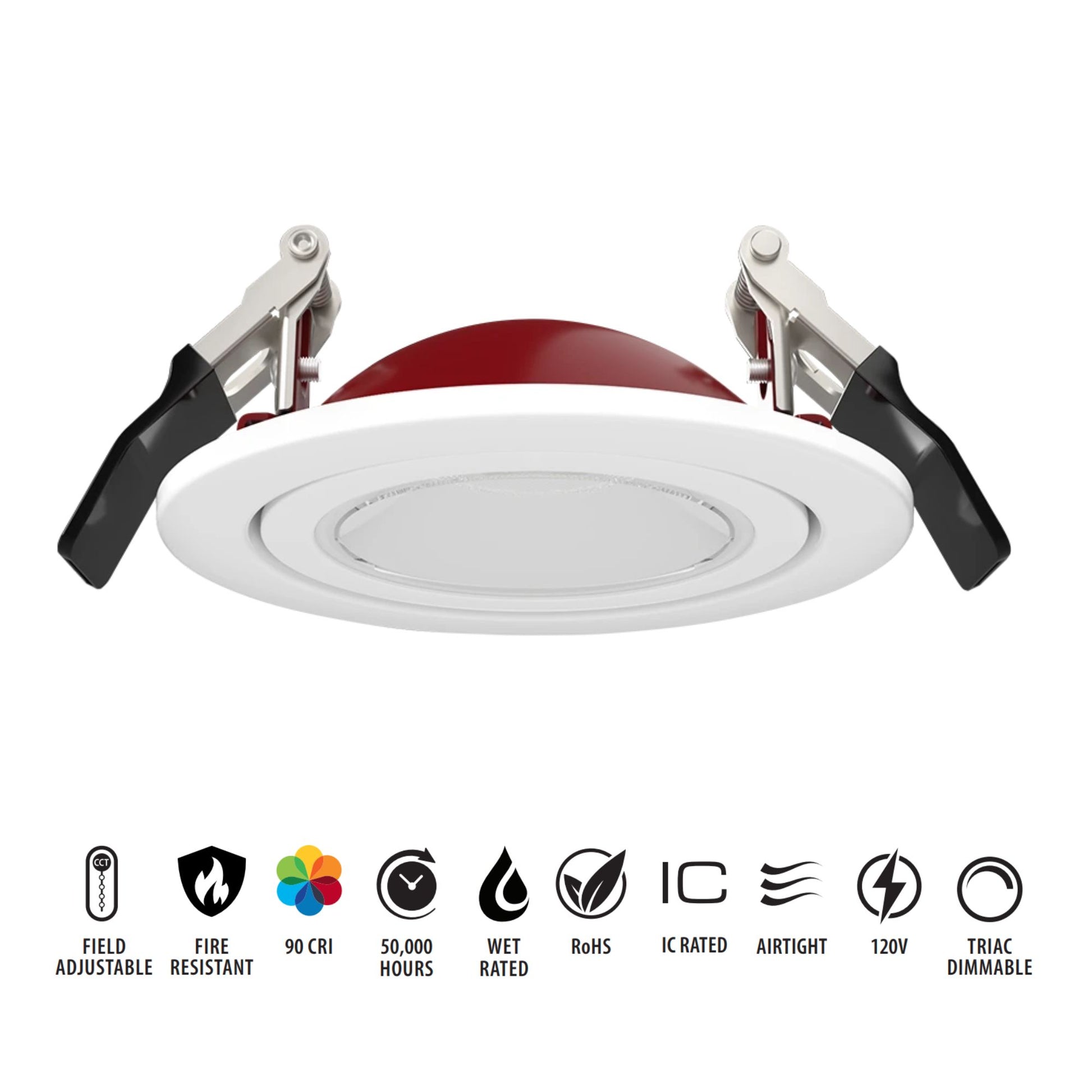

The FGIMBAL4 features a metal enclosure with fire-resistant red coating and a smooth trim in white+red finish with a single optic and full face frosted lens for precise, glare-controlled directional illumination. Spring-loaded retention clips secure the fixture to the ceiling. Weight: 1.1 lbs.

Light Output & Performance

With efficacy up to 87 lm/W (4000K/5000K), a 90 CRI, R9 > 50, and a focused 40° beam angle with 90° gimbal tilt, the FGIMBAL4 delivers precise directional illumination for accent and task lighting applications. Color temperature binning: <7-step MacAdam Ellipse (3000K/3500K/4000K); <4-step (2700K/5000K). Rated lifespan: 50,000 hours L70 per IES LM-70.

Electrical & Installation

Operates on 120V with a Constant Current, Class 2 driver. TRIAC/ELV dimmable to 10%. Mounts directly to ceiling via die-formed metal remote driver/J-box — no recessed housing required. IC rated (not for spray foam; consult NEMA LSD57-2013). THD ≤20%; Power Factor ≥0.9; Flicker: 5%; Operating Temperature: -4°F to 104°F (-20°C to 40°C).

Compatible Accessories (sold separately)

• Extension cables: 6 ft, 12 ft, 20 ft
• DRI-EMB-15S-LV 2-in-1 Driver + Battery Backup

What’s Included

• RAB FGIMBAL4 4 in smooth trim fire-resistant gimbal downlight (white+red)
• Die-formed metal remote driver/junction box
