RAB FFLEDLTW 230W Selectable LED Flood Light 38,662 Lumens 120-230W Selectable 40K/50K Trunnion Mount 120-277V White
Available in stock (100)
About this item
About this item
- Output: Delivers up to 38,662 lumens with three field-adjustable wattage settings (230W, 180W, 120W) for versatile high-output lighting control.
- Voltage & Dimming: Operates on a universal 120-277V AC input with standard 0-10V dimming capabilities for advanced illumination management.
- Environmental Rating: Rigorously IP66 rated for complete protection against dust and powerful water jets, and UL Listed for wet locations.
- Optics / Distribution: Features a wide NEMA 7H x 6V beam spread and field-adjustable color temperatures (4000K/5000K) to suit large-scale outdoor applications.
- Mounting Type: Equipped with a heavy-duty trunnion mount designed for highly secure surface installations and architectural aiming.
We process payments securely and do not store credit card information.
Description
Description

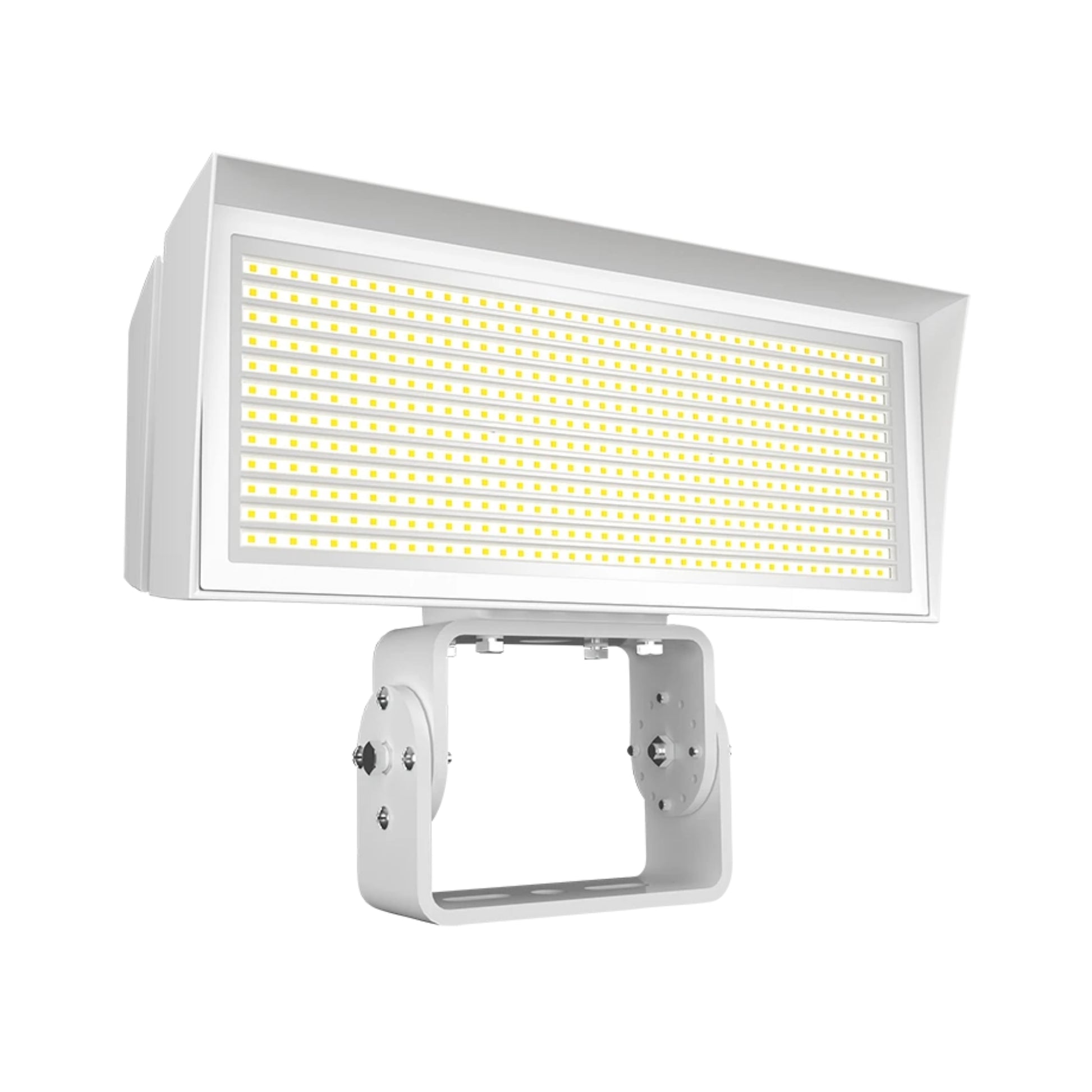

RAB FFLEDLTW Large Field-Adjustable Floodlight — 230W, Selectable CCT & Power, Trunnion Mount, 120-277V, White
The RAB FFLEDLTW is a highly efficient, large-form LED flood light in a clean white finish, designed for massive light output and rugged outdoor performance. This versatile fixture produces up to 38,662 lumens and allows installers to choose between three high-power levels (230W, 180W, 120W) and two color temperatures (4000K and 5000K) directly in the field. It features a NEMA 7H x 6V beam spread, providing a broad, powerful wash of light ideal for expansive building facades, large commercial signs, and parking lots. Built for longevity, the FFLEDLTW is housed in precision die-cast aluminum with an ultra-clear tempered glass lens and earns a rigorous IP66 rating for superior durability against the elements. With an industry-leading 10-year warranty, standard 0-10V dimming, and a highly stable trunnion mount, it is the perfect long-term solution for professional-grade exterior lighting.
Key Features

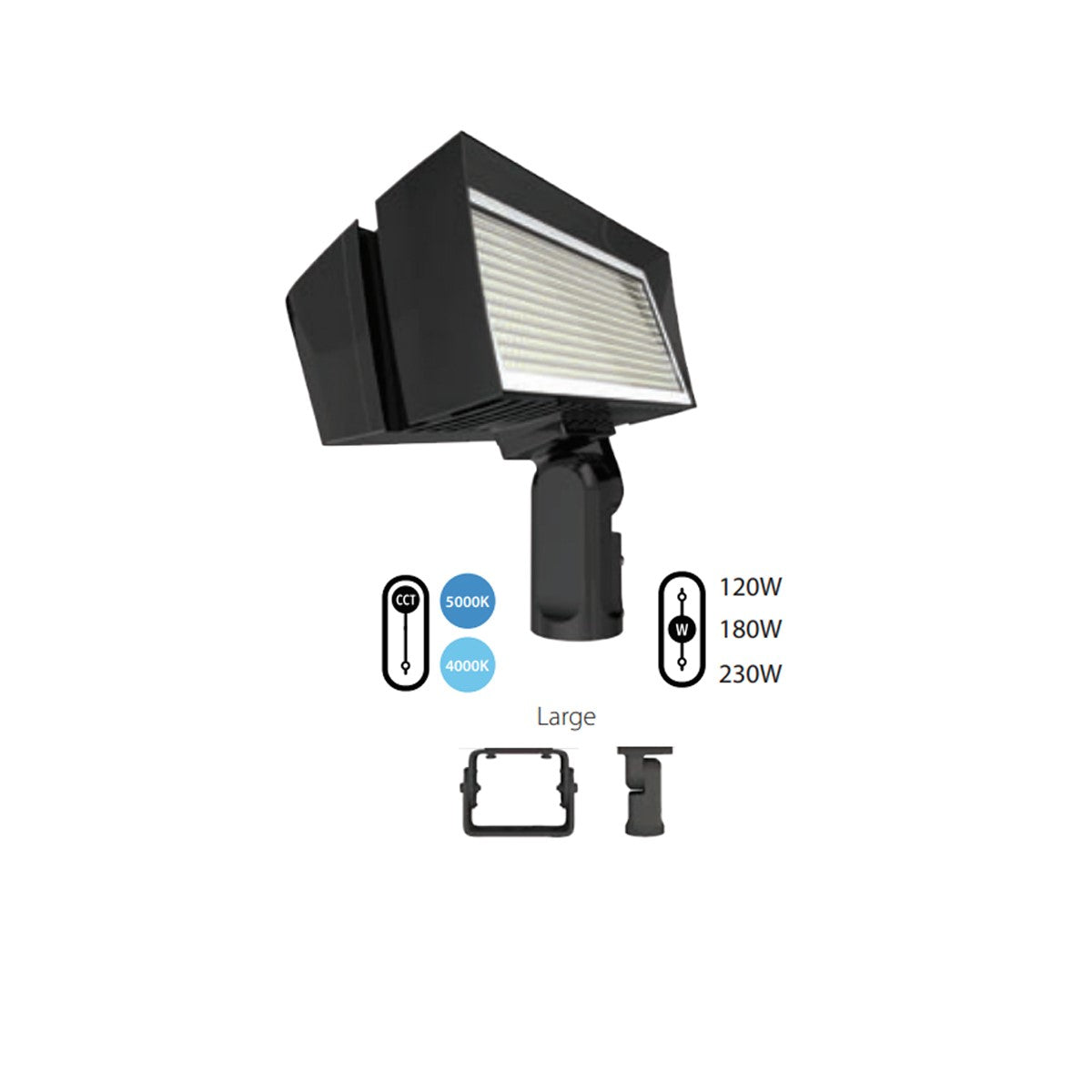

- Wattage: Field adjustable to 230W, 180W, or 120W (factory default 230W).
- Selectable CCT: Field adjustable between 4000K (Neutral) and 5000K (Cool).
- Dimming: Integrated 0-10V dimming capabilities, dimming down to 10%.
- NEMA Type: Wide NEMA 7H x 6V beam spread.
- Mounting Type: Heavy-duty trunnion mount with 30° tilt increments.
- TAA Compliant: Trade Agreements Act compliant product.
- Delivered Lumens: Up to 38,662 lumens at the 230W 5000K setting.
- Environmental Ratings: IP66 rated for dust and water; UL Listed for wet locations.
- Warranty: Industry-leading 10-year, no-compromise warranty.
Typical Applications
- White-themed large building perimeters and facade illumination
- Expansive landscape, monument, and flag pole lighting
- Large commercial signage and billboards
- General high-output exterior area and security lighting
Performance & Light Output
The FFLEDLTW provides massive, uniform light with a maximum output of 38,662 lumens. Its advanced optical design ensures excellent color consistency through 7-step MacAdam Ellipse binning. With long-life LEDs rated for 100,000 hours, this fixture significantly reduces maintenance and energy costs over time.
Electrical & Controls
Equipped with a Class 2 constant current driver and robust 6kV surge protection, the FFLEDLTW is built for stable performance on 120-277V systems. It supports standard 0-10V dimming for integration with motion sensors or control systems to further enhance energy savings.
Construction & Durability
The fixture features a rugged die-cast aluminum housing finished in a durable white and sealed with high-temperature silicone gaskets. Its IP66 rating confirms total protection against dust and powerful water jets, safely operating in extreme temperatures ranging from -40°F (-40°C) up to 104°F (40°C).
Installation & Mounting
This model includes an integrated heavy-duty trunnion mount, ideal for surface installations such as walls, ceilings, or ground bases. The mount features a 30° tilt increment for very precise and secure light aiming.
What's Included
- RAB FFLEDLTW LED Field-Adjustable Floodlight (White)
- Integrated Trunnion Mount
- 10-Year Manufacturer Warranty
Specifications
Specifications

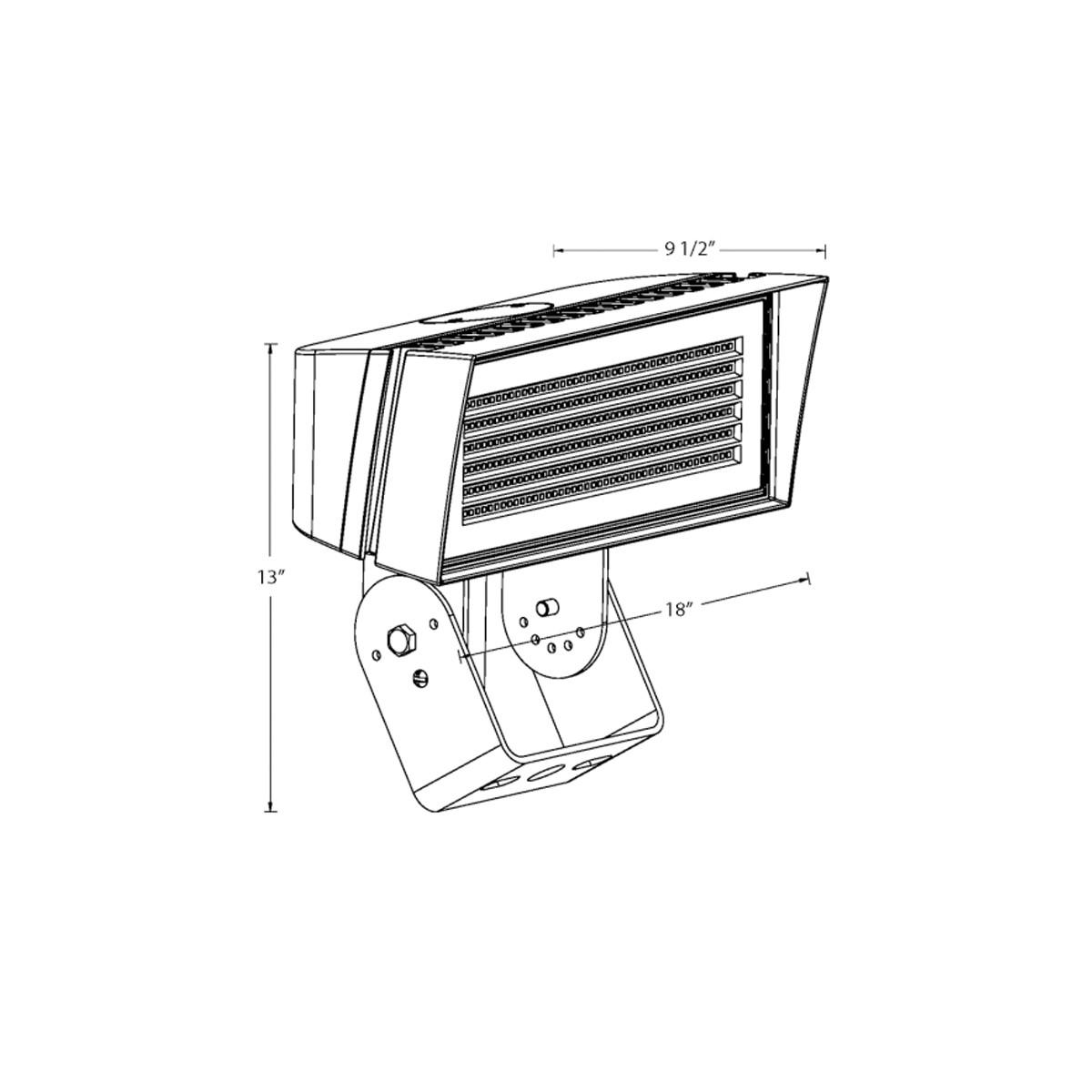

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the beam angle on this fixture?
What is the beam angle on this fixture?
Can I adjust the color temperature on the job site?
Can I adjust the color temperature on the job site?
Does the RAB FFLEDLTW include a photocell?
Does the RAB FFLEDLTW include a photocell?
Is the wattage adjustable?
Is the wattage adjustable?
Is this fixture durable enough for severe weather?
Is this fixture durable enough for severe weather?
