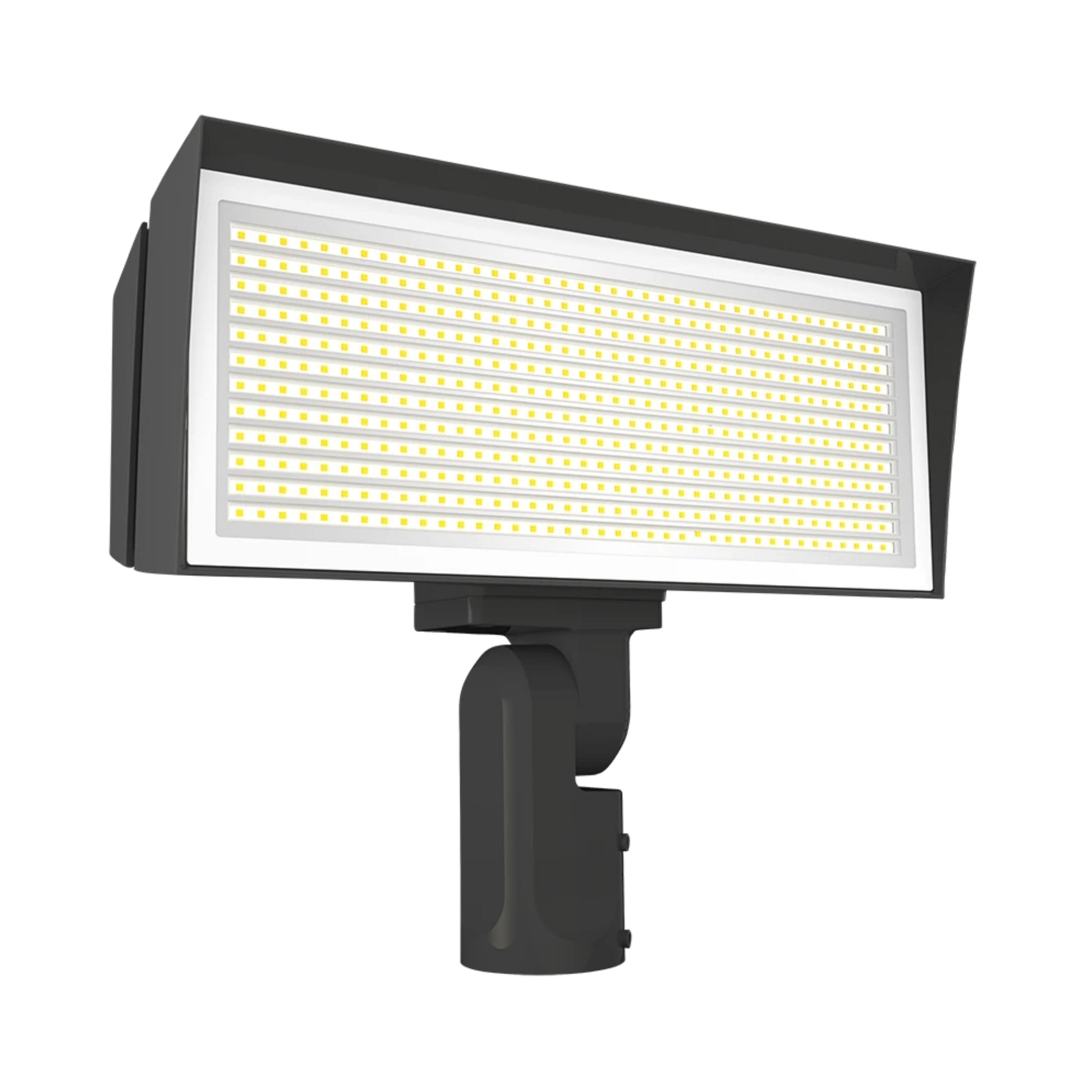

RAB FFLEDLSF Large Field-Adjustable Floodlight — 230W, Selectable CCT & Power, Slipfitter Mount, 120-277V, Bronze

The RAB FFLEDLSF is a highly efficient, large-form LED flood light designed for massive light output and rugged outdoor performance. This versatile fixture produces up to 38,662 lumens and allows installers to choose between three high-power levels (230W, 180W, 120W) and two color temperatures (4000K and 5000K) directly in the field. It features a NEMA 7H x 6V beam spread, providing a broad, powerful wash of light ideal for expansive building facades, large commercial signs, and parking lots. Built for longevity, the FFLEDLSF is housed in precision die-cast aluminum with an ultra-clear tempered glass lens and earns a rigorous IP66 rating for superior durability against the elements. With an industry-leading 10-year warranty, standard 0-10V dimming, and a highly stable slipfitter mount, it is the perfect long-term solution for professional-grade exterior lighting.

Key Features

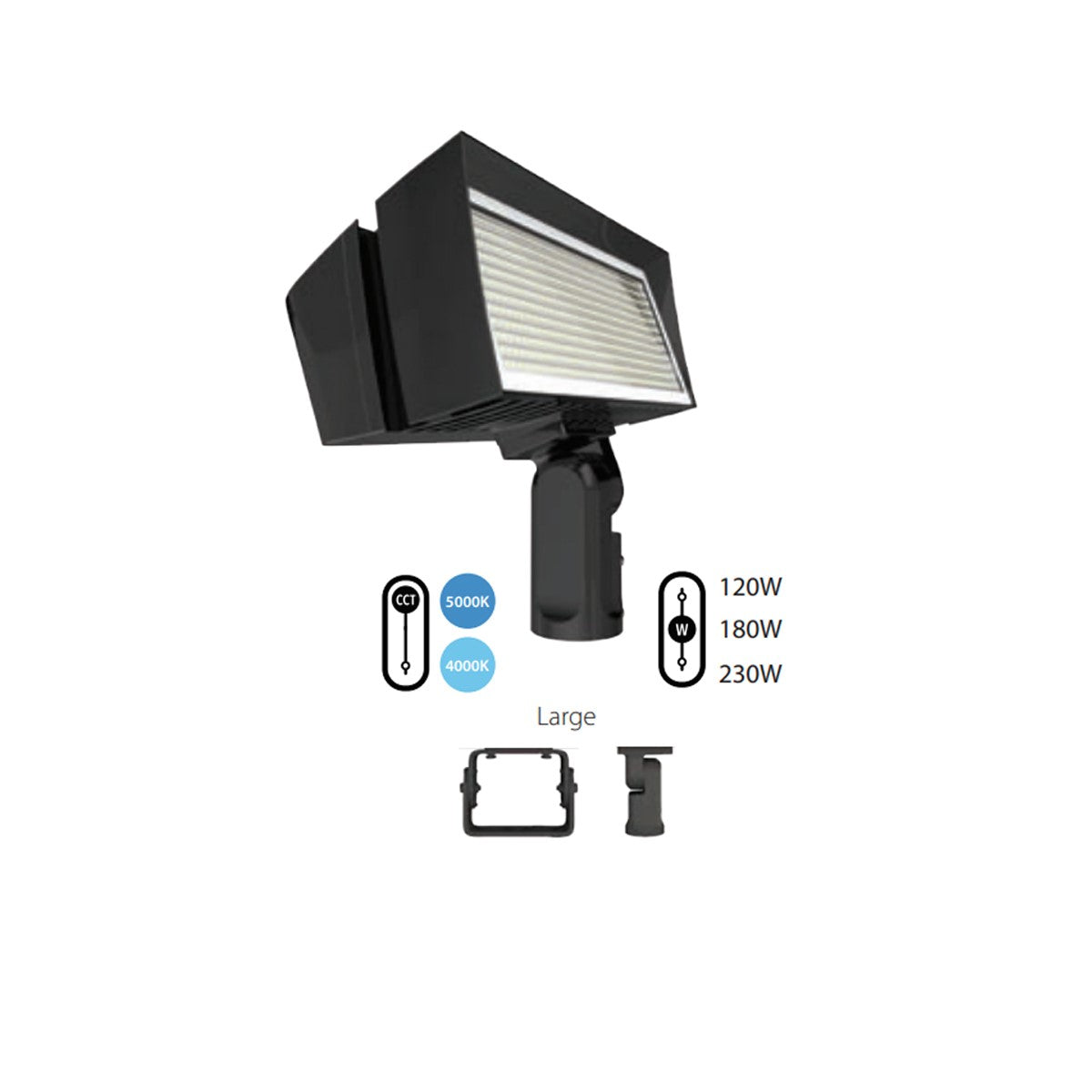

• Wattage: Field adjustable to 230W, 180W, or 120W (factory default 230W).
• Selectable CCT: Field adjustable between 4000K (Neutral) and 5000K (Cool).
• Dimming: Integrated 0-10V dimming capabilities, dimming down to 10%.
• NEMA Type: Wide NEMA 7H x 6V beam spread.
• Mounting Type: Heavy-duty slipfitter mount with 5° tilt increments.
• TAA Compliant: Trade Agreements Act compliant product.
• Delivered Lumens: Up to 38,662 lumens at the 230W 5000K setting.
• Environmental Ratings: IP66 rated for dust and water; UL Listed for wet locations.
• Warranty: Industry-leading 10-year, no-compromise warranty.

Typical Applications

• Large building perimeters and facade illumination
• Expansive landscape, monument, and flag pole lighting
• Large commercial signage and billboards
• General high-output exterior area and security lighting

Performance & Light Output

The FFLEDLSF provides massive, uniform light with a maximum output of 38,662 lumens. Its advanced optical design ensures excellent color consistency through 7-step MacAdam Ellipse binning. With long-life LEDs rated for 100,000 hours, this fixture significantly reduces maintenance and energy costs over time.

Electrical & Controls

Equipped with a Class 2 constant current driver and robust 6kV surge protection, the FFLEDLSF is built for stable performance on 120-277V systems. It supports standard 0-10V dimming for integration with motion sensors or control systems to further enhance energy savings.

Construction & Durability

The fixture features a rugged die-cast aluminum housing finished in a durable bronze and sealed with high-temperature silicone gaskets. Its IP66 rating confirms total protection against dust and powerful water jets, safely operating in extreme temperatures ranging from -40°F (-40°C) up to 104°F (40°C).

Installation & Mounting

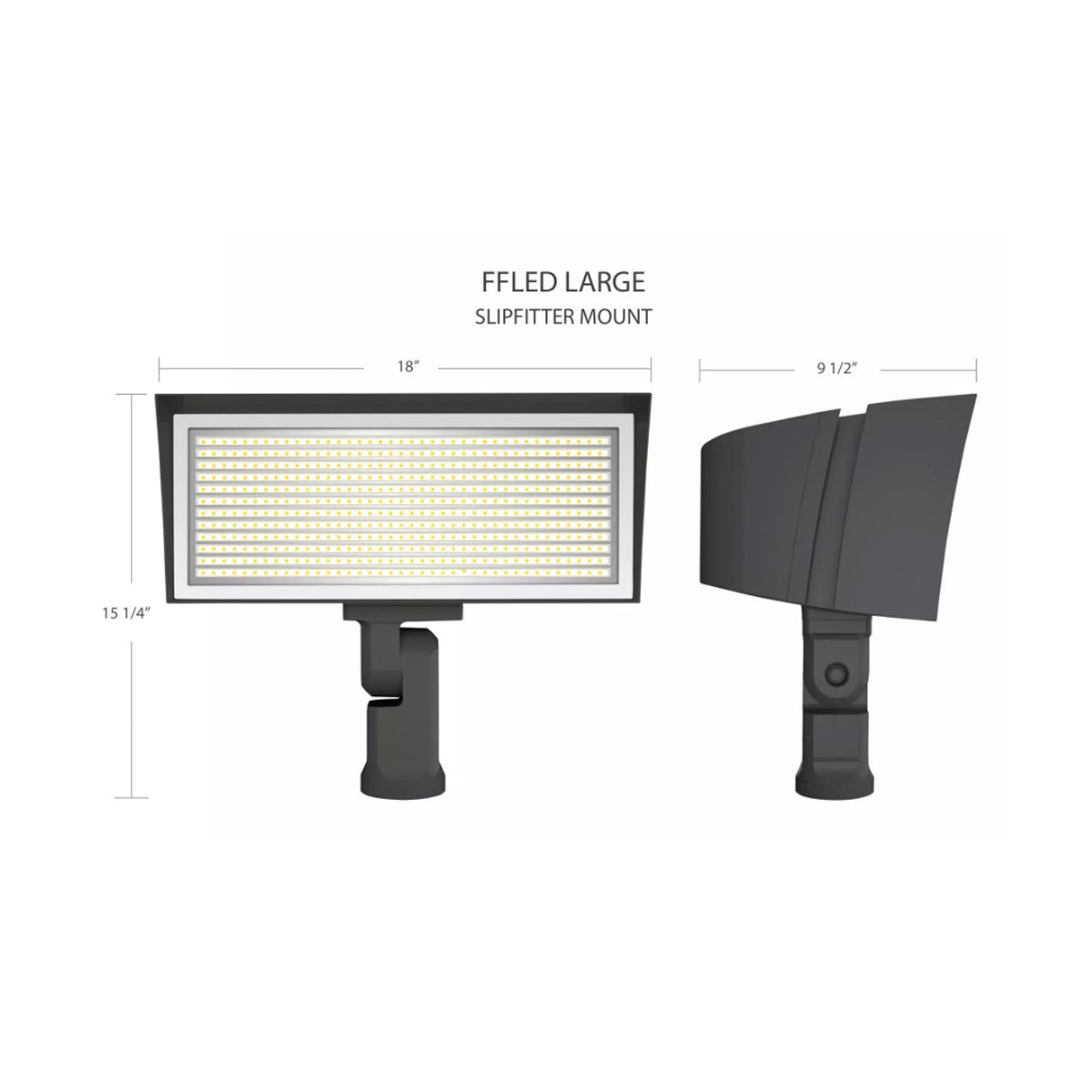

This model includes an integrated heavy-duty slipfitter mount, ideal for secure installations on standard poles or tenons. The mount features a 5° tilt increment for very precise light aiming.

What's Included

• RAB FFLEDLSF LED Field-Adjustable Floodlight (Bronze)
• Integrated Slipfitter Mount
• 10-Year Manufacturer Warranty
